What's new.
All our dreams can come true, if we have the courage to pursue them. ~ Walt Disney

A rental panel that you won't want out of your sight

Way back in 2020, Desay introduced two very fantastic new Series: the TVB installation panel and the TRB rental panel.

These siblings shared many characteristics including XY dimensions of 600 x 337.5 millimeters, which just so happens to create a perfect 16:9 aspect ratio using any equal grid of panels, such as 4x4 or 8x8. And if you really just needed a 4:3 ratio, either 3 panels wide and 4 tall, or 6 x 8 would do.

The Series TRB then went on to win a Red Dot Design Award which described the new panel as follows:

This device from the TRB series is a high-resolution LED display with thin gaps incorporating the terminal box, panel casing and LED module. With the aid of specially designed handles, the display solves the issue of LEDs being bumped during assembly and disassembly. The modular construction allows components to be quickly dismantled and replaced. The layout of the terminal box at a 45-degree angle is innovative and characterises the distinctive appearance of the display, which is also energy saving and boasts low emissions.

The Desay Series TRB faces some strong competition from, well, our more traditional rental displays that fill out perfect squares measuring 500 x 500 and double up to measure 500 x 1000. The very popular Desay Series X and lightweight carbon fibre Desay Series H and HL, and more recently the Desay Series HB all fit these categories.

The new TRB sets itself apart from our legacy systems with a new simplified design that improves functionality and reduces costs. Easy on the shoulders and now much easier on the wallet.

Our Desay Floor Support is now integrated into the panel for easy setup. And just like our Series TVB, we offer both Module Glue On Board and Lamp Glue On Board for enhanced display surface protection.


Desay Series TRB · direct view LED ultra fine pixel premium rental panel · novastar vision management platform · brompton technologies · review · price · cost

Desay Series TRB

direct view LED · ultra fine pixel panel

premium rental · modular components · lamp level gob

novastar mx40 · a10s pro · vision management

indoor · floor support · fast setup

priced from $ 3480/m²

Desay Series TRB · direct view LED ultra fine pixel premium rental panel · novastar vision management platform · brompton technologies · review · price · cost

Desay Series TRB

direct view LED · ultra fine pixel panel

premium rental · modular components · lamp level gob

novastar mx40 · a10s pro · vision management

indoor · floor support · fast setup

priced from $ 3480/m²

Desay Series TRB · direct view LED ultra fine pixel premium rental panel · novastar vision management platform · brompton technologies · review · price · cost

Desay Series TRB

direct view LED · ultra fine pixel panel

premium rental · modular components · lamp level gob

novastar mx40 · a10s pro · vision management

indoor · floor support · fast setup

priced from $ 3480/m²

Desay Series TRB

Everyone loves the latest and greatest when it comes to technology. But we also value evolution over revolution.

For 2022 we have taken the award-winning Series TRB to an even better place with a super easy-to-handle design that makes so much sense, well it kinda makes you wonder why it took so long to get here.

The TRB and its installation sibling, the TVB, share the same footprint that measures 600 x 337.5 millimeters to create perfect 4:3 and 16:9 displays.

But rentals and stage panels have different demands than installations, and the TRB weighs in at closer to 9 kilograms with a more robust profile and a tool-free, quick-release power module that adds minor bulk but saves huge time when the show can't wait.

We can equip the Desay Series TRB with upgraded NovaStar A10s Pro receiver cards which provides for equipping the TRB with the new NovaStar VMP or Vision Management Platform control software and a NovaStar MX40 LED display controller.

Or for less demanding displays, we can offer very affordable NovaStar VX controllers.

Pixels

Pixel-to-pixel spacing begins at an impressive 0.781 millimeters to create fine-pixel display resolutions of over 1,600,000 LED lamps/m². Each millimeter of spacing supports one meter of viewing distance which means that the Series TRB will look great from less than 1 step away.

Dimensions

The Series TRB is an advanced aluminum panel that weighs under 9 kilograms with XYZ dimensions of 600 × 337.5 × 75 millimeters. Boomers can convert those numbers to the 1825 Exchequer Standards for dimensions of 24 × 13 × 1.5 inches and a featherweight 20 pounds.

Viewing

Display panel brightness ranges from 500 cd/m² to 1000 cd/m². Screen refresh rates are set at up to 3840 Hz for camera-ready video. An outstanding 160° off-axis viewing means that pretty much everyone in the audience can see the Series TRB whether coming or going.

Performance

Redn * Greenn * Bluen creates more color combinations than our eyes can see, plus an abundance of silky smooth shades of grey. Display life is projected to be 100,000 hours or about 11 years of full-time use.
Which means we look forward to hearing from you again in 2033.

Power

Rated power consumption is a low 192 W/m² to 290 W/m² and up to 830 W/m² on full load depending on the specifications of the model. Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The TRB is the first ultra-fine-pixel panel built for the rental market. Retractable bump stops at each corner protect the edges of the award-winning 3-piece modular design. The panel adjustment fine-tunes and flattens your display like never before. Your search is over.


Our Clients

For 22 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.


This is (actually) new.

Over the past several years, the industry has transitioned to increasingly smaller LED lamps for increasingly higher resolutions for indoor displays. Imagine a quarter-million or more teeny-tiny lamps squeezed into a single square meter of display.

The same plastic contrast shields that improve the appearance of most every display have also shrunk to match. And much of their double-duty ability to offer some physical protection from casual contact with those lamps has vanished.

Enter 'Module Glue On Board'.

One popular solution is to replace the shields with an acrylic bath that creates a smooth hard finish that can be wiped down with a cloth and protects the lamps from impact.

Desay has offered this GOB treatment on pixel densities of 1.5 to 2.9 millimeters since the technology was developed, and added a further improvement with proprietary technology that allowed for the in-house repair and replacement of a single faulty lamp in a module.

This approach limits waste and expense, as modules are returned to service rather than being discarded.

Introducing 'Lamp GOB'.

The Film Industry has increasingly turned to LED walls as a replacement for green screens or even location shoots.

Direct lighting on the set can be picked up by smooth surfaces. And the last thing you want on your simulated moonscape is the halo of a spotlight.

The popular AV blog Sixteen:Nine thought enough of Lamp GOB technology to write this article about Desay's Lamp GOB technology.

Desay Series TVB · direct view LED ultra fine pixel installation panel · novastar vision management platform · brompton technologies · review · price · cost

Desay Series TVB

direct view LED · ultra fine pixel panel

direct to frame · front service · lamp level gob

novastar mx40 · a10s pro · vision management

indoor · concave · convex · corner · creative

priced from $ 2900/m²

Desay Series TVB · direct view LED ultra fine pixel installation panel · novastar vision management platform · brompton technologies · review · price · cost

Desay Series TVB

direct view LED · ultra fine pixel panel

direct to frame · front service · lamp level gob

novastar mx40 · a10s pro · vision management

indoor · concave · convex · corner · creative

priced from $ 2900/m²

Desay Series TVB · direct view LED ultra fine pixel installation panel · novastar vision management platform · brompton technologies · review · price · cost

Desay Series TVB

direct view LED · ultra fine pixel panel

direct to frame · front service · lamp level gob

novastar mx40 · a10s pro · vision management

indoor · concave · convex · corner · creative

priced from $ 2900/m²

Desay Series TVB

Our default choice for indoor displays is the 2022 Desay Series TVB in an elegant die-cast aluminum panel that weighs less than 6 kilograms with XY dimensions that measure 600 x 337.5 millimeters to create perfect 4:3 and 16:9 displays.

The Series TVB can fill out wall displays with a choice of direct-to-wall or low profile frames for easy installation. Magnetic front access allows for efficient power and data cabling between adjacent panels.

We can equip the Desay Series TVB with upgraded NovaStar A10s Pro receiver cards which provides for equipping the TVB with the new NovaStar VMP or Vision Management Platform control software and a NovaStar MX40 LED display controller.

Or for less demanding displays, we can offer very affordable NovaStar VX controllers.

Pixels

Pixel-to-pixel spacing begins at an impressive 0.781 millimeters to create fine-pixel display resolutions of over 1,600,000 LED lamps/m². Each millimeter of spacing supports one meter of viewing distance which means that the Series TVB will look great from less than 1 step away.

Dimensions

The Series TVB is an advanced aluminum panel that weighs under 6 kilograms with XYZ dimensions of 600/300 × 337.5 × 75 millimeters. Boomers can convert those numbers to the 1825 Exchequer Standards for dimensions of 24/12 × 13 × 1.5 inches and a featherweight 13 pounds.

Viewing

Display panel brightness ranges from 500 cd/m² to 1000 cd/m². Screen refresh rates are set at up to 3840 Hz for camera-ready video. An outstanding 160° off-axis viewing means that pretty much everyone in the audience can see the Series TVB whether coming or going.

Performance

Redn * Greenn * Bluen creates more color combinations than our eyes can see, plus an abundance of silky smooth shades of grey. Display life is projected to be 100,000 hours or about 11 years of full-time use.
Which means we look forward to hearing from you again in 2033.

Power

Rated power consumption is a low 192 W/m² to 290 W/m² and up to 830 W/m² on full load depending on the specifications of the model. Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series TVB is designed to look just as aesthetically-pleasing from the back as it does from the front. A -2° to 6° arc can be specified within the panel to create perfect gentle curves. Set the TVB onto a showcase wall or roll it out on wheels for your next important Zoom meeting.


Our Clients

For 22 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.


Finally.

Have you ever wished that you could just build it yourself?

Sure, the Engineers and Marketing Departments think they know better than you, whether you are picking out a new car or a new toaster. But we all know that 'one size fits all' is just an easy way for the guys in suits to check off the boxes and get in some extra time on the greens.

Enter the NovaStar Series H.

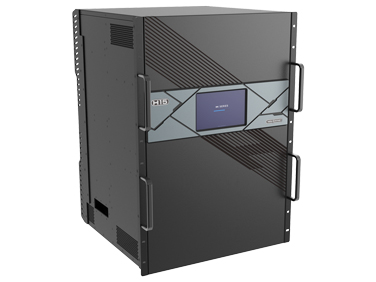

The H15 is NovaStar's newest generation of video wall splicer designed especially for fine-pitch LED screens.

The H15 can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The Series H adopts a modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards.

NovaStar's powerful hardware FPGA system, with a modular and plug-in design, features a stable and highly efficient pure hardware architecture, and provides a variety of connector modules for flexible and personalized configuration, allowing for easy maintenance and low failure rate.

The H15 provides industry-standard input connectors, including HDMI, DVI, DP, VGA, CVBS, SDI and IP, and supports 10-bit video source input and processing, as well as 4K high-definition inputs and outputs. The H15 also provides two kinds of LED 4K sending cards, allowing for the backup between the OPT ports and Ethernet ports as well as ultra-long distance transmission. Moreover, the H15 supports multi-screen and multi-layer management, input and output EDID management and monitoring, input source renaming, BKG and OSD settings and more.

So how does one build out the H15?

Start with the H15 case which supports up to 208 million pixels. Or scale back to a Series H9 or H5 if one of those is closer to what your project needs. Then pick your cards until you have your own full house. Or royal flush!

When you are done, your Series H will perform to the standards you have set out. And then it is your turn to hit the greens.

NovaStar H · video splicing processor · custom configuration · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H15

direct view LED control system

15U · 9U · 5U cabinets

large format · 10bit · HDR · 3D

hot plugs · redundant power

priced from $ 6469/unit

NovaStar H · video splicing processor · custom configuration · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H15

direct view LED control system

15U · 9U · 5U cabinets

large format · 10bit · HDR · 3D

hot plugs · redundant power

priced from $ 6469/unit

NovaStar H · video splicing processor · custom configuration · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H15

direct view LED control system

15U · 9U · 5U cabinets

large format · 10bit · HDR · 3D

hot plugs · redundant power

priced from $ 6469/unit

NovaStar Series H

The NovaStar Series H begins with compact 2U chassis for the Series H2.

The Series H2 allows for 4 input cards and 2 output cards. The H2 supports up to 32 layers and will load up to 26,000,000 pixels.

From there we move up to the NovaStar Series H5 and a larger 5U chassis.

The Series H5 accommodates 10 input cards and 3 output cards, 48 layers and loads 39,000,000 pixels.

The NovaStar Series H9 (9U chassis) is filled out with 15 input cards and 5 output cards, 80 layers and loads 65,000,000 pixels.

At the top of the Series we have the H15 (15U chassis) with 30 input cards and either 10 or 16 output cards, 160 layers and 130,000,000 pixels for the standard H15 or 208,000,000 pixels for the Enhanced Series.

Control

1GB Ethernet · USB · RS422 · RS485 · RS323
Genlock Tri-Level Bi-Level Black Burst

NovaStar H · video splicing processor · control card · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H

direct view LED control system

15U · 9U · 5U cabinets

large format · 10bit · HDR · 3D

hot plugs · redundant power

Input Cards

DVI · h_4xdvi · HDCP 1.4 compliant
$ 899

NovaStar H · video splicing processor · dvi input card · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H

dvi input card

(4x) dvi

hdcp 1.4 compliant

priced at $ 899/unit

IP · h_2xrj45 · RJ45 Ethernet
$ 1559

NovaStar H · video splicing processor · ip input card · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H

ip input card

(2x) rj45 ethernet

priced at $ 1559/unit

HDMI 2.0 · h_2xhdmi2.0 · H15 only
$ 1699

NovaStar H · video splicing processor · dvi input card · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H

h15 hdmi input card

(2x) hdmi 2.0

priced at $ 1699/unit

HDMI 2.0 · DP 1.2 · h_1xhdmi2.0+1xdp1.2
$ 1699

NovaStar H · video splicing processor · dvi input card · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H

4k hdmi input card

(1x) hdmi 2.0

(1x) dp 1.2

priced at $ 1699/unit

HDMI 2.0 · h_1xhdmi2.0
$ 1169

NovaStar H · video splicing processor · dvi input card · H15 · H9 · H5 · H2 · review · price · cost

NovaStar Series H

hdmi input card

(1x) hdmi 2.0

priced at $ 1169/unit


Our Clients

For 22 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.


Outstanding.

It's a familiar story. Same old meets brand new and shiny. Same old plunges into self-loathing and doubt and chooses an early retirement, making way for the new kid on the block.

Only a handful of years have passed since the industry's only offerings for outdoor displays were massive cabinets that weighed a ton and were populated with individual pixels that could be counted from across the room. Images may have been bright, but were otherwise best described as coarse.

The new Desay Series WT packs 112,896 pixels into just 4 panels measuring a total of a square meter. While few applications call for a 4K installation, it is comforting to know that if you have the appetite and room for a 73 square meter display, we have your solution.

But more likely, the Series WT will be going on a creative journey. Many will be small-format billboards or signage that stretches in a slender row from one end of a storefront to the other. Or maybe just a collection of individual panels measuring a foot square and lighting up a building in a fantastic checkerboard.

Desay Series WT · direct view LED fine pixel panel · outdoor installation · novastar · review · price · cost

Desay Series WT

direct view LED fine pixel panel

outdoor · direct to wall · front service

wall · signage · mixed horizontal vertical

concave · convex · corner · creative

priced from $ 2657/m²

Desay Series WT · direct view LED fine pixel panel · outdoor installation · novastar · review · price · cost

Desay Series WT

direct view LED fine pixel panel

outdoor · direct to wall · front service

wall · signage · mixed horizontal vertical

concave · convex · corner · creative

priced from $ 2657/m²

Desay Series WT · direct view LED fine pixel panel · outdoor installation · novastar · review · price · cost

Desay Series WT

direct view LED fine pixel panel

outdoor · direct to wall · front service

wall · signage · mixed horizontal vertical

concave · convex · corner · creative

priced from $ 2657/m²

Desay Series WT

The new for 2022 Desay Series WT is an advanced aluminum panel that weighs under 10 kilograms with XY dimensions that start at 250 × 250 and range up to 1333 × 250 millimeters and just 58 millimeters deep.

These panels can be configured in portrait or landscape mode to allow for creative applications such as building a border around a window frame for example.

We can equip the Desay Series WT with upgraded NovaStar A10s Pro receiver cards which provides for equipping the WT with the new NovaStar VMP or Vision Management Platform control software and a NovaStar MX40 LED display controller.

Or for less demanding displays, we can offer the very affordable NovaStar Taurus media player.

Pixels

Pixel-to-pixel spacing begins at an impressive 2.976 millimeters to create fine-pixel display resolutions of over 112,896 LED lamps/m².

Each millimeter of spacing supports one meter of viewing distance which means that the Series WT will look great from less than 3 steps away.

Dimensions

The Series WT is an advanced aluminum panel that weighs under 10 kilograms with XYZ dimensions of 1000 × 250 × 58 millimeters. Boomers can convert those numbers to the 1825 Exchequer Standards for dimensions of 39 × 10 × 2.3 inches and a featherweight 21 pounds.

Viewing

Display panel brightness is sunshine-ready at a sizzling 5000 cd/m². Screen refresh rates are set at up to 3840 Hz for camera-ready video. An outstanding 160° off-axis viewing means that pretty much everyone in the audience can see the Series WT whether coming or going.

Performance

Red14 × Green14 × Blue14 generate 4398 billion colors and a silky smooth 16384 greys. Display life expectancy is projected to be 100,000 hours, which works out to about 11 years of full-time use. Which means we look forward to hearing from you again in 2033.

Power

Rated power consumption is a low 217 W/m² to 227 W/m² and up to 930 W/m² on full load depending on the specifications of the model. Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series WT is good to go as a single panel or a massive billboard. The WT will follow a gentle curve or form a 90° corner and wrap a column. These innovative panels can be set out in a horizontal or vertical configuration, or mixed and matched as your project demands.


Our Clients

For 22 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Contact Telematics Canada

Politely awaiting your call. It's a Canadian thing...
We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu

Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
