Desay · Series MB

Slim and trim and half the weight. A Super Model for the great outdoors.

Pixels

Pixel-to-pixel spacing begins at just 3.846 millimeters to create display resolutions based on an incredible 67,600 LED lamps/m².
Each millimeter of spacing supports one meter of viewing distance which means that the Series MB will look great from less than 4 steps away.

Dimensions

The Series MB is a purpose-built extruded aluminum installation panel weighing just 22 kilograms with XYZ dimensions of 800 × 900 × 92 millimeters when equipped with panel to panel internal wiring. This panel configuration provides for a natural 16:9 or 4:3 aspect ratio.

Viewing

The MB panels are sunshine-ready with 5000 cd/m² to 6000 cd/m² of fully-adjustable brightness. Refresh rates are set at up to 3840 Hz for camera-ready video. 140° of off-axis viewing means that everyone in your audience can see the Series MB whether they are coming or going.

Performance

Redn * Greenn * Bluen creates more color combinations than our eyes can see, plus an abundance of silky smooth shades of grey. Display life is projected to be 100,000 hours or about 11 years of full-time use.
Which means we look forward to hearing from you again in 2034.

Power

Rated power consumption is a low 182 W/m² to 238 W/m² and up to 680 W/m² on full load depending on the specifications of the model.
Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series MB is bolted at each corner to your structure or frame. Power and data cabling is hidden within the panel and out of the elements. Modules are removed with a hexagon wrench and magnetic clamp, and the power box hinges forward for efficient front service.

Specifications · Desay · Series MB

There is only one corner of the universe you can be certain of improving, and that's your own self. ~ Aldous Huxley
Series outdoor · usd per m² 3846 6250 8333 10000 · ·

Series MB
  • · lamp size · mm × mm
  • · lamp wire · gold · copper
  • · scan rate
  • usd cost : square meter
· 1921 · gold · 1/32
nationstar · 1921
chipone · icn2055
$ tba
~ ~ ~
Series MB · 1921  · copper · 1/32 nationstar · 1921
chipone · icn2055
$ tba
~ ~ ~

Series MB
  • · lamp size · mm × mm
  • · lamp wire · gold · copper
  • · scan rate
  • usd cost : square meter
· 2727 · gold · 1/32
~ nationstar · 2727
chipone · icn2055
$ 2,044
nationstar · 2727
chipone · icn2055
$ tba
nationstar · 2727
chipone · icn2055
$ tba
Series MB · 2727  · copper · 1/32 ~ nationstar · 2727
chipone · icn2055
$ 1,844
nationstar · 2727
chipone · icn2055
$ tba
nationstar · 2727
chipone · icn2055
$ tba

Custom
  • · glue on board
  • · lamps
  • · modules
  • cost : square meter
· glue on board · hard face
Desay Series · Lamp Glue On Board · Module Glue On Board gob · full · lamp$ 400 gob · full · lamp~ gob · full · lamp~ gob · full · lamp~
Custom
  • · corner
  • · column
  • cost : square meter

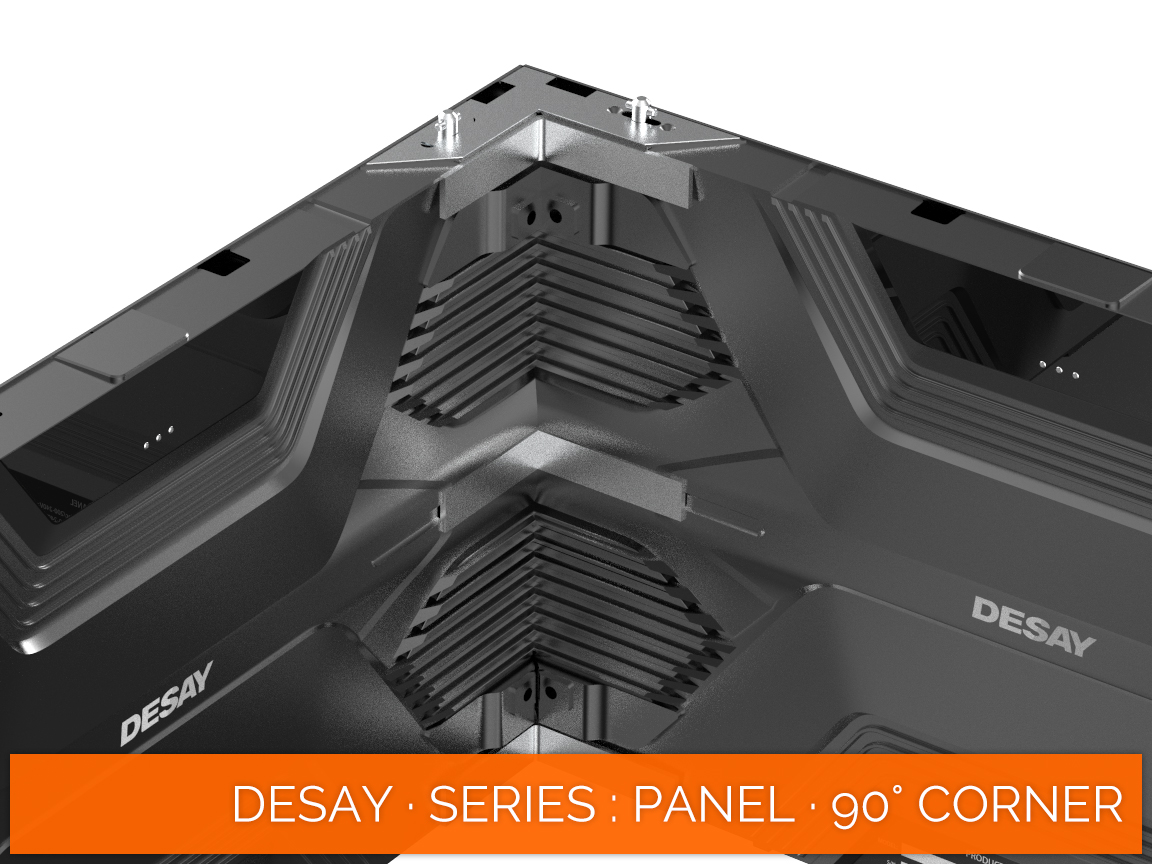

· corner · 90°
Desay Series · 90° Corner Panel corner · column$ 95 corner · column$ 95 corner · column$ 95 corner · column$ 95

Custom
  • · vacuum clamp
  • · remove · replace modules
  • cost : unit
· module service tool · vacuum
Desay Series · 90° Corner Panel remove · replace
modules
$ 400
remove · replace
modules
$ 400
remove · replace
modules
$ 400
remove · replace
modules
$ 400

Control
Receiver
  • · vision management platform
  • · novalct · viplex
  • cost : unit · panel
· novastar coex · ca50e
NovaStar COEX · CA50E · Vision Management Platform 512 × 768$ 125 512 × 768$ 125 512 × 768$ 125 512 × 768$ 125
Receiver  · novastar coex · a10s pro NovaStar COEX · Armor A10S Pro · Vision Management Platform 512 × 512$ 80 512 × 512$ 80 512 × 512$ 80 512 × 512$ 80
Receiver  · novastar coex · a8s-n NovaStar COEX · Armor A8S-N · Vision Management Platform 512 × 384$ 70 512 × 384$ 70 512 × 384$ 70 512 × 384$ 70
Receiver  · novastar coex · a5s NovaStar COEX · Armor A5S · Vision Management Platform 320 × 256$ 70 320 × 256$ 70 320 × 256$ 70 320 × 256$ 70

Controller
  • · vision management platform
  • · controller
  • cost : unit · display
· novastar coex · mx30
NovaStar COEX · CX30 · Vision Management Platform 10 ports × 650,000
6,500,000
$ 2,199
10 ports × 650,000
6,500,000
$ 2,199
10 ports × 650,000
6,500,000
$ 2,199
10 ports × 650,000
6,500,000
$ 2,199
Controller  · novastar coex · ku20 NovaStar COEX · KU20 · Vision Management Platform 6 ports × 650,000
2,306,000
$ 799
6 ports × 650,000
2,306,000
$ 799
6 ports × 650,000
2,306,000
$ 799
6 ports × 650,000
2,306,000
$ 799
Controller
  • · novalct · viplex
  • · controller
  • cost : unit · display
· novastar · vx1000
NovaStar · VX1000 · NovaLCT · Viplex 10 ports × 650,000
6,500,000
$ 1,994
10 ports × 650,000
6,500,000
$ 1,994
10 ports × 650,000
6,500,000
$ 1,994
10 ports × 650,000
6,500,000
$ 1,994
Controller  · novastar · vx400 NovaStar · VX400 · NovaLCT · Viplex 4 ports × 650,000
2,600,000
$ 997
4 ports × 650,000
2,600,000
$ 997
4 ports × 650,000
2,600,000
$ 997
4 ports × 650,000
2,600,000
$ 997
Controller
  • · novalct · viplex
  • · media player
  • · lan · wifi · 4g option
  • cost : unit · display
· novastar · taurus tb50
NovaStar · Taurus TB50 · NovaLCT · Viplex 2 ports × 650,000
1,300,000
$ 488
2 ports × 650,000
1,300,000
$ 488
2 ports × 650,000
1,300,000
$ 488
2 ports × 650,000
1,300,000
$ 488

Pixels
Resolution
  • · distance between lamps
  • · less space = more resolution
  • · 1 mm pixel : 1 meter viewing
· pixels · center to center
Desay Series · Pixels · Center To Center 🡗 4 steps back 🡖3.846 🡗 6 steps back 🡖6.250 🡗 8 steps back 🡖8.333 🡗 10 steps back 🡖10.000
Resolution  · pixels · linear meter Desay Series · Pixels · Center To Center 1000/3.846260 1000/6.250160 1000/8.333120 1000/10.000100
Resolution  · pixels · square meter Desay Series · Pixels · Square Meter 260 × 26067,600 160 × 16025,600 120 × 12014,400 100 × 10010,000

Viewing
  • · candela · lumen · nits
  • · per square meter
  • · direct view · off-axis view
  • · degrees from center
· brightness · 100% · direct
Desay Series · Pixels · Direct View candela/m²≥ 5000 candela/m²≥ 6000 candela/m²≥ 6000 candela/m²≥ 6000
Viewing  · brightness · 50% · horizontal Desay Series · Pixels · Horizontal View candela/m² 2500 ± 70° candela/m² 3000 ± 70° candela/m² 3000 ± 70° candela/m² 3000 ± 70°

Panel
Dimensions
  • · project specific schematics
  • · cable and power drawings
  • · available on request
· width · edge to edge
Desay Series · Panel · Width 31.50"0.800 31.50"0.800 31.50"0.800 31.50"0.800
Dimensions  · height · edge to edge Desay Series · Panel · Height 35.43"0.900 35.43"0.900 35.43"0.900 35.43"0.900
Dimensions  · depth · front to back Desay Series · Panel · Depth 3.60"0.092 3.60"0.092 3.60"0.092 3.60"0.092
Dimensions  · weight · square meter Desay Series · Panel · Weight 65.04 lbs29.50 65.04 lbs29.50 65.04 lbs29.50 65.04 lbs29.50

Power Draw
  • · project specific schematics
  • · cable and power drawings
  • · available on request
· watts · images · videos
Desay Series · Power · Images · Videos typical use210 typical use192 typical use175 typical use168
Power Draw  · watts · 100% · calibrated Desay Series · Power · Full White Calibrated full white display600 full white display600 full white display600 full white display600

Installation
Rigging
  • · m10 bolts · corners
  • · aluminum extrusion frame
· permanent · bolt to frame
Desay Series · Panel · Bolt To Frame corners
panel to panel
corners
panel to panel
corners
panel to panel
corners
panel to panel

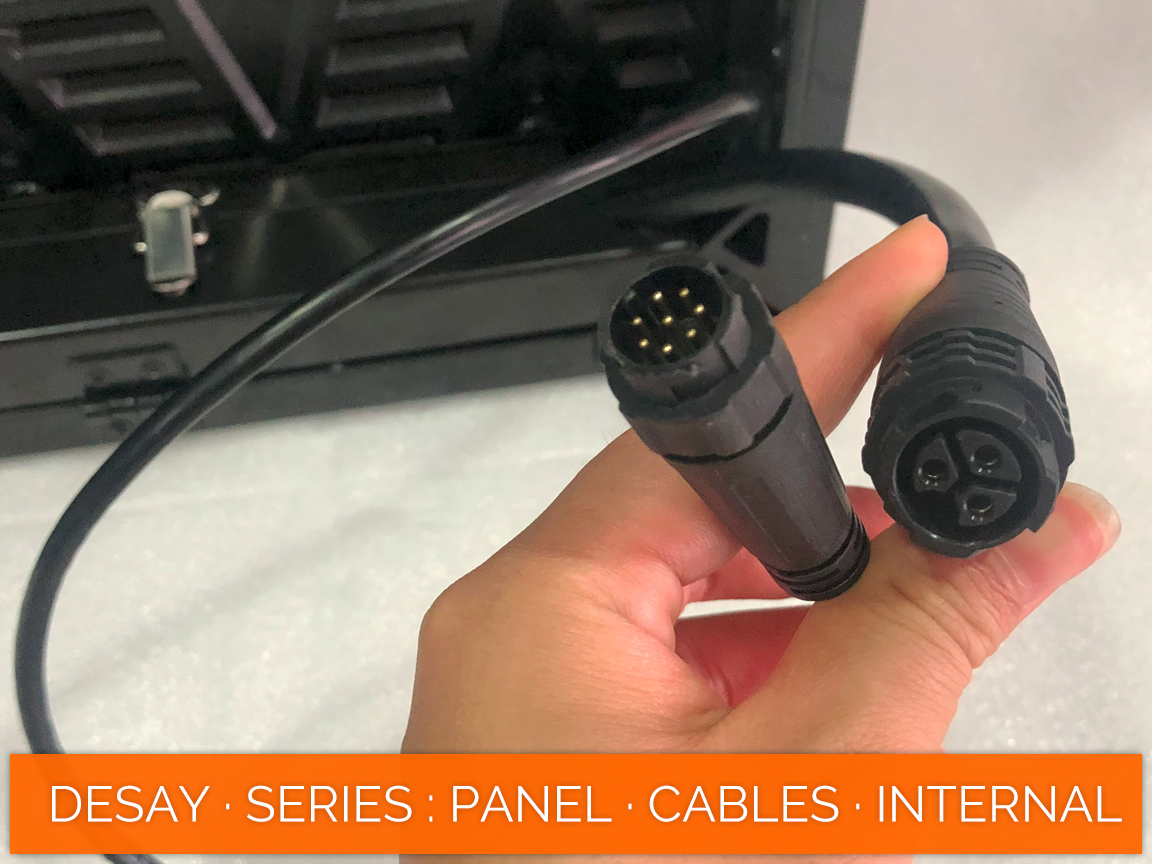

Rigging  · permanent · data · power cables Desay Series · Panel · Internal Cables internal
panel to panel
internal
panel to panel
internal
panel to panel
internal
panel to panel

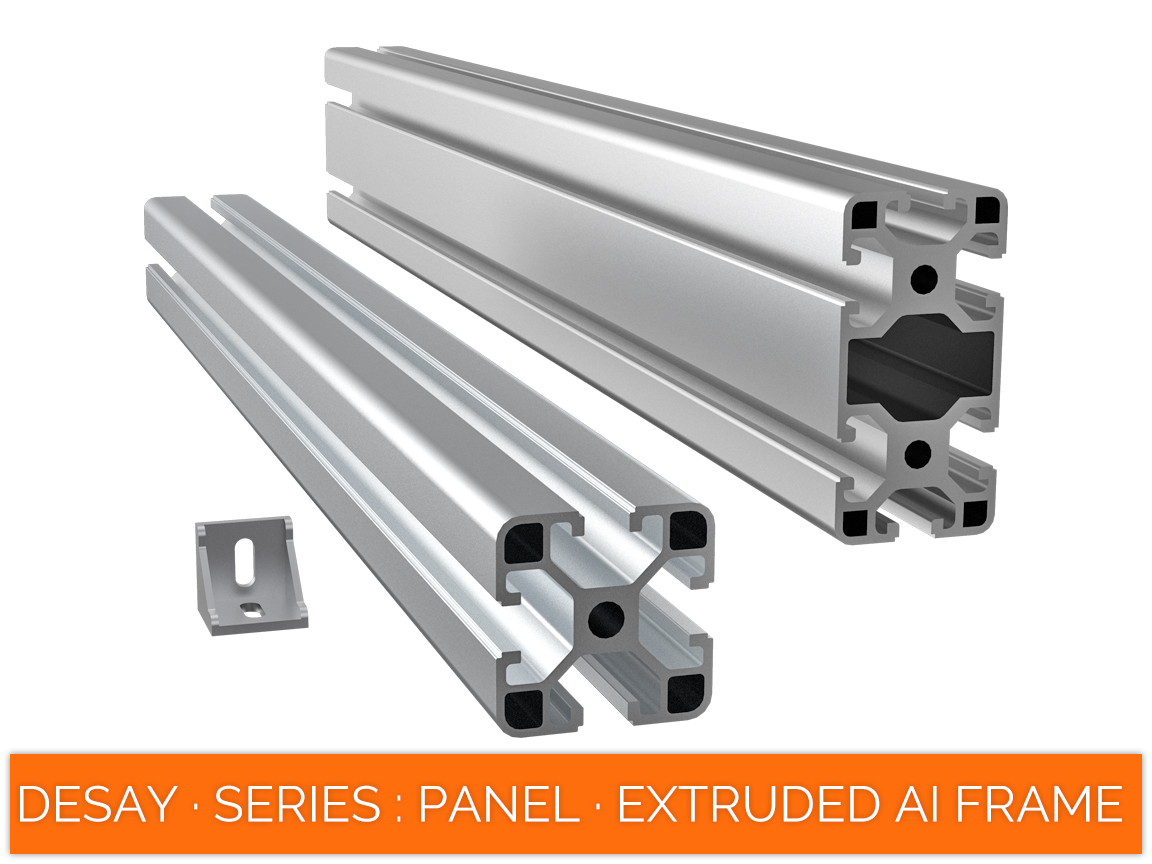

Rigging  · permanent · ai extrusion frame Desay Series · Panel · Aluminum Extrusion Frame square meter$ 310 square meter$ 310 square meter$ 310 square meter$ 310
Rigging
  • · adjustable base
  • · collapse for storage
  • · padded header
  • cost : unit

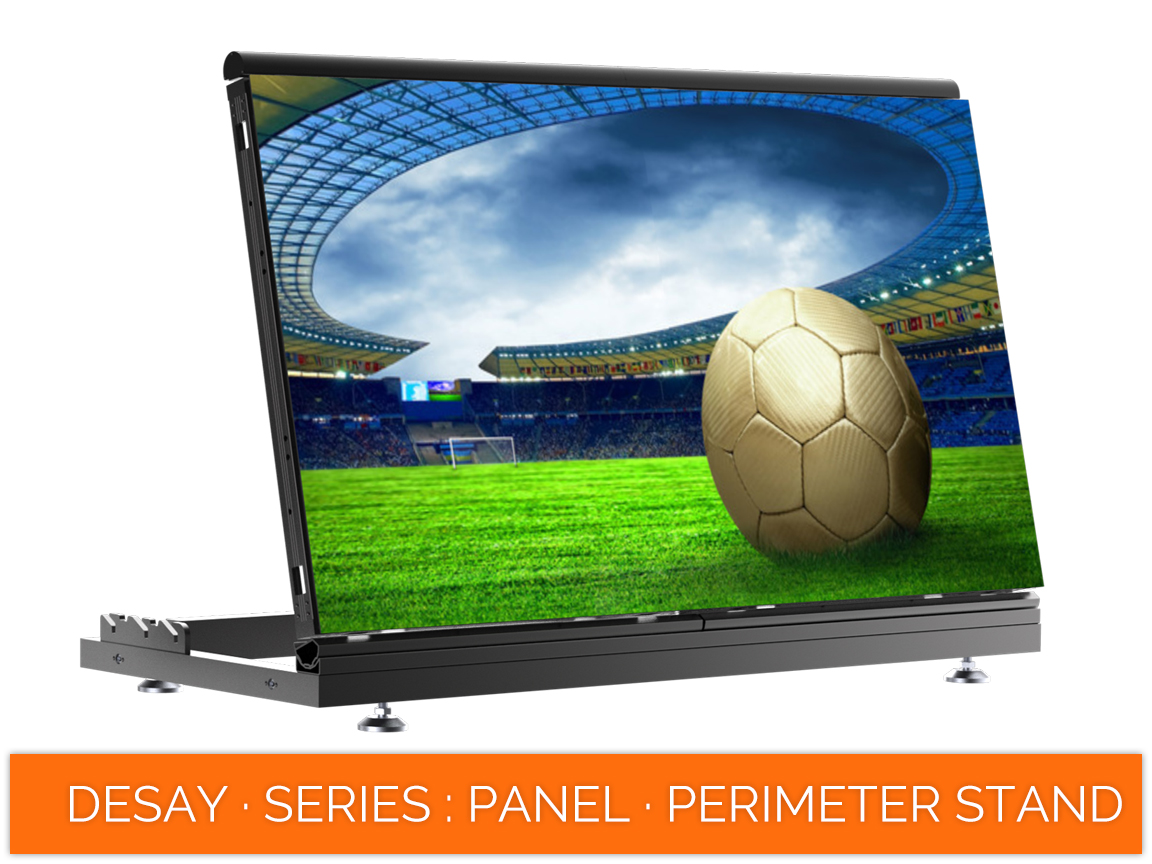

· perimeter · perimeter stand
Desay Series · Panel · Perimeter Stand two panels$ 400 two panels$ 400 two panels$ 400 two panels$ 400

PDF · 1 of 1

Fine Print
Warranty · factory standard Desay provides a comprehensive warranty on all components for 2 years that may be extended to 3, 4 or 5 years.

Certifications · etl · fcc Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price Desay and Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch · Desay · Series MB

So here's the deal...
Happiness can exist only in acceptance. ~ George Orwell

About Telematics Canada

Telematics Canada is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture premium direct-view LED displays for most every commercial and creative application, and the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses who select and install their own systems with the assistance of local tradesmen and engineers.

About Desay

Desay is a public corporation (002920) with a market capitalization of USD $ 8,000,000,000, and employs close to 8,000 people. Desay is highly-diversified in the manufacturing of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay's Optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets. The company enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world. Desay owns leading technology in optoelectronic control and non-linear alignment techniques.

Our Clients

For more than 23 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Amazing Showcase · Desay · Series MB

A picture is worth a thousand clicks.
Honesty is the first chapter in the book of wisdom. ~ Thomas Jefferson
Photo Library · Series MB · 3 of 18
Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm

Desay · Series MB · direct view LED panel · full pixel range display · simplified installation · easy front service · novastar coex · novastar taurus · vision management platform · viplex · review · price · cost

Desay · Series MB

direct view LED panel · full pixel range display

simplified installation · easy front service

outdoor brightness · flat · corner · creative

novastar coex · novastar taurus

vision management platform · viplex

priced from $1,368/sqm


Video Library · Series MB · 3 of 4
NovaStar Taurus · Multimedia Player
Configuration · (01) 4G Module
NovaStar Taurus · Multimedia Player
Configuration · (02) Settings
NovaStar Taurus · Multimedia Player
Configuration · (03) Operation
NovaStar Taurus · Multimedia Player
Configuration · (04) Overview

Contact Telematics Canada

Politely awaiting your call. It's a Canadian thing...
We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu

Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
