The Art Of LED · Desay Series X

iF DESIGN AWARD The winners of the iF DESIGN AWARD 2019 are in. From 22 to 24 January, 67 design experts from all over the world selected the best achievements in design from more than 50 different countries.
~ iF DESIGN AWARD 2019 Winners


The 'X' is for eXtraordinary. Or eXciting. You decide.

How many times have you wished for a rental panel that had indoor resolution but was also ready for outdoors shows?

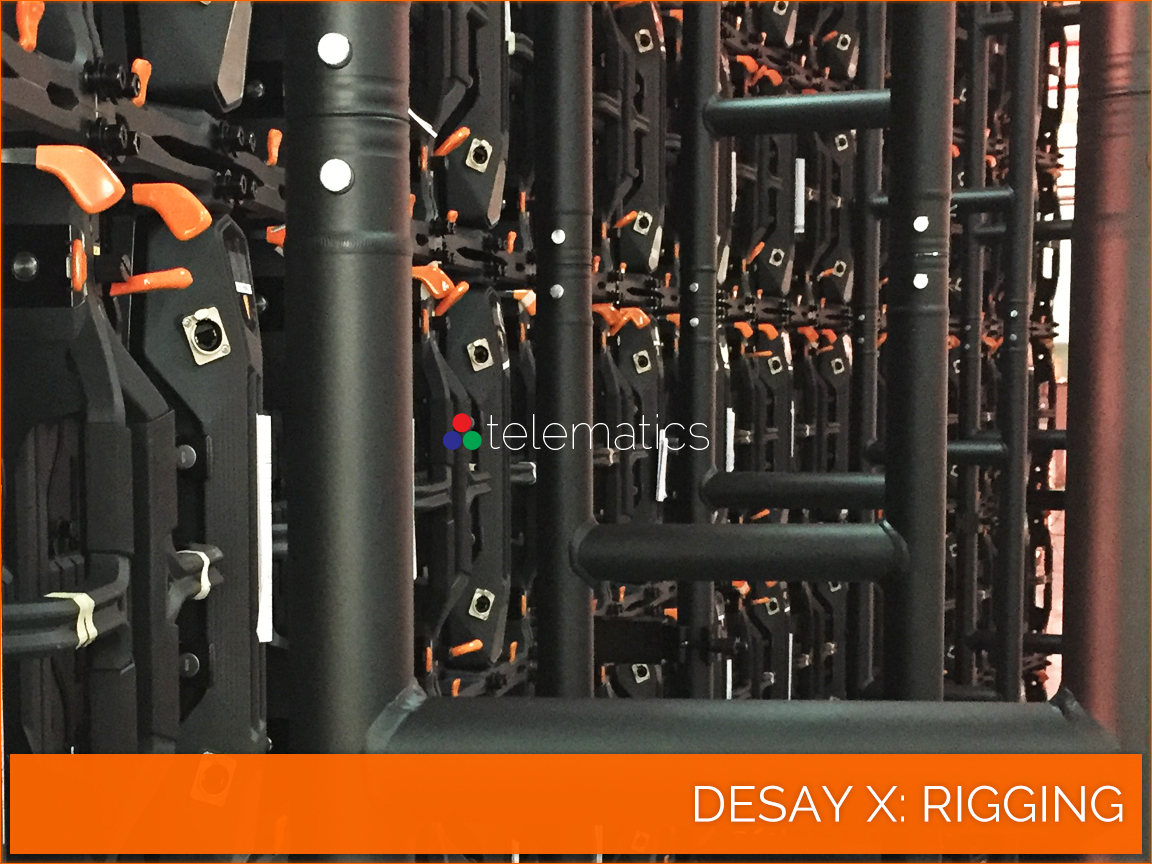

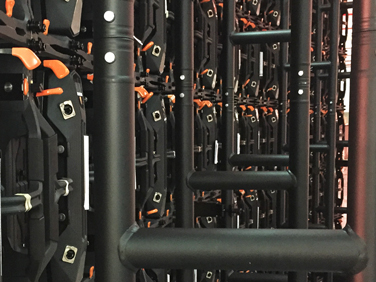

And did your wish-list include a built-in ladder? Seriously. How cool is that?

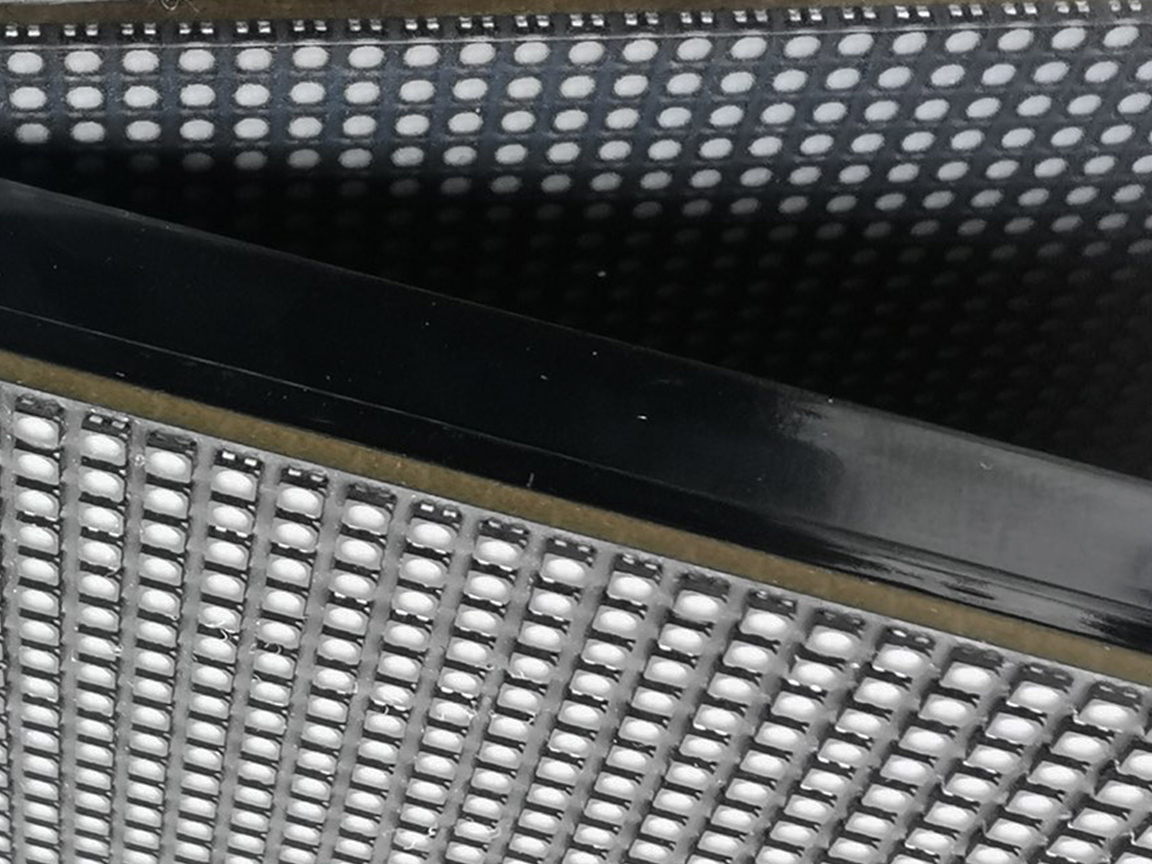

Pixels

Pixel to pixel spacing begins at an impressive 1.56 millimeters to create a display resolution of more than
409,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series X1.5 looks great from less than 2 meters away.

Dimensions

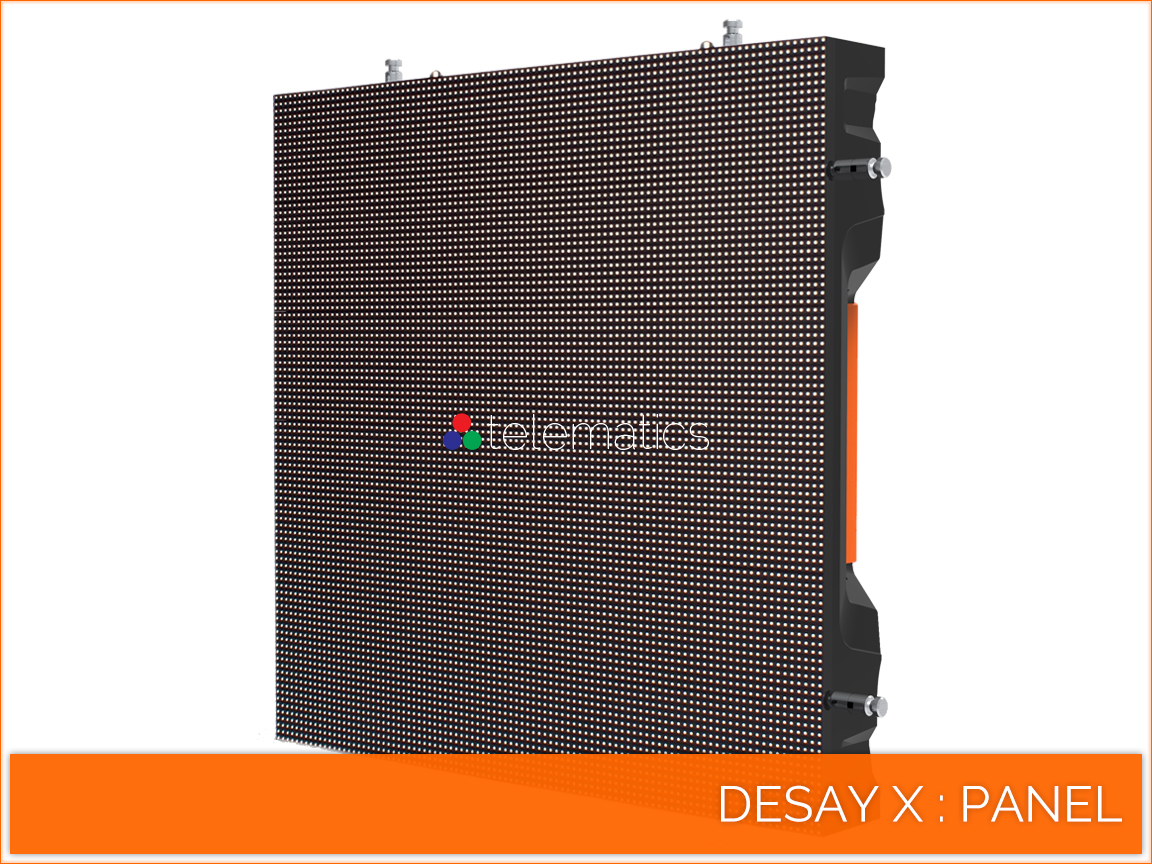

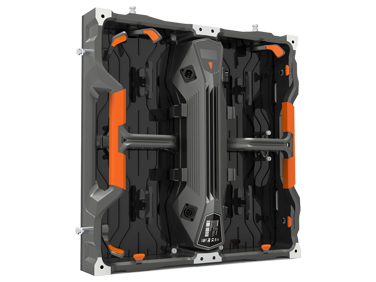

The Series X is a precision aluminum panel that weighs approximately
10 kilograms with XYZ dimensions of
500 * 500 * 100 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 19 * 19 * 4 inches
and a featherweight 22 pounds.

Viewing

Display brightness levels extend from 600 cd/m² to 5000 cd/m².
Screen refresh are exceptional at 3840 Hz for flicker-free video.
Off-axis viewing is up to 70° which means that pretty much everyone in the room can see the Series X whether coming or going.

Performance

Colors are amazing with levels of red13 * green13 * blue13 that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 210 ~ 266 Watts per square meter and up to 760 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

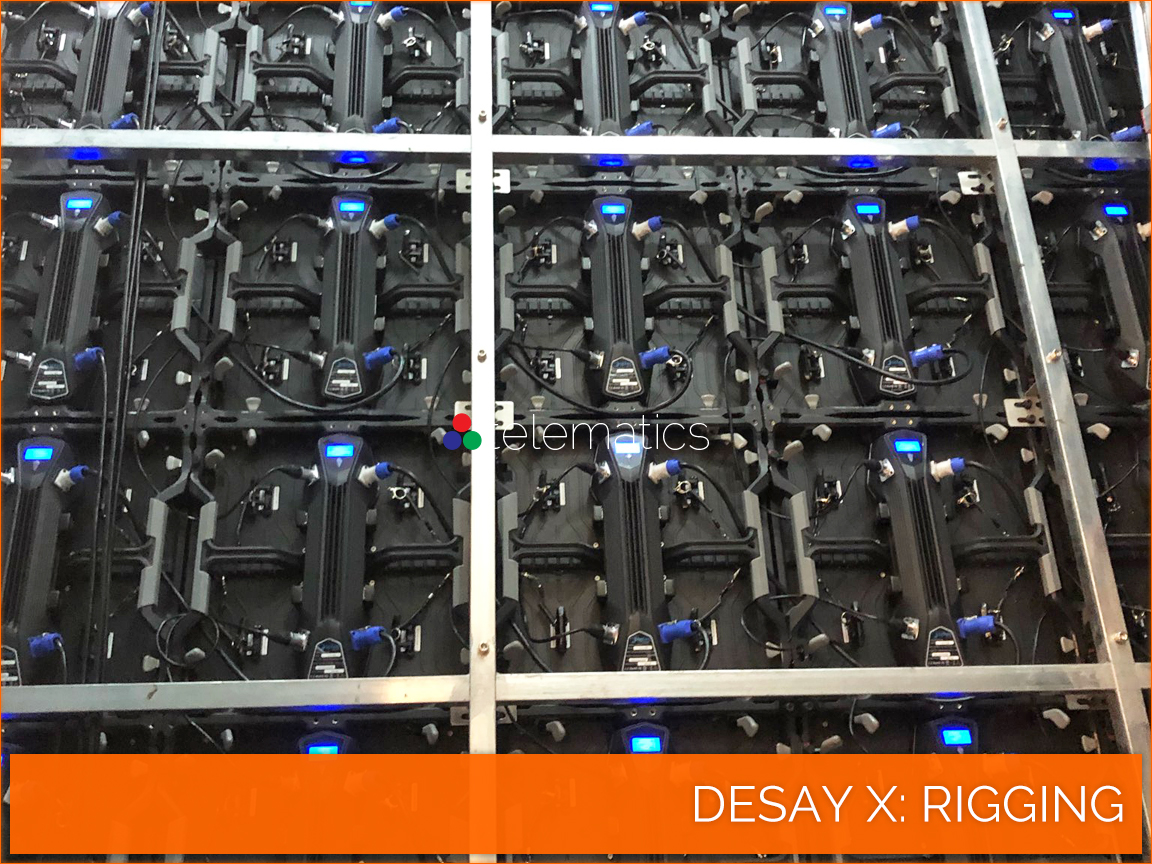

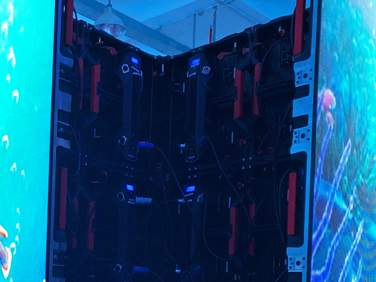

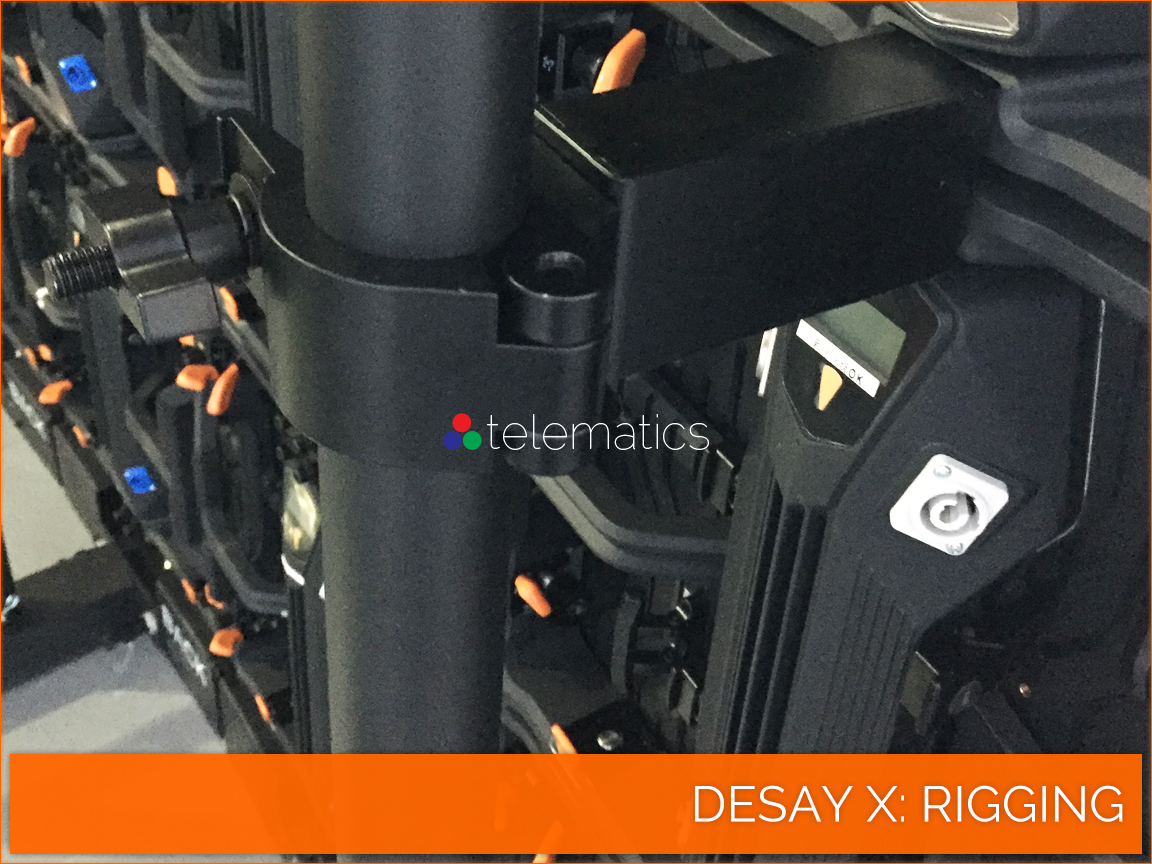

Installation

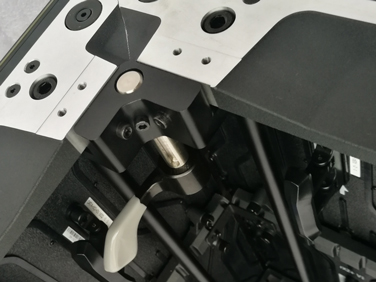

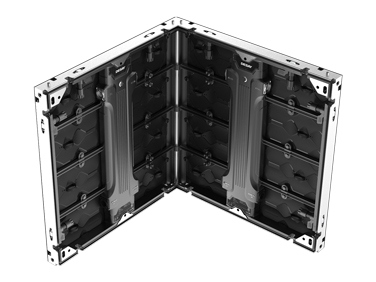

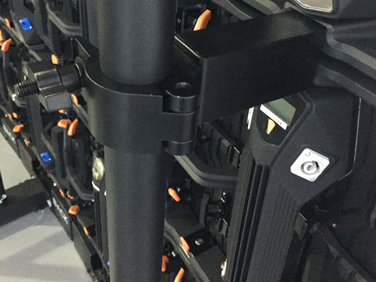

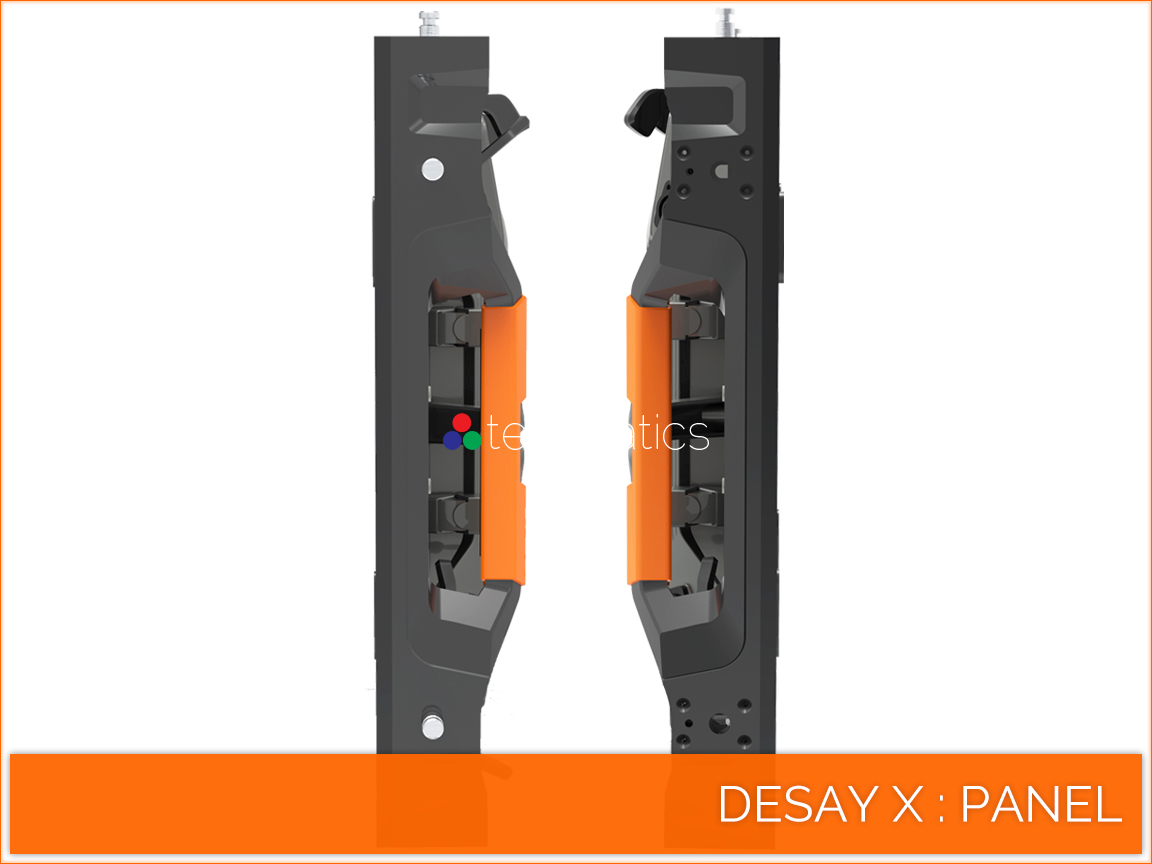

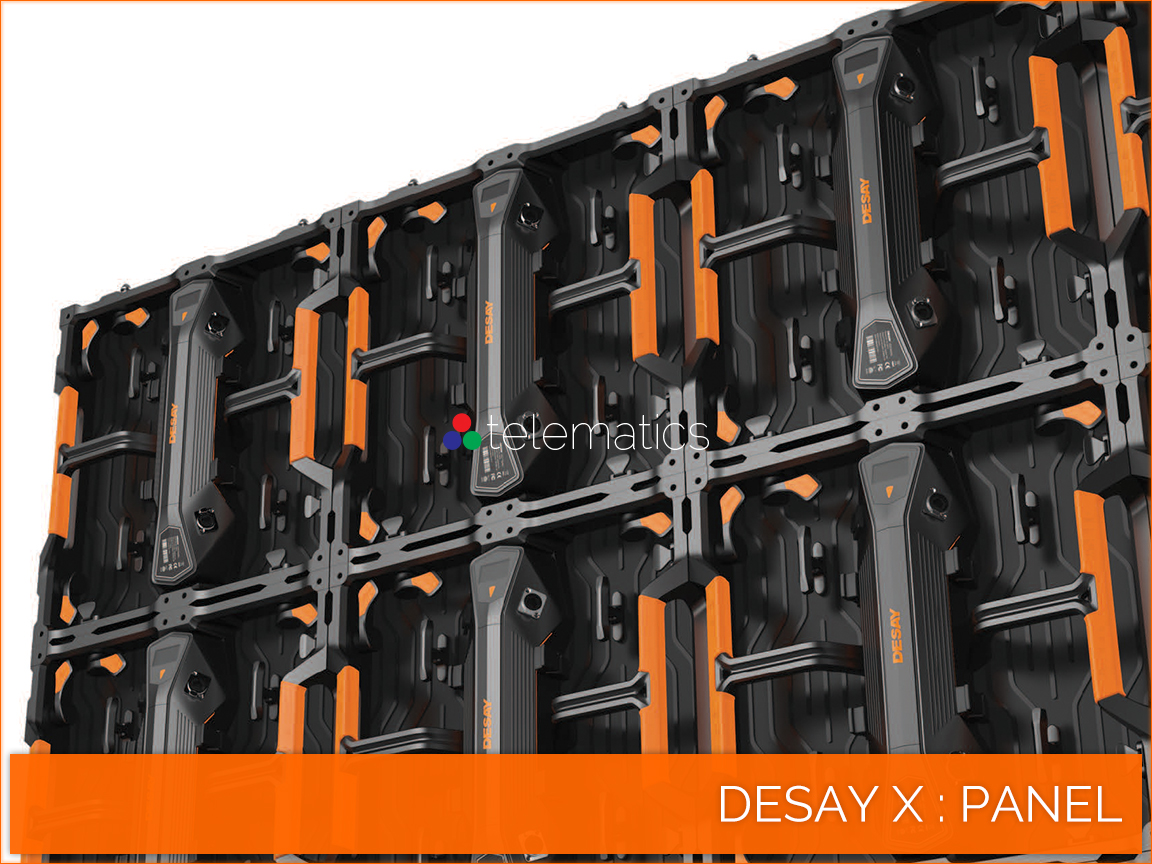

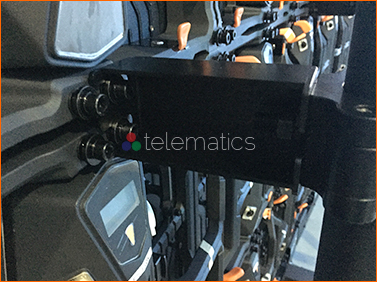

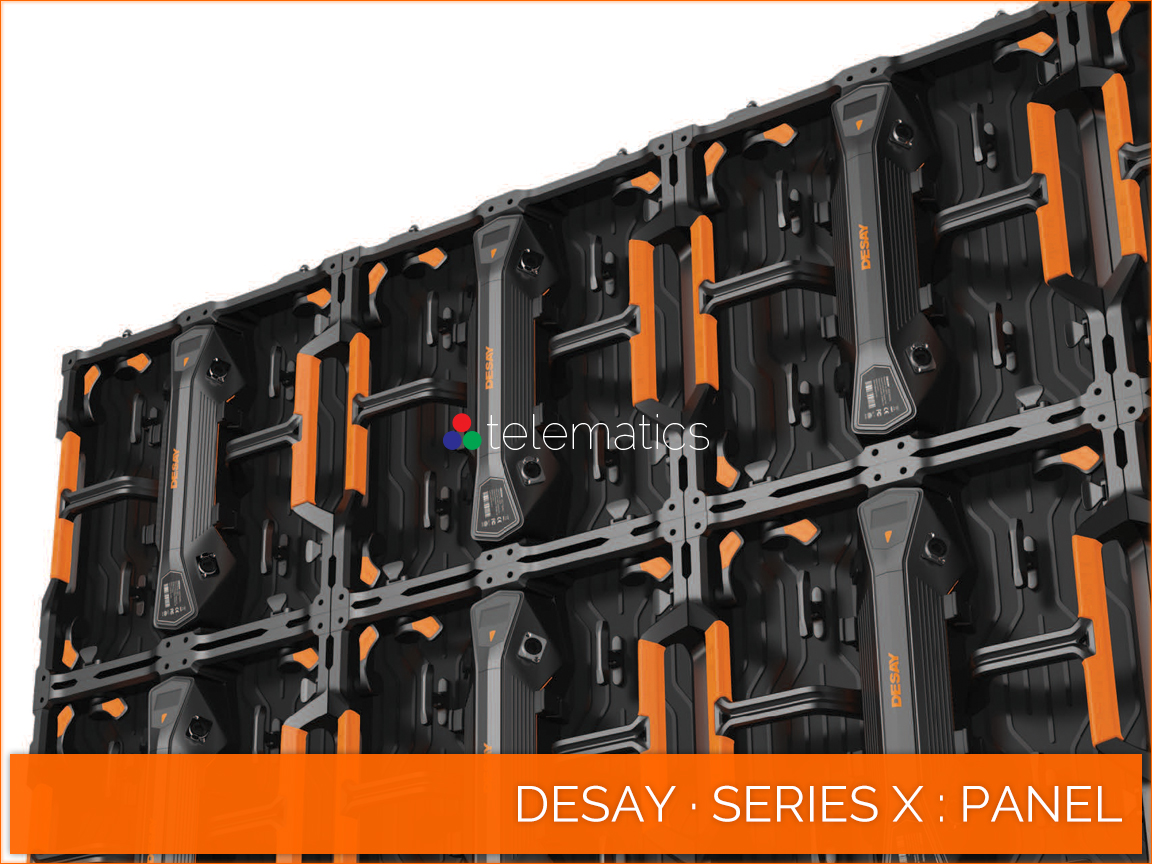

The Series X attaches to surrounding panels using super-quick locking fasteners that are just what your Roadies ordered. Oh, and they also ordered a built-in ladder. Go figure. And of course power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series X

Executive position wanted. Permanent or temporary.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series X195i X260i X290i X310 X446 X520
Pixels mm · meters
Resolution · ctc distance · mm 1.95 2.60 2.90 3.10 4.46 5.20
Resolution · per linear meter 512 384 336 322 224 192
Resolution · per square meter 262144 147456 112896 104058 50176 36864
Dimensions mm · (inch)
Width 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7)

Height 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7)

Depth 100 (3.9) 100 (3.9) 100 (3.9) 100 (3.9) 100 (3.9) 100 (3.9)
Weight kilo · (pound)
Panel 11.0 (24.2) 10.0 (22.0) 10.0 (22.0) 10.5 (22.1) 10.5 (22.1) 10.5 (22.1)
Viewing (upgrade)
Brightness · candela/m² 800 1200 (1500) 1200 (1500) 3000 5000 5000

Refresh · hertz 3840 1920 (3840) 1920 (3840) 1920 (3840) 1920 (3840) 1920 (3840)

Angle · 50% brightness 70° 70° 70° 70° 70° 70° 70° 70° 70° 70° 70° 70°
Angle · 50% brightness 70° 70° 70° 70° 70° 70° 50° 50° 25° 45° 25° 45°
Performance
Colors · rgb · bit depth 213 214 214 214 214 214
Control · brightness levels 255 255 255 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4 11.4 11.4 11.4
Power square meter
Watts · (average draw) 760 (35%) 660 (35%) 620 (35%) 760 (35%) 640 (35%) 600 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Installation
Wall · custom steel frame
Ceiling · fly bar
Floor · floor support

IP Code · front · rear 30 · 30 30 · 30 30 · 30 65 · 54 65 · 54 65 · 54
Operating · celsius · (fahrenheit) -10 (14) · 40 (104) -10 (14) · 40 (104) -10 (14) · 40 (104) -20 (-4) · 45 (113) -20 (-4) · 45 (113) -20 (-4) · 45 (113)

Software · Manuals

NovaStar LCT
Windows OSX Android iOS

NovaStar LCT Smart
Windows OSX Android iOS

NovaStar Studio
Windows OSX Android iOS

NovaStar Viplex
Windows OSX Android iOS

Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series X

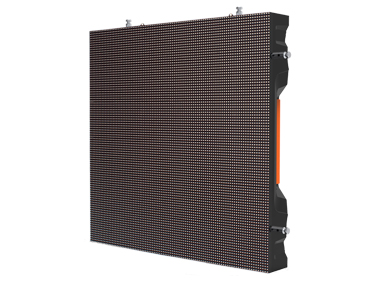

The Series X is a performance panel that is perfect for indoor or outdoor stage events and just so happens to do brilliant double-duty as permanent installation panel.

The dimensions of 500 * 500 * 100 millimeters make for a lightweight panel that is easy to handle going up, coming down or packing away. And we added a built-in ladder in case you missed a spot.

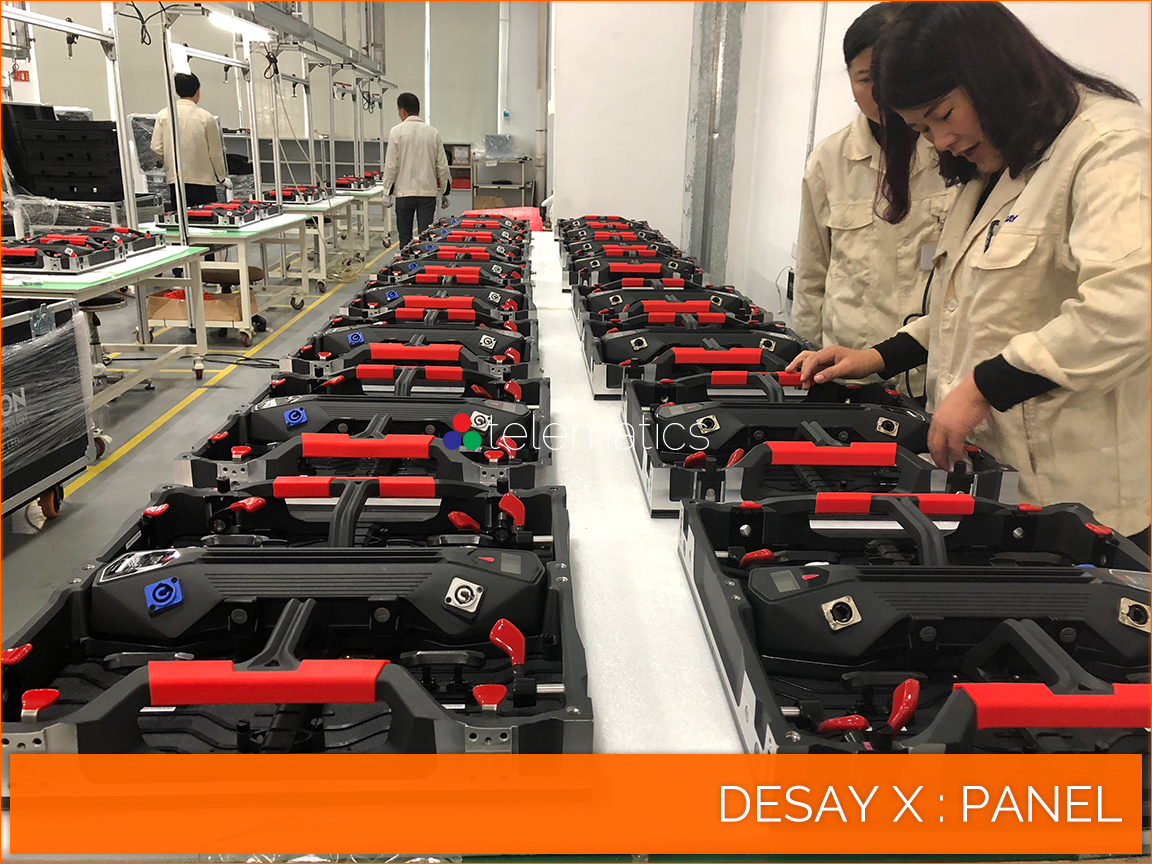

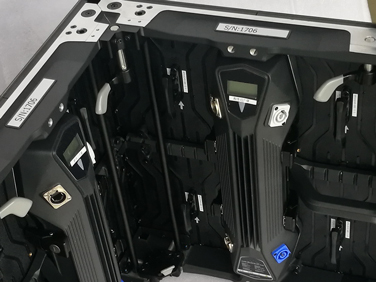

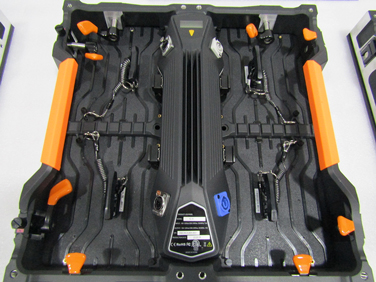

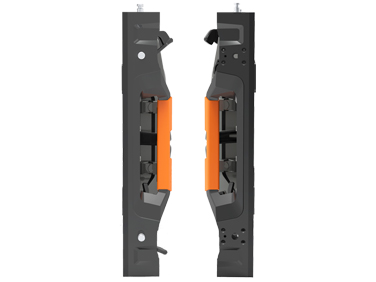

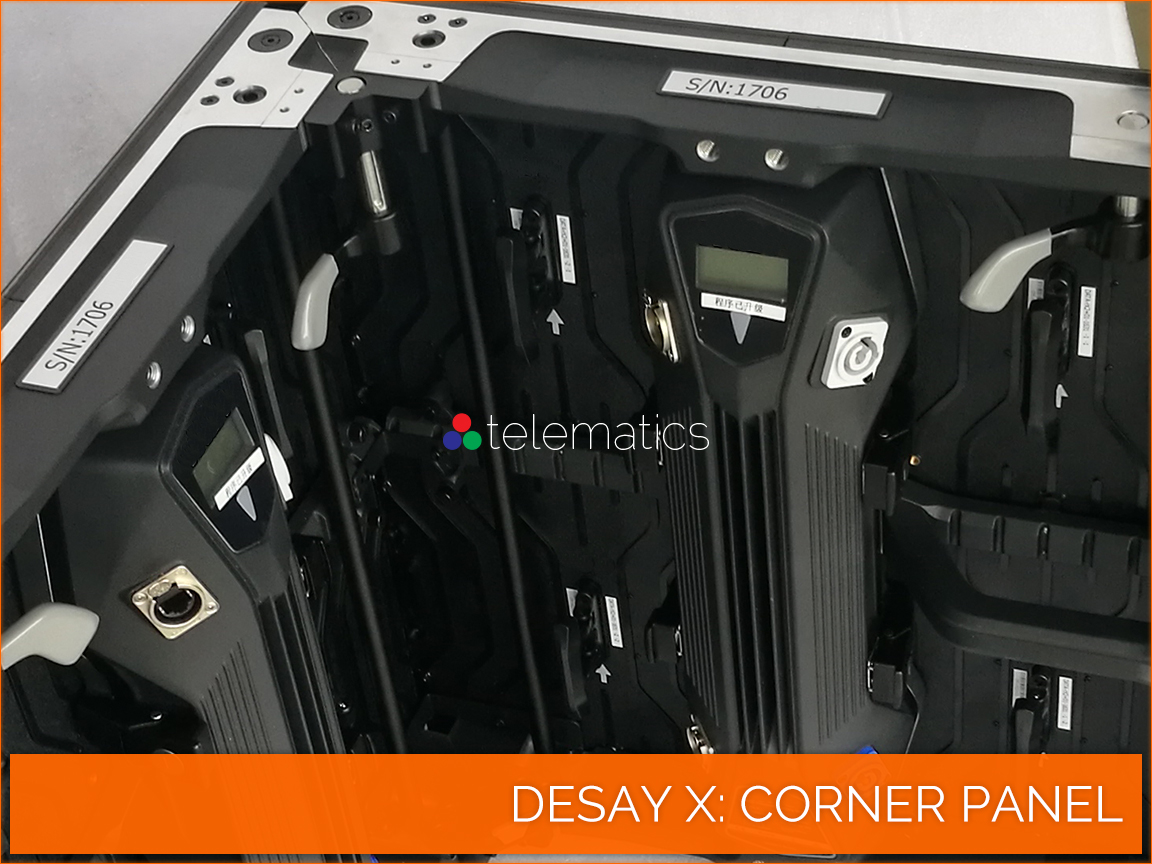

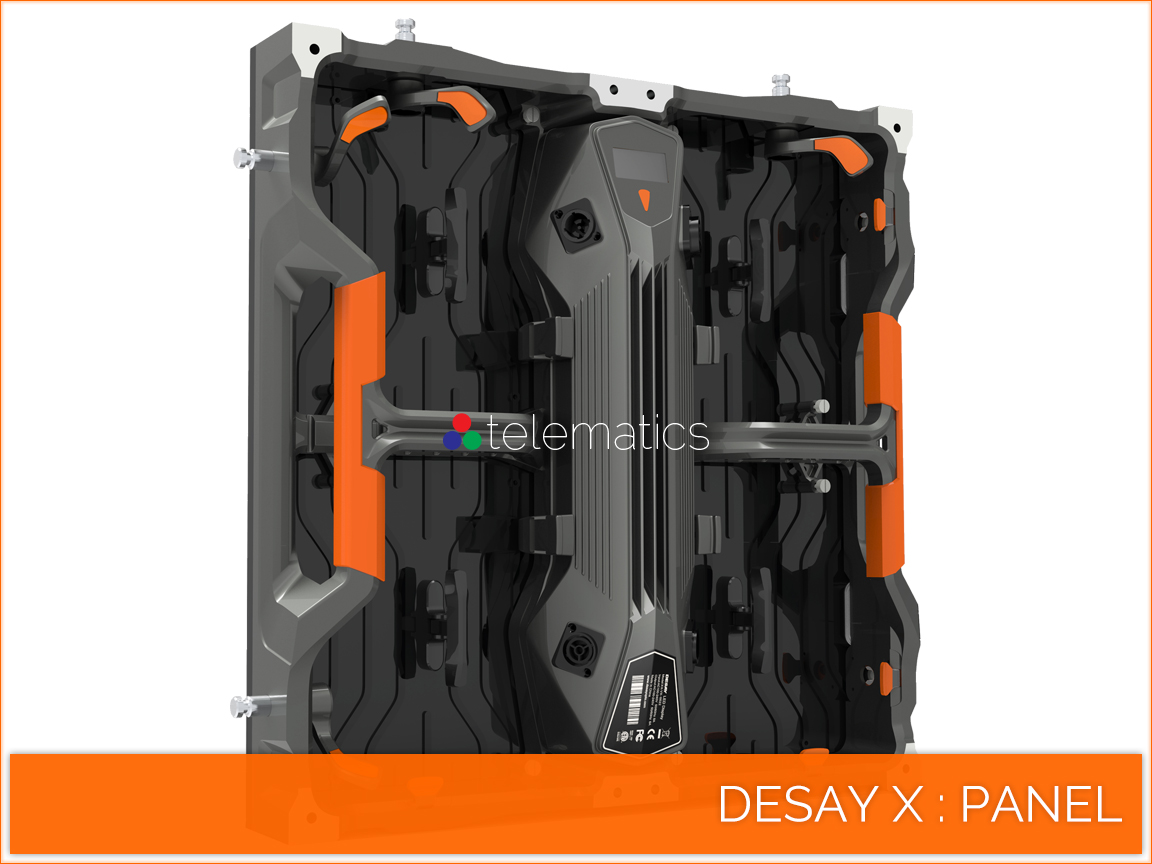

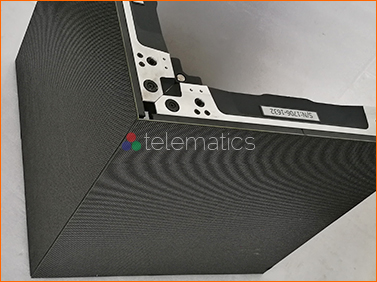

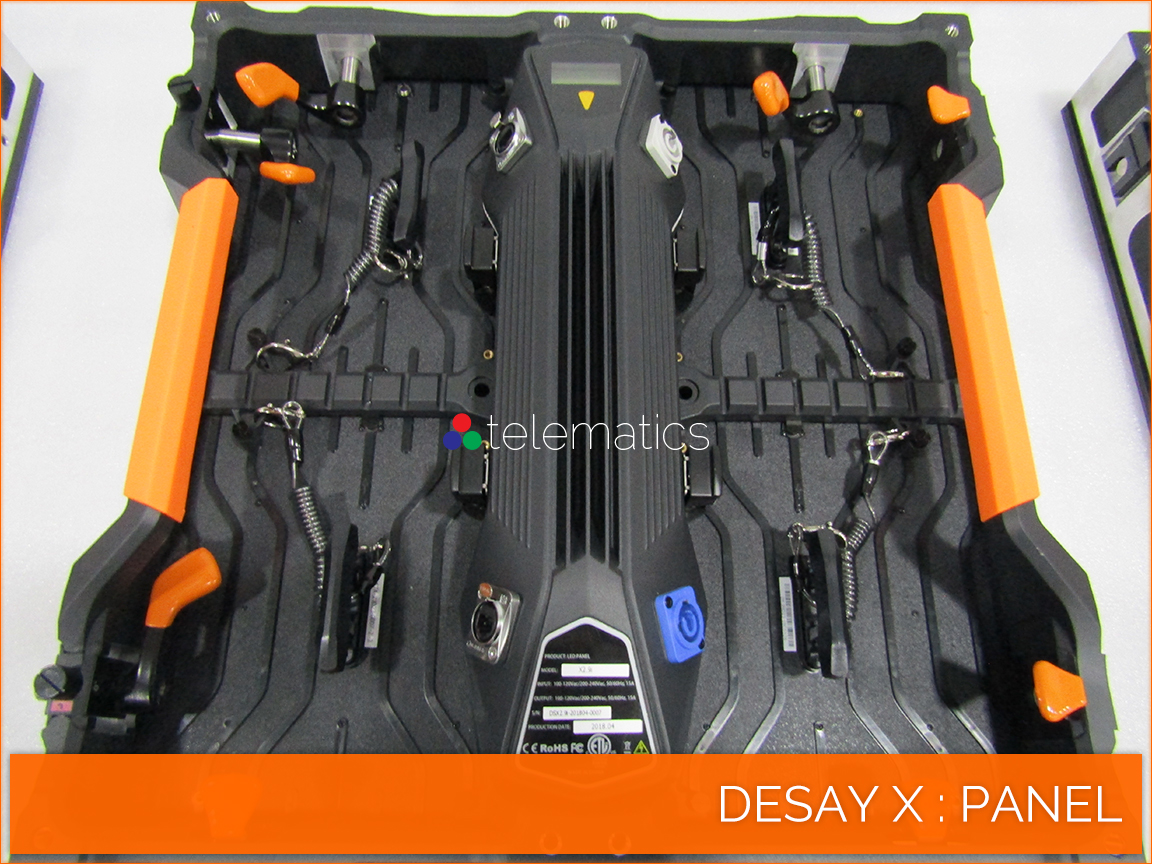

The Series X panel is made up of 4 LED modules, a central power box and an aluminum frame. Everything disconnects in moments from the back or using a custom magnetic tool, from the front. This feature allows for permanent installations to be mounted tightly to walls, requiring extra space only for adequate thermal ventilation instead of technicians.

Pixel density starts at 36,864 and increases incrementally to more than seven times that number at 262,144 pixels per square meter across 6 models. Refresh rates are 1920 Hz and 3840 Hz with Neutrik power cables and data connectors to join the panels together.

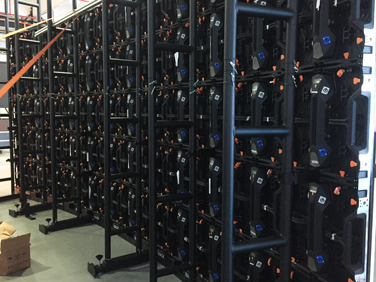

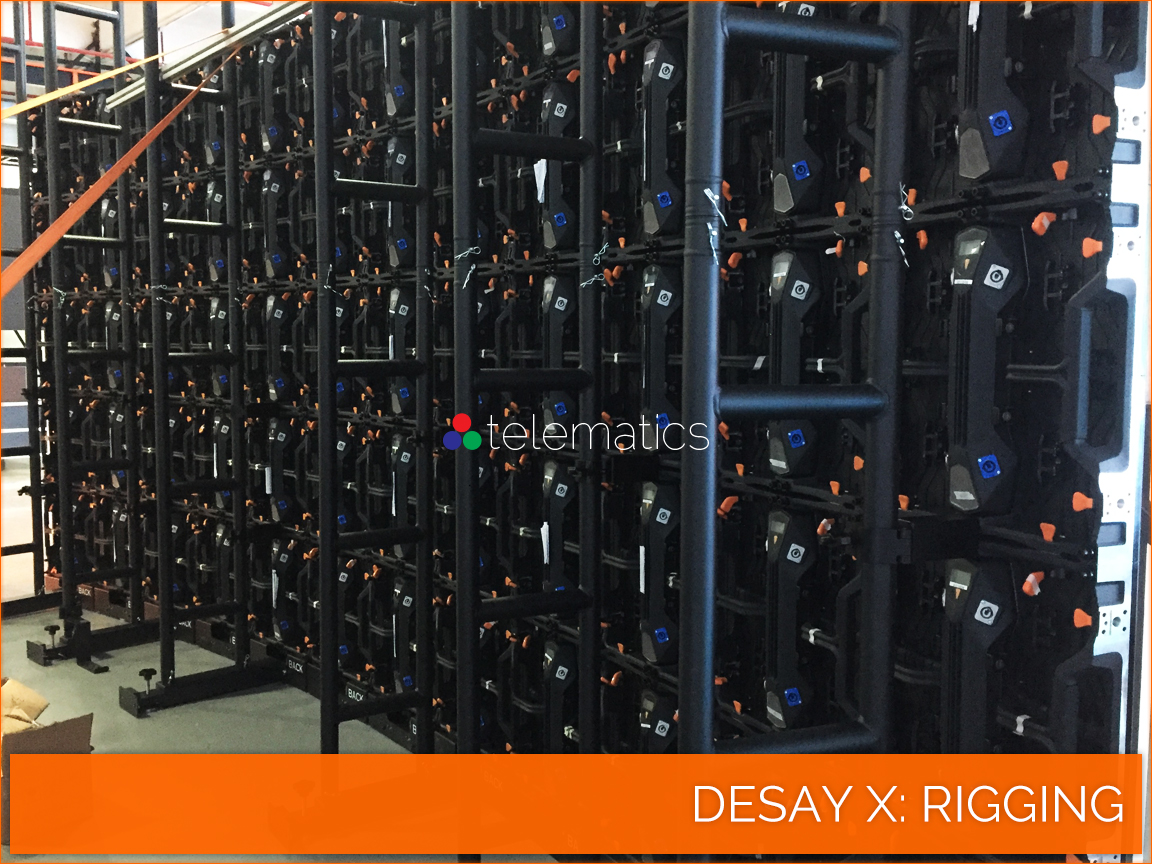

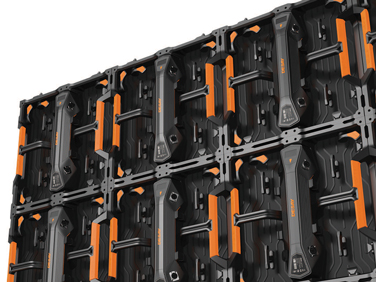

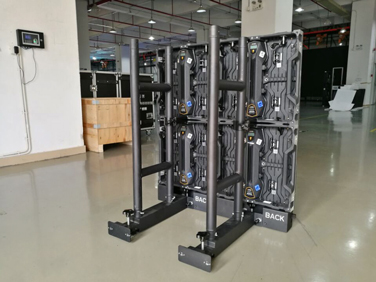

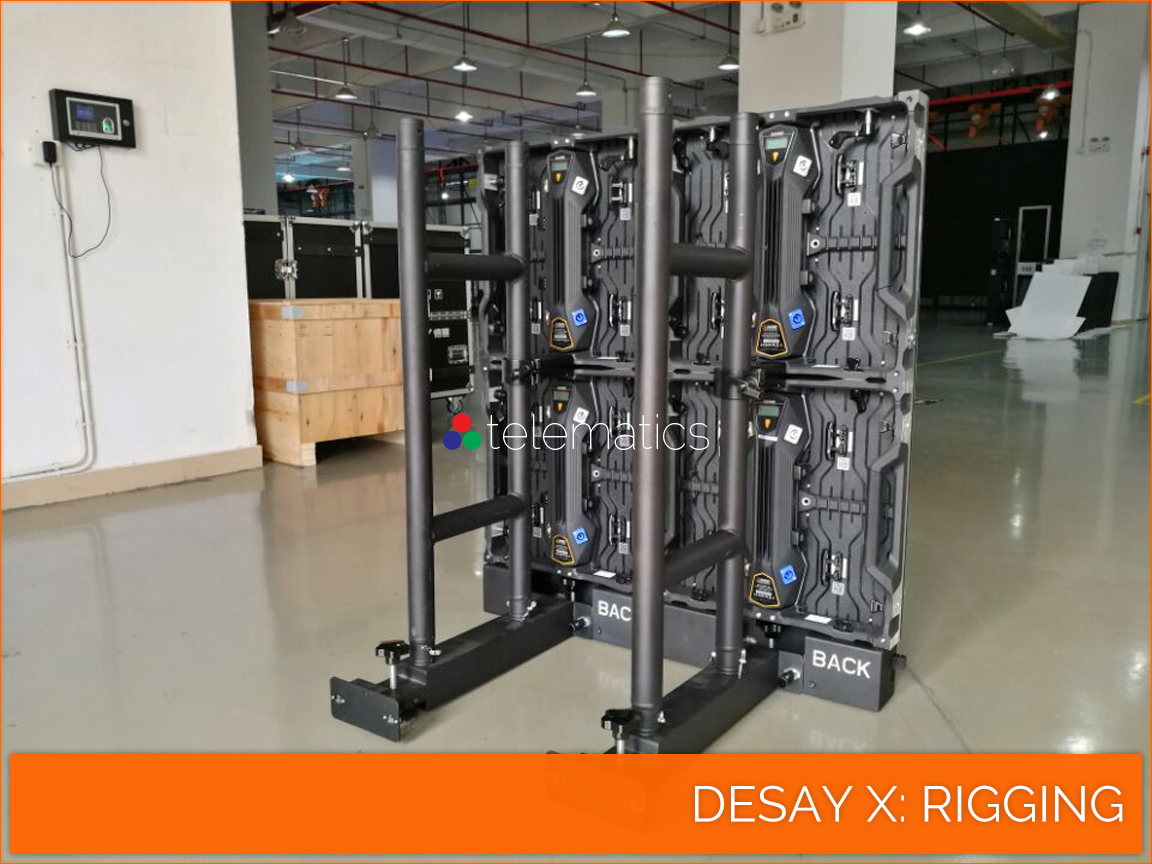

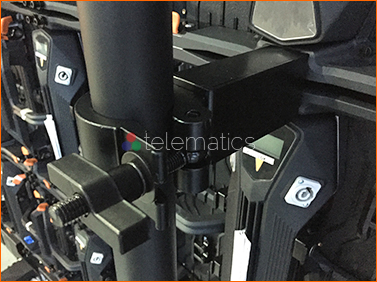

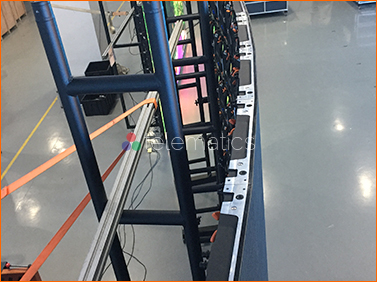

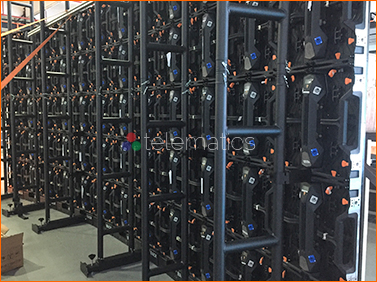

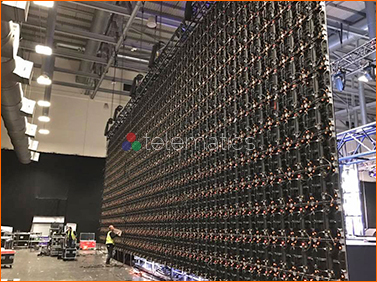

Install the Series X to a frame using the 4 corner anchors or assemble the panels using hanging bars or floor supports. Our technicians will provide mechanical drawings to create a steel frame locally or one can be built and shipped with your order.

Media is handled by any of our NovaStar controllers. If a network of displays is being deployed, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

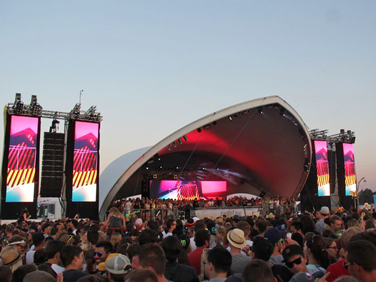

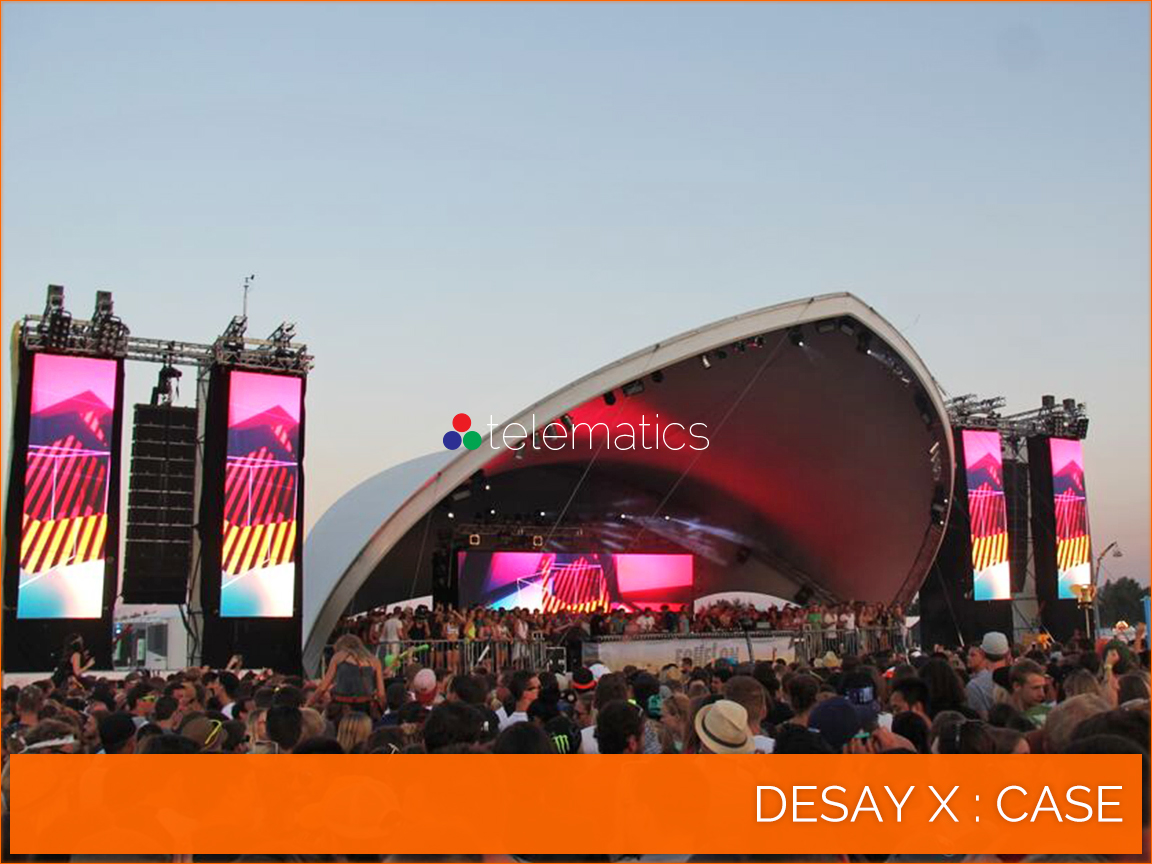

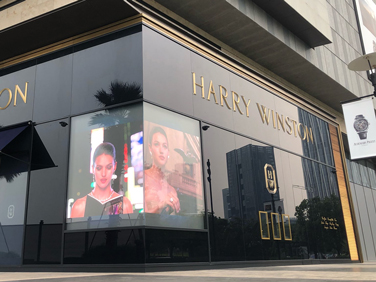

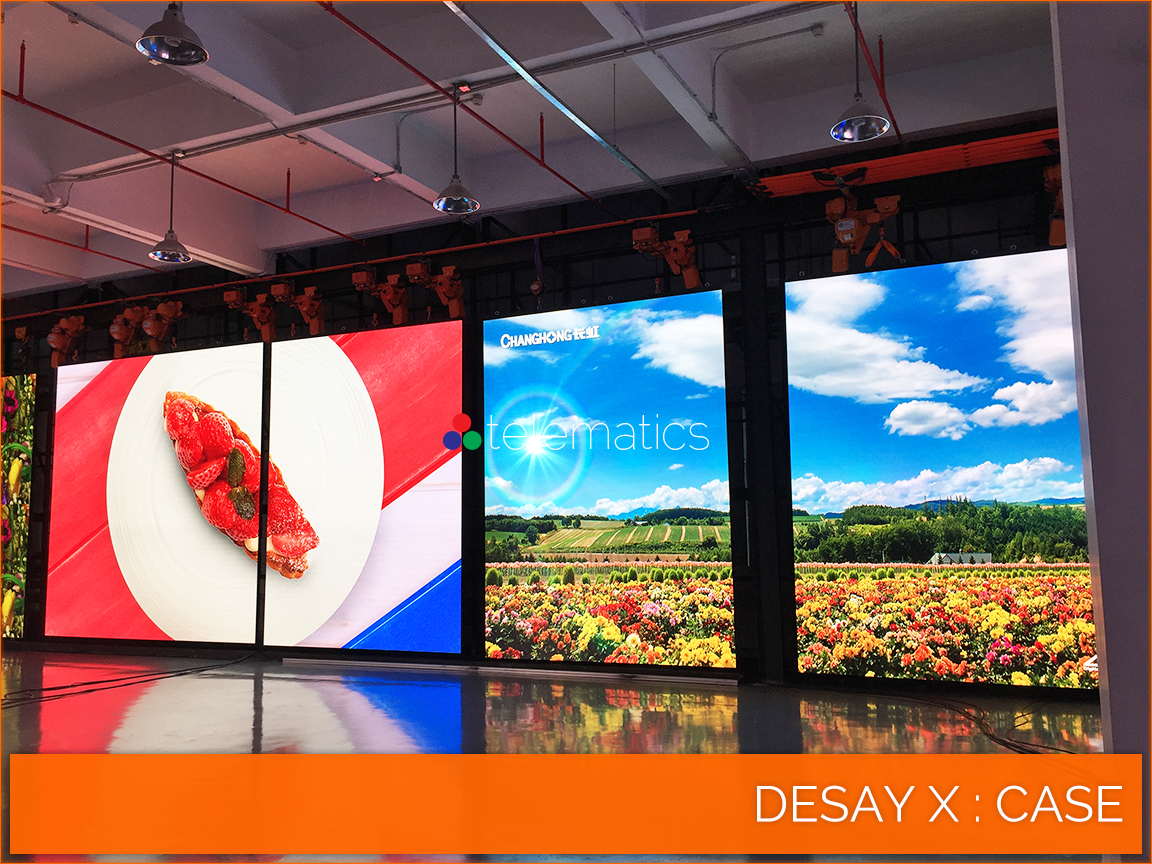

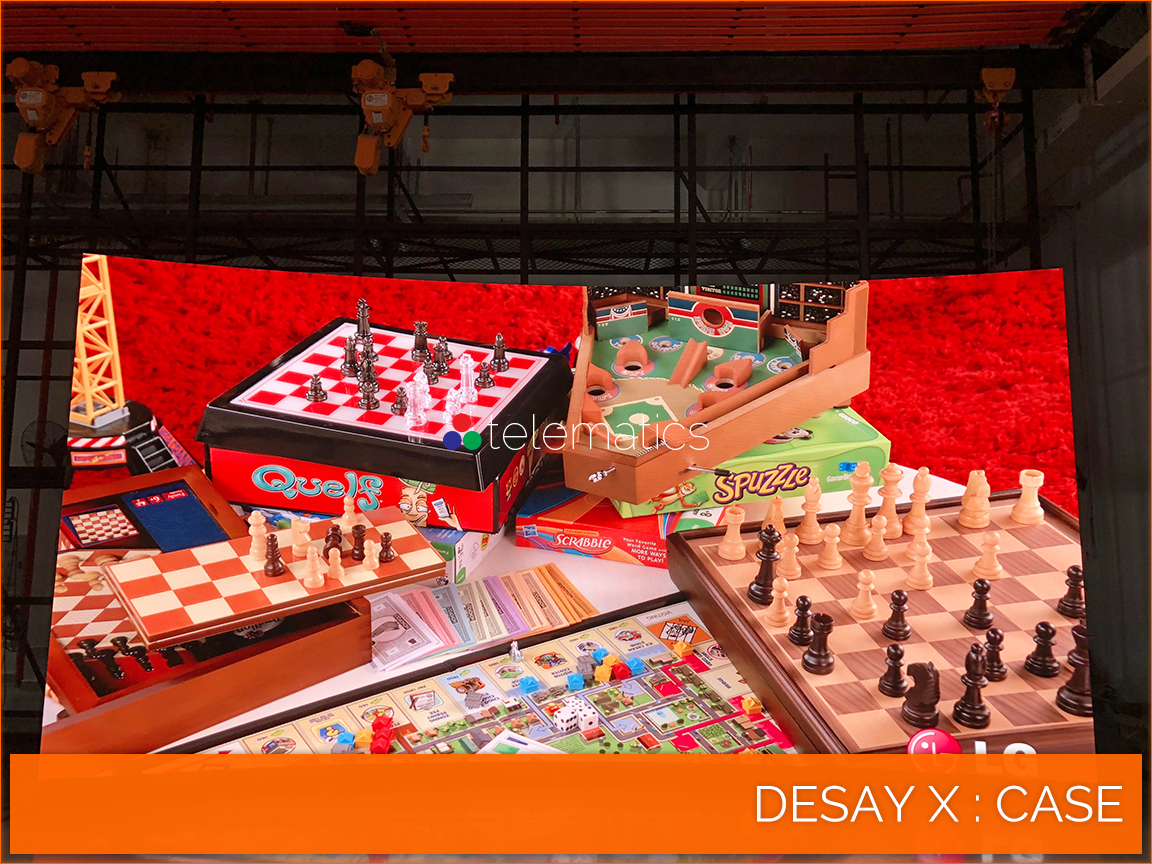

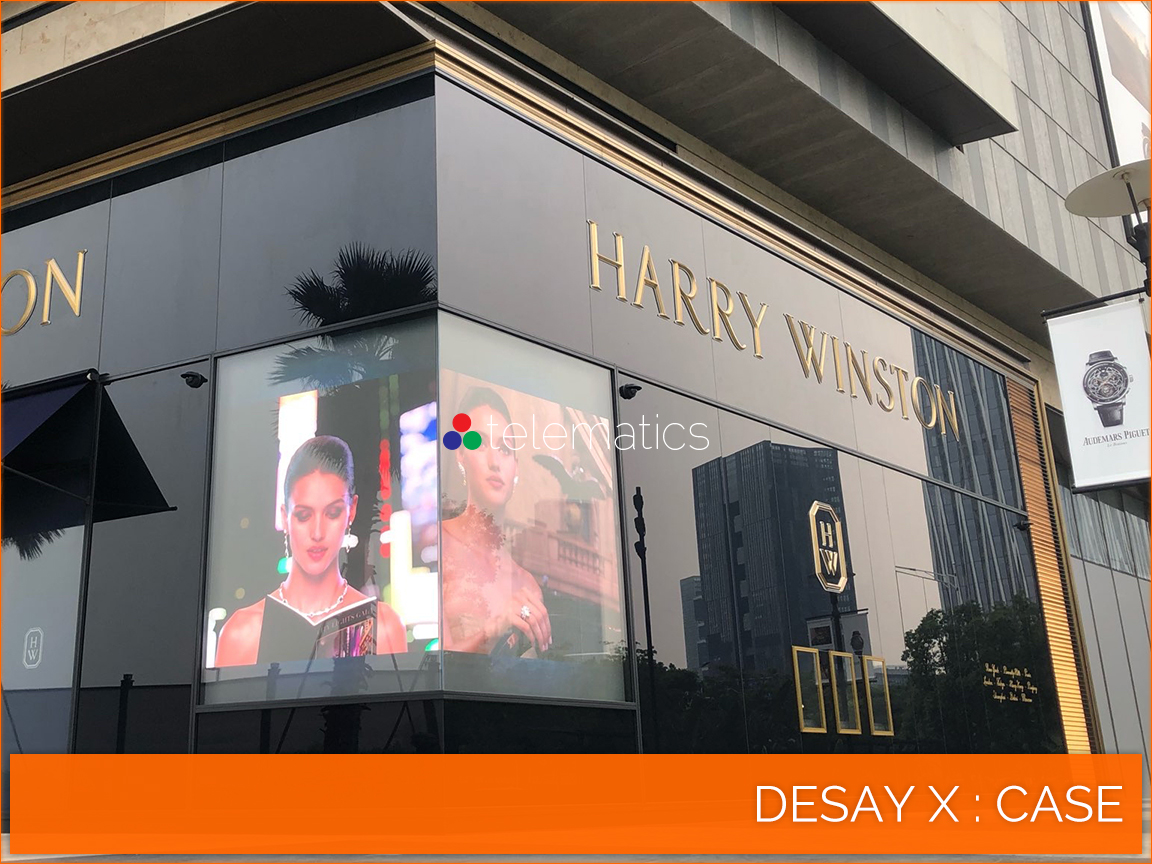

The Series X has had huge success around the world over the past few years. We'd love to name-drop like crazy, but nobody likes a show-off.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

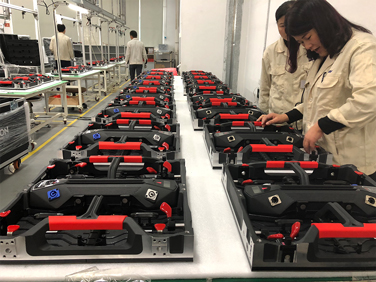

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu



S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· A1.99i 4686 base/per
· A2.57i 2920 base/per
update: 5/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Kinglight Gold / Copper Wire LED quote

DSBJ Copper Wire LED quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series AT
· AT1.99i 13566 base/per
· AT2.57i 9657 base/per
· AT3.90i 7060 base/per
· AT2.57 11855 base/per
· AT3.90 8285 base/per
update: 5/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series B
· B25·25 1467 base/sqm
· B31·31 1063 base/sqm
· B42·42 745 base/sqm

Cards · Controllers included

1000 Hz Refresh included

Cree / Multi-Color / Xindeco LED quote

Certifications quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series FS
· FS2.58i 3961 base/sqm
· FS2.95i 3560 base/sqm
update: 2/2019

Cards · Controllers quote

2880 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Certifications quote

Staging Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series G
· G2·5i 5414 base/sqm
· G3·7i 2703 base/sqm
· G5.20i 3624 base/sqm
· G7.81i 2343 base/sqm
· G10.41i 2334 base/sqm
update: 4/2019

Cards · Controllers quote

2880 / 1920 Hz Refresh quote

Ultra / Standard Brightness LED quote

Certifications ETL · FCC

Ceiling quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series H
· H2.84i 3602 base/sqm
· H3.90i 2886 base/sqm
· H3.90 3802 base/sqm
· H6.94 3114 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HL
· HL2.84i 2860 base/sqm
· HL3.90i 2409 base/sqm
· HL3.90 3386 base/sqm
· HL4.80 2571 base/sqm
· HL6.90 2337 base/sqm
· HL10.41 2040 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series M
· M4.76 3490 base/sqm
· M5.55 2872 base/sqm
· M6.25 2546 base/sqm
· M8.33 2123 base/sqm
· M10.00 1940 base/sqm
· M12.50 1784 base/sqm
· M16.66 1422 base/sqm

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series PF
· PF2.97i quote base/sqm
· PF3.90i quote base/sqm
· PF4.80i quote base/sqm
· PF6.25i quote base/sqm

Cards · Controllers quote

NationStar Gold / Copper Wire LED quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series S
· S4.76 2348 base/sqm
· S6.25 2317 base/sqm
· S8.33 1919 base/sqm
· S10.00 1630 base/sqm
· S10.88 1693 base/sqm
· S15.24 1537 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 / 1000 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

4500 / 5500 / 6000 / 8000 Nits quote

Xindeco High / Standard Brightness LED quote

6500 / 8500 / 9800 Nits quote

Certifications quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series T
· T1.26i 12696 base/sqm
· T1.58i 9396 base/sqm
· T1.90i 6639 base/sqm
· T2.53i 4160 base/sqm
update: 1/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold Wire LED quote

NationStar Gold / Copper Wire LED quote

Hardened Surface quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series X
· X1.95i 6427 base/sqm
· X2.60i 3612 base/sqm
· X2.97i 3509 base/sqm
· X3.90i 2887 base/sqm
· X3.10 6369 base/sqm
· X3.90 4461 base/sqm
· X4.46 4025 base/sqm
· X5.20 3483 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

Jointec / Refond Black Face LED quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Hardened Surface quote

Certifications quote

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · Two Years

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
