The Art Of Control · NovaStar COEX · CA50

All that we see or seem is but a dream within a dream. ~ Edgar Allan Poe

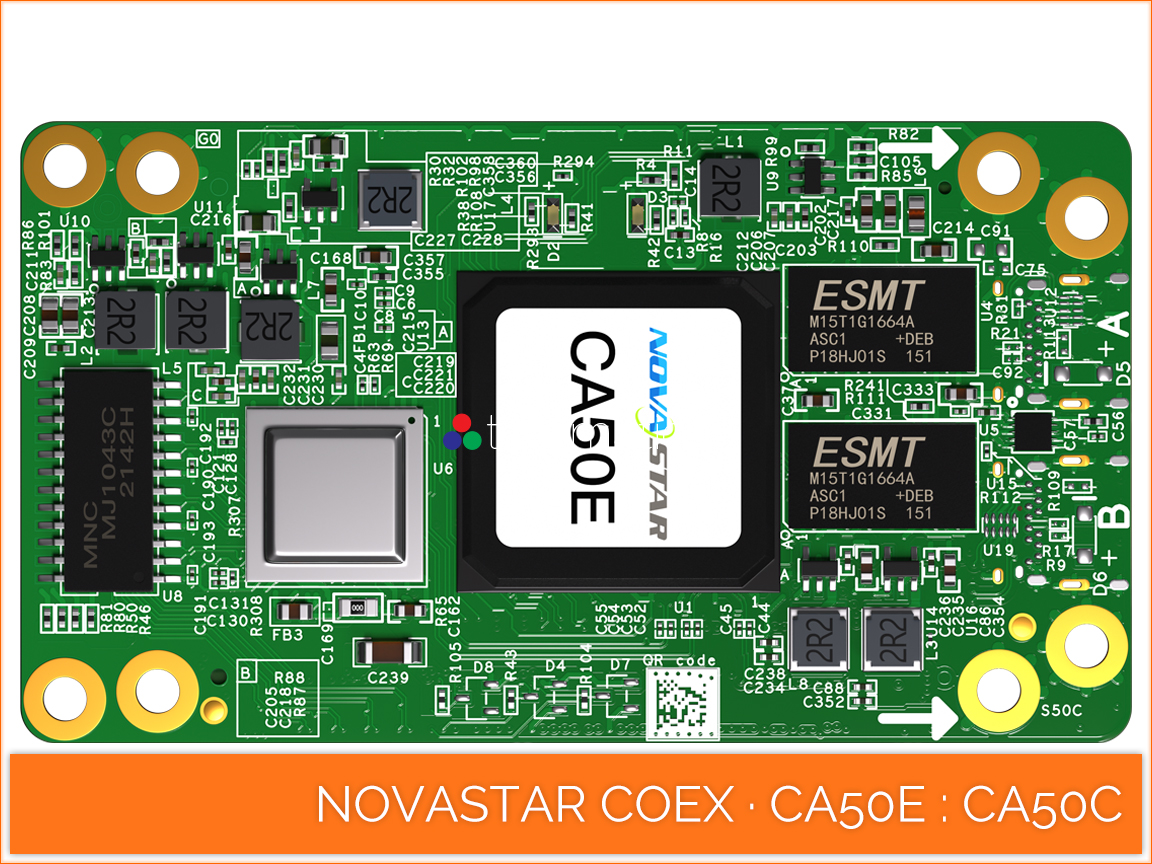

NovaStar COEX · CA50 · CA50E · CA50C · LED receiver card · 5 Gbps · full grayscale · image booster · low latency · vision management platform software · review · price · cost — NovaStar COEX · CA50

direct view LED display receiver card

5 Gbps ethernet · dual card backup

512 × 768 @ 60Hz · 393,216 pixels

vision management platform software

priced from $149/unit

NovaStar COEX · CA50

5Gbps + COEX Controller + Vision Management Platform = your next XR studio.

Specifications · CA50

There is no charm equal to tenderness of heart. ~ Jane Austen

Series ^{receiving card}		CA50	·	·	·	·	·

Price ^{usd per unit}
Series CA50 · 512 × 768 pixels · 5gb ethernet · 5gb usb-c · vmp software cost : unit · synchronous	5g receiving card$149

VMP · next generation software · windows · osx · intuitive · efficient · energy saving cost : zero · vision management platform	download windows · osx

VNNOX Media · edit · schedule · remote publishing · detailed logs cost : zero · content	apply for account zero cost
VNNOX Care · condition monitoring · operation history · cloud backup cost : zero · monitoring	apply for account zero cost

Pixels
Loading · 512 × 768 pixels^@60Hz · combined · total	maximum393,216

Bit Depth · 12/10/8-bit · red · green · blue · rgb · 2¹² · 68,719,476,736	4096 shades of rgb12
Bit Depth · 12/10/8-bit · red · green · blue · rgb · 2¹⁰ · 1,073,741,824	1024 shades of rgb10
Bit Depth · 12/10/8-bit · red · green · blue · rgb · 2⁸ · 16,777,216	256 shades of rgb8

Interface
Board · indicator · power		on · off🔲
Board · red · normal · green flashing · abnormal · status		operating status🔲

Features
Display Effect · real-time analysis · dynamic adjustment · contrast and image details · lower power consumption · dynamic booster		dynamic booster✓
Display Effect · color management · custom color gamuts · precise grayscale adjustment · led image booster		precise grayscale✓
Display Effect · calibration coefficients · uniformity of each grayscale · grayscale calibration		grayscale calibration✓

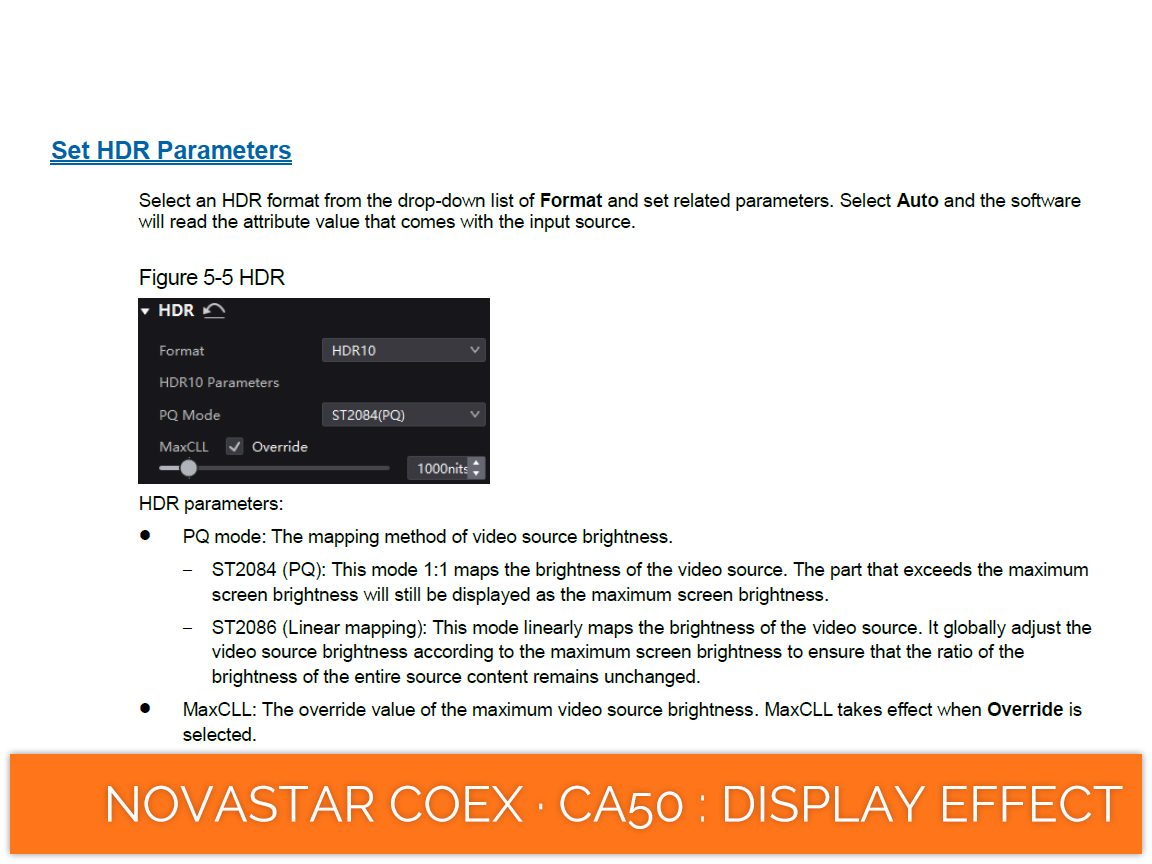

Display Effect · smpte st 2084 · smpte st 2086 · bt.2100 standard · hdr		high dynamic range✓

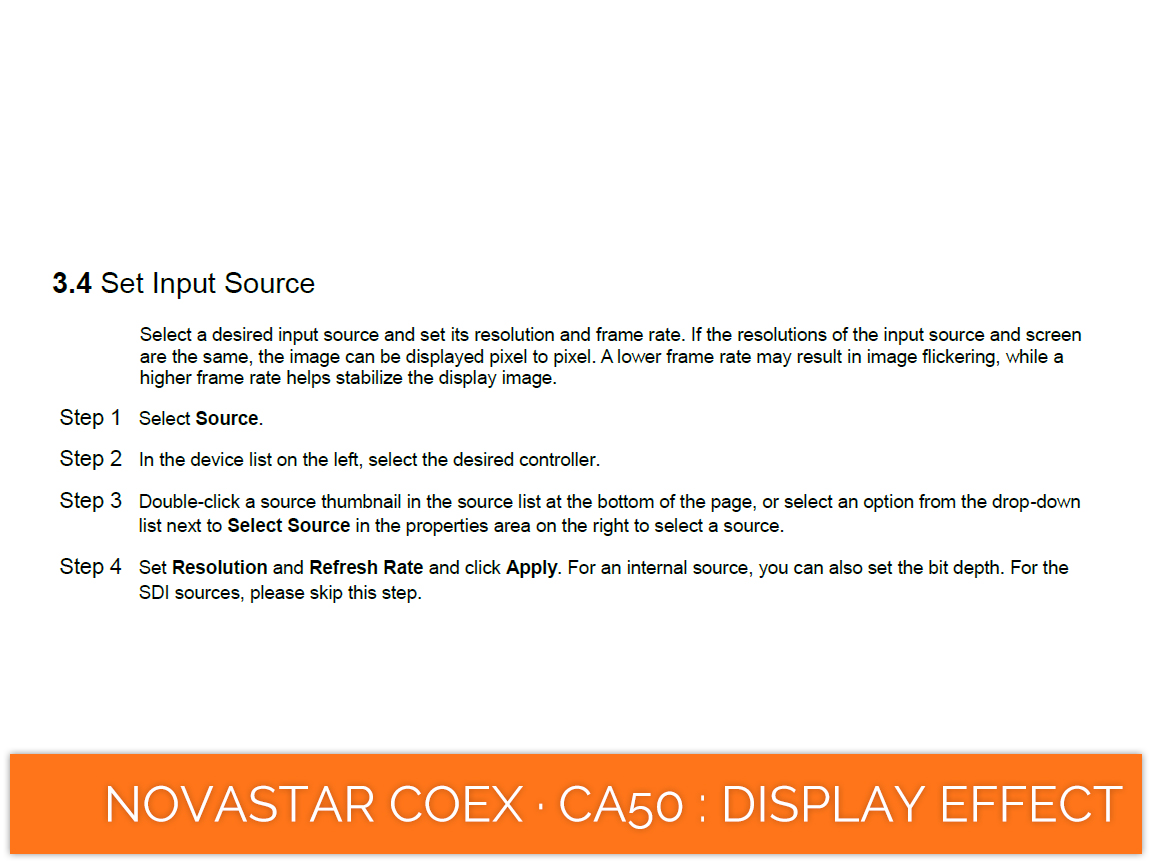

Display Effect · real-time adjustment · receiving card parameters · adaptive frame rate		adaptive frame rate✓
Display Effect · adjust driver ic parameters · camera shutter angle · xr studios · shutter fit		operating status✓
Display Effect · adjust dark or bright lines · module to module · correct seams		seam correction✓
Display Effect · reduce latency to 1 frame · driver ic with built-in ram · low latency		low latency✓
Display Effect · pixel-level brightness calibration · pixel-level chroma calibration · brightness · chroma		brightness · chroma✓
Display Effect · requires controller with 3d · 3d		controller with 3d✓
Display Effect · rotate image · 0° · 90° · 180° · 270° · 90° image rotation		image rotation✓

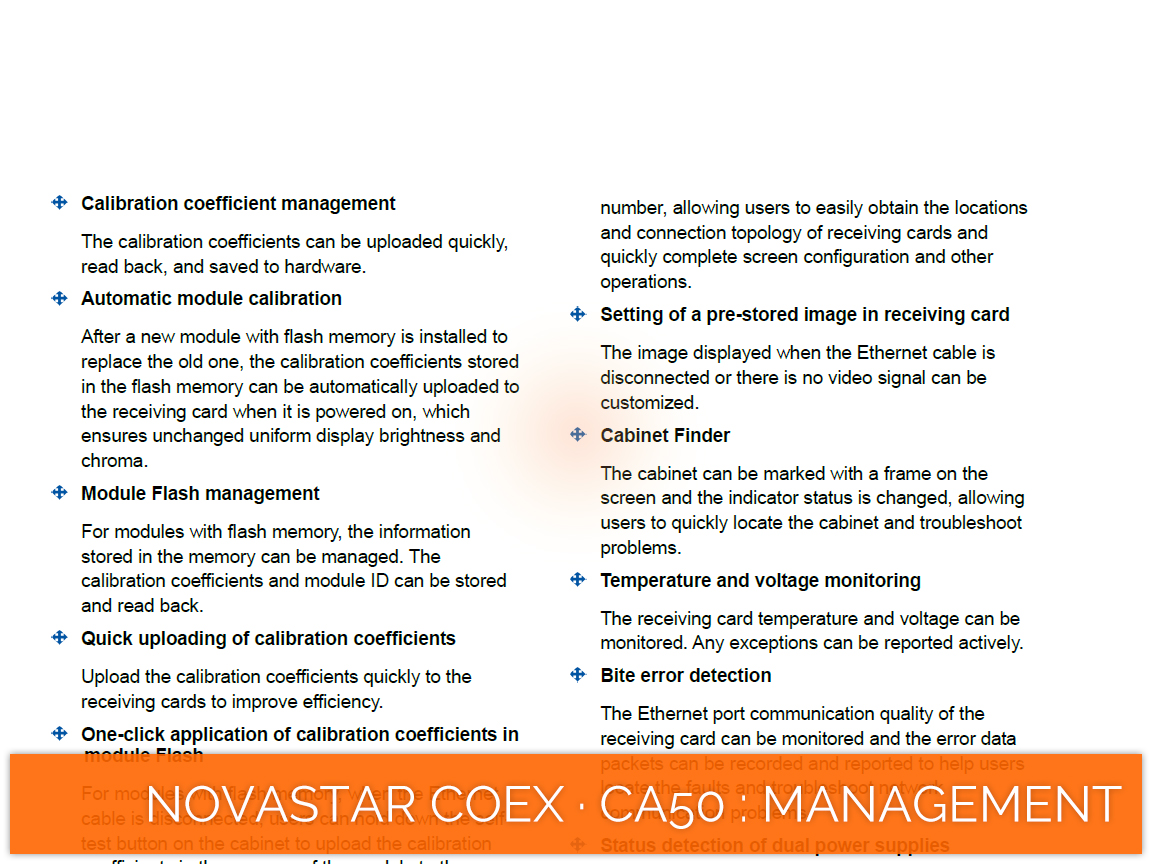

Management · upload · read back · save to hardware · calibration coefficient		upload · read save to hardware✓
Management · flash memory · automatic upload · module calibration		upload to card✓
Management · manage flash memory · calibration coefficients · module id · module flash		flash memory✓
Management · improved efficiency · upload calibration coefficients		upload✓
Management · one click · self test · apply calibration coefficients		one click self test button✓
Management · identify cabinets · port number · card number · configure display · mapping function		configure display✓
Management · no video source required · prestore image		set image✓
Management · locate · troubleshoot · cabinet finder		locate · troubleshoot✓
Management · monitor receiving card · active reporting · temperature voltage		monitor temperature monitor voltage✓
Management · error data packets · record · report · bit error detection		record · report✓
Management · dual power supply · status of power supplies		operating status✓
Management · reduced cables · improved emc · lvds transmission		reduce data cables✓

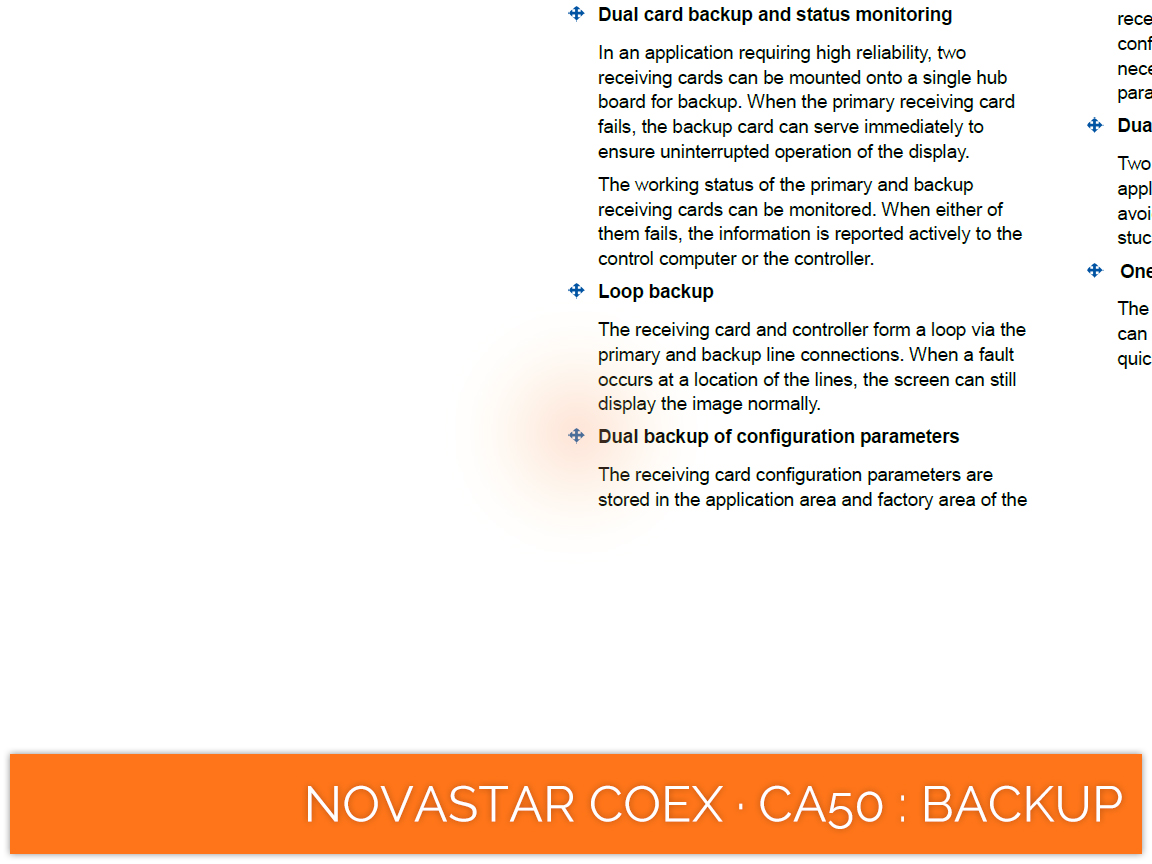

Backup · dual cards · uninterrupted performance · dual card status		status monitor✓
Backup · primary · backup line · uninterrupted performance · loop to controller		loop✓
Backup · restore · application area · factory area · configuration parameters		restore✓
Backup · firmware · dual copies · dual program		firmware✓
Backup · firmware · one-click copy · firmware program learning		one-click copy✓


Card
Dimensions · physical specifications · metric · imperial · width	1.77''0.0450
Dimensions · physical specifications · metric · imperial · length	3.15''0.0800
Dimensions · physical specifications · metric · imperial · depth	0.37''0.0094

Dimensions · physical specifications · metric · imperial · weight	0.90 ounces0.0255

IP Code · ingress protection · first digit · solids · (2) · >12.50 mm · second digit · liquids · (0) · no protection · front · rear	ingress protection20 · 20

Power · power consumption · watts	maximum use draw6.8
Power · power input · voltage · amps	alternating current 1.35 amps100 ⌁ 240

PDF · 1 of 2


Fine Print
Warranty · factory standard	NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · ce · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price	NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.
