The Art Of LED · Desay Series TRB

Red Dot Award · Brompton Tessera · NovaStar VNNOX
Everything has beauty, but not everyone sees it. ~ Confucius


Auditions for ultra-fine pixel rental panels are now over.

We would like to thank everyone for coming.

Pixels

Pixel-to-pixel spacing begins at an impressive 0.78 millimeters to create ultra-fine-pixel display resolutions of over 1,600,000 Mini LED lamps/m².
Each millimeter of spacing supports one meter of viewing distance which means that the Series TRB will look great from less than 1 meter away.

Dimensions

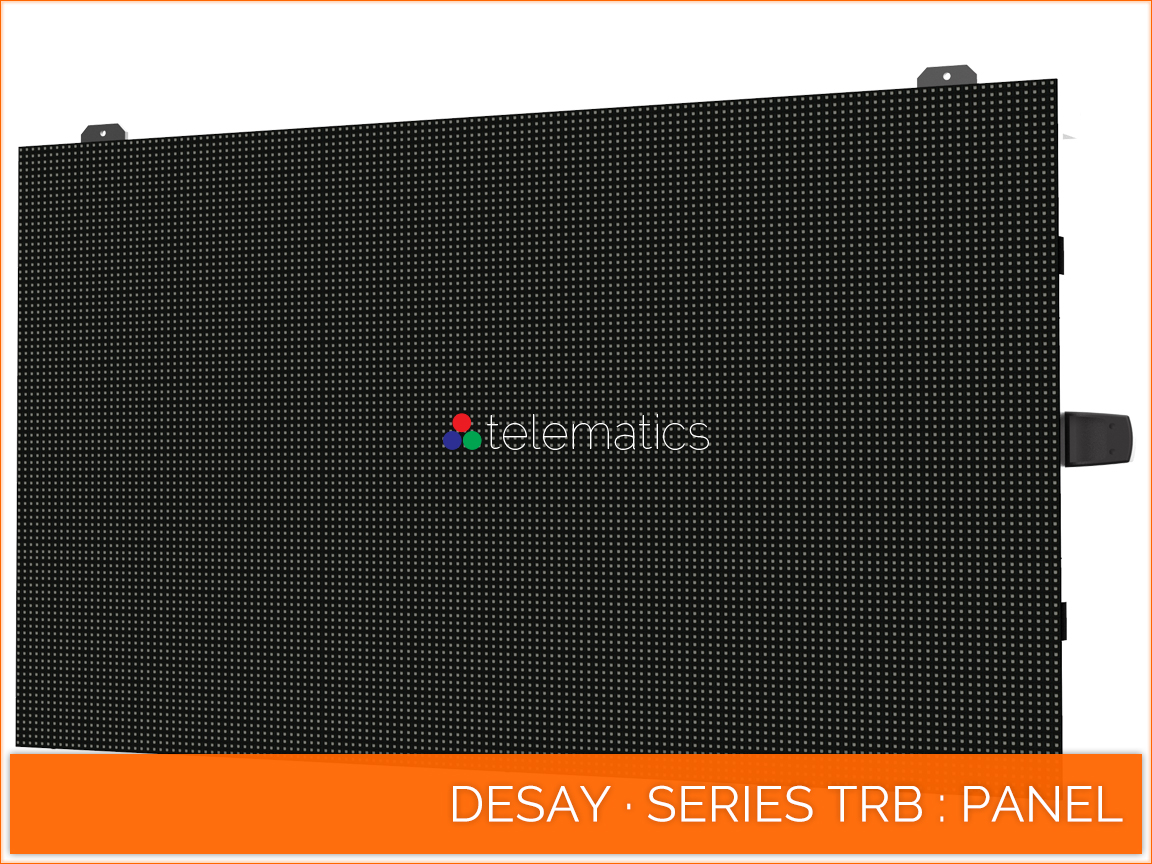

The Series TRB is a revolutionary rental panel that weighs under 10 kilograms with XYZ dimensions of
600 * 337.5 * 75 millimeters.
Boomers can convert those numbers to the Exchequer Standards of 1825 for dimensions of 23 * 13 * 3 inches
and a lightweight 22 pounds.

Viewing

Display panel brightness ranges from
500 cd/m² to 800 cd/m².
Screen refresh rates are set at up to 3840 Hz for camera-ready video. An outstanding 160° off-axis viewing means that pretty much everyone in the audience can see the Series TRB whether coming or going.

Performance

Red14 * Green14 * Blue14 generate 4398 billion colors and a silky smooth 16384 greys. Display life expectancy is projected to be 100,000 hours, which works out to about 11 years of full-time use. Which means we look forward to hearing from you again in 2031.

Power

Rated power consumption is a low 192 W/m² to 290 W/m² and up to 830 W/m² on full load depending on the specifications of the model.

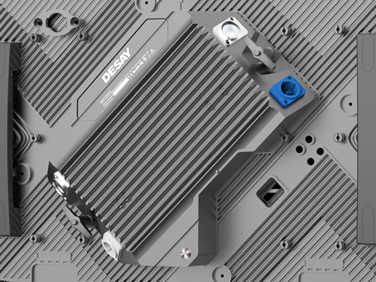

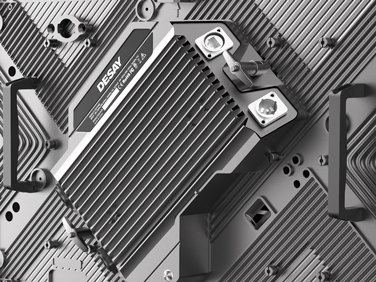

Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

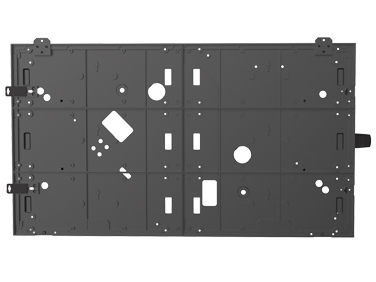

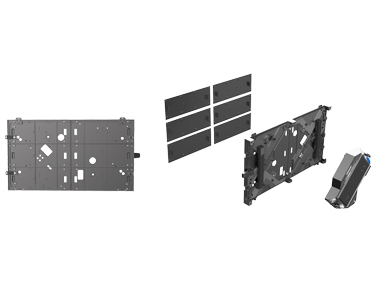

The TRB is the first ultra-fine-pixel panel built for the rental market. Retractable bump stops at each corner protect the edges of the award-winning 3-piece modular design. The panel adjustment fine- tunes and flattens your display like never before. Your search is over.

Specifications · Series TRB

Indoor Stage Brompton NovaStar
Try to be a rainbow in someone's cloud. - Maya Angelou

Series indoor 078 093 125 156 187 250
Pixels
Resolution · center to center
• center to center
  🗸 distance between pixels
  🗸 measured in millimeters
  🗸 also referred to as pitch
Resolution · linear meter
• pixels per linear meter
  🗸 measure of pixel density
Resolution · square meter
• pixels per square meter
  🗸 multiplied by the XY axis

Brightness · candela/m²
• candela per square meter
  🗸 measure of brightness
  🗸 also referred to as nits
  🗸 also referred to as lumens
600 600 700 800 800 800

Driver · integrated circuit
• integrated circuit
  🗸 Macroblock (MB)
• functions:
  🗸 optimized color uniformity
  🗸 lower ghost effect
  🗸 low gray scale uniformity
  🗸 color shift at white balance

Viewing · 50% brightness
• off-angle viewing
  🗸 reduced to 50% brightness
  🗸 horizontal viewing
  🗸 vertical viewing
Viewing · 50% brightness
• off-angle viewing
  🗸 reduced to 50% brightness
  🗸 horizontal viewing
  🗸 vertical viewing
Price usd per m²
Series TRB · 1515 · black · copper · 2880
• 1515 nationstar
  🗸 black frame
  🗸 higher contrast
• copper led lamps
  🗸 standard brightness
• 2880 Hz refresh
  🗸 smoother video
$ 3597
Series TRB · 1515 · black · gold · 2880
• 1515 nationstar
  🗸 black frame
  🗸 higher contrast
• gold led lamps
  🗸 higher brightness
  🗸 enhanced stability
• 2880 Hz refresh
  🗸 smoother video
Series TRB · 1010 · black · copper · 2880
• 1010 nationstar
  🗸 black frame
  🗸 higher contrast
• copper led lamps
  🗸 standard brightness
• 2880 Hz refresh
  🗸 smoother video
$ 4648
Series TRB · 1010 · black · gold · 2880
• 1010 nationstar
  🗸 black frame
  🗸 higher contrast
• gold led lamps
  🗸 higher brightness
  🗸 enhanced stability
• 2880 Hz refresh
  🗸 smoother video
Series TRB · 1010 · black · gold · 2880
• 1010 everlight
  🗸 black frame
  🗸 higher contrast
• copper led lamps
  🗸 standard brightness
  🗸 enhanced stability
• 2880 Hz refresh
  🗸 smoother video
$ 9663
Series TRB · 4:1 miniled · black · copper · 2880
• 4:1 miniled nationstar
  🗸 black frame
  🗸 higher contrast
• copper led lamps
  🗸 standard brightness
  🗸 enhanced stability
• 2880 Hz refresh
  🗸 smoother video
$ 22672
Series TRB · 4:1 miniled · black · gold · 2880
• 4:1 miniled mtc
  🗸 black frame
  🗸 higher contrast
• copper led lamps
  🗸 standard brightness
  🗸 enhanced stability
• 2880 Hz refresh
  🗸 smoother video
$ 10206
Series TRB · 4:1 miniled · black · copper · 2880
• 4:1 miniled havartek
  🗸 black frame
  🗸 higher contrast
• copper led lamps
  🗸 standard brightness
  🗸 enhanced stability
• 2880 Hz refresh
  🗸 smoother video

Cards NovaStar VNNOX
• a8s novastar
  🗸 262,000 pixel capacity
  🗸 22bit+
  🗸 precise grayscale
  🗸 intelligent color management
  🗸 independent gamma adjustment
  🗸 hdr10-optima & hlg
  🗸 free rotation

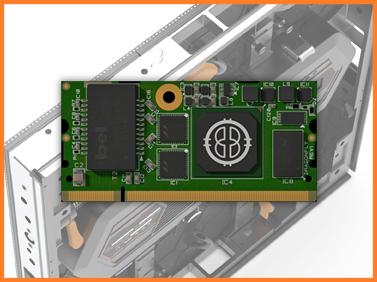

Cards Brompton Tessera
• r2 brompton
  🗸 262,000 pixel capacity
  🗸 ddr2 so-dimm
  🗸 on screen colour adjustment
  🗸 superior greyscale
  🗸 module storage
Panel
Width · standard
• standard width

Height · standard
• standard height

Depth · standard
• standard depth

Weight · panel
• approximate weight
  🗸 refer to schematics

IP Code · front · rear
• Ingress Protection
  🗸 protection from dust
  🗸 protection from liquids
Power
Watts · per m²
• maximum power draw
  🗸 high-demand videos
• average power draw
  🗸 typical videos and photos
  🗸 maximum × 35%
• total power demand
  🗸 calculate for electrical
  🗸 maximum / 0.7
Voltage · rated input voltage
• rated input voltage
  🗸 adaptable
100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240

Certifications · regional
• region specific
  🗸 etl
  🗸 ul
  🗸 fcc
Installation
Overhead · rigging
• overhead
  🗸 standard rigging
  🗸 fly bars

Wall · custom steel frame
• wall mount
  🗸 custom steel frame
  🗸 supplied or drawings

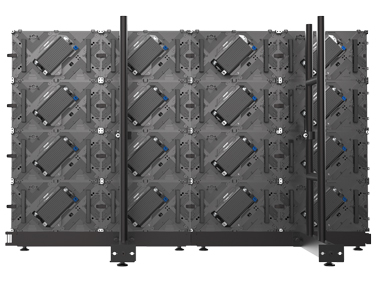

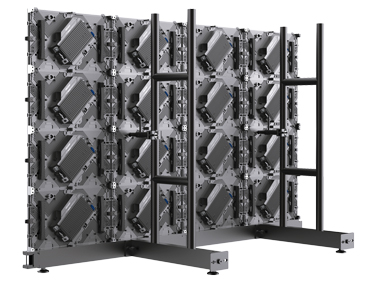

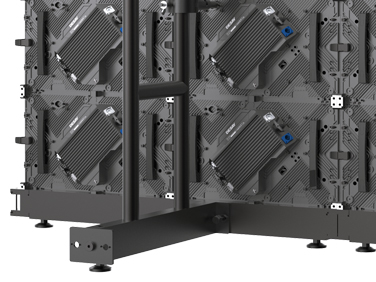

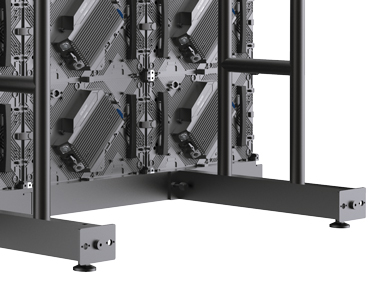

Floor · rolling support
• factory rigging
  🗸 wheels
  🗸 static
Floor · stacking
• factory rigging
  🗸 stack multiple panels
Fine Print
Specifications Desay and Telematics reserves the right to change any specifications without prior notice.
Standard Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.
Extended Factory Warranty The Desay factory warranty may be extended to 3, 4 or 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Do not mind anything that anyone tells you about anyone else. Judge everyone and everything for yourself. ~ Henry James


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series TRB

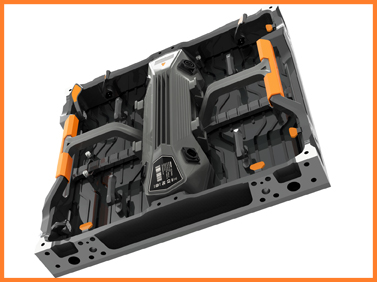

The Series TRB rental panel is new for 2020 and builds on the success of our award-winning Series X and shares many of the same design elements of our Series TVB installation panels.

The dimensions of 600 * 337 millimeters create a 16:9 aspect ratio in a single panel or with four or more panels. And at just 39 millimeters or 1.5 inches, this is the thinnest rental panel Desay has created to date.

The TRB is your default choice for a fine or ultra-fine pixel rental panel, with a selection that starts with cost-effective 2.50 and 1.87 pixel counts and continues on to premium sub-millimeter 4:1 mini LEDs.

To keep your displays protected from curious fingers and always looking their best, Desay provides a Hard Face GOB upgrade that is easily cleaned and makes moiré less :)

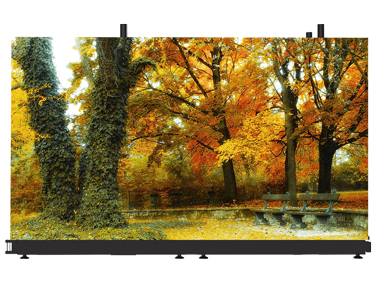

Suspend the TRB from rigging above or support it from the ground up with Desay's innovative floor system. At about 12 pounds each, the TRB isn't likely to be a pain in the back for your Roadies to set up or tear down.

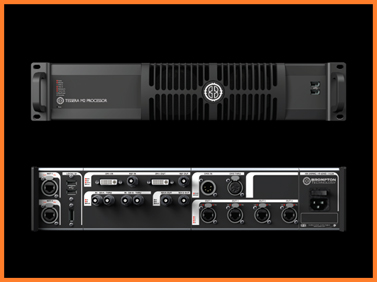

If you are looking to hit it out of the park with Brompton Technology’s High Dynamic Range (HDR), the Desay Series TRB invites you to combine the Tessera M2 or Tessera SX40 LED Processors and the Brompton Tessera R2 Receiver Cards.

The TRB is going to future-proof your rental inventory as industry clients demand higher resolution and greater performance for their audience. And if your horizon stretches out past the next few years, Desay's factory warranty can have your back for up to five years.

Our Manufacturers

Desay is a public corporation (002920) with close to a billion dollars in annual sales and highly diversified in the manufacturing of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in Optoelectronic LED production.

Desay's Optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.
