GlassVu Pixel · FilmGlassVu Pixel · Film

Actually transparent LED displays at a price that was totally worth waiting for.

Pixels

Pixel-to-pixel spacing begins at just 6.250 millimeters to create highly transparent display resolutions based on 25,600 LED lamps/m². Each millimeter of spacing supports one meter of viewing distance which means that the Pixel Film will look great from about 6 steps away.

Dimensions

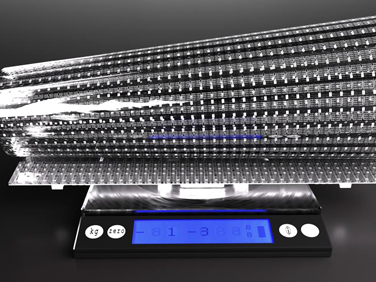

The ultra-thin GlassVu Pixel Film weighs just 6 kilograms per square meter based on modules with XYZ dimensions of 400 × 1000 × 2.50 millimeters. Set out panels alongside each other to create an endless lightweight display that appears to float on most any glass surface.

Viewing

GlassVu Pixel Film is equipped with up to 6000 cd/m² of fully-adjustable brightness. Static driving means your display is camera-ready with no distracting scan lines. 160° of off-axis viewing gives everyone in your audience a perfect view of the Pixel whether they are coming or going.

Performance

Redⁿ * Greenⁿ * Blueⁿ creates more color combinations than our eyes can see, plus an abundance of silky smooth shades of grey. Display life is projected to be 100,000 hours or about 11 years of full-time use.
Which means we look forward to hearing from you again in 2035.

Power

Rated power consumption is a low 200 W/m² on average and up to 800 W/m² on full load depending on the specifications of the model.
Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

GlassVu Pixel Film turns most any window into a spectacular showcase that can storyboard all the reasons your customers should come inside, or just put on a fantastic light show for your community. Installation is standard peel and stick with some data and power cabling.

Specifications · GlassVu Pixel · Film

Don't judge each day by the harvest you reap but by the seeds that you plant. ~ Robert Louis Stevenson

Series ^{· usd per m²}		Film 6²⁵	Film 8⁰⁰	Film 10⁰⁰	Film 15³⁸	Film 20⁰⁰	·

Panel · GlassVu Pixel Film · lamp · smd:driver ic · model · 1515 · wire · copper · refresh · static cost : panel · 1515 · copper · 400 × 1000	$ 1,296	$ 837	$ 729	$ 572	$ 518

Panel · GlassVu Pixel Film · lamp · smd:driver ic · model · 1515 · wire · copper · refresh · static cost : square meter · 1515 · copper · 2.5 × 400 × 1000	$ 3,240	$ 2,093	$ 1,823	$ 1,431	$ 1,296

Option · Corporate Logo · silk screen print · color · black and white · control box · flight case cost : no cost option · logo · control box · flight case	✓	✓	✓	✓	✓

Control
Receiver · NovaStar B6S · viplex · vnnox · 32 × 1024 @ 60hz · 1 gbps bandwidth cost : unit · novastar coex · b6s	$ 85	$ 85	$ 85	$ 85	$ 85

Controller · NovaStar Taurus TB50 · novalct · viplex · vnnox · media player · 8-bit · network · wifi · 4g cost : unit · novastar cloud · tb50	$ 425	$ 425	$ 425	$ 425	$ 425

Pixels
Resolution · Display Resolution · mm between lamp centers · less space = more resolution · 1 mm pixel : 1 meter viewing · pixels · center to center	6.250	8.000	10.000	15.384	20.000
Resolution · Display Resolution · pixels per linear meter · more pixels = more resolution · 1 mm pixel : 1 meter viewing · pixels · linear meter	160	125	100	65	50
Resolution · Display Resolution · pixels per square meter · more pixels = more resolution · 1 mm pixel : 1 meter viewing · pixels · square meter	25,600	15,625	10,000	4,225	2,500

Viewing · Display Viewing · candela per square meter · direct viewing · degrees from center · luminosity · 100% · direct	≤ 6000^± 0°	≤ 6000^± 0°	≤ 6000^± 0°	≤ 6000^± 0°	≤ 6000^± 0°
Viewing · Display Viewing · candela per square meter · indirect viewing · degrees from center · luminosity · 50% · indirect	≤ 3000^± 80°	≤ 3000^± 80°	≤ 3000^± 80°	≤ 3000^± 80°	≤ 3000^± 80°

Viewing · Display Viewing · transparency · direct viewing · 0 degrees from center · transparency · %	90%	90%	90%	90%	90%

Panel
Dimensions · Panel Dimensions · project specific schematics · cable and power drawings · available on request · panel · width · edge to edge	0.400^{· 15.7}	0.400^{· 15.7}	0.400^{· 15.7}	0.400^{· 15.7}	0.400^{· 15.7}
Dimensions · Panel Dimensions · project specific schematics · cable and power drawings · available on request · panel · height · edge to edge	1.000^{· 39.4}	1.000^{· 39.4}	1.000^{· 39.4}	1.000^{· 39.4}	1.000^{· 39.4}
Dimensions · Panel Dimensions · project specific schematics · cable and power drawings · available on request · panel · depth · front to back	0.003^{· 0.10}	0.003^{· 0.10}	0.003^{· 0.10}	0.003^{· 0.10}	0.003^{· 0.10}
Dimensions · Panel Weight · project specific schematics · cable and power drawings · available on request · panel · weight · square meter	6.0^{· 13.2}	6.0^{· 13.2}	6.0^{· 13.2}	6.0^{· 13.2}	6.0^{· 13.2}

Power Draw · Power Draw · draw per square meter · cable and power drawings · available on request · watts · images · videos	200	200	200	200	200
Power Draw · Power Draw · draw per square meter · cable and power drawings · available on request · watts · full white · calibrated	800	800	800	800	800

Installation
Rigging · Adhesive · silicon polymer · apply · remove cost : no cost · adhesive · silicon polymer	✓	✓	✓	✓	✓

PDF · 3 of 3


Fine Print
Warranty · factory standard	Comprehensive warranty on all components for 2 years from shipping.

Certifications · etl · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price	Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch · GlassVu Pixel · Film

So here's the deal...

Do not mind anything that anyone tells you about anyone else. Judge everyone and everything for yourself. ~ Henry James

About Telematics Canada

Telematics Canada is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture premium direct-view LED displays for most every commercial and creative application, and the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses who select and install their own systems with the assistance of local tradesmen and engineers.
