The Art Of LED · Desay Series A · AT

While heading the profit of my counsel, avail yourself also of any helpful circumstances over and beyond the ordinary rules.~ Sun Tzu


Look out print media.

We have a new poster child.

Pixels

Pixel-to-pixel spacing begins at an impressive 1.99 millimeters to create a fine-pixel display resolution of more than 250,000 LED lamps/m².
Each millimeter of spacing supports one meter of viewing distance which means that the Series A and AT will look great from just 2 meters away.

Dimensions

The Series A is a precision aluminum panel that weighs approximately
35 kilograms with XYZ dimensions of
1982 * 614 * 40 millimeters.
The Series AT is a massive aluminum panel that weighs approximately
90 kilograms with XYZ dimensions of
2355 * 1348 * 90 millimeters.

Viewing

Display panel brightness ranges from
800 cd/m² to 4000 cd/m².
Screen refresh rates are set at up to 2880 Hz for camera-ready video. An impressive 160° off-axis viewing means that pretty much everyone in the room can see the Series A and AT both coming and going.

Performance

Red14 * Green14 * Blue14 generate 4398 billion colors and a silky smooth 16384 greys. Display life expectancy is projected to be 100,000 hours, which works out to about 11 years of full-time use. Which means we look forward to hearing from you again in 2031.

Power

Rated power consumption is a low 172 W/m² to 206 W/m² and up to 620 W/m² on full load depending on the specifications of the model.
Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series A and AT can be specified with floor, ceiling or wall mounts for most any application. These fully- integrated displays require only a power outlet and a digital file to entertain your audience. And we always have your back with a front layer of tough polycarbonate.

Specifications · Series A · AT

Rental Installation Standalone Portrait Landscape Overlay
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series indoor A199 A257 AT199 AT257
Pixels mm · meters
Resolution · ctc distance · mm 1.995 2.571 1.995 2.571
Resolution · per linear meter 501 389 501 389
Resolution · per square meter 251001 151321 251001 151321
Panel mm · (inch)
Width · standard panel + bezel 576 (22.7) 576 (22.7) 2355 (92.7) 2355 (92.7)
Width · double panel + bezel 1152 (45.4) 1152 (45.4)

Height · standard panel + bezel 1944 (76.5) 1944 (76.5) 1348 (53.1) 1348 (53.1)

Depth 40 (1.6) 40 (1.6) 90 (3.5) 90 (3.5)

Weight · kilo/m² (pound) 30 (66) 30 (66) 120 (264) 120 (264)
Viewing
Brightness · candela/m² 800 1000 800 1000

Refresh · hertz 1920 1920 2880 2880

Angle · 50% brightness 80° 80° 80° 80° 80° 80° 80° 80°
70° 70° 70° 70° 70° 70° 70° 70°
Power
Watts · (average draw) 590 (35%) 492 (35%) 536 (35%) 504 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240

IP Code · front · rear 41 · 30 41 · 30 41 · 30 41 · 30

Certifications · please inquire ETL · UL · FCC ETL · UL · FCC ETL · UL · FCC ETL · UL · FCC
Installation
Wall · portrait · landscape

Ceiling · portrait · landscape

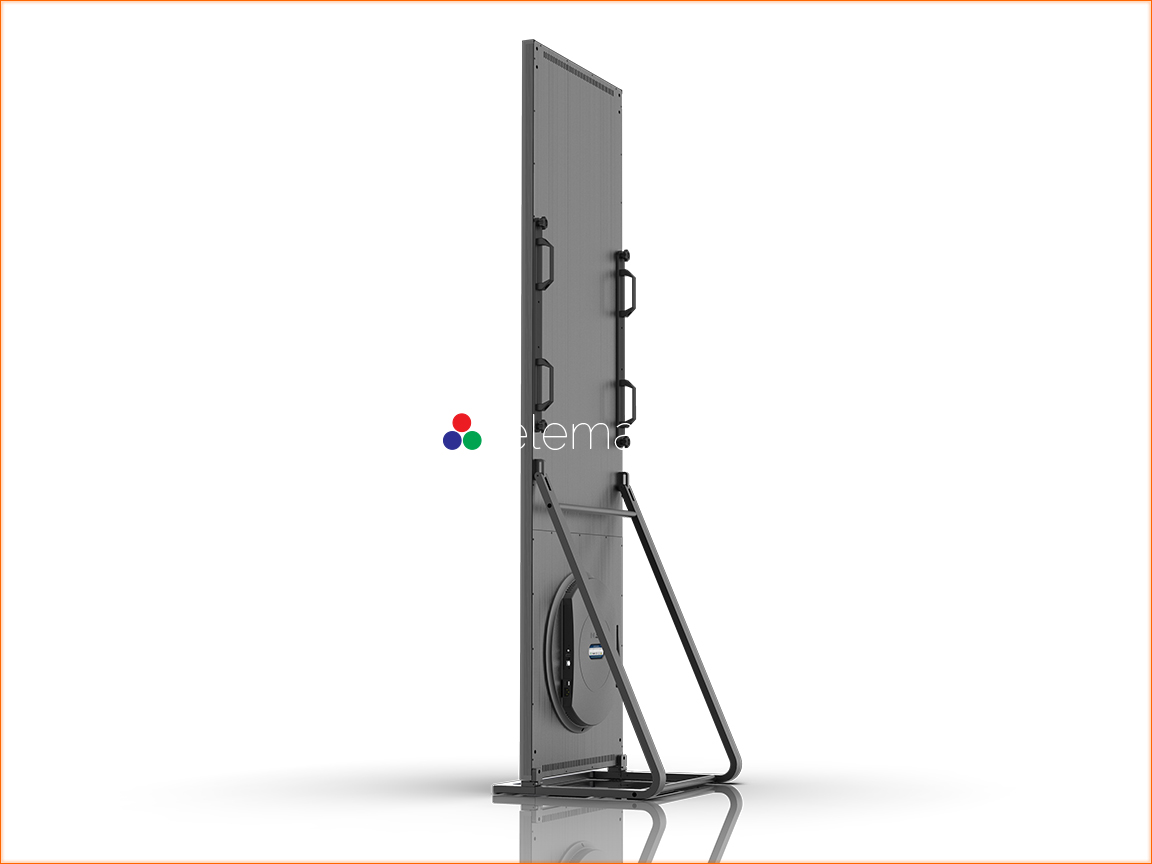

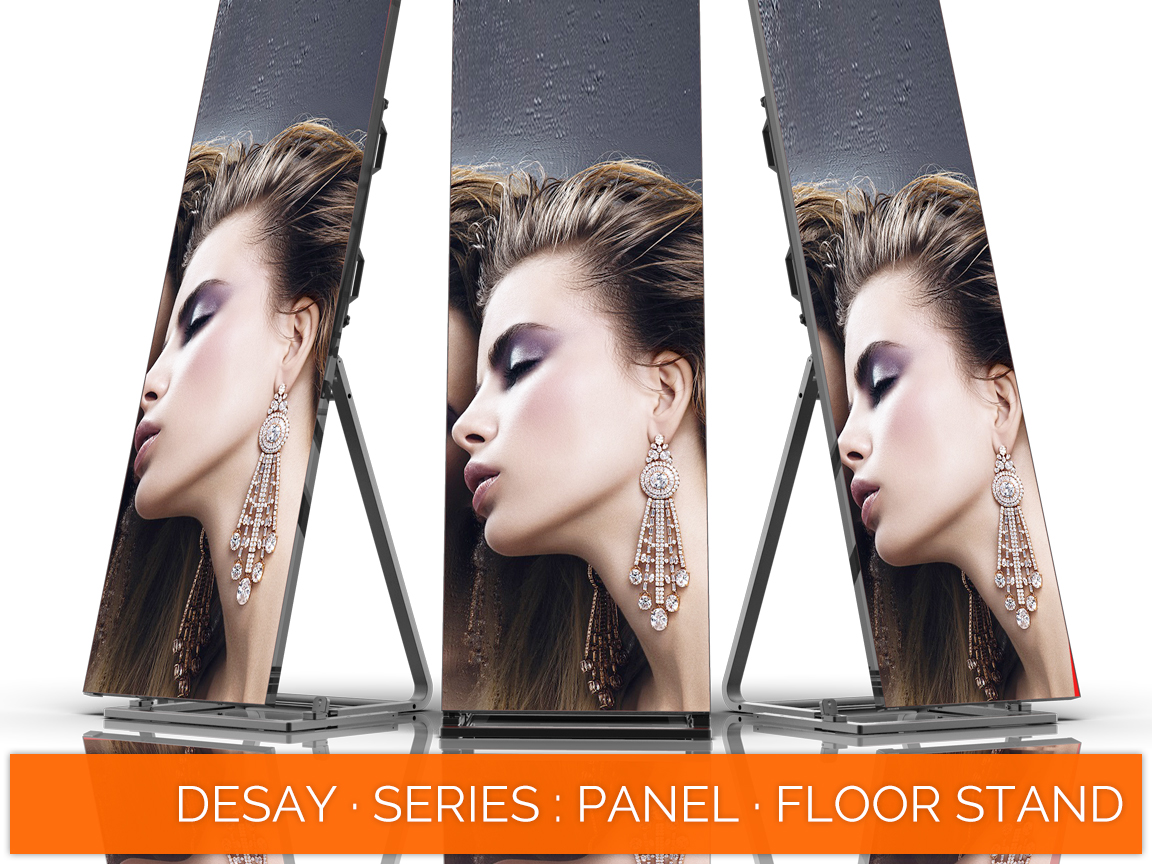

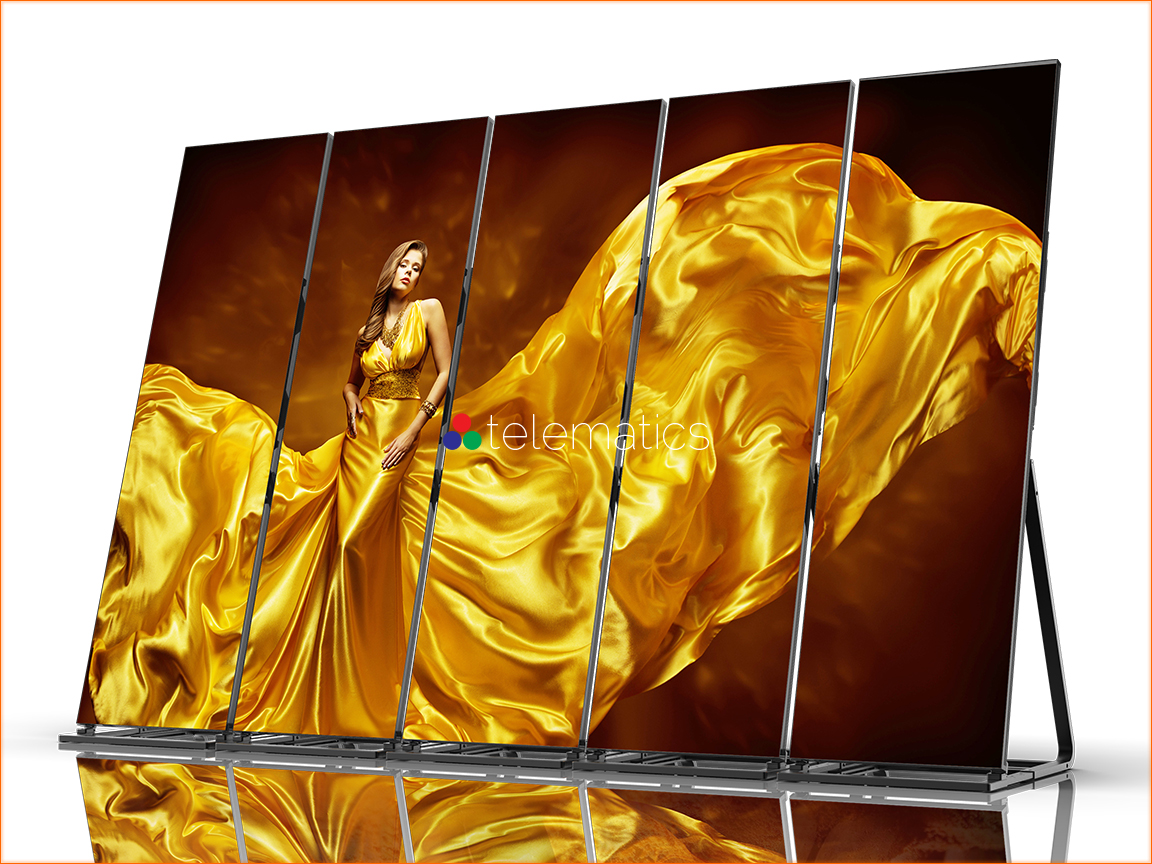

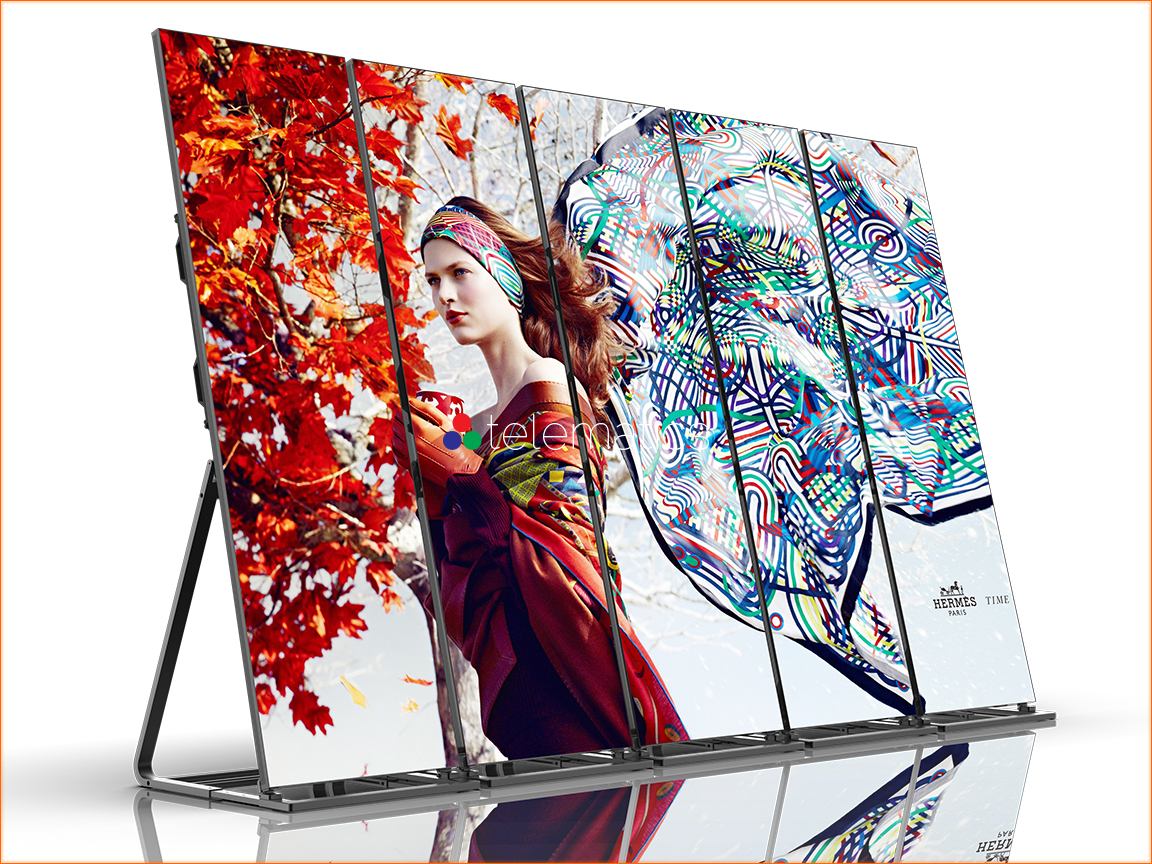

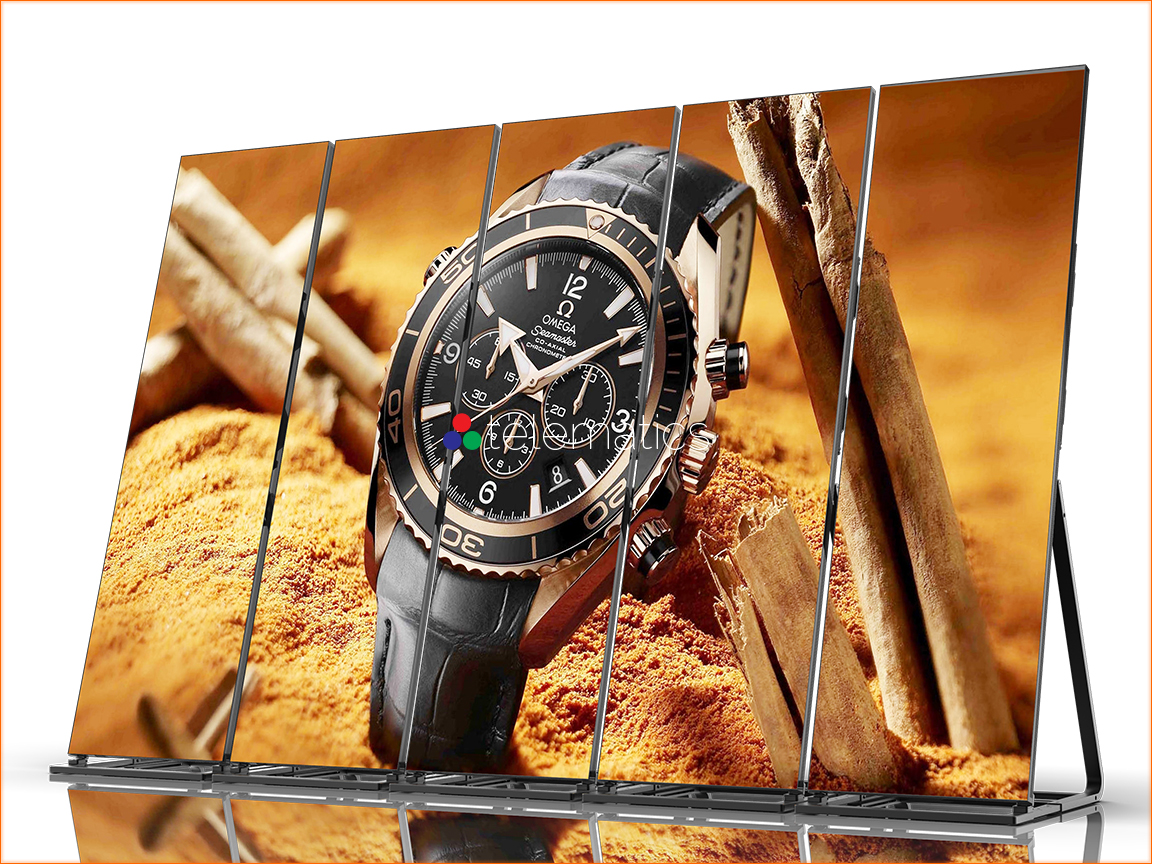

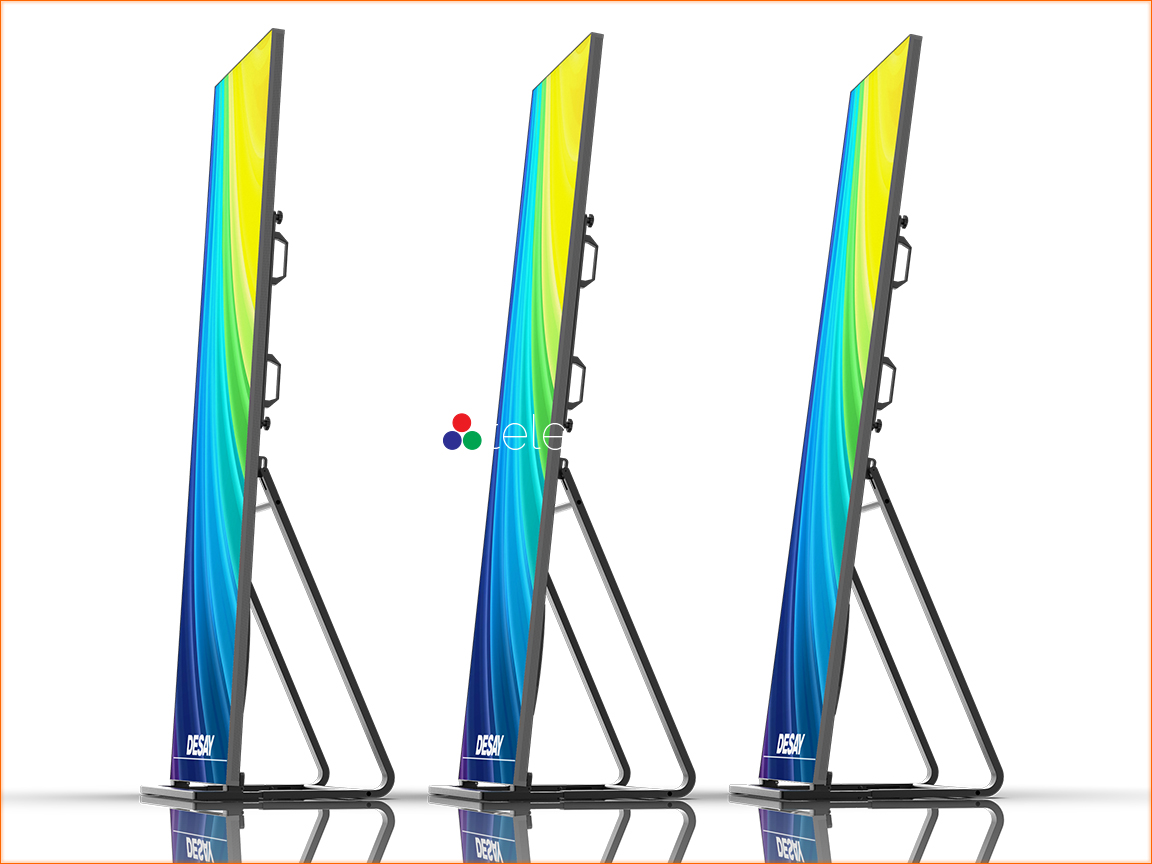

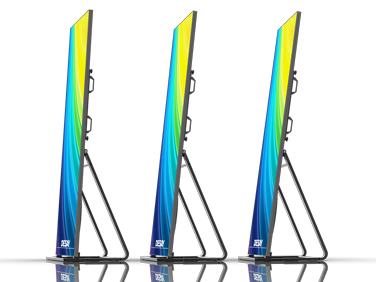

Floor · adjustable stand
Floor · power adjustable stand

Double Face · back to back ⬚:⬚ ⬚:⬚ ⬚:⬚ ⬚:⬚



Series outdoor A199 A257 AT199 AT257
Pixels mm · meters
Resolution · ctc distance · mm 1.995 2.571 1.995 2.571
Resolution · per linear meter 501 389 501 389
Resolution · per square meter 251001 151321 251001 151321
Panel mm · (inch)
Width · standard panel + bezel 576 (22.7) 576 (22.7) 2385 (93.9) 2385 (93.9)
Width · double panel + bezel 1152 (45.4) 1152 (45.4)

Height · standard panel + bezel 1944 (76.5) 1944 (76.5) 1408 (55.4) 1408 (55.4)

Depth 85 (3.3) 85 (3.3) 105 (4.1) 105 (4.1)

Weight · kilo/m² (pound) 55 (121) 55 (121) 180 (397) 180 (397)
Viewing
Brightness · candela/m² 3000 3500 2500 3000

Refresh · hertz 1920 1920 2880 2880

Angle · 50% brightness 80° 80° 80° 80° 80° 80° 80° 80°
70° 70° 70° 70° 70° 70° 70° 70°
Power
Watts · (average draw) 600 (35%) 620 (35%) 473 (35%) 473 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240

IP Code · front · rear 65 · 54 65 · 54 65 · 54 65 · 54

Certifications · please inquire ETL · UL · FCC ETL · UL · FCC ETL · UL · FCC ETL · UL · FCC
Installation
Wall · portrait · landscape

Ceiling · portrait · landscape

Floor · adjustable stand
Floor · power adjustable stand

Double Face · back to back ⬚:⬚ ⬚:⬚ ⬚:⬚ ⬚:⬚
PDF
Specifications · Manuals

Fine Print
Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series A · AT

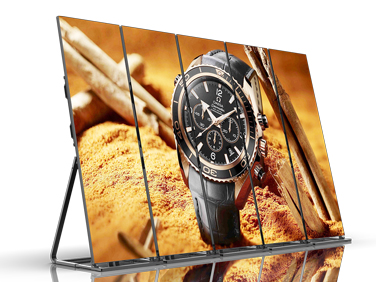

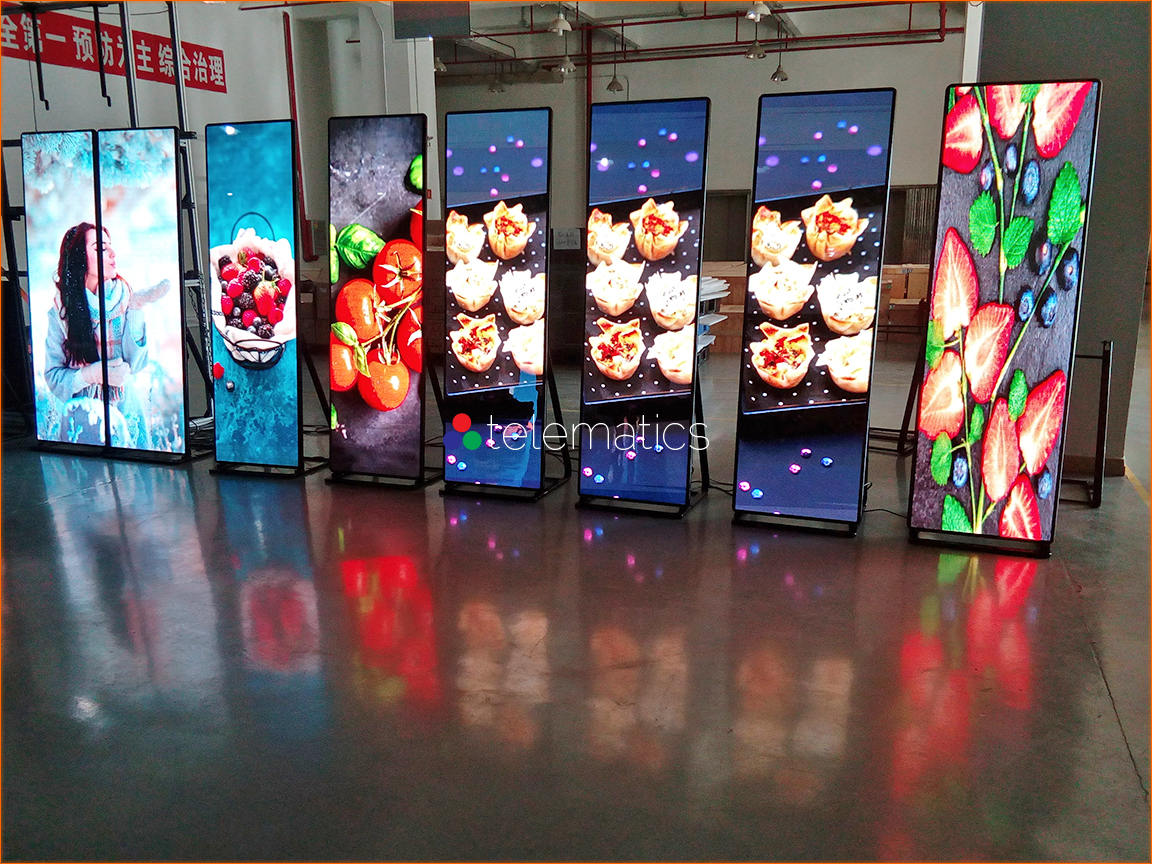

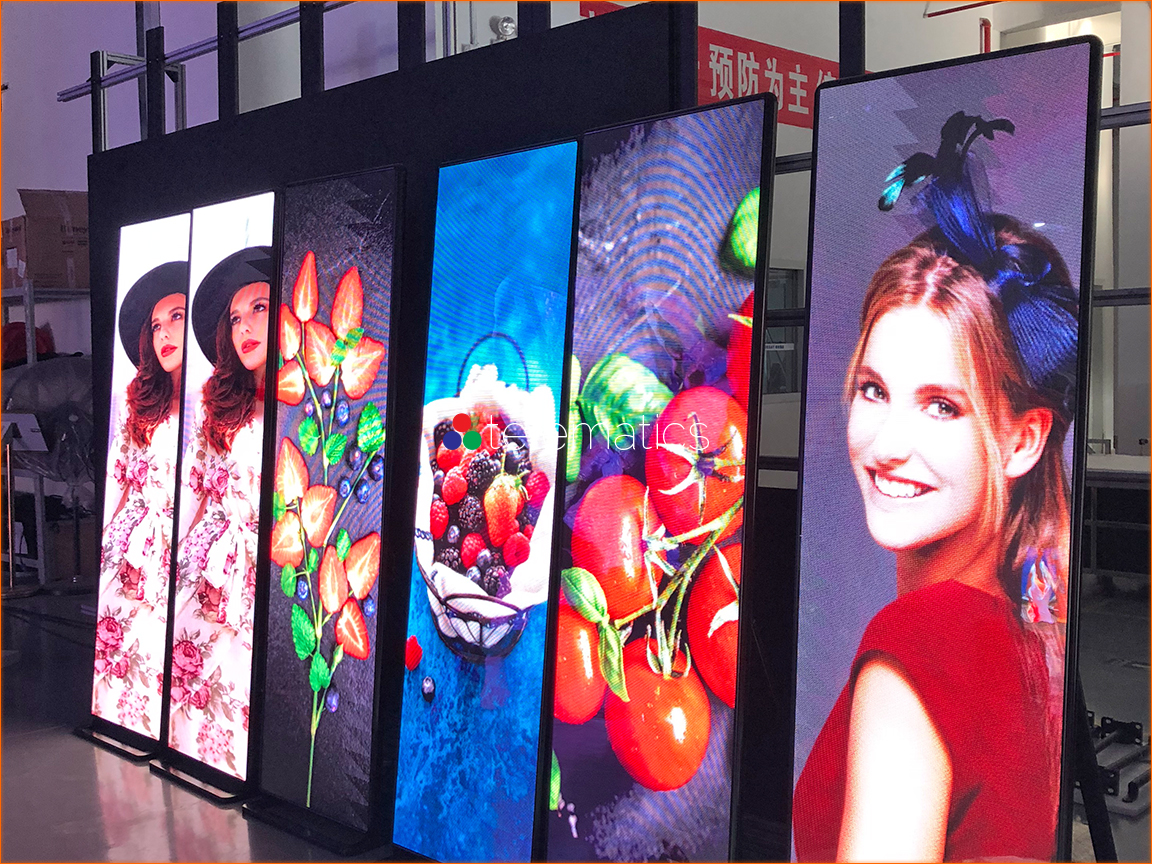

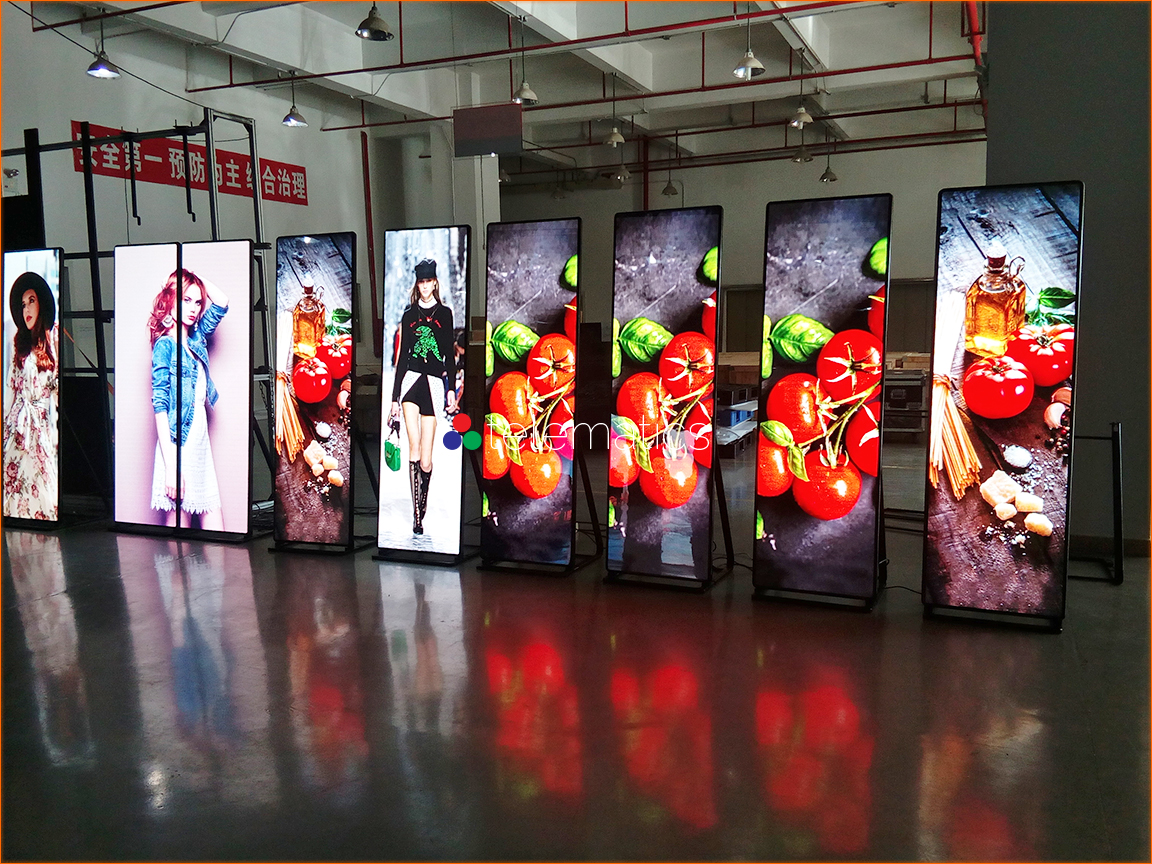

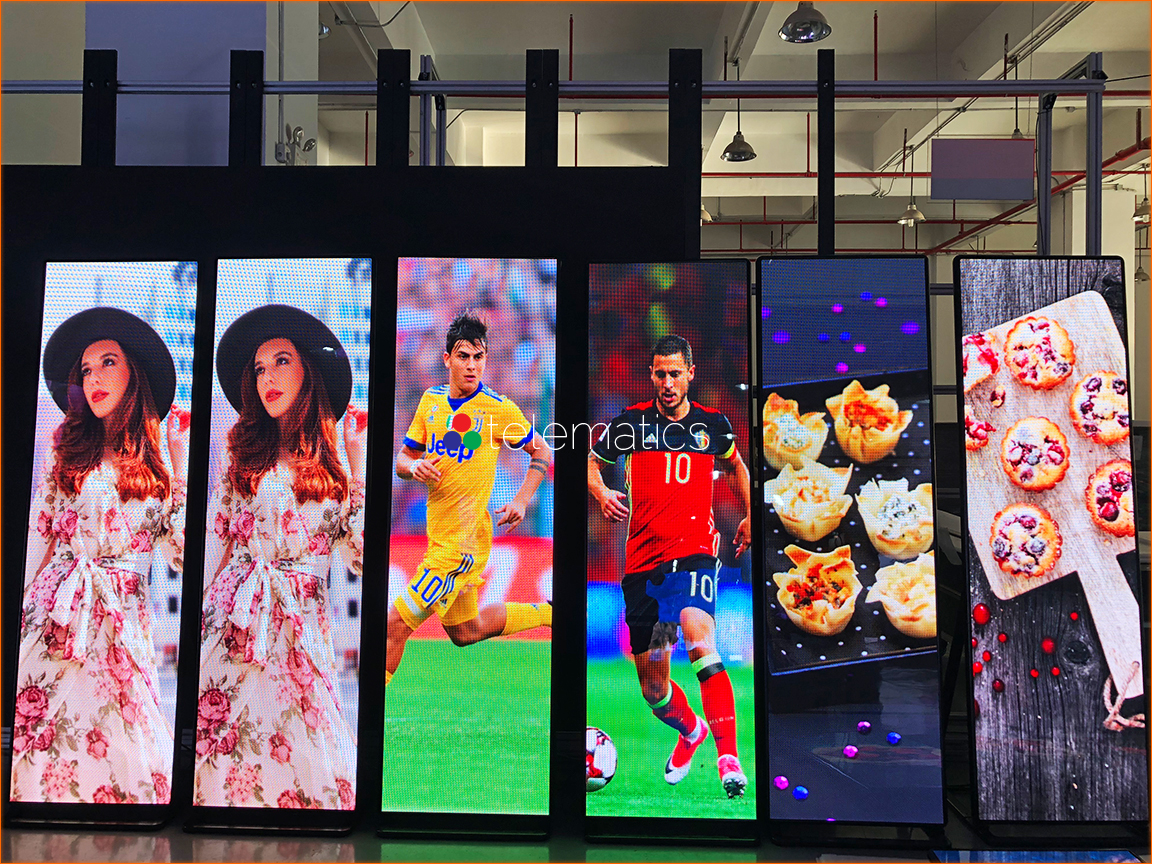

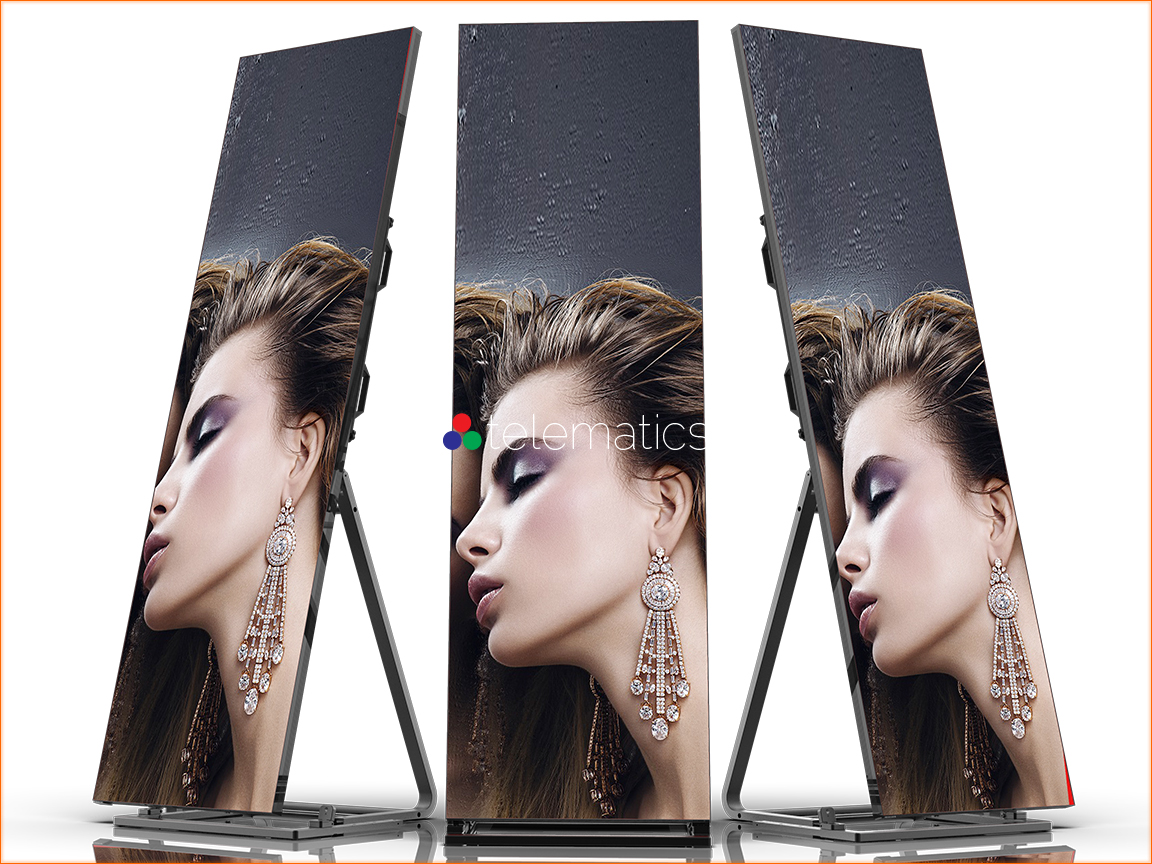

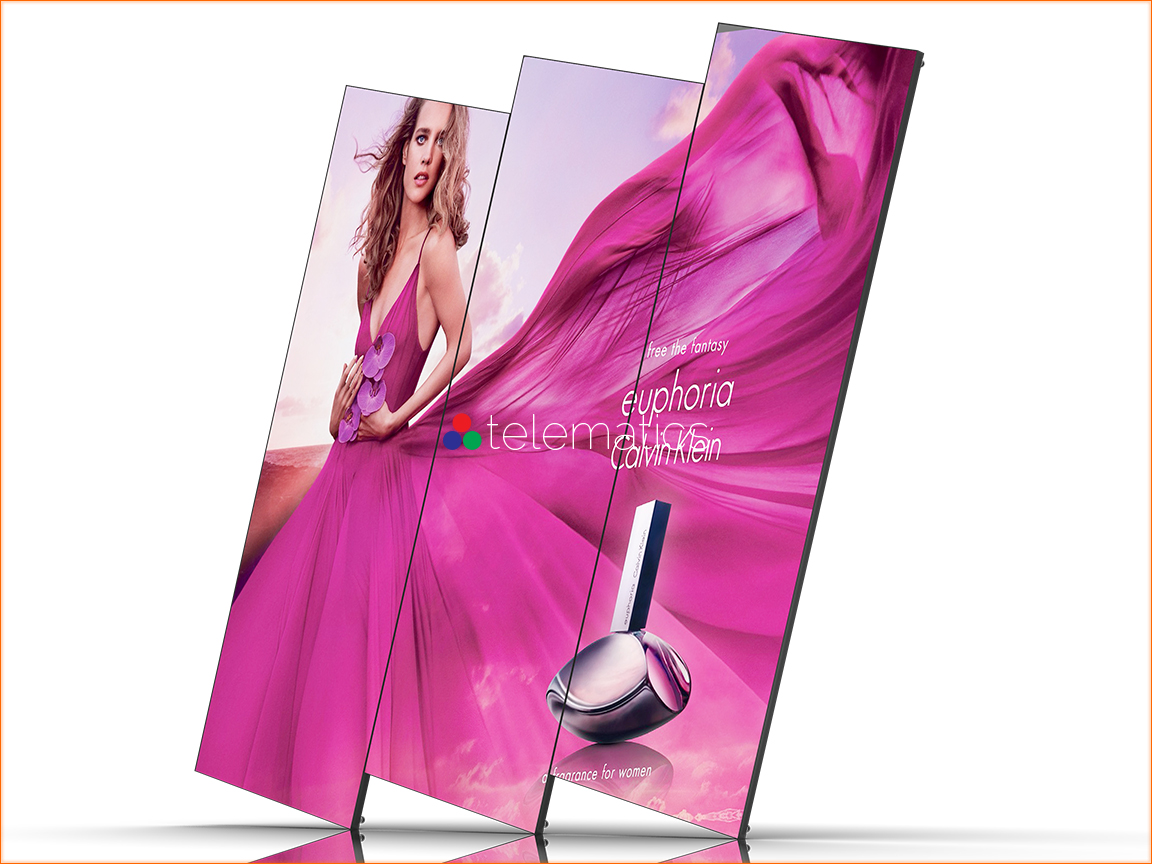

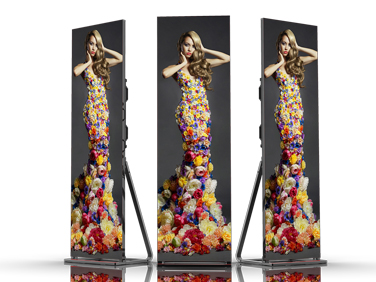

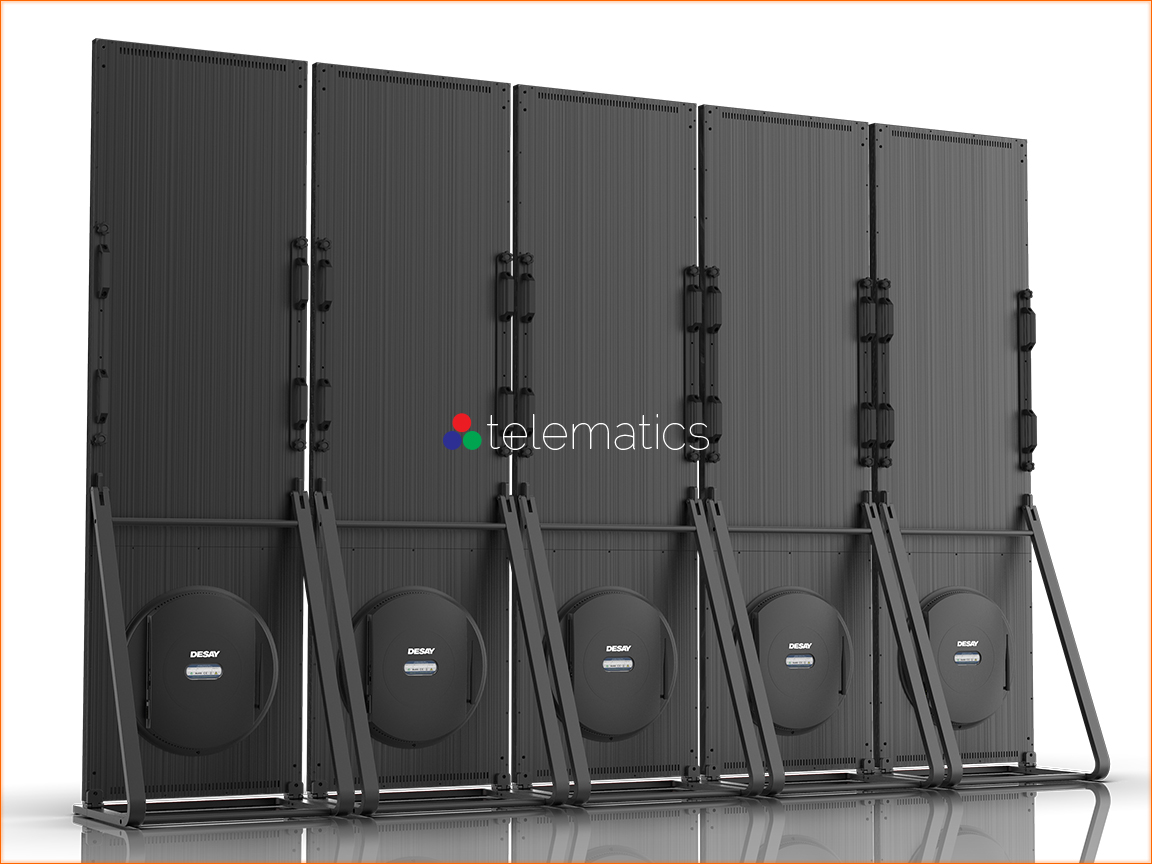

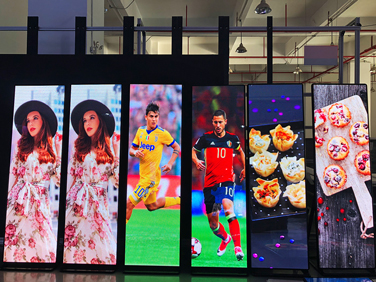

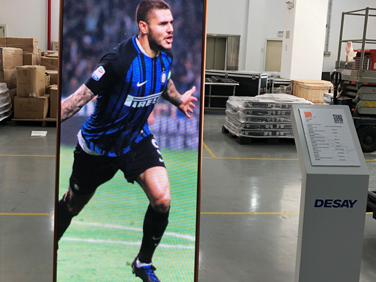

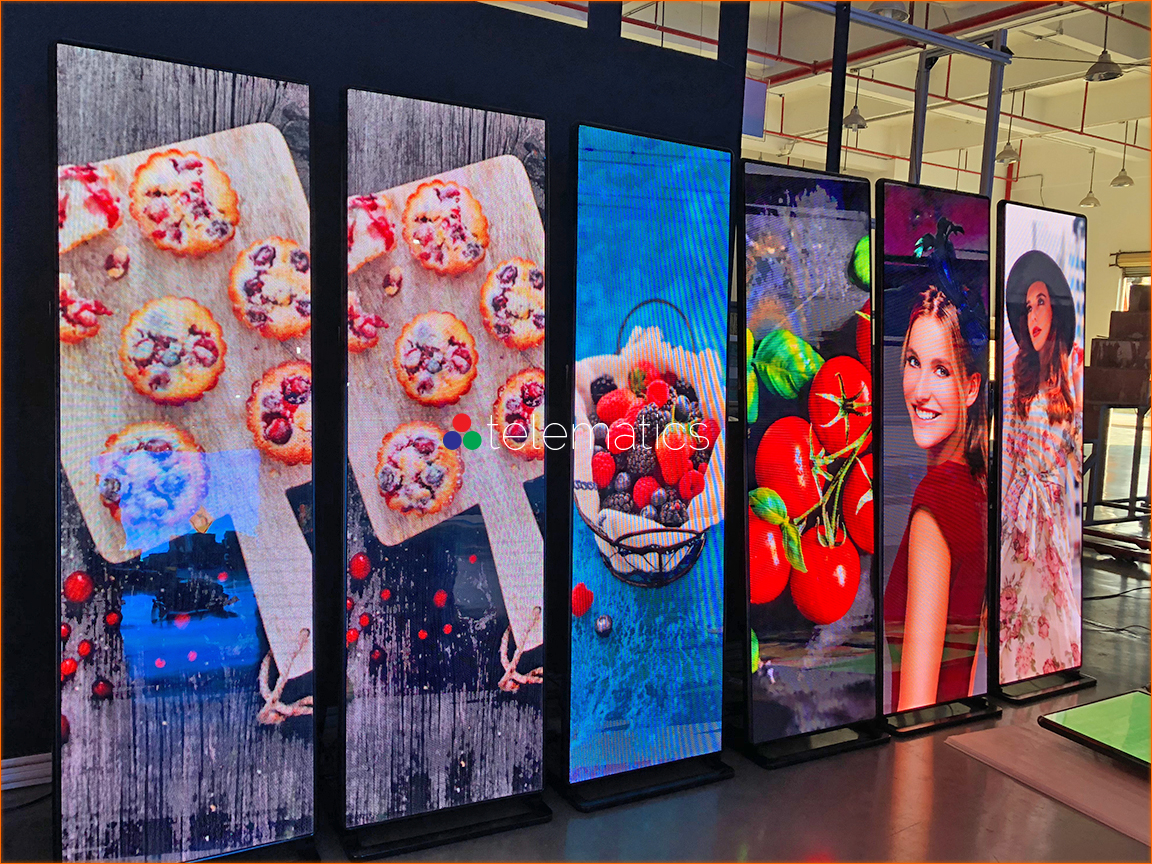

The Series A and its larger Series AT sibling are a new product category that has emerged over the past few years.

This is an LED poster that needs only your digital media and a power source and is ideally suited for indoor public display in retail locations that demand ultra-fine to fine-pixel resolution for close-proximity viewing.

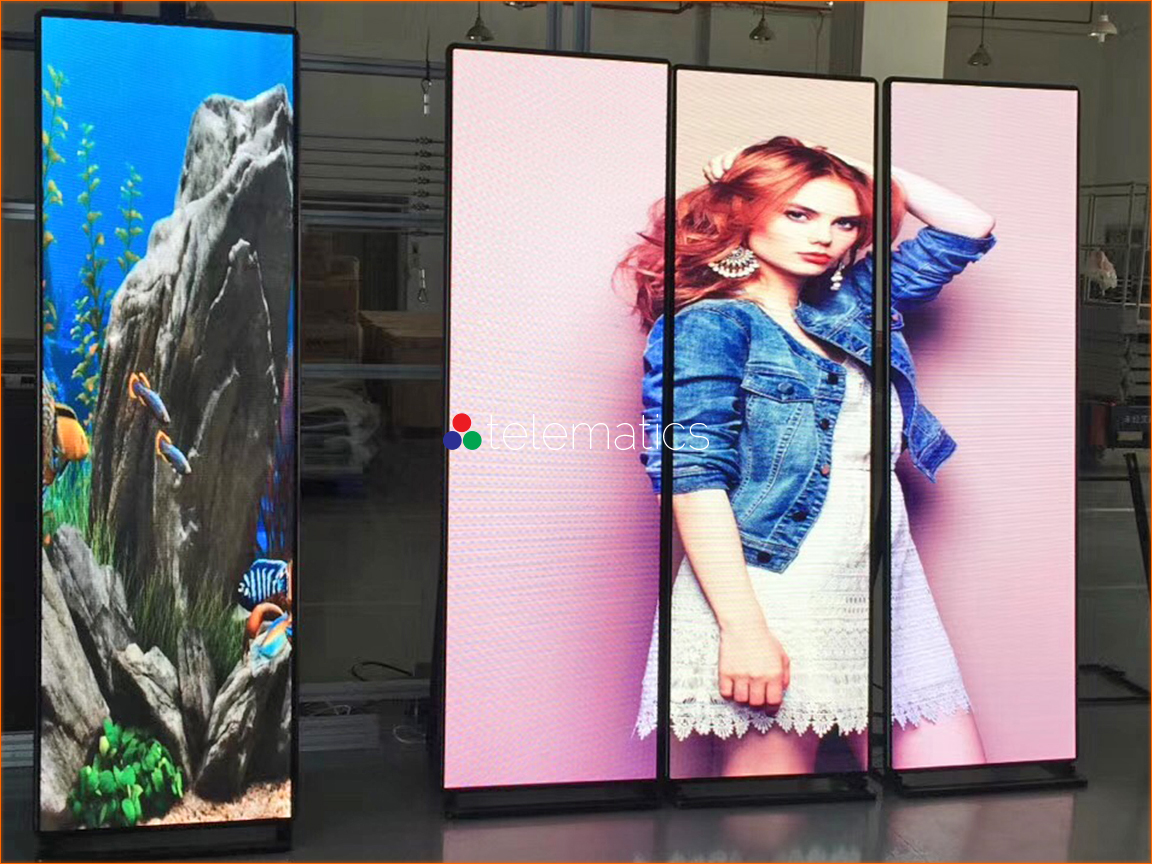

At roughly the height and width of an exceptionally tall person, a single Series A poster will command the attention of anyone walking by or through a shop or restaurant. An acrylic overlay helps protect the Series A from a little too much attention from the hands-on crowd.

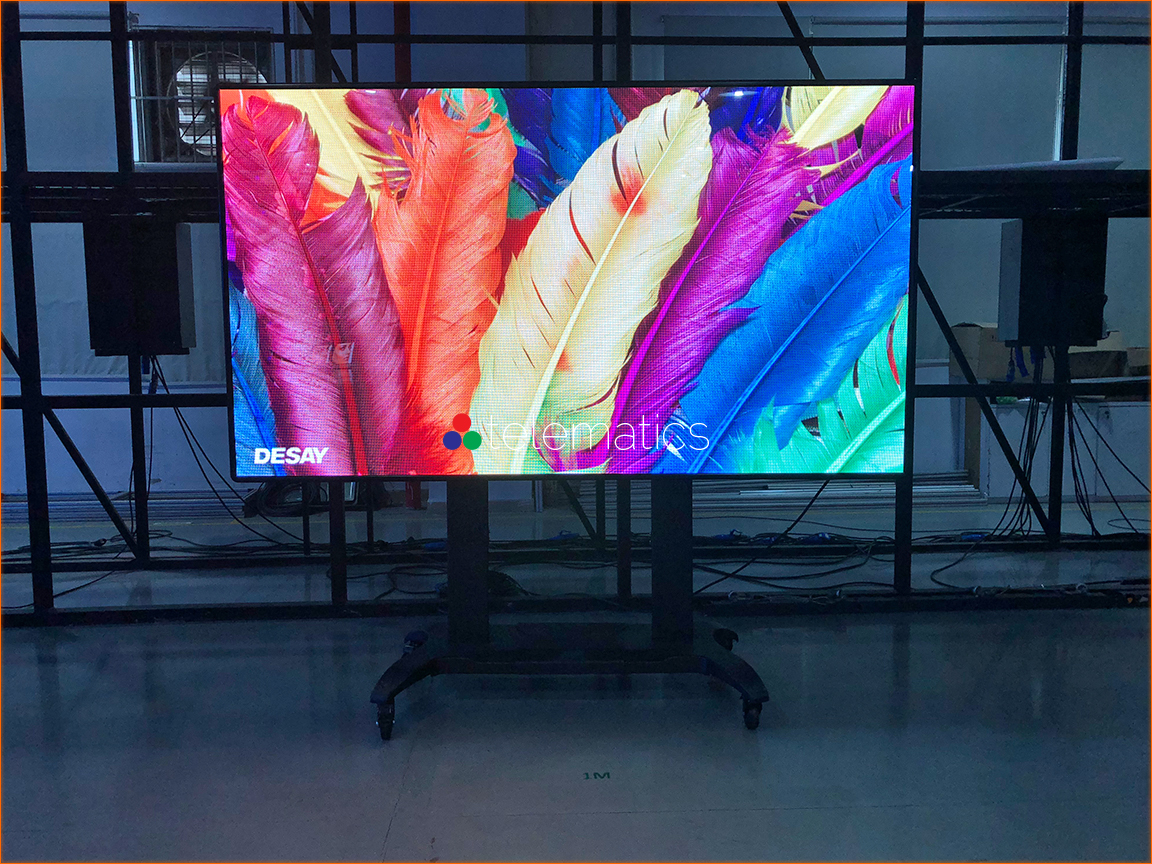

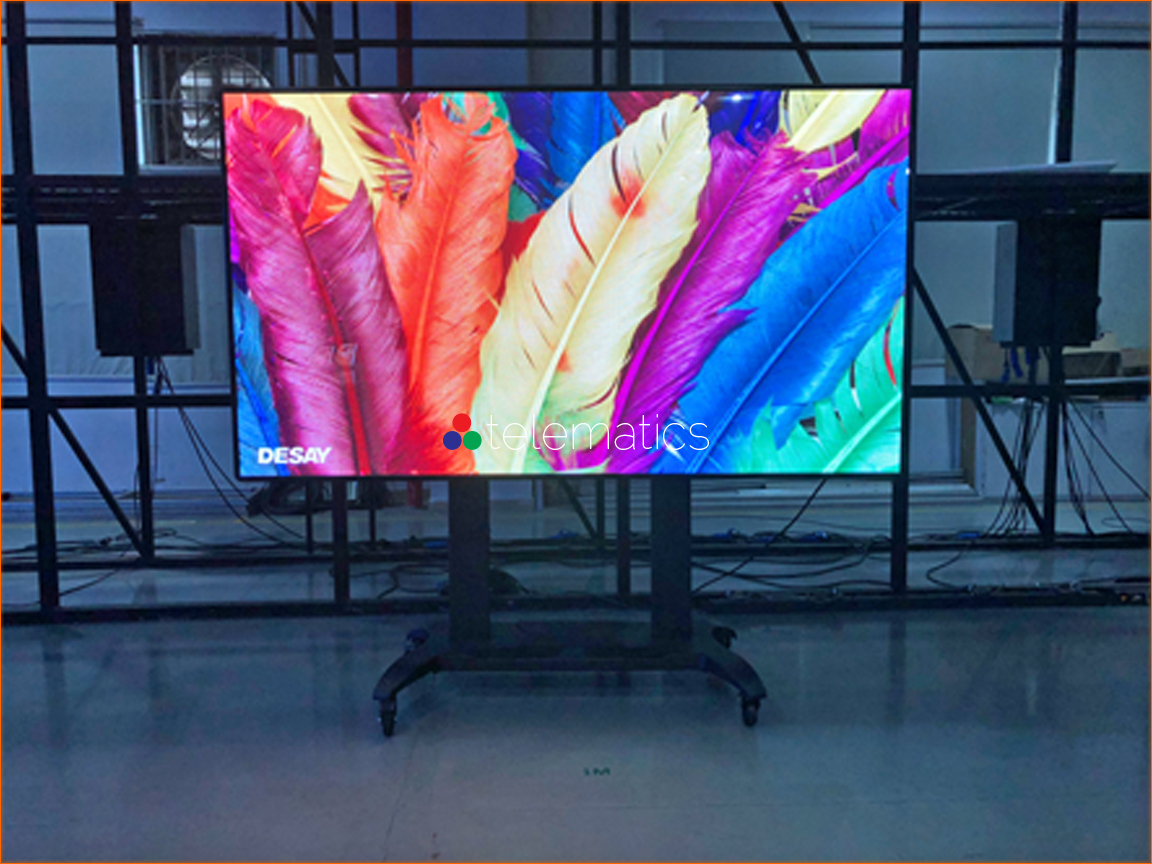

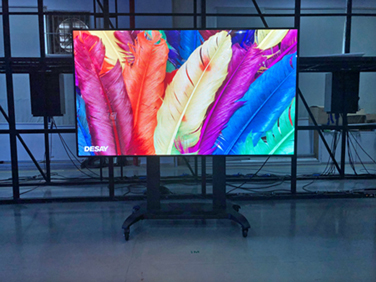

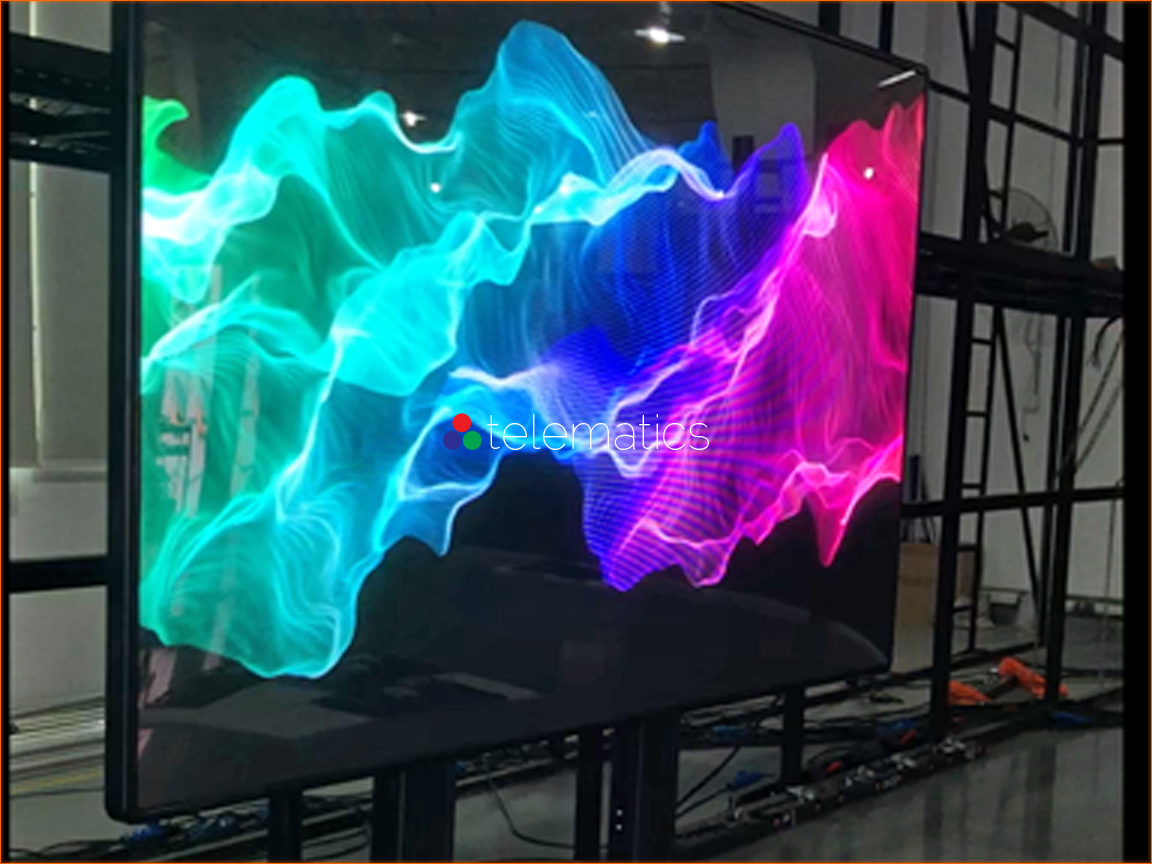

At 104" diagonal or about the size of 4 big monitors, a single Series AT poster will command the attention of anyone walking by or through a shop or restaurant. And a polycarbonate overlay helps protect the Series AT from a little too much attention.

Pixel density ranges from 151,825 and increases to 251,255 pixels per square meter. Refresh rates are a smooth 1920 Hz in panels that can be positioned alongside each other and share content like an extended desktop.

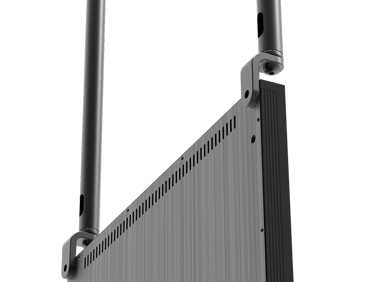

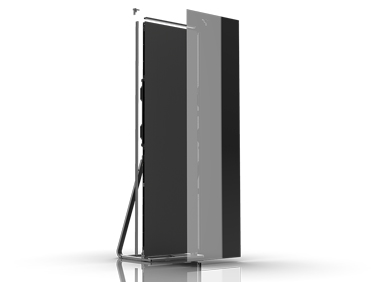

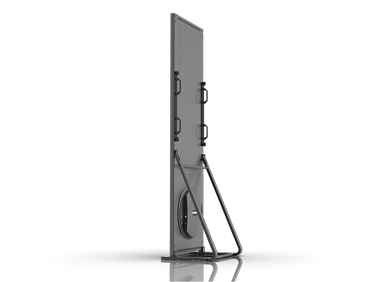

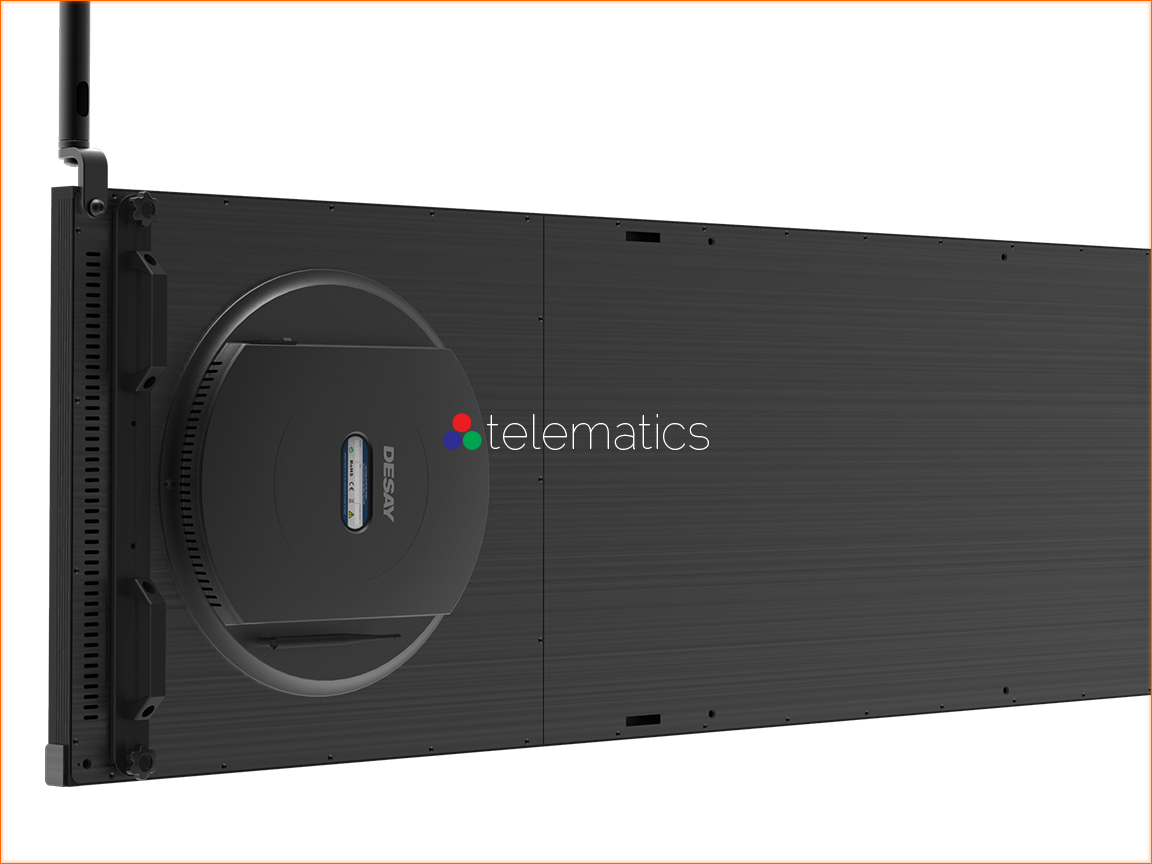

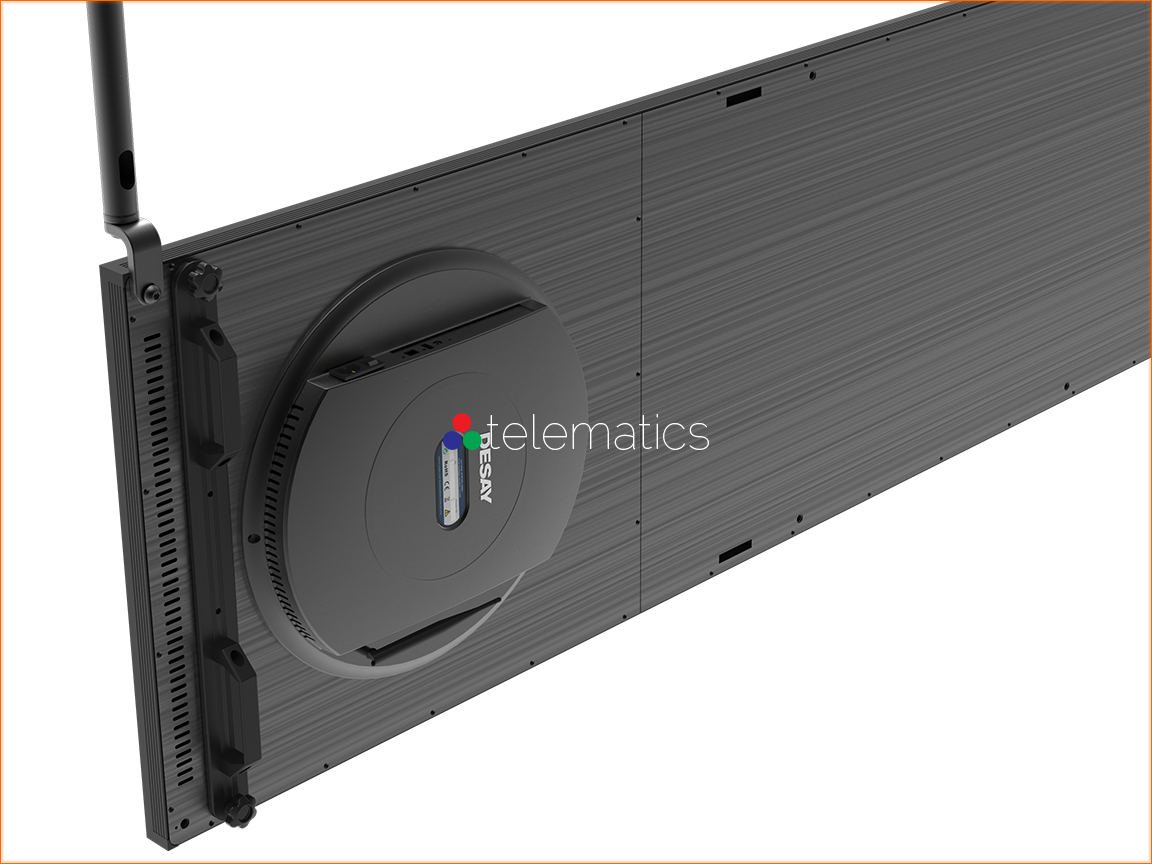

Install the Series A to a wall using 4 corner anchors or suspend it from a ceiling bracket. Choose from portrait or landscape or anything in-between. If your venue or rental department calls for something portable, check off an adjustable floor stand and a carry case to protect the Series A between shows.

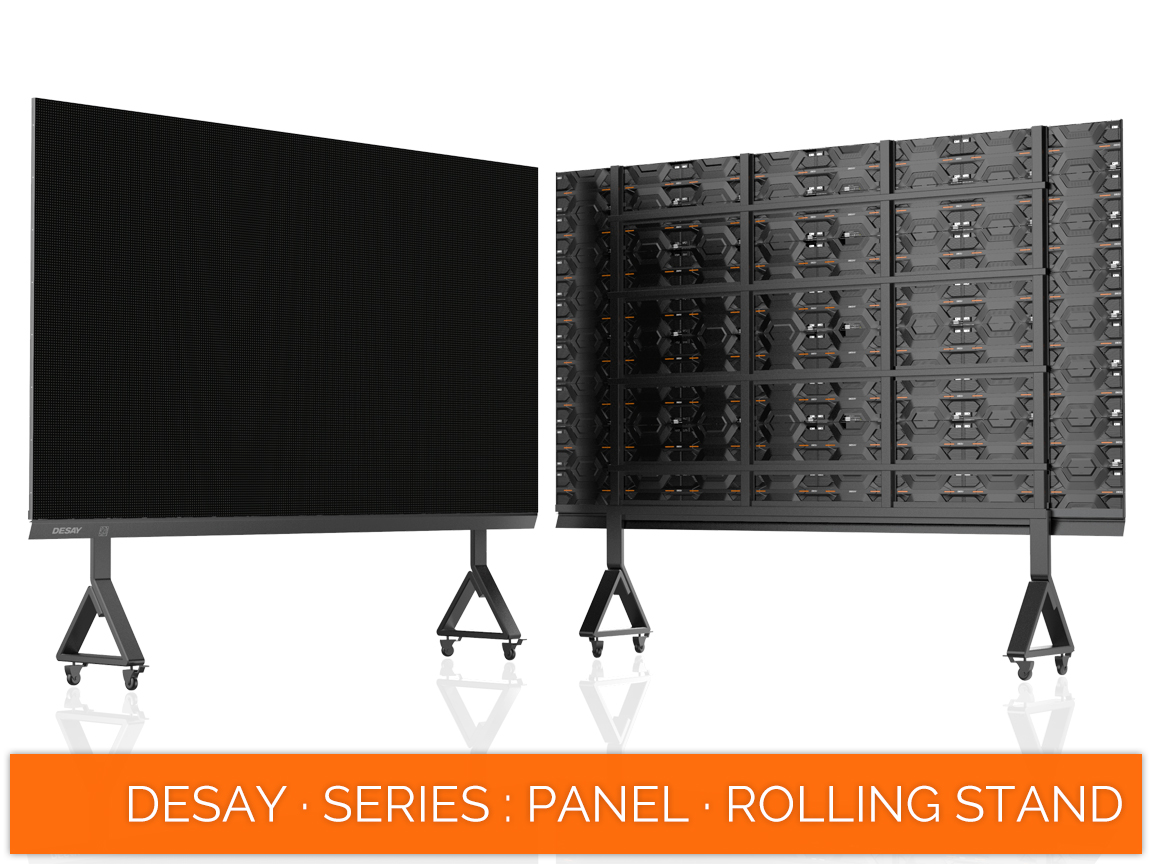

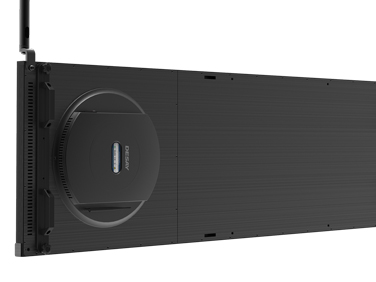

Install the Series AT using an adjustable wall mount that can be angled out from the wall to best greet your clients as they approach. Or a powered floor mount. Or work with us to provide a custom solution for your project.

Media is handled by a NovaStar Taurus TB6 controller. That means either a LAN or WiFi connection for most applications or even 4G. Video and image files reside on an 8 GB card and if a network of displays is being deployed across the city or around the world, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

Investing in an LED poster will provide a predictable return for most any business that is compelled to rotate printed media through seasonal buying cycles, product promotions and sales. If no greater use of the Series A and Series AT is made beyond replacing ordinary static posters, the cost of that printing and installation is known and each of those events can be used to fully amortize this purchase.

By now, you should be viewing your old static signage with the same sense of quiet resignation that someone feels after finally throwing out their fax machine. It was really great to have for all those years but now everyone just emails.

Our Manufacturers

Desay is a public corporation (002920) with close to a billion dollars in annual sales and highly diversified in the manufacturing of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in Optoelectronic LED production.

Desay's Optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

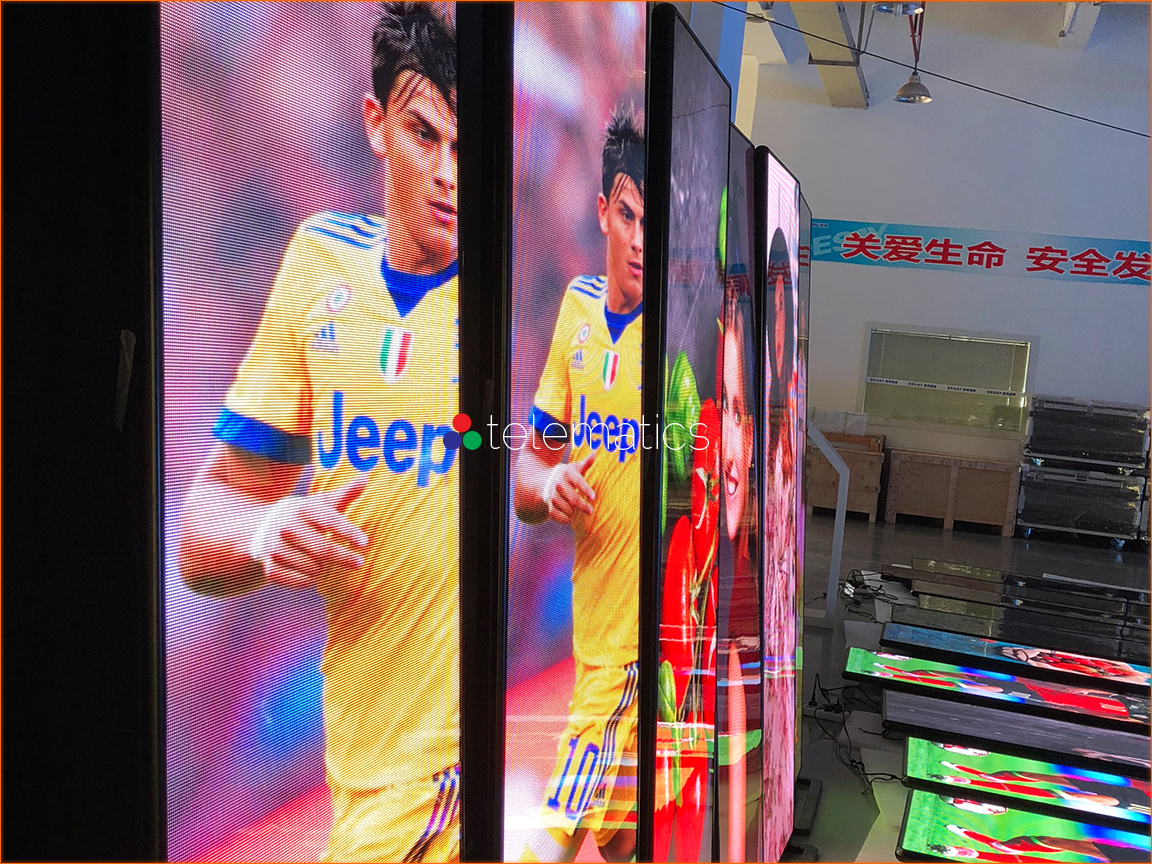

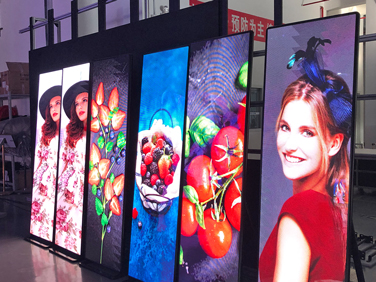

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu



Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu





S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· 1.99 Indoor · Performance · Installation
• 251,255 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1010 copper wire lamp
• indoor applications
• cost per double side panel
8338 ~ 9798df
· 1.99 Indoor · Performance · Installation
• 251,255 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1010 copper wire lamp
• indoor applications
• cost per single side panel
4083 ~ 4813sf
· 2.57 Indoor · Performance · Installation
• 151,321 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1010 copper wire lamp
• indoor applications
• cost per double side panel
5468 ~ 6848df
· 2.57 Indoor · Performance · Installation
• 151,321 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1010 copper wire lamp
• indoor applications
• cost per single side panel
2404 ~ 3094sf

· 1.99 Outdoor · Performance · Installation
• 251,255 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1415 copper wire lamp
• outdoor applications
• cost per double side panel
13890 ~ 28044df
· 1.99 Outdoor · Performance · Installation
• 251,255 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1415 copper wire lamp
• outdoor applications
• cost per single side panel
6809 ~ 13886sf
· 2.57 Outdoor · Performance · Installation
• 151,321 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1921 copper wire lamp
• outdoor applications
• cost per double side panel
8565 ~ 12427df
· 2.57 Outdoor · Performance · Installation
• 151,321 pixels per m²
• 576 * 1944 * 40 mm
• nationstar 1921 copper wire lamp
• outdoor applications
• cost per single side panel
5307 ~ 6055sf update: q3/2020
Series AT
· 1.99 Indoor · Performance · Installation
• 251,255 pixels per m²
• 2355 * 1348 * 90 mm
• indoor applications
• cost per unit
11713
· 2.57 Indoor · Performance · Installation
• 151,321 pixels per m²
• 2355 * 1348 * 90 mm
• indoor applications
• cost per unit
0000

· 1.99 Indoor · Performance · Installation
• 251,001 pixels per m²
• 2385 * 1408 * 105 mm
• indoor applications
• cost per unit
0000
· 2.57 Indoor · Performance · Installation
• 151,321 pixels per m²
• 2385 * 1408 * 105 mm
• indoor applications
• cost per unit
0000 update: 10/2019
Series B
· 16.66 Outdoor · Installation
• SMD
• 3,600 pixels per m²
• 3000 * 12 * 13 mm
• outdoor applications
• cost calculated on dimensions
quote

· 25.00 Outdoor · Installation
• DIP
• 1,600 pixels per m²
• 3000 * 12 * 13 mm
• outdoor applications
• cost calculated on dimensions
1098  102ft²
· 31.25 Outdoor · Installation
• DIP
• 1,024 pixels per m²
• 3375 * 12 * 13 mm
• outdoor applications
• cost calculated on dimensions
799  75ft²
· 42.50 Outdoor · Installation
• DIP
• 553 pixels per m²
• 3400 * 12 * 13 mm
• outdoor applications
• cost calculated on dimensions
564  53ft²
· 100.00 Outdoor · Installation
• DIP
• 100 pixels per m²
• 3200 * 12 * 13 mm
• outdoor applications
• cost calculated on dimensions
000  00ft² update: 10/2019

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
included

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
included

Novastar T6 Novastar Taurus T6
• taurus t6 card

• synchronous · asynchronous
• wired · wireless · 4g optional
170 • price per unit
Novastar T3 Novastar Taurus T3
• taurus t3 card

• synchronous
• wired · wireless
included

Floor Mount Floor Mount
• adjustable ground support
160 • price per unit
Wall Mount Wall Mount
• easy wall mounting
30 • price per unit

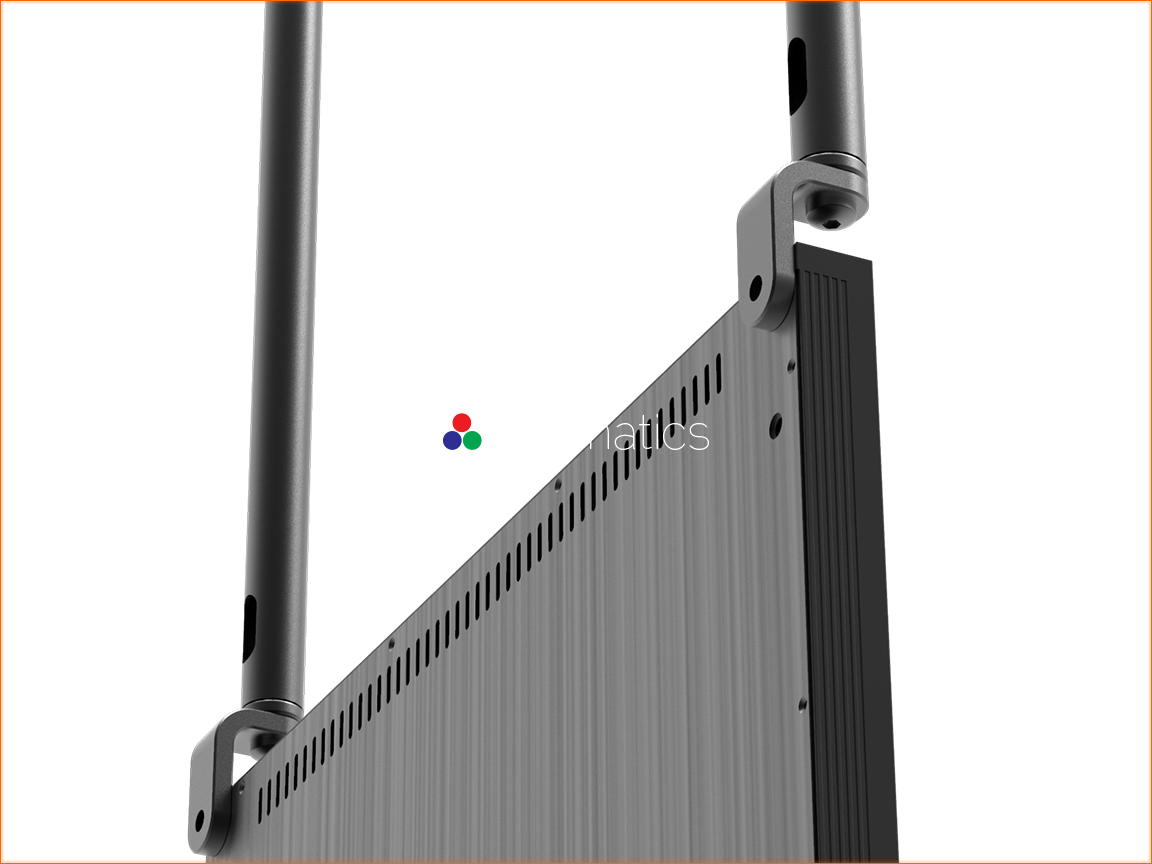

Hanging Bar Hanging Bar
• mounting to the ceiling
50 • price per unit

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
325 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
300 • price per case
• 2 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
40 • price per receiver card

Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Floor Mount Floor Mount
• rolling support
700 • price per unit
Wall Mount Wall Mount
• easy wall mounting
250 • price per unit

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Cree RGB Cree RGB Lamps
• increased brightness
• enhanced durability
• higher cost
select
Multi-Color RGB Multi-Color RGB Lamps
• increased brightness
• enhanced durability
• higher cost
select
Xindeco RGB Xindeco RGB Lamps
• standard brightness
• lower cost
select

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Receiver Card Receiver Card
select

Controller Controller
select

Steel Cabling Wall Mount
• custom configuration
select
Aluminum Frame Aluminum Frame
• custom configuration
select

Spare LED Strip Spare LED Strip
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards
Series Flex
· 2.58 Indoor · Performance · Installation
• 150,544 pixels per m²
• 402 * 992 * 10 mm
• indoor applications
• cost calculated on dimensions
4068  378ft² update: 10/2019
Series G
· 5.20 Indoor · Performance · Installation
• 36,864 pixels per m²
• 500 * 500 * 90 mm
• indoor applications
• daytime brightness
• cost calculated on dimensions
2599  242ft²
· 3.90+7.81 Indoor · Performance · Installation
• 32,768 pixels per m²
• 1000 * 500 * 90 mm
• indoor applications
• daytime brightness
• cost calculated on dimensions
2237  208ft²
· 7.81 Indoor · Performance · Installation
• 16,384 pixels per m²
• 1000 * 500 * 90 mm
• indoor applications
• daytime brightness
• cost calculated on dimensions
2226  207ft²
· 10.41 Indoor · Performance · Installation
• 9,216 pixels per m²
• 500 * 500 * 90 mm
• indoor applications
• daytime brightness
• cost calculated on dimensions
1898  177ft² update: 10/2019
Series H
· 2.84 Indoor · Performance · Installation
• 127,449 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• indoor applications
• cost calculated on dimensions
2826  263ft²
· 3.90 Indoor · Performance · Installation
• 65,536 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• indoor applications
• cost calculated on dimensions
2392  222ft²

· 3.90 Outdoor · Performance · Installation
• 65,536 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
3036  282ft²
· 6.94 Outdoor · Performance · Installation
• 20,736 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
2547  237ft² update: q1/2020
Brompton Tessera

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Custom Panel Custom Panel
• flat
• concave
• convex
quote

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Ultra Bright SMD Ultra Bright SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Custom Corner Custom Corner
• up to a 90° corner
• modules meet edge-to-edge
quote
Custom Curvature Custom Curvature
• concave and convex
• modules meet edge-to-edge
quote

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Black Face SMD Black Face SMD Lamps
• increased contrast
• higher cost
select
Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Brompton Tessera R2 Brompton Tessera R2
• 262,144 rgb pixel capacity
• 16 bit-per-channel processing
• 2 gigabit ethernet data connections
• ddr2 so-dimm form factor
• support for all major driver ic
• up to 72 output data channels
• support for sensors
150 • price per receiver card
Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards
Series HB + Floor
· 2.60 Indoor · Performance · Installation
• 147,456 pixels per m²
• 1000 * 500 * 85 mm
• 500 * 500 * 85 mm
• indoor applications
• cost calculated on dimensions
2082 ~ 3168
· 2.97 Indoor · Performance · Installation
• 112,896 pixels per m²
• 1000 * 500 * 85 mm
• 500 * 500 * 85 mm
• indoor applications
• cost calculated on dimensions
1880 ~ 2847
· 3.90 Indoor · Performance · Installation
• 65,536 pixels per m²
• 1000 * 500 * 85 mm
• 500 * 500 * 85 mm
• indoor applications
• cost calculated on dimensions
1608 ~ 2297

· 2.97 Outdoor · Performance · Installation
• 112,896 pixels per m²
• 1000 * 500 * 85 mm
• 500 * 500 * 85 mm
• outdoor applications
• cost calculated on dimensions
3358 ~ 6802
· 3.90 Outdoor · Performance · Installation
• 65,536 pixels per m²
• 1000 * 500 * 85 mm
• 500 * 500 * 85 mm
• outdoor applications
• cost calculated on dimensions
2197 ~ 3475
· 4.80 Outdoor · Performance · Installation
• 43,264 pixels per m²
• 1000 * 500 * 85 mm
• 500 * 500 * 85 mm
• outdoor applications
• cost calculated on dimensions
1812 ~ 2872 update: q3/2020
Series HL
· 2.84 Indoor · Performance · Stage
• 123,904 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• indoor applications
• cost calculated on dimensions
2218  206ft²
· 3.90 Indoor · Performance · Stage
• 65,536 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• indoor applications
• cost calculated on dimensions
1866  173ft²

· 3.90 Outdoor · Performance · Stage
• 65,536 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
2367  220ft²
· 4.80 Outdoor · Performance · Stage
• 43,264 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
2070  192ft²
· 6.94 Outdoor · Performance · Stage
• 20,736 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
1892  176ft²
· 8.92 Outdoor · Performance · Stage
• 12,544 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
1719  156ft²
· 10.41 Outdoor · Performance · Stage
• 9,227 pixels per m²
• 1000 * 500 * 90 mm
• carbon fiber and magnesium
• brompton or novastar control
• outdoor applications
• cost calculated on dimensions
1681  156ft² update: q1/2020
Brompton Tessera
Series M
· 4.76 Outdoor · Performance · Installation
• 44,098 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1929  179ft²
· 5.55 Outdoor · Performance · Installation
• 32,400 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1772  165ft²
· 6.25 Outdoor · Performance · Installation
• 25,600 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1746  162ft²
· 8.33 Outdoor · Performance · Installation
• 14,400 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1564  145ft²
· 10.00 Outdoor · Performance · Installation
• 10,000 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1446  134ft²
· 12.50 Outdoor · Performance · Installation
• 6,400 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1197  111ft²
· 16.66 Outdoor · Performance · Installation
• 3,600 pixels per m²
• 800 * 900 * 65 mm
• outdoor applications
• cost calculated on dimensions
1121  104ft² update: q1/2020

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Custom Corner Custom Corner
• up to a 90° corner
• modules meet edge-to-edge
quote
Custom Curvature Custom Curvature
• concave and convex
• modules meet edge-to-edge
quote

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Black Face SMD Black Face SMD Lamps
• increased contrast
• higher cost
select
Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Brompton Tessera R2 Brompton Tessera R2
• 262,144 rgb pixel capacity
• 16 bit-per-channel processing
• 2 gigabit ethernet data connections
• ddr2 so-dimm form factor
• support for all major driver ic
• up to 72 output data channels
• support for sensors
150 • price per receiver card
Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Touring Frame Touring Frame
• full panel
• half panel
310 · 250 • price per full panel
• price per half panel

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Touring Dolly Touring Dolly
• full frame
• half frame
• quick setup and take-down
1250 · 1000 • price per full panel
• price per half panel

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards
Series QF
· 2.97 Outdoor · Creative · Installation
• 112,896 pixels per m²
• 250 * 250 * 62 mm
• outdoor applications
• cost calculated on dimensions
0000  000ft²
· 3.90 Outdoor · Creative · Installation
• 65,536 pixels per m²
• 250 * 250 * 65 mm
• outdoor applications
• cost calculated on dimensions
3418  318ft² update: 10/2019
Series S
· 4.76 Outdoor · Billboard · Installation
• 44,098 pixels per m²
n * 200 * 400 * 138 mm
• custom cabinet configuration
• 6000 · 8000 cd/m²
• outdoor applications
• cost calculated on dimensions
2432  226ft²
· 6.25 Outdoor · Billboard · Installation
• 25,600 pixels per m²
n * 200 * 400 * 138 mm
• custom cabinet configuration
• 6000 · 8000 cd/m²
• outdoor applications
• cost calculated on dimensions
1880  177ft²
· 8.33 Outdoor · Billboard · Installation
• 14,400 pixels per m²
n * 200 * 400 * 138 mm
• custom cabinet configuration
• 6000 · 8000 cd/m²
• outdoor applications
• cost calculated on dimensions
1555  145ft²
· 10.00 Outdoor · Billboard · Installation
• 10,000 pixels per m²
n * 200 * 400 * 138 mm
• custom cabinet configuration
• 6000 · 8000 cd/m²
• outdoor applications
• cost calculated on dimensions
1323  123ft²

· 10.88 Outdoor · Billboard · Installation
• 8,447 pixels per m²
n * 12 * 12 * 5.4 inches
• custom cabinet configuration
• 8500 · 9500 (w/o calibration) cd/m²
• outdoor applications
• cost calculated on dimensions
1581  147ft²
· 15.24 Outdoor · Billboard · Installation
• 4,306 pixels per m²
n * 12 * 12 * 5.4 inches
• custom cabinet configuration
• 9800 · 11000 (w/o calibration) cd/m²
• outdoor applications
• cost calculated on dimensions
1357  127ft² update: q2/2020
Series T
· 0.95 Indoor · Performance · Installation
• 1,103,383 pixels per m²
• 609 * 342 * 60 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
21793
· 1.26 Indoor · Performance · Installation
• 620,979 pixels per m²
• 609 * 342 * 60 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
7475 ~ 8945
· 1.58 Indoor · Performance · Installation
• 397,552 pixels per m²
• 609 * 342 * 60 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
5750 ~ 6728
· 1.90 Indoor · Performance · Installation
• 276,136 pixels per m²
• 609 * 342 * 60 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
4152 ~ 5302
· 2.53 Indoor · Performance · Installation
• 155,245 pixels per m²
• 609 * 342 * 60 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
2933 ~ 3968 update: q3/2020

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
MacroBlock MBI5124 MacroBlock MBI5124
• improved image quality
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Aluminum Cabinet Aluminum Cabinet
• custom configuration
quote
Custom Corner Custom Corner
• up to a 90° corner
• modules meet edge-to-edge
quote
Custom Curvature Custom Curvature
• concave and convex
• modules meet edge-to-edge
quote

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Ultra Bright SMD Ultra Bright SMD Lamps
• gold-wire lamps
• increased brightness
• enhanced durability
select
Bright SMD Standard Brightness SMD
• gold-wire lamps
• increased brightness
• enhanced durability
select

Xindeco DIP Xindeco DIP Lamps
• ultra high brightness
• optional non-calibration
• increase brightness by 15%
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Custom Corner Custom Corner
• up to a 90° corner
• modules meet edge-to-edge
quote
Custom Curvature Custom Curvature
• concave and convex
• modules meet edge-to-edge
quote

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Aluminum Panel Aluminum Panel

quote
Polycarbonate Panel Polycarbonate Panel

quote

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards
Series TR
· 1.90 Indoor · Performance · Installation
• ‭274,576‬ pixels per m²
• 496 * 496 * 55 mm
• exhibition frame ready
• indoor applications
• cost calculated on dimensions
0000  000ft²
· 2.58 Indoor · Performance · Installation
• 150,544 pixels per m²
• 496 * 496 * 55 mm
• exhibition frame ready
• indoor applications
• cost calculated on dimensions
3059  285ft²
· 2.95 Indoor · Performance · Installation
• 114,921 pixels per m²
• 496 * 496 * 55 mm
• exhibition frame ready
• indoor applications
• cost calculated on dimensions
2772  258ft² update: q4/2019
Brompton Tessera
Series TRB
· 0.93 Indoor · Performance · Rental
• 1,138,489 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
21939
· 1.25 Indoor · Performance · Rental
• 640,000 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
13219 ~ 19623
· 1.56 Indoor · Performance · Rental
• 409,600 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
6441 ~ 9729
· 1.87 Indoor · Performance · Rental
• 284,089 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
4796 ~ 5497
· 2.50 Indoor · Performance · Rental
• 160,000 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
3623 ~ 4388 update: q3/2020
Brompton Tessera
Series TVB
· 0.93 Indoor · Performance · Rental
• 1,138,489 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
20930
· 1.25 Indoor · Performance · Rental
• 640,000 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
7032 ~ 18240
· 1.56 Indoor · Performance · Rental
• 409,600 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
5325 ~ 8970
· 1.87 Indoor · Performance · Rental
• 284,089 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
3605 ~ 4290
· 2.50 Indoor · Performance · Rental
• 160,000 pixels per m²
• 600 * 337 * 39 mm
• aluminum or polycarbonate
• indoor applications
• cost calculated on dimensions
2624 ~ 3462 update: q3/2020
Brompton Tessera

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Brompton Tessera R2 Brompton Tessera R2
• 262,144 rgb pixel capacity
• 16 bit-per-channel processing
• 2 gigabit ethernet data connections
• ddr2 so-dimm form factor
• support for all major driver ic
• up to 72 output data channels
• support for sensors
150 • price per receiver card
Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Exhibition Frame Exhibition Frame
• third-party suppliers
• built to order
• industry standard
quote

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Brompton Tessera R2 Brompton Tessera R2
• 262,144 rgb pixel capacity
• 16 bit-per-channel processing
• 2 gigabit ethernet data connections
• ddr2 so-dimm form factor
• support for all major driver ic
• up to 72 output data channels
• support for sensors
150 • price per receiver card
Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Brompton Tessera R2 Brompton Tessera R2
• 262,144 rgb pixel capacity
• 16 bit-per-channel processing
• 2 gigabit ethernet data connections
• ddr2 so-dimm form factor
• support for all major driver ic
• up to 72 output data channels
• support for sensors
150 • price per receiver card
Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards
Series WB
· 1.95 Indoor · Installation
• ‭262,144‬ pixels per m²
• 1000 / 750 / 500 * 281 * 42 mm
• direct-to-wall installation
• indoor applications
• cost calculated on dimensions
3352 ~ 4170
· 2.60 Indoor · Installation
• ‭147,456 pixels per m²
• 1000 / 750 / 500 * 281 * 42 mm
• direct-to-wall installation
• indoor applications
• cost calculated on dimensions
1976 ~ 2556
· 2.84 Indoor · Installation
• 123,904 pixels per m²
• 1000 / 750 / 500 * 281 * 42 mm
• direct-to-wall installation
• indoor applications
• cost calculated on dimensions
1898 ~ 2378
· 2.97 Indoor · Installation
• 112,896 pixels per m²
• 1000 / 750 / 500 * 281 * 42 mm
• direct-to-wall installation
• indoor applications
• cost calculated on dimensions
1714 ~ 2161
· 3.90 Indoor · Installation
• 65,536 pixels per m²
• 1000 / 750 / 500 * 281 * 42 mm
• direct-to-wall installation
• indoor applications
• cost calculated on dimensions
1420 ~ 1700 update: q3/2020
Series X
· 1.56 Indoor · Performance · Installation
• 409,600 pixels per m²
• 500 * 500 * 100 mm
• indoor applications
• cost calculated on dimensions
6310  587ft²
· 1.95 Indoor · Performance · Installation
• 262,144 pixels per m²
• 500 * 500 * 100 mm
• indoor applications
• cost calculated on dimensions
4855  452ft²
· 2.60 Indoor · Performance · Installation
• 147,456 pixels per m²
• 500 * 500 * 100 mm
• indoor applications
• cost calculated on dimensions
2751  256ft²
· 2.97 Indoor · Performance · Installation
• 112,896 pixels per m²
• 500 * 500 * 100 mm
• indoor applications
• cost calculated on dimensions
2752  256ft²
· 3.90 Indoor · Performance · Installation
• 65,536 pixels per m²
• 500 * 500 * 100 mm
• indoor applications
• cost calculated on dimensions
2199  205ft²

· 2.97 Outdoor · Performance · Installation
• ‭112,896‬ pixels per m²
• 500 * 500 * 100 mm
• outdoor applications
• cost calculated on dimensions
0000  000ft²
· 3.90 Outdoor · Performance · Installation
• 65,536 pixels per m²
• 500 * 500 * 100 mm
• outdoor applications
• cost calculated on dimensions
3559  331ft²
· 4.46 Outdoor · Performance · Installation
• 50,176 pixels per m²
• 500 * 500 * 100 mm
• outdoor applications
• cost calculated on dimensions
3232  301ft²
· 5.20 Outdoor · Performance · Installation
• 36,864 pixels per m²
• 500 * 500 * 100 mm
• outdoor applications
• cost calculated on dimensions
2873  267ft² update: q4/2019
Brompton Tessera

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
MacroBlock MBI5353 MacroBlock MBI5353
• improved image quality
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Custom Corner Custom Corner
• up to a 90° corner
• modules meet edge-to-edge
quote
Custom Curvature Custom Curvature
• concave and convex
• modules meet edge-to-edge
quote

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Your new Desay LED display is composed of panels priced in square meters and configured to fill out a specified area. Costs are largely driven by the density of the pixels (LED lamps) in modules that make up those panels and may offer upgrades for brightness or improved contrast.

Each panel requires one or two receiver cards for data. Upgrades may be available for a higher refresh rate for smoother video performance. Controllers and media players provide the data for the display with models suitable for digital signage, stage performances and control rooms.

We quote factory-direct shipping by air cargo or ocean freight either to your door or the nearest port and package your display in wood crates or flight cases on your directions.


Your Company Logo Your Company Logo
• printed onto the cabinet or panel
• printed onto the flight case
• high resolution image file
included

Gold Wire SMD Gold Wire SMD Lamps
• increased brightness
• enhanced durability
• higher cost
select
Copper Wire SMD Copper Wire SMD Lamps
• standard brightness
• lower cost
select

Hz Refresh Rate Hz Refresh Rate
• higher rates reduce eye strain
• smoother video
• reduce or eliminate flicker on camera
select

Novastar A8s Novastar A8s
• 512 * 256 · 32 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• receiving card backup
• rcfg backup and read
• auto calibration · cabinet mapping
• 18bit+ · clearview · hdr/hlg
• free rotation · low latency
60 • price per receiver card
Novastar A4s Novastar A4s
• 256 * 256 · 24 rgb data out
• memory on module interface
• pixel-level colour calibration
• pixel-level brightness calibration
• rcfg backup and read
• cabinet mapping
50 • price per receiver card

Novastar Controller Novastar Controller
• novapro uhd jr · 10,400,000 pixels
• novapro hd · 2,300,000 pixels

• mctrl4k · ‭8,847,360‬ pixels
• mctrl 660pro · ‭‭4,096,000‬‬ pixels

• vx6s · 3,900,000 pixels
• vx4s · 2,300,000 pixels
select
Novastar Player Novastar Player
• taurus tb8 box · t8 card
• taurus tb6 box · t6 card
• taurus tb3 box · t3 card

• synchronous · asynchronous
• wired · wireless · 4g
select

Hard Face GOB Hard Face GOB
• effective for fine-pixel panels
• allows the repair of individual pixels
• hard face protects against damage
• improved viewing angles
• reduced moire effect
400  38ft² • price per m²
• price per ft²

Custom Corner Custom Corner
• up to a 90° corner
• modules meet edge-to-edge
quote
Custom Curvature Custom Curvature
• concave and convex
• modules meet edge-to-edge
quote

Custom Steel Frame Custom Steel Frame
• custom-built to your specifications
• factory-tested with your panels
• mount to poles or walls
400  38ft² • price per m²
• price per ft²

Service Tool Service Tool
• powerful magnet
• remove LED modules from panels
400 • price per unit

Spare LED Module Spare LED Module
• specify with order
• same lamp production batch
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Receiver Card Spare Receiver Card
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote
Spare Power Supply Spare Power Supply
• specify with order
• on hand for immediate replacement
• recommended quantity of 5% to 10%
quote

Flight Case Flight Case
• rolling flight case for transport
• custom fit for panels
• secure storage when not in use
260 • price per case
• 6 panels
Wood Crate Wood Crate
• custom crate for transport
• not required with flight cases
75  7ft² • price per m²
• price per ft²

Air · Ocean · Ground Air · Ocean · Ground
• factory-direct shipping
• door-to-door or to the nearest port
• major carriers or independents
quote

ETL Certified ETL Certified
• etl listed mark
• asme • astm • ansi
• csa • nfpa • nom
• nsf • ul · ulcs
included
FCC Certified FCC Certified
• fcc certified for usa
included

Warranty · 2 Years Warranty · 2 Years
Desay warranties all components to be free of defects or failure for a period of 2 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
included

3 Years Warranty · 3 Years
Desay warranties all components to be free of defects or failure for a period of 3 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
3% surcharge • 3% surcharge
• panels and cards
4 Years Warranty · 4 Years
Desay warranties all components to be free of defects or failure for a period of 4 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
7% surcharge • 7% surcharge
• panels and cards
5 Years Warranty · 5 Years
Desay warranties all components to be free of defects or failure for a period of 5 years from the date of production.
Components determined to be faulty by Desay will be repaired or replaced upon being returned to the factory or a Desay-authorized depot.
12% surcharge • 12% surcharge
• panels and cards

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
