The Desay Series H rules.

Introducing our new Supreme Leader.

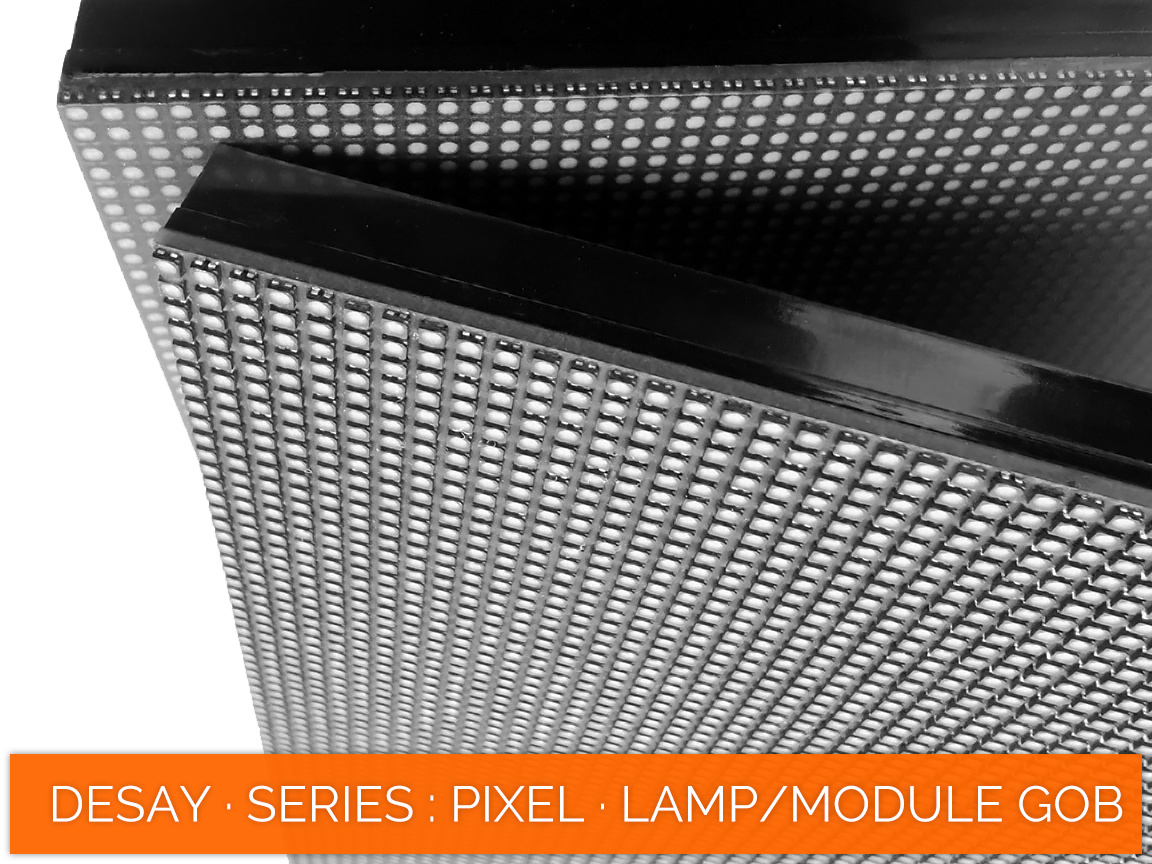

Pixels

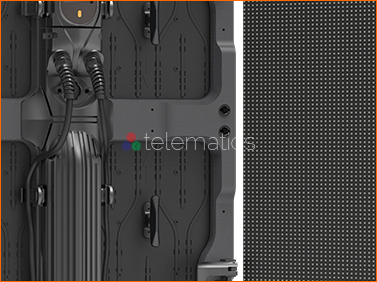

Pixel to pixel spacing begins at an impressive 2.80 millimeters to create a display resolution of more than
127,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series H2.8 looks great from just 3 meters away.

Dimensions

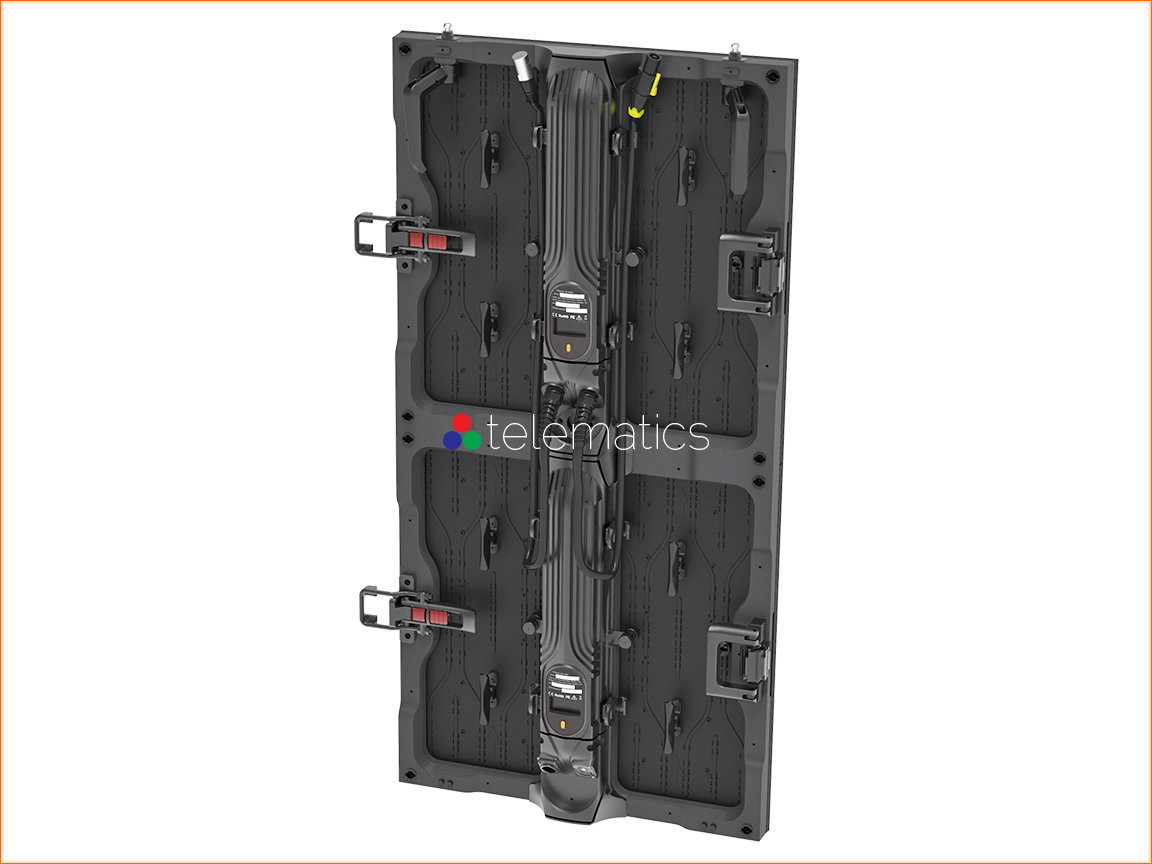

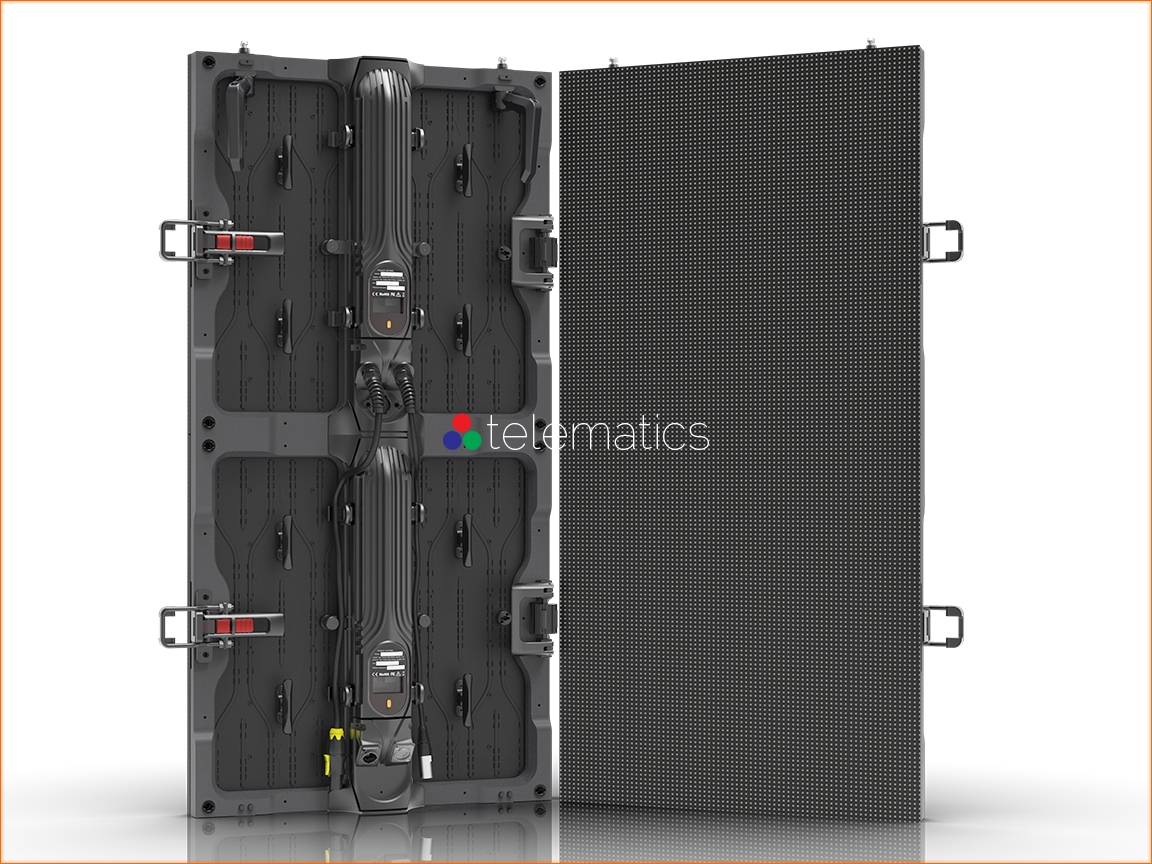

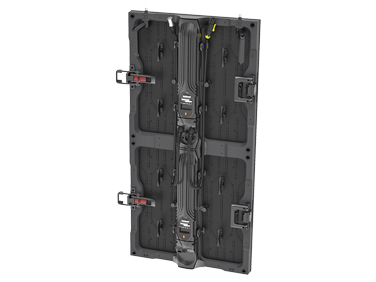

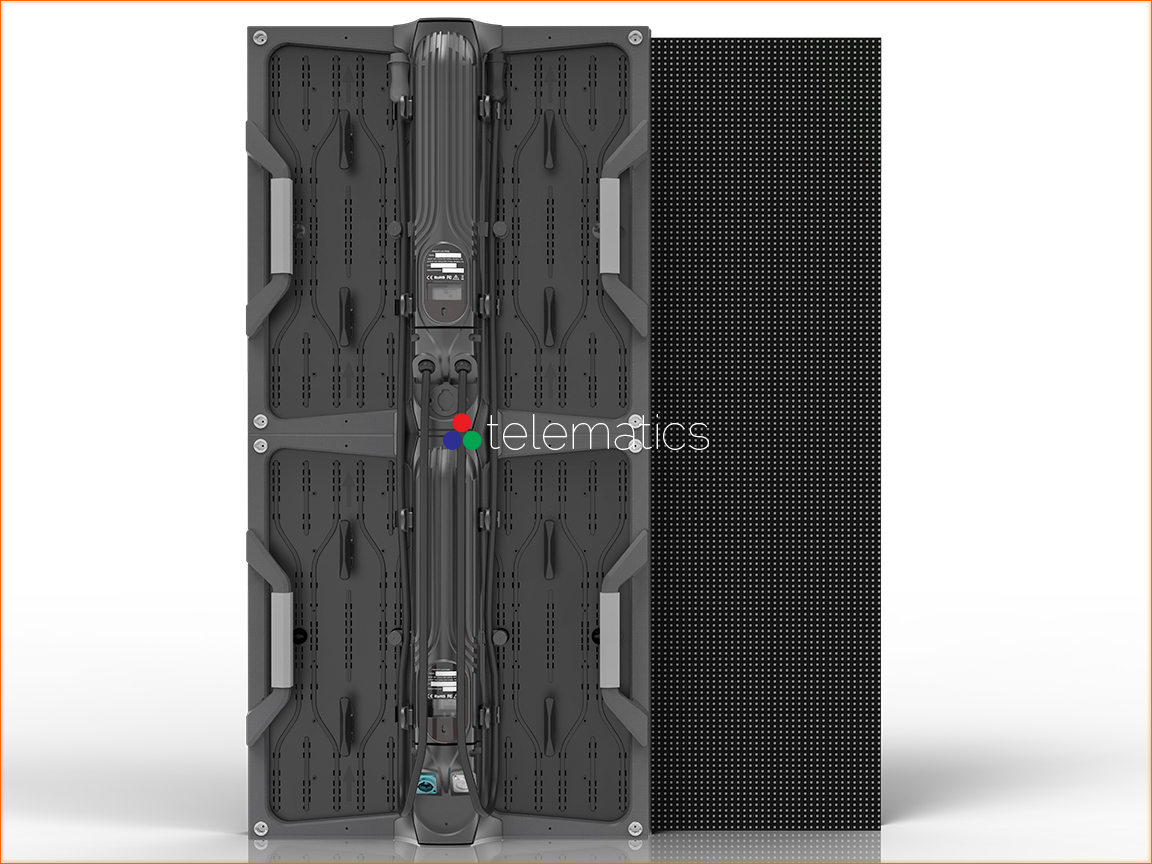

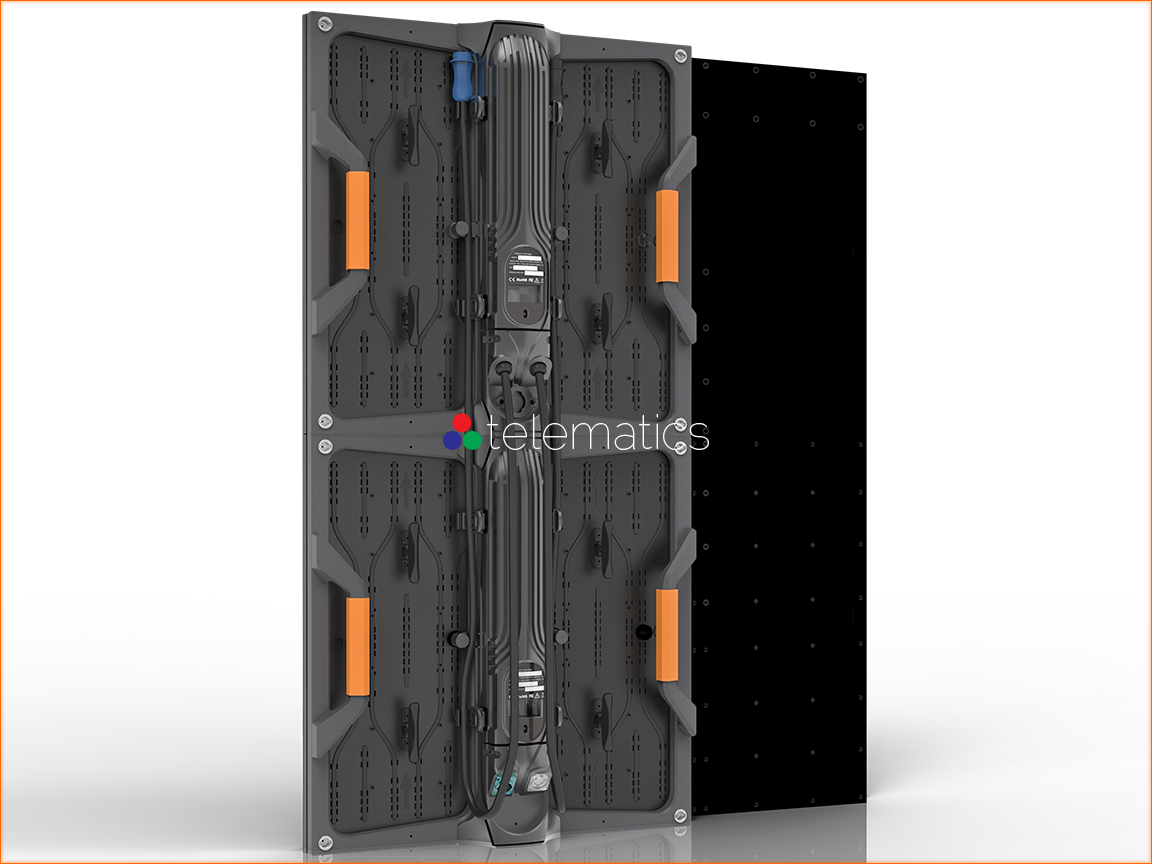

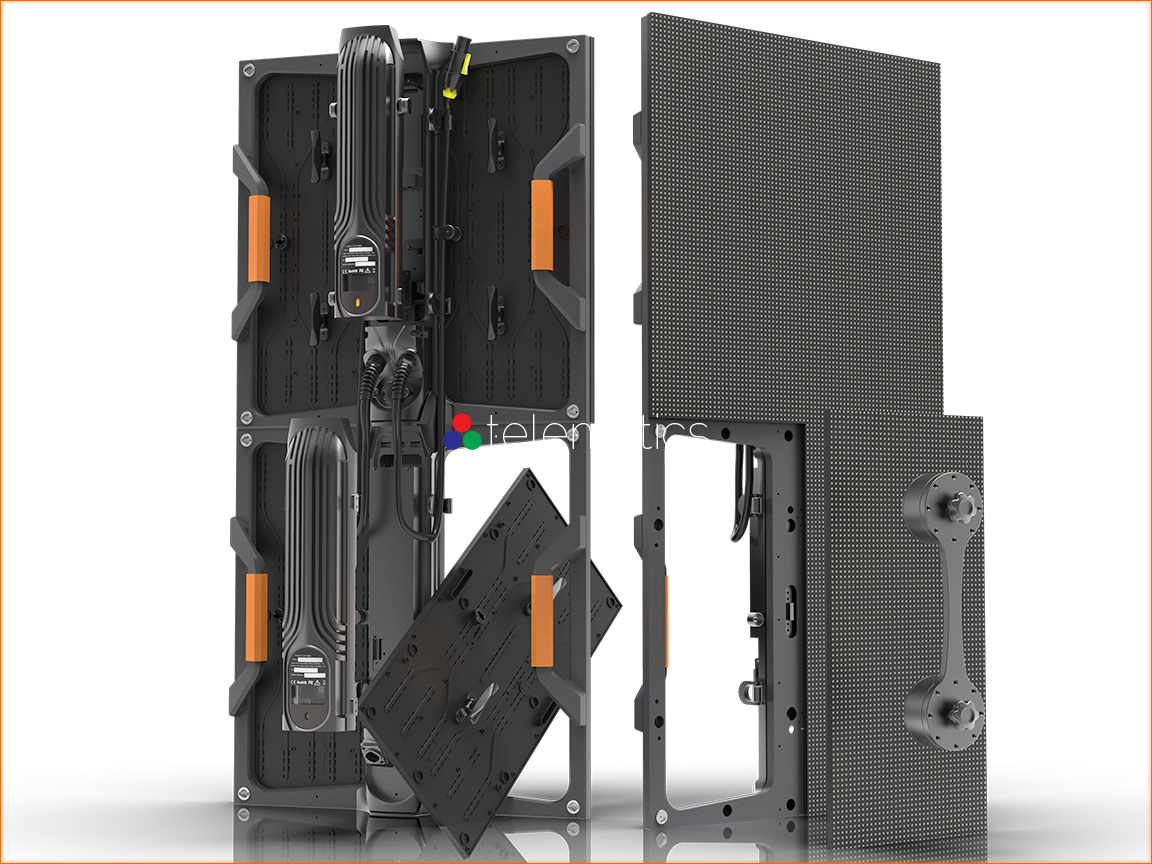

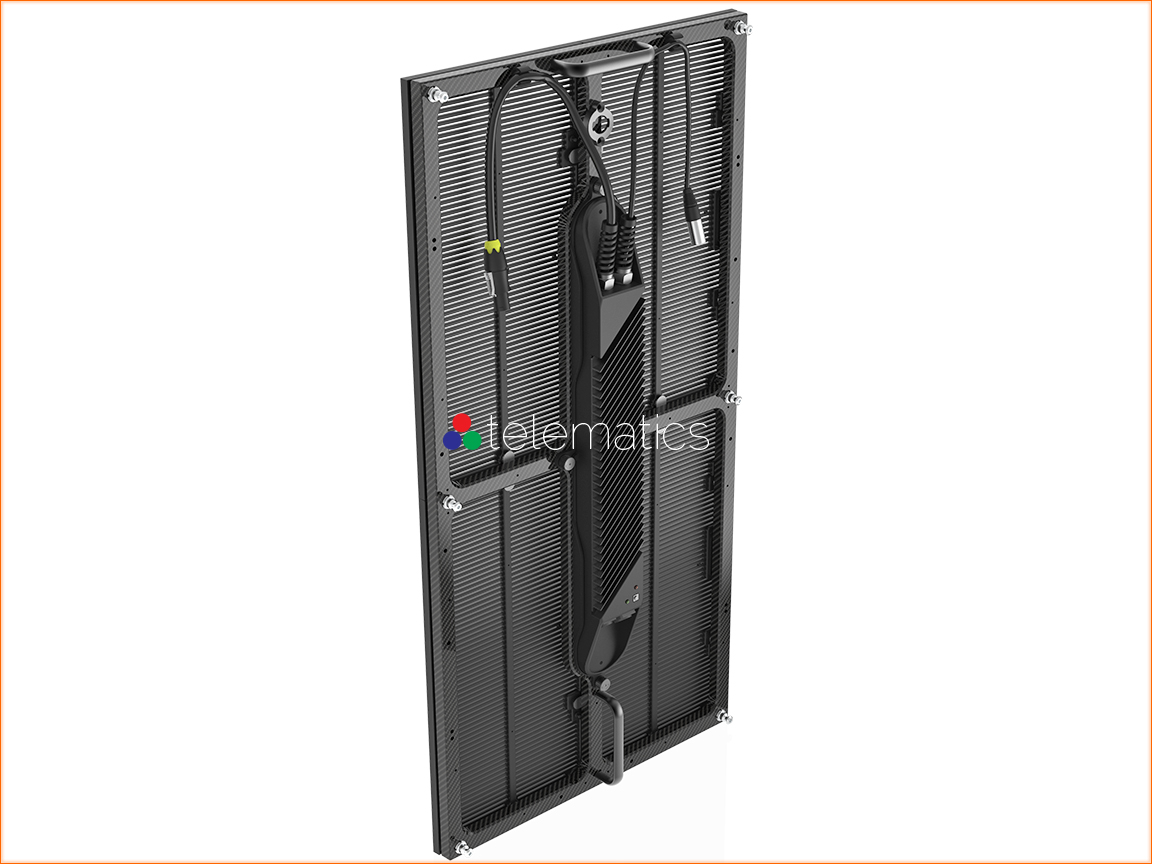

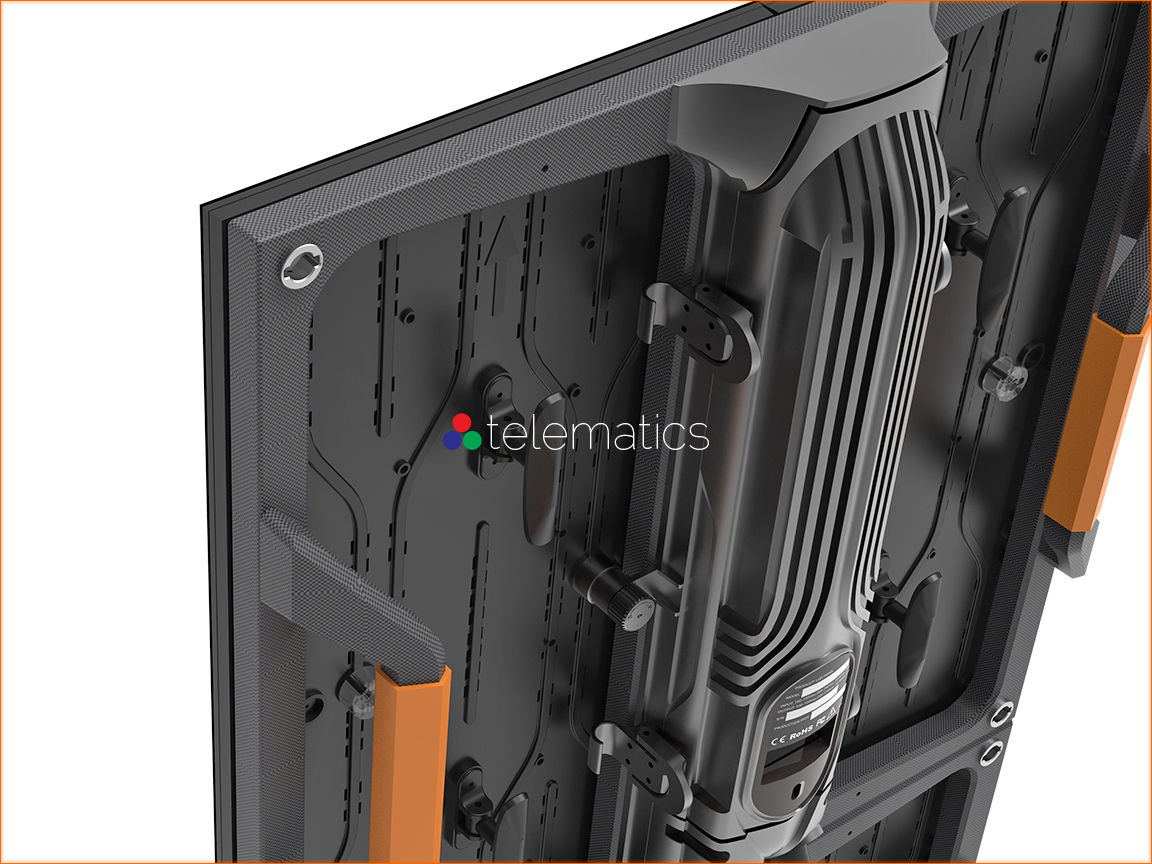

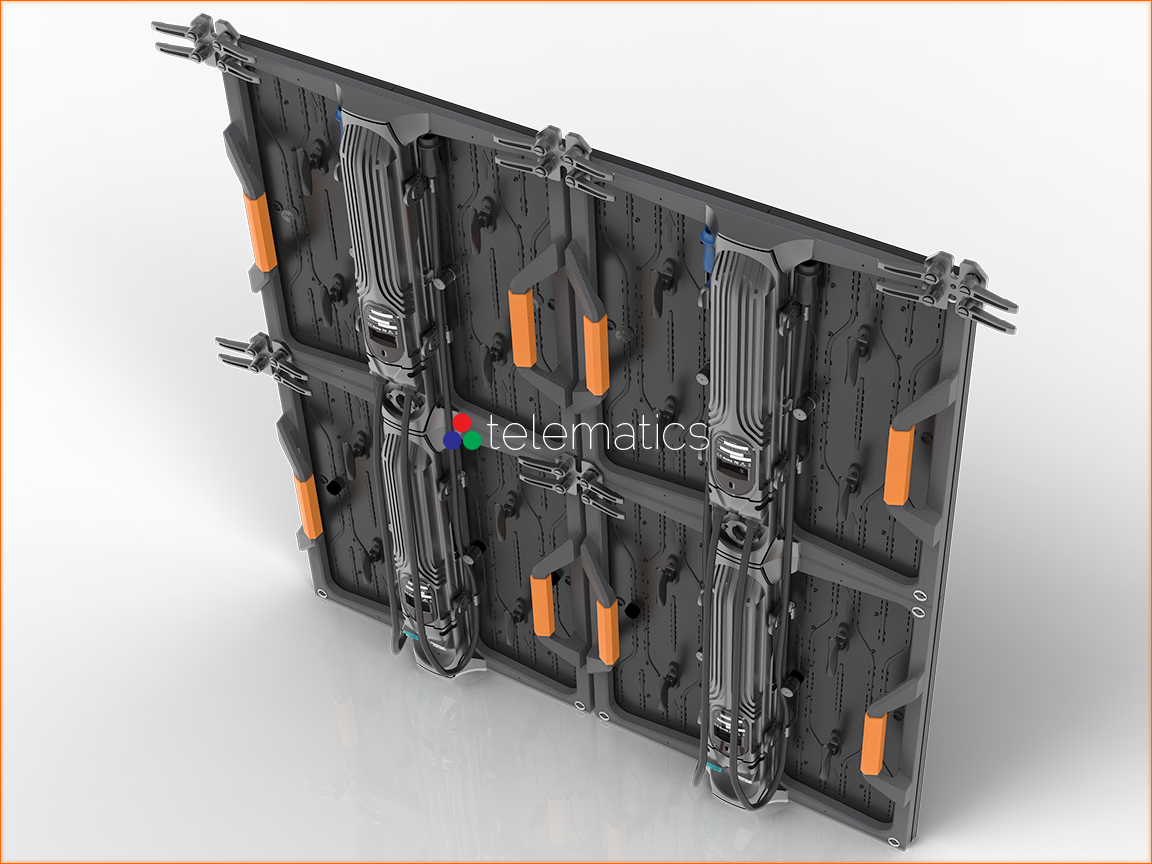

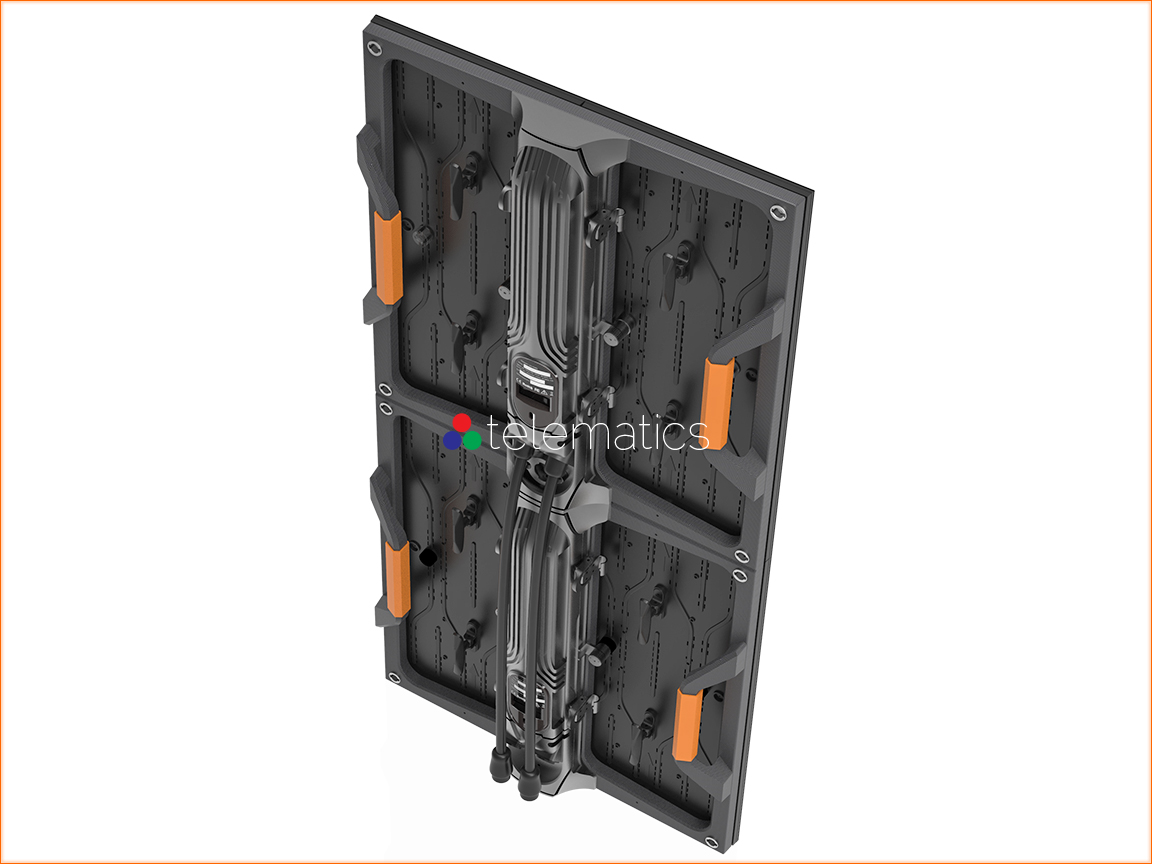

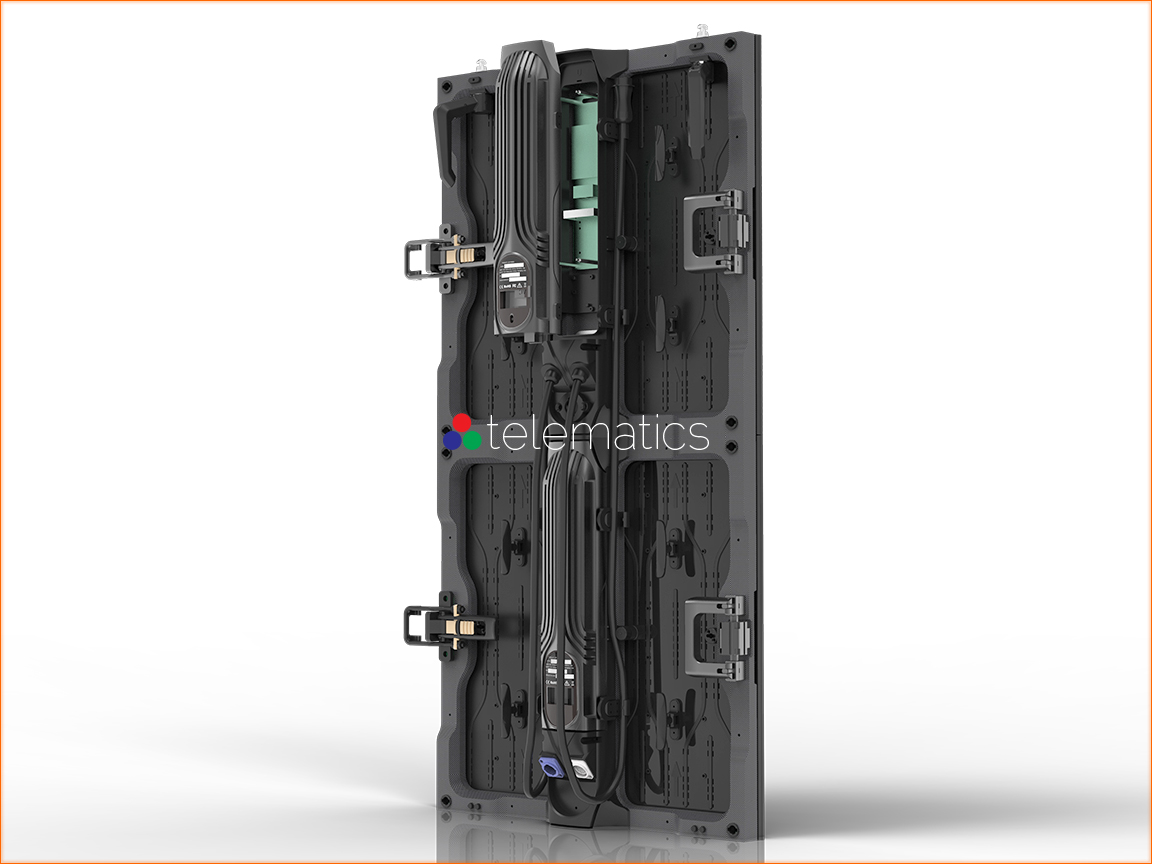

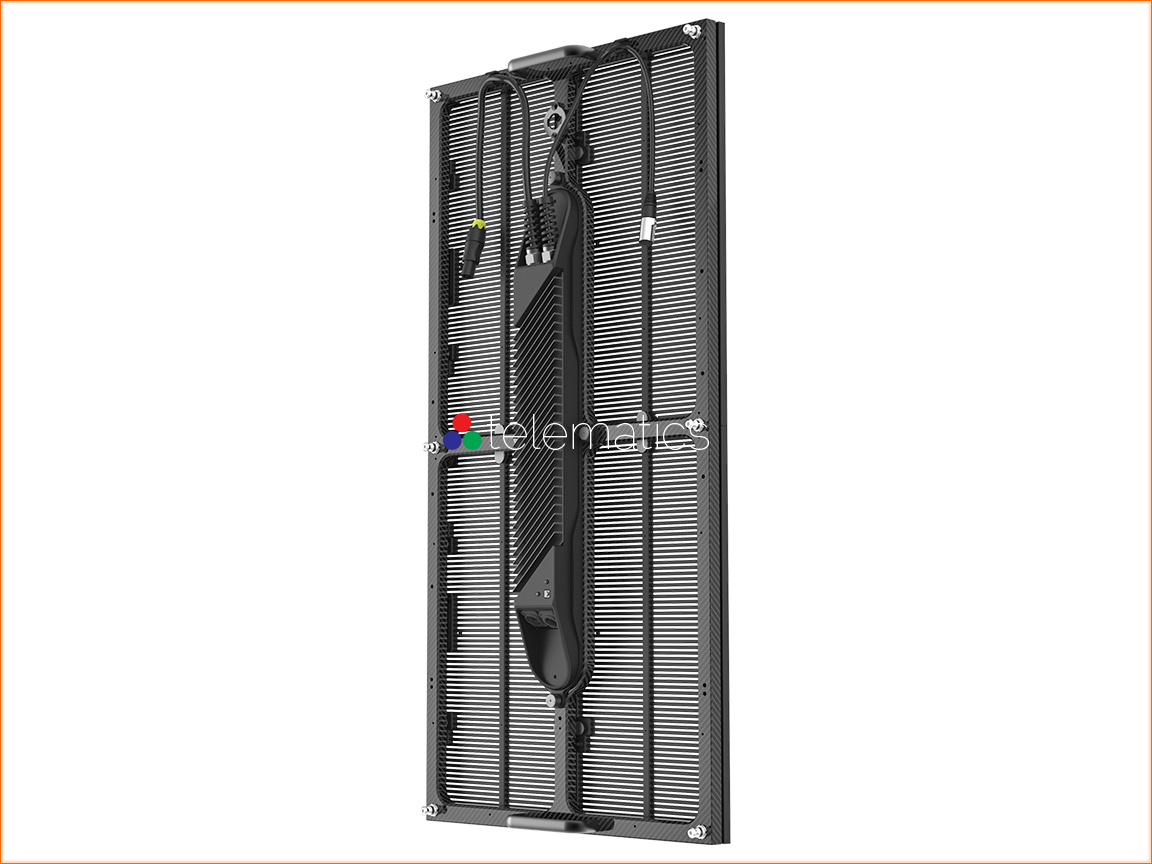

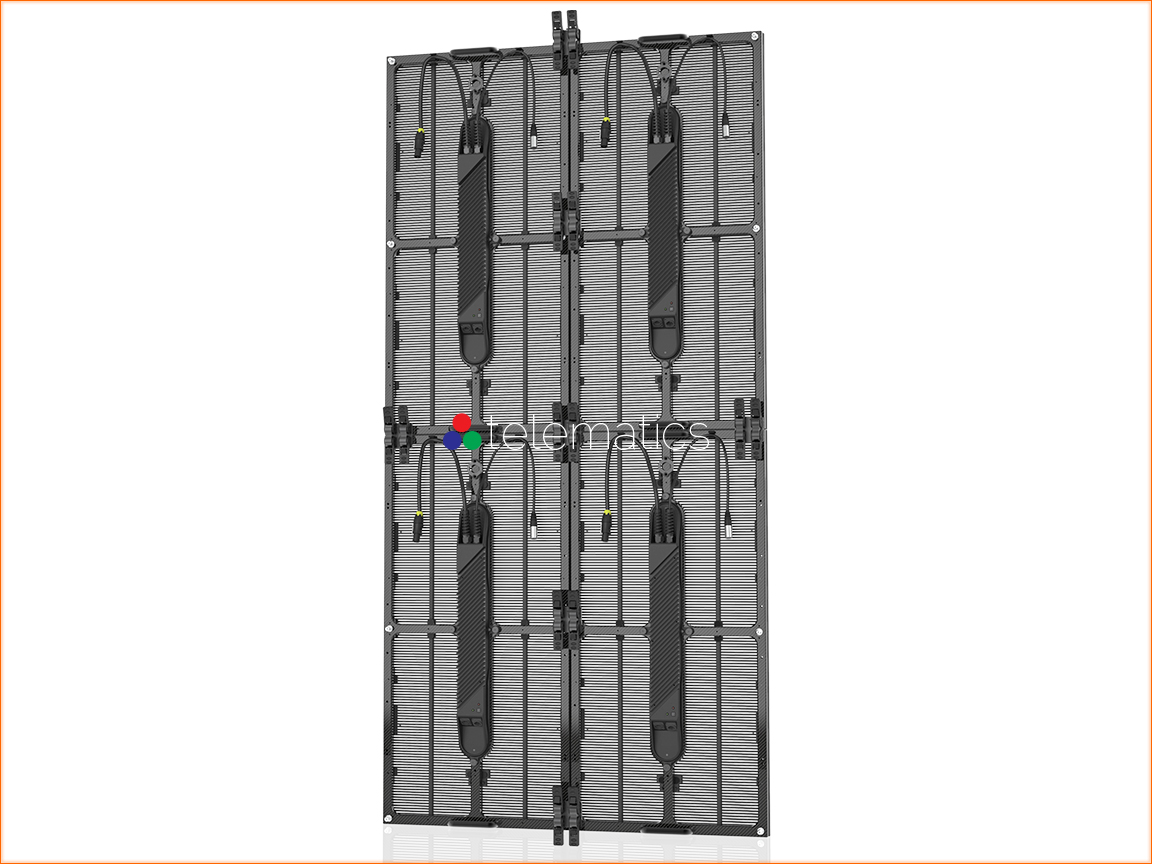

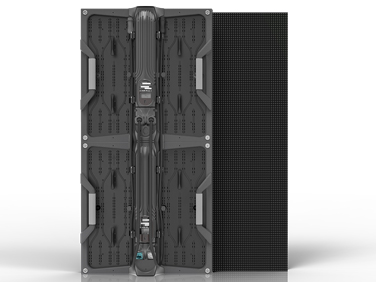

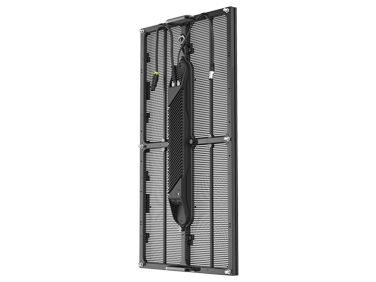

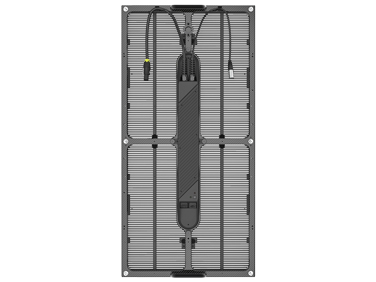

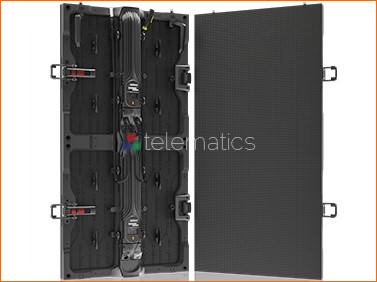

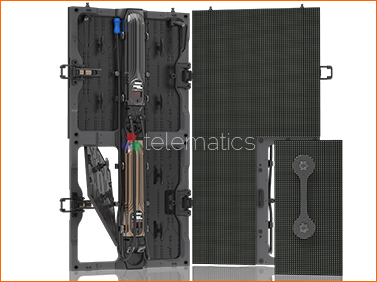

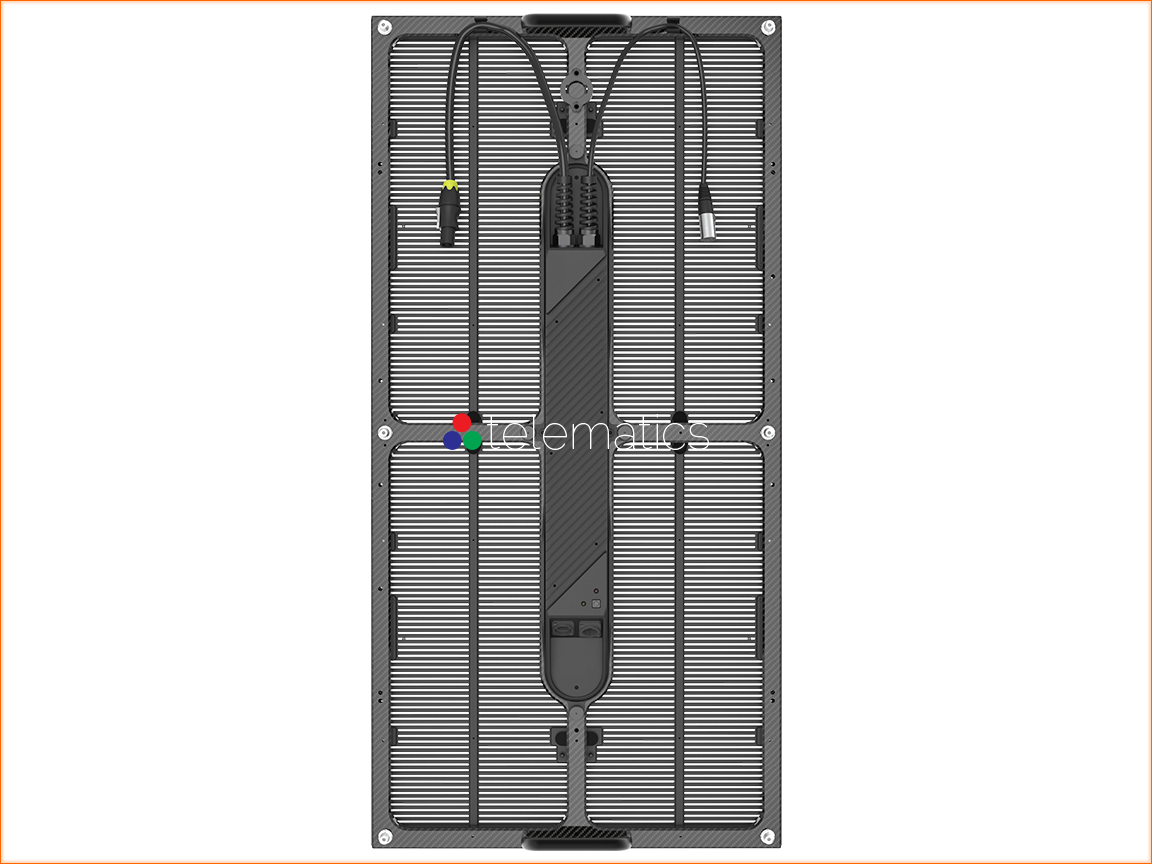

The Series H is a carbon fiber panel that weighs approximately
12 kilograms with XYZ dimensions of
1000 * 500 * 90 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 39 * 20 * 4 inches
and a featherweight 26 pounds.

Viewing

Display brightness levels extend from 1000 cd/m² to 5000 cd/m².
Screen refresh are exceptional at up to 3840 Hz for flicker-free video.
Off-axis viewing is 60° to 80° which means that pretty much everyone in the room can see the Series H whether coming or going.

Performance

Colors are amazing with levels of red14 * green14 * blue14 that provide for a combined 4,400 billion colors and a silky 16,384 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

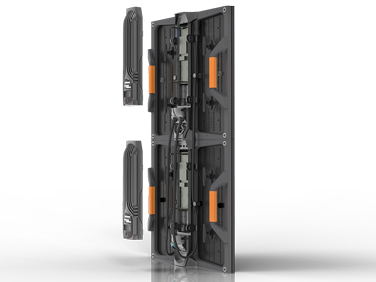

Power

Rated power consumption is a modest 182 ~ 245 Watts per square meter and up to 700 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

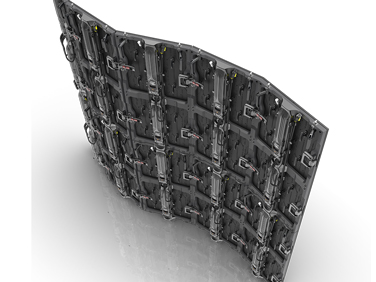

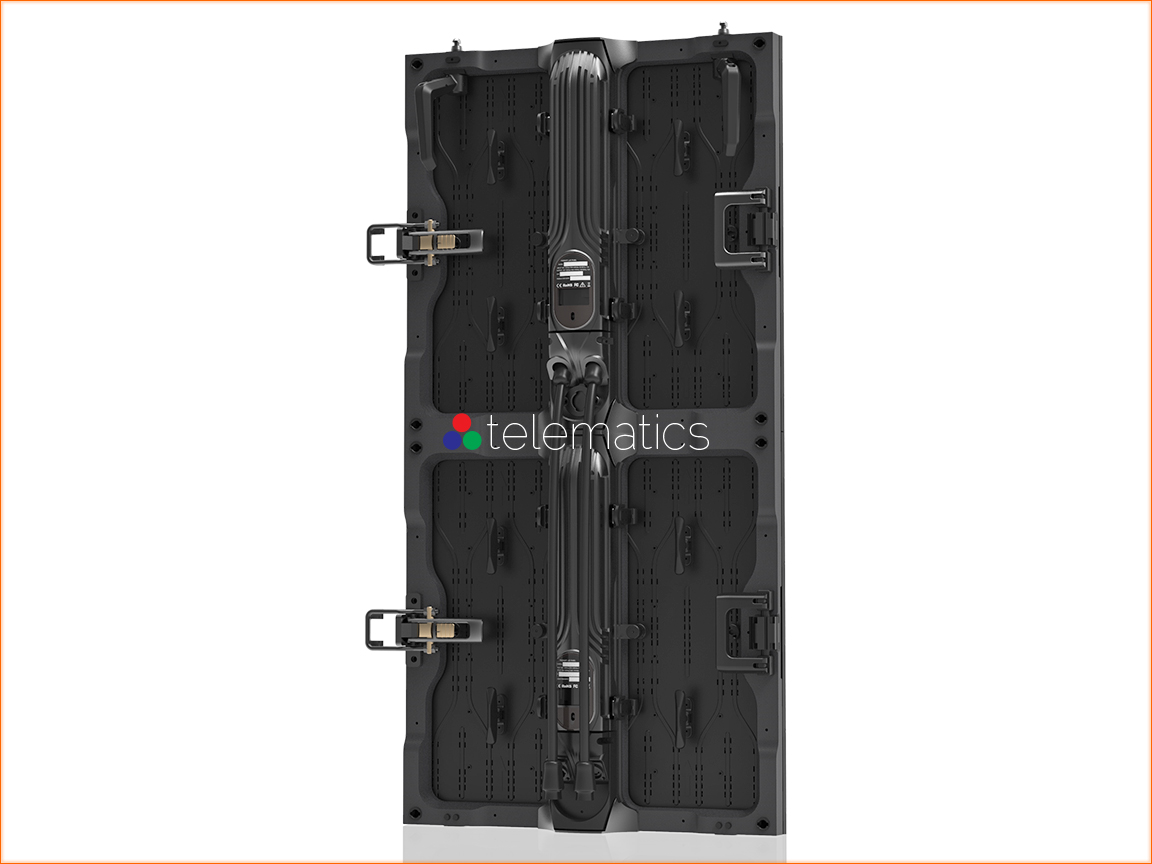

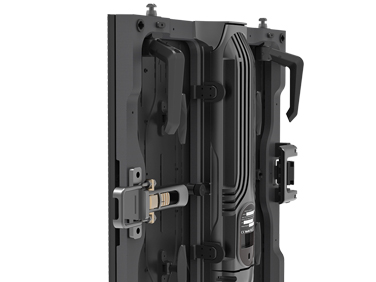

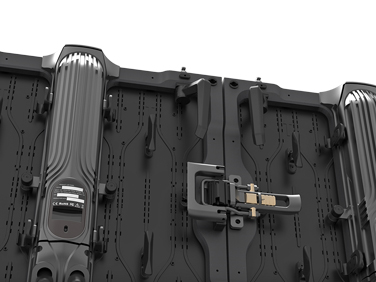

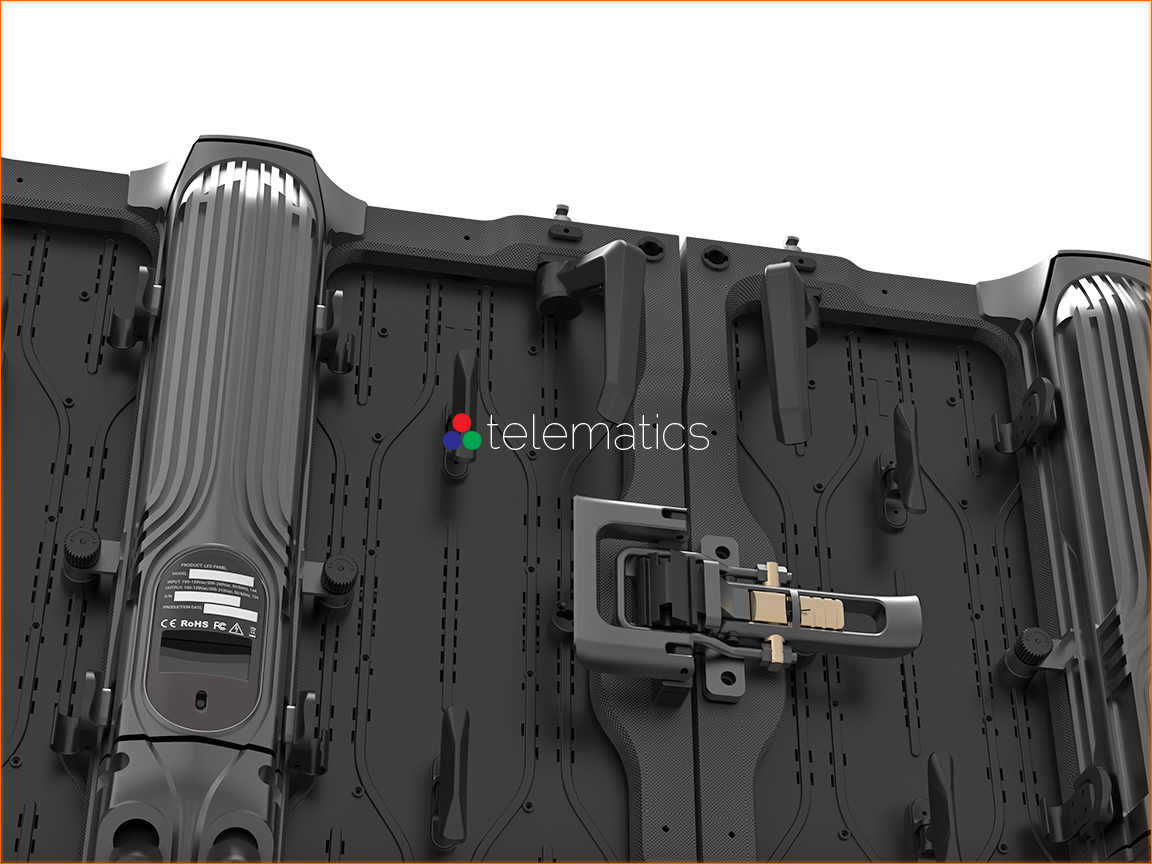

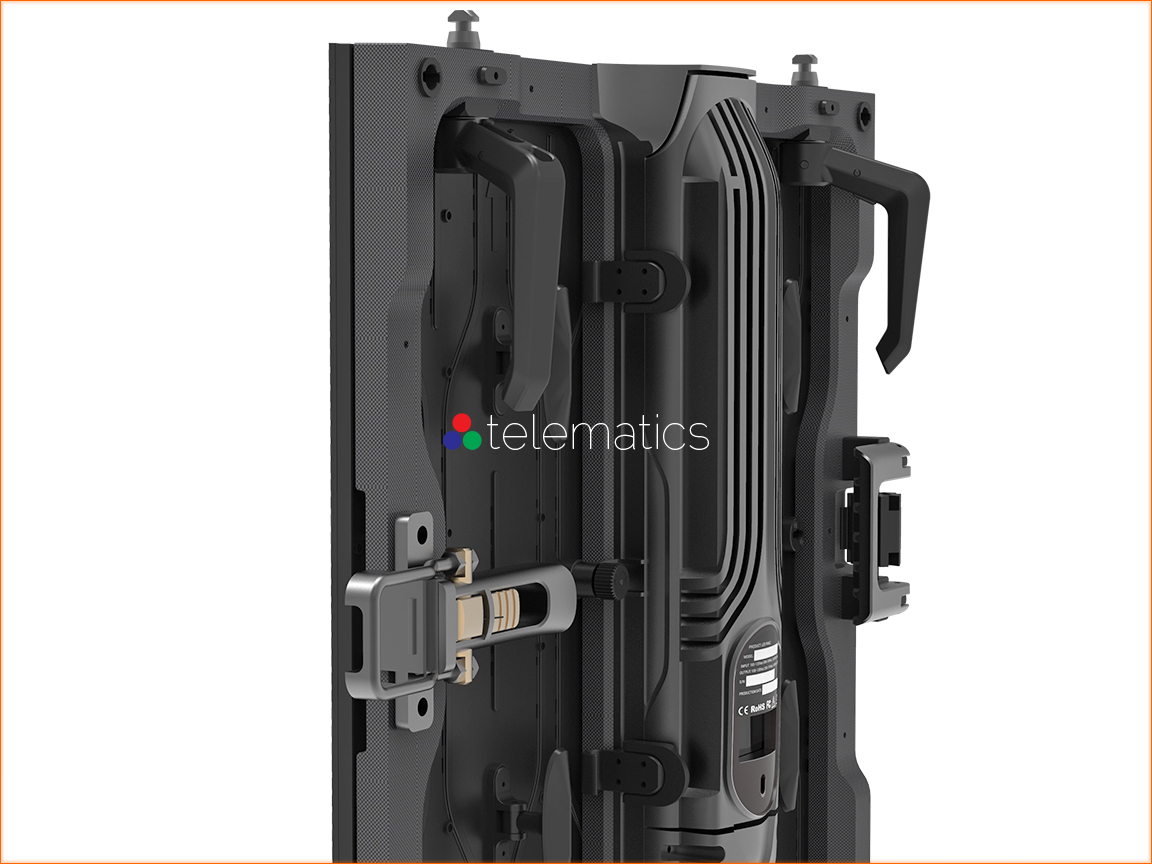

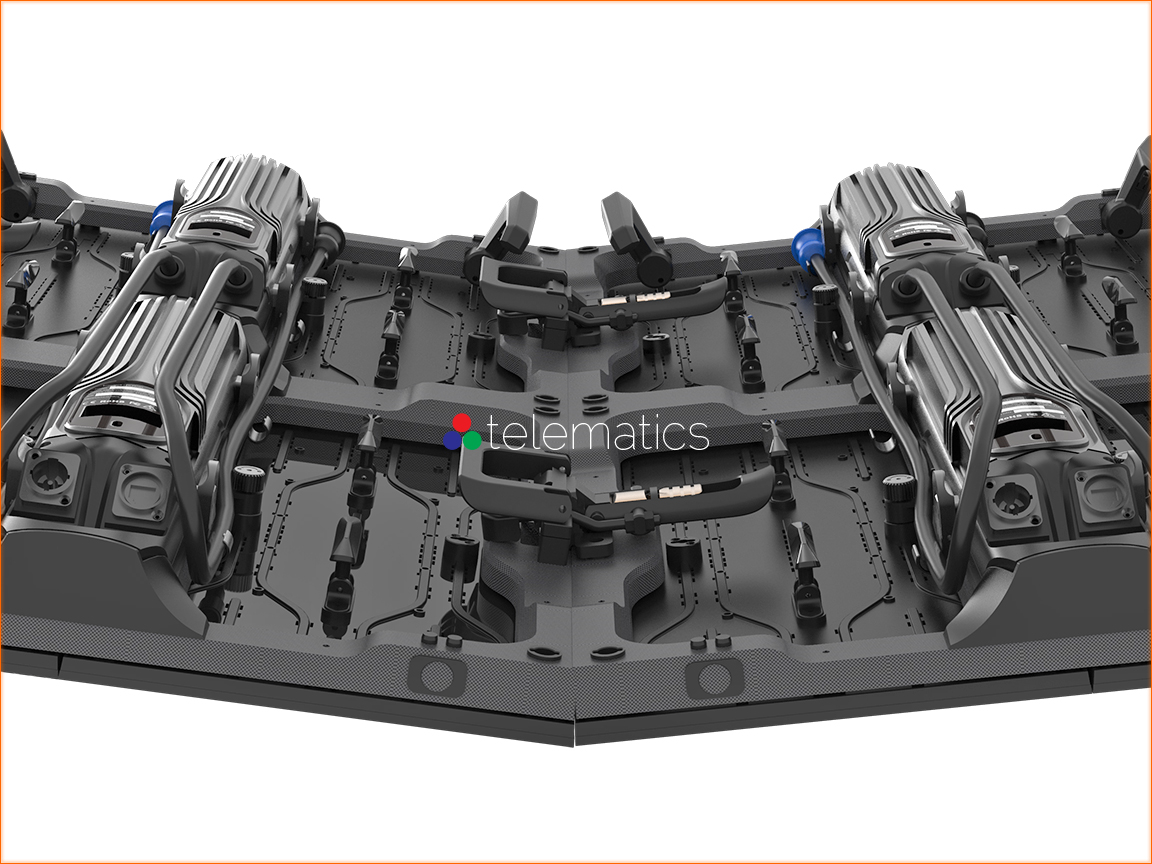

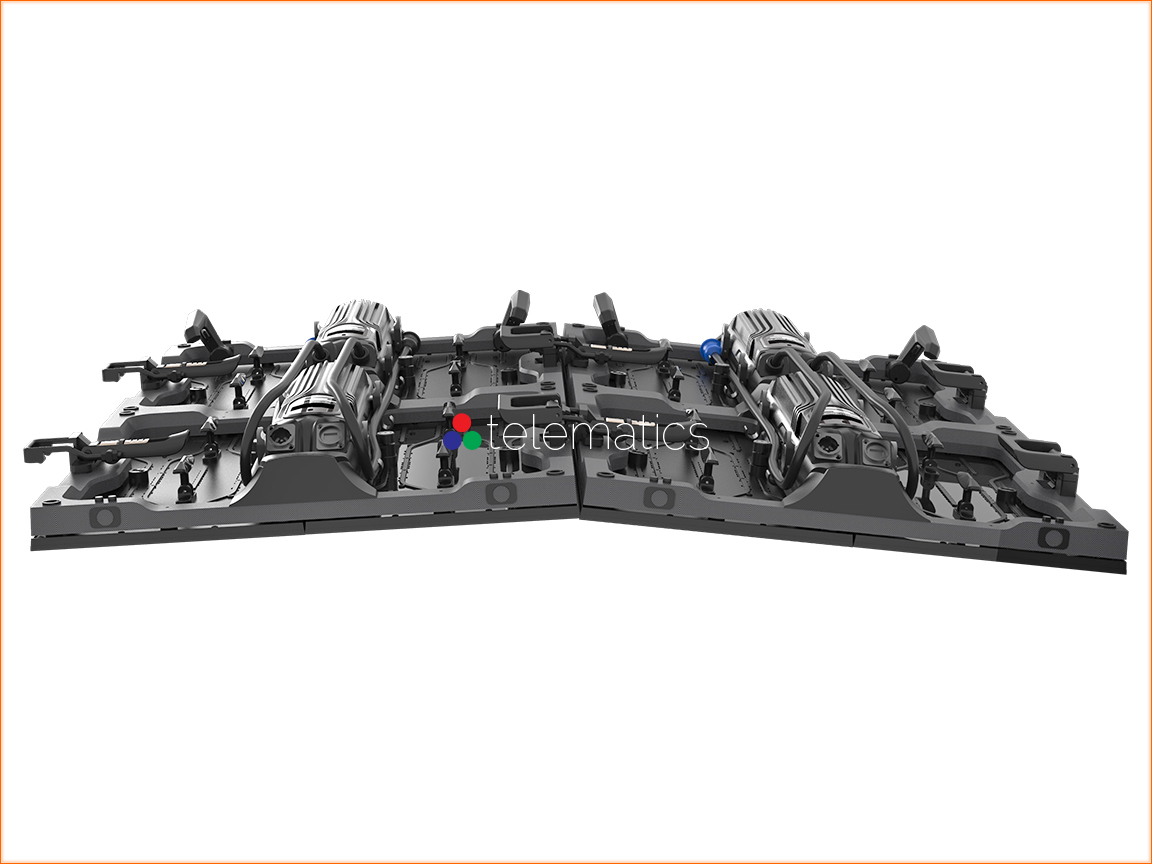

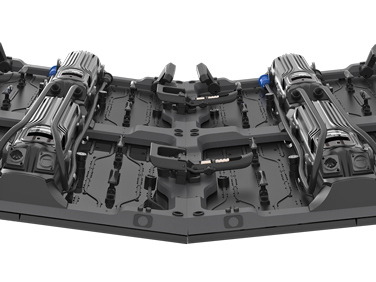

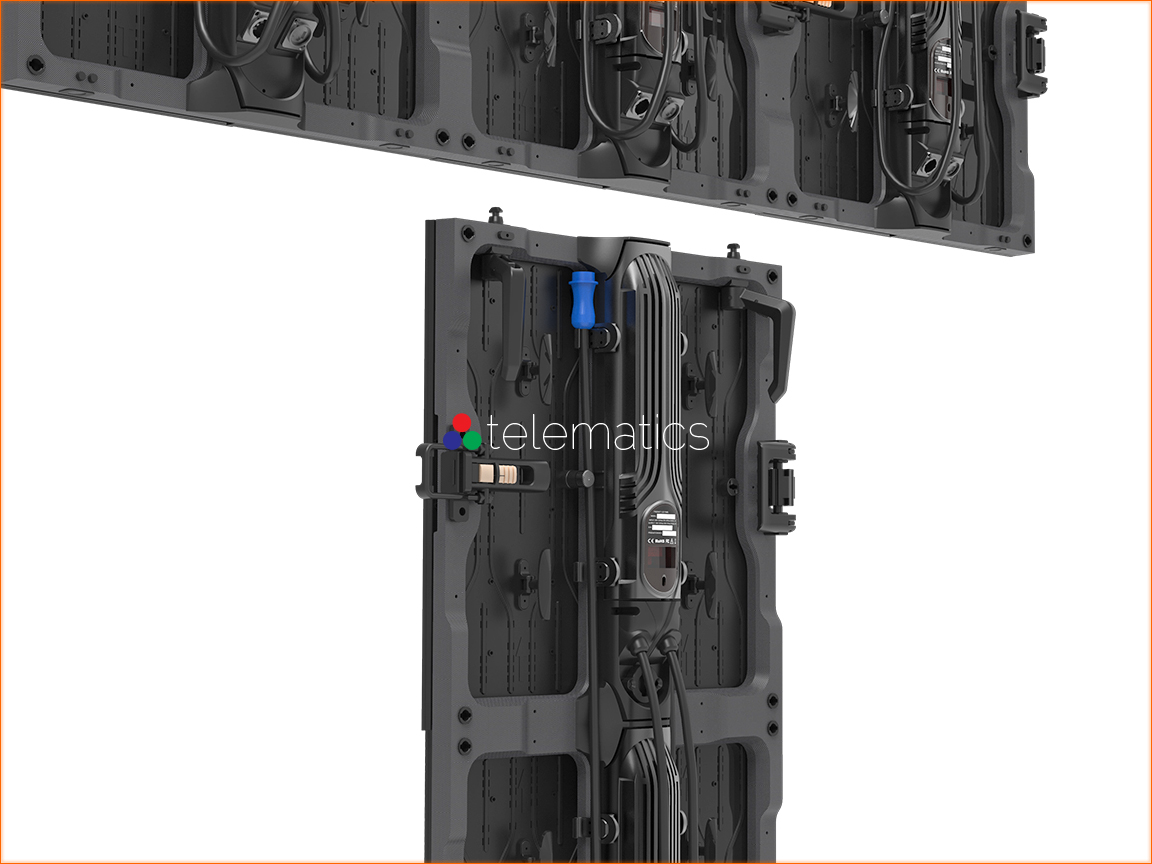

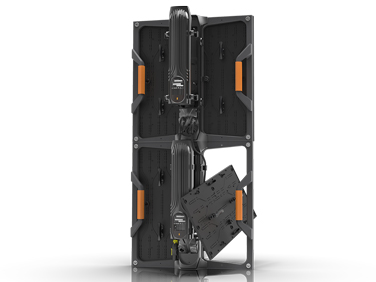

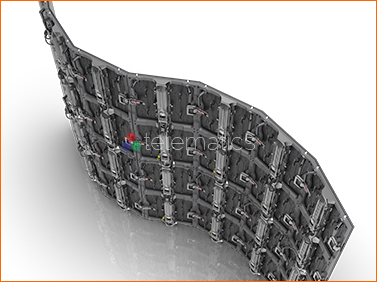

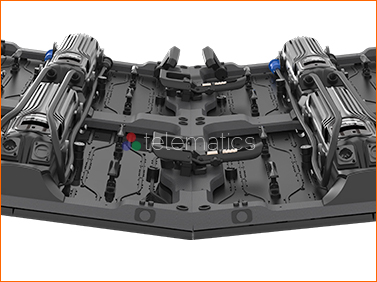

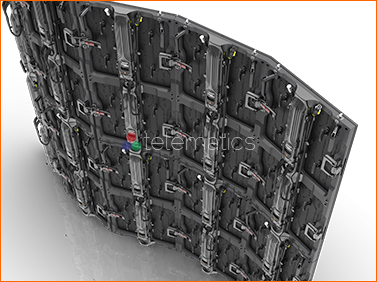

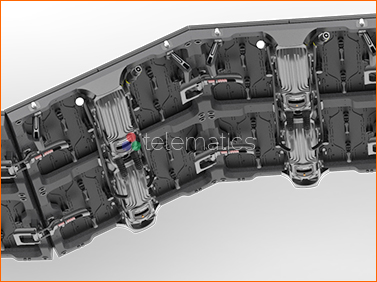

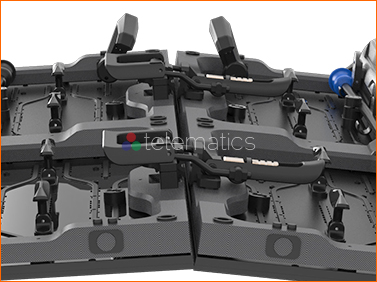

The Series H features a fast-locking patented flexible design that allows up to 5 degrees of concave and convex settings. Attach to a frame or use hanging bars or ground supports. Power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series H

Carbon well captured.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series H284i H390i H390 H480 H690
Pixels mm · meters
Resolution · ctc distance · mm 2.84 3.90 3.90 4.80 6.90
Resolution · per linear meter 357 256 256 208 144
Resolution · per square meter 127449 65536 65536 43264 20736
Dimensions mm · (inch)
Width · half or full panel 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7)

Height · half panel 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7)
Height · full panel 1000 (39.4) 1000 (39.4) 1000 (39.4) 1000 (39.4) 1000 (39.4)

Depth · at panel edge 33 (1.3) 33 (1.3) 33 (1.3) 33 (1.3) 33 (1.3)

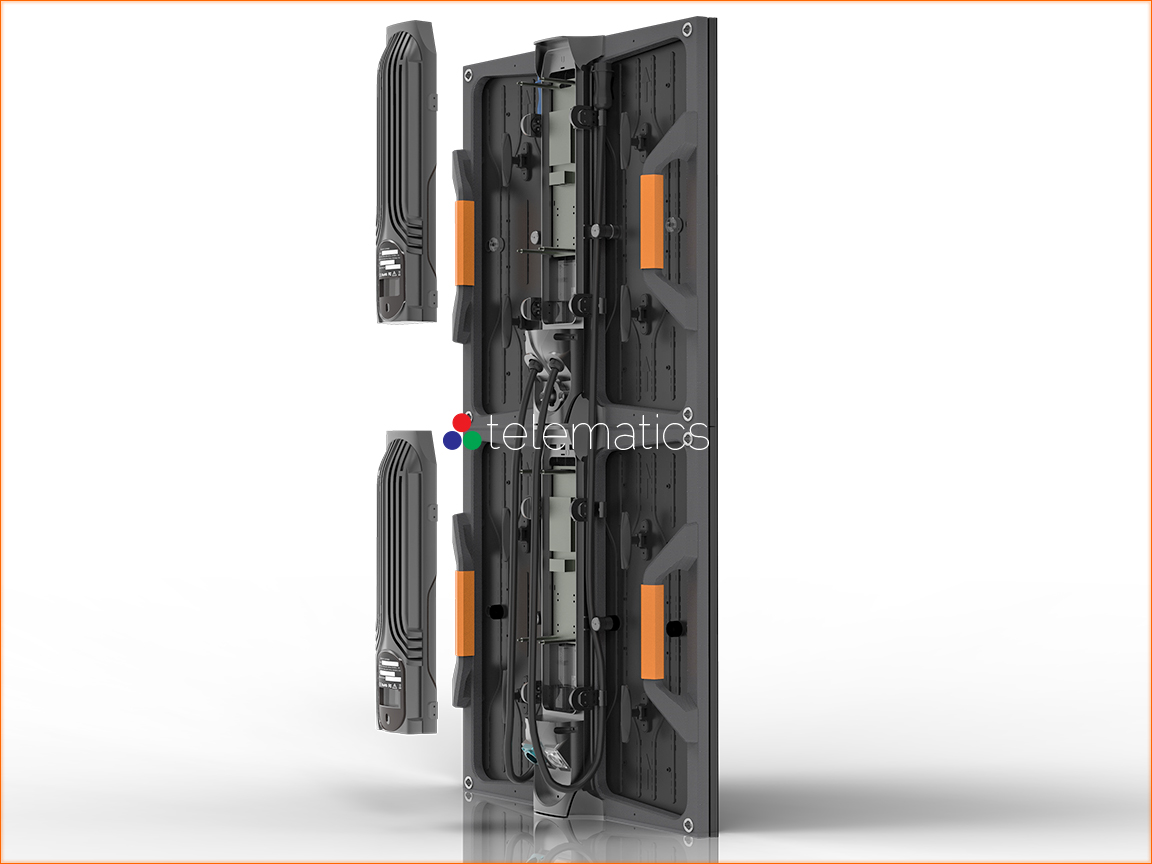

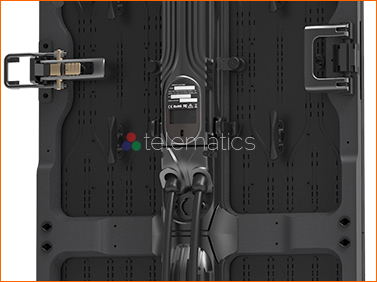

Depth · at single power box 75 (2.9) 75 (2.9) 75 (2.9) 75 (2.9) 75 (2.9)
Depth · at double power box 90 (3.5) 90 (3.5) 90 (3.5) 90 (3.5) 90 (3.5)
Weight kilo · (pound)
Panel · H · half panel 6.3 (13.8) 6.3 (13.8) 6.4 (14.1) 6.4 (14.1) 4.9 (10.8)
Panel · H · full panel 12.5 (27.5) 12.5 (27.5) 12.8 (28.2) 12.8 (28.2) 9.8 (21.6)
Viewing (upgrade)
Brightness · candela/m² 1000 (1200) 1000 (1200) 5000 5000 4500

Refresh · hertz 1920 (3840) 1920 (3840) 1920 (3840) 1920 (3840) 1920 (3840)

Angle · 50% brightness 80° 80° 80° 80° 70° 70° 70° 70° 80° 80°
Angle · 50% brightness 70° 70° 70° 70° 50° 50° 25° 45° 80° 80°
Performance
Colors · rgb · bit depth 213 214 214 214 214
Control · brightness levels 255 255 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4 11.4 11.4
Power square meter
Watts · 1 PSU · (average draw) 520 (35%) 510 (35%) 550 (35%) 550 (35%) 570 (35%)
Watts · 2 PSU · (average draw) 650 (35%) 640 (35%) 680 (35%) 680 (35%) 700 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
Installation

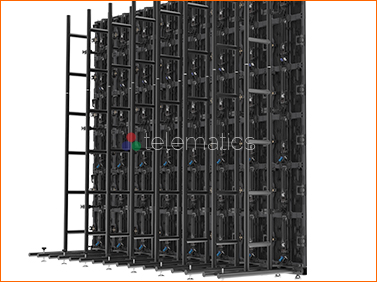

Wall · custom steel frame

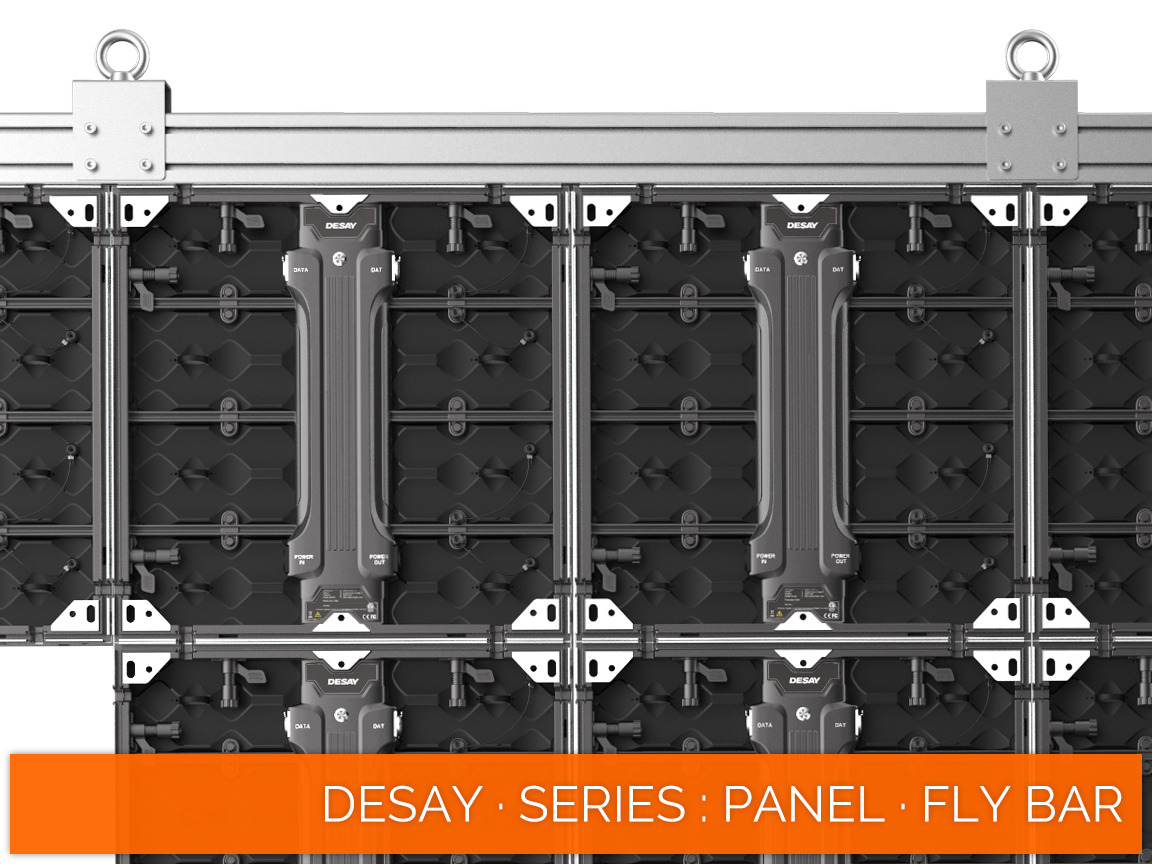

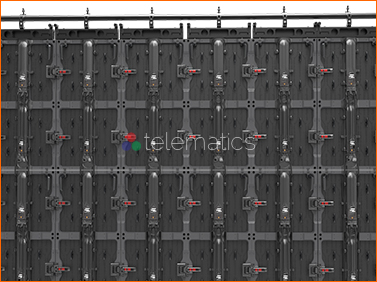

Ceiling · fly bar

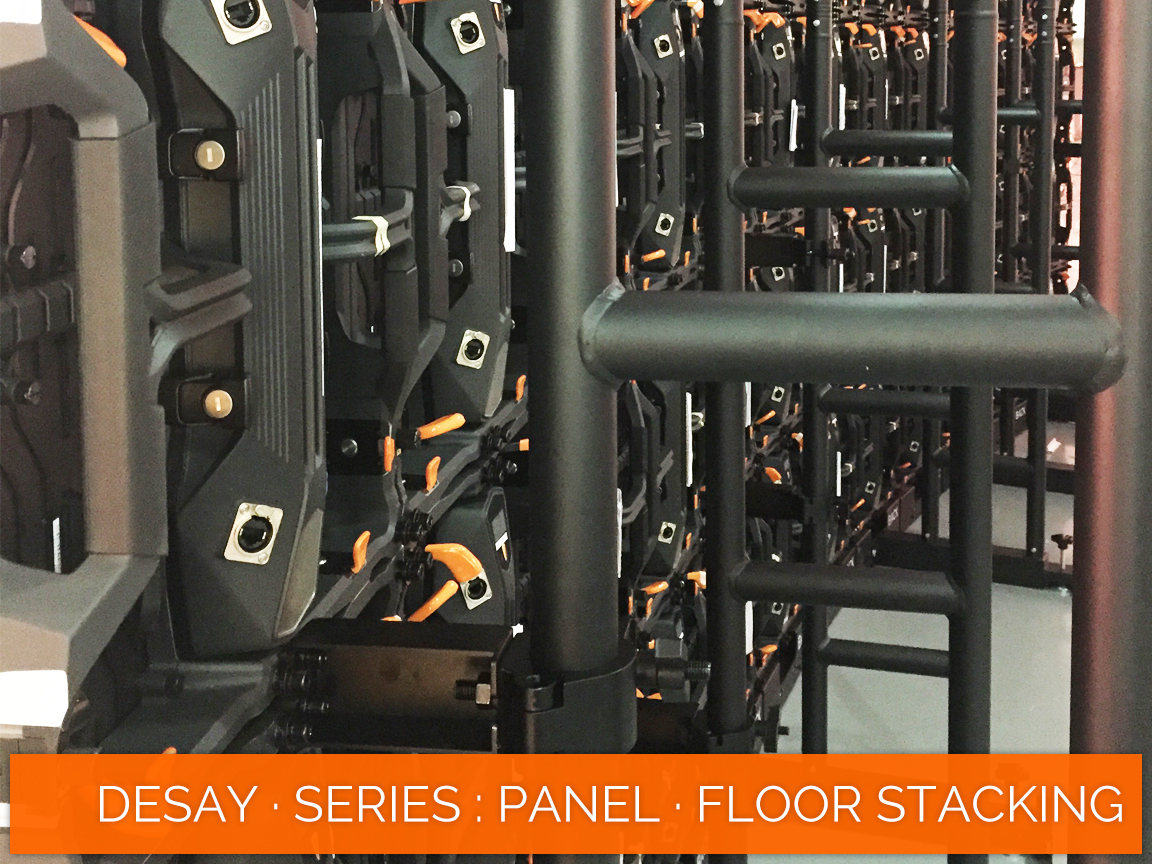

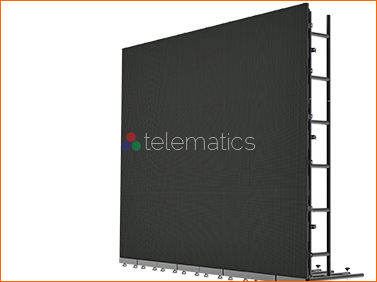

Floor · floor support

IP Code · front · rear 30 · 40 30 · 40 65 · 65 65 · 65 65 · 65
Operating · celsius · (fahrenheit) -10 (14) · 40 (104) -10 (14) · 40 (104) -20 (-4) · 45 (113) -20 (-4) · 45 (113) -20 (-4) · 45 (113)
PDF
Specifications · Manuals


Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series H

The Series H is one more step towards the ultimate performance panel for the stage and complements our already very awesome Series X and Series M panels.

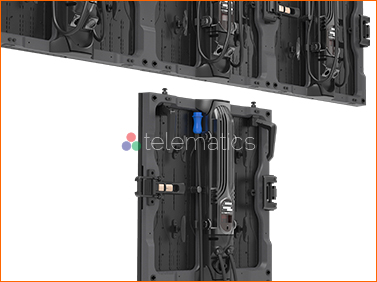

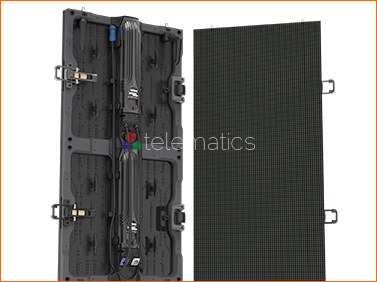

The extra-large dimensions of 500 * 1000 millimeters clearly save time on setup and tear-down, but would otherwise be a little less inviting if we used aluminum. Which is why we use Carbon Fiber to bring the weight down to just 5 or 6 kilograms per panel. Your roadies will be giddy with delight..

With the Series H, Desay has covered more bases than Willy Mays. Choose a fine-pixel indoor panel or a fine-pixel outdoor panel. We even have a broad-pixel mesh panel for pretty much any application you can come up with.

Pixel density begins at 20,736 and reaches 127,449 pixels per square meter. Refresh rates are 3840 Hz and Neutrik power cables and data connectors join the panels together.

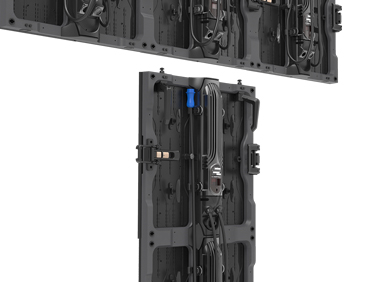

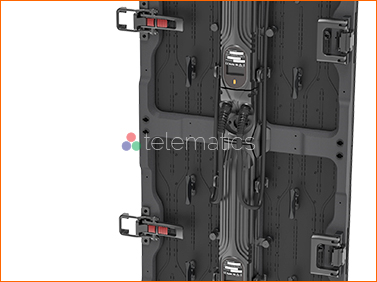

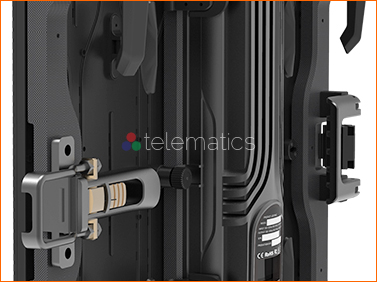

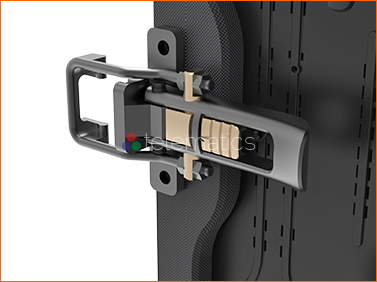

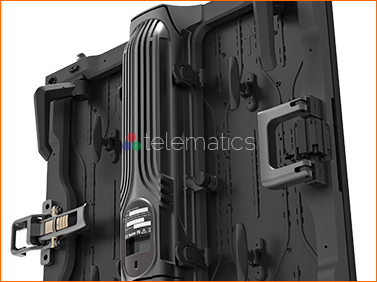

Connect the Series H using Desay's new patented push to lock and pull to unlock system. And if a lovely flat display is not what you had in mind, specify 3° or 5° concave and convex angles for something more flexible.

If you are looking to hit it out of the park with Brompton Technology’s High Dynamic Range (HDR) in your next display, the Desay Series H is the first of our panels to offer a combination of the Tessera M2 or Tessera SX40 LED Processors and the Brompton Tessera R2 Receiver Cards.

Content can also be handled by any of our NovaStar controllers. Good chance that might be one of our 4K controllers or the new Taurus Series.

The Series H is our newest addition to the Desay family and like any demanding stage parents we can't wait to get our little darling out on tour with the band!

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu



Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu




S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· A1.99i 4313 /unit
· A2.57i 2409 /unit update: 10/2019





1920 Hz Refresh standard

Novastar A4S standard




Service Tool 400 set

Floor Mount 160 set
Wall Mount 30 set
Hanging Bar 50 set

Flight Case 300 2:1
Flight Case 250 1:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series AT
· AT1.99i 11713 /unit
· AT2.50i 8338 /unit
· AT3.90i 6095 /unit

· AT2.50 10235 /unit
· AT3.90 7326 /unit update: 10/2019





1920 Hz Refresh standard

Novastar A4S standard




Service Tool 400 set

Floor Stand 700 set
Wall Mount 250 set

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series B
· B25·25 1098 /sqm
· B31·31 799 /sqm
· B42·42 564 /sqm update: 10/2019




Cree Lamps select
Multi-color Lamps select
Xindeco Lamps standard

5000 Hz Refresh standard



Controller standard

Spare LED Strips quote

Aluminum Frame quote
Steel Cabling standard

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series Flex
· Flex2·5i 4068 /sqm update: 10/2019




Gold Wire Lamps standard


Novastar A4S 40 /panel

Power Supply Unit 40 /panel


Service Tool 400 set

Hanging Bar 100 1:1
Hanging Bar 150 2:1

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series Floor
· Floor3.90i 0000 /sqm

· Floor3.90 0000 /sqm




Gold Wire Lamps standard


Novastar A4S 40 /panel

Power Supply Unit 40 /panel


Service Tool 400 set

Legs quote

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series G
· G2·5i 4401 /sqm
· G5.20i 2559 /sqm
· G3·7i 2237 /sqm
· G7.81i 2226 /sqm
· G10.41i 1898 /sqm update: 10/2019




Gold Wire Lamps standard

1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote



Service Tool 400 set
Power Box quote
Spare LED Module quote
Spare LED Module quote

Hanging Bar 100 1:1
Hanging Bar 150 2:1

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series H
· H2.84i 3036 /sqm
· H3.90i 2443 /sqm

· H3.90 3232 /sqm
· H6.90 2661 /sqm update: 10/2019






Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set
Power Box quote
Spare LED Module quote

Hanging Bar 200 1:1
Ground Support 80 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series HB
· HB2.90i 2060 /sqm
· HB3.90i 1725 /sqm

· HB3.90 2386 /sqm
· HB4.80 2047 /sqm update: 10/2019





3840 Hz Refresh standard

Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set
Power Box quote
Spare LED Module quote

Custom Steel Frame 400 /sqm
Hanging Bar 200 1:1
Ground Support 80 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series HL
· HL2.84i 2421 /sqm
· HL3.90i 2047 /sqm

· HL3.90 2887 /sqm
· HL4.80 2211 /sqm
· HL6.90 2017 /sqm
· HL10.41 1771 /sqm update: 10/2019






Brompton R2 150 /panel
Novastar A8S 60 /panel

Power Supply Unit 40 /panel


Brompton Processors quote

Service Tool 400 set
Power Box quote
Spare LED Module quote

Hanging Bar 150 2:1
Hanging Bar 100 1:1

Stage Dolly 1250  Full 8:1
Stage Dolly 1000 Half 8:1
Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series M
· M4.76 2666 /sqm
· M5.55 2177 /sqm
· M6.25 2082 /sqm
· M8.33 1771 /sqm
· M10.00 1593 /sqm
· M12.50 1351 /sqm
· M16.66 1221 /sqm update: 10/2019




Gold Wire Lamps standard


Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel



Spare LED Module quote

Custom Steel Frame 400 /sqm
Hanging Bar 165 2:1
Hanging Bar 80 1:1
Ground Beam 442 2:1
Ground Support 100 2:1

Flight Case 260 6:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series PF
· PF2.97i 1921 /sqm
· PF3.90i 1449 /sqm
· PF4.80i 1277 /sqm update: 10/2019





1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Spare LED Module quote

Hanging Bar 165 2:1
Hanging Bar 80 1:1

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series QF
· QF3.90 3418 /sqm




Gold Wire Lamps standard

1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel



Service Tool 400 set
Power Box quote

Custom Cabinet quote

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series S
· S4.76 1900 /sqm
· S6.25 1880 /sqm
· S8.33 1555 /sqm
· S10.00 1323 /sqm

· S10.88 1581 /sqm
· S15.24 1357 /sqm update: 10/2019





1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel



Spare LED Module quote

Custom Steel Frame 400 /sqm

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series T
· T0.97i 22235 /sqm
· T1.26i 9778 /sqm
· T1.58i 7475 /sqm
· T1.90i 5118 /sqm
· T2.53i 3105 /sqm update: 10/2019






6 Layer PCB select
4 Layer PCB select

Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Custom Steel Frame 400 /sqm

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series TR
· TR2.58i 3059 /sqm
· TR2.95i 2772 /sqm update: 10/2019





3840 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Exhibition System client supplied

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series TVB
· TVB1.50i 9806 /sqm update: 10/2019





3840 Hz Refresh standard

Novastar A8S 60 /panel

Power Supply Unit 40 /panel



Service Tool 400 set

Hanging Bar 200 1:1
Ground Support 80 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series WB
· WB1.95i 0000 /sqm
· WB2.60i 2920 /sqm
· WB2.90i 2445 /sqm
· WB3.90i 2100 /sqm update: 10/2019




Gold Wire Lamps standard
MacroBlock MBI5353 standard

3840 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series WP
· WP1.95i 0000 /sqm
· WP2.60i 2852 /sqm
· WP2.90i 2415 /sqm
· WP3.90i 1840 /sqm
· WP4.80i 1622 /sqm update: 10/2019




Gold Wire Lamps standard
MacroBlock MBI5353 standard

3840 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Warranty · 5 Years 12% upgrade
Series X
· X1.56i 6310 /sqm
· X1.95i 4855 /sqm
· X2.60i 2751 /sqm
· X2.97i 2752 /sqm
· X3.90i 2199 /sqm

· X3.10 5014 /sqm
· X3.90 3559 /sqm
· X4.46 3232 /sqm
· X5.20 2873 /sqm update: 10/2019




Black Face Lamps select


Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set
Power Box quote
Spare LED Module quote

Curve Plate 28 /sqm
Hanging Bar 125 2:1
Ground Beam 95 1:1
Ground Rack 75 1:1
Support Bracket 70 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade








Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
