The Art Of LED · Desay Series B

While heading the profit of my counsel, avail yourself also of any helpful circumstances over and beyond the ordinary rules.~ Sun Tzu


B is for buildings or billboards. Or just plain big.

If you are wrapping a building up in a super-light and super-bright curtain that looks magical from afar and barely blocks the outside view from anear (yes, that's actually a word) then this is your new favorite display.

Pixels

Pixel to pixel spacing begins at an expansive 31.25 millimeters to create a modest display resolution of just
1,024 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series B31 looks great from about 100 feet away.

Dimensions

The Series B is an aluminum curtain module that weighs approximately
1 kilogram with XYZ dimensions of
3400 * 12 * 13 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 134 * 1 * 1 inches
and a featherweight 2 pounds.

Viewing

Daytime display brightness levels are set at an impressive 5000 cd/m².
Screen refresh rates are spec'd at 5000 Hz for flicker-free video.
Off-axis viewing is 50° to 60° which means rush-hour traffic will be very slowly watching the Series B for at least part of their day.

Performance

Colors are amazing with levels of red16 * green16 * blue16 that provide for a combined 281 trillion colors and a silky 65,536 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a thrifty 78 ~ 150 Watts per square meter and up to 430 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series B is designed to allow for an overhead anchor point for each steel cable that supports the displays below. We can walk you through the full installation during the planning stages and arrange to have one or more technicians onsite to advise when you need us.

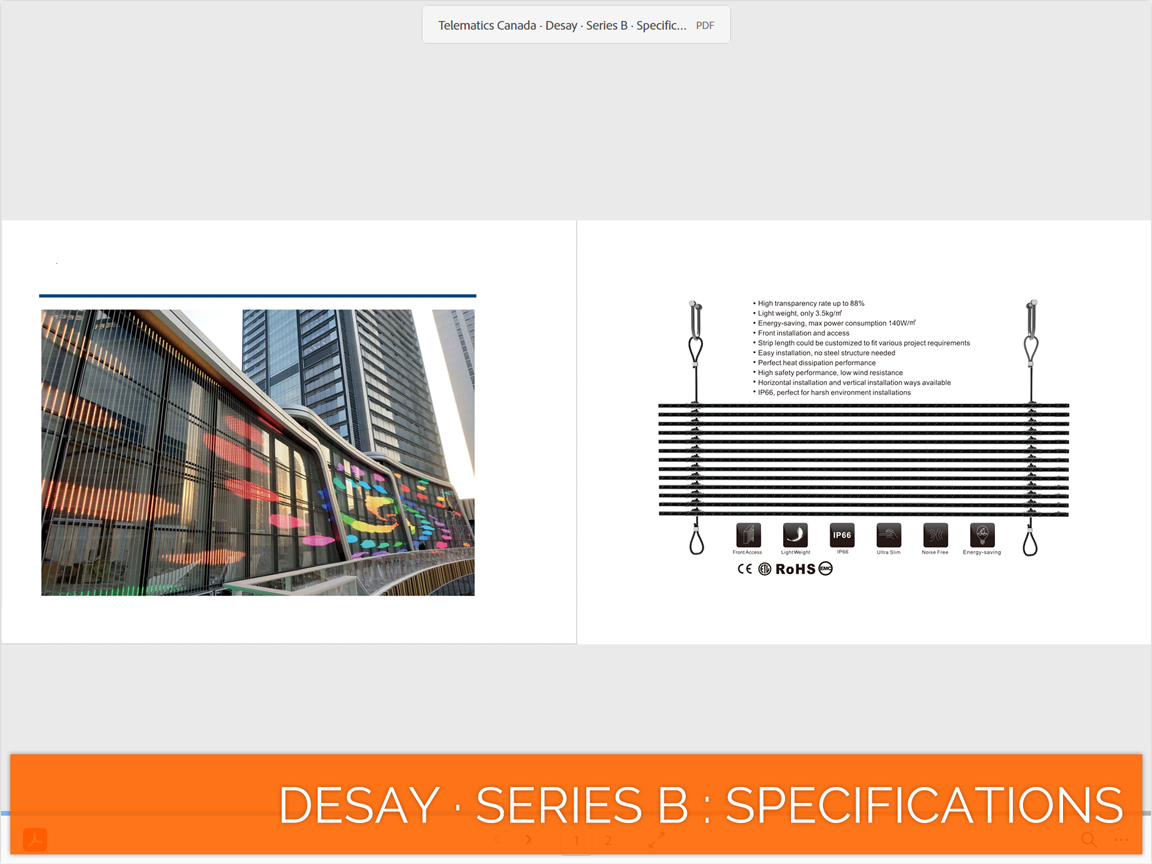

Specifications · Desay Series B

Go big.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series B3125 B25 · 50 B2500L B3125L B4250L
Pixels mm · meters
Resolution · ctc distance · mm 31.25 25 · 50 25.00 31.25 42.50
Resolution · per linear meter 32 40 · 20 40 32 24
Resolution · per square meter 1024 800 1600 1024 576
Dimensions mm · (inch)
Width · frame or strip 1500 (59.0) 1500 (59.0) 3000 (118.1) 3375 (132.9) 3400 (133.9)

Height · frame or strip 250 (9.8) 300 (11.8) 12 (0.5) 12 (0.5) 12 (0.5)

Depth · frame or strip 74 (2.9) 74 (2.9) 13 (0.5) 13 (0.5) 13 (0.5)
Weight kilo · (pound)
Panel · frame or strip 5.0 (11.0) 5.0 (11.0) 0.7 (1.5) 1.0 (2.2) 0.9 (1.9)

Viewing
Brightness · candela/m² 5000 5000 5000 5000 5000

Refresh · hertz 5000 5000 5000 5000 5000

Angle · 50% brightness 60° 60° 60° 60° 60° 60° 60° 60° 60° 60°
Angle · 50% brightness 50° 50° 50° 50° 50° 50° 50° 50° 50° 50°
Performance
Colors · rgb · bit depth 216 216 216 216 216
Control · brightness levels 255 255 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4 11.4 11.4
Power square meter
Watts · (average draw) 320 (35%) 280 (35%) 430 (35%) 310 (35%) 225 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
Installation
Wall · steel cables

IP Code · front · rear 66 · 66 66 · 66 66 · 66 66 · 66 66 · 66
Operating · celsius · (fahrenheit) -20 (-4) · 50 (122) -20 (-4) · 50 (122) -20 (-4) · 50 (122) -20 (-4) · 50 (122) -20 (-4) · 50 (122)
PDF
Specifications · Manuals


Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series B

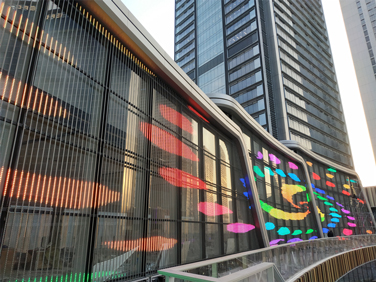

Throughout the major cities of Asia, it is not uncommon to find modern towers competing for space in the skyline and covered from top to bottom in a blanket of red, green and blue LED lamps that display amazing images and colors from one horizon to the next.

The Series B is the ultimate evolution of the unique category of LED displays described as building curtains.

The dimensions of 1500 to 3400 millimeters wide while less than 340 millimeters tall mean that your team can cover a huge area quickly and efficiently.

The Series B allows for the individual LED strips to be easily removed and replaced. The nearby power box can be swapped out or the components inside can be replaced individually.

Pixel density starts at 554 and doubles to 1,024 pixels per square meter across 3 models. Refresh rates are 1000 Hz and custom power cables and data connectors join the curtains together.

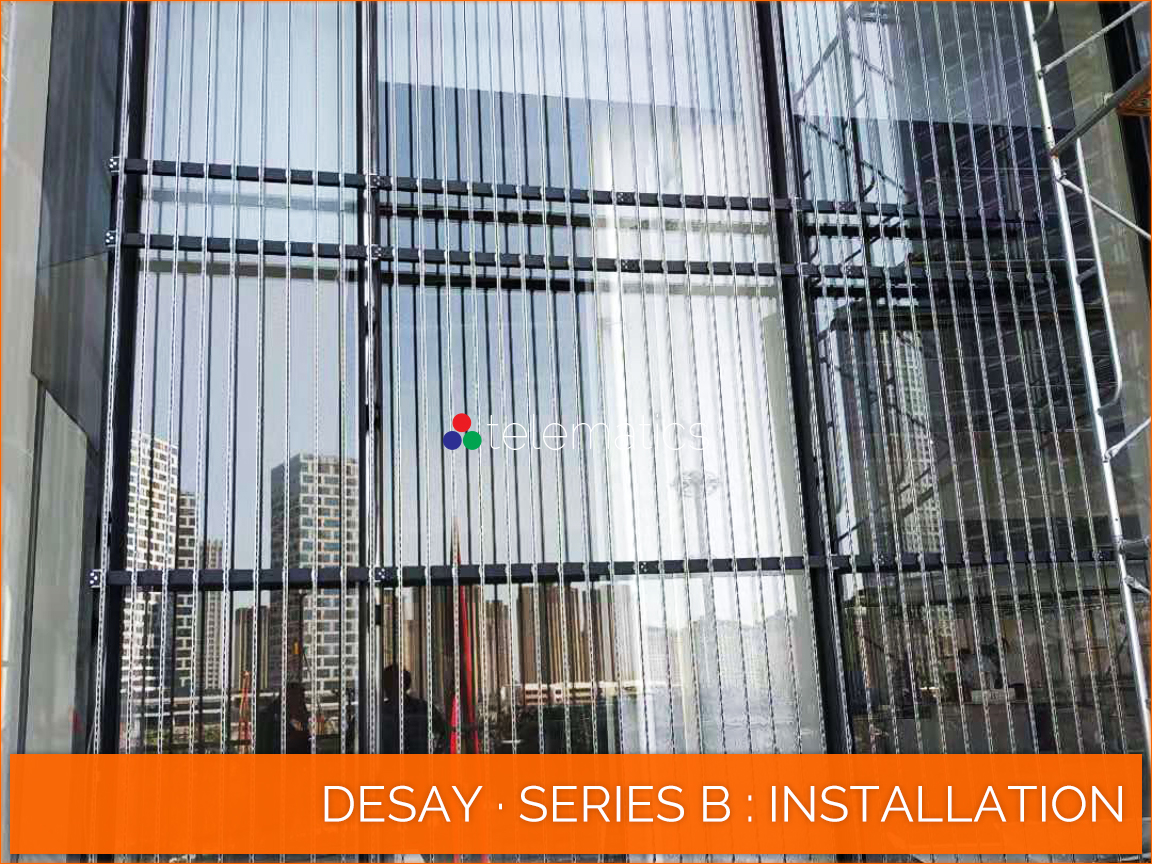

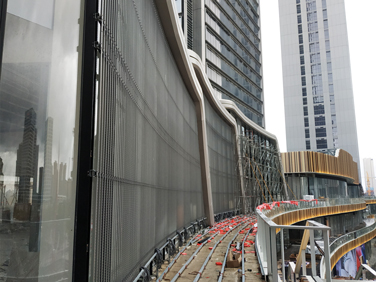

Install the Series B to an overhead support using steel cabling stretching down to mounting points at the base of the display. Our technicians will provide mechanical drawings to assist with your order.

The Series B is not for every application but it opens the door to possibilities that might not otherwise be considered such as billboards, stadiums, bridges and warehouses. It is built to make a lasting and overwhelming impression on your audience and can be used to promote your brand or beautify a structure that has become a blind spot for passing commuters with a stream of colors and images that will brighten the day.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu



Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu
