The Art Of LED · Desay Series TR

··

Not all those who wander are lost. ~ J. R. R. Tolkien

Desay Series TR · direct view LED fine pixel panel · 496 x 496 modular trade show panel · novastar · brompton · review · price · cost — Desay Series TR

direct view LED fine pixel panel

496 x 496 modular panel

creative · signage · retail · exhibits

fits all industry exhibit systems

priced from $ 2700/m²

Desay Series TR ❤ 496 x 496 Frame Systems.

When the clock is ticking...and everyone is on the clock.

Pixels

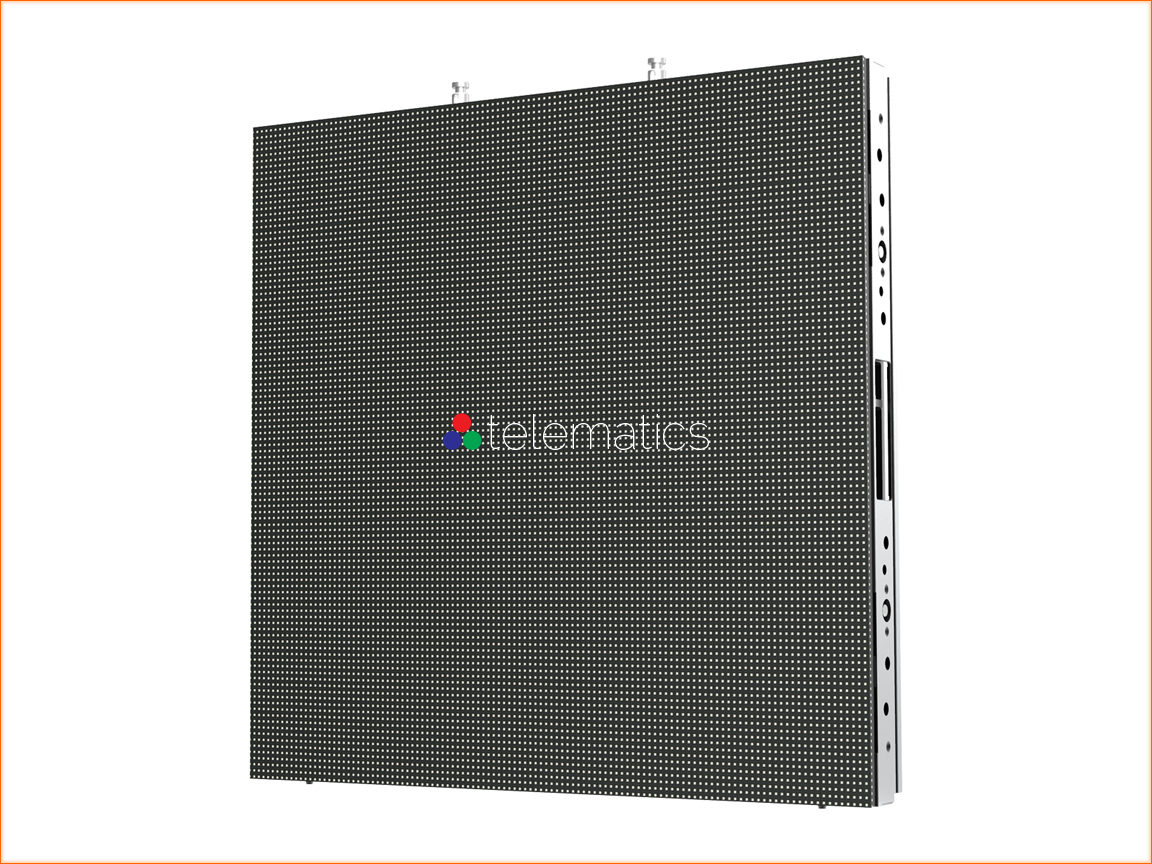

Pixel-to-pixel spacing begins at an impressive 1.968 millimeters to create fine-pixel display resolutions of over 270,000 LED lamps/m². Each millimeter of spacing supports one meter of viewing distance which means that the Series TR will look great from less than 2 steps away.

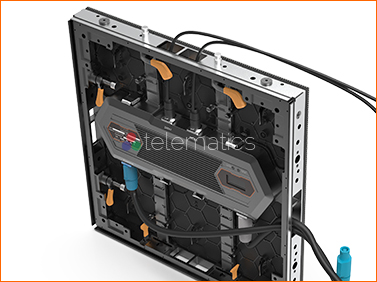

Dimensions

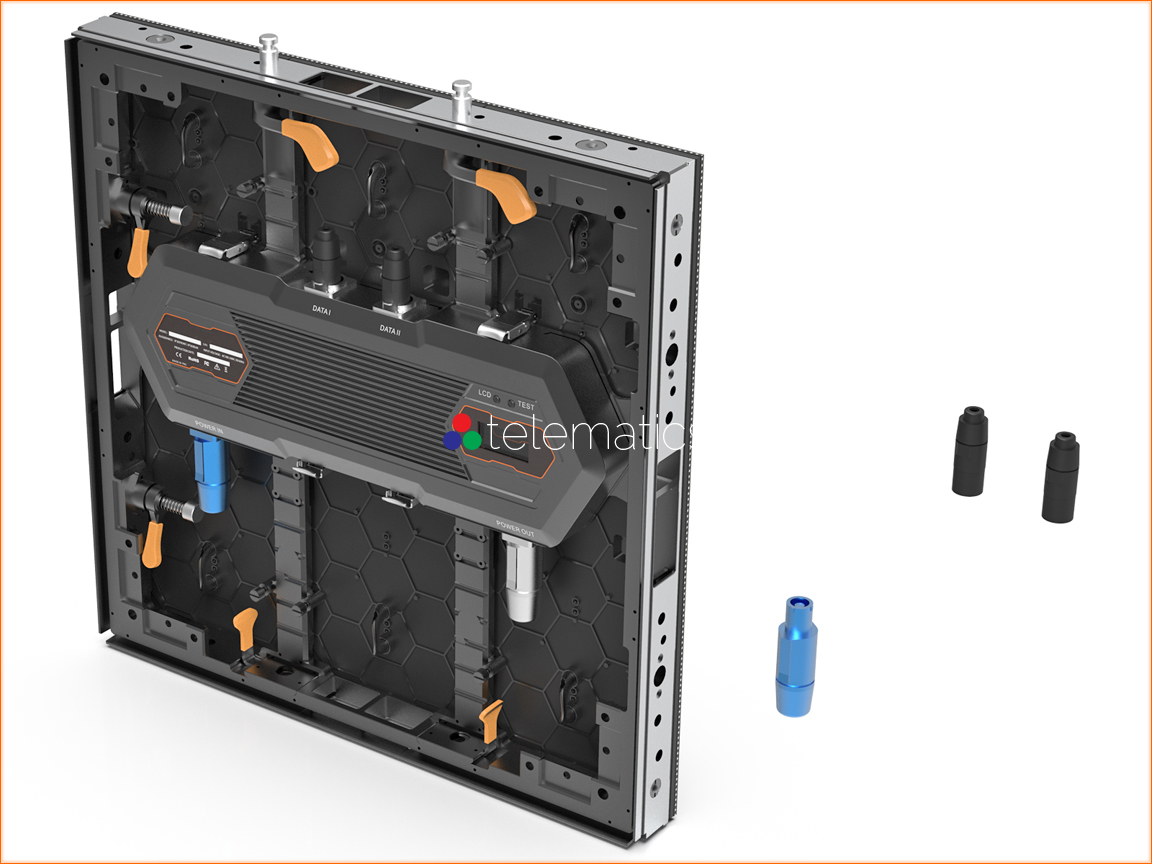

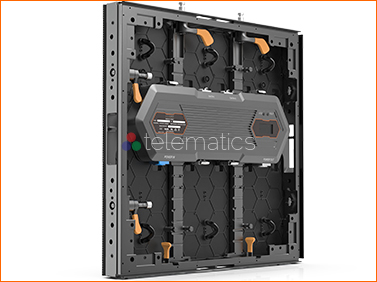

The Series TR is designed to fit exhibition frame systems and weighs 8 kilograms with XYZ dimensions of 496 × 496 × 55 millimeters. Boomers can convert those numbers to the 1825 Exchequer Standards for dimensions of 20 × 20 × 2.2 inches and a featherweight 17 pounds.

Viewing

Display panel brightness ranges from 800 cd/m² to 1000 cd/m². Screen refresh rates are set at up to 3840 Hz for camera-ready video. An outstanding 160° off-axis viewing means that pretty much everyone in the audience can see the Series TR whether coming or going.

Performance

Redⁿ * Greenⁿ * Blueⁿ creates more color combinations than our eyes can see, plus an abundance of silky smooth shades of grey. Display life is projected to be 100,000 hours or about 11 years of full-time use.
Which means we look forward to hearing from you again in 2033.

Power

Rated power consumption is a low 168 W/m² to 175 W/m² and up to 500 W/m² on full load depending on the specifications of the model.
Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

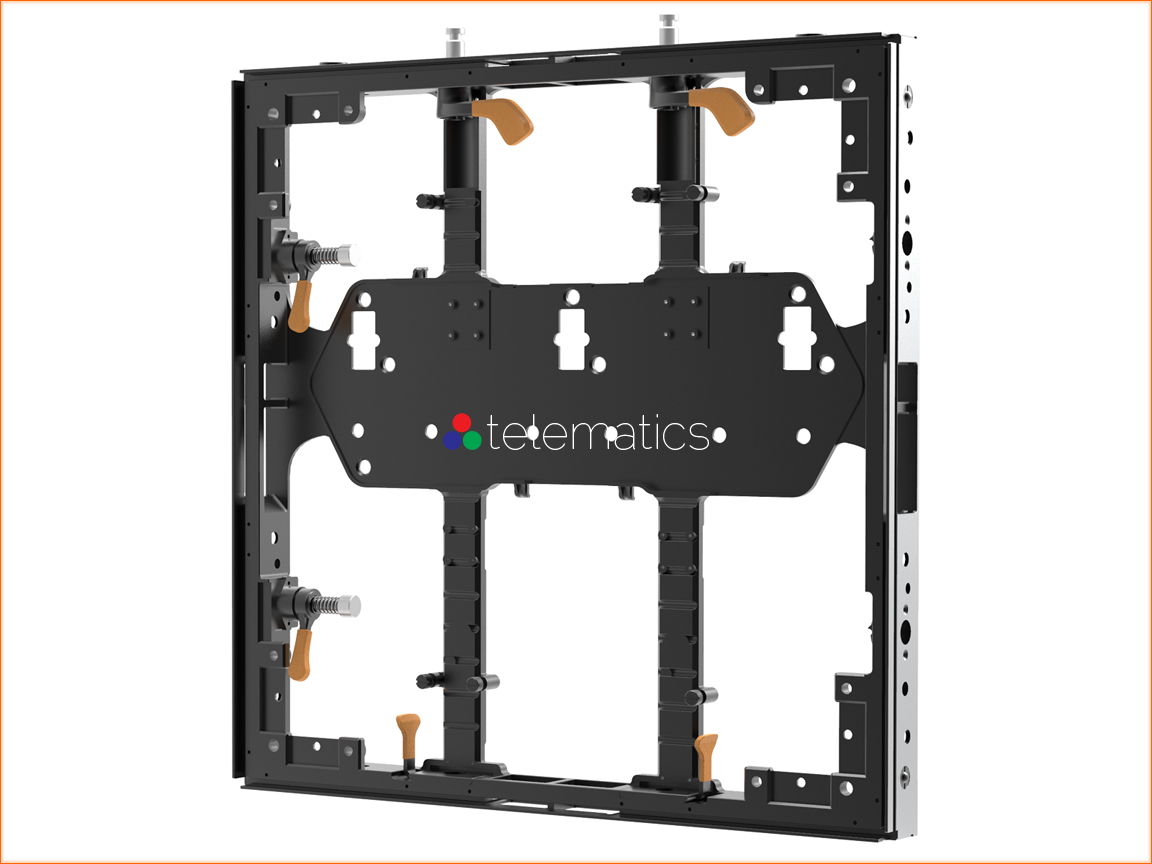

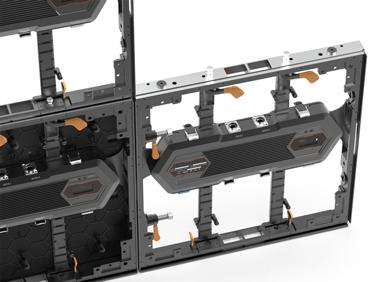

Installation

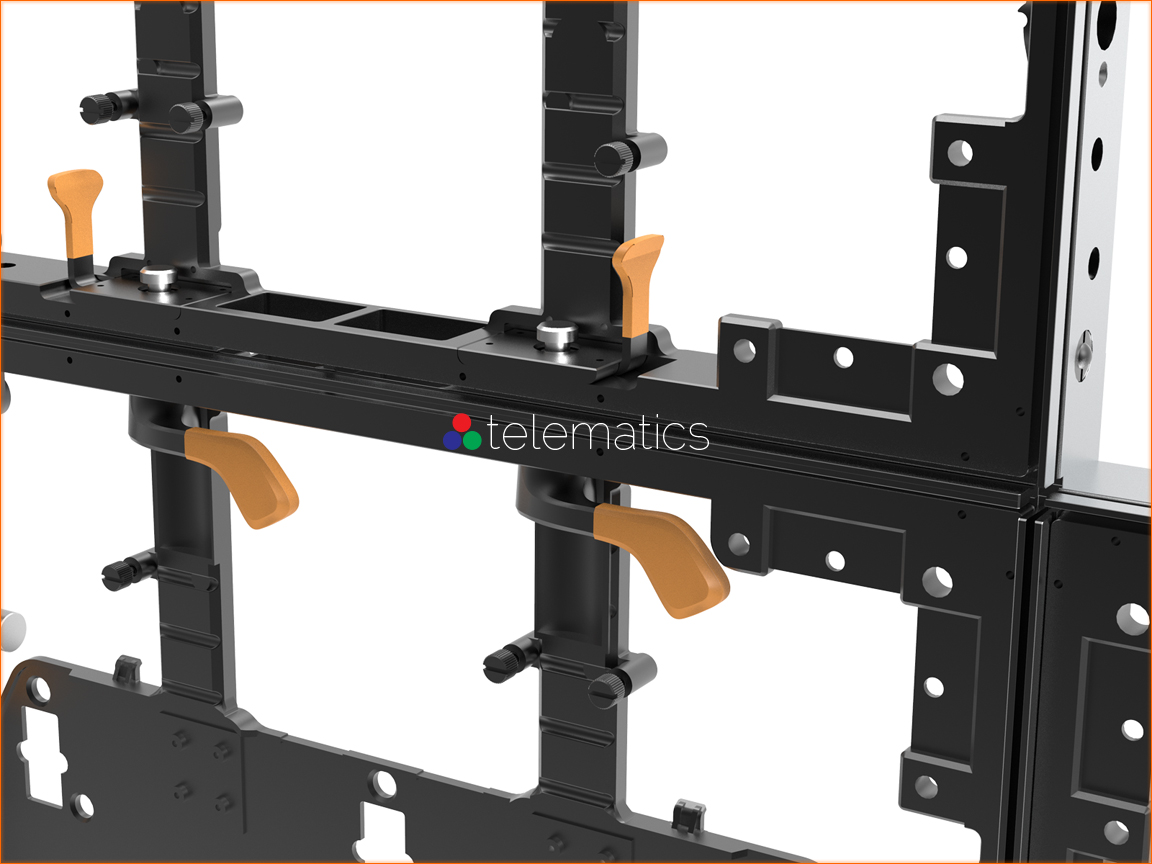

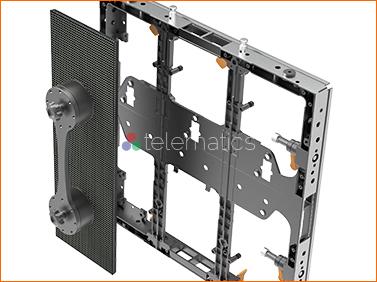

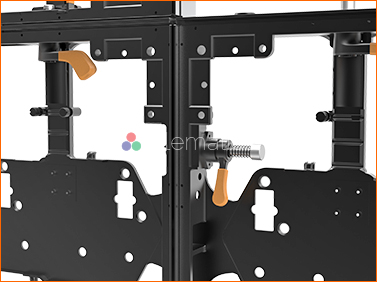

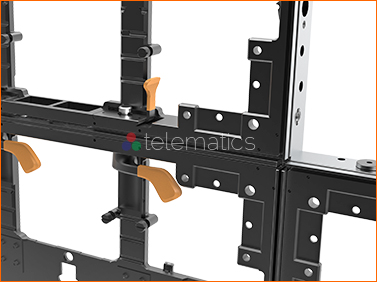

The TR is purpose-built for industry-standard frames that populate trade shows, where set-up and tear-down times are a critical component of the display. Or maybe your creative installation project just needs a gentle arc or 90° corners with ceiling or floor support columns.

Specifications · Series TR

It is during our darkest moments that we must focus to see the light. ~ Aristotle

Series ^indoor

1⁹⁶

2⁵⁸

2⁹⁵

Price ^{usd per m²}

Series TR

Custom

Desay Series TVB · Module Glue On Board · Lamp Glue On Board

Control

Receiver Card

Receiver Card · novastar armor · a8s-n

Processor

Processor · novastar vx · vx400

Controller

NovaStar Series COEX MX40 · Vision Management Platform

Controller · novastar coex · ku20

NovaStar Series COEX KU20 · Vision Management Platform

Media Player

NovaStar Series Taurus · TB50 4G · NovaLCT

Pixels

Resolution · center to center

Resolution · pixels · lm

Resolution · pixels · m²

Viewing · candela · m²

Viewing · brightness · 50%

Panel

Dimensions · width · standard

Dimensions · height · standard

Dimensions · depth

Weight · kgs · m²

IP Code · front · rear

Power

Watts · m² · images · videos

Watts · m² · full power · white · calibrated

Voltage · ac

Installation

Rigging · industry exhibit frame

Rigging · ceiling

Aspect Ratio · 1.33 · 4:3


Aspect Ratio · 1.66 · 5:3	12K12288 × 7372	8K8192 × 4915	8K · UHD7680 × 4608	6K6144 × 3686	5K5120 × 3072
Aspect Ratio · 1.66 · 5:3	4K · DCP‿	4K · DCI4096 × 2458	4K · UHD3840 × 2304	3K3072 × 1843	3K · UHD2880 × 1728	2.5K2560 × 1536
Aspect Ratio · 1.66 · 5:3	2K · DCP‿	2K · DCI2048 × 1229	Full HD · 1080p1920 × 1152	HD · 720p1280 × 768	SD · 480p640 × 384

Aspect Ratio · 1.78 · 16:9	12K12288 × 9216	8K8192 × 4608	8K · UHD7680 × 4320	6K6144 × 3456	5K5120 × 2880
Aspect Ratio · 1.78 · 16:9	4K · DCP‿	4K · DCI4096 × 2304	4K · UHD 3840 × 2160	3K3072 × 1728	3K · UHD2880 × 1620	2.5K2560 × 1440
Aspect Ratio · 1.78 · 16:9	2K · DCP‿	2K · DCI2048 × 1152	Full HD · 1080p1920 × 1080	HD · 720p1280 × 720	SD · 480p640 × 360

Aspect Ratio · 1.85 · 37:20	12K12288 × 6642	8K8192 × 4428	8K · UHD7680 × 4151	6K6144 × 3321	5K5120 × 2768
Aspect Ratio · 1.85 · 37:20	4K · DCP · Flat3996 × 2160	4K · DCI4096 × 2214	4K · UHD3840 × 2076	3K3072 × 1661	3K · UHD2880 × 1557	2.5K2560 × 1384
Aspect Ratio · 1.85 · 37:20	2K · DCP · Flat1998 × 1080	2K · DCI2048 × 1107	Full HD · 1080p1920 × 1038	HD · 720p1280 × 692	SD · 480p640 × 346

Aspect Ratio · 1.90 · 19:10	12K12288 × 6480	8K8192 × 4320	8K · UHD7680 × 4042	6K6144 × 3240	5K5120 × 2700
Aspect Ratio · 1.90 · 19:10	4K · DCP · Full4096 × 2160	4K · DCI4096 × 2160	4K · UHD3840 × 2021	3K3072 × 1620	3K · UHD2880 × 1516	2.5K2560 × 1348
Aspect Ratio · 1.90 · 19:10	2K · DCP · Full2048 × 1080	2K · DCI2048 × 1078	Full HD · 1080p1920 × 1011	HD · 720p1280 × 674	SD · 480p640 × 337

Aspect Ratio · 1.94 · 95:50	12K12288 × 6468	8K8192 × 6144	8K · UHD7680 × 5760	6K6144 × 3234	5K5120 × 3840
Aspect Ratio · 1.94 · 95:50	4K · DCP‿	4K · DCI‿	4K · UHD3840 × 2880	3K‿	3K · UHD‿	2.5K‿
Aspect Ratio · 1.94 · 95:50	2K · DCP12288 × 9216	2K · DCI‿	Full HD · 1080p‿	HD · 720p‿	SD · 480p‿

Aspect Ratio · 2.00 · 2:1	12K12288 × 6144	8K8192 × 4096	8K · UHD7680 × 3840	6K6144 × 3072	5K5120 × 2560
Aspect Ratio · 2.00 · 2:1	4K · DCP‿	4K · DCI4096 × 2048	4K · UHD3840 × 1920	3K3072 × 1536	3K · UHD2880 × 1440	2.5K2560 × 1280
Aspect Ratio · 2.00 · 2:1	2K · DCP12288 × 9216	2K · DCI2048 × 1024	Full HD · 1080p1920 × 960	HD · 720p1280 × 640	SD · 480p640 × 320

Aspect Ratio · 2.35 · 47:20	12K12288 × 5228	8K8192 × 3486	8K · UHD7680 × 3268	6K6144 × 2614	5K5120 × 2179
Aspect Ratio · 2.35 · 47:20	4K · DCP‿	4K · DCI4096 × 1743	4K · UHD3840 × 1634	3K3072 × 1307	3K · UHD2880 × 1226	2.5K2560 × 1089
Aspect Ratio · 2.35 · 47:20	2K · DCP12288 × 9216	2K · DCI2048 × 871	Full HD · 1080p1920 × 817	HD · 720p1280 × 545	SD · 480p640 × 273

Aspect Ratio · 2.37 · 237:100	12K12288 × 5184	8K8192 × 3456	8K · UHD7680 × 3240	6K6144 × 2592	5K5120 × 2160
Aspect Ratio · 2.37 · 237:100	4K · DCP‿	4K · DCI4096 × 1728	4K · UHD3840 × 1620	3K3072 × 1296	3K · UHD2880 × 1215	2.5K2560 × 1080
Aspect Ratio · 2.37 · 237:100	2K · DCP12288 × 9216	2K · DCI2048 × 864	Full HD · 1080p1920 × 810	HD · 720p1280 × 540	SD · 480p640 × 270

Aspect Ratio · 2.39 · 239:100	12K12288 × 5142	8K8192 × 3428	8K · UHD7680 × 3213	6K6144 × 2571	5K5120 × 2142
Aspect Ratio · 2.39 · 239:100	4K · DCP · Scope4096 × 1716	4K · DCI4096 × 1714	4K · UHD3840 × 1607	3K3072 × 1285	3K · UHD2880 × 1205	2.5K2560 × 1073
Aspect Ratio · 2.39 · 239:100	2K · DCP · Scope2048 × 858	2K · DCI2048 × 858	Full HD · 1080p1920 × 803	HD · 720p1280 × 536	SD · 480p640 × 268

Aspect Ratio · 2.40 · 12:5	12K12288 × 5120	8K8192 × 3413	8K · UHD7680 × 3200	6K6144 × 2560	5K5120 × 2133
Aspect Ratio · 2.40 · 12:5	4K · DCP12288 × 9216	4K · DCI4096 × 1707	4K · UHD3840 × 1600	3K3072 × 1280	3K · UHD2880 × 1200	2.5K2560 × 1049
Aspect Ratio · 2.40 · 12:5	2K · DCP12288 × 9216	2K · DCI2048 × 839	Full HD · 1080p1920 × 800	HD · 720p1280 × 533	SD · 480p640 × 267

Aspect Ratio · 2.44 · 61:25	12K12288 × 5036	8K8192 × 3357	8K · UHD7680 × 3148	6K6144 × 2518	5K5120 × 2098
Aspect Ratio · 2.44 · 61:25	4K · DCP‿	4K · DCI4096 × 1679	4K · UHD3840 × 1574	3K3072 × 1259	3K · UHD2880 × 1180	2.5K2560 × 984
Aspect Ratio · 2.44 · 61:25	2K · DCP12288 × 9216	2K · DCI2048 × 787	Full HD · 1080p1920 × 787	HD · 720p1280 × 525	SD · 480p640 × 263

PDF · 3 of 4

Fine Print

Warranty · factory standard

Desay provides a comprehensive warranty on all components for 2 years from shipping.

Warranty · factory extended

Desay's factory warranty may be extended to 3, 4 or 5 years at a modest premium.

Certifications · etl · fcc

Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price

Desay and Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch

So here's the deal...

Do not mind anything that anyone tells you about anyone else. Judge everyone and everything for yourself. ~ Henry James

About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Our Manufacturers

Desay is a public corporation (002920) with a nine billion dollar market valuation. Desay is highly-diversified in the manufacturing of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's Optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world. The company owns leading technology in optoelectronic control and non-linear alignment techniques.

Our Clients

For over 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Checklist

Don't drive yourself crazy trying to figure out the series and correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget. There...I'm feeling better already.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

We can ship your order by air or ground as your budget and time allows. Shipping schedules can be estimated, but external variables are outside of our control. Allow time for unexpected delays. You would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Our Cool Photos

A picture is worth a thousand clicks.

All that we see or seem is but a dream within a dream. ~ Edgar Allan Poe

Photo Library · 9 of 24

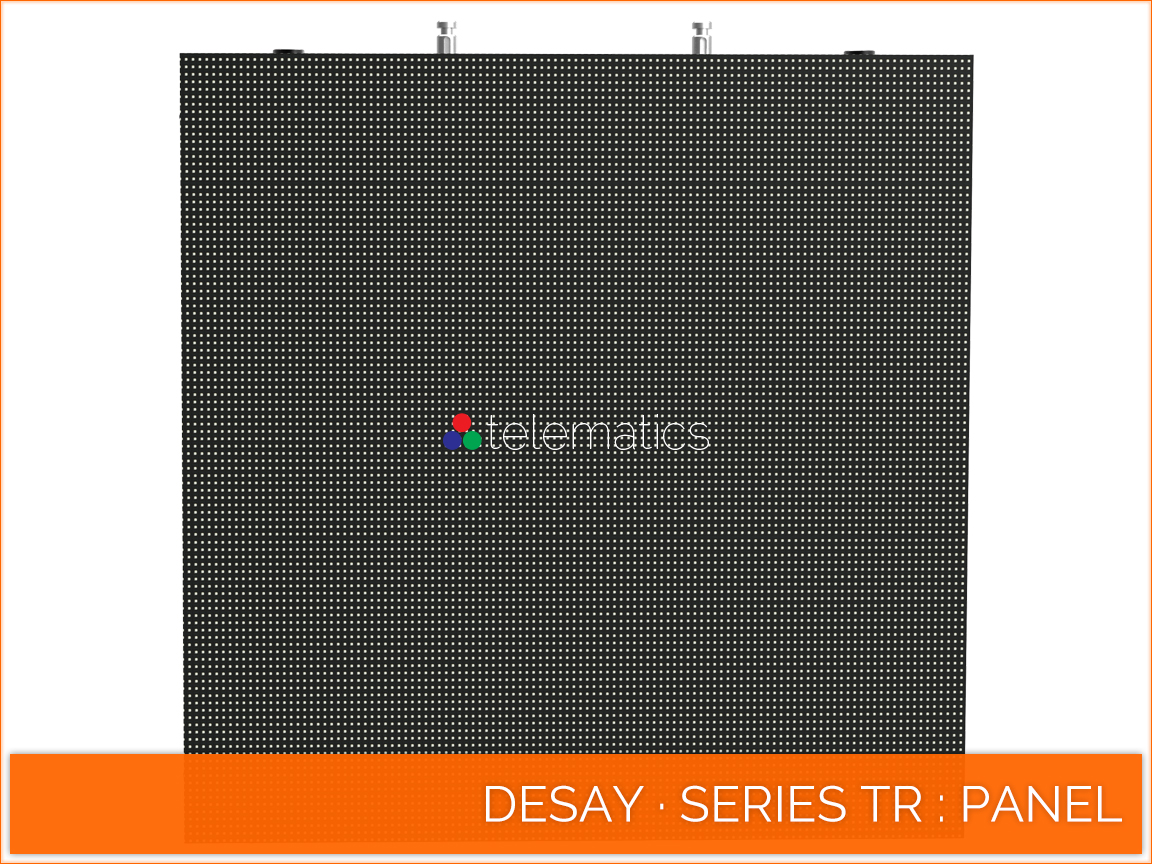

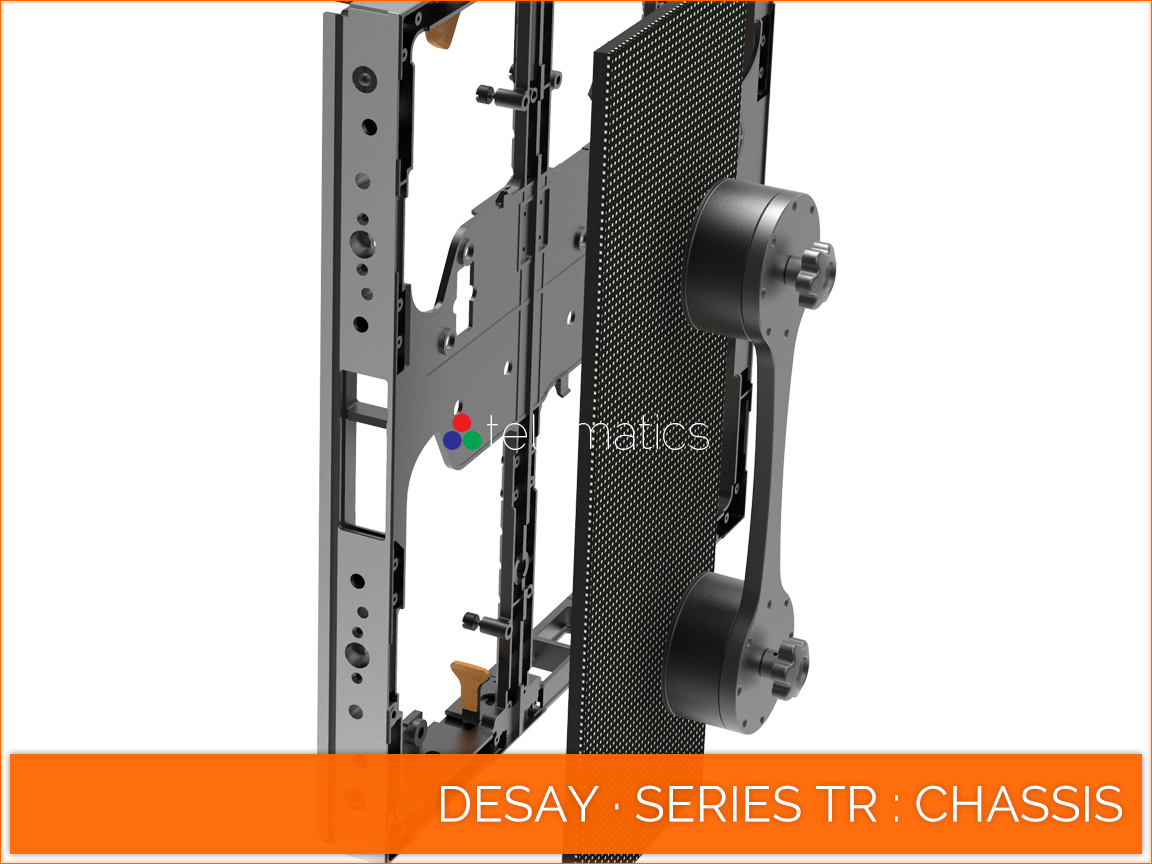

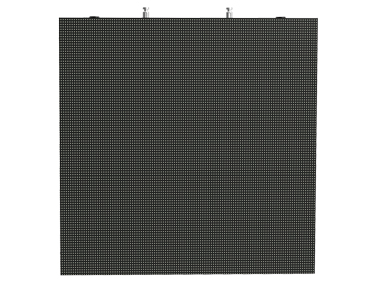

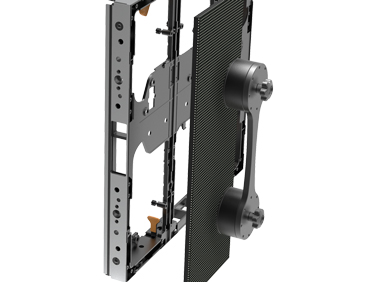

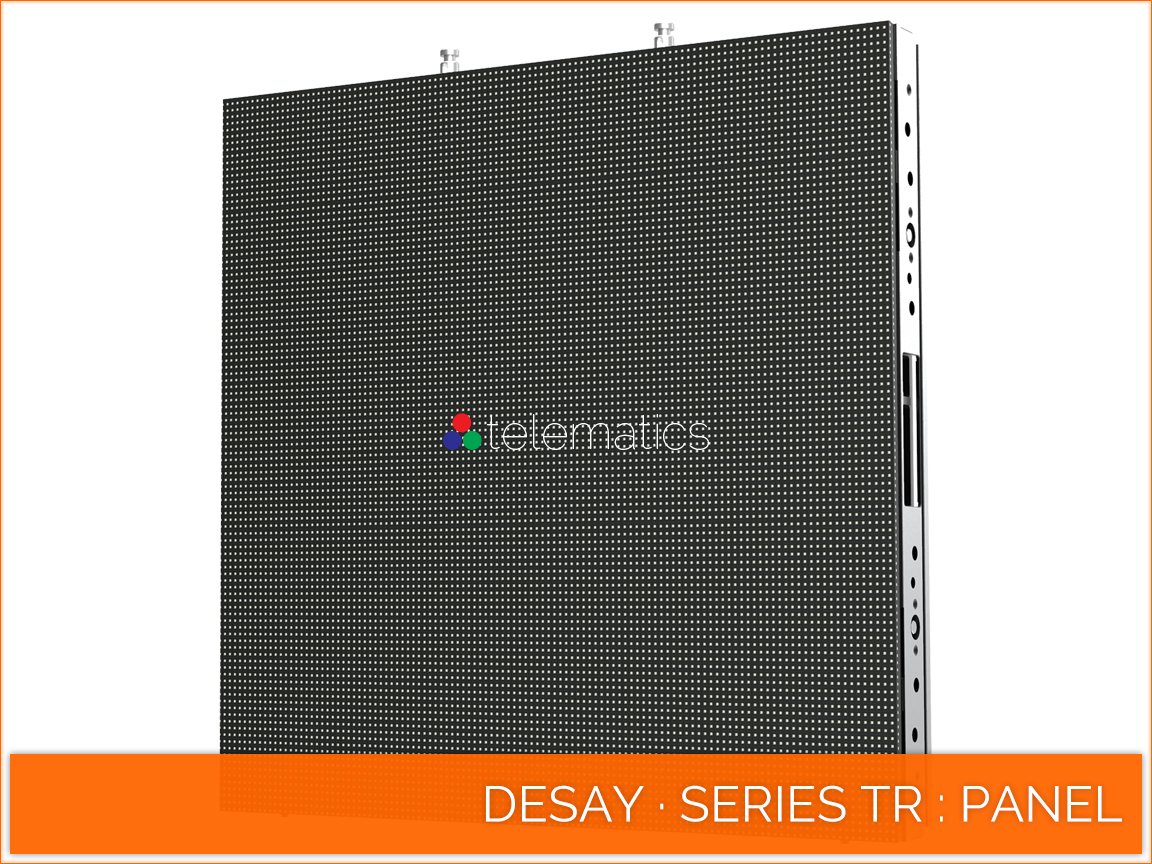

Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m² Desay Series TR direct view LED fine pixel panel 496 x 496 modular panel creative · signage · retail · exhibits fits all industry exhibit systems priced from $ 2700/m²
