NovaStar · H Series
blog ·

The Art Of Control · NovaStar · H Series

Life is not a problem to be solved, but a reality to be experienced. ~ Soren Kierkegaard

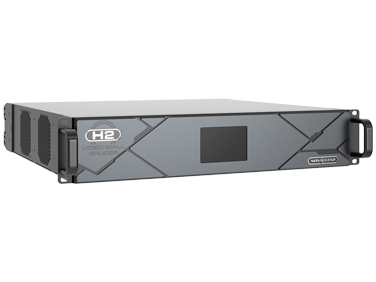

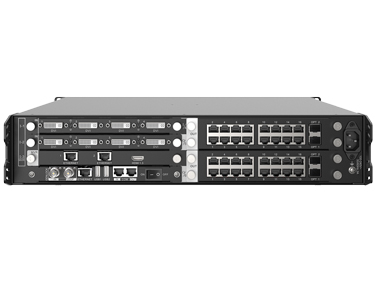

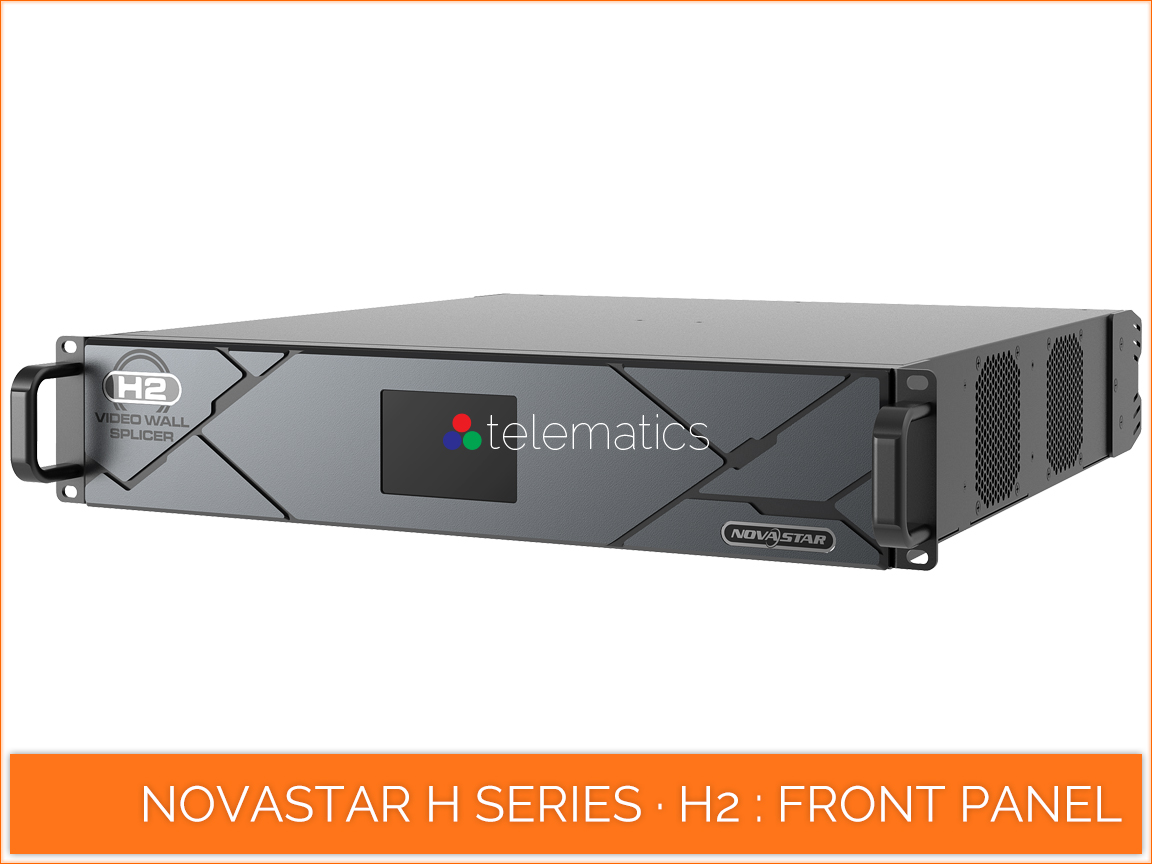

NovaStar · H Series · H2 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

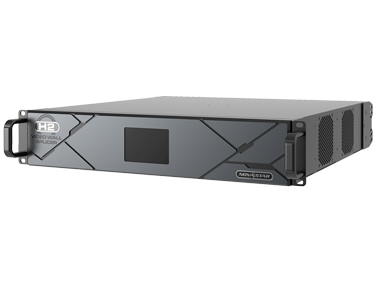

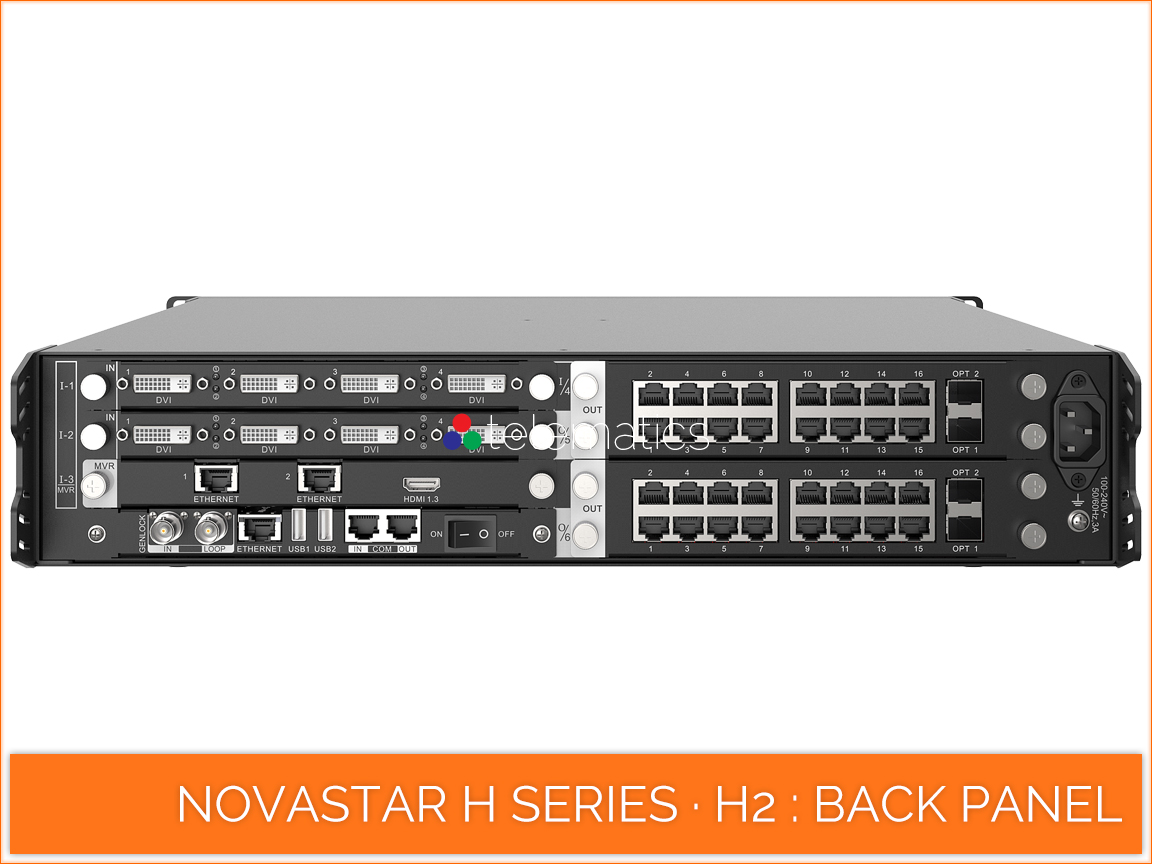

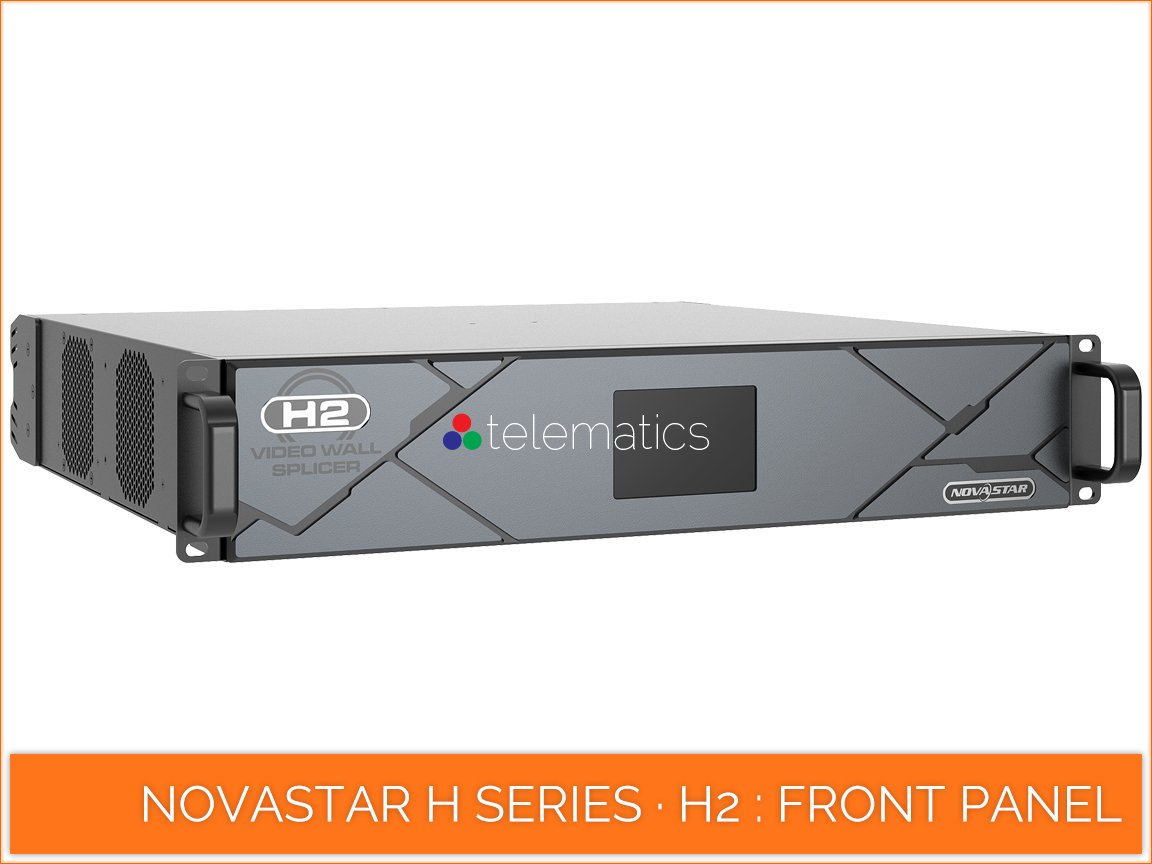

NovaStar H Series · H2

LED video splicing processor

4 × input cards

2 × output sending cards

2 × output video cards

12/10/8-bit · 26,000,000 pixels

novalct software · vmp software

priced from $664/unit

NovaStar · H Series · H2 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H2

LED video splicing processor

4 × input cards

2 × output sending cards

2 × output video cards

12/10/8-bit · 26,000,000 pixels

novalct software · vmp software

priced from $664/unit

NovaStar · H Series · H2 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H2

LED video splicing processor

4 × input cards

2 × output sending cards

2 × output video cards

12/10/8-bit · 26,000,000 pixels

novalct software · vmp software

priced from $664/unit

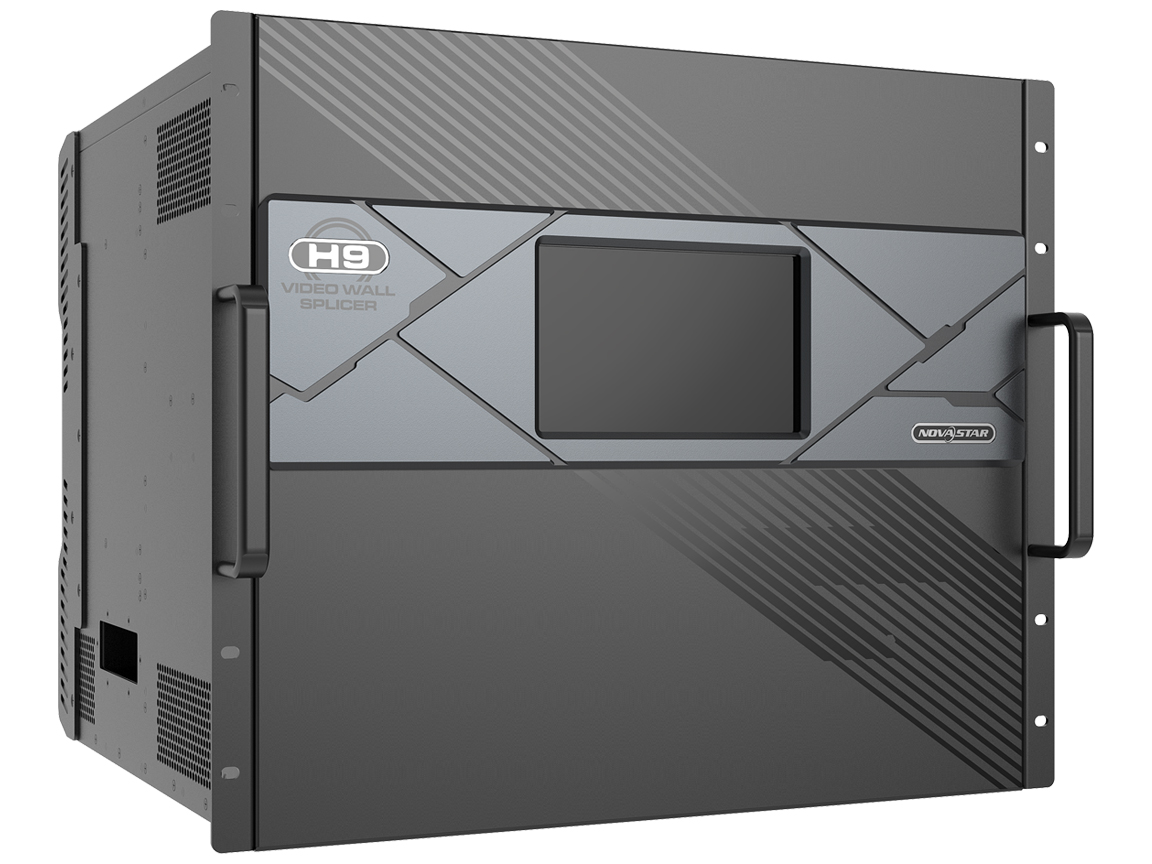

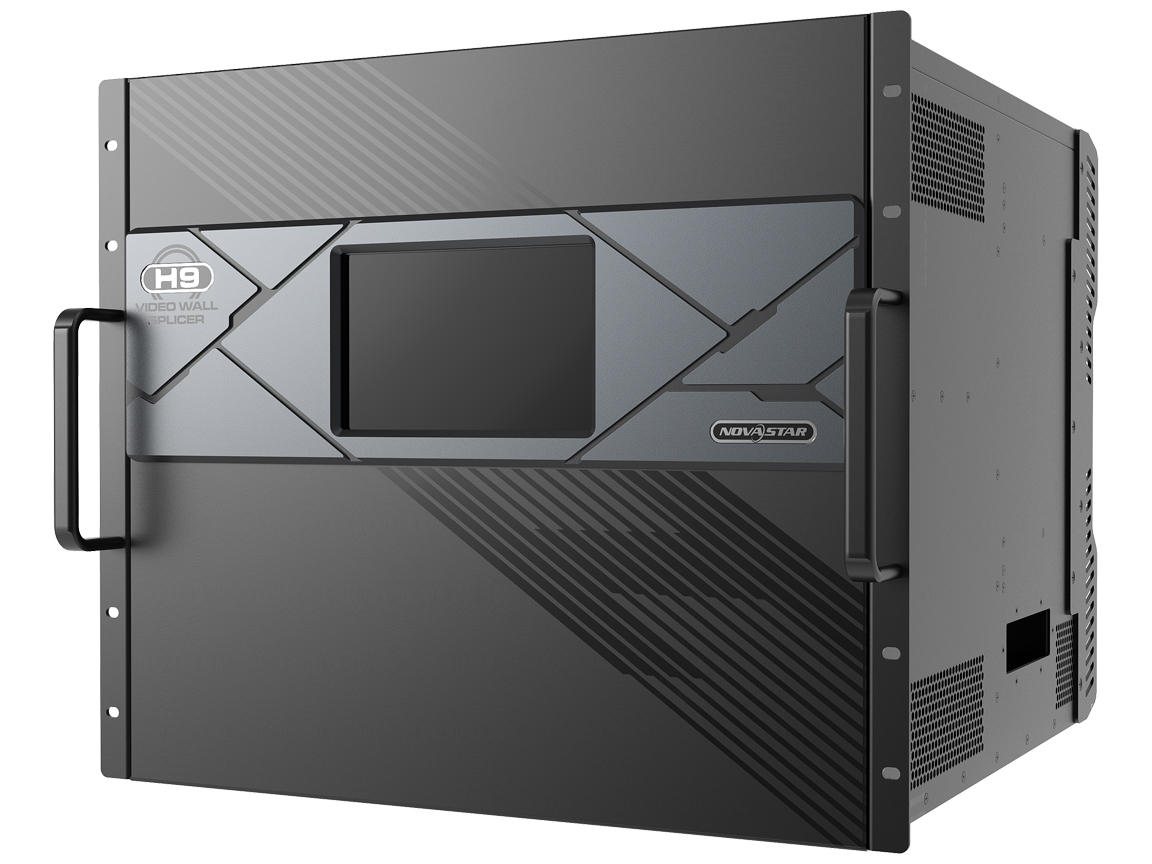

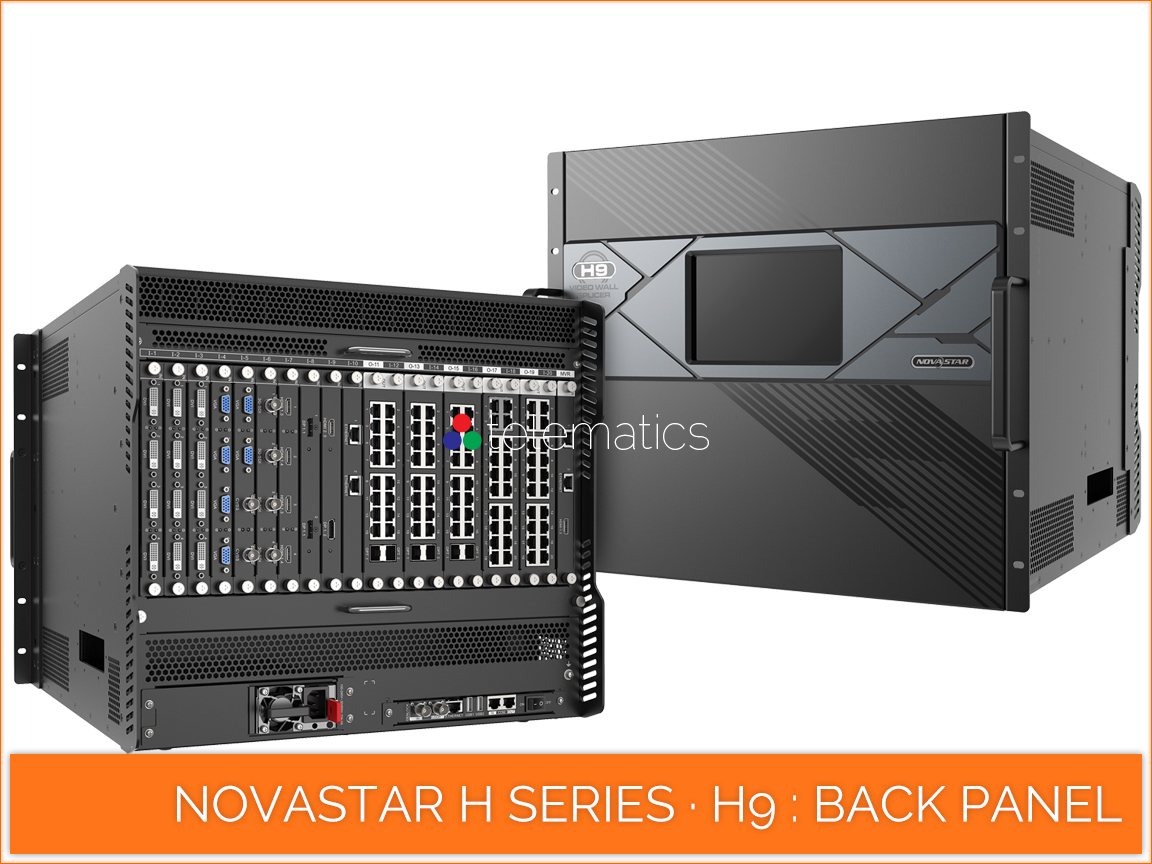

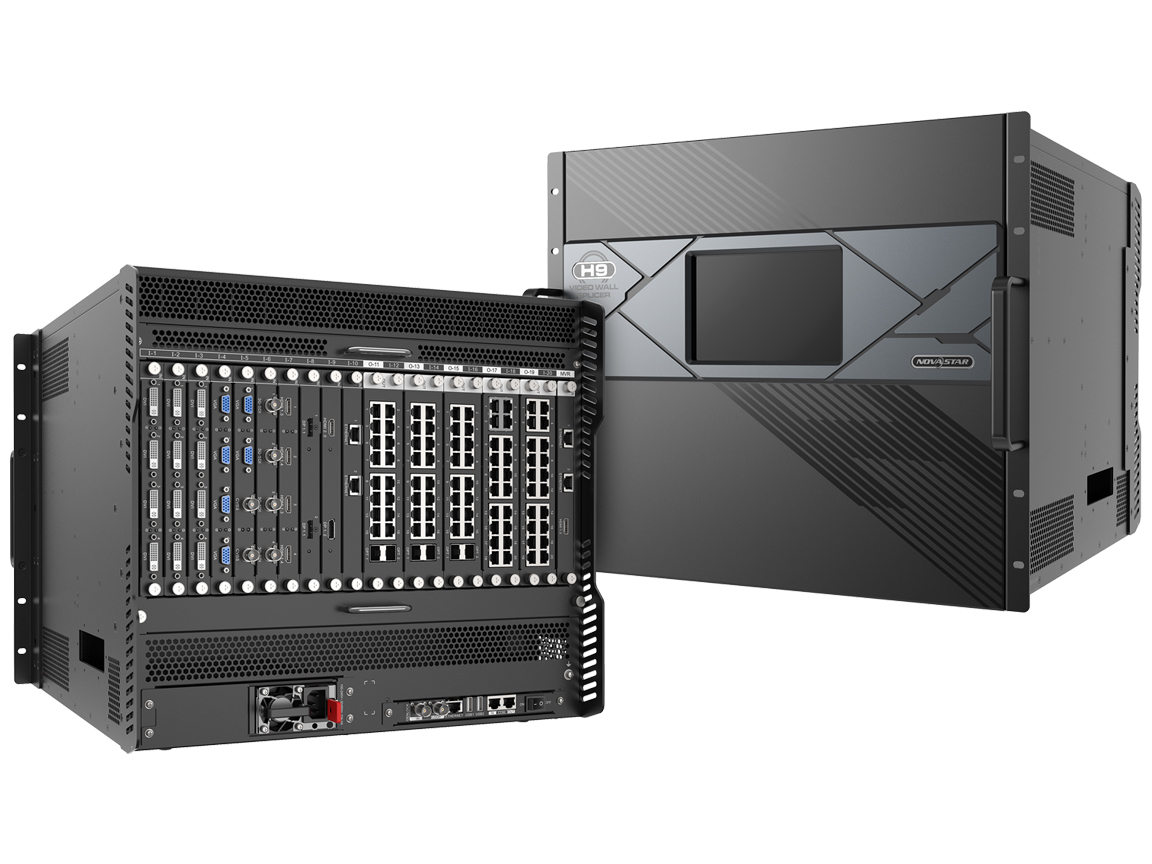

NovaStar · H Series · H9 · H9 Enhanced · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

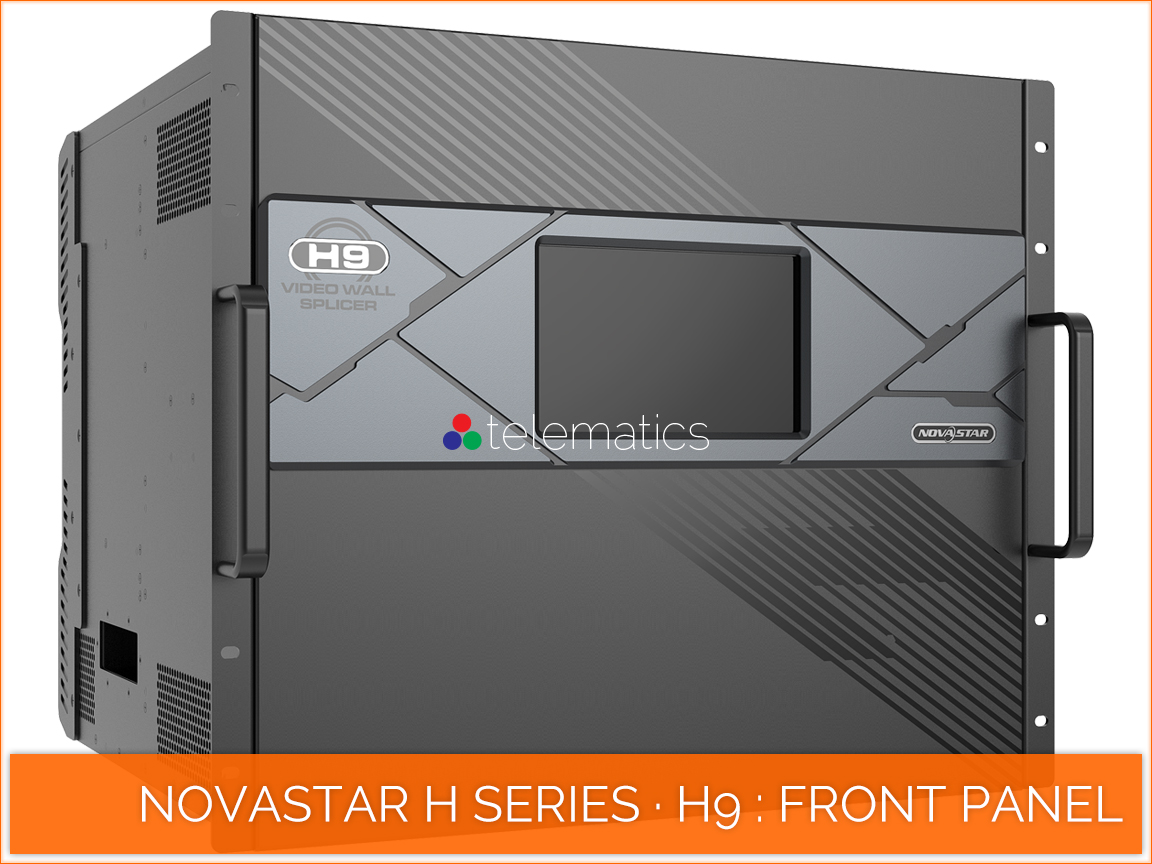

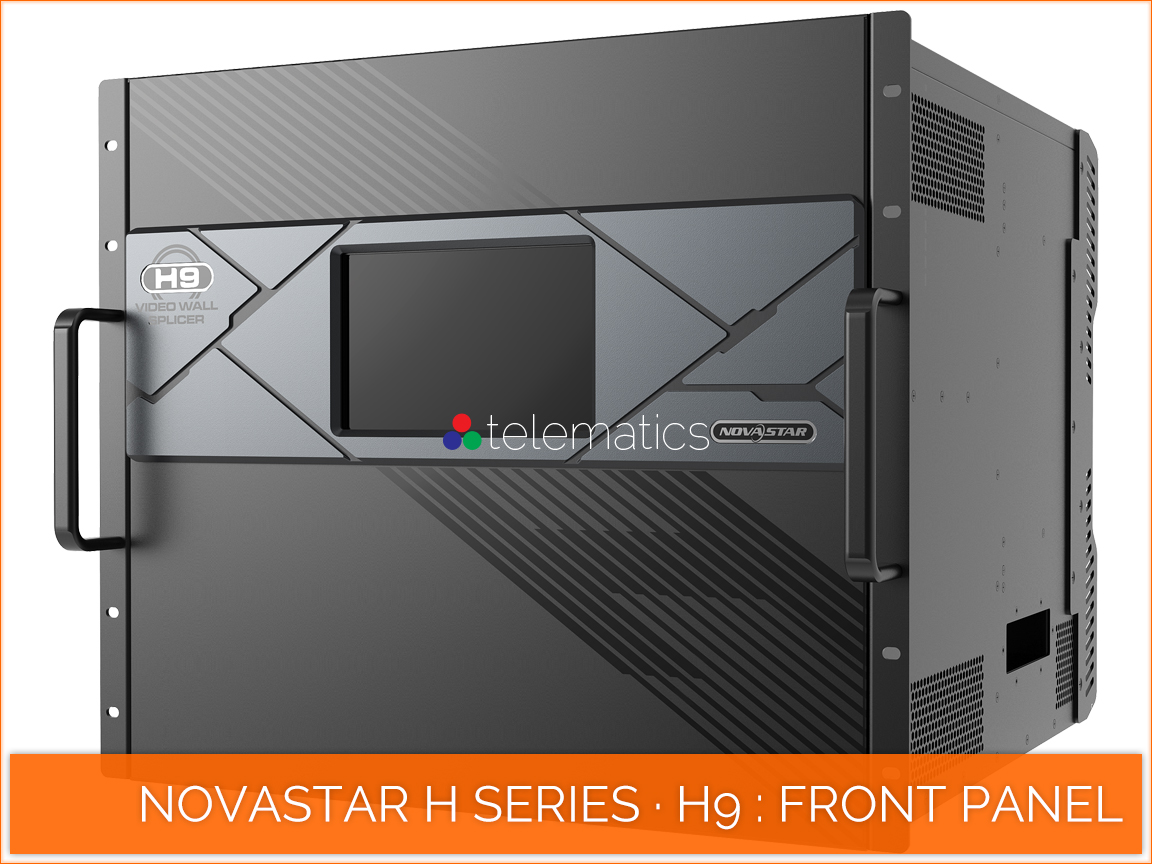

NovaStar H Series · H9

LED video splicing processor

15 × input cards

5 × output sending cards

10 × output video cards

12/10/8-bit · 65,000,000 pixels

novalct software · vmp software

priced from $2,089/unit

NovaStar · H Series · H9 · H9 Enhanced · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H9

LED video splicing processor

15 × input cards

5 × output sending cards

10 × output video cards

12/10/8-bit · 65,000,000 pixels

novalct software · vmp software

priced from $2,089/unit

NovaStar · H Series · H9 · H9 Enhanced · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H9

LED video splicing processor

15 × input cards

5 × output sending cards

10 × output video cards

12/10/8-bit · 65,000,000 pixels

novalct software · vmp software

priced from $2,089/unit

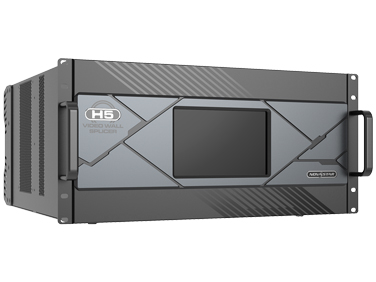

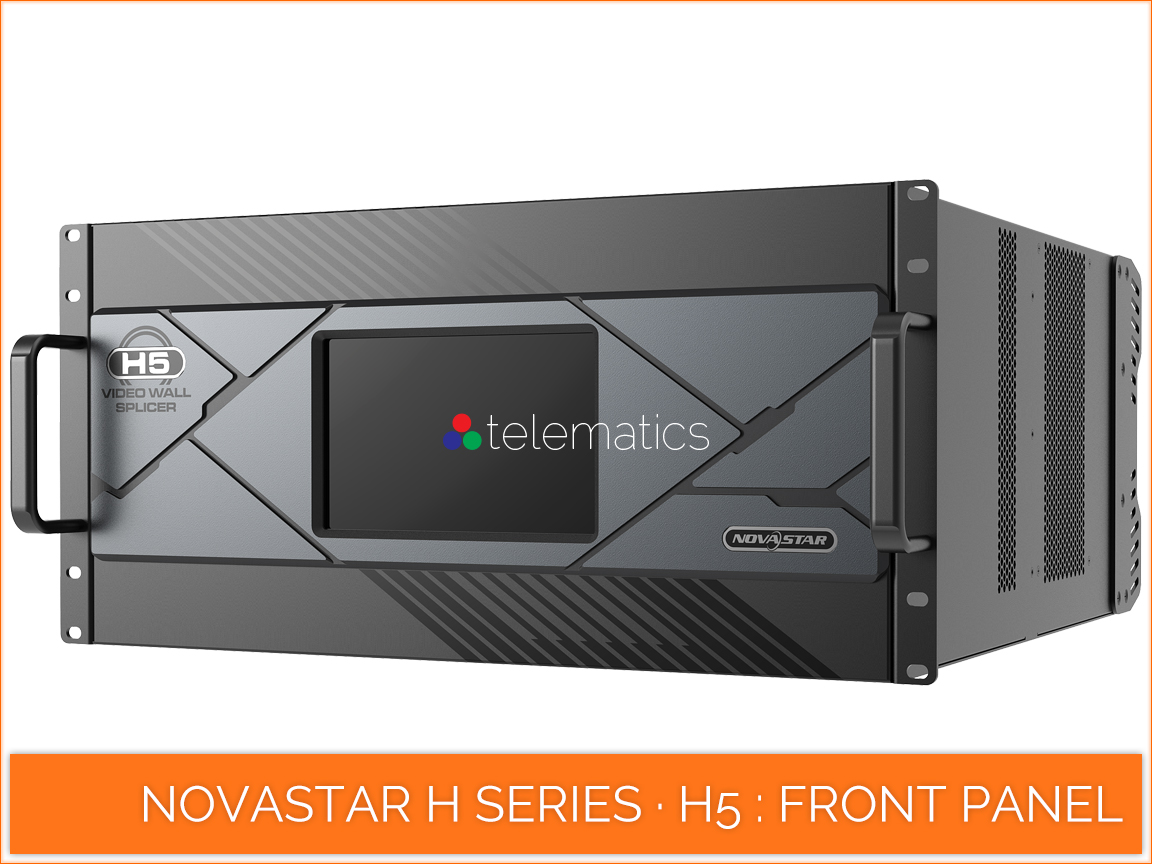

NovaStar · H Series · H5 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

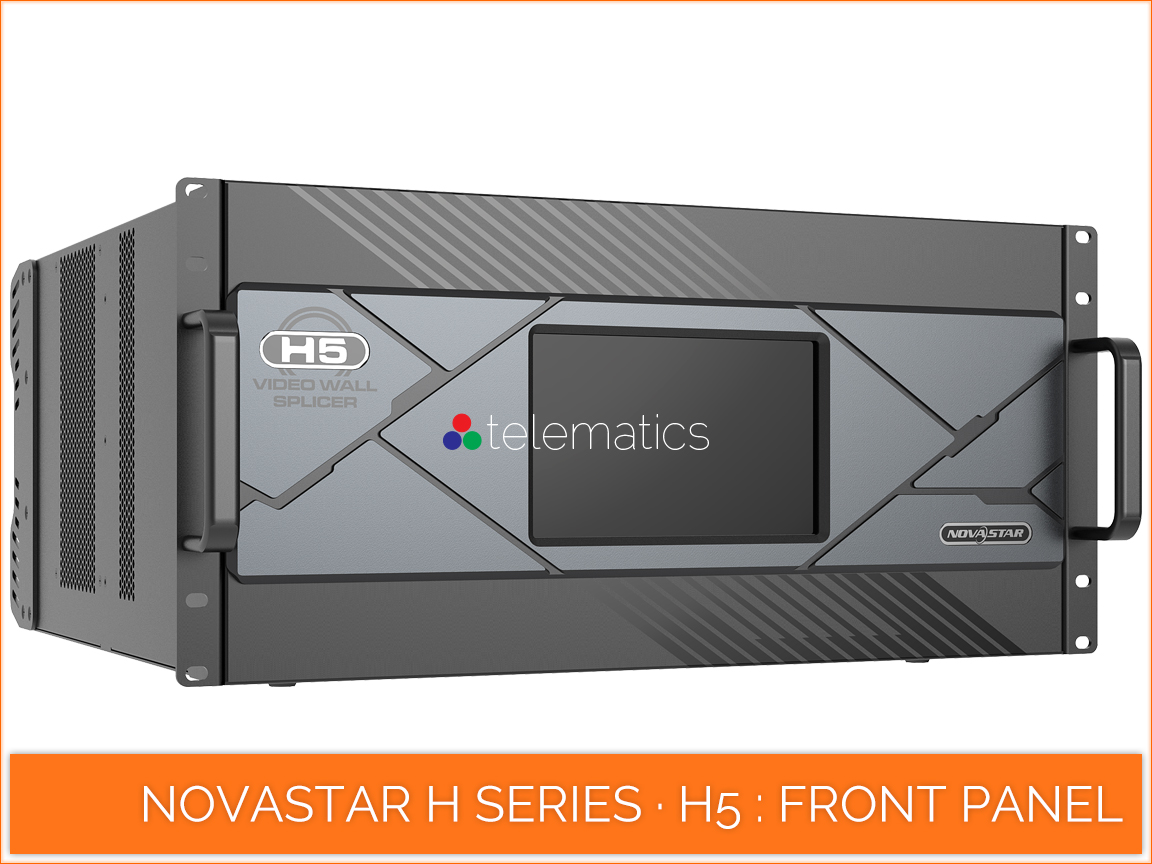

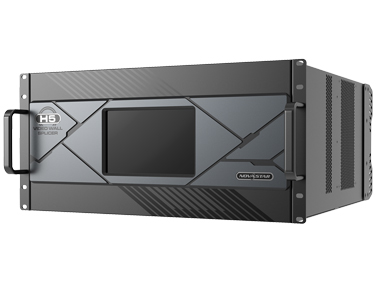

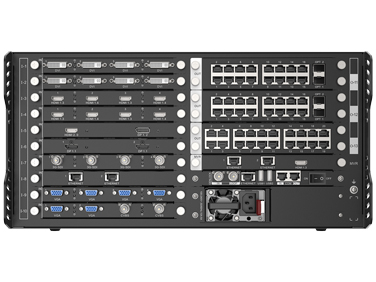

NovaStar H Series · H5

LED video splicing processor

10 × input cards

3 × output sending cards

3 × output video cards

12/10/8-bit · 39,000,000 pixels

novalct software · vmp software

priced from $1,424/unit

NovaStar · H Series · H5 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H5

LED video splicing processor

10 × input cards

3 × output sending cards

3 × output video cards

12/10/8-bit · 39,000,000 pixels

novalct software · vmp software

priced from $1,424/unit

NovaStar · H Series · H5 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H5

LED video splicing processor

10 × input cards

3 × output sending cards

3 × output video cards

12/10/8-bit · 39,000,000 pixels

novalct software · vmp software

priced from $1,424/unit

All In One Video Splicing Processor

If you still need more, just ask.

Pixels

H Series load 10,752 horizontal or 10,752 vertical pixels, for a total of up to 332,800,000 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

Each of our H Series measure 482.6 millimeters wide and 533.0 or less deep, which means they fit nicely into a standard 19" rack. The height on the H2 is a very elegant 88.2 millimeters, while the rather imposing H15 towers in at 683.0 and tips the scales at 41.1 kilograms.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10 or 12-bits of color depth and up to 240 Hz frame rates. After that, pretty much everything you might imagine is offered as a modular plug-in input or output card that will check off every box you've ever had and none of the ones you never wanted in the first place.

Power

Rated power consumption maxes out at 900 watts and 10.0 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at less than 45 decibels.

Installation

NovaStar's H Series connects to your LED display through multiple output cards with either 16 to 20 Gigabit Ethernet ports. Or through HDMI 1.4 or HDMI 2.0. Or through 10G optical ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX.

Specifications · H Series

God gave us the gift of life; it is up to us to give ourselves the gift of living well. ~ Voltaire
Series video splicer H15 H9 H5 H2 · ·

Price usd per unit
H Series
  • · 208,000,000 pixels
  • · 16 ethernet ports
  • · 1 × 8k layer · 12/10/8-bit
  • · novalct software
  • · vmp software
  • cost : unit
· synchronous
flagship video
splicing processor
$6,146
flagship video
splicing processor
$2,089
flagship video
splicing processor
$1,424
flagship video
splicing processor
$664

NovaLCT
  • · legacy software
  • · windows
  • · intuitive · efficient
  • cost : zero
· led configuration tool
download
windows · osx
download
windows · osx
download
windows · osx
download
windows · osx
VMP
  • · next generation software
  • · available q3/23
  • · windows · osx
  • · intuitive · efficient
  • · energy saving
  • cost : zero
· vision management platform
download
windows · osx
download
windows · osx
download
windows · osx
download
windows · osx

VNNOX Media
  • · edit · schedule
  • · remote publishing
  • · detailed logs
  • cost : zero
· content
apply for account
zero cost
apply for account
zero cost
apply for account
zero cost
apply for account
zero cost
VNNOX Care
  • · condition monitoring
  • · operation history
  • · cloud backup
  • cost : zero
· monitoring
apply for account
zero cost
apply for account
zero cost
apply for account
zero cost
apply for account
zero cost

Options
  • · upgrade
  • cost : unit
· enhanced
NovaStar COEX · H15 · H9 · enhanced upgrade$504 upgrade$570

Pixels
Loading
  • · 12/10/8-bit
  • · 32,768 × 1,080@60Hz
· width · maximum
horizontal
single sending card
h_20×rj45 card
10,752
horizontal
single sending card
h_20×rj45 card
10,752
horizontal
single sending card
h_20×rj45 card
10,752
horizontal
single sending card
h_20×rj45 card
10,752
Loading
  • · 12/10/8-bit
  • · 1,080 × 32,768@60Hz
· height · maximum
vertical
single sending card
h_20×rj45 card
10,752
vertical
single sending card
h_20×rj45 card
10,752
vertical
single sending card
h_20×rj45 card
10,752
vertical
single sending card
h_20×rj45 card
10,752
Loading
  • · 12/10/8-bit
  • · 32,768 × 1,080@60Hz
  • · 16,384 × 2,160@60Hz
  • · 8,192 × 4,320@60Hz
· combined · total
maximum load208,000,000 maximum load65,000,000 maximum load39,000,000 maximum load26,000,000

Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 212 · 68,719,476,736
4096 shades of rgb12 4096 shades of rgb12 4096 shades of rgb12 4096 shades of rgb12
Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 210 · 1,073,741,824
1024 shades of rgb10 1024 shades of rgb10 1024 shades of rgb10 1024 shades of rgb10
Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 28 · 16,777,216
256 shades of rgb8 256 shades of rgb8 256 shades of rgb8 256 shades of rgb8

Cards
Control
  • · press · on/off
  • · genlock · input · loop
  • · ethernet · connect to cpu
  • · usb 2.0 · import parameters
  • · rs232 · input · loop
· power
NovaStar COEX · H Series · power · ethernet · genlock · rs232n power · genlock
ethernet · usb · rs232
🔲
power · genlock
ethernet · usb · rs232
🔲
power · genlock
ethernet · usb · rs232
🔲
power · genlock
ethernet · usb · rs232
🔲

Input
  • · (4) dvi inputs
  • · single link · dual link
  • · maximum width · 3840 pixels
  • · maximum height · 4095 pixels
  • · hdcp 1.4 compliant
· dvi
NovaStar COEX · H Series · input cards · 4 × dvi maximum · 30 cards
$854
   (4)
maximum · 15 cards
$854
   (4)
maximum · 10 cards
$854
   (4)
maximum · 4 cards
$854
   (4)
Input
  • · (4) hdmi inputs
  • · hdmi 1.3 · hdmi 1.4
  • · maximum width · 3840 pixels
  • · maximum height · 4095 pixels
  • · hdcp 1.4 compliant
· hdmi 1.3 · hdmi 1.4
NovaStar COEX · H Series · input cards · 4 × hdmi maximum · 30 cards
$854
   (4)
maximum · 15 cards
$854
   (4)
maximum · 10 cards
$854
   (4)
maximum · 4 cards
$854
   (4)
Input
  • · (1) hdmi input · (1) dp input
  • · hdmi 2.0 · dp 1.2
  • · maximum width · 8192 pixels
  • · maximum height · 4095 pixels
  • · backward compatible
· hdmi 2.0 · dp 1.2
NovaStar COEX · H Series · input cards · 1 × hdmi · 1 × dp maximum · 30 cards
$1,614
   ⭗⭗(1)
maximum · 15 cards
$1,614
   ⭗⭗(1)
maximum · 10 cards
$1,614
   ⭗⭗(1)
maximum · 4 cards
$1,614
   ⭗⭗(1)
Input
  • · (2) rj45 ip input
  • · interlaced signal input
  • · rtsp · onvif · gb28181
  • · h.264 · h.265
  • · dhcp compliant
· rj45 · ip
NovaStar COEX · H Series · input cards · 2 × rj45 · ip maximum · 30 cards
$1,424
   (2)
maximum · 15 cards
$1,424
   (2)
maximum · 10 cards
$1,424
   (2)
maximum · 4 cards
$1,424
   (2)
Input
  • · (4) 3g sdi input
  • · st-424 · st-292 · smpte 259 sd
  • · backward compatible
· 3g sdi
NovaStar COEX · H Series · input cards · 4 × 3g sdi maximum · 30 cards
$1,614
   (4)
maximum · 15 cards
$1,614
   (4)
maximum · 10 cards
$1,614
   (4)
maximum · 4 cards
$1,614
   (4)
Input
  • · (2) vga · (2) cvbs
  • · pal · ntsc
· cvbs · vga
NovaStar COEX · H Series · input cards · 2 × vga · 2 × cvbs maximum · 30 cards
$854
   ⭗⭗(2)
maximum · 15 cards
$854
   ⭗⭗(2)
maximum · 10 cards
$854
   ⭗⭗(2)
maximum · 4 cards
$854
   ⭗⭗(2)
Input
  • · (4) vga
· vga
NovaStar COEX · H Series · input cards · 4 × vga maximum · 30 cards
$854
   (4)
maximum · 15 cards
$854
   (4)
maximum · 10 cards
$854
   (4)
maximum · 4 cards
$854
   (4)
Input
  • · (2) dp 1.1
  • · maximum width · 3840 pixels
  • · maximum height · 4095 pixels
  • · 8-bits · 10-bits
  • · hdcp 1.3 compliant
· dp 1.1
NovaStar COEX · H Series · input cards · 2 × dp 1.1 maximum · 30 cards
$1,614
   (2)
maximum · 15 cards
$1,614
   (2)
maximum · 10 cards
$1,614
   (2)
maximum · 4 cards
$1,614
   (2)
Input
  • · (1) 12g sdi
  • · (1) 12g sdi loop
  • · maximum width · 4096 pixels
  • · maximum height · 2160 pixels
  • · backward compatible
· 12g sdi
NovaStar COEX · H Series · input cards · 1 × 12g sdi maximum · 30 cards
$1,614
   (2)
maximum · 15 cards
$1,614
   (2)
maximum · 10 cards
$1,614
   (2)
maximum · 4 cards
$1,614
   (2)
Input
  • · (2) hdmi 2.0
  • · maximum width · 4096 pixels
  • · maximum height · 2160 pixels
  • · hdcp 2.2 compliant
  • · backward compatible
· hdmi 2.0
NovaStar COEX · H Series · input cards · 2 × hdmi 2.0 maximum · 30 cards
$1,614
   (2)
maximum · 15 cards
$1,614
   (2)
maximum · 10 cards
$1,614
   (2)
maximum · 4 cards
$1,614
   (2)
Input
  • · (1) hdmi 2.0
  • · maximum width · 4096 pixels
  • · maximum height · 2160 pixels
  • · hdcp 2.2 compliant
  • · backward compatible
· hdmi 2.0
NovaStar COEX · H Series · input cards · 1 × hdmi 2.0 maximum · 30 cards
$1,111
   (1)
maximum · 15 cards
$1,111
   (1)
maximum · 10 cards
$1,111
   (1)
maximum · 4 cards
$1,111
   (1)

Output
  • · (16) rj45
  • · (2) opt
  • · 8-bit · port · 650,000 pixels
  • · 10-bit · port · 320,000 pixels
  • · smf · mmf
· rj45 · opt
NovaStar COEX · H Series · output cards · 16 × rj45 · 2 × opt maximum · 30 cards
$1,614
    (16)
maximum · 15 cards
$1,614
    (16)
maximum · 10 cards
$1,614
    (16)
maximum · 4 cards
$1,699
    (16)
Output
  • · (20) rj45 · 2 slots
  • · maximum width · 10,752pixels
  • · maximum height · 10,752pixels
  • · 8-bit · port · 650,000 pixels
  • · 10-bit · port · 320,000 pixels
· rj45
NovaStar COEX · H Series · output cards · 20 × rj45 maximum · 30 cards
$1,671
    (20)
maximum · 15 cards
$1,671
    (20)
maximum · 10 cards
$1,671
    (20)
maximum · 4 cards
$1,671
    (20)
Output
  • · (2) rj45 · (1) hdmi 1.3
  • · network connection
  • · external monitor
· rj45 · hdmi
NovaStar COEX · H Series · output cards · 2 × rj45 · 1 × hdmi 1.3 maximum · 30 cards
$1,187
   (2)
maximum · 15 cards
$1,187
   (2)
maximum · 10 cards
$1,187
   (2)
maximum · 4 cards
$1,187
   (2)

Input/Output
  • · (2) com
  • · rs422 · rs485· rs232
  • · (1) ethernet · (3) i/o
  • · (3) relay out · (3) ir out
· com
NovaStar COEX · H Series · input output cards · 2 × com maximum · 30 cards
$854
   (2)
maximum · 15 cards
$854
   (2)
maximum · 10 cards
$1854
   (2)
maximum · 4 cards
$854
   (2)

Cabinet
Dimensions
  • · physical specifications
  • · metric · imperial
· width
19.00''0.4826 19.00''0.4826 19.00''0.4826 19.00''0.4826
Dimensions
  • · physical specifications
  • · metric · imperial
· height
26.89''0.6830 15.98''0.4058 8.98''0.2282 3.47''0.0881
Dimensions
  • · physical specifications
  • · metric · imperial
· depth
20.98''0.5330 20.98''0.5330 20.78''0.5328 20.85''0.5298
Dimensions
  • · one rack unit
  • · 482.60 mm · 19.00"
  • · 44.45 mm · 1.75"
· rack units
0.6830 / 0.0444516.0 0.4058 / 0.0444510.0 0.2282 / 0.044456.0 0.0881 / 0.044452.0

Dimensions
  • · physical specifications
  • · metric · imperial
· weight
90.61 lbs41.10 59.97 lbs27.20 37.48 lbs17.00 24.25 lbs11.00

IP Code
  • · ingress protection
  • · first digit · solids
  • · (2) · >12.50 mm
  • · second digit · liquids
  • · (0) · no protection
· front · rear
ingress protection20 · 20 ingress protection20 · 20 ingress protection20 · 20 ingress protection20 · 20

Power
  • · power consumption
· watts
maximum use draw900 maximum use draw450 maximum use draw400 maximum use draw210
Power
  • · power input
· voltage · amps
alternating current
10.0 · 5.0 amps
100 ⌁ 240
alternating current
10.0 · 5.0 amps
100 ⌁ 240
alternating current
10.0 · 5.0 amps
100 ⌁ 240
alternating current
4.0 amps
100 ⌁ 240

PDF · 3 of 5

Fine Print
Warranty · factory standard NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · ce · fcc Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.

About Telematics Canada

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels and cabinets, transparent displays and interactive video floors, and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

About NovaStar

NovaStar is the worldwide leader in control systems for direct-view LED systems, both synchronous and asynchronous, plus high-performance calibration solutions and cost-free VNNOX + CARE cloud-based media publishing, scheduling and display monitoring.

The Beijing Olympic Games, Tienanmen Celebration for the 60th Anniversary on National Day,Shanghai World Expo, Guangzhou Asian Games, Xi'an International Horticultural Expo, Games for University Students and other large-scale events all relied on control systems are provided by Nova.

Through constant innovation, NovaStar now holds more than 20 proprietary intellectual property rights in LED display control, cloud computing and other fields.

NovaStar has been awarded the Xi'an Award for Science and Technology and the Shaanxi Award for Science and Technology.

Our Clients

For more than 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Amazing Showcase · H Series

A picture is worth a thousand clicks.
Being entirely honest with oneself is a good exercise. ~ Sigmund Freud
Photo Library · H Series · 3 of 9
NovaStar · H Series · H2 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H2

LED video splicing processor

4 × input cards

2 × output sending cards

2 × output video cards

12/10/8-bit · 26,000,000 pixels

novalct software · vmp software

priced from $664/unit

NovaStar · H Series · H2 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H2

LED video splicing processor

4 × input cards

2 × output sending cards

2 × output video cards

12/10/8-bit · 26,000,000 pixels

novalct software · vmp software

priced from $664/unit

NovaStar · H Series · H2 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H2

LED video splicing processor

4 × input cards

2 × output sending cards

2 × output video cards

12/10/8-bit · 26,000,000 pixels

novalct software · vmp software

priced from $664/unit

NovaStar · H Series · H9 · H9 Enhanced · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H9

LED video splicing processor

15 × input cards

5 × output sending cards

10 × output video cards

12/10/8-bit · 65,000,000 pixels

novalct software · vmp software

priced from $2,089/unit

NovaStar · H Series · H9 · H9 Enhanced · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H9

LED video splicing processor

15 × input cards

5 × output sending cards

10 × output video cards

12/10/8-bit · 65,000,000 pixels

novalct software · vmp software

priced from $2,089/unit

NovaStar · H Series · H9 · H9 Enhanced · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H9

LED video splicing processor

15 × input cards

5 × output sending cards

10 × output video cards

12/10/8-bit · 65,000,000 pixels

novalct software · vmp software

priced from $2,089/unit

NovaStar · H Series · H5 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H5

LED video splicing processor

10 × input cards

3 × output sending cards

3 × output video cards

12/10/8-bit · 39,000,000 pixels

novalct software · vmp software

priced from $1,424/unit

NovaStar · H Series · H5 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H5

LED video splicing processor

10 × input cards

3 × output sending cards

3 × output video cards

12/10/8-bit · 39,000,000 pixels

novalct software · vmp software

priced from $1,424/unit

NovaStar · H Series · H5 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar H Series · H5

LED video splicing processor

10 × input cards

3 × output sending cards

3 × output video cards

12/10/8-bit · 39,000,000 pixels

novalct software · vmp software

priced from $1,424/unit


Video Library · H Series · VMP
NovaStar · H Series · Vision Management Platform
Creativity Unleashed
NovaStar · H Series · Vision Management Platform
Creativity Unleashed · Overview

Contact Telematics Canada

Politely awaiting your call. It's a Canadian thing...
We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu

Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
