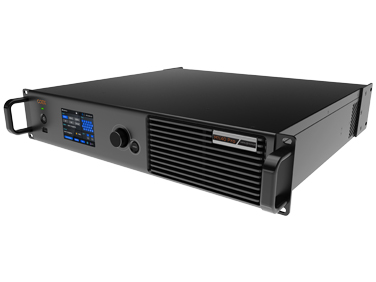

NovaStar COEX · MX40 Pro

4096 × 2160 + Armor + Vision Management Platform + (almost) everything else. Your next XR studio.

Pixels

MX40 Pro loads 8192 horizontal or 8192 vertical pixels, for a total of up to 8,847,360 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

The NovaStar MX40 Pro measures 482.6 millimeters wide and 467.0 millimeters deep which just means it nicely fits a standard 19" rack. Or you could option it up with a robust flight case that provides easy access to controls and cables, and keeps it safe and secure in transit and onsite.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10 or 12-bits of color depth and up to 240 Hz frame rates. 10G optical fibre output ports. 20 Gigabit Ethernet ports. Lots of HDMI 2.0 ports and one 12G-SDI and one DisplayPort 1.2 and a pair of Bi-Level and Tri-Level supporting Genlock signal connectors. Whew.

Power

Rated power consumption maxes out at 95 watts and 1.5 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at just above silent.

Installation

NovaStar's MX40 Pro connects to your LED display through up to 20 Gigabit Ethernet ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX. Cascade control of multiple MX40 Pro controllers with the built-in network switch.

Specifications · MX40 Pro

Do not mind anything that anyone tells you about anyone else. Judge everyone and everything for yourself. ~ Henry James
Series controller MX40 Pro · · · · ·

Price usd per unit
MX40 Pro
  • · 8,800,000 pixels
  • · 20 ethernet ports
  • · 4×4k layers · 12/10/8-bit
  • · vmp software
  • cost : unit
· synchronous
primary controller
backup · cascade
$7149

VMP
  • · next generation software
  • · windows · osx
  • · intuitive · efficient
  • · energy saving
  • cost : zero
· vision management platform
download
windows · osx

VNNOX Media
  • · edit · schedule
  • · remote publishing
  • · detailed logs
  • cost : zero
· content
apply for account
zero cost
VNNOX Care
  • · condition monitoring
  • · operation history
  • · cloud backup
  • cost : zero
· monitoring
apply for account
zero cost

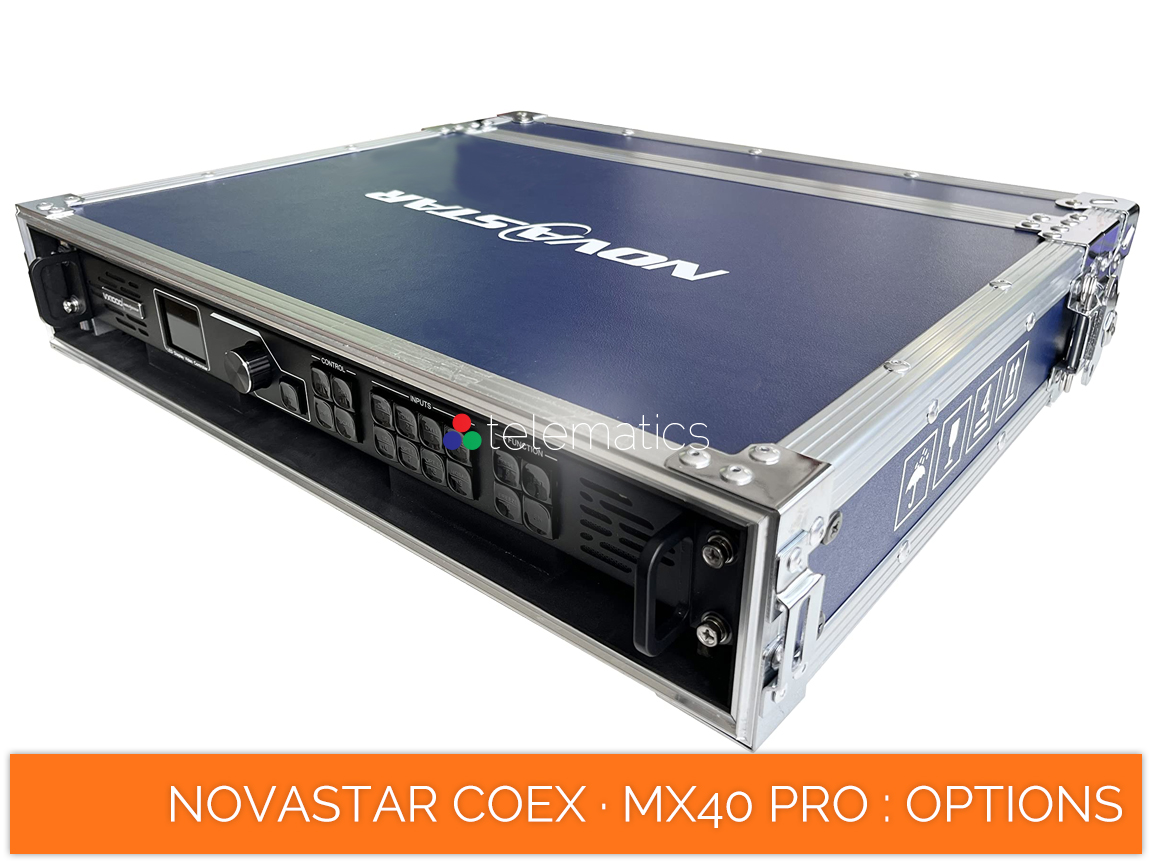

Options
  • · custom case
  • · full panel access
  • · cable storage
  • cost : unit
· hard case
NovaStar COEX · MX40 Pro · hard case impact resistant$ 300

Pixels
Loading
  • · 12/10/8-bit
  • · 8192 × 1080@60Hz
  • · 4096 × 2160@60Hz
· width · maximum
horizontal8,192
Loading
  • · 12/10/8-bit
  • · 1080 × 8192@60Hz
  • · 2160 × 4096@60Hz
· height · maximum
vertical8,192
Loading
  • · 12/10/8-bit
  • · 1080 × 8192@60Hz
  • · 2160 × 4096@60Hz
· combined · total
13 ports x 650,0008,800,000

Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 212 · 68,719,476,736
4096 shades of rgb12
Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 210 · 1,073,741,824
1024 shades of rgb10
Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 28 · 16,777,216
256 shades of rgb8

Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 240 Hz
13 × 80,000 · 12-bit
13 × 120,000 · 10-bit
13 × 162,500 · 8-bit
162,500
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 144 Hz
13 × 133,333 · 12-bit
13 × 200,000 · 10-bit
13 × 270,833 · 8-bit
270,833
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 120 Hz
13 × 160,000 · 12-bit
13 × 240,000 · 10-bit
13 × 325,000 · 8-bit
325,000
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 60 Hz
13 × 325,000 · 12-bit
13 × 480,000 · 10-bit
13 × 650,000 · 8-bit
650,000

Interface

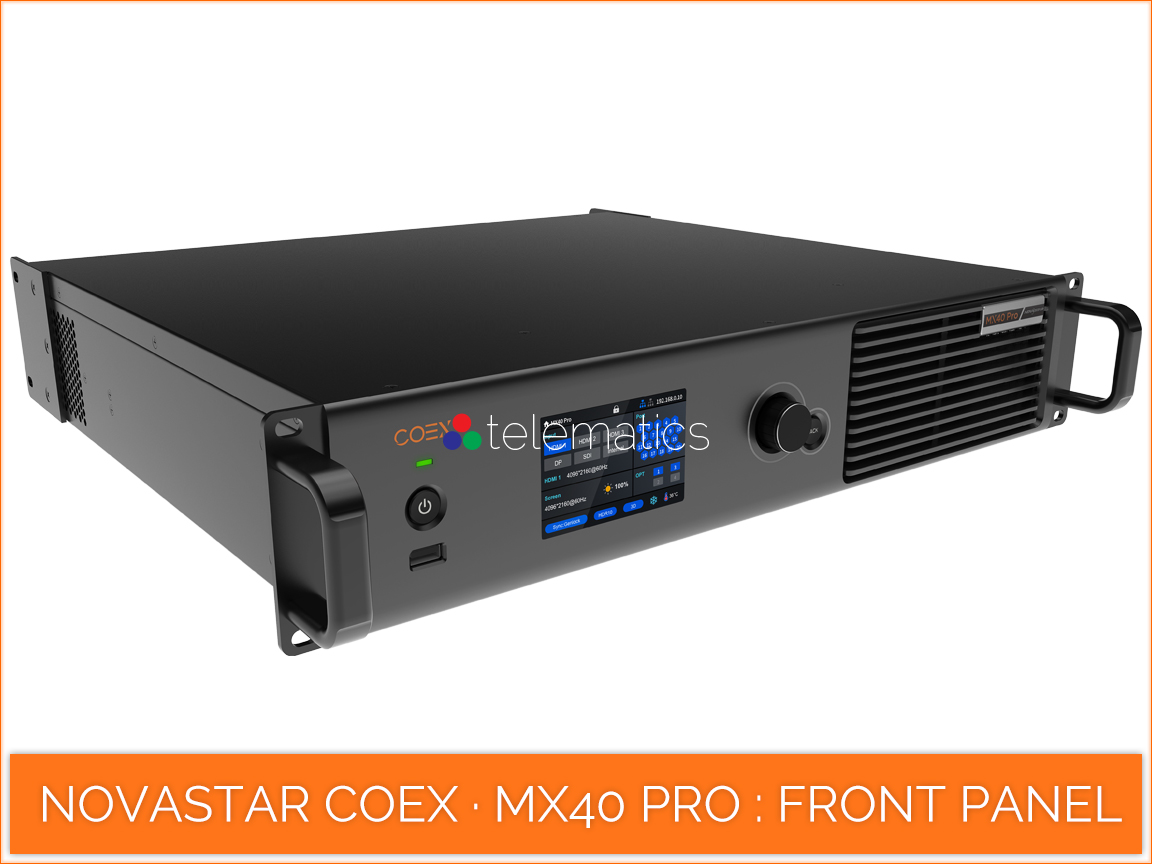

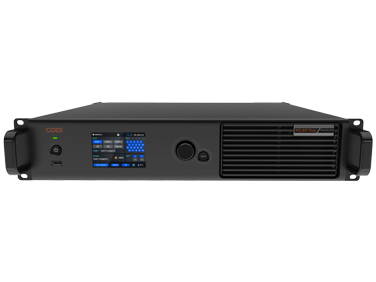

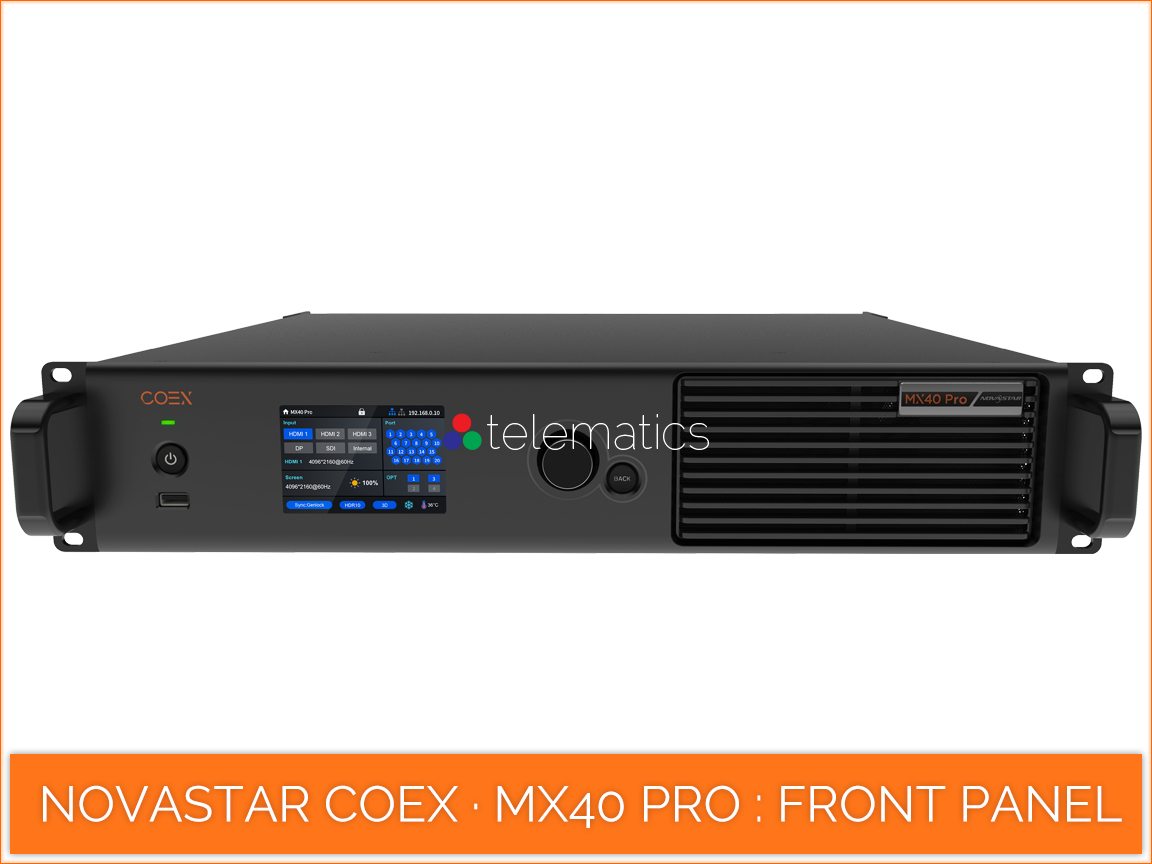

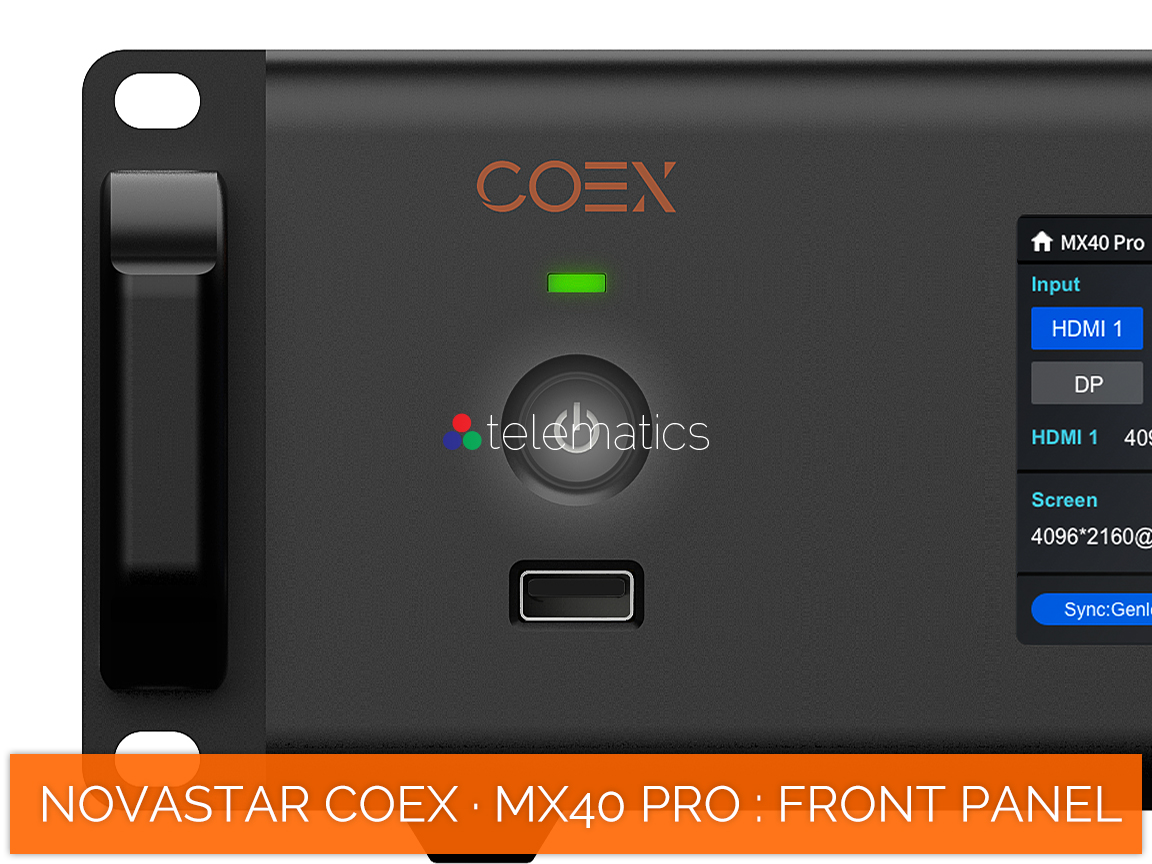

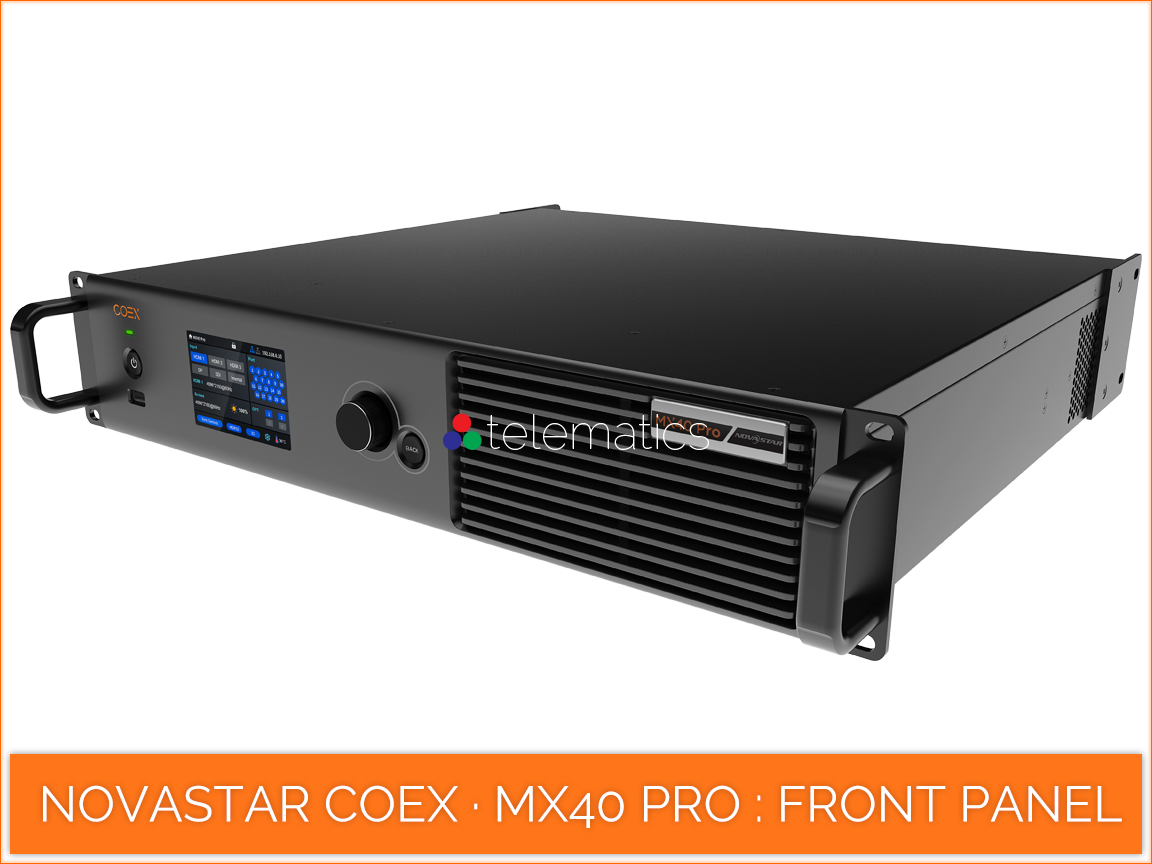

Front Panel
  • · press · power on/off
  • · hold 5 sec · restart
· power
NovaStar COEX · MX40 Pro · power button standby button🔲

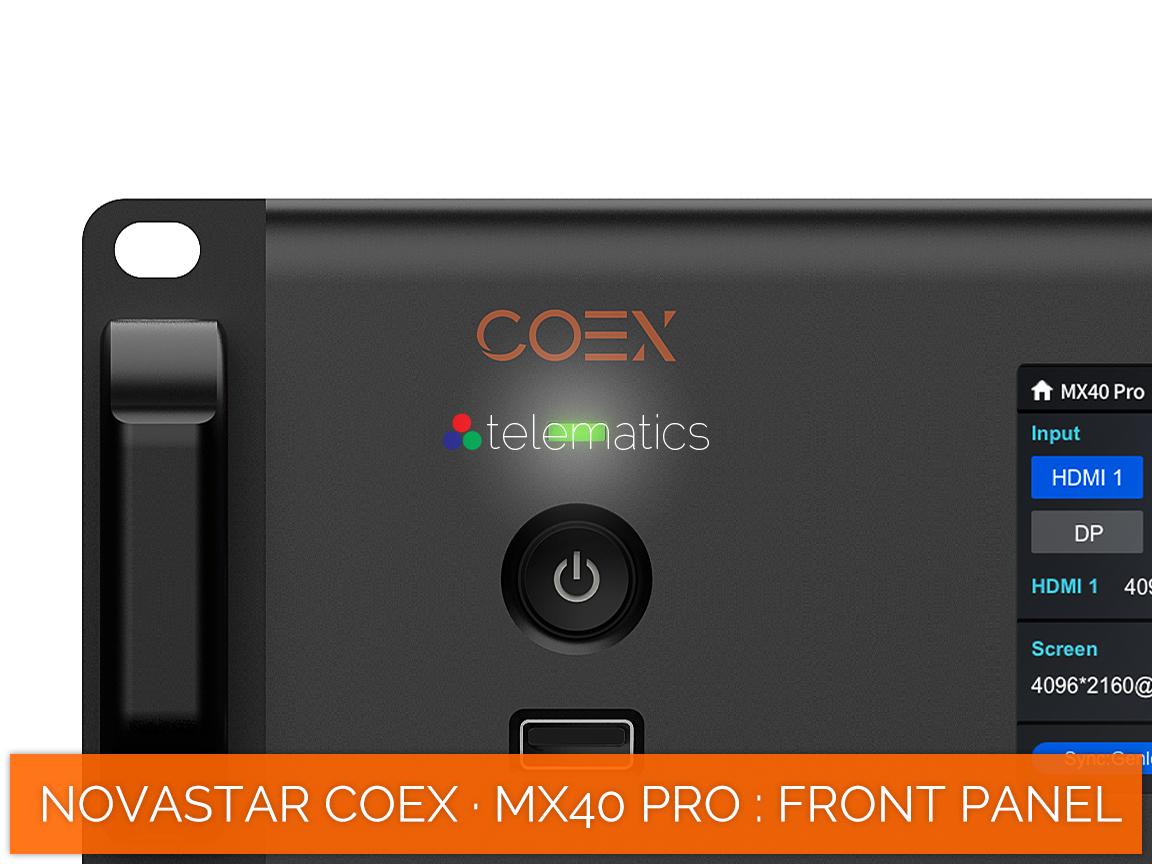

Front Panel
  • · red · standby
  • · blue · powered on
  • · green · normal
  • · flashing · abnormal
· status
NovaStar COEX · MX40 Pro · status light operating status🔲

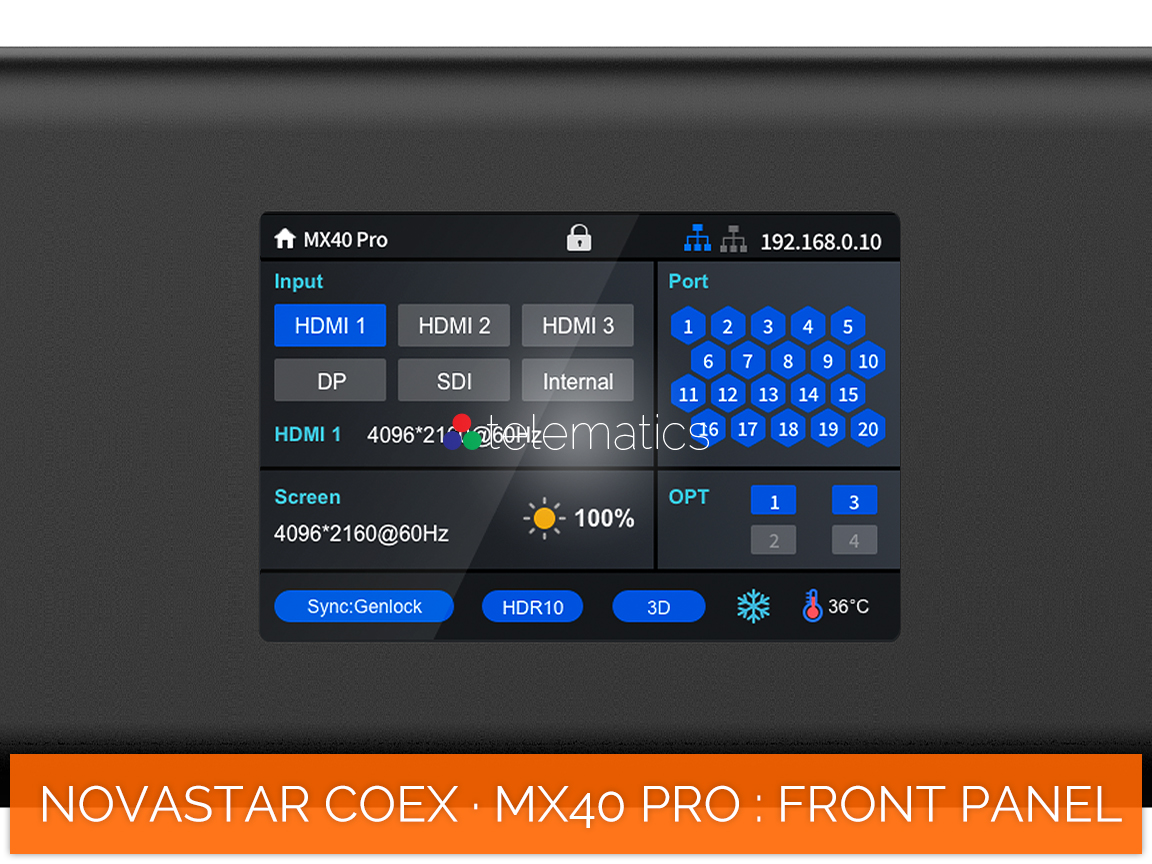

Front Panel
  • · device status
  • · menus · sub menus
  • · messages for settings
· menu
NovaStar COEX · MX40 Pro · lcd menu 3.5" LCD🔲

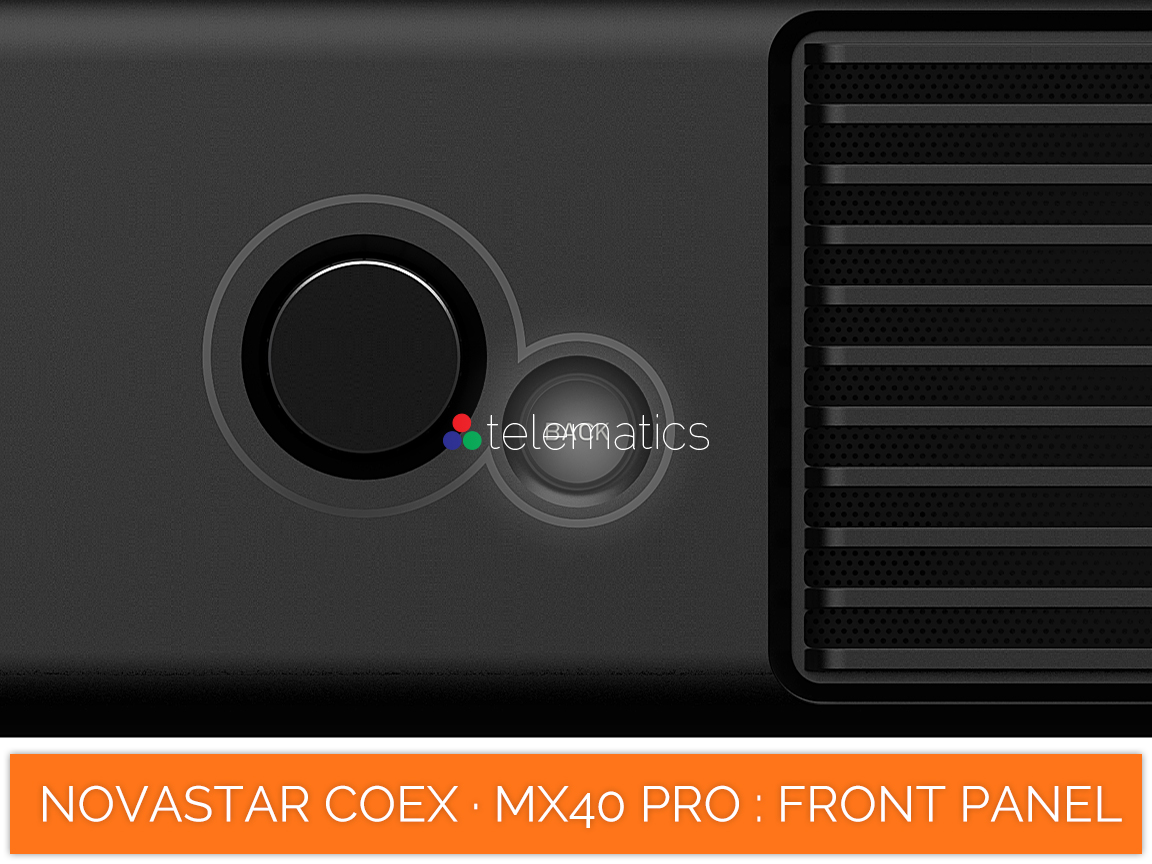

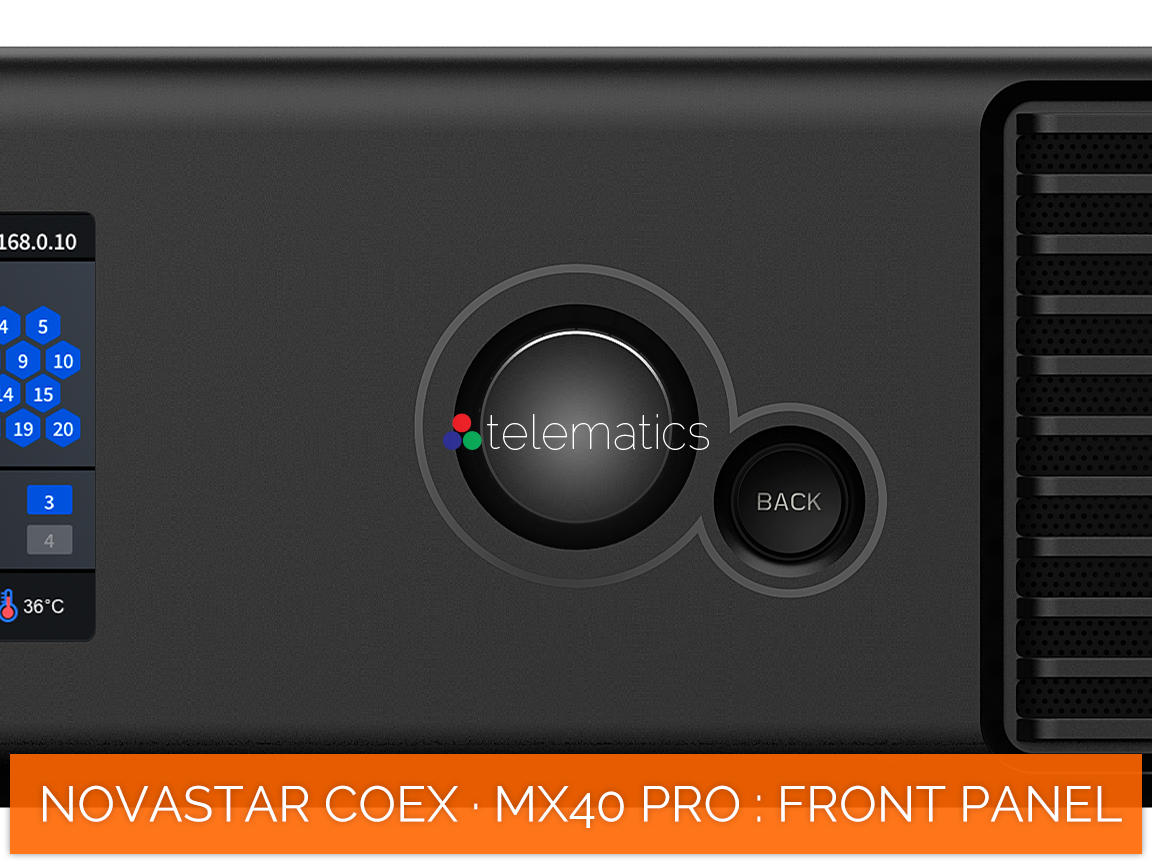

Front Panel
  • · press to enter main screen
  • · rotate to select menu item
  • · rotate to adjust parameter
  • · press to confirm
· dial
NovaStar COEX · MX40 Pro · dial press · rotate🔲
Front Panel
  • · return to previous menu
  • · cancel current operation
· back
NovaStar COEX · MX40 Pro · back button press🔲

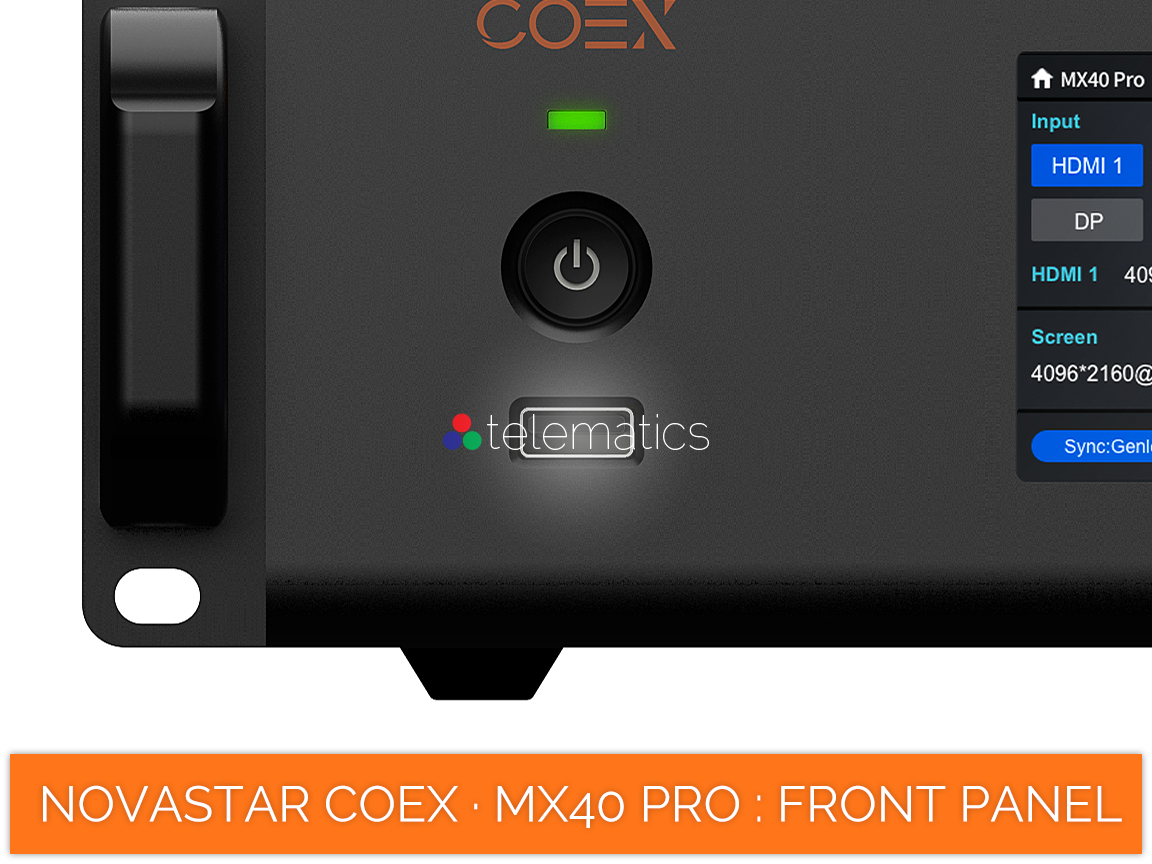

Front Panel
  • · connect to usb drive
  • · export diagnostic files
· usb 2.0
NovaStar COEX · MX40 Pro · USB 2.0 ntfs · fat32

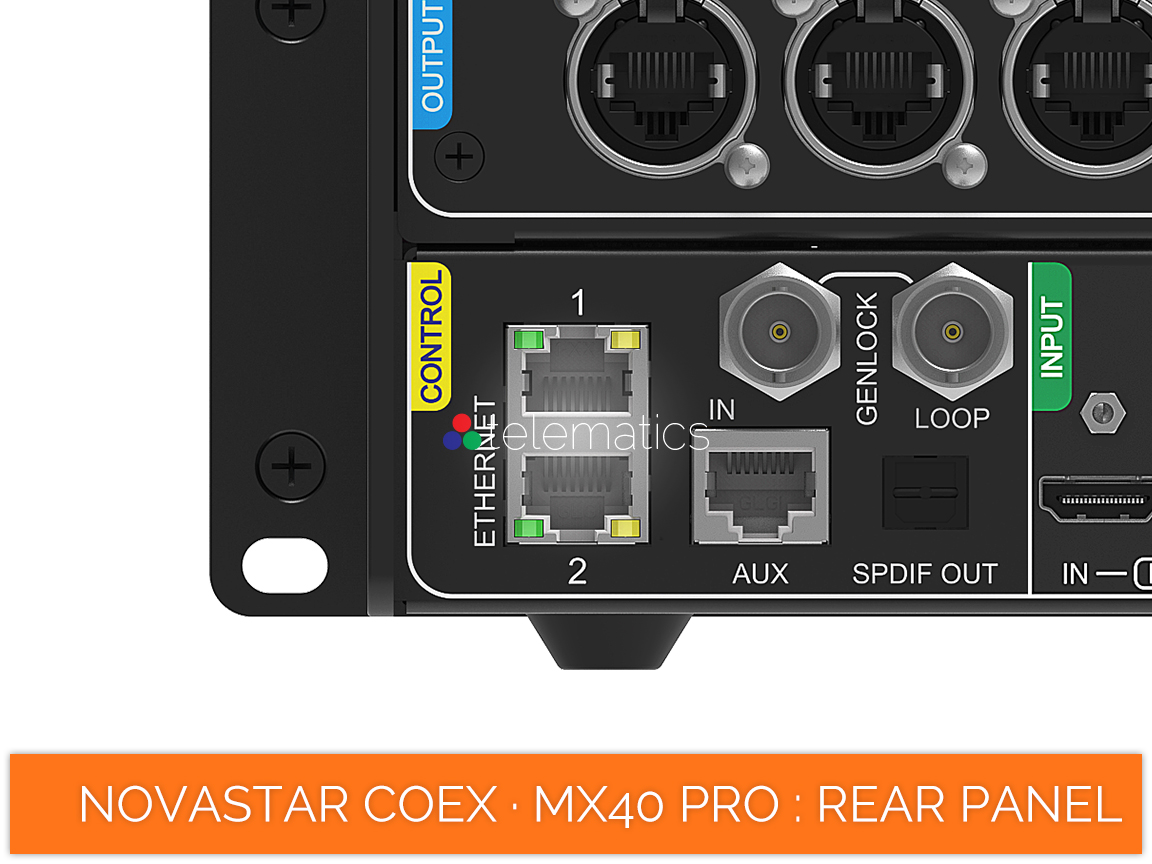

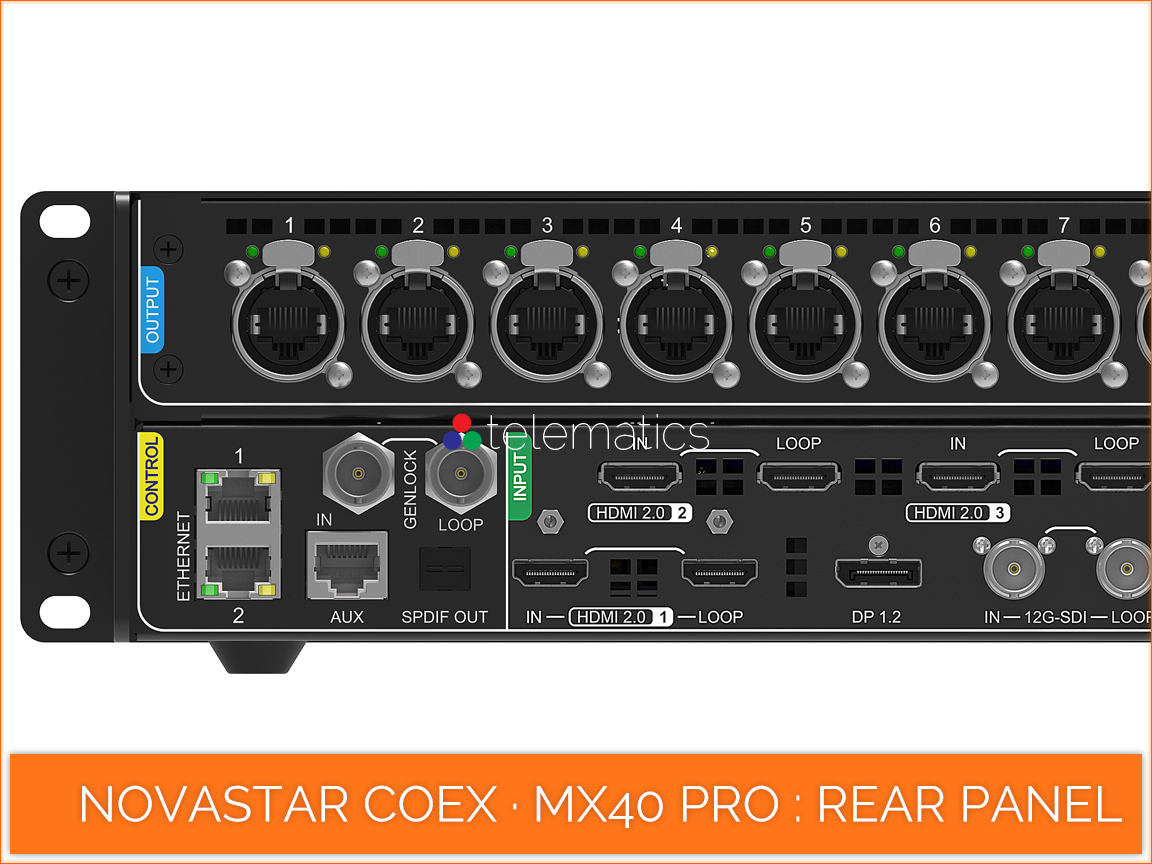

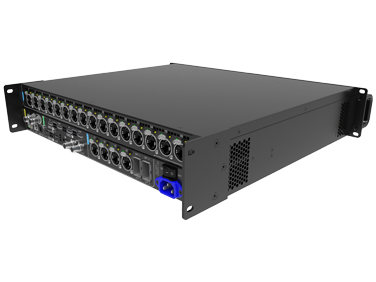

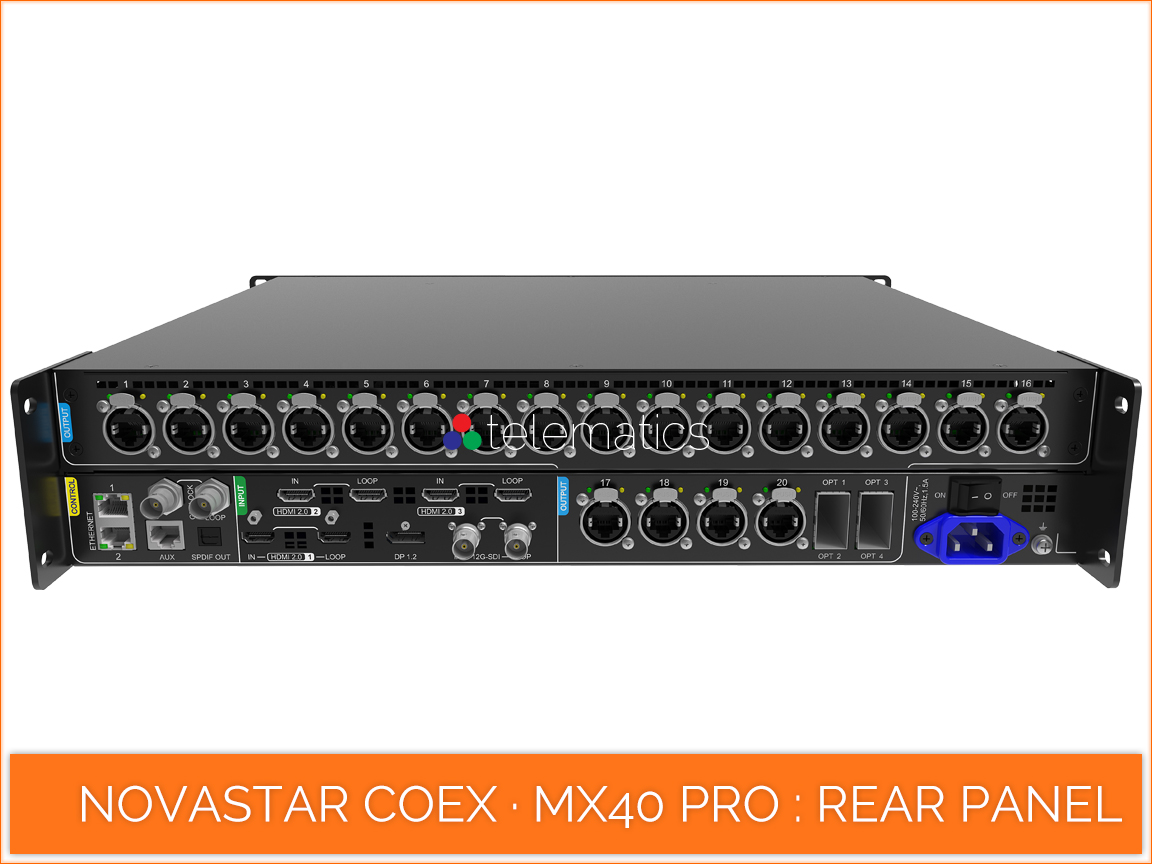

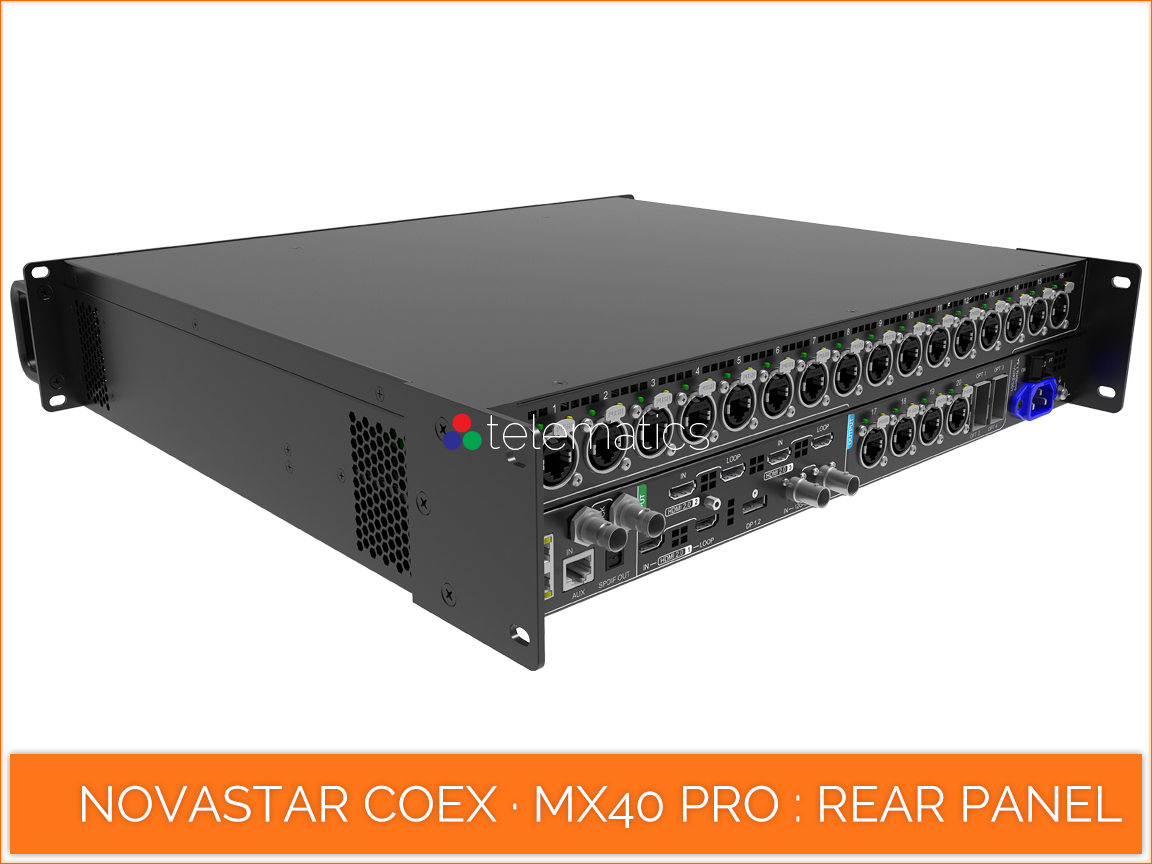

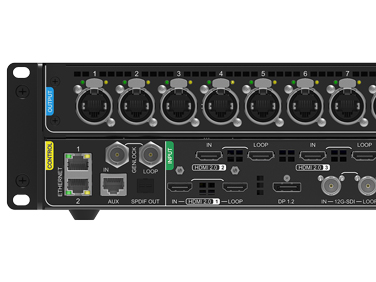

Rear Panel
  • · tcp/ip · star topology
  • · network switching function
  • · connect to cpu
  • · vision management platform
· control · ethernet
NovaStar COEX · MX40 Pro · Ethernet gigabit   (2)

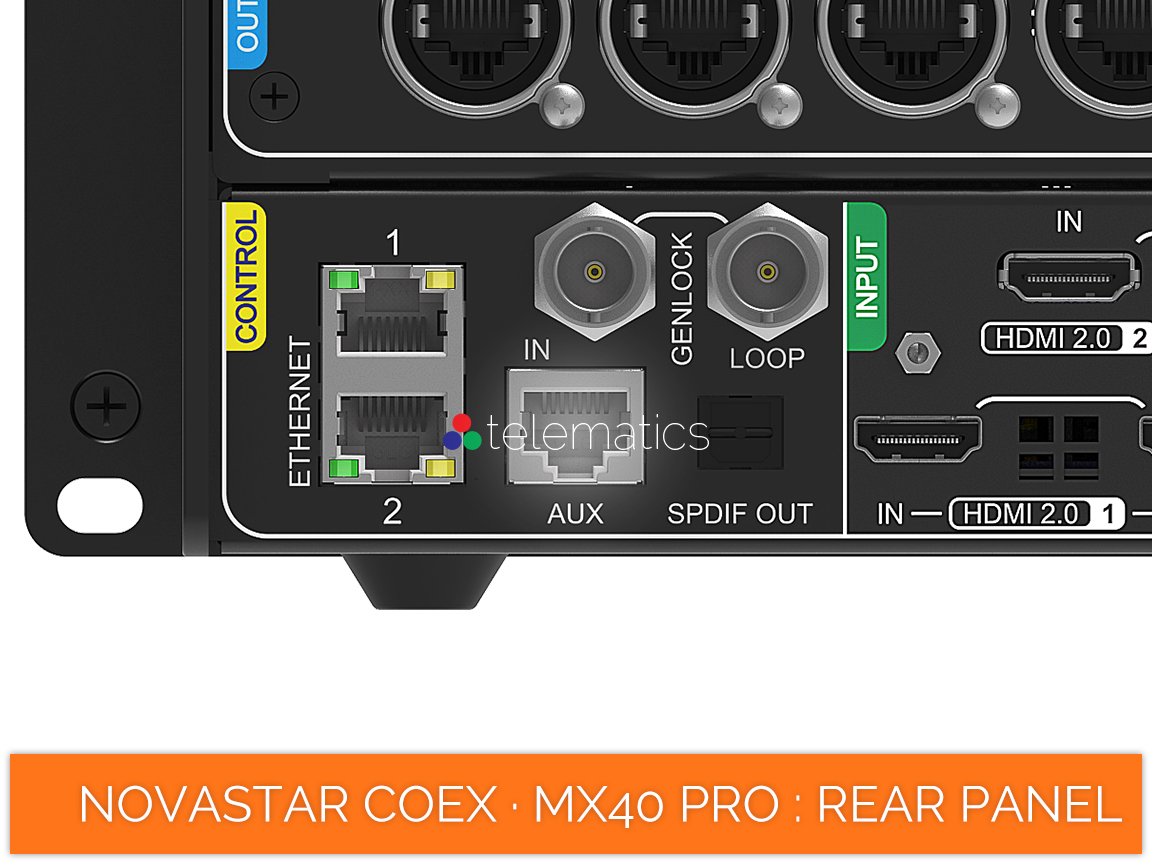

Rear Panel
  • · connect to central control
  • · reserved
· control · aux
NovaStar COEX · MX40 Pro · Aux rs232
Rear Panel
  • · bi-level · tri-level
  • · in · accept sync
  • · out · loop sync
  • · cascade up to 20 devices
· control · genlock
NovaStar COEX · MX40 Pro · Genlock in · loop   (2)

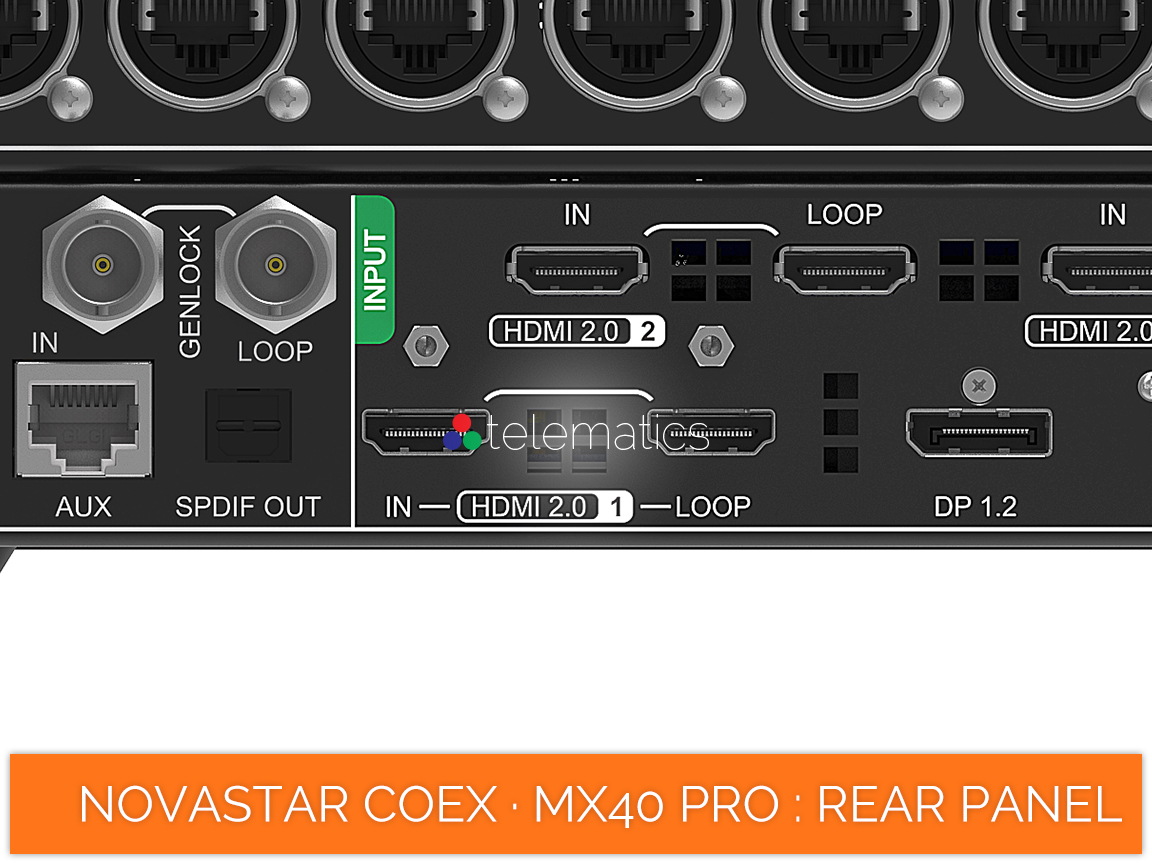

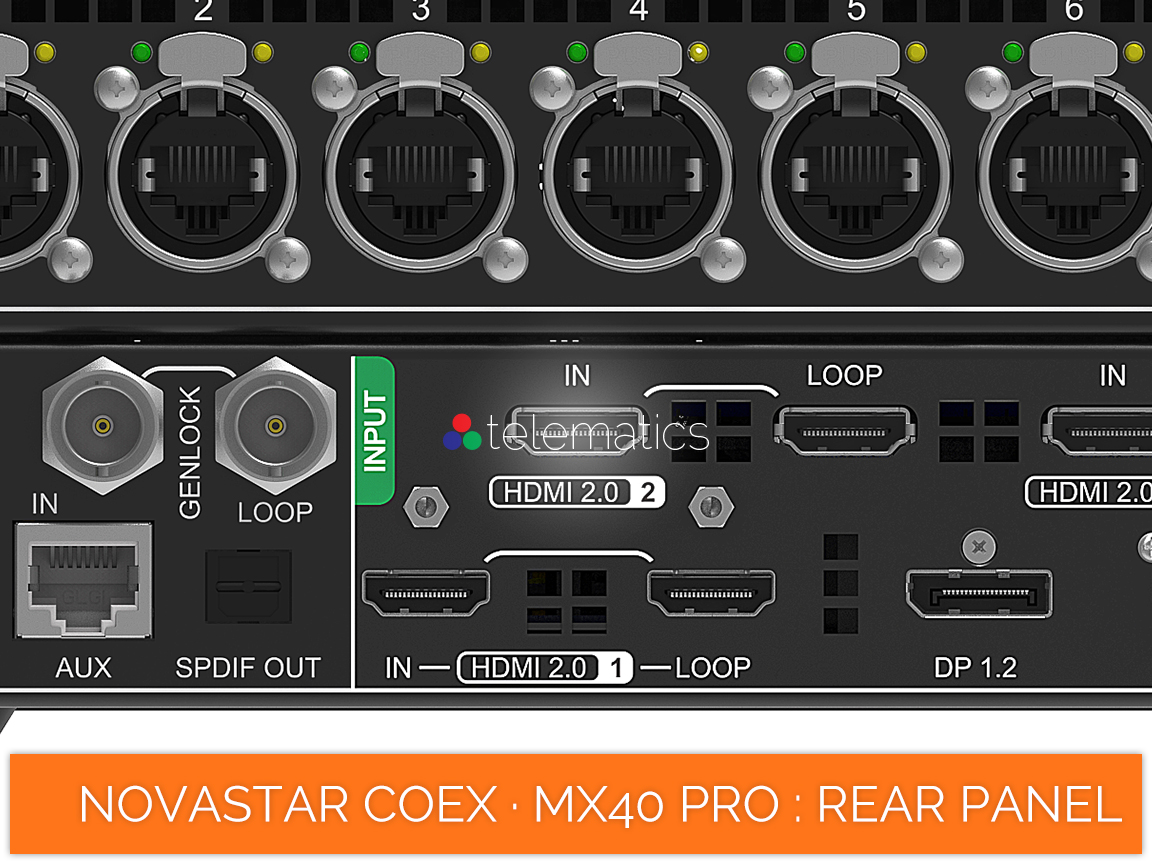

Rear Panel
  • · 8192 × 1080@60Hz
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 240
  • · edid · to 3840 × 2160@60Hz
  • · hdcp 2.2 compliant
  • · hdr10 · hlg
· input · hdmi 2.0 (1)
NovaStar COEX · MX40 Pro · HDMI 2.0 input · loop
Rear Panel
  • · 8192 × 1080@60Hz
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 240
  • · edid · to 3840 × 2160@60Hz
  • · hdcp 2.2 compliant
  • · hdr10 · hlg
· input · hdmi 2.0 (2)
NovaStar COEX · MX40 Pro · HDMI 2.0 input · loop
Rear Panel
  • · 8192 × 1080@60Hz
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 240
  • · edid · to 3840 × 2160@60Hz
  • · hdcp 2.2 compliant
  • · hdr10 · hlg
· input · hdmi 2.0 (3)
NovaStar COEX · MX40 Pro · HDMI 2.0 input · loop

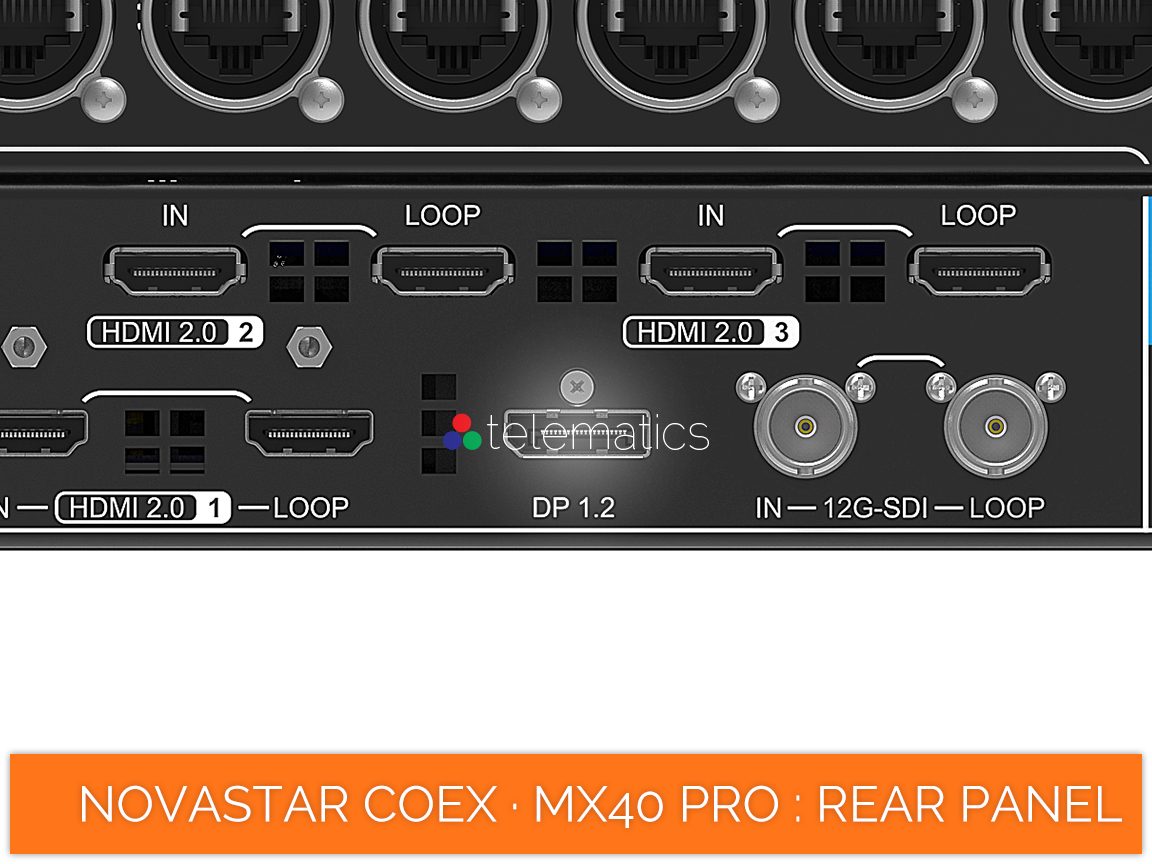

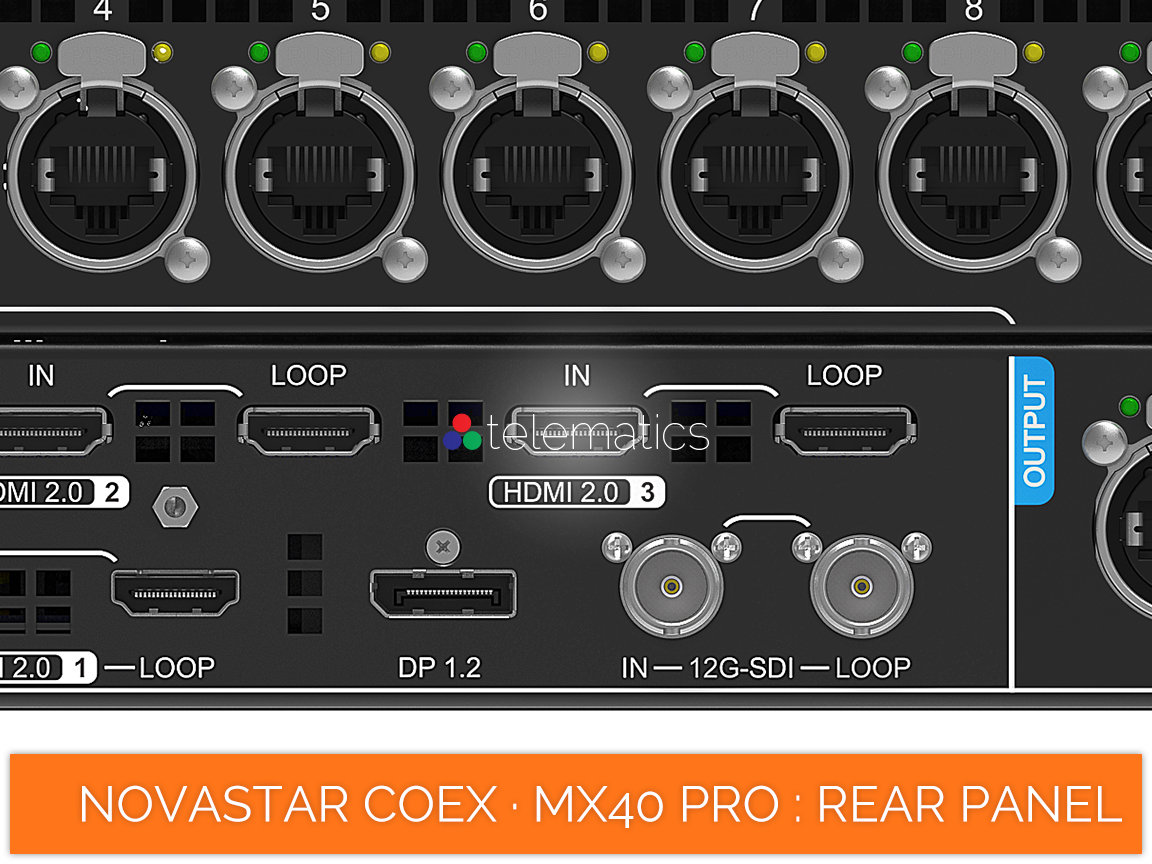

Rear Panel
  • · 8192 × 1080@60Hz
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 240
  • · edid · to 3840 × 2160@60Hz
  • · hdcp 1.3 compliant
· input · dp 1.2
NovaStar COEX · MX40 Pro · DisplayPort 1.2 displayport 1.2

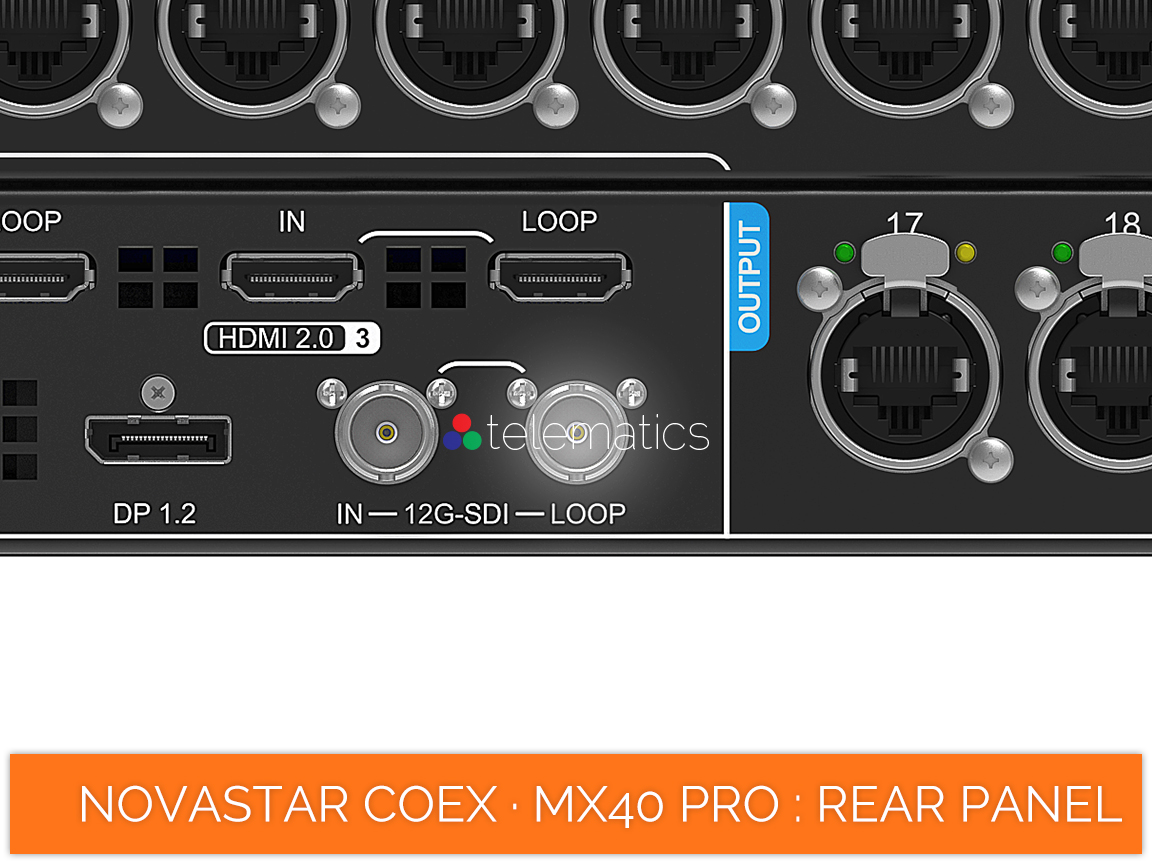

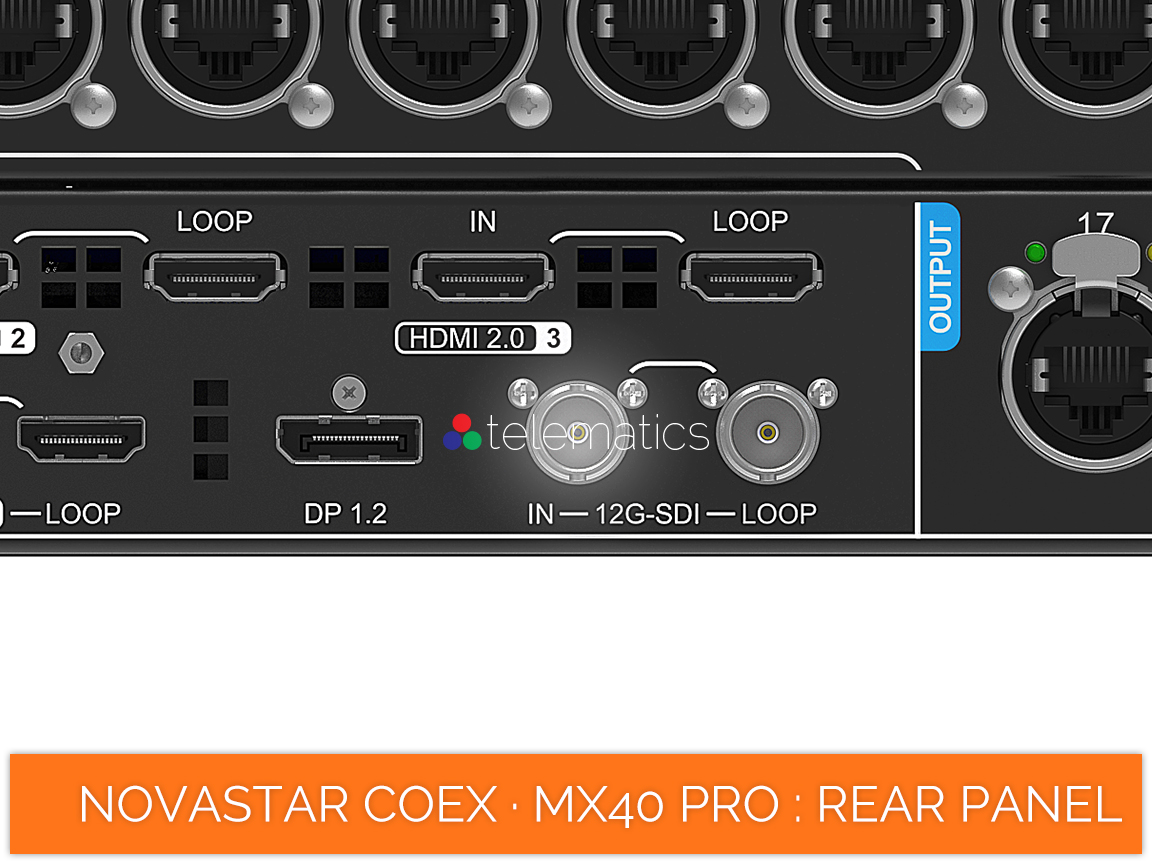

Rear Panel
  • · st-2082 (12g) · st-2081 (6g)
  • · st-424 (3g) · st-292 (hd)
  • · 3G-Level A/Level B (DS)
  • · 4096 × 2160@60Hz
· input · 12g-sdi
NovaStar COEX · MX40 Pro · 12G-SDI standard video input

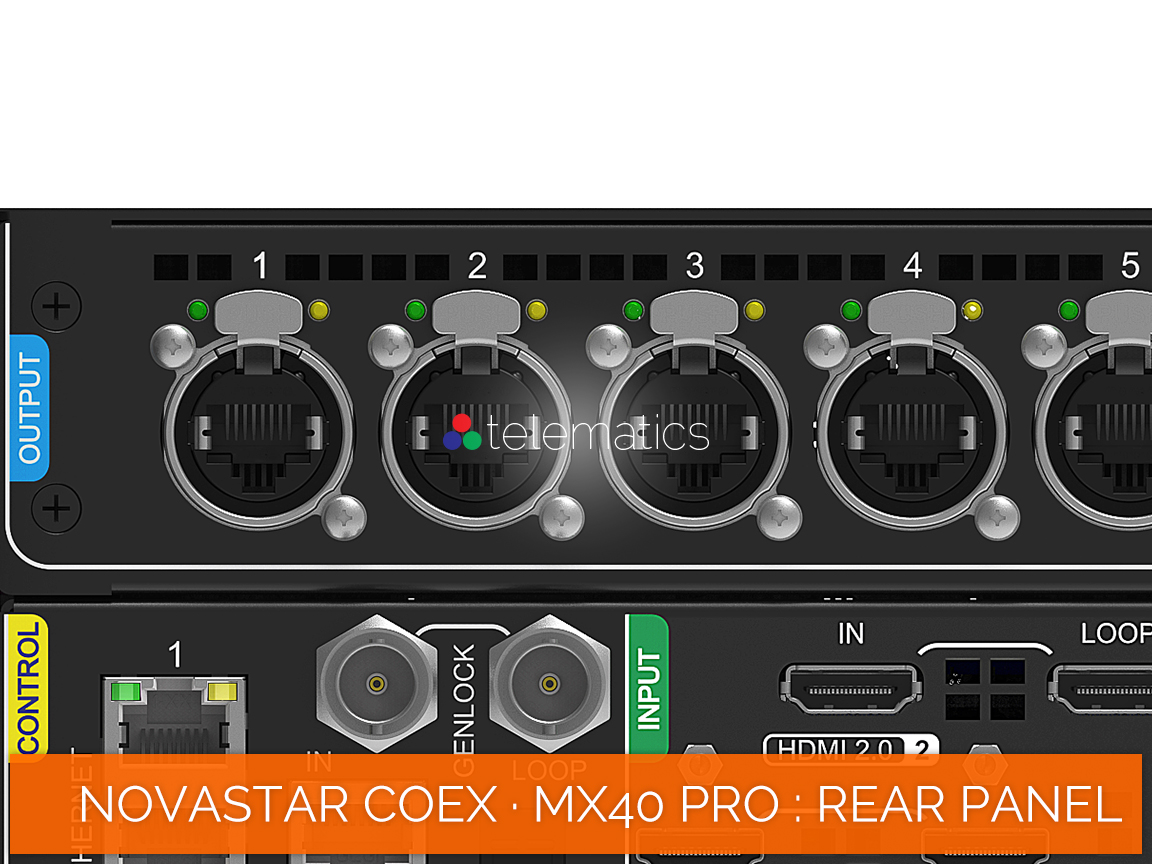

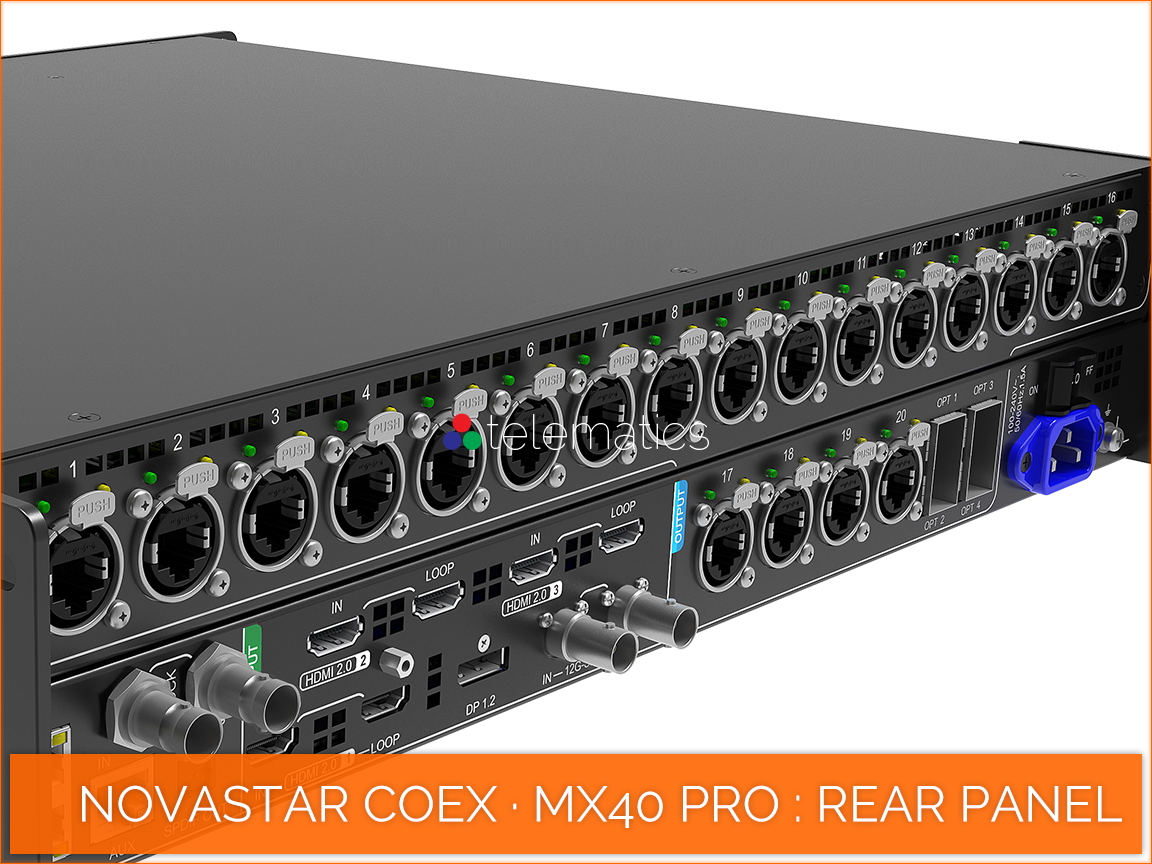

Rear Panel
  • · 325,000 · 12-bit
  • · 480,000 · 10-bit
  • · 650,000 · 8-bit
· output · ethernet
NovaStar COEX · MX40 Pro · Ethernet maximum load
per port
    (20)

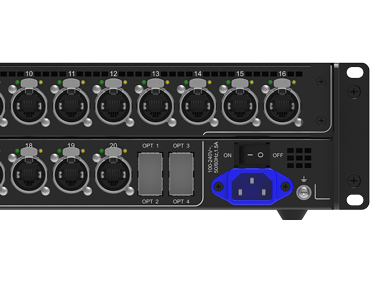

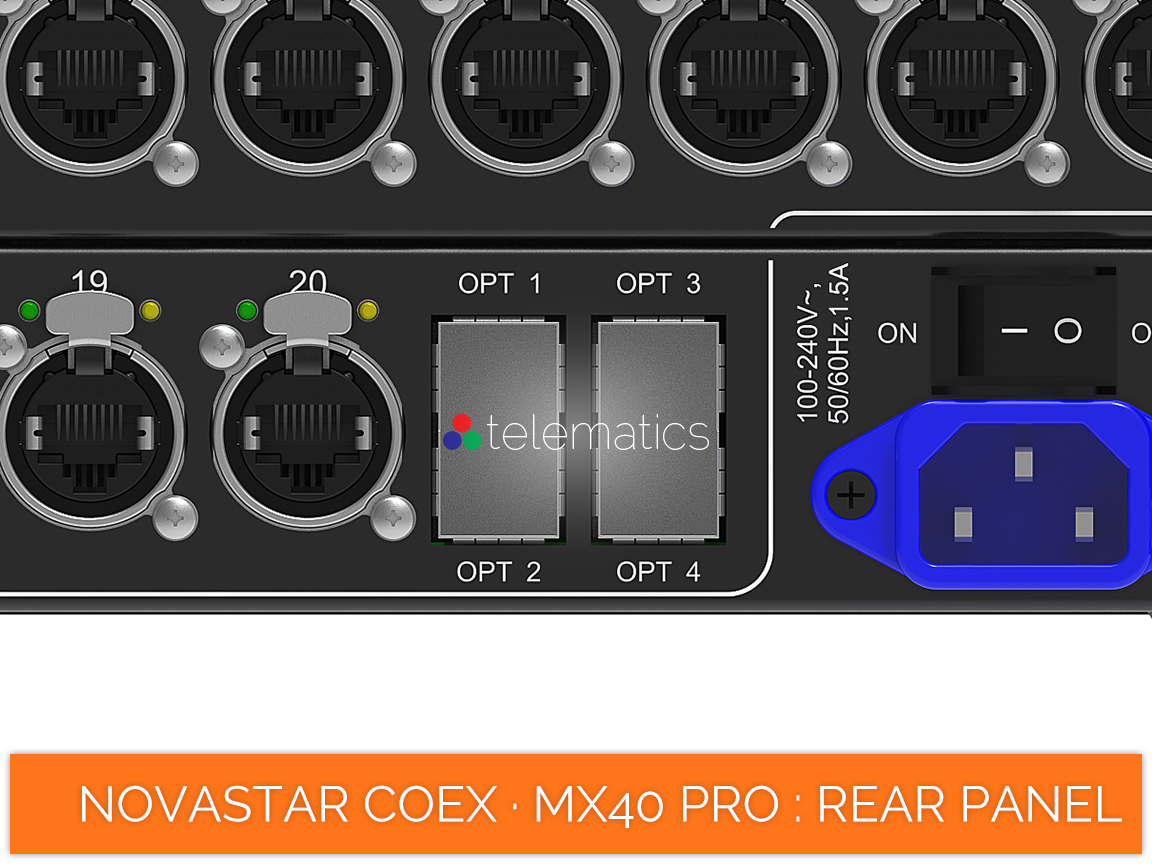

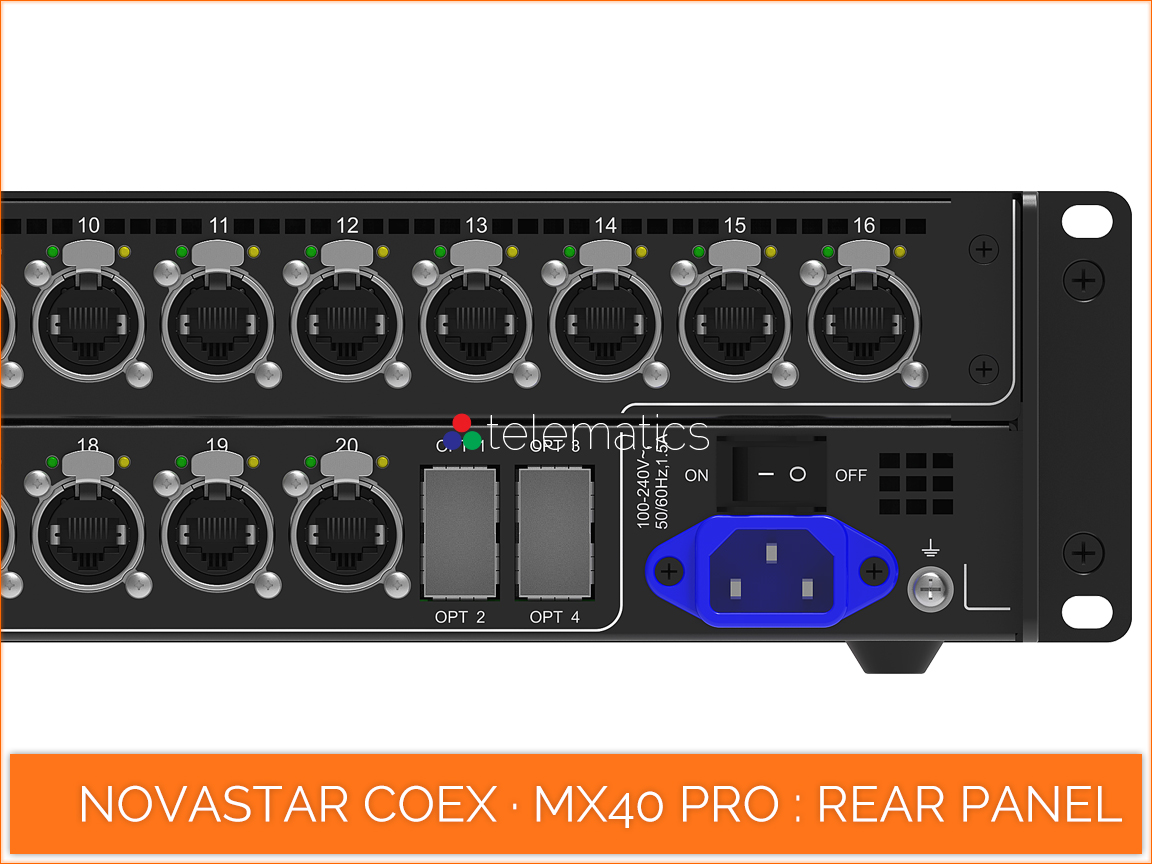

Rear Panel
  • · opt (1) · ports 1 to 10
  • · opt (2) · ports 11 to 20
  • · opt (3) · copy channel
  • · opt (4) · copy channel
· output · optical fiber
NovaStar COEX · MX40 Pro · Optical Fiber 10g optical ports   (4)

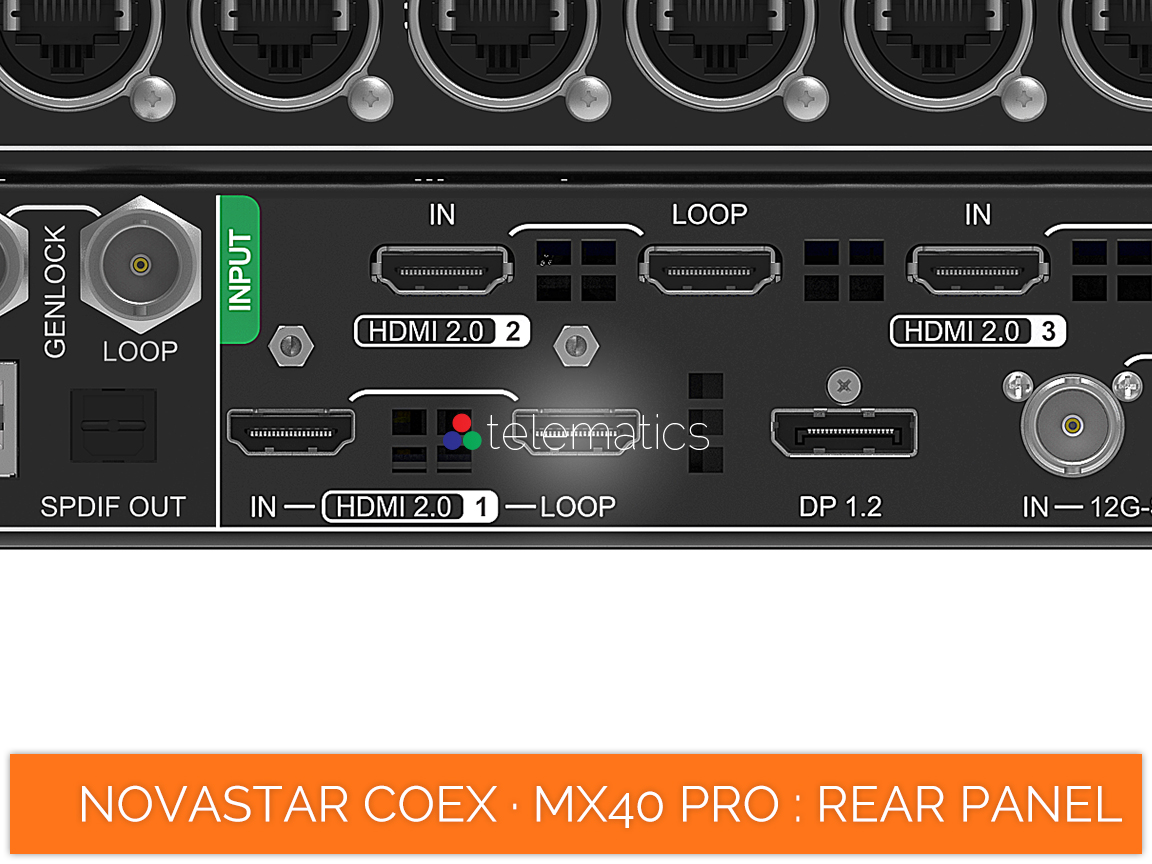

Rear Panel
  • · loop through
· output · hdmi 2.0 (1)
NovaStar COEX · MX40 Pro · HDMI 2.0 loop through

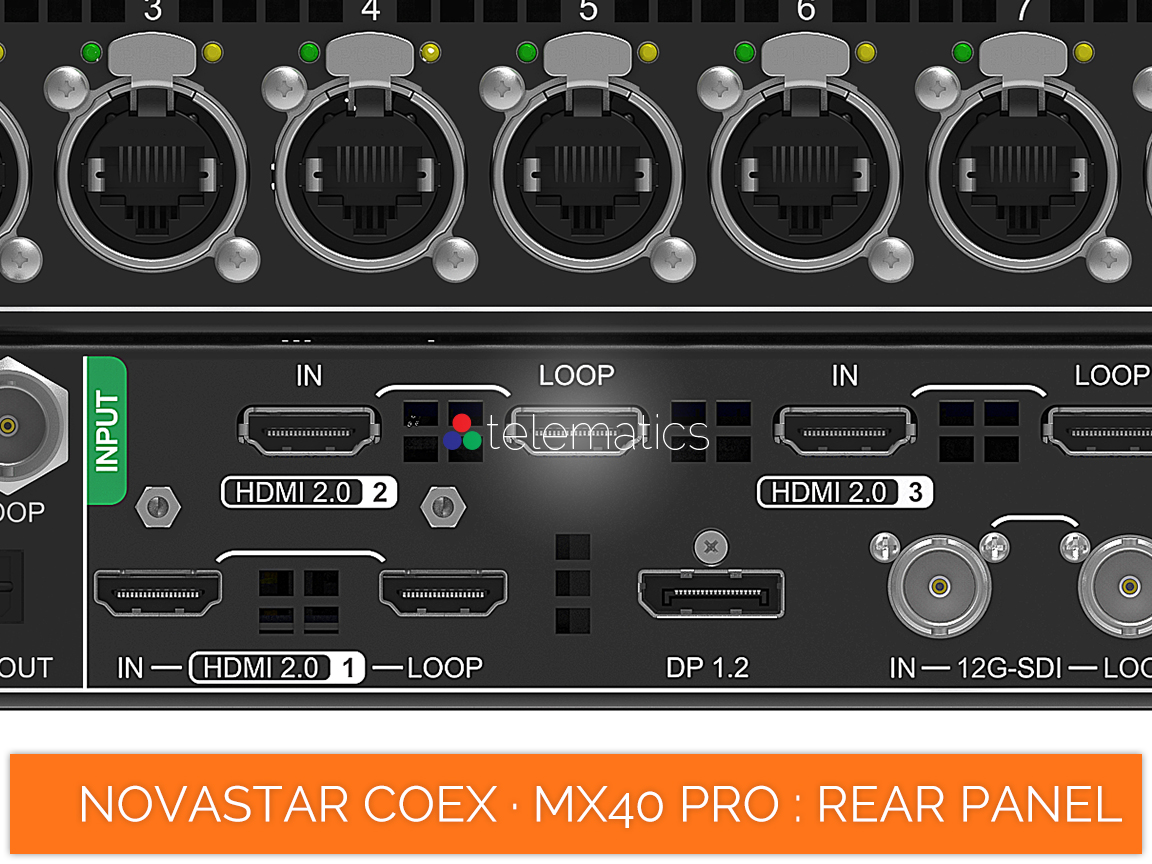

Rear Panel
  • · loop through
· output · hdmi 2.0 (2)
NovaStar COEX · MX40 Pro · HDMI 2.0 loop through

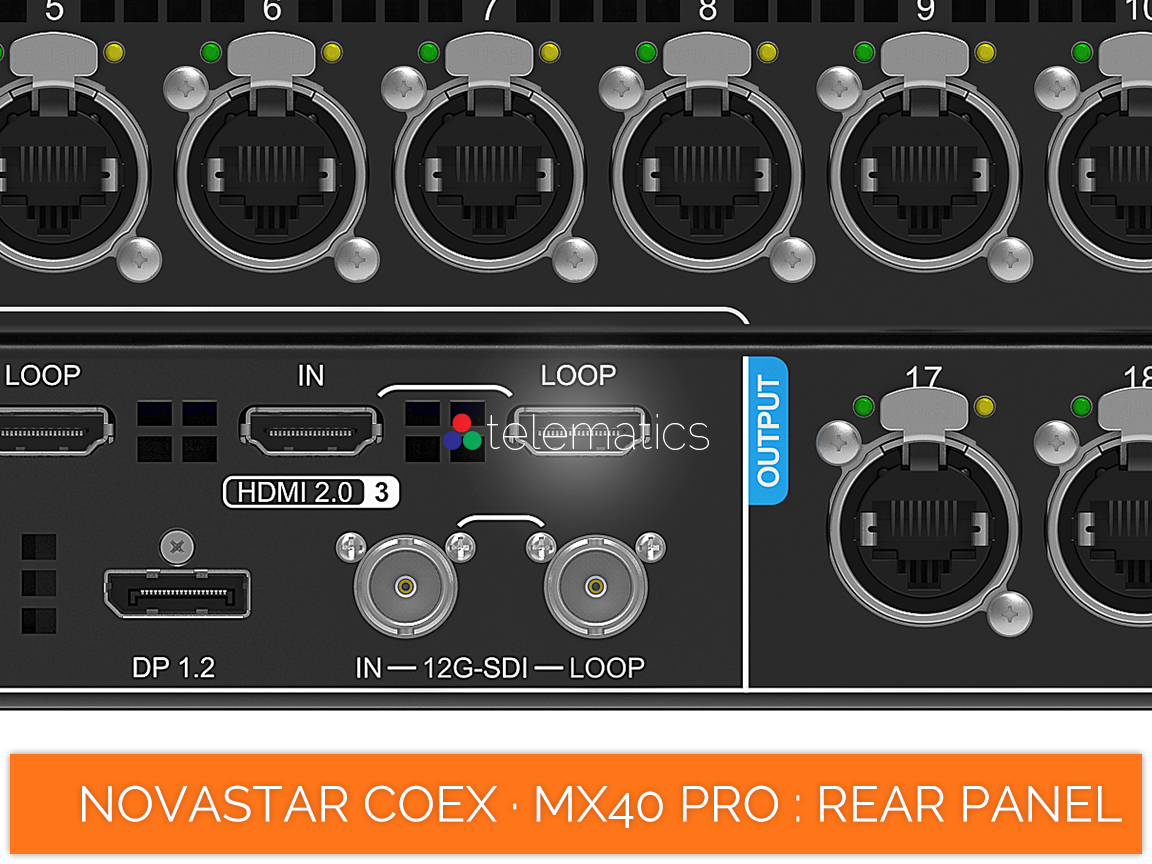

Rear Panel
  • · loop through
· output · hdmi 2.0 (3)
NovaStar COEX · MX40 Pro · HDMI 2.0 loop through
Rear Panel
  • · loop through
· output · 12g-sdi
NovaStar COEX · MX40 Pro · 12G-SDI loop through

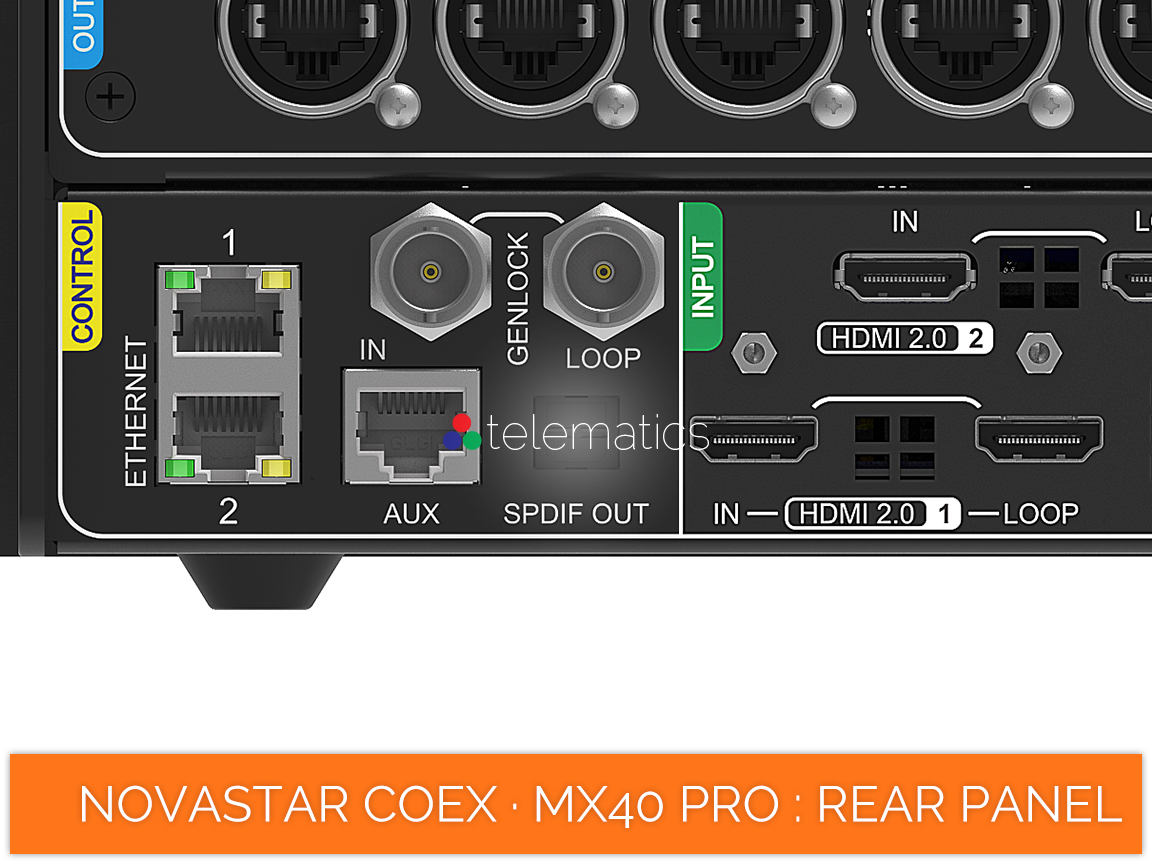

Rear Panel
  • · digital audio output
  • · reserved
· output · s/pdif out
NovaStar COEX · MX40 Pro · S/PDIF digital audio

Cabinet
Dimensions
  • · physical specifications
  • · metric · imperial
· width
19.00''0.4826
Dimensions
  • · physical specifications
  • · metric · imperial
· height
3.71''0.0942
Dimensions
  • · physical specifications
  • · metric · imperial
· depth
18.38''0.4670
Dimensions
  • · one rack unit
  • · 482.60 mm · 19.00"
  • · 44.45 mm · 1.75"
· rack units
0.0942 / 0.044453.0

Dimensions
  • · physical specifications
  • · metric · imperial
· weight
16.53 lbs7.50

IP Code
  • · ingress protection
  • · first digit · solids
  • · (2) · >12.50 mm
  • · second digit · liquids
  • · (0) · no protection
· front · rear
ingress protection20 · 20

Power
  • · power consumption
· watts
maximum use draw95
Power
  • · power input
· voltage · amps
alternating current
1.5 amps
100 ⌁ 240

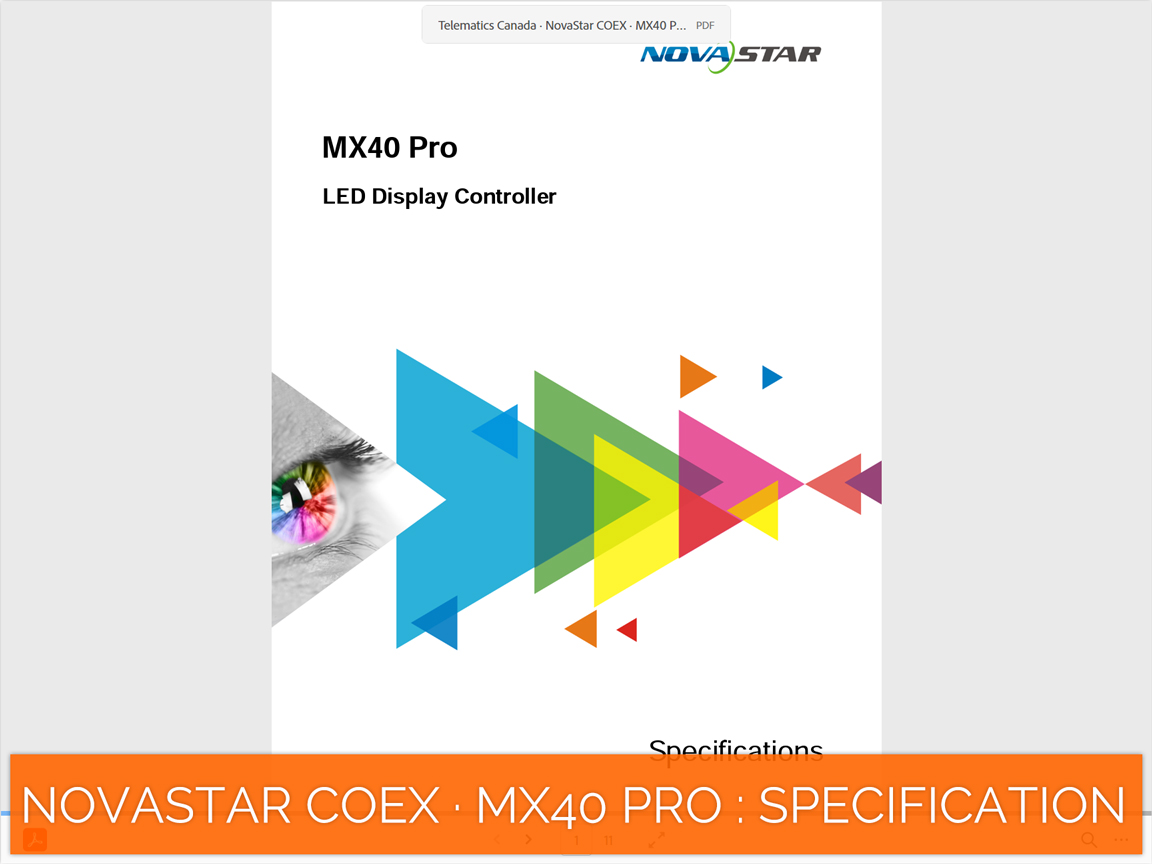

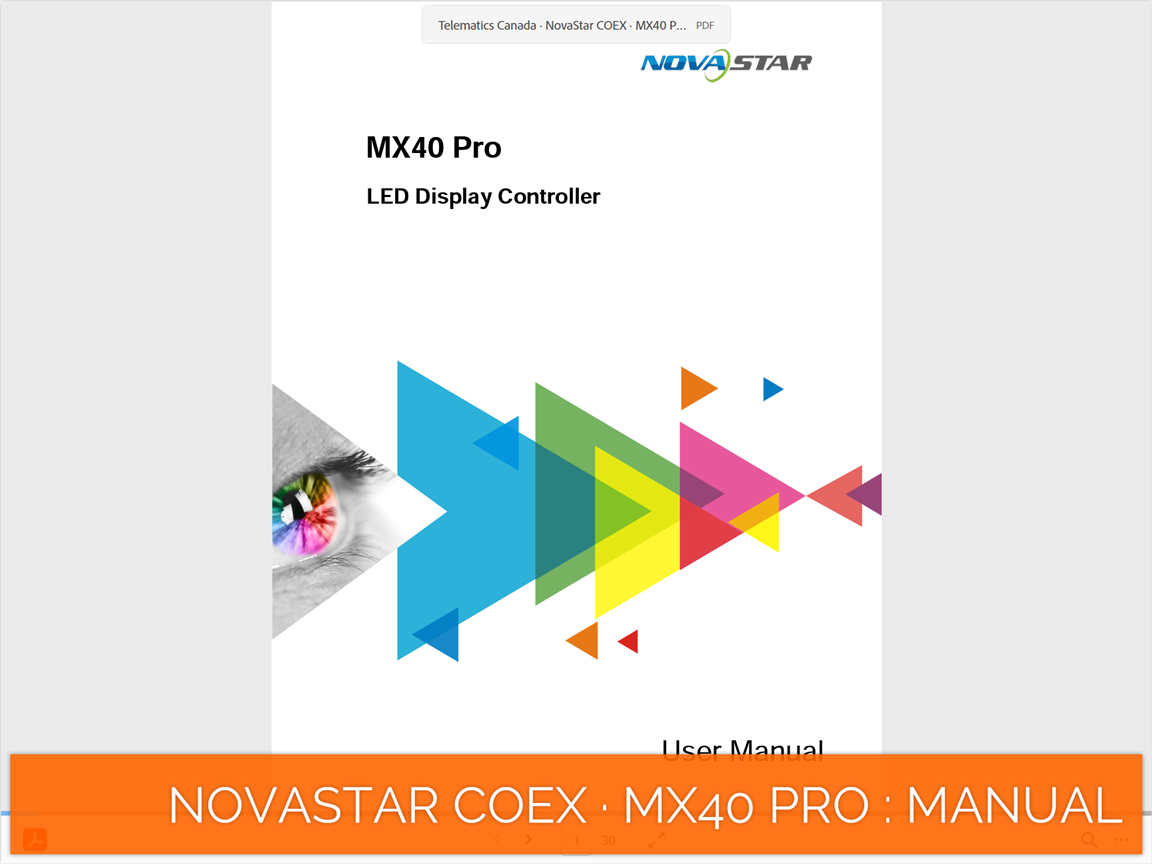

PDF · 2 of 2

Fine Print
Warranty · factory standard NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · ce · fcc Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch · MX40 Pro

So here's the deal...
Life without love is like a tree without blossoms or fruit. ~ Khalil Gibran

About Telematics Canada

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels and cabinets, transparent displays and interactive video floors, and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

About NovaStar

NovaStar is the worldwide leader in control systems for direct-view LED systems, both synchronous and asynchronous, plus high-performance calibration solutions and cost-free VNNOX + CARE cloud-based media publishing, scheduling and display monitoring.

The Beijing Olympic Games, Tienanmen Celebration for the 60th Anniversary on National Day,Shanghai World Expo, Guangzhou Asian Games, Xi'an International Horticultural Expo, Games for University Students and other large-scale events all relied on control systems are provided by Nova.

Through constant innovation, NovaStar now holds more than 20 proprietary intellectual property rights in LED display control, cloud computing and other fields.

NovaStar has been awarded the Xi'an Award for Science and Technology and the Shaanxi Award for Science and Technology.

Our Clients

For more than 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Amazing Showcase · MX40 Pro

A picture is worth a thousand clicks.
Work like you don't need the money. Love like you've never been hurt. Dance like nobody's watching. ~ Satchel Paige
Photo Library · COEX · MX40 Pro · 3 of 9
NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

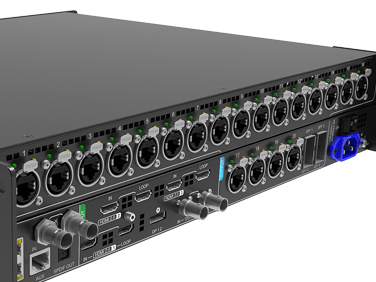

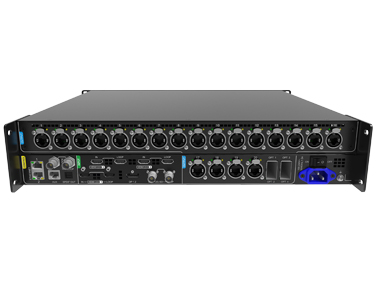

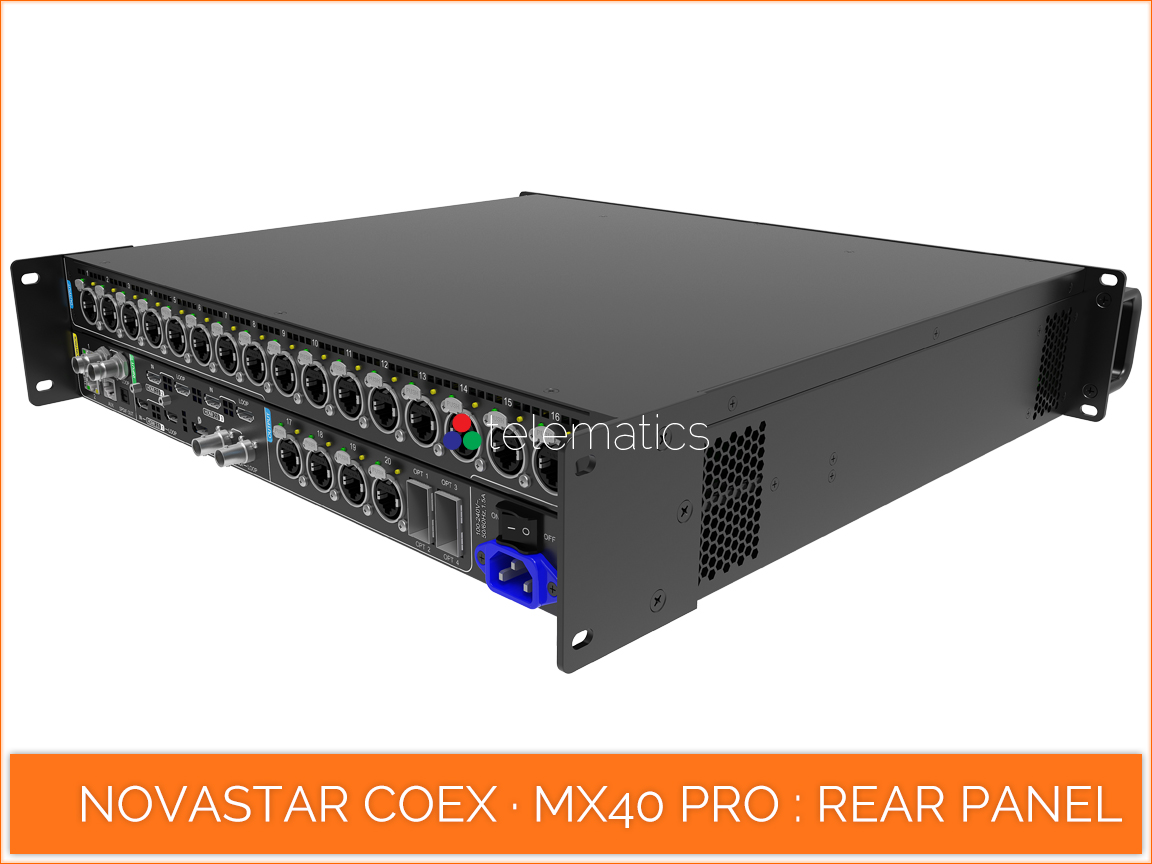

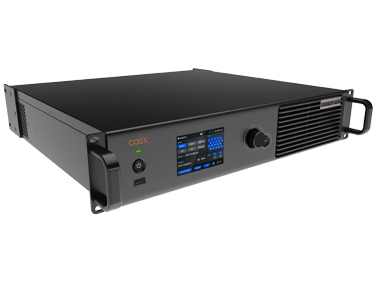

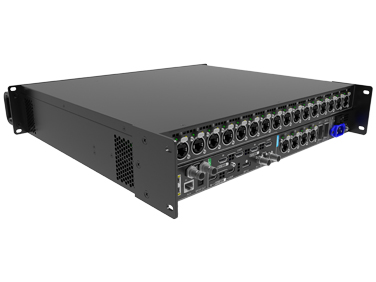

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit

NovaStar COEX · MX40 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · MX40 Pro

direct view LED display controller

20 ethernet ports · 12/10/8-bit

4 × 4k layers · 8,800,000 pixels

vision management platform software

priced at $7149/unit


Video Library · MX40 Pro · VMP · 2 of 2
NovaStar MX40 · Vision Management Platform
Creativity Unleashed
NovaStar MX40 · Vision Management Platform
Creativity Unleashed · Overview

Video Library · MX40 Pro · VMP · Tutorials · 3 of 16
NovaStar MX40 · Vision Management Platform
Configuration · (01) Register Virtual Device
NovaStar MX40 · Vision Management Platform
Configuration · (02) Input Source
NovaStar MX40 · Vision Management Platform
Configuration · (03) Setup Screen
NovaStar MX40 · Vision Management Platform
Configuration · (04) Swift Layout
NovaStar MX40 · Vision Management Platform
Configuration · (05) Tile Painter
NovaStar MX40 · Vision Management Platform
Configuration · (06) Backup Settings
NovaStar MX40 · Vision Management Platform
Configuration · (07) Correcting Seams
NovaStar MX40 · Vision Management Platform
Configuration · (08) Correcting Multi-Batch
NovaStar MX40 · Vision Management Platform
Configuration · (09) Color Replacement
NovaStar MX40 · Vision Management Platform
Configuration · (10) 14CH Color Correction
NovaStar MX40 · Vision Management Platform
Configuration · (11) Adjust Curve
NovaStar MX40 · Vision Management Platform
Configuration · (12) Group Management
NovaStar MX40 · Vision Management Platform
Configuration · (13) Firmware Check
NovaStar MX40 · Vision Management Platform
Configuration · (14) 3D LUT
NovaStar MX40 · Vision Management Platform
Configuration · (15) Preset Management
NovaStar MX40 · Vision Management Platform
Configuration · (16) 3D Function Settings

Contact Telematics Canada

Politely awaiting your call. It's a Canadian thing...
We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu

Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
