The Art Of Control · NovaStar COEX · MX30

Keep your face always toward the sunshine - and shadows will fall behind you. ~ Walt Whitman

NovaStar COEX · MX30 · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost — NovaStar COEX · MX30

direct view LED display controller

10 ethernet ports · 10/8-bit

1 × 4k layers · 6,500,000 pixels

vision management platform software

priced at $2,199/unit

NovaStar COEX · MX30

1920 × 1080 + Armor + Vision Management Platform + (almost) everything else. Time to upgrade to 2023.

Pixels

MX30 loads 8192 horizontal or 7680 vertical pixels, for a total of up to 6,597,220 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

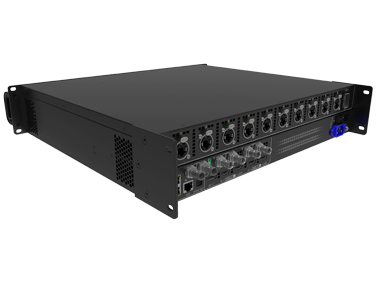

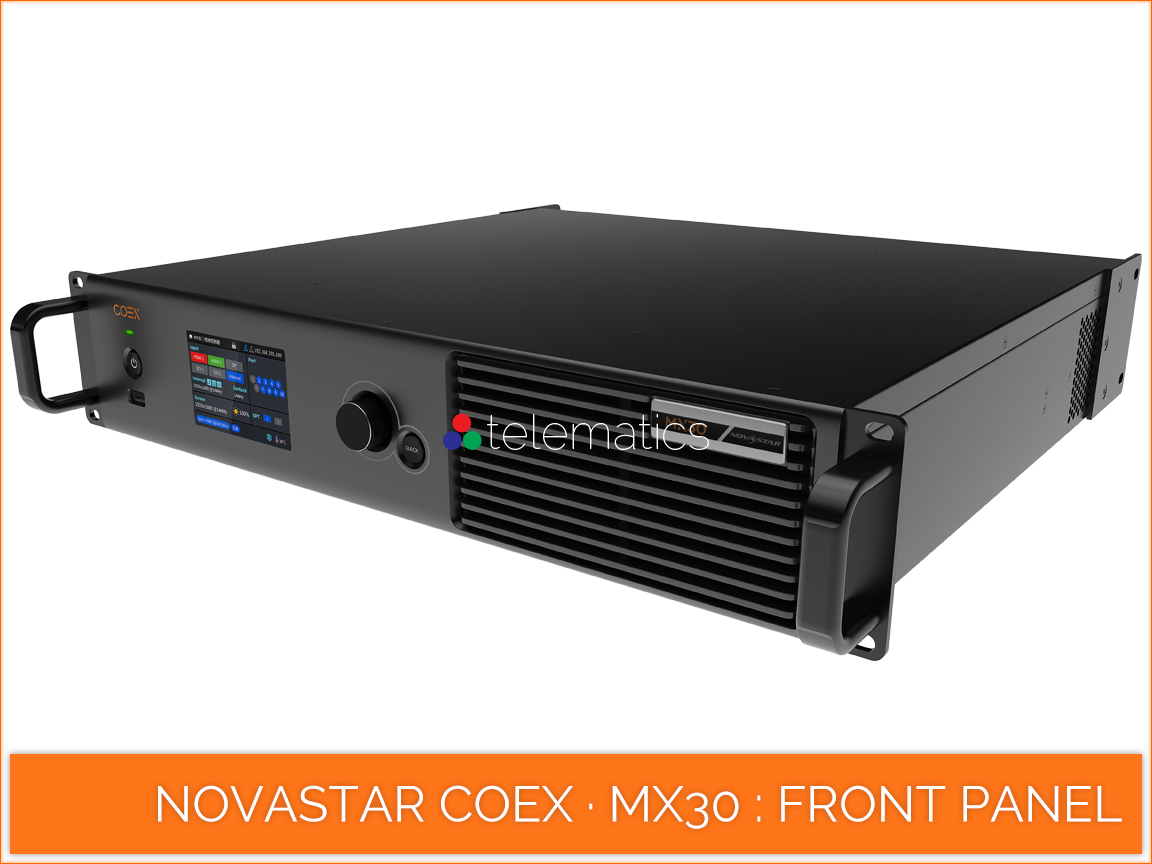

The NovaStar MX30 measures 482.6 millimeters wide and 466.7 millimeters deep which just means it nicely fits a standard 19" rack. Or you could option it up with a robust flight case that provides easy access to controls and cables, and keeps it safe and secure in transit and onsite.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10-bits of color depth and up to 240 Hz frame rates. 10G optical fibre output ports. 10 Gigabit Ethernet ports. A couple of HDMI ports and one 3G-SDI and one DisplayPort 1.1 and a pair of Bi-Level and Tri-Level supporting Genlock signal connectors. Whew.

Power

Rated power consumption maxes out at 55 watts and 1.5 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at just above silent.

Installation

NovaStar's MX30 connects to your LED display through up to 10 Gigabit Ethernet ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX. Cascade control of multiple MX40 Pro controllers with the built-in network switch.

Specifications · MX30

There is nothing permanent except change. ~ Heraclitus

Series ^controller		MX30	·	·	·	·	·

Price ^{usd per unit}
Series MX30 · 6,597,220 pixels · 10 ethernet ports · 3 layers · 10/8-bit · vmp software cost : unit · synchronous	primary controller backup · cascade$2,199

VMP · next generation software · windows · osx · intuitive · efficient · energy saving cost : zero · vision management platform	download windows · osx

VNNOX Media · edit · schedule · remote publishing · detailed logs cost : zero · content	apply for account zero cost
VNNOX Care · condition monitoring · operation history · cloud backup cost : zero · monitoring	apply for account zero cost

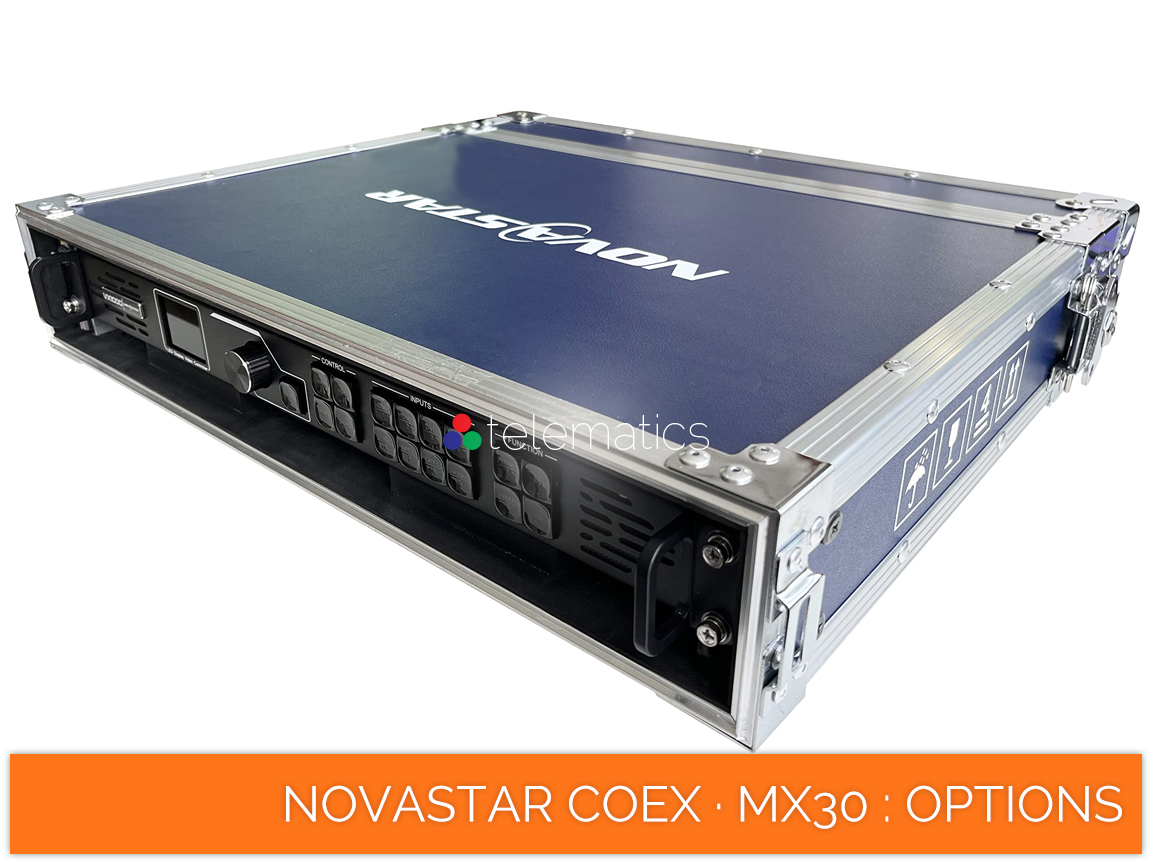

Options · custom case · full panel access · cable storage cost : unit · hard case		impact resistant$ 300

Pixels
Loading · 10/8-bit · 8,192 × 1,080^@60Hz · width · maximum	horizontal8,192
Loading · 10/8-bit · 1,080 × 7,680^@60Hz · height · maximum	vertical8,192
Loading · 10/8-bit · 8,192 × 1,080^@60Hz · 4,096 × 2,160^@60Hz · 2,048 × 4,320^@60Hz · combined · total	3 ports x 2,592,0008,847,360

Bit Depth · 10/8-bit · red · green · blue · rgb · 2¹⁰ · 1,073,741,824	1024 shades of rgb10
Bit Depth · 10/8-bit · red · green · blue · rgb · 2⁸ · 16,777,216	256 shades of rgb8

Capacity · frame rate · number of ports · pixel capacity · bit depth · 240 Hz	n × 432,000 · 12-bit n × 518,250 · 10-bit n × 648,000 · 8-bit648,000
Capacity · frame rate · number of ports · pixel capacity · bit depth · 144 Hz	n × 720,576 · 12-bit n × 864,441 · 10-bit n × 1,080,864 · 8-bit1,080,864
Capacity · frame rate · number of ports · pixel capacity · bit depth · 120 Hz	n × 864,000 · 12-bit n × 1,036,500 · 10-bit n × 1,296,000 · 8-bit1,296,000
Capacity · frame rate · number of ports · pixel capacity · bit depth · 60 Hz	n × 1,728,000 · 12-bit n × 2,073,000 · 10-bit n × 2,592,000 · 8-bit2,592,000

Interface

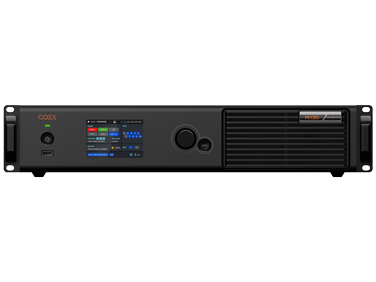

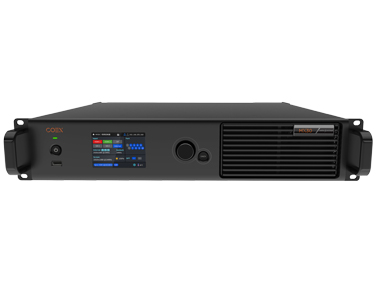

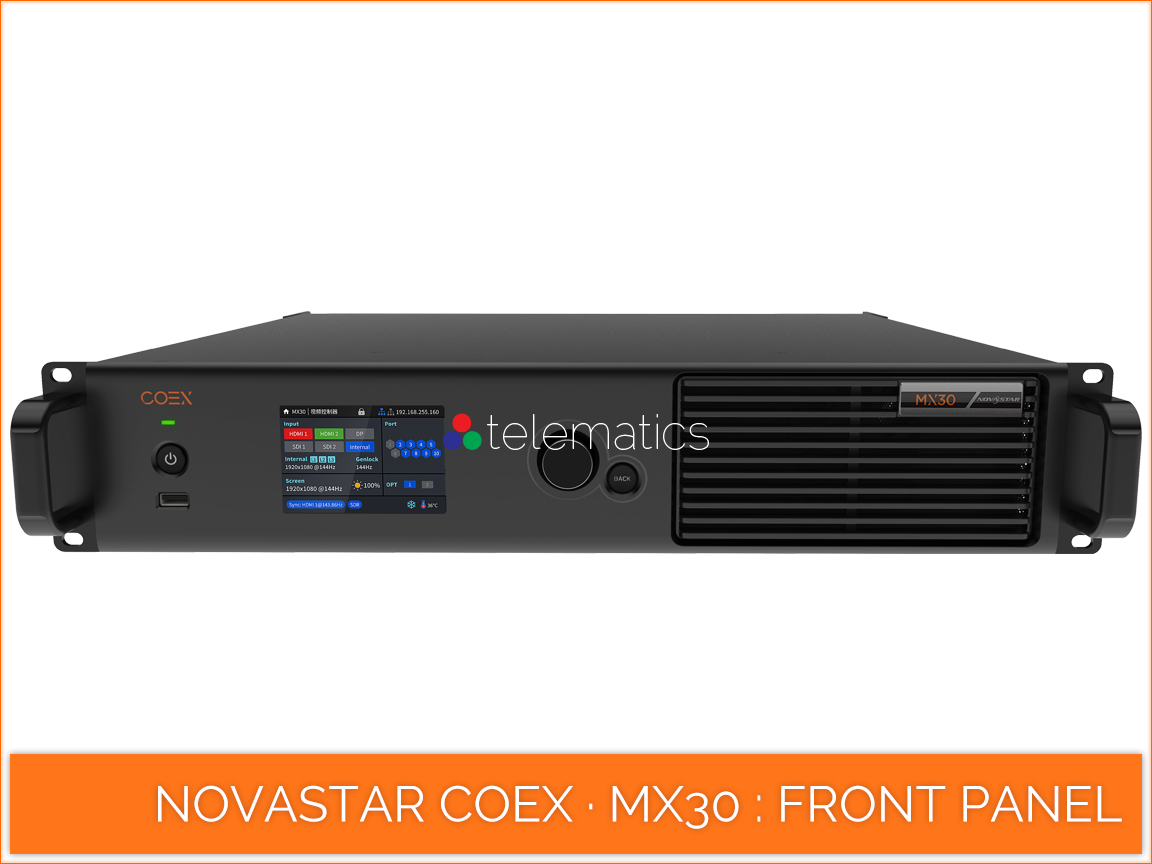

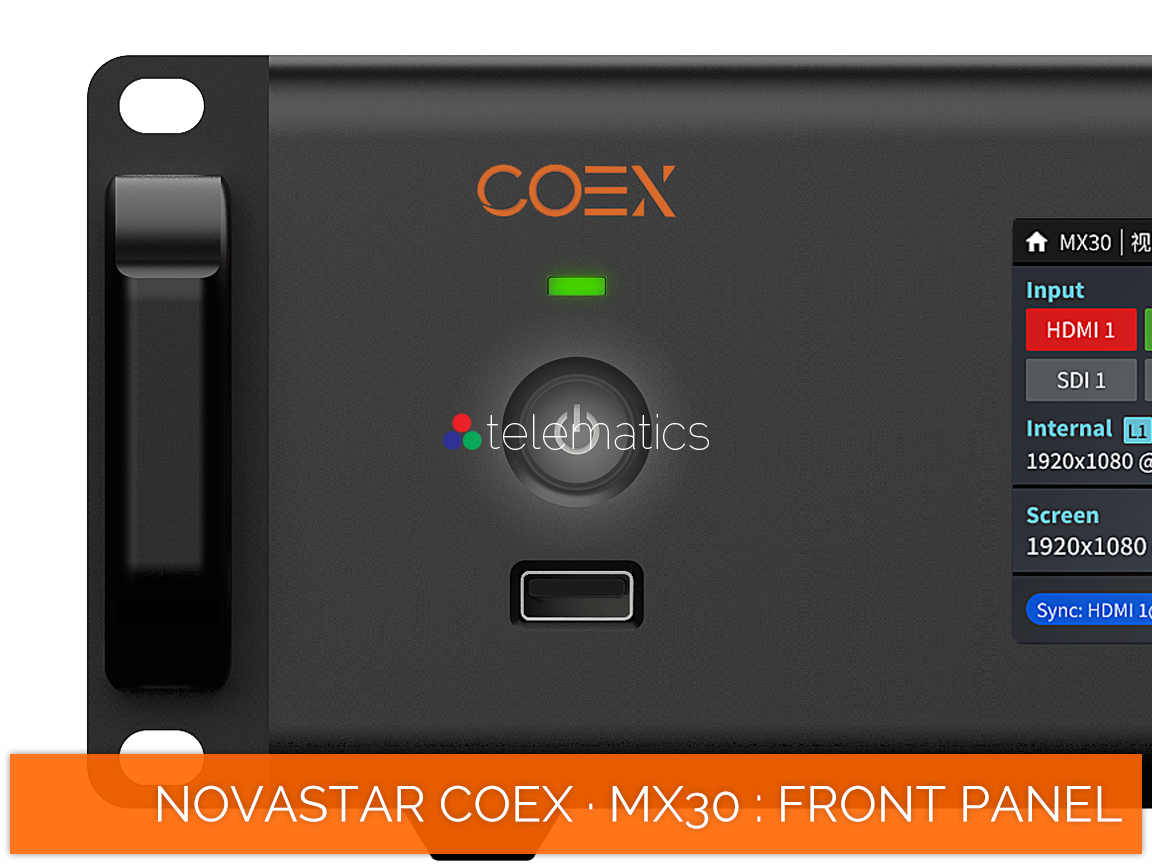

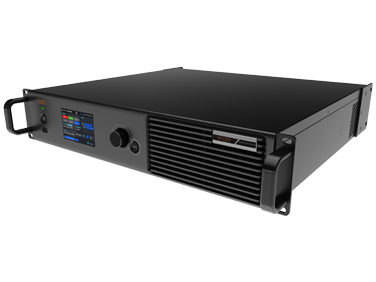

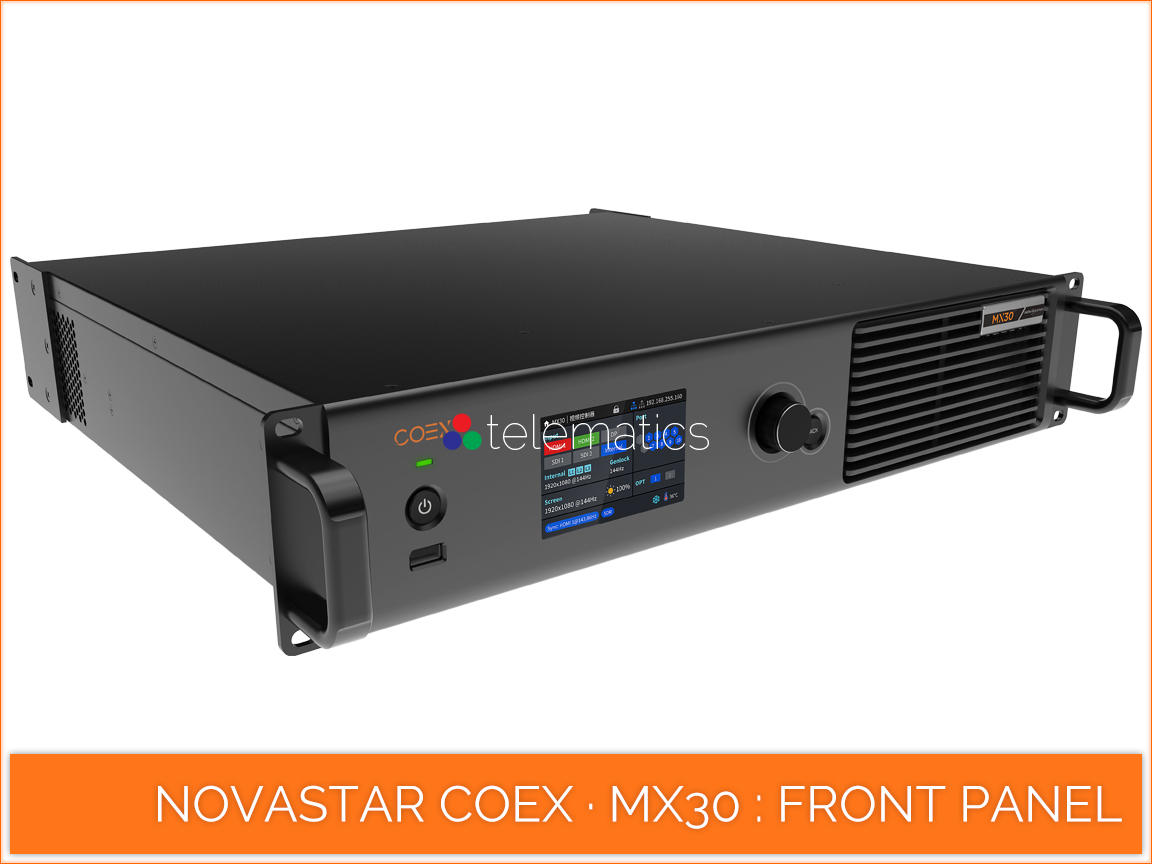

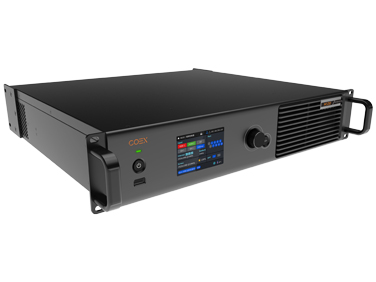

Front Panel · press · power on/off · hold 5 sec · restart · power		standby button🔲

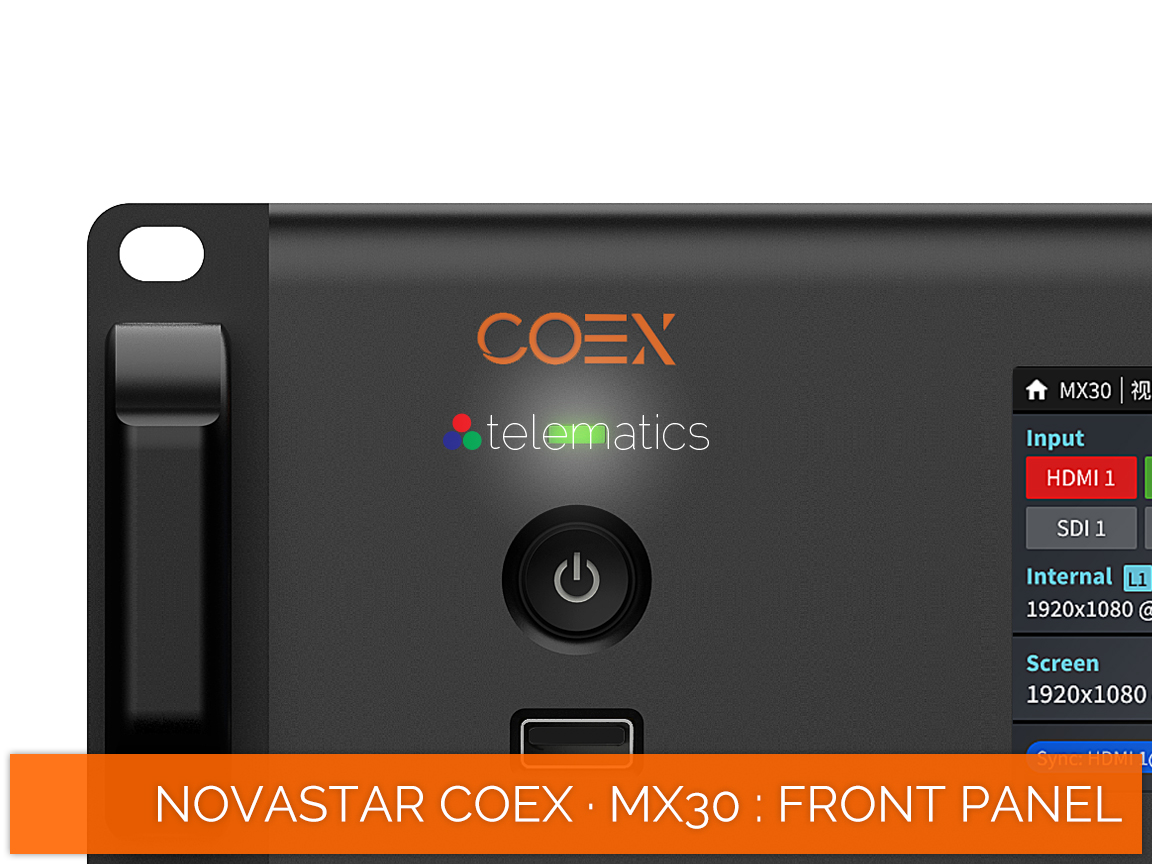

Front Panel · red · standby · blue · powered on · green · normal · flashing · abnormal · status		operating status🔲
Front Panel · device status · menus · sub menus · messages for settings · menu		3.5" lcd🔲

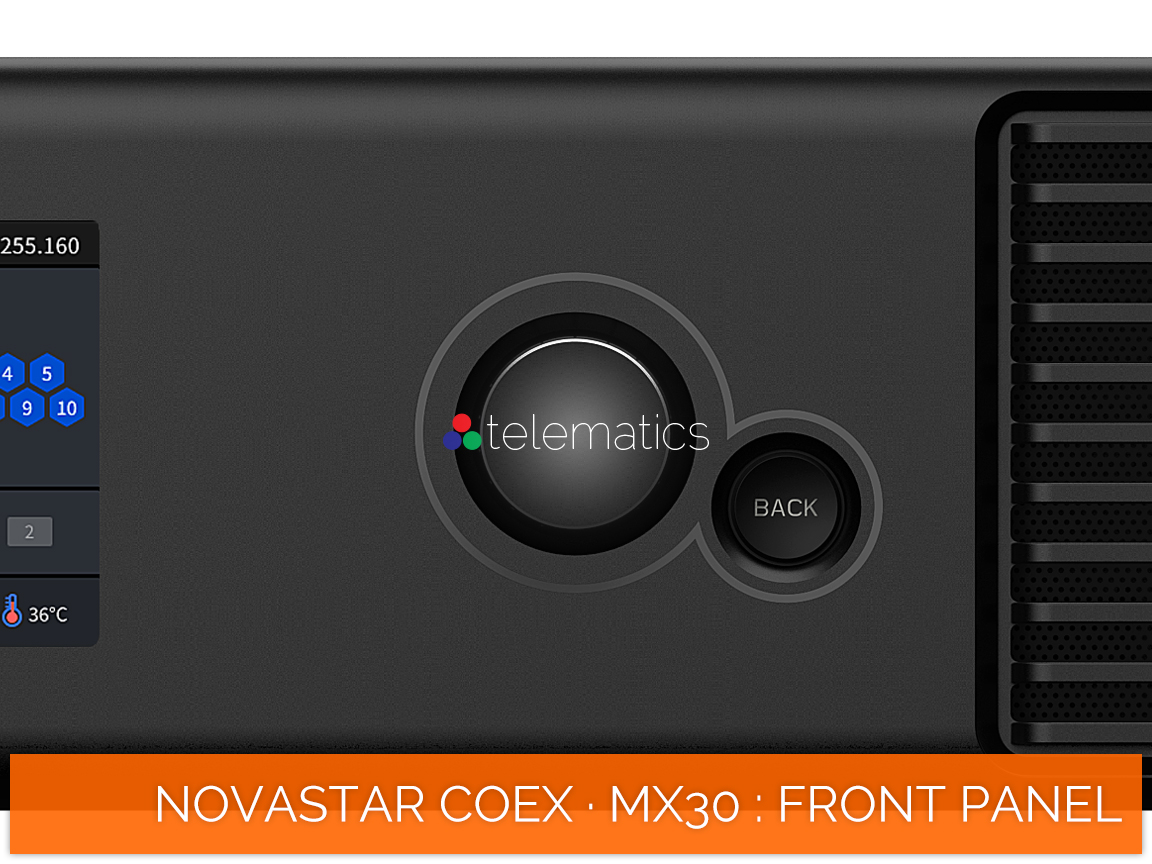

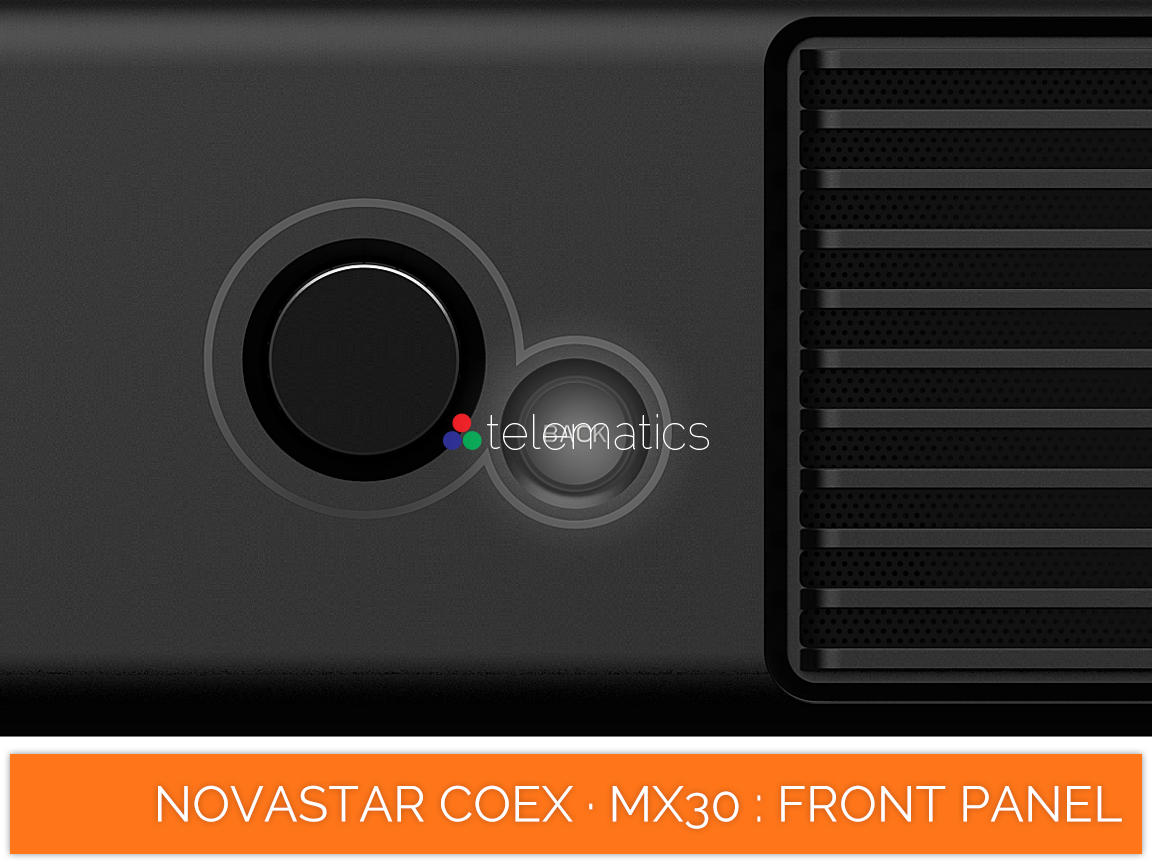

Front Panel · press to enter main screen · rotate to select menu item · rotate to adjust parameter · press to confirm · dial		press · rotate🔲
Front Panel · return to previous menu · cancel current operation · back		press🔲

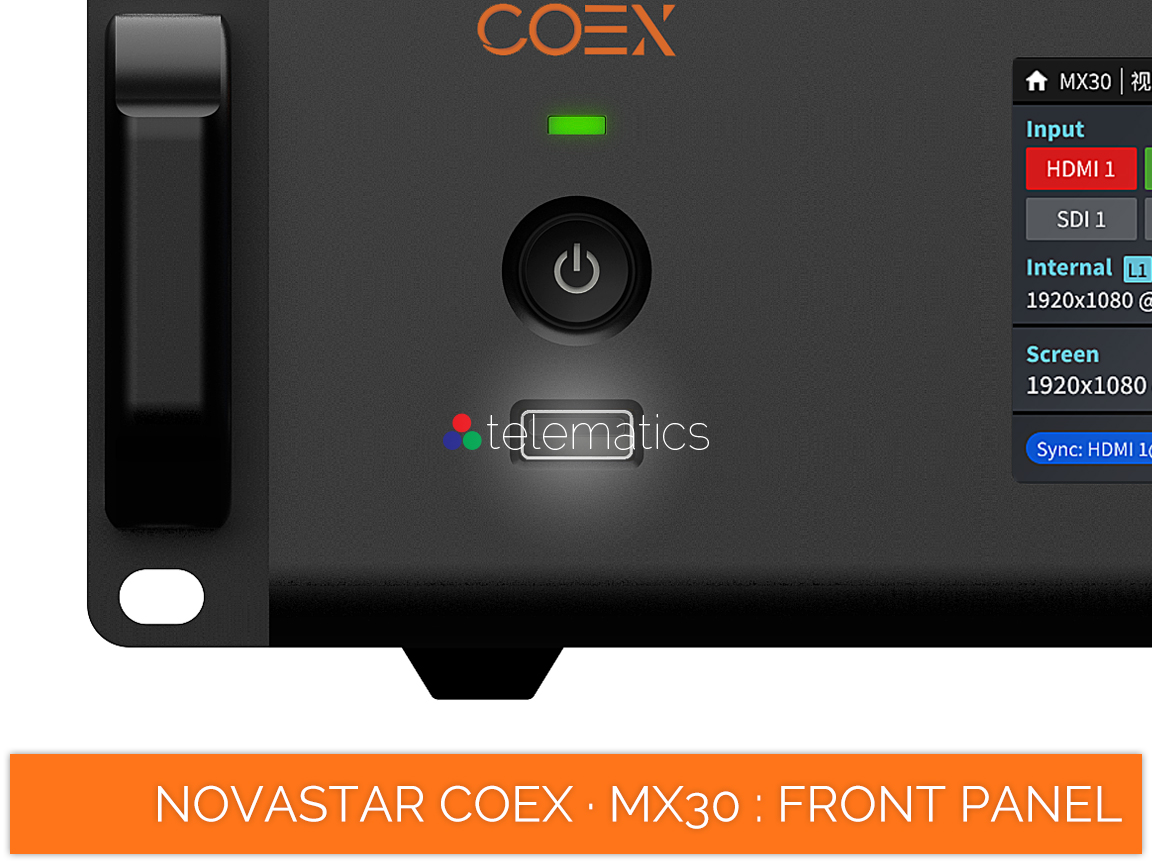

Front Panel · connect to usb drive · export diagnostic files · usb 2.0		ntfs · fat32⭗

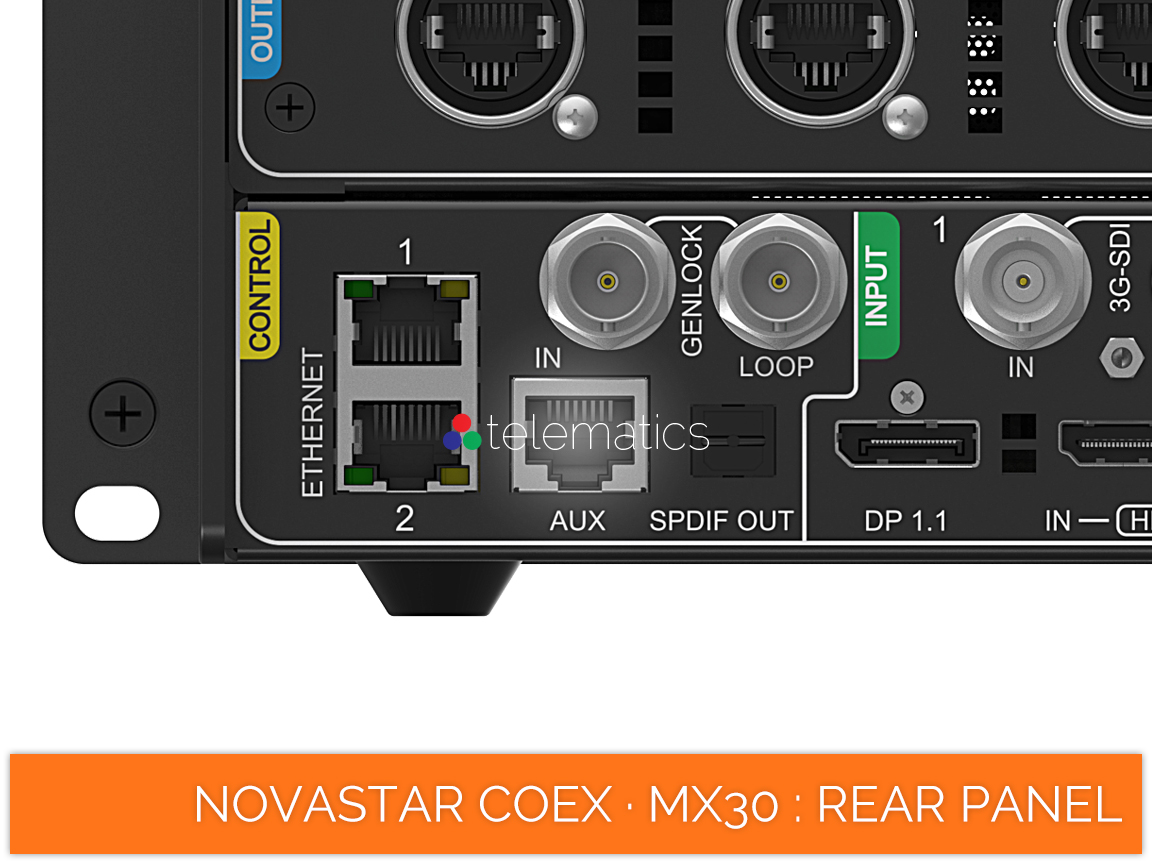

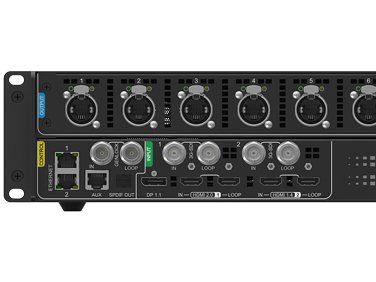

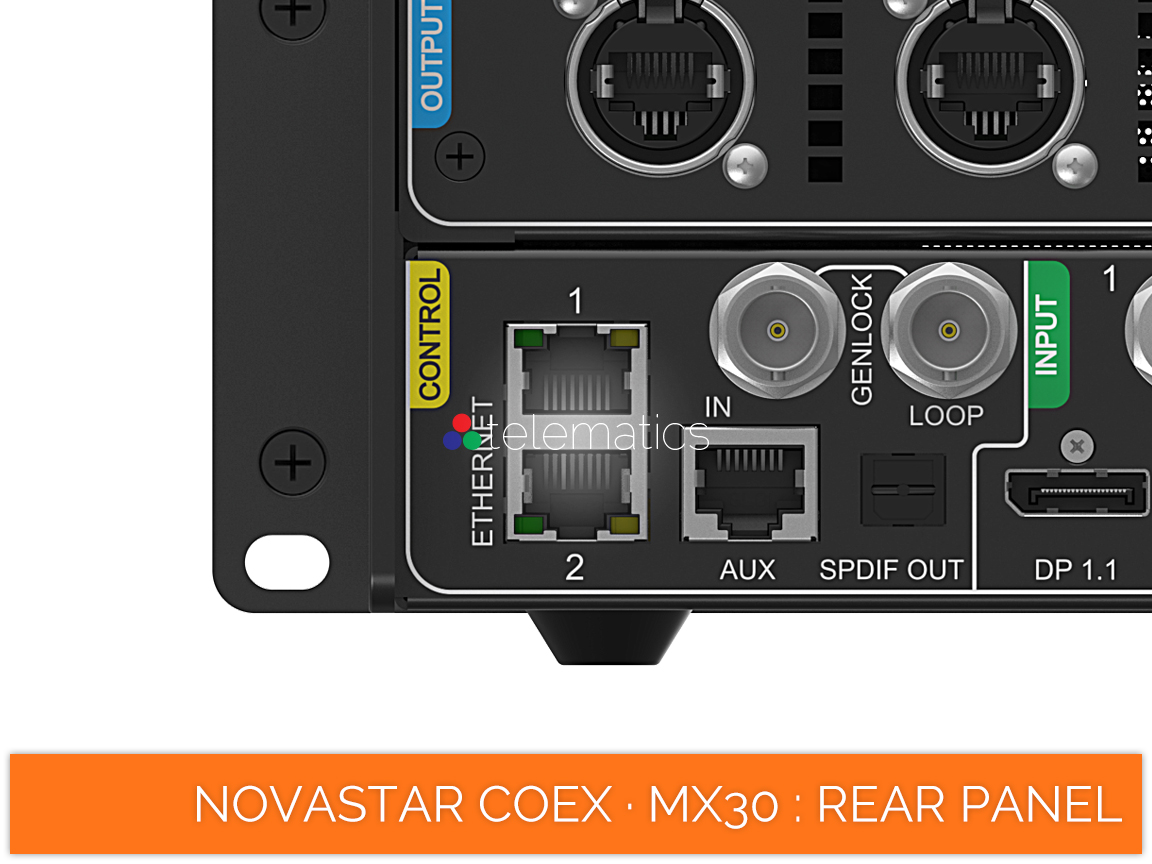

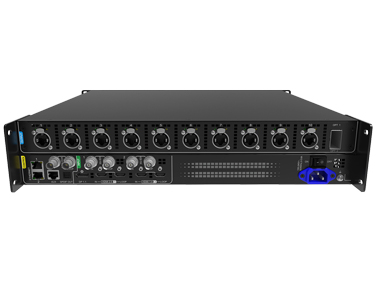

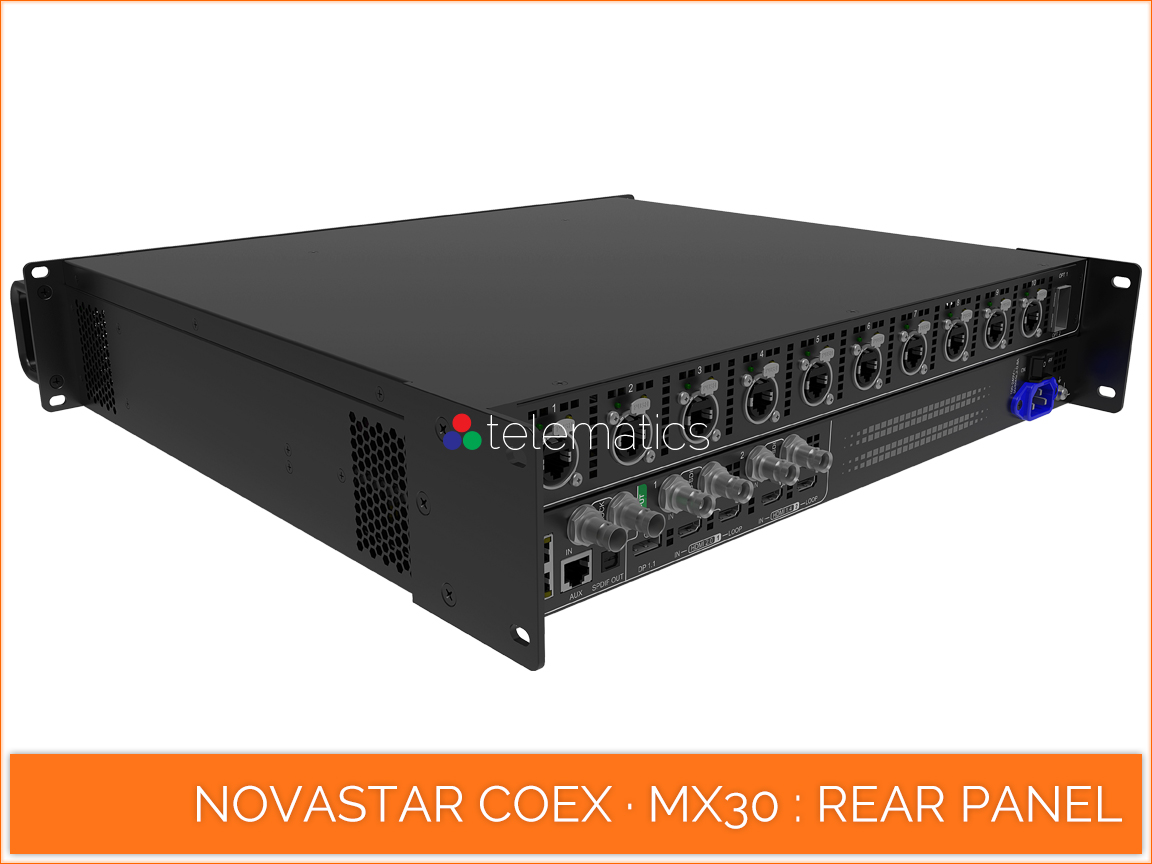

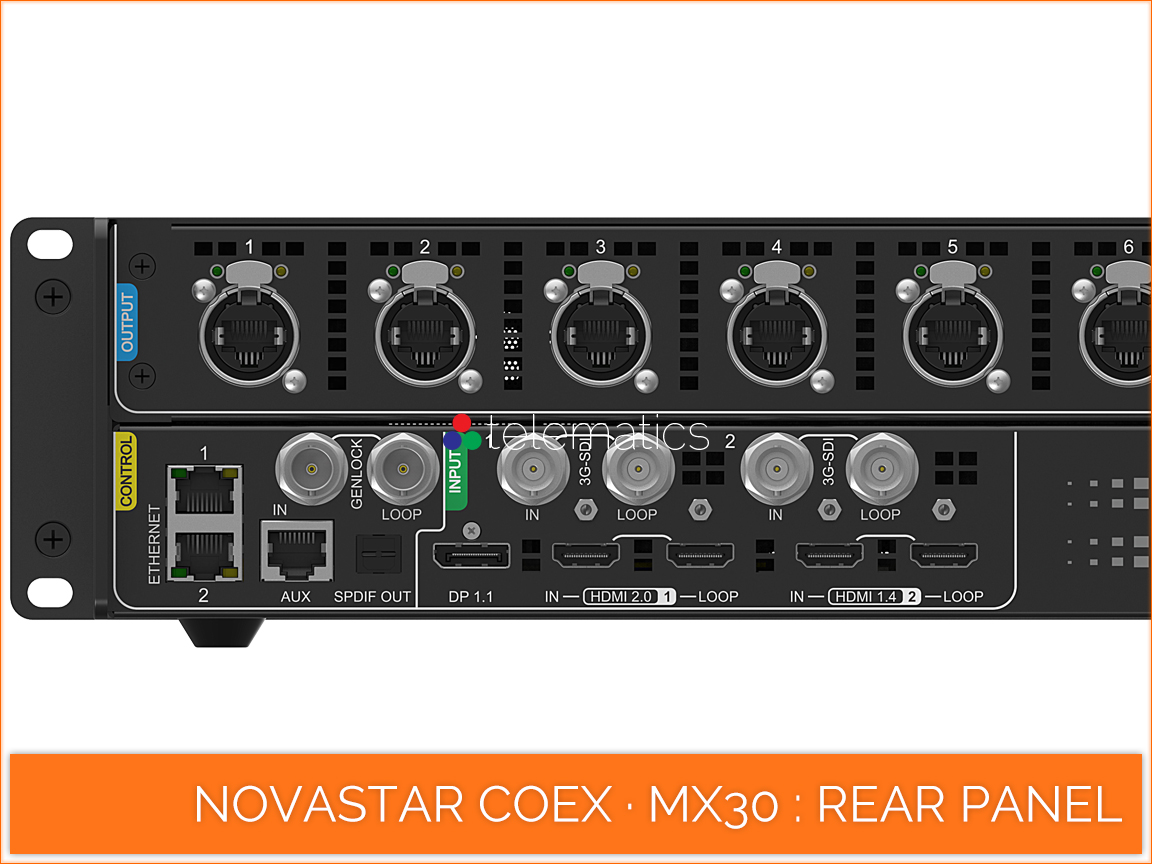

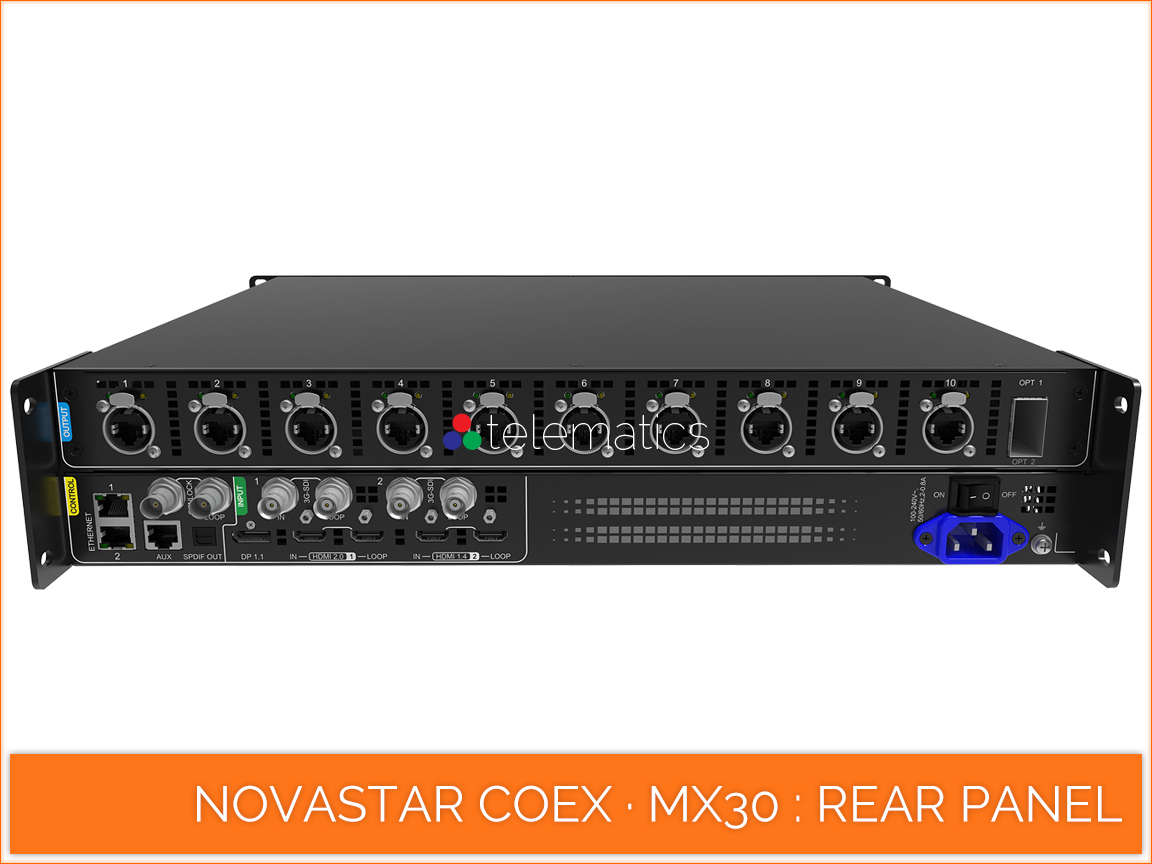

Rear Panel · tcp/ip · star topology · network switching function · connect to cpu · vision management platform · control · ethernet		gigabit ⭗⁽²⁾
Rear Panel · connect to central control · reserved · control · aux		rs232⭗

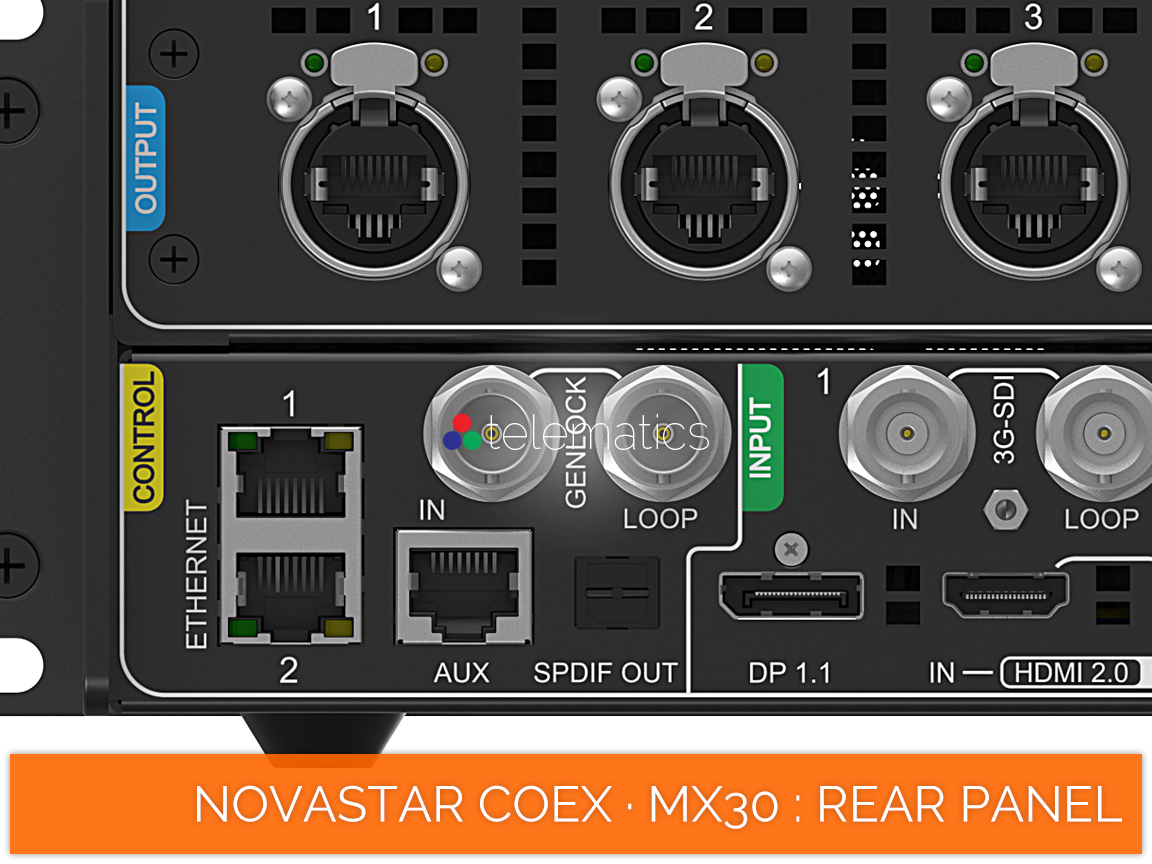

Rear Panel · bi-level · tri-level · in · accept sync · out · loop sync · cascade up to 20 devices · control · genlock		in · loop⭗

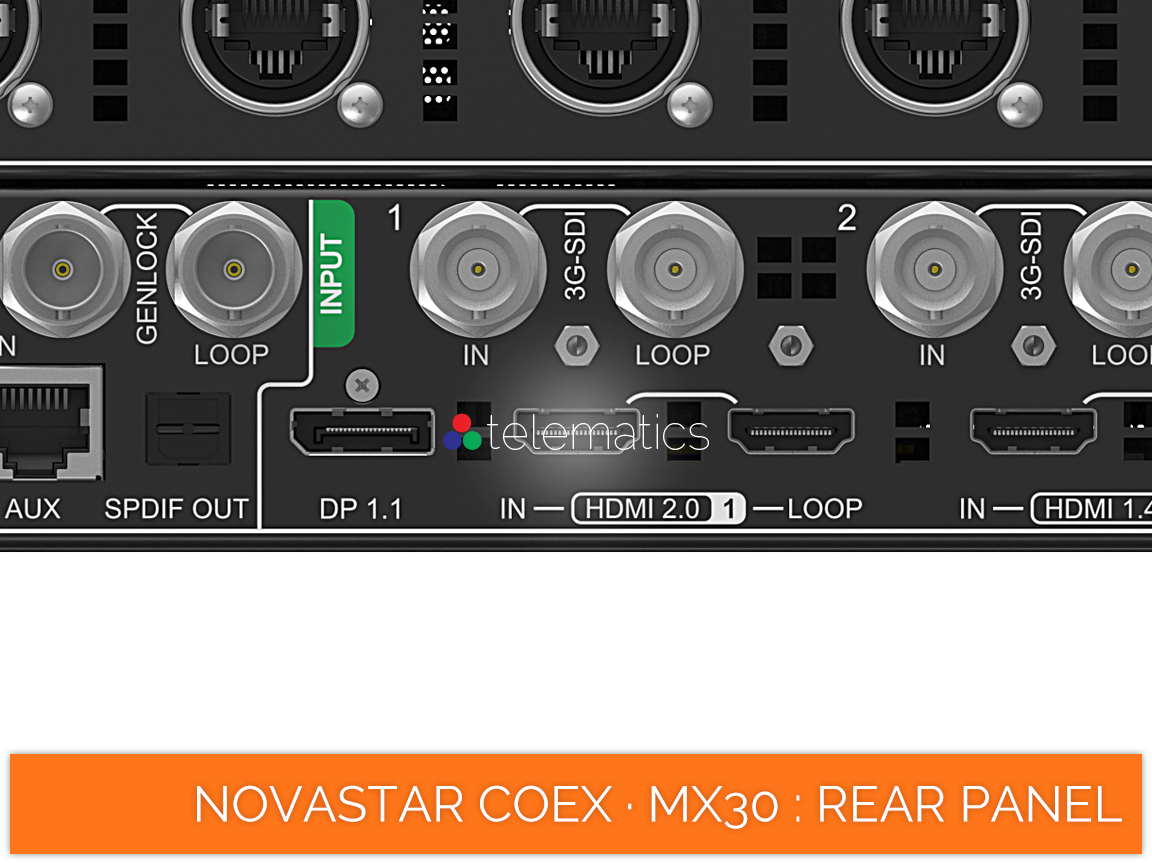

Rear Panel · 8192 × 1080^@60Hz · frame rates · 23.98 ~ 240 · edid · to 3840 × 2160^@60Hz · hdcp 2.2 compliant · hdr10 · hlg · input · hdmi 2.0		input · loop⭗

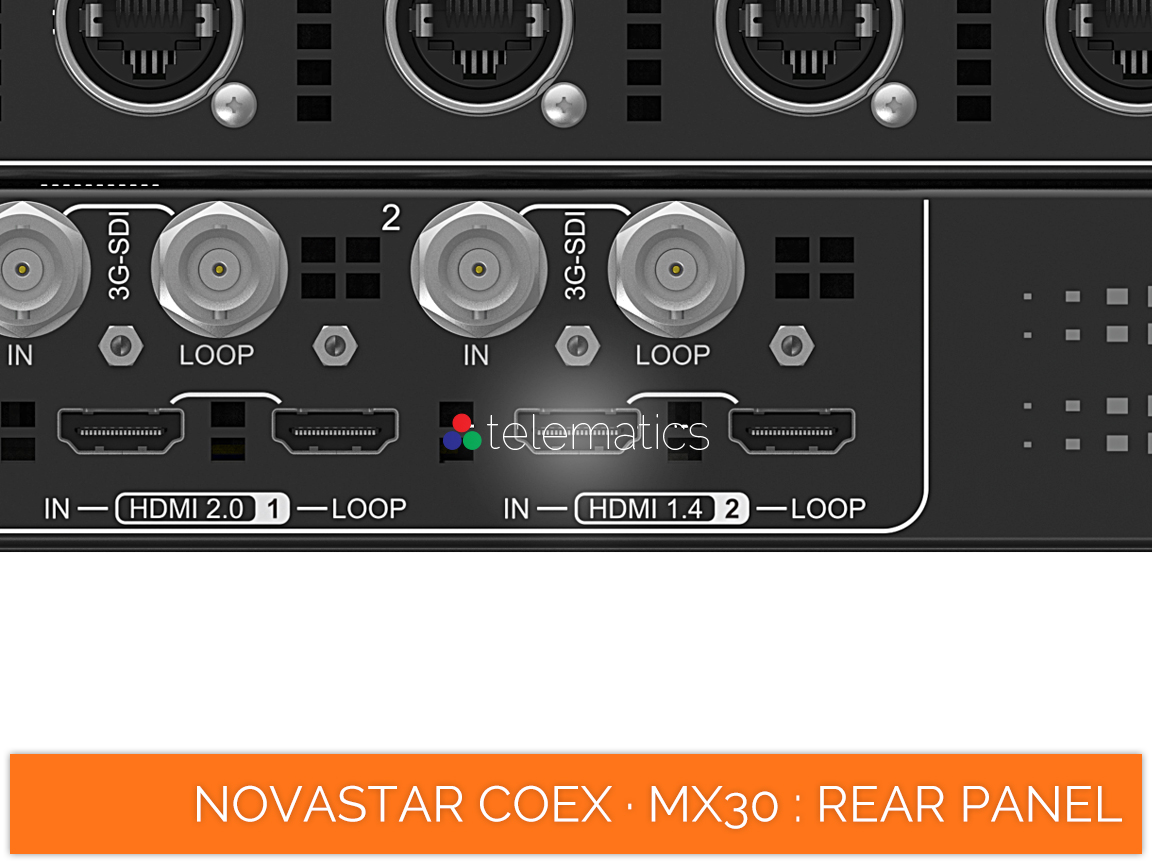

Rear Panel · 4096 × 1080^@60Hz · frame rates · 23.98 ~ 240 · edid · to 3840 × 1080^@60Hz · hdcp 2.2 compliant · input · hdmi 1.4		input · loop⭗

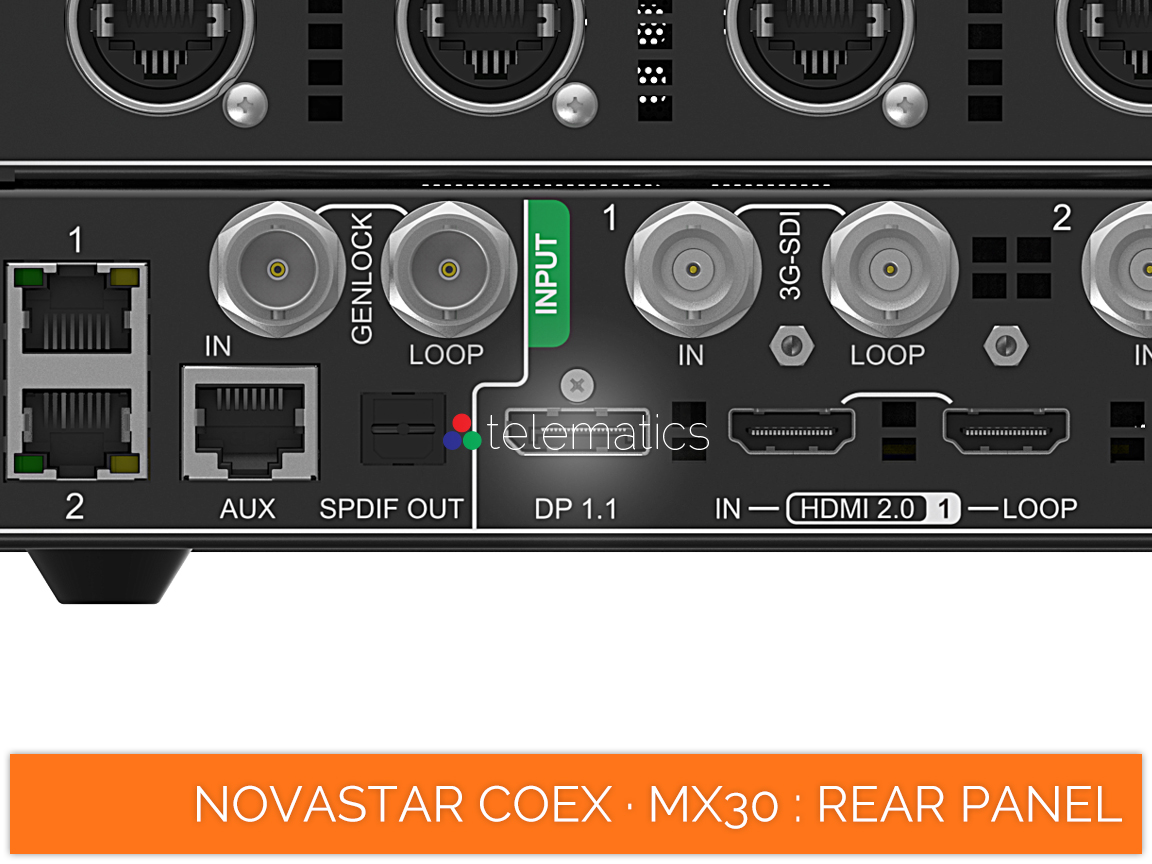

Rear Panel · 4096 × 1080^@60Hz · edid · to 3840 × 1080^@60Hz · hdcp 2.2 compliant · input · dp 1.1		displayport 1.1⭗

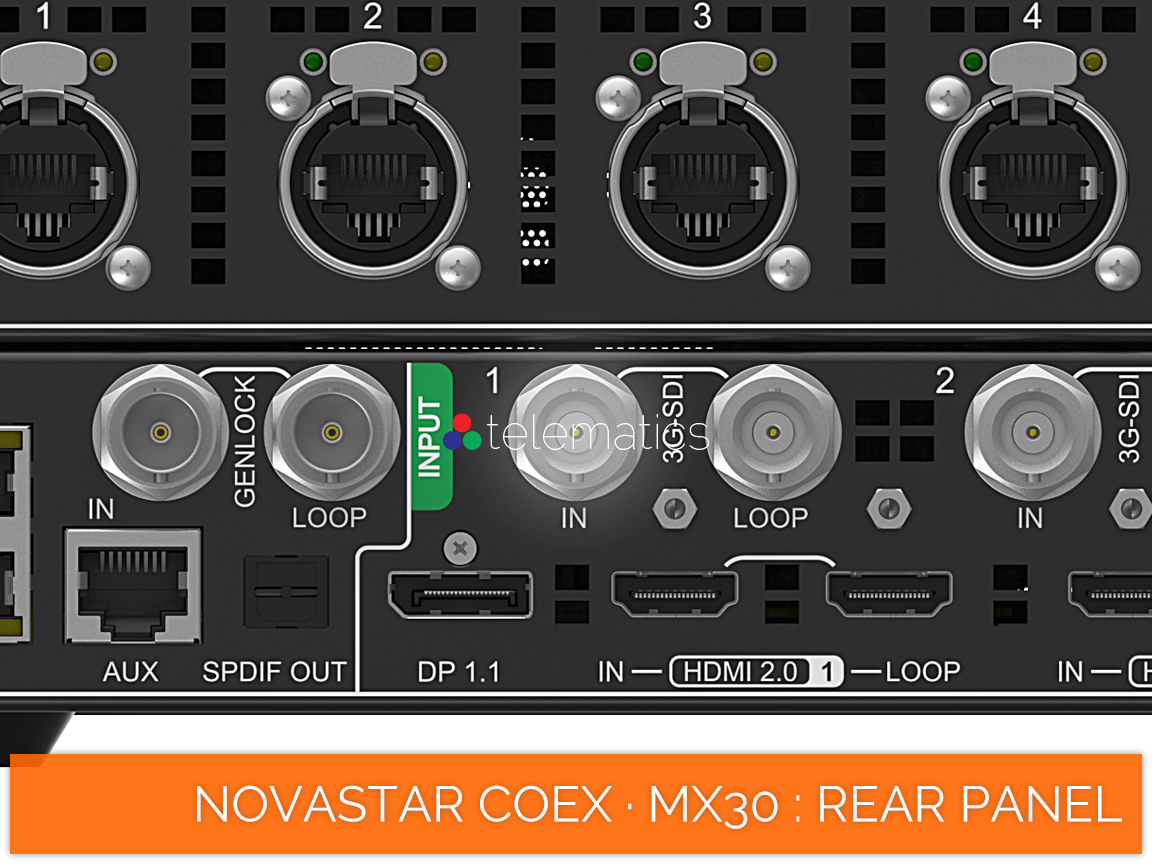

Rear Panel · st-424 (3g) · st-292 (hd) · 3G-Level A/Level B (DS) · 1920 × 1080^@60Hz · frame rates · 23.98 ~ 60 · input · 3g-sdi		standard video input ⭗⁽²⁾

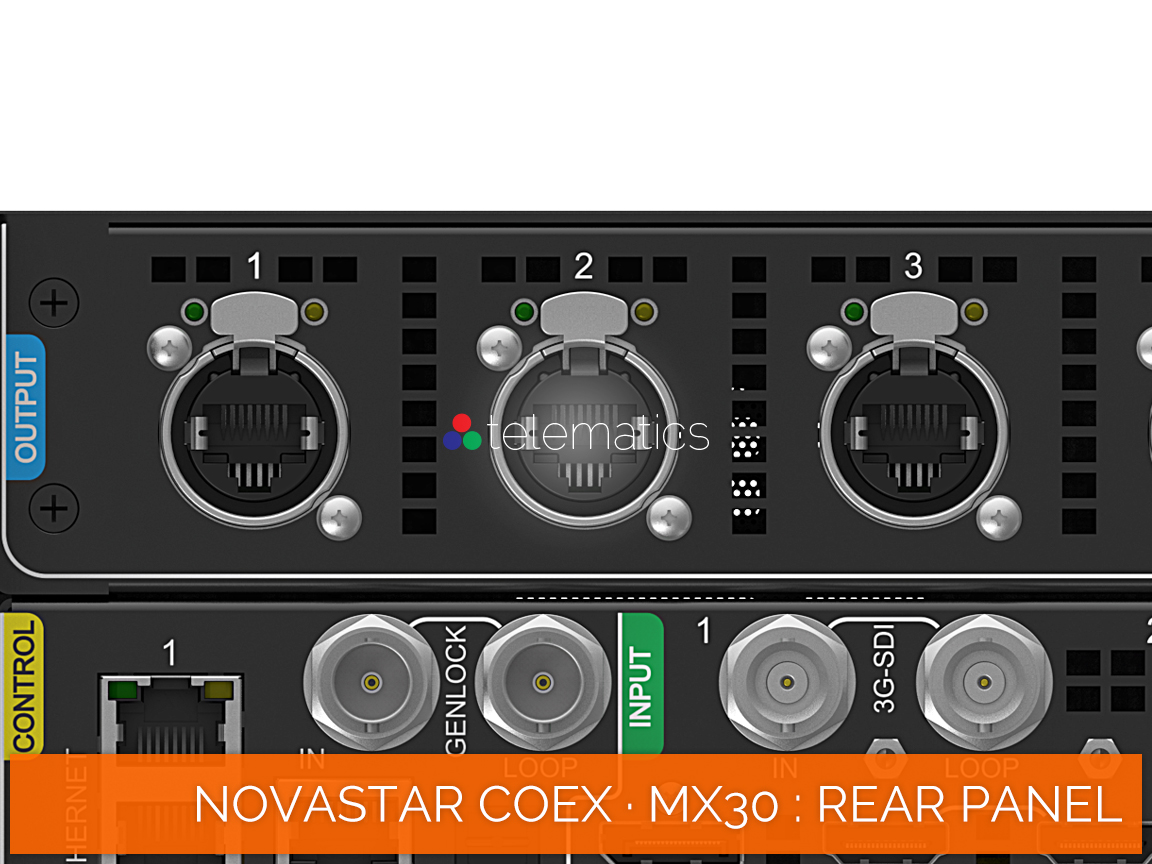

Rear Panel · 1gb per second · 494,791 · 10-bit^@60Hz · 659,722 · 8-bit^@60Hz · output · ethernet		maximum load per port ⭗⁽⁶⁾

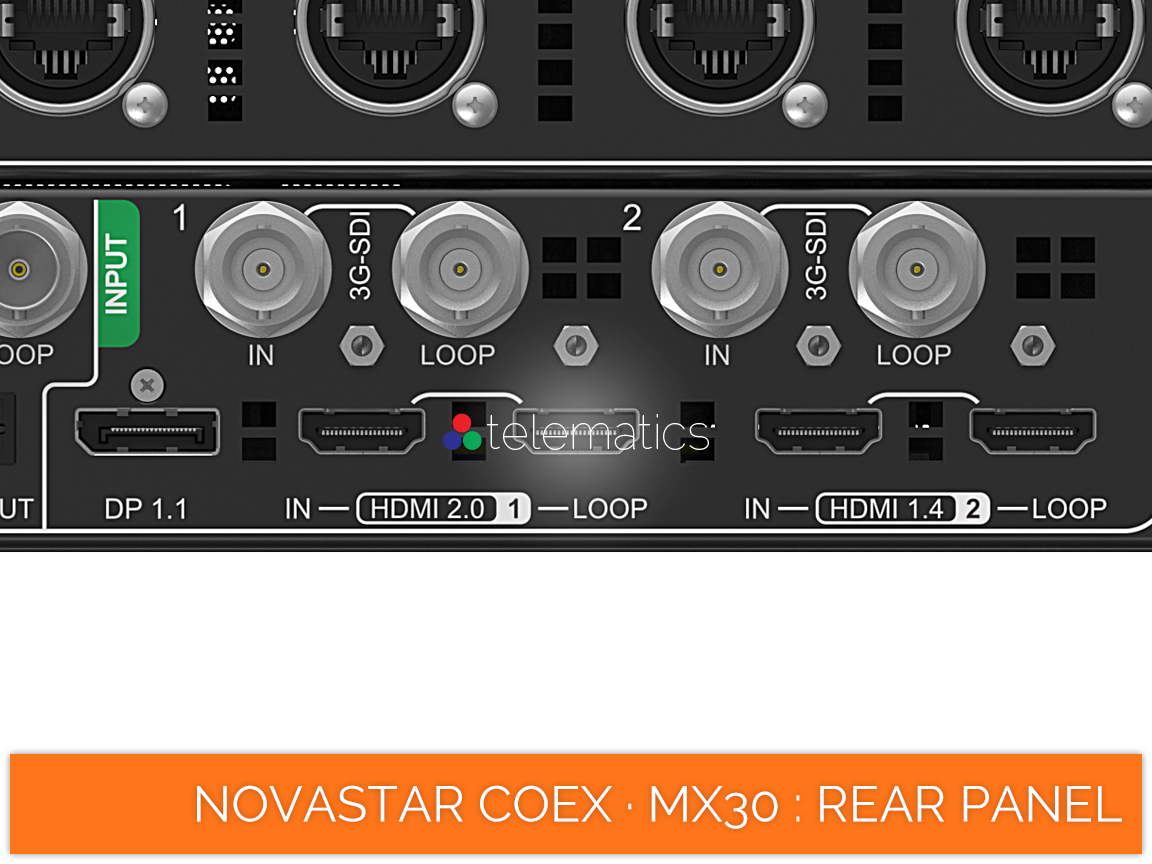

Rear Panel · loop through · up to 8 devices · output · hdmi 2.0		loop through⭗

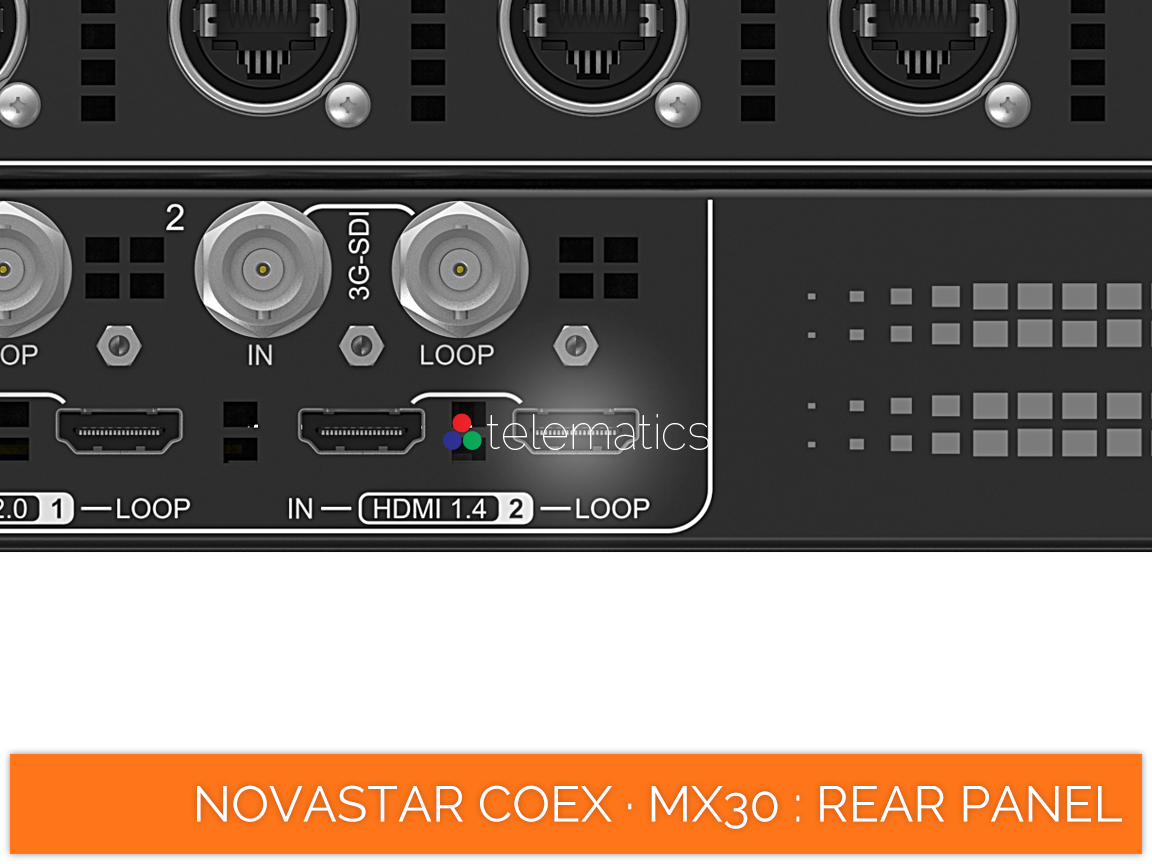

Rear Panel · loop through · up to 8 devices · output · hdmi 1.4		loop through⭗

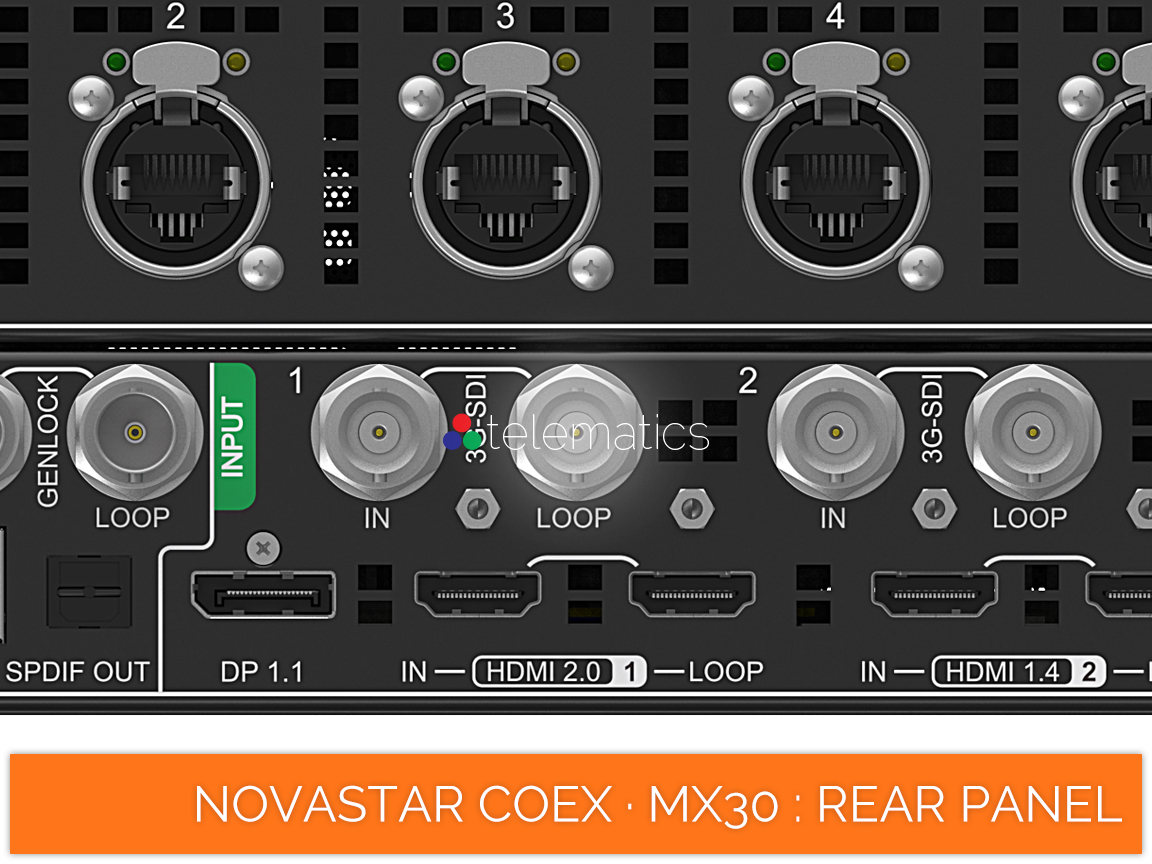

Rear Panel · loop through · up to 8 devices · output · 3g sdi		loop through⭗

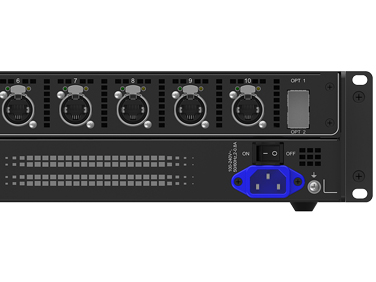

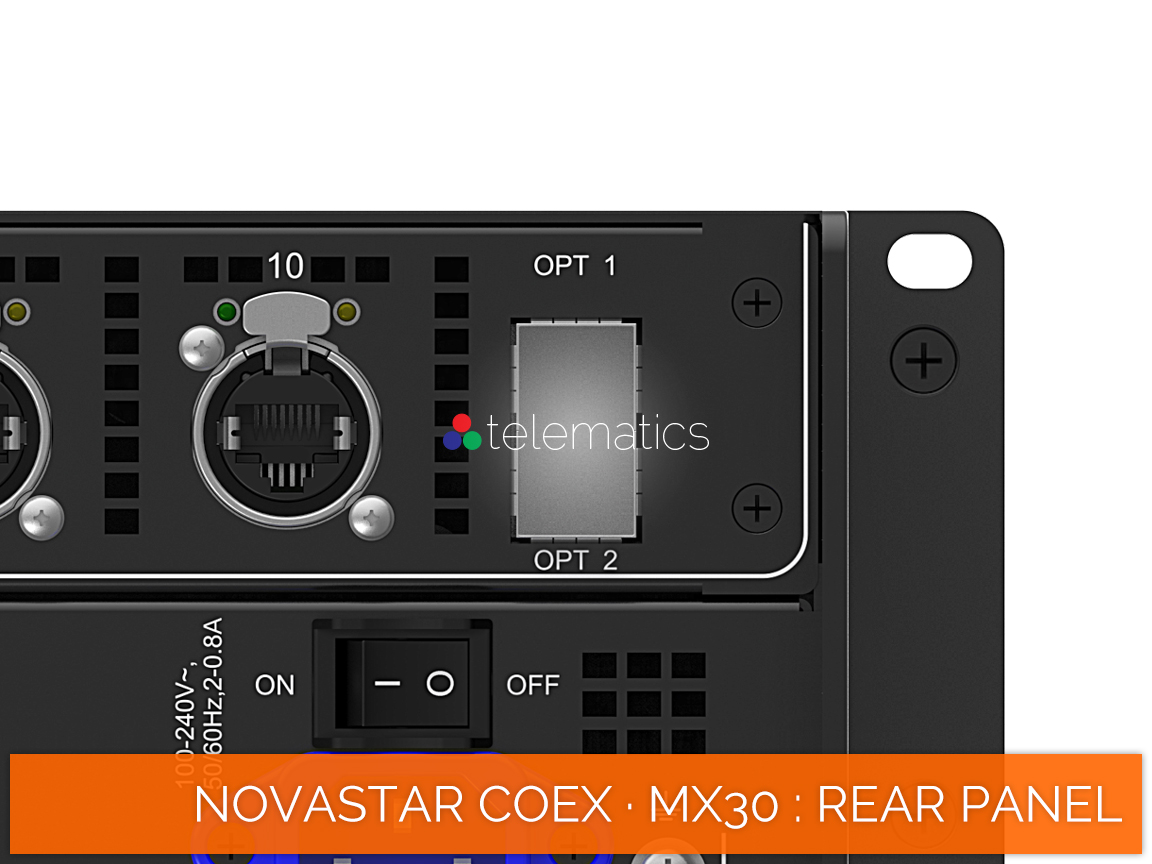

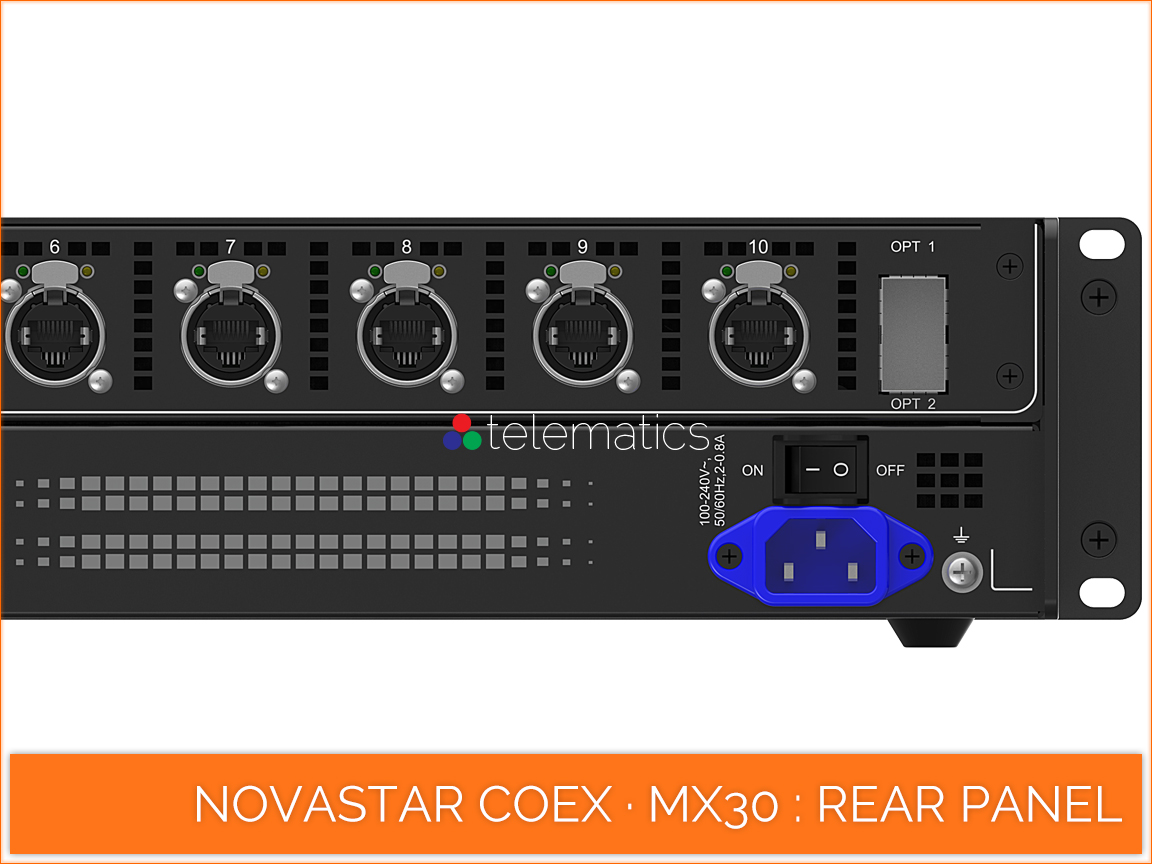

Rear Panel · 10gb per second · opt (1) · ports 1 to 10 · opt (2) · copy · output · optical fiber		10g optical ports⭗

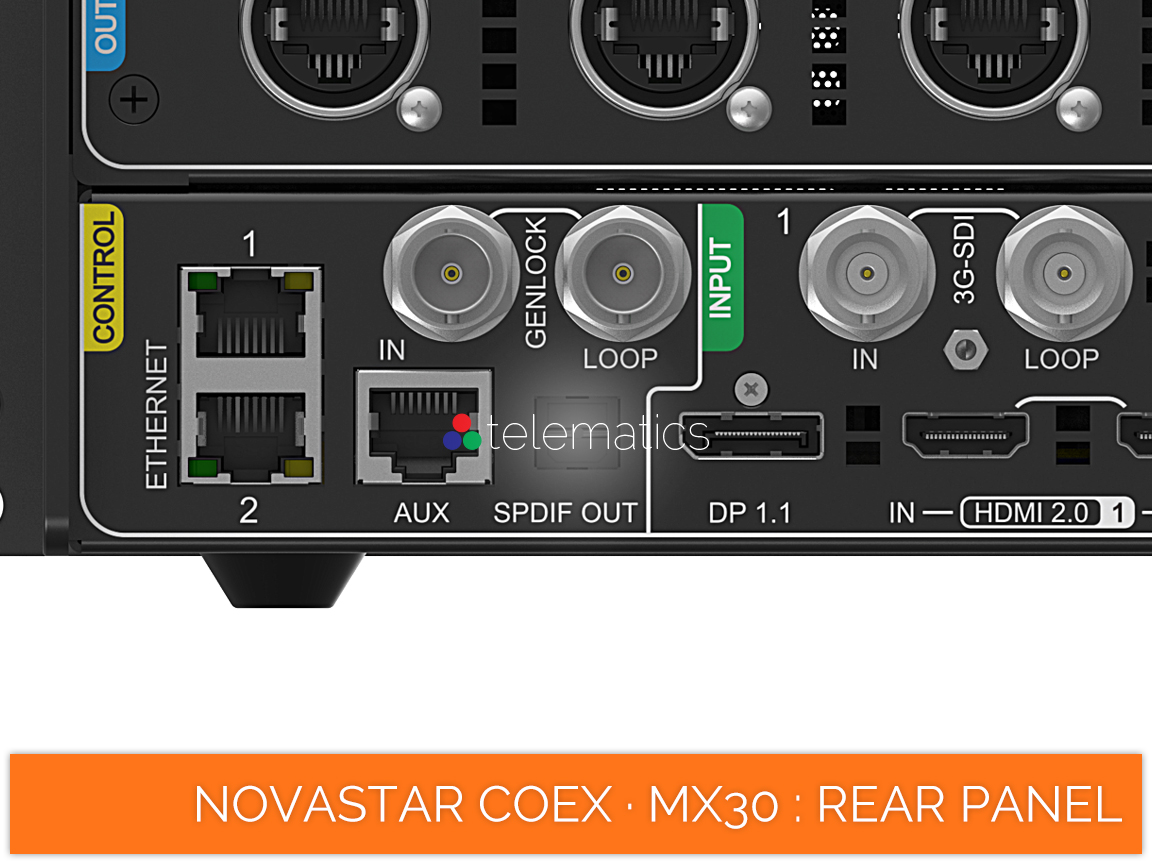

Rear Panel · digital audio output · reserved · output · s/pdif out		digital audio⭗

Cabinet
Dimensions · physical specifications · metric · imperial · width	19.00''0.4826
Dimensions · physical specifications · metric · imperial · height	3.71''0.0942
Dimensions · physical specifications · metric · imperial · depth	18.37''0.4667
Dimensions · one rack unit · 482.60 mm · 19.00" · 44.45 mm · 1.75" · rack units	0.0942 / 0.044453.0

Dimensions · physical specifications · metric · imperial · weight	15.87 lbs7.20

IP Code · ingress protection · first digit · solids · (2) · >12.50 mm · second digit · liquids · (0) · no protection · front · rear	ingress protection20 · 20

Power · power consumption · watts	maximum use draw55
Power · power input · voltage · amps	alternating current 1.5 amps100 ⌁ 240

PDF · 2 of 2


Fine Print
Warranty · factory standard	NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · ce · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price	NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.
