NovaStar COEX · KU20

1920 × 1200 + Armor + Vision Management Platform + other bits you'll want and need. Time to upgrade to 2023.

Pixels

NovaStar's COEX KU20 loads 3840 horizontal or 2560 vertical pixels, for a total of up to 2,304,000 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

The slim and trim KU20 measures in at 254 by 290 by 51 millimeters wide, deep and tall. That's 10 by 11½ by 2 inches of fitting in pretty much anywhere there is room for a stack of paper. Or you can always fill out a single 1U rack with a second KU20 for cascading or redundancy.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10-bits of color depth and up to 120 Hz frame rates. 10G optical fibre output port. 6 Gigabit Ethernet ports. HDMI 2.0 port with a loop. Also a S/PDIF in case you want to add in some audio for your audience. Not a bad starting point for most every display.

Power

Rated power consumption maxes out at 25 watts and 1.5 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at just above silent.

Installation

NovaStar's COEX KU20 connects to your LED display through up to 6 Gigabit Ethernet ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX. Cascade control of multiple KU20 controllers with the built-in network switch.

Specifications · KU20

But man is not made for defeat. A man can be destroyed but not defeated. ~ Ernest Hemingway
Series controller KU20 · · · · ·

Price usd per unit
Series KU20nbsp;
  • · 2,304,000 pixels
  • · 6 ethernet ports
  • · single layer · 10/8-bit
  • · vmp software
  • cost : unit
· synchronous
primary controller
backup · cascade
$ 799

VMP
  • · next generation software
  • · windows · osx
  • · intuitive · efficient
  • · energy saving
  • cost : zero
· vision management platform
download
windows · osx

VNNOX Media
  • · edit · schedule
  • · remote publishing
  • · detailed logs
  • cost : zero
· content
apply for account
zero cost
VNNOX Care
  • · condition monitoring
  • · operation history
  • · cloud backup
  • cost : zero
· monitoring
apply for account
zero cost

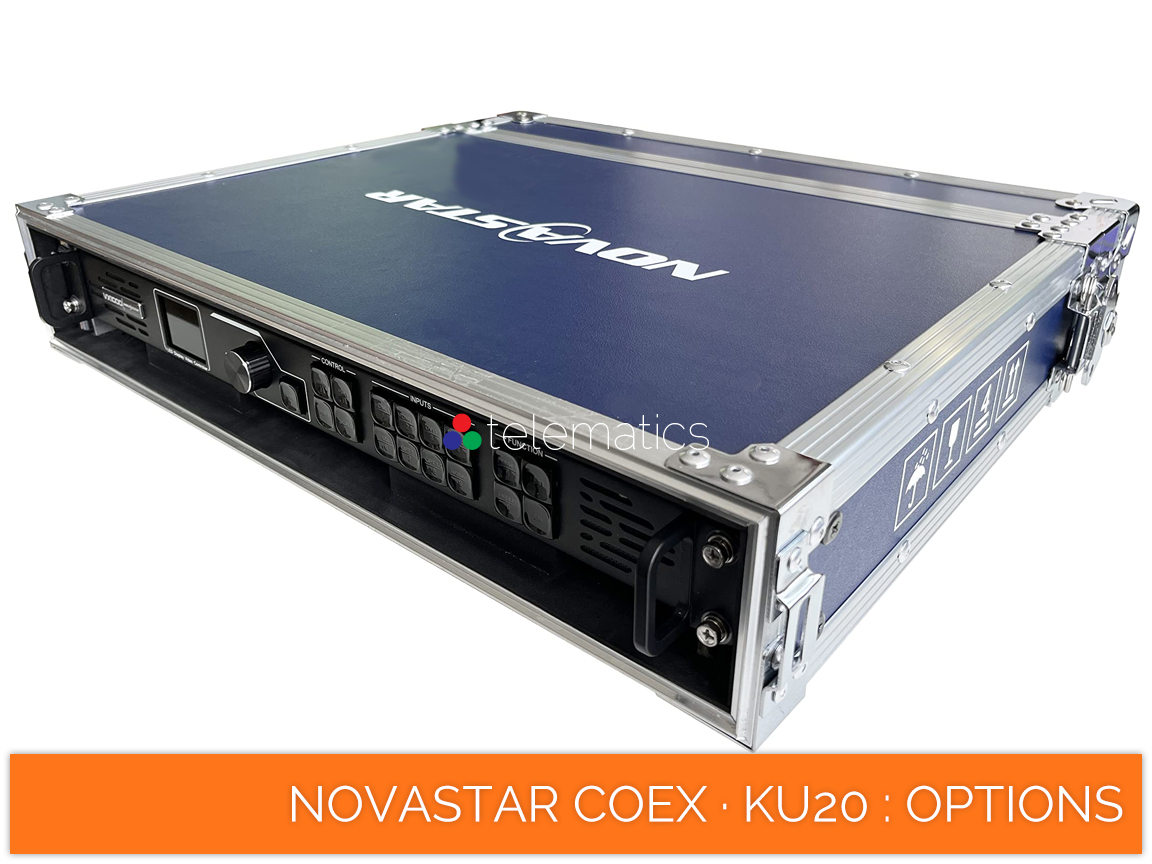

Options
  • · custom case
  • · full panel access
  • · cable storage
  • cost : unit
· hard case
NovaStar COEX · KU20 · hard case impact resistant$ 300

Pixels
Loading
  • · 10/8-bit
  • · 3840 × 600@60Hz
  • · 1920 × 1200@60Hz
· width · maximum
horizontal3,840
Loading
  • · 10/8-bit
  • · 800 × 2560@60Hz
  • · 1600 × 1280@60Hz
· height · maximum
vertical2,160
Loading
  • · 10/8-bit
  • · 3840 × 600@60Hz
  • · 1920 × 1200@60Hz
· combined · total
6 ports x 384,0002,304,000

Bit Depth
  • · 10/8-bit
  • · red · green · blue
· rgb · 210 · 1,073,741,824
1024 shades of rgb10
Bit Depth
  • · 10/8-bit
  • · red · green · blue
· rgb · 28 · 16,777,216
256 shades of rgb8

Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 120 Hz
6 × 96,000 · 10-bit
6 × 192,000 · 8-bit
192,000
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 60 Hz
6 × 192,000 · 10-bit
6 × 384,000 · 8-bit
384,000

Interface

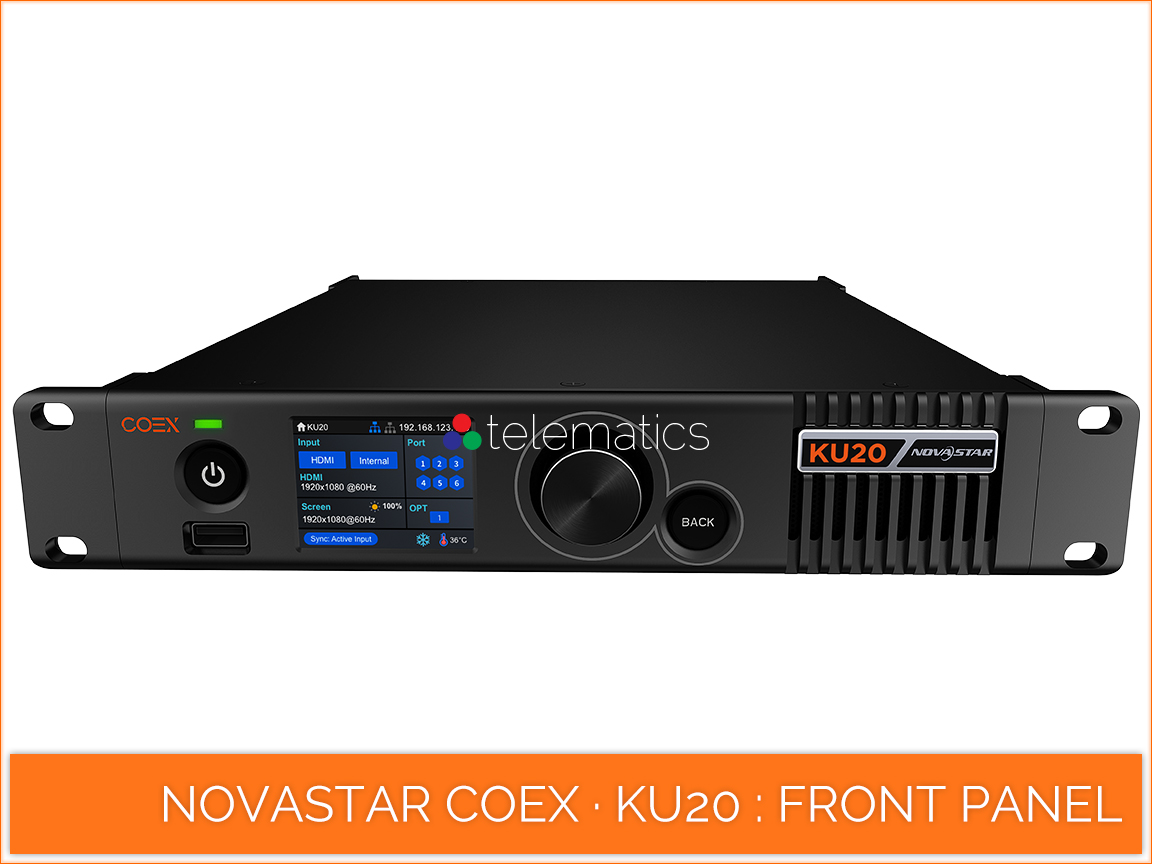

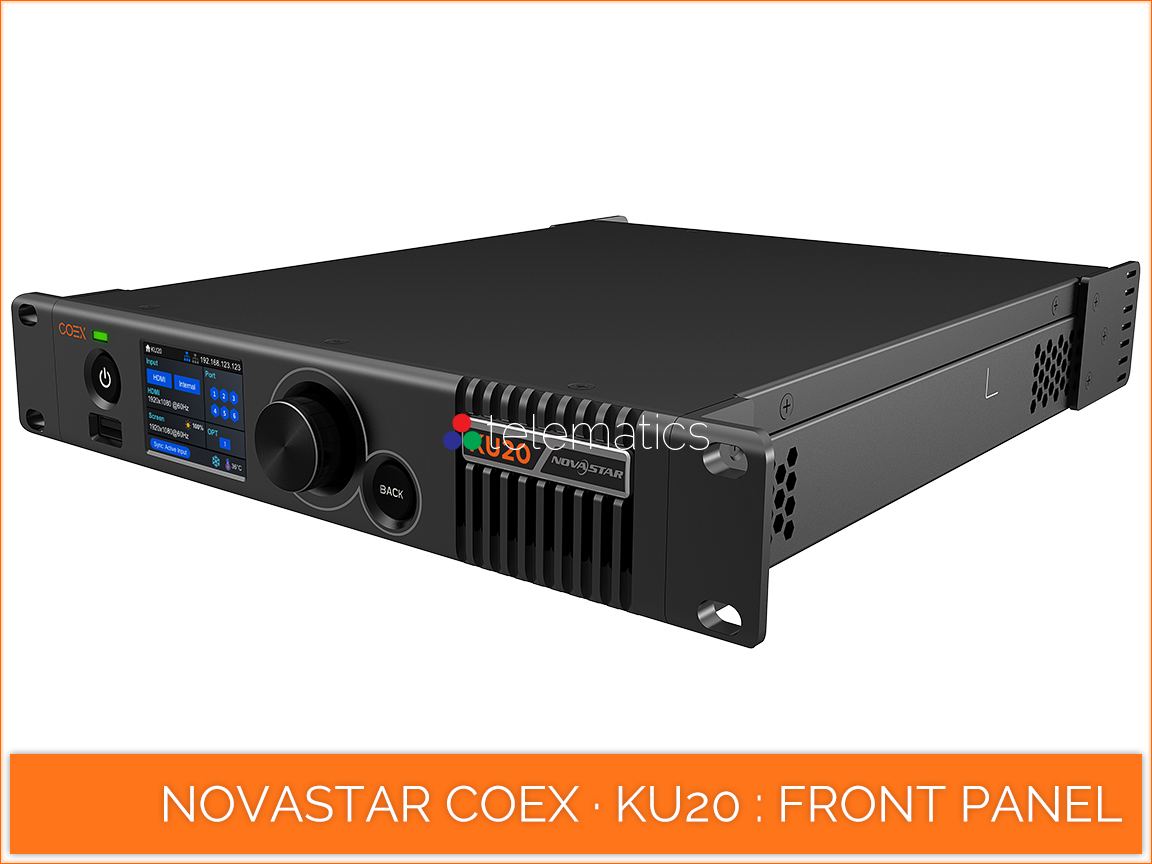

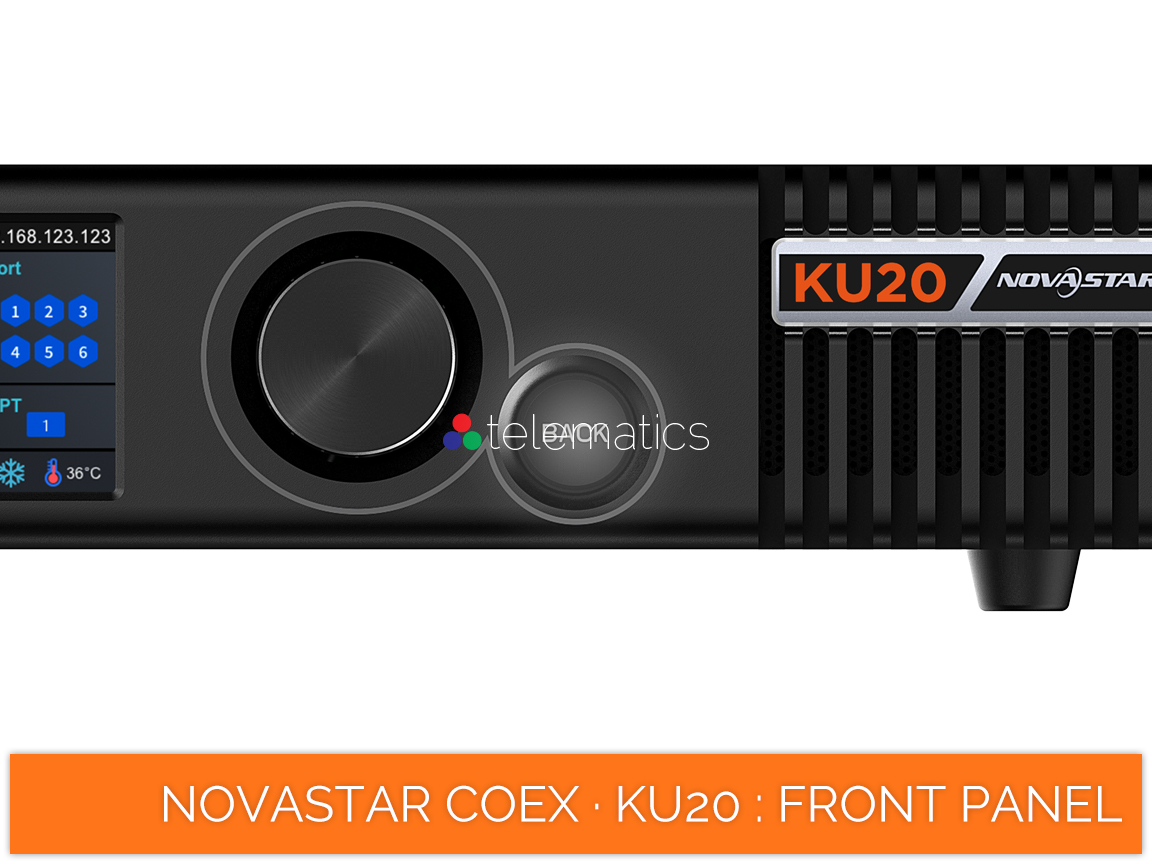

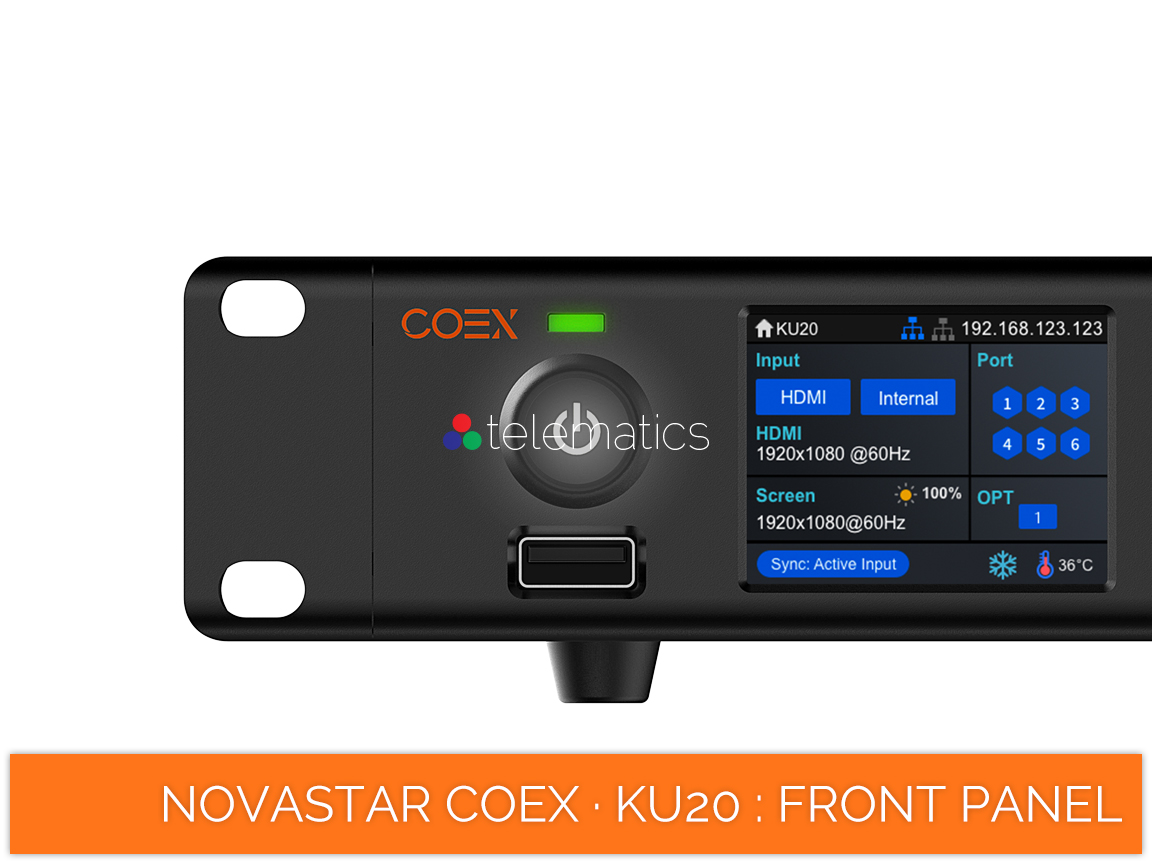

Front Panel
  • · press · power on/off
  • · hold 5 sec · restart
· power
NovaStar COEX · KU20 · power button standby button🔲

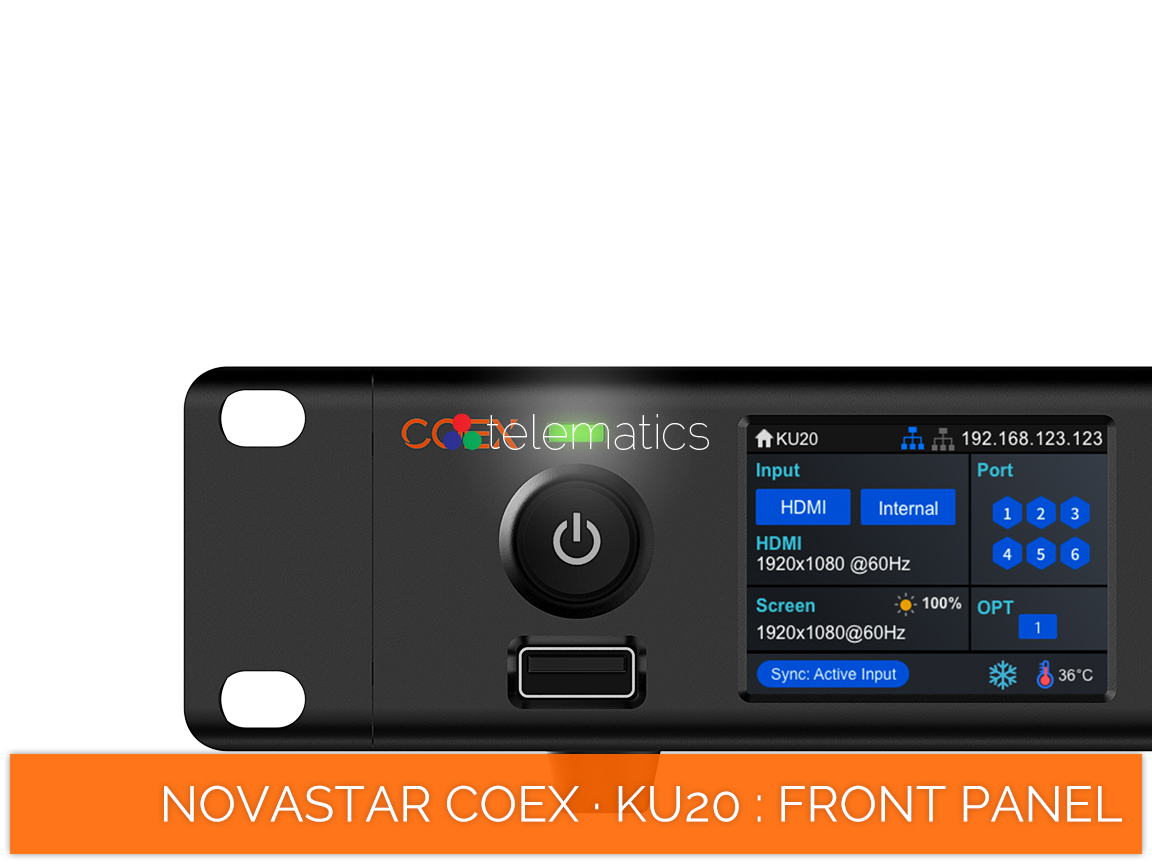

Front Panel
  • · red · standby
  • · blue · powered on
  • · green · normal
  • · flashing · abnormal
· status
NovaStar COEX · KU20  · status light operating status🔲
Front Panel

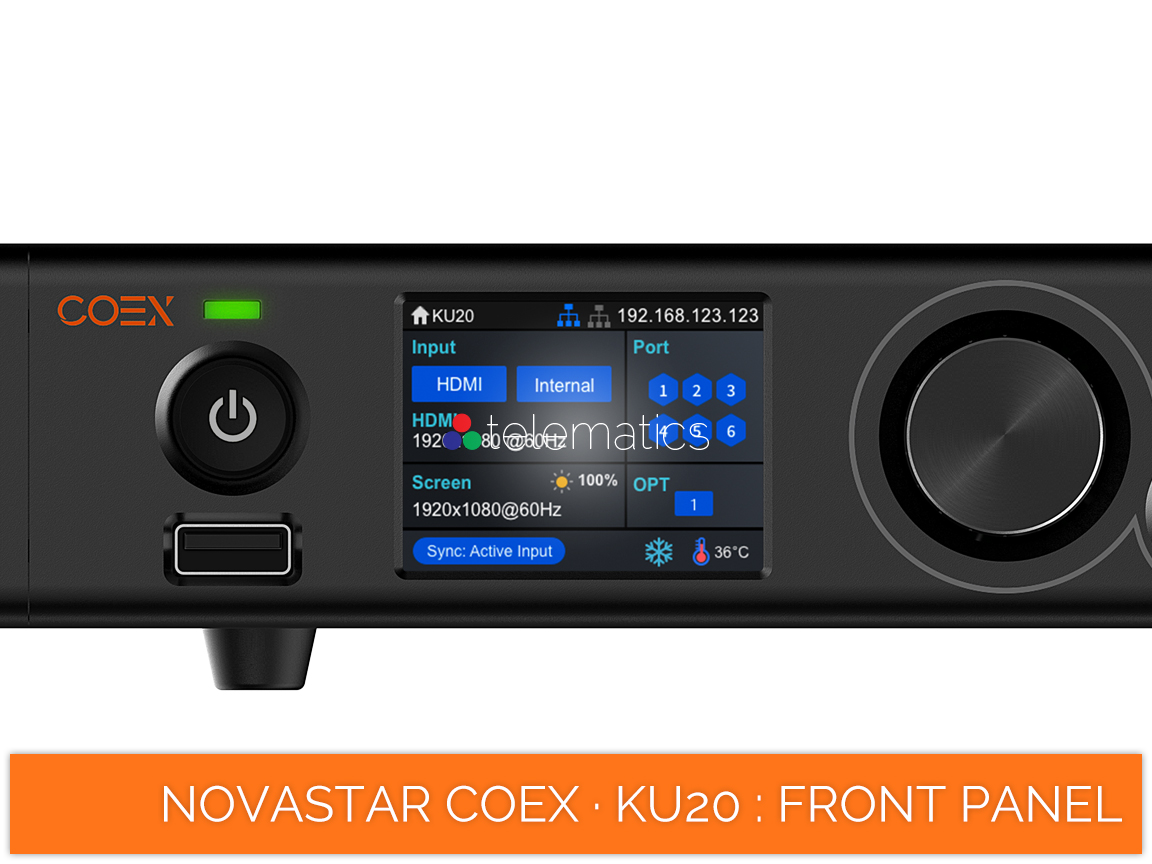

  • · device status
  • · menus · sub menus
  • · messages for settings
· menu
NovaStar COEX · KU20 · lcd menu 2.0" LCD🔲

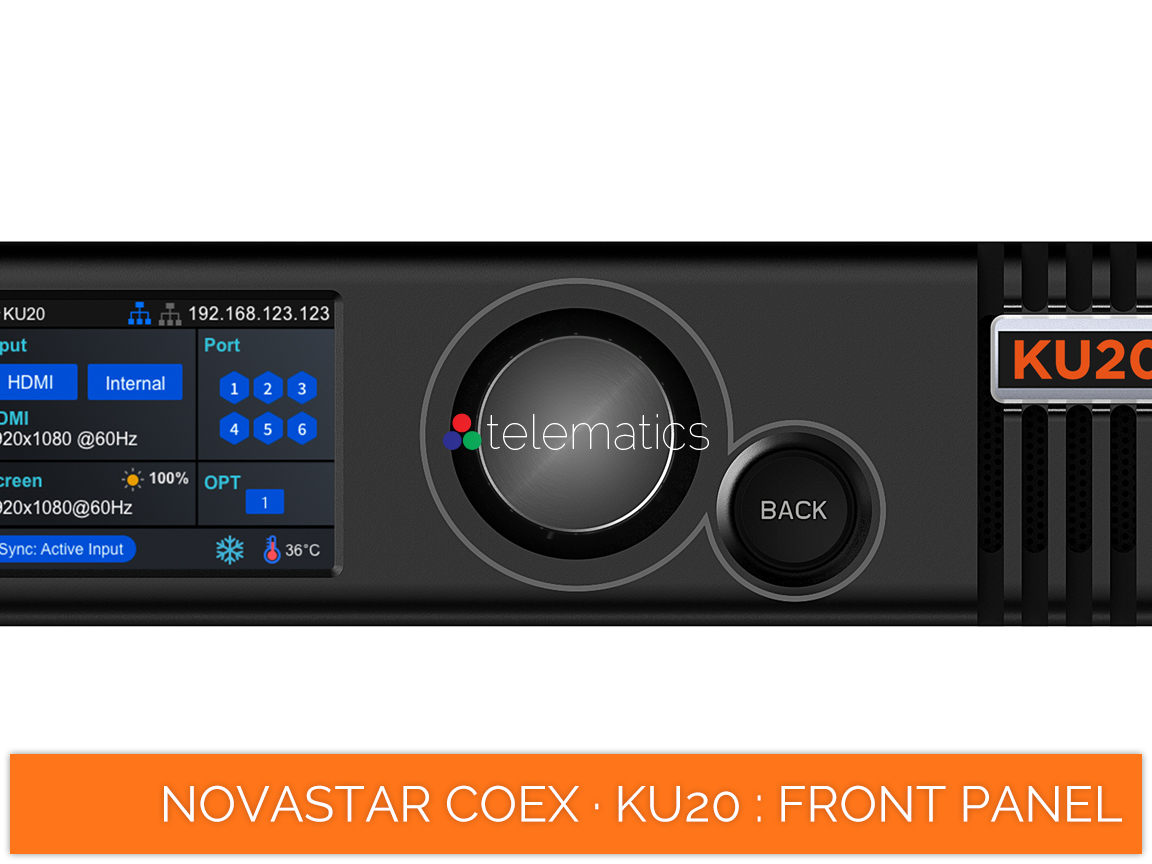

Front Panel
  • · press to enter main screen
  • · rotate to select menu item
  • · rotate to adjust parameter
  • · press to confirm
· dial
NovaStar COEX · KU20 · dial press · rotate🔲
Front Panel
  • · return to previous menu
  • · cancel current operation
· back
NovaStar COEX · KU20 · back button press🔲
Front Panel

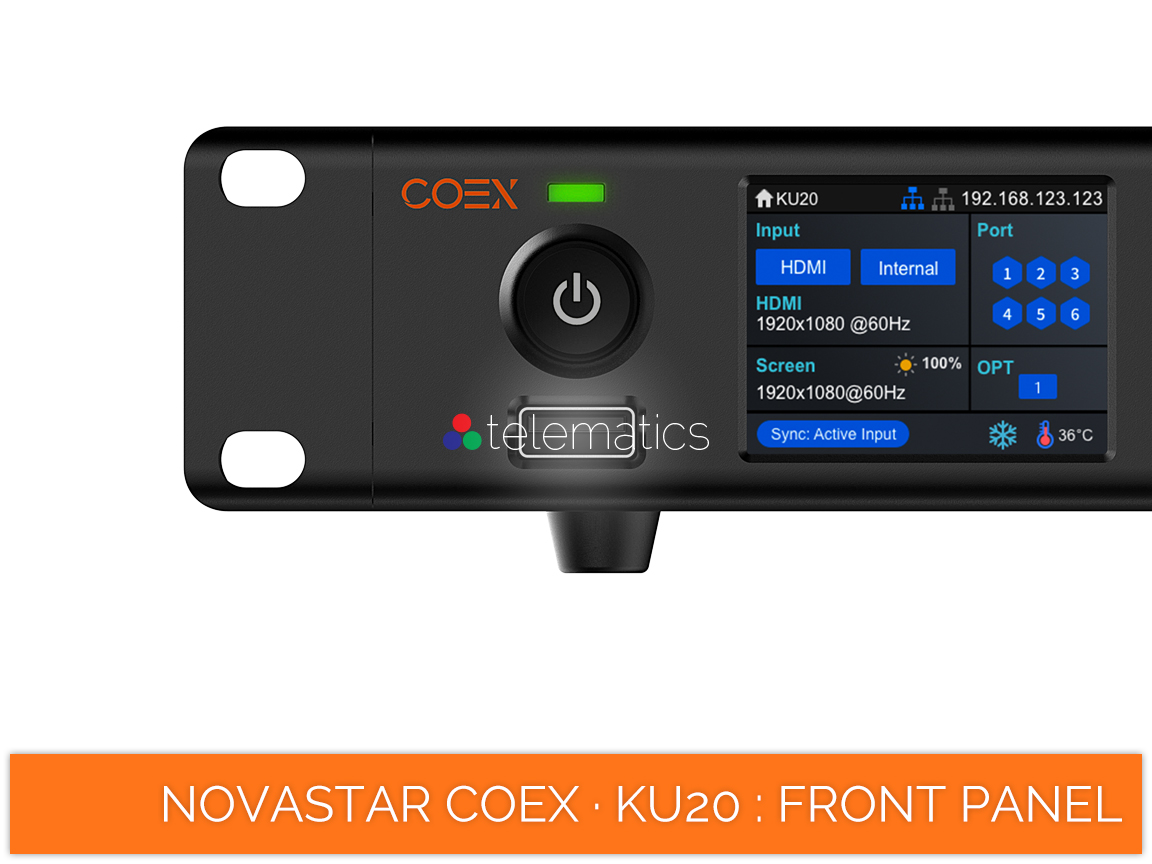

  • · connect to usb drive
  • · export diagnostic files
· usb 2.0
NovaStar COEX · KU20 · USB 2.0 ntfs · fat32

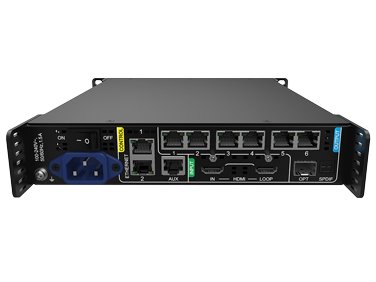

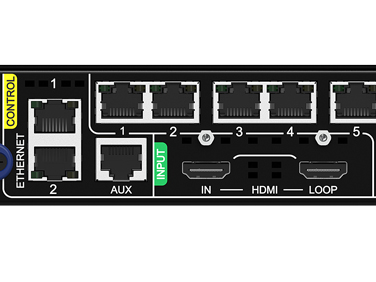

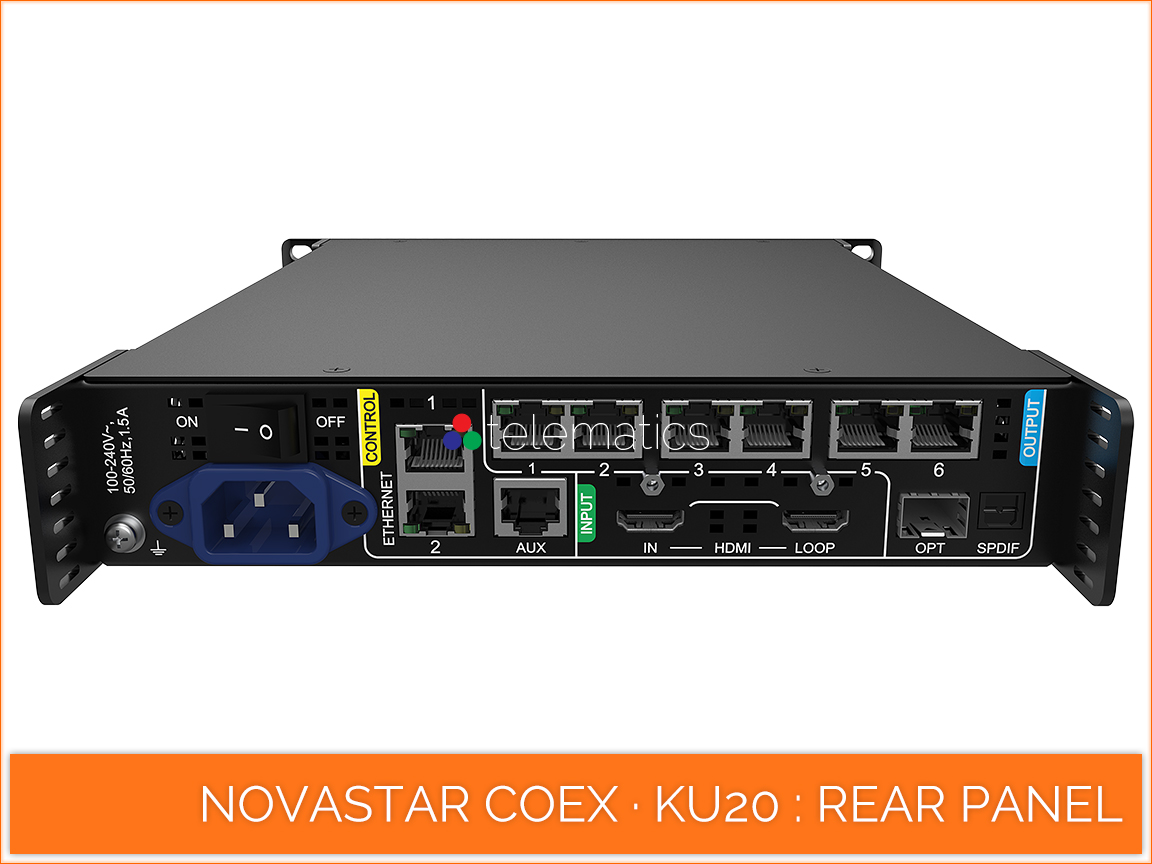

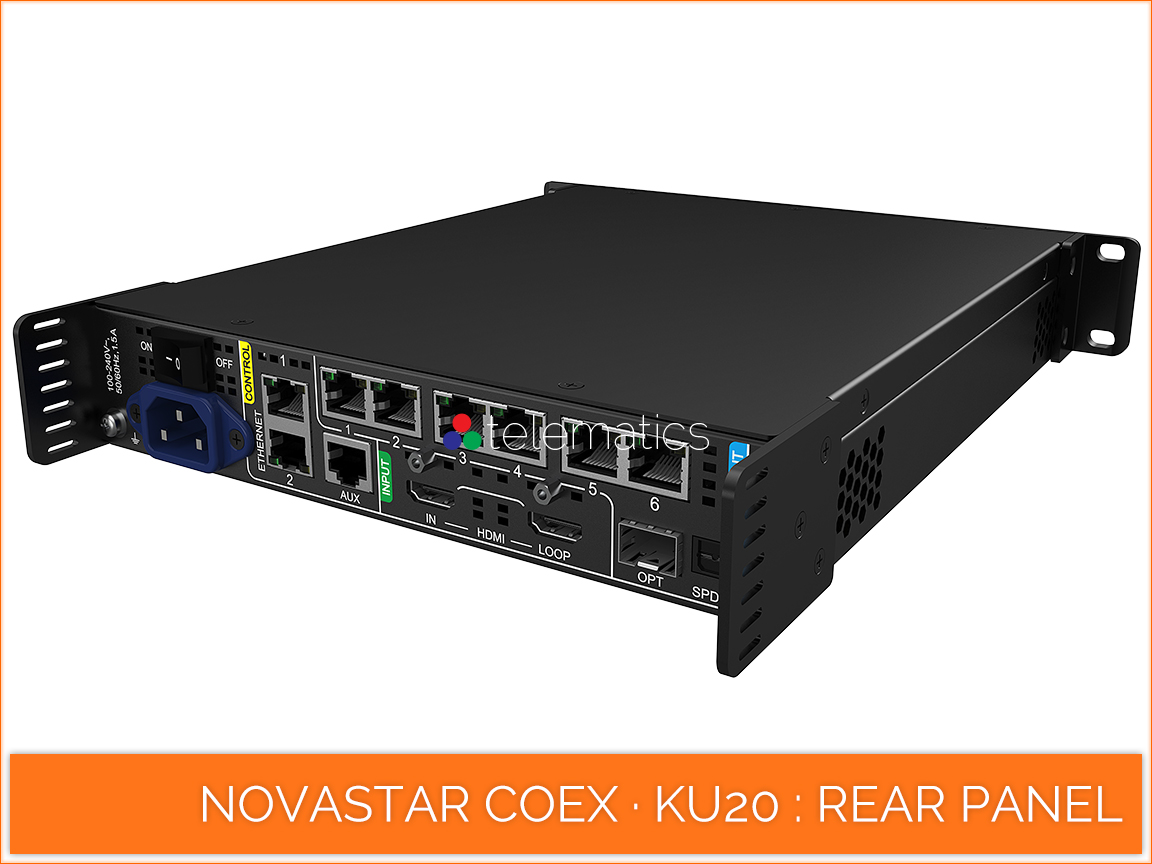

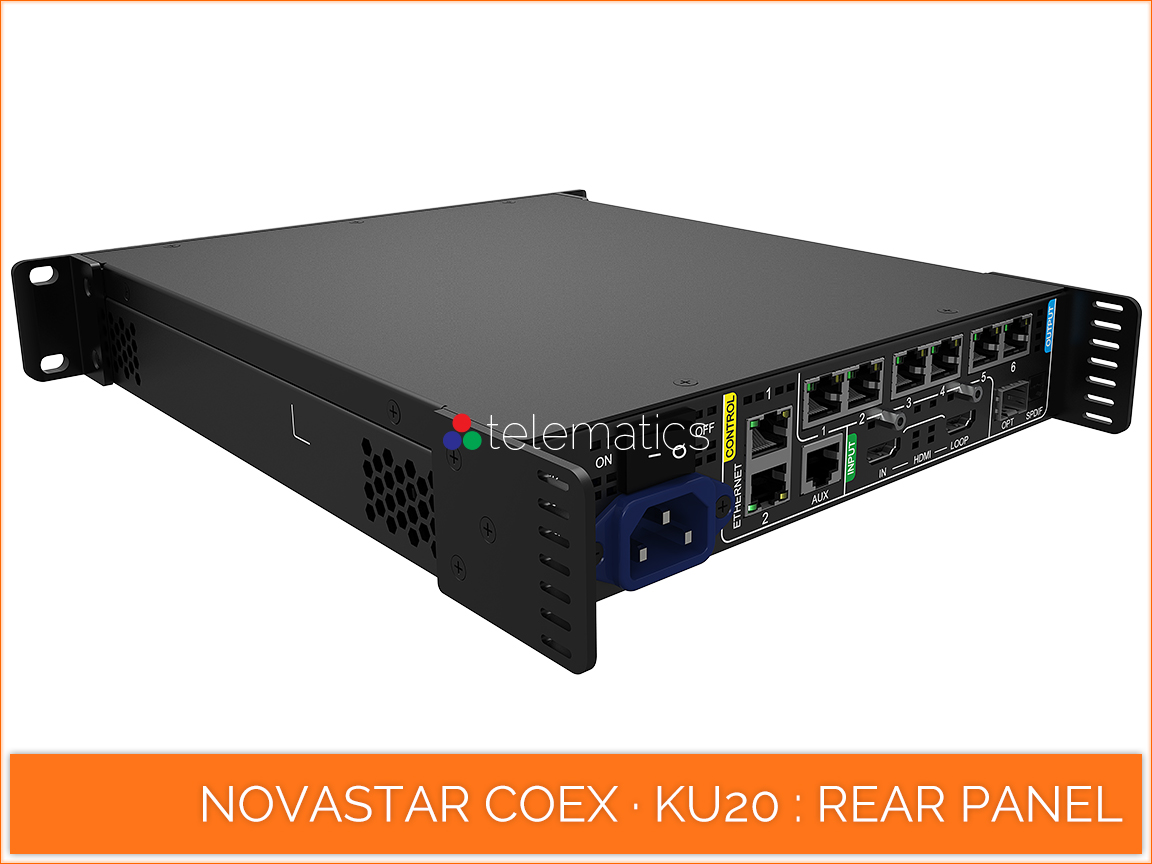

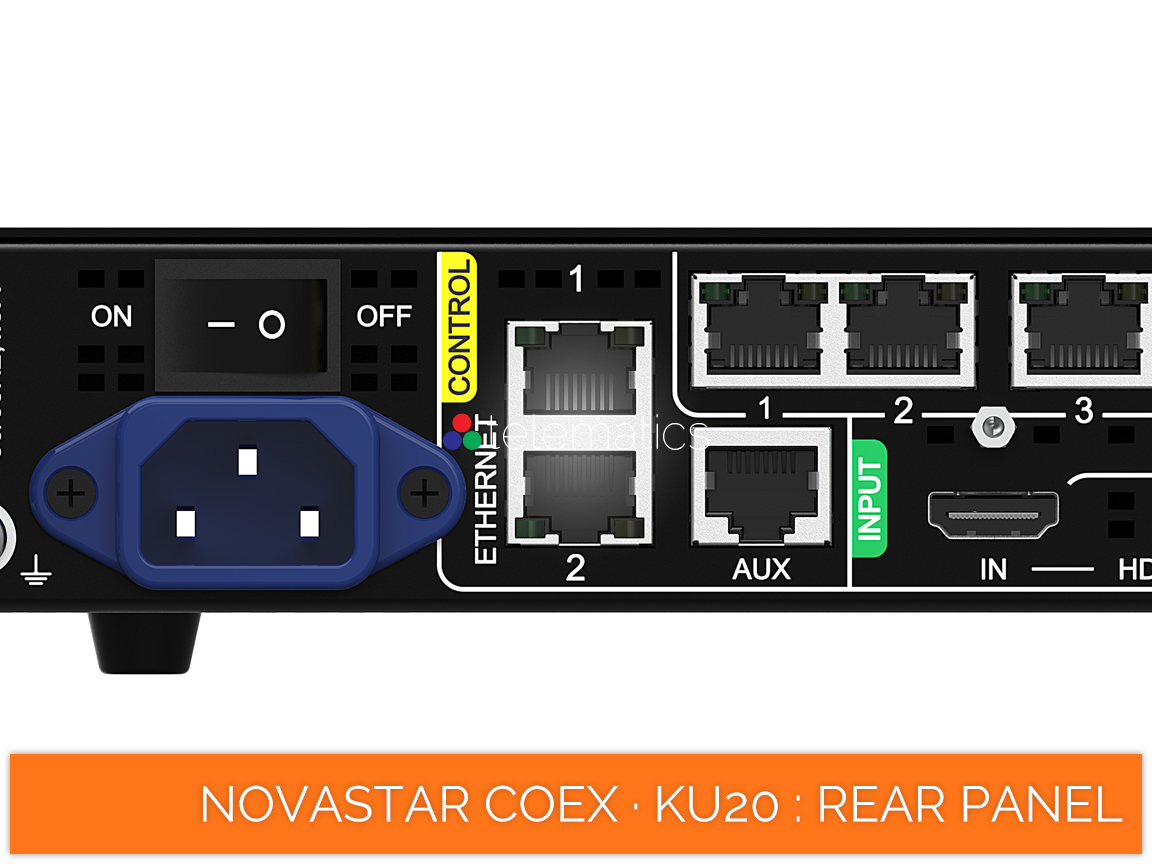

Rear Panel
  • · tcp/ip · star topology
  • · network switching function
  • · connect to cpu
  • · vision management platform

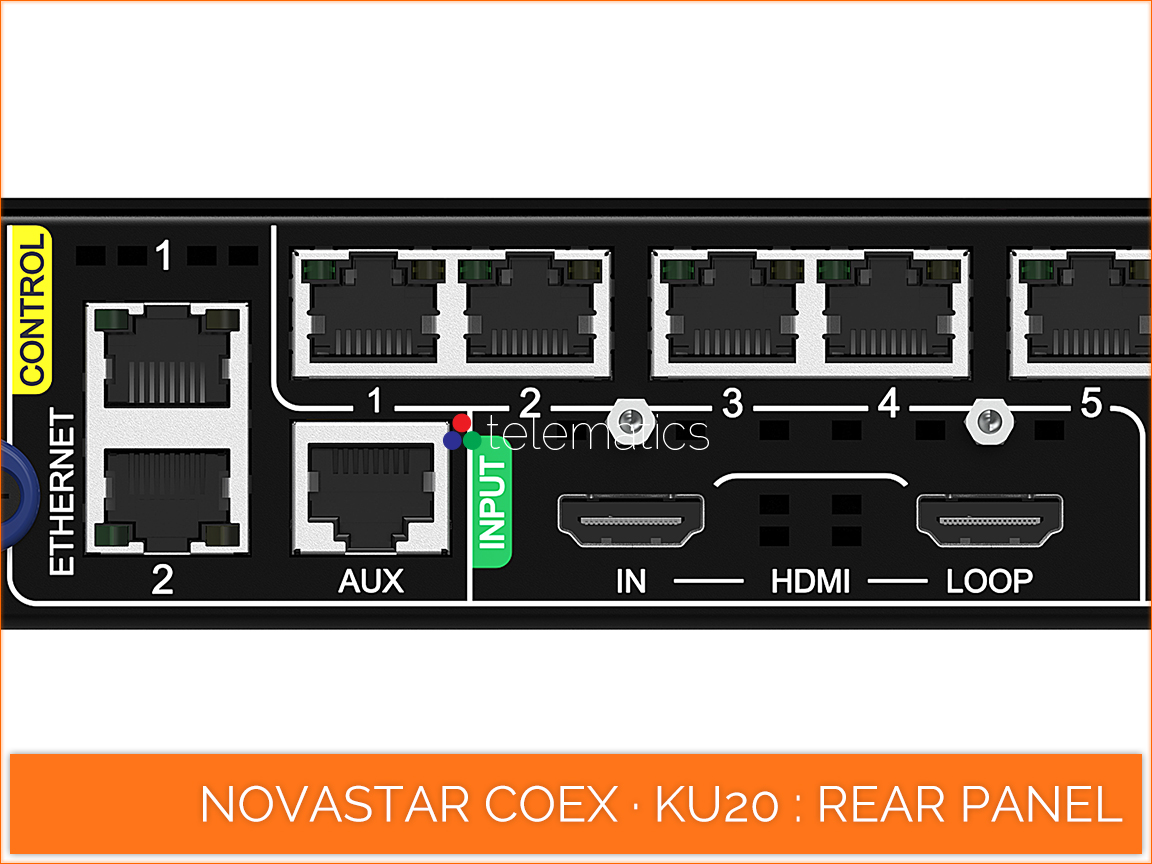

· control · ethernet
NovaStar COEX · KU20 · Ethernet gigabit   (2)

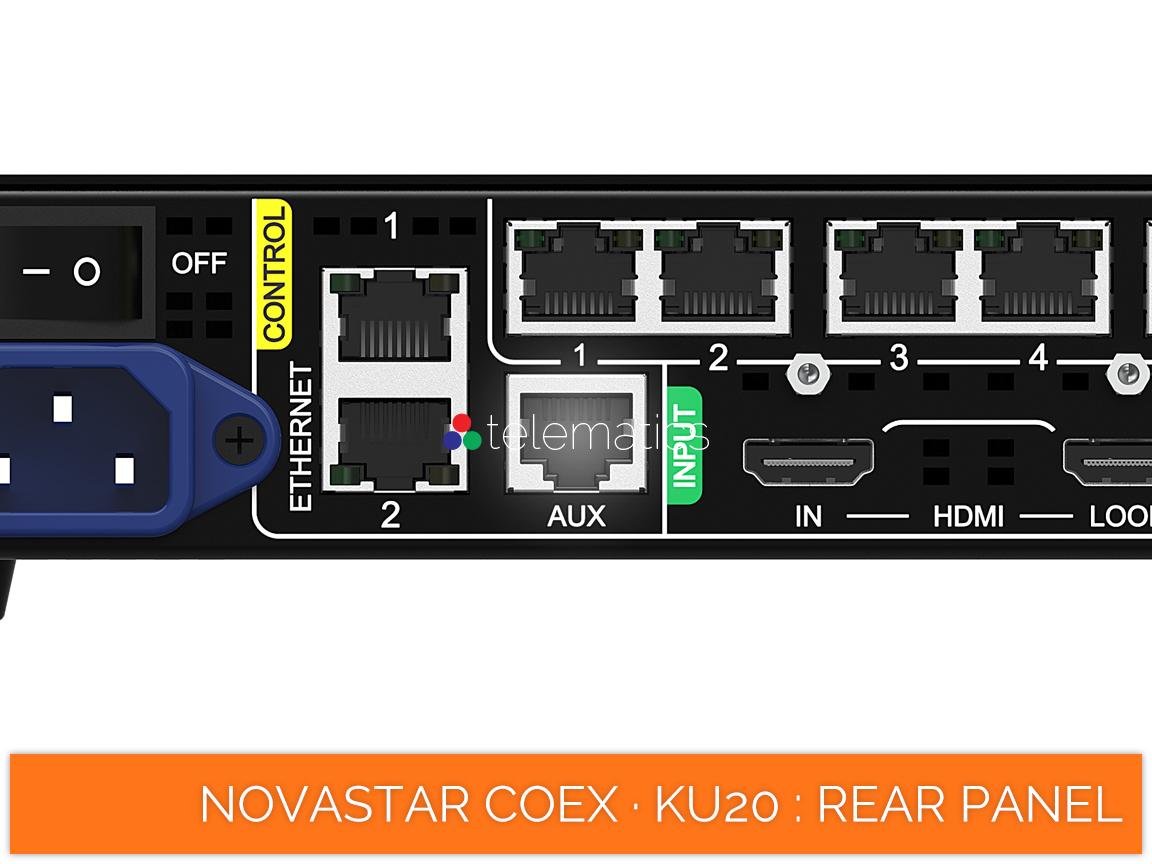

Rear Panel
  • · connect to central control
  • · reserved
· control · aux
NovaStar COEX · KU20 · Aux rs232

Rear Panel
  • · 1920 × 1200@60Hz
  • · frame rates · 23.98 ~ 120 Hz
  • · edid · to 1920 × 1200@60Hz
  • · hdcp 1.4 compliant

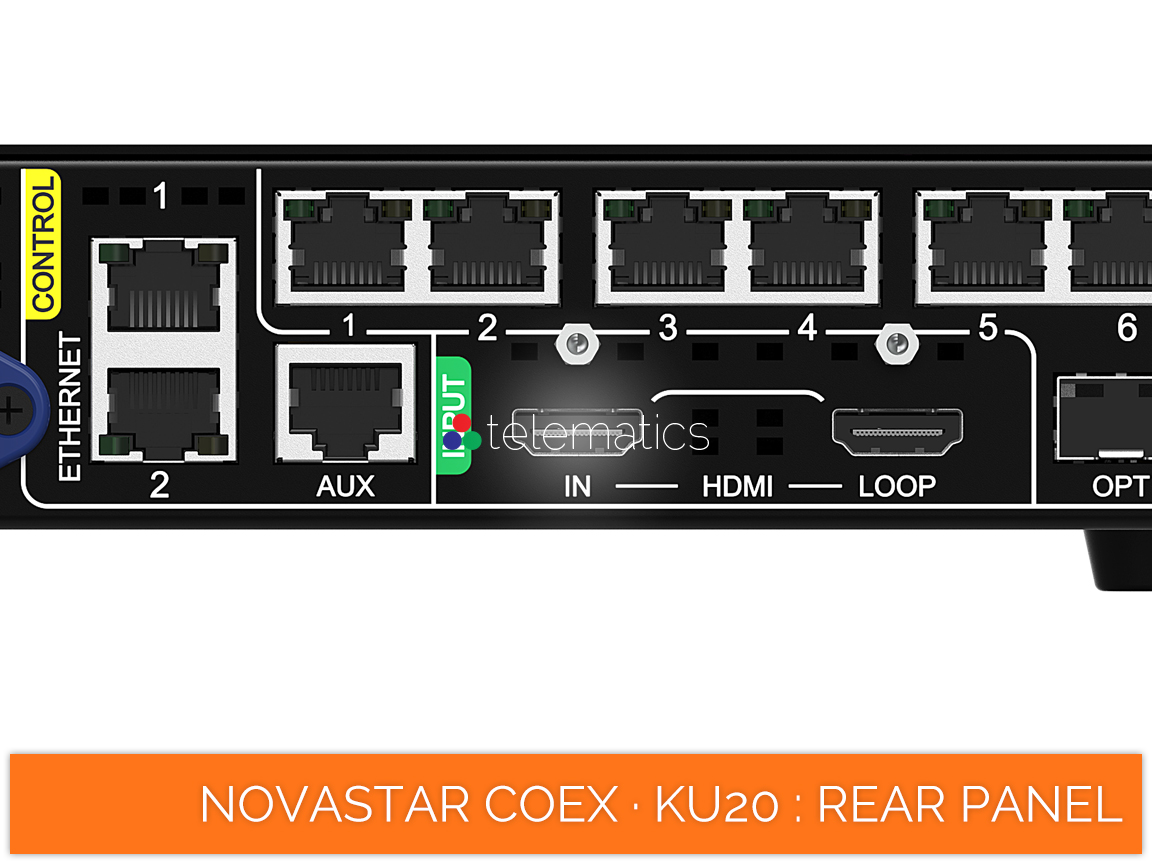

· input · hdmi 1.3
NovaStar COEX · KU20 · HDMI 1.3 input · loop

Rear Panel
  • · 325,000 · 10-bit
  • · 480,000 · 10-bit + A10S Pro
  • · 650,000 · 8-bit

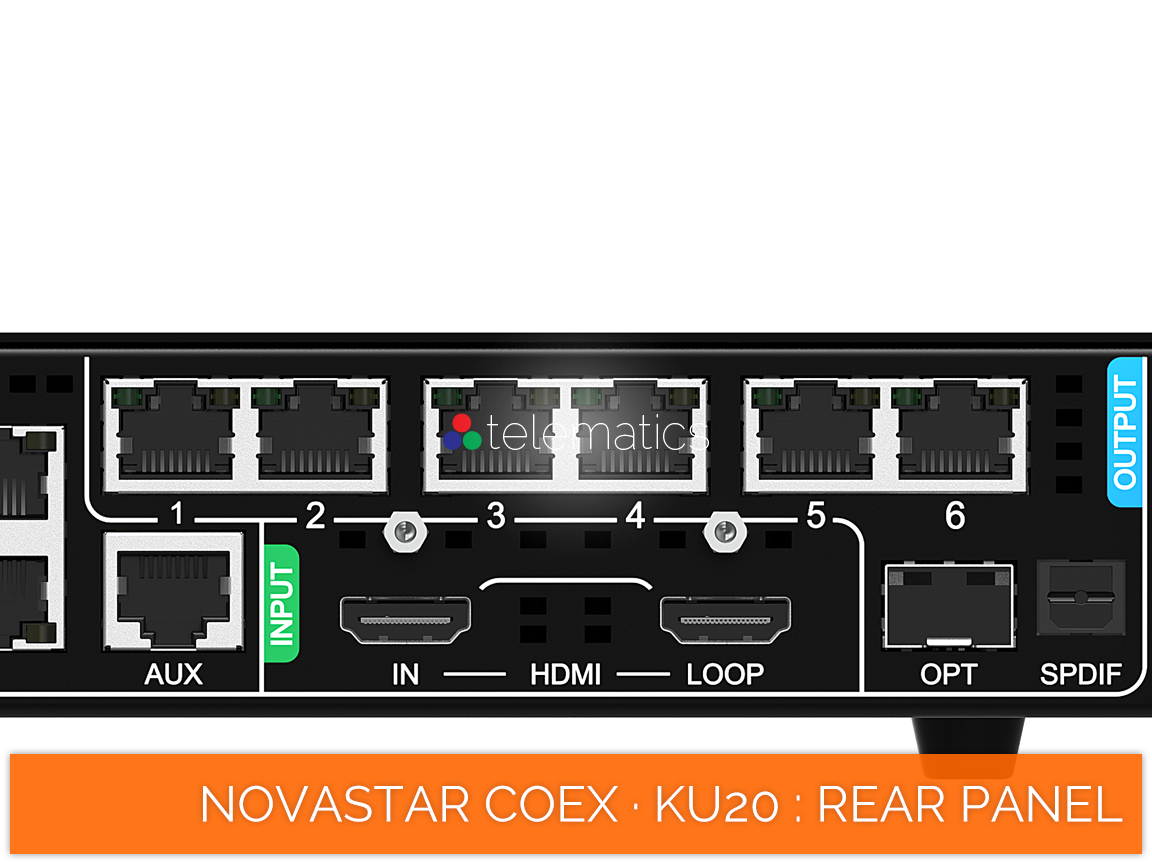

· output · ethernet
NovaStar COEX · KU20 · Ethernet maximum load
per port
    (6)

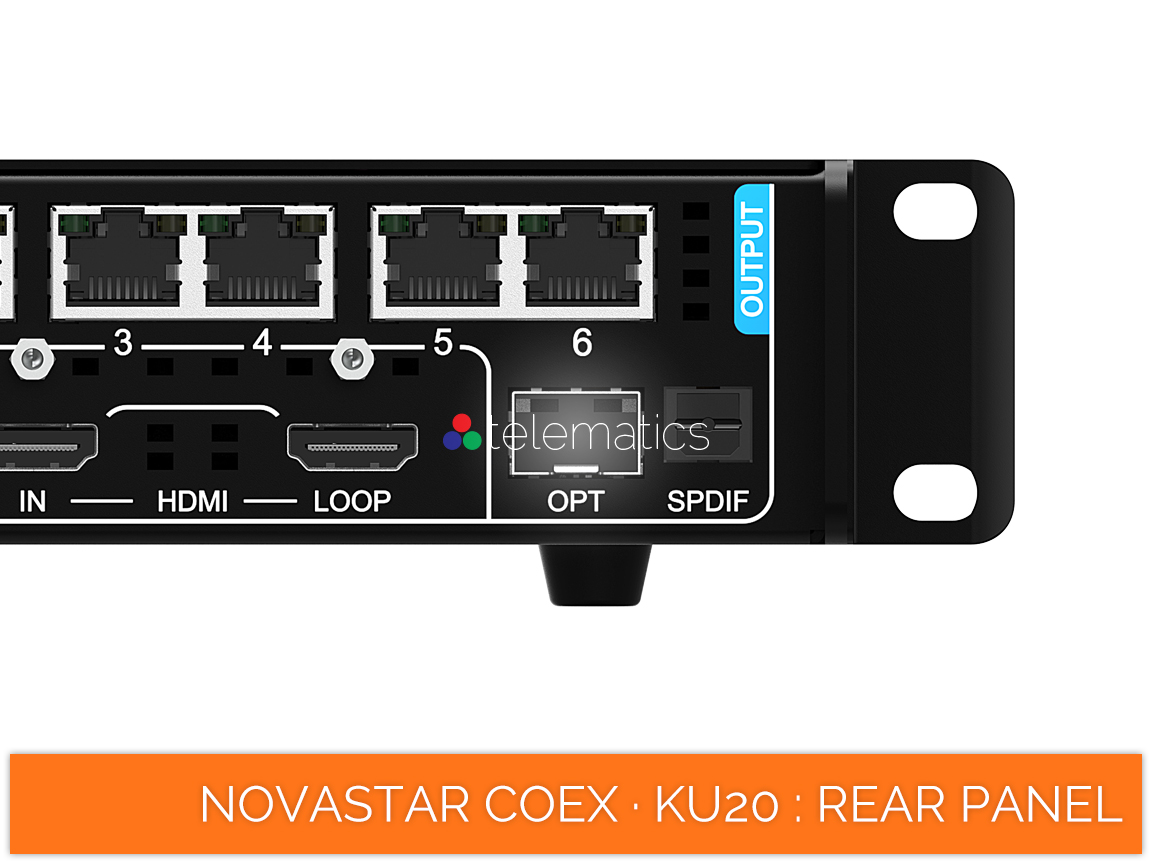

Rear Panel
  • · opt (1) · ports 1 to 6
· output · optical fiber
NovaStar COEX · KU20 · Optical Fiber 10g optical port
Rear Panel
  • · loop through

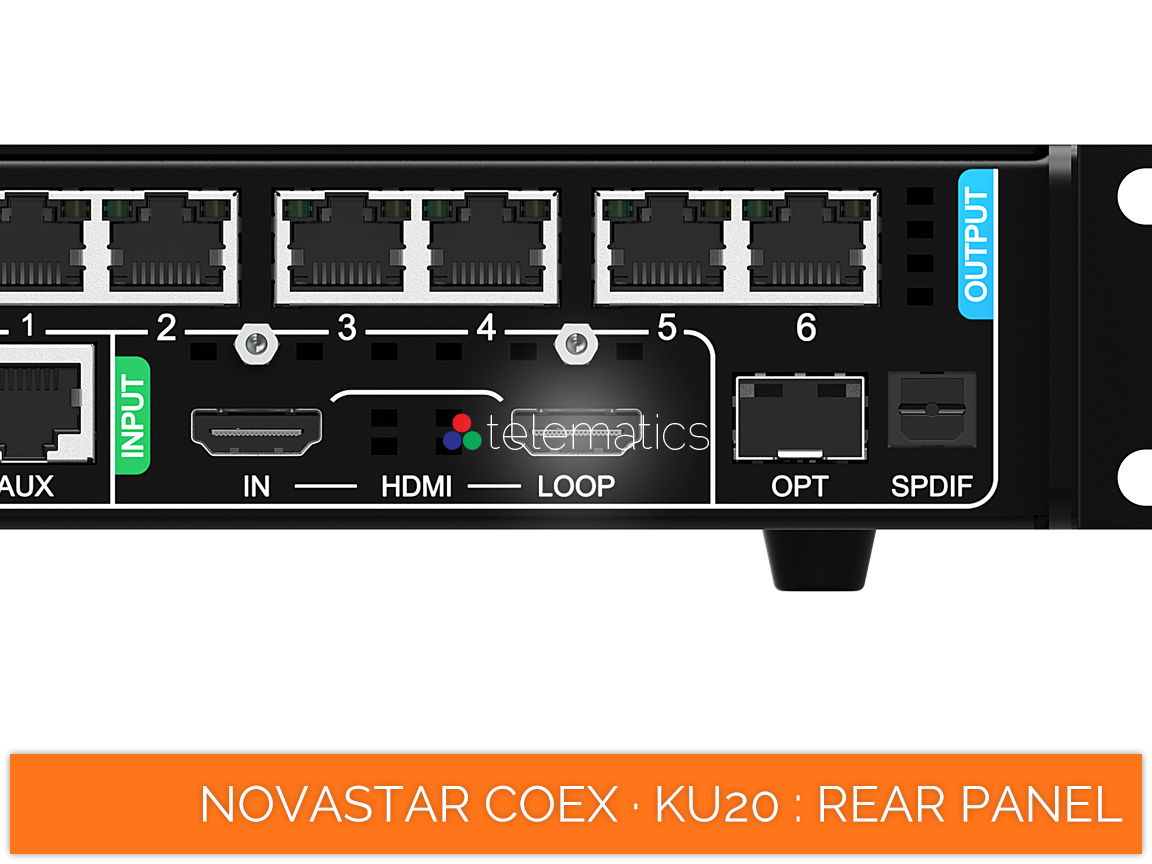

· output · hdmi 1.3
NovaStar COEX · KU20 · HDMI 1.3 loop through
Rear Panel
  • · digital audio output
  • · reserved
· output · s/pdif out
NovaStar COEX · KU20 · S/PDIF digital audio

Cabinet
Dimensions
  • · physical specifications
  • · metric · imperial
· width
10.00''0.2543
Dimensions
  • · physical specifications
  • · metric · imperial
· height
2.00''0.0506
Dimensions
  • · physical specifications
  • · metric · imperial
· depth
11.42''0.2900
Dimensions
  • · one rack unit
  • · 482.60 mm · 19.00"
  • · 44.45 mm · 1.75"
· rack units
two units
side by side
0.5

Dimensions
  • · physical specifications
  • · metric · imperial
· weight
4.63 lbs2.10

IP Code
  • · ingress protection
  • · first digit · solids
  • · (2) · >12.50 mm
  • · second digit · liquids
  • · (0) · no protection
· front · rear
ingress protection20 · 20

Power
  • · power consumption
· watts
maximum use draw25
Power
  • · power input
· voltage · amps
alternating current
1.5 amps
100 ⌁ 240

PDF · 2 of 2

Fine Print
Warranty · factory standard NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · ce · fcc Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.
