NovaStar COEX · CX80 Pro

7680 × 4320 + 5g + Vision Management Platform + everything else. Your next XR studio.

Pixels

CX80 Pro loads 32,768 horizontal or vertical pixels, for a total of up to 35,389,440 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

The NovaStar CX80 Pro measures 482.6 millimeters wide and 528.0 millimeters deep which just means it nicely fits a standard 19" rack. Or you could option it up with a robust flight case that provides easy access to controls and cables, and keeps it safe and secure in transit and onsite.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10 or 12-bits of color depth and up to 240 Hz frame rates. 40G optical fibre output ports. 16 Gigabit Ethernet ports. HDMI 2.0 and 2.1 ports and four 12G-SDI and one DisplayPort 1.4 and a pair of Bi-Level and Tri-Level supporting Genlock signal connectors. Whew.

Power

Rated power consumption maxes out at 170 watts and 1.5 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at just above silent.

Installation

NovaStar's CX80 Pro connects to your LED display through up to 16 Gigabit Ethernet ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX. Cascade control of multiple CX80 Pro controllers with the built-in network switch.

Specifications · CX80 Pro

God gave us the gift of life; it is up to us to give ourselves the gift of living well. ~ Voltaire
Series controller CX80 Pro · · · · ·

Price usd per unit
Series CX80 Pro
  • · 35,389,440 pixels
  • · 16 ethernet ports
  • · 1 × 8k layer · 12/10/8-bit
  • · vmp software
  • cost : unit
· synchronous
primary controller
backup · cascade
$20,549

VMP
  • · next generation software
  • · windows · osx
  • · intuitive · efficient
  • · energy saving
  • cost : zero
· vision management platform
download
windows · osx

VNNOX Media
  • · edit · schedule
  • · remote publishing
  • · detailed logs
  • cost : zero
· content
apply for account
zero cost
VNNOX Care
  • · condition monitoring
  • · operation history
  • · cloud backup
  • cost : zero
· monitoring
apply for account
zero cost

Options
  • · custom case
  • · full panel access
  • · cable storage
  • cost : unit
· hard case
NovaStar COEX · CX80 Pro · hard case impact resistant$ 300

Pixels
Loading
  • · 12/10/8-bit
  • · 32,768 × 1,080@60Hz
· width · maximum
horizontal
send mode · 32,768
aio mode · 16,384
32,768
Loading
  • · 12/10/8-bit
  • · 1,080 × 32,768@60Hz
· height · maximum
vertical
send mode · 32,768
aio mode · 16,384
32,768
Loading
  • · 12/10/8-bit
  • · 32,768 × 1,080@60Hz
  • · 16,384 × 2,160@60Hz
  • · 8,192 × 4,320@60Hz
· combined · total
13 ports x 2,592,00035,389,440

Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 212 · 68,719,476,736
4096 shades of rgb12
Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 210 · 1,073,741,824
1024 shades of rgb10
Bit Depth
  • · 12/10/8-bit
  • · red · green · blue
· rgb · 28 · 16,777,216
256 shades of rgb8

Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 240 Hz
n × 432,000 · 12-bit
n × 518,250 · 10-bit
n × 648,000 · 8-bit
648,000
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 144 Hz
n × 729,576 · 12-bit
n × 864,441 · 10-bit
n × 1,080,864 · 8-bit
1,080,864
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 120 Hz
n × 864,000 · 12-bit
n × 1,036,500 · 10-bit
n × 1,296,000 · 8-bit
1,296,000
Capacity
  • · frame rate
  • · number of ports
  • · pixel capacity
  • · bit depth
· 60 Hz
n × 1,728,000 · 12-bit
n × 2,073,000 · 10-bit
n × 2,592,000 · 8-bit
2,592,000

Interface

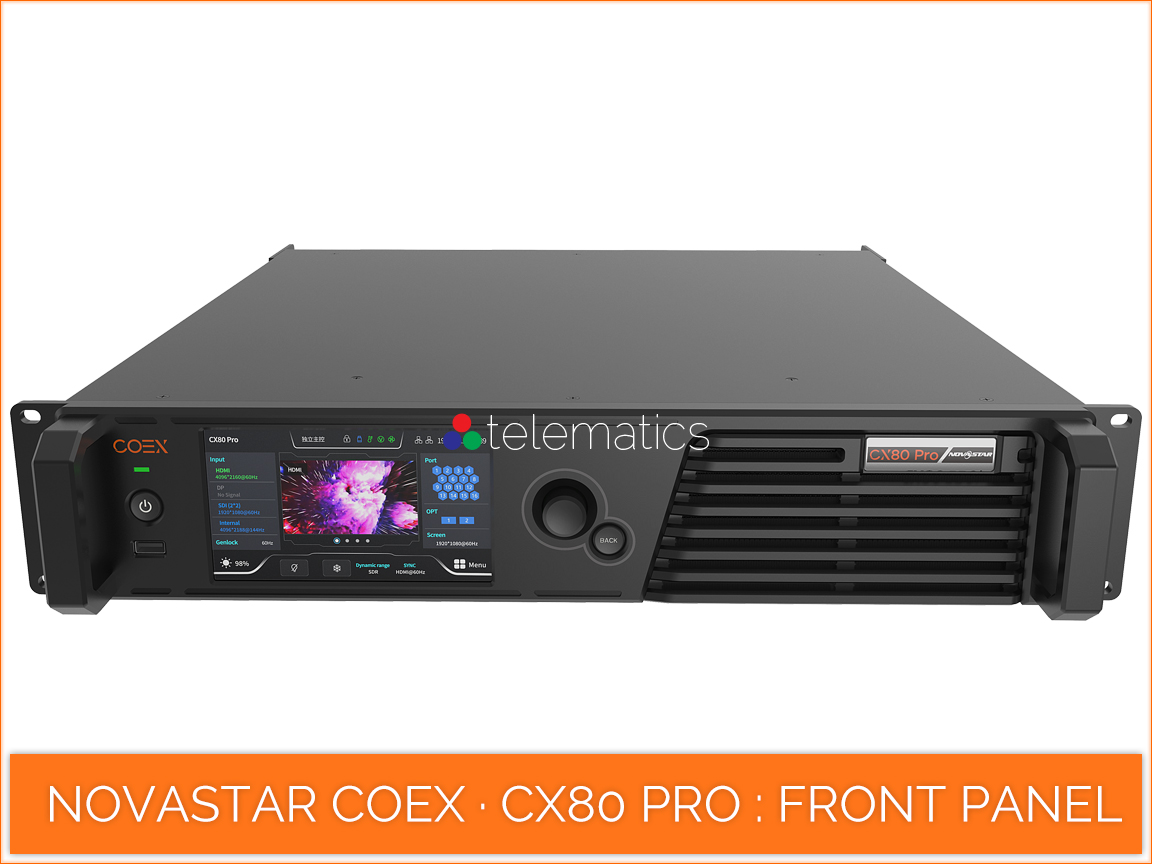

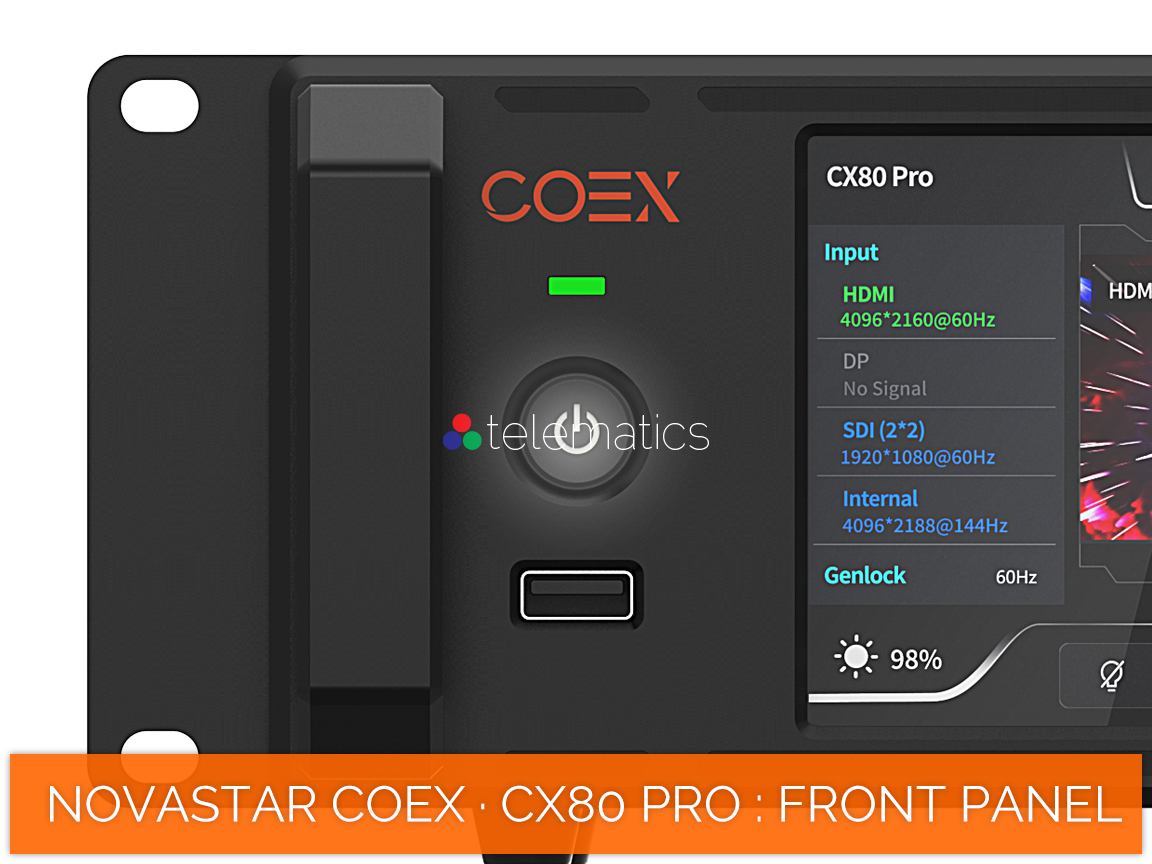

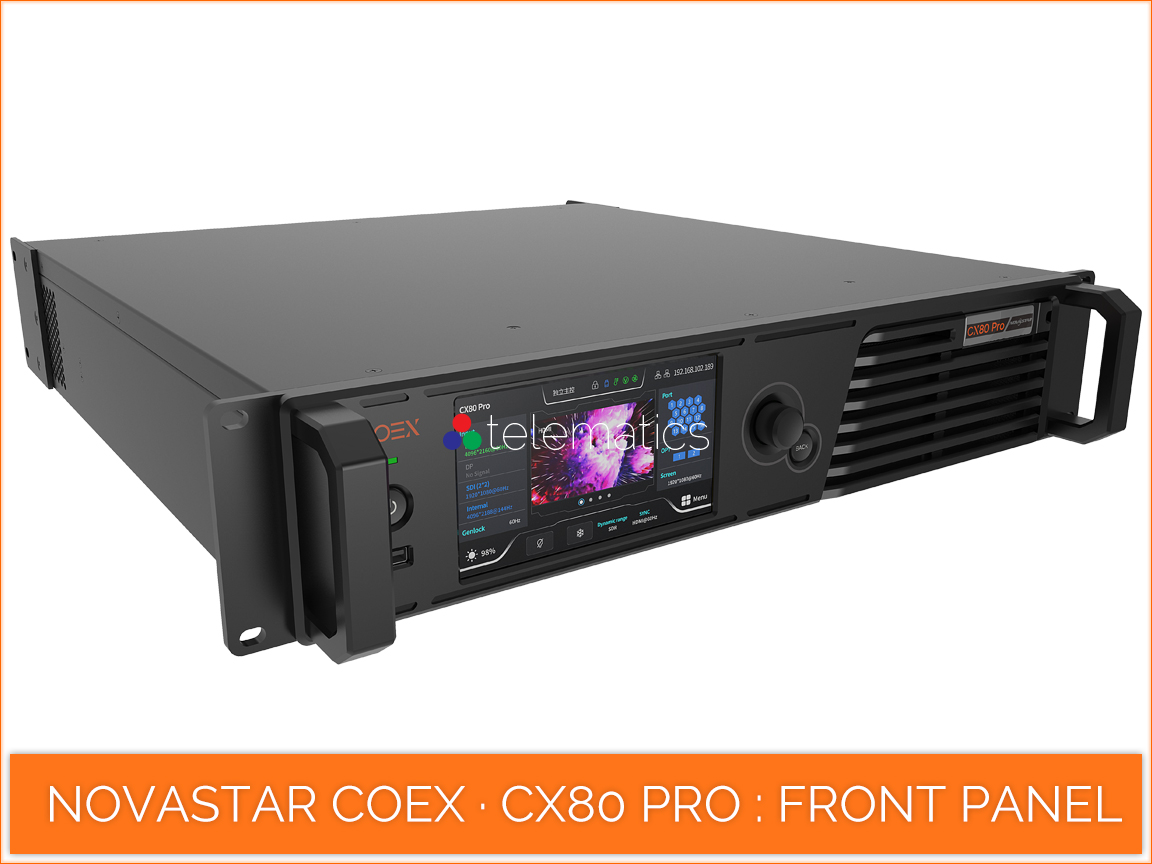

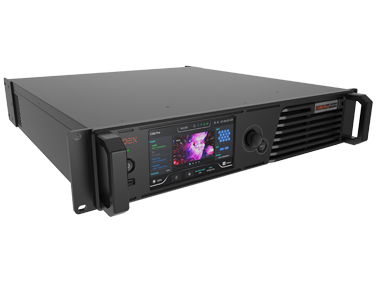

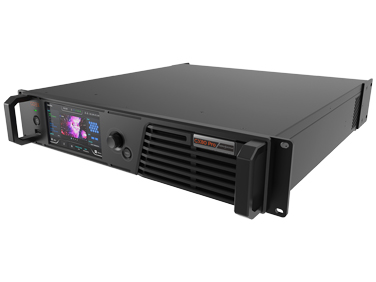

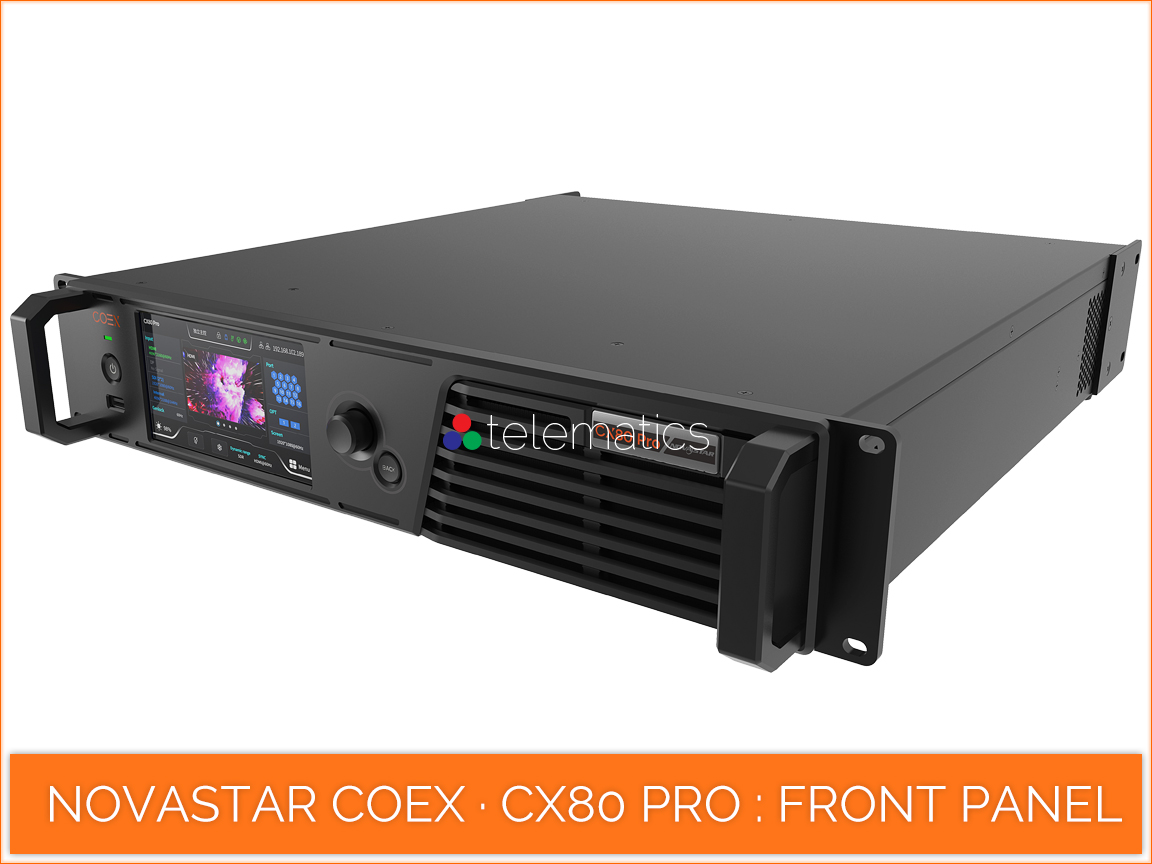

Front Panel
  • · press · power on/off
  • · hold 5 sec · restart
· power
NovaStar COEX · CX80 Pro · power button standby button🔲

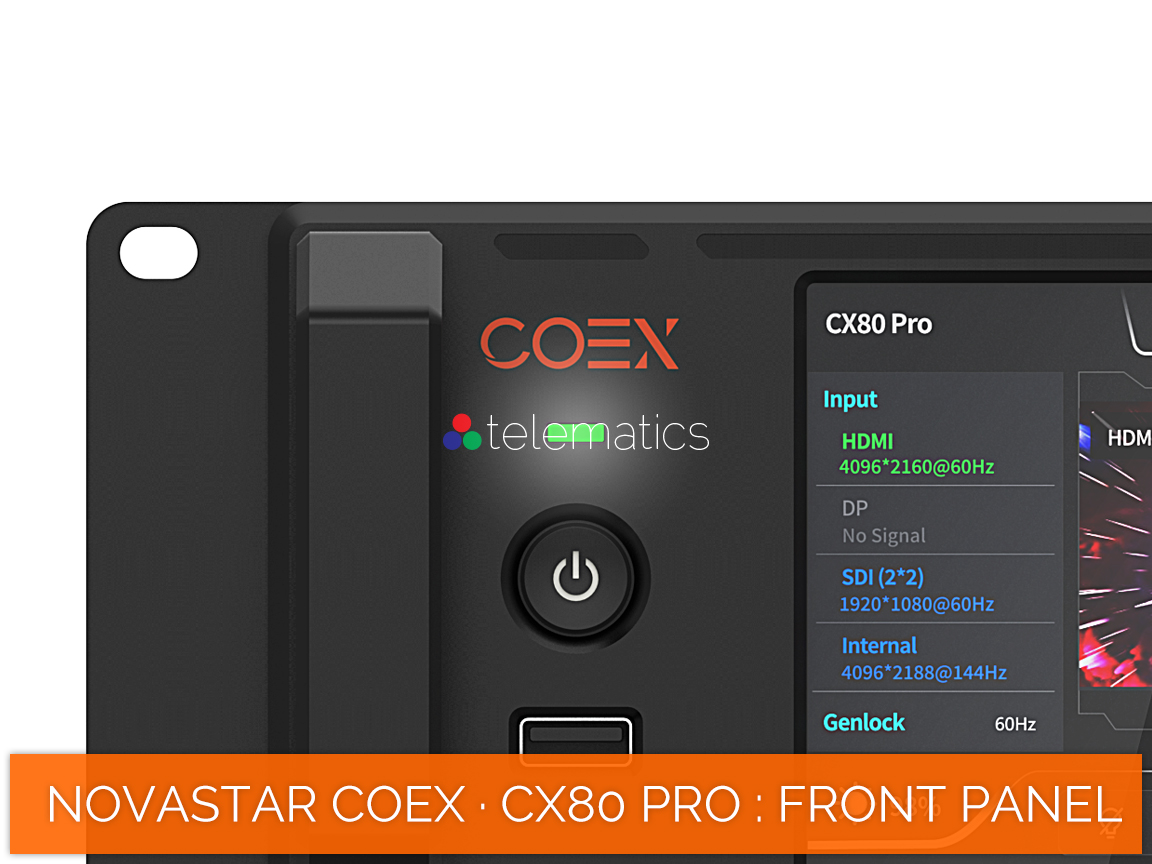

Front Panel
  • · red · standby
  • · blue · powered on
  • · green · normal
  • · flashing · abnormal
· status
NovaStar COEX · CX80 Pro · status light operating status🔲

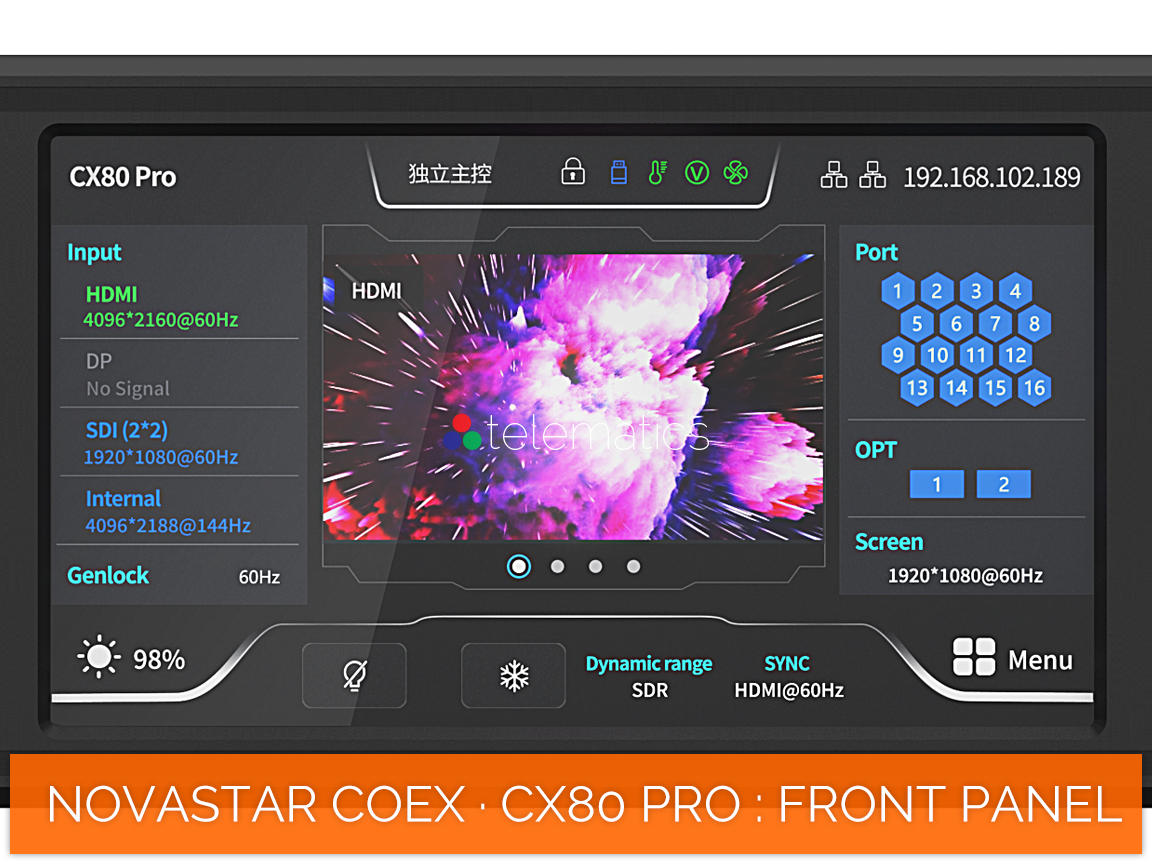

Front Panel
  • · device status
  • · menus · sub menus
  • · messages for settings
· menu
NovaStar COEX · CX80 Pro · lcd menu 5.0" ips lcd
touch display
🔲

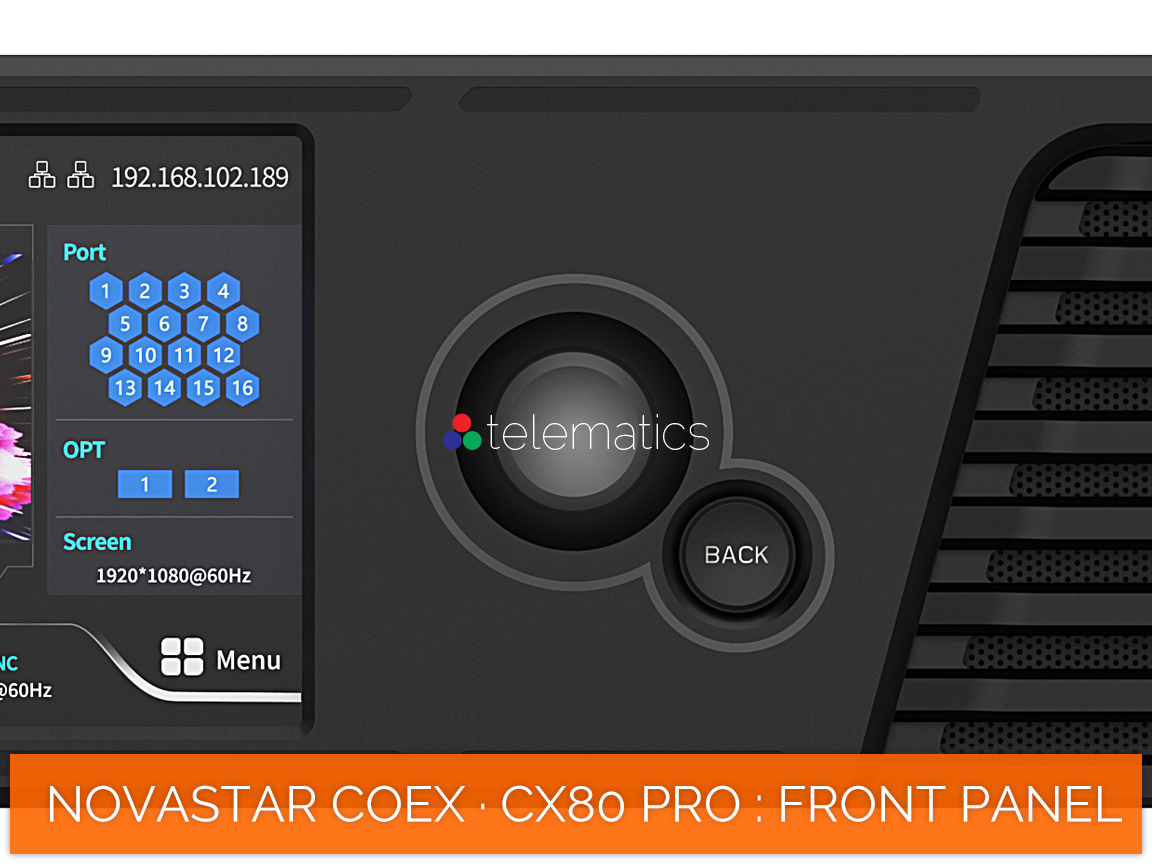

Front Panel
  • · press to enter main screen
  • · rotate to select menu item
  • · rotate to adjust parameter
  • · press to confirm
· dial
NovaStar COEX · CX80 Pro · dial press · rotate🔲

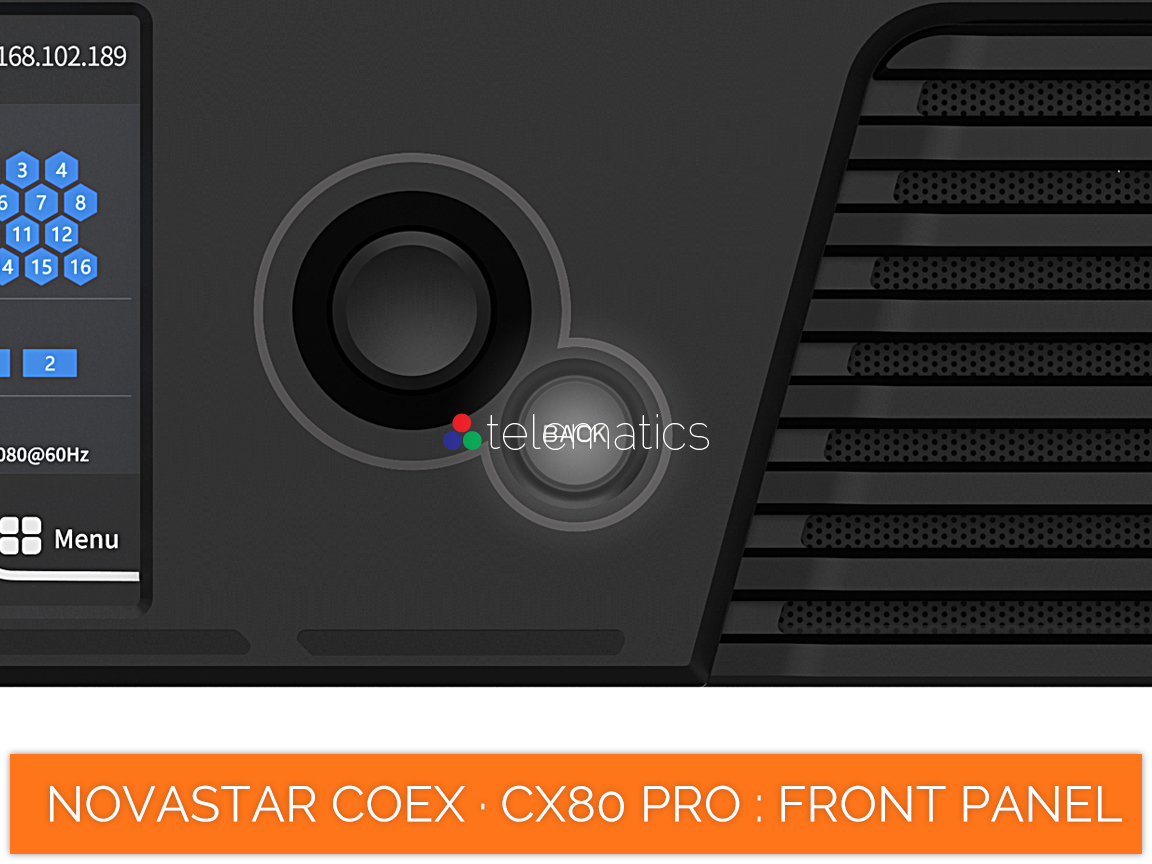

Front Panel
  • · return to previous menu
  • · cancel current operation
· back
NovaStar COEX · CX80 Pro · back button press🔲

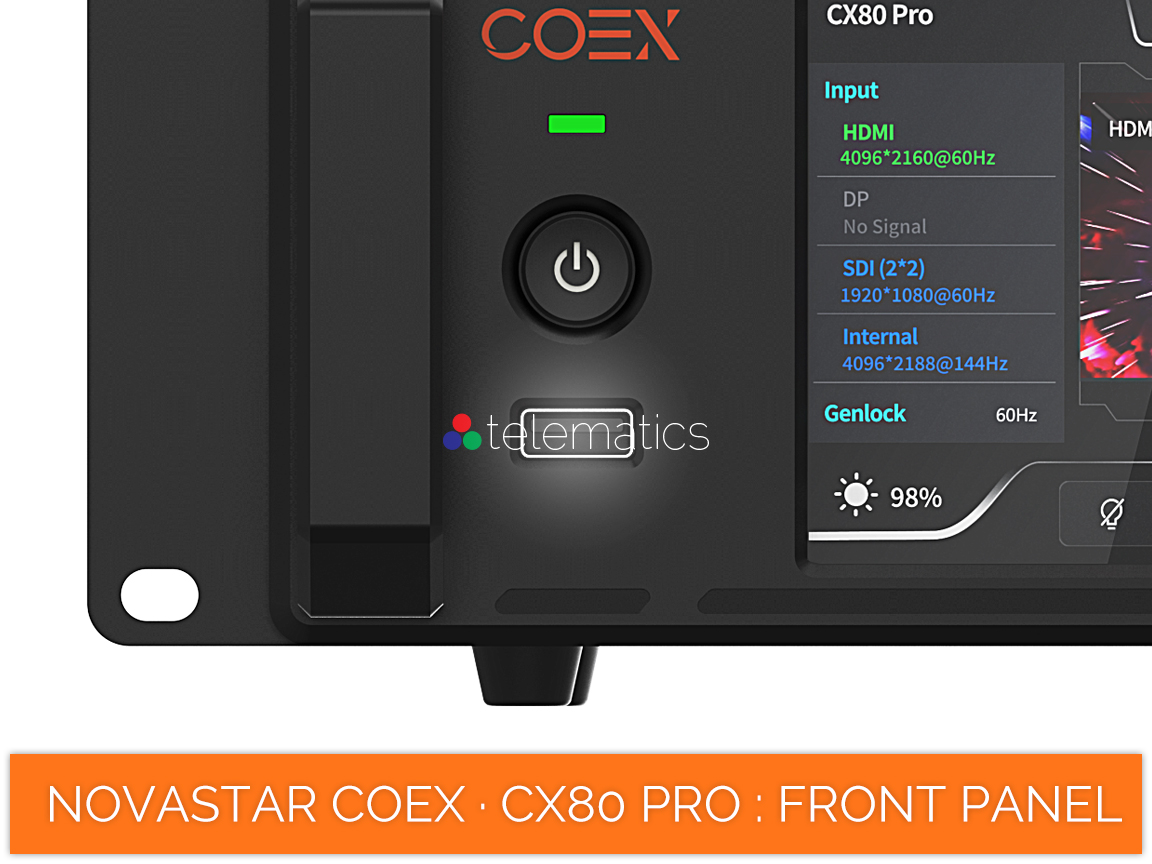

Front Panel
  • · connect to usb drive
  • · export diagnostic files
· usb 2.0
NovaStar COEX · CX80 Pro · USB 2.0 ntfs · fat32

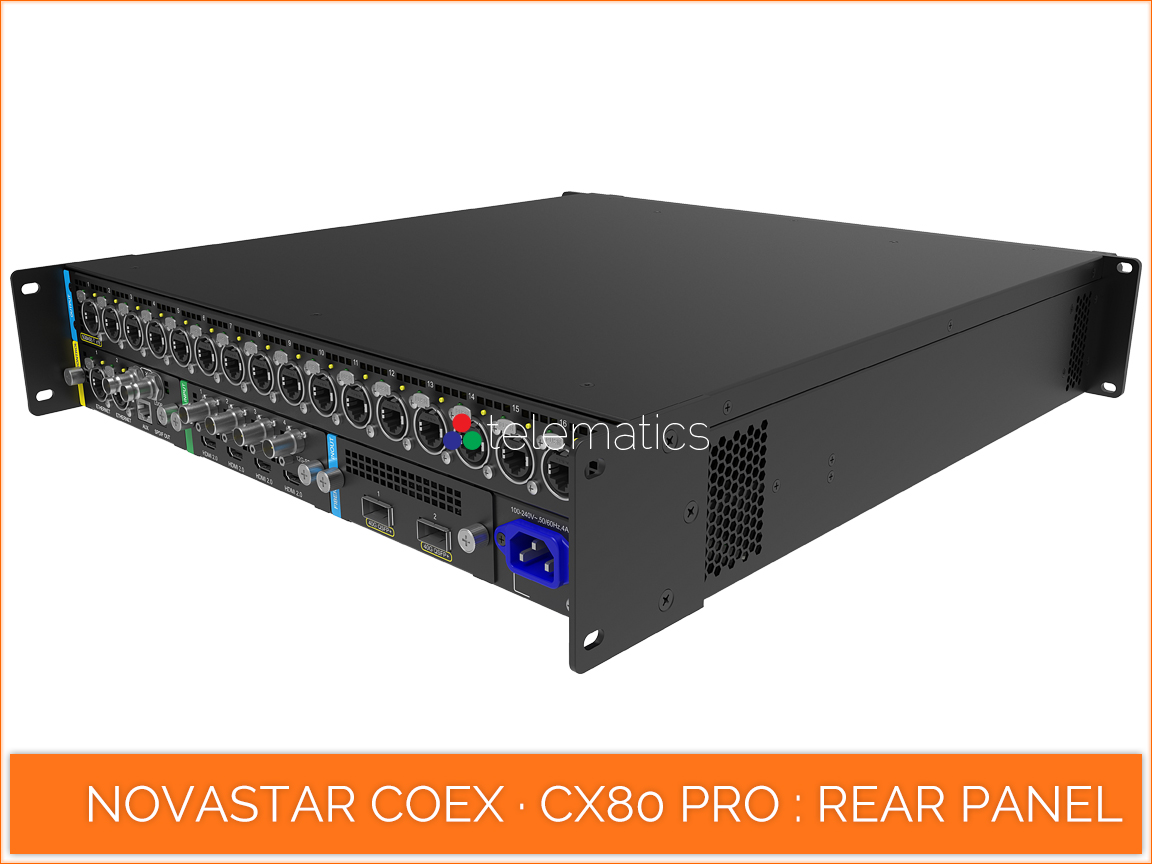

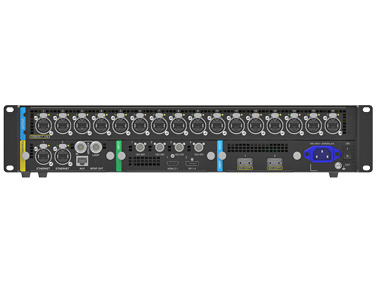

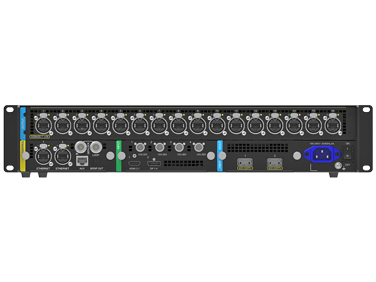

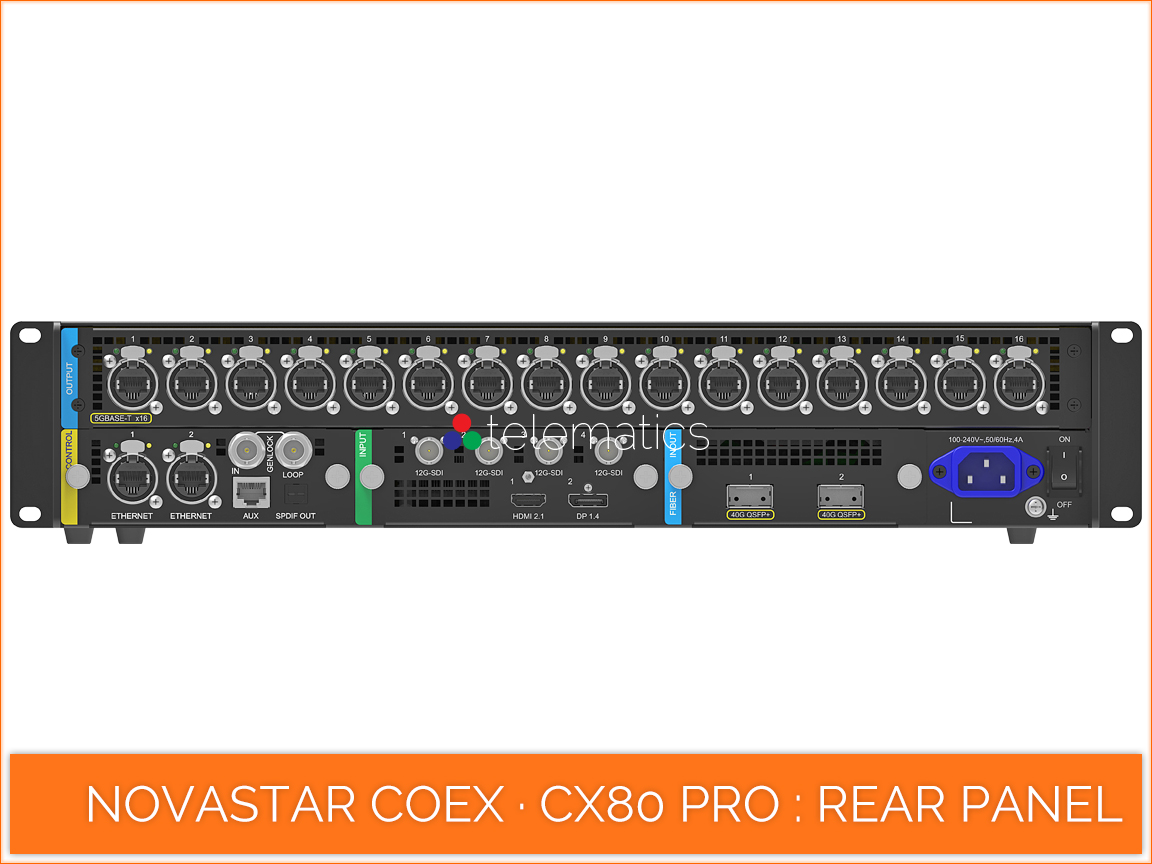

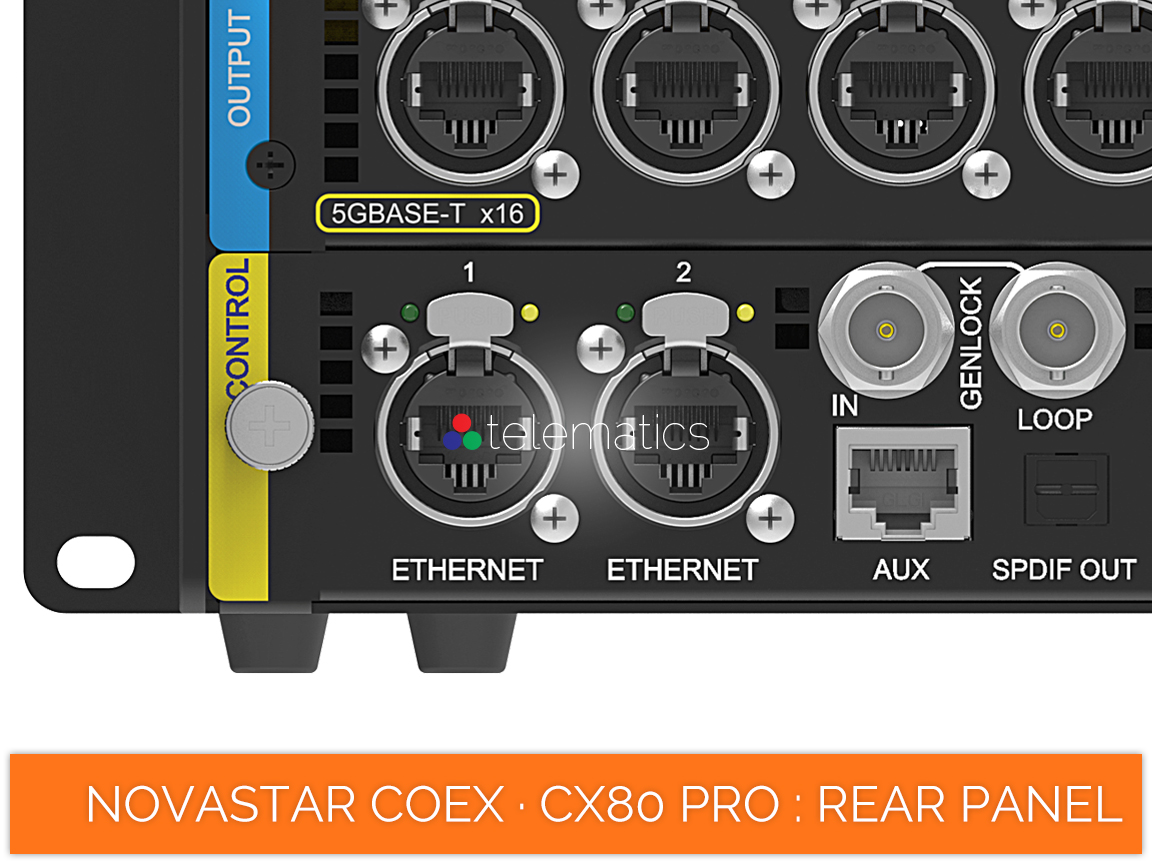

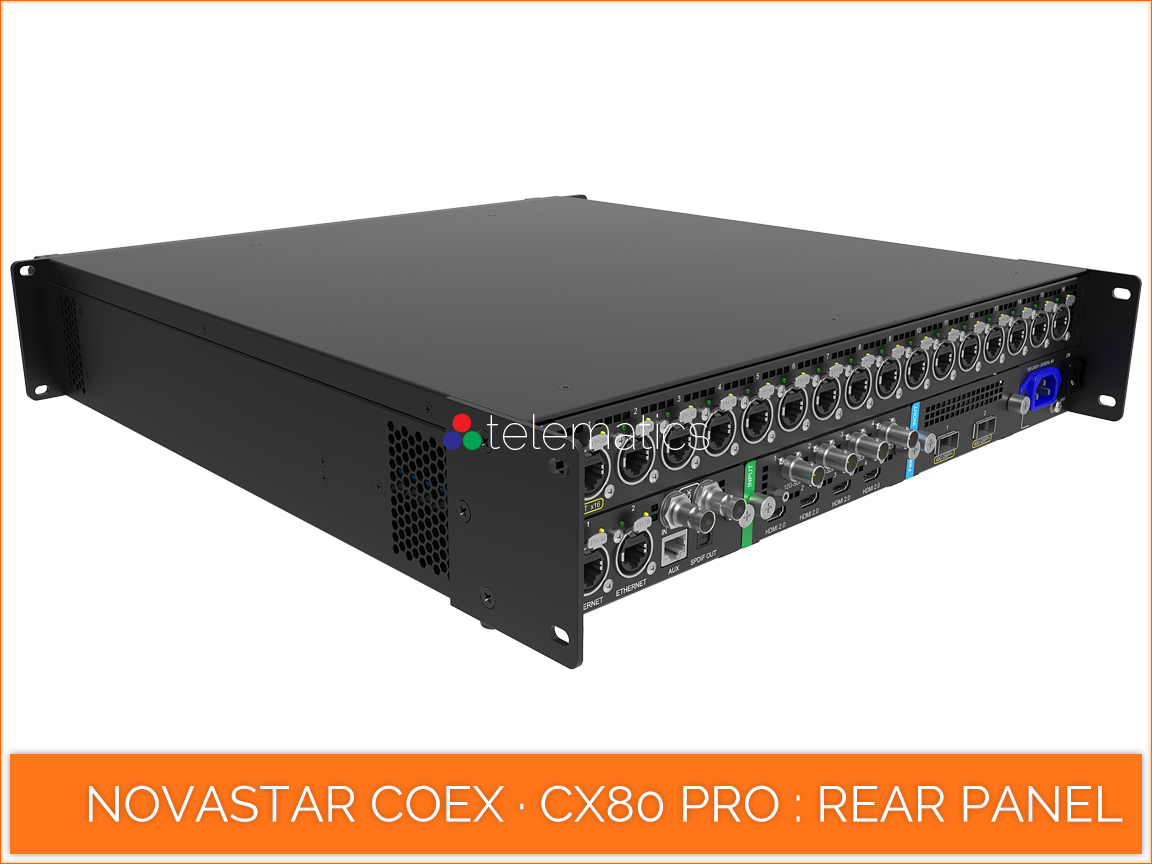

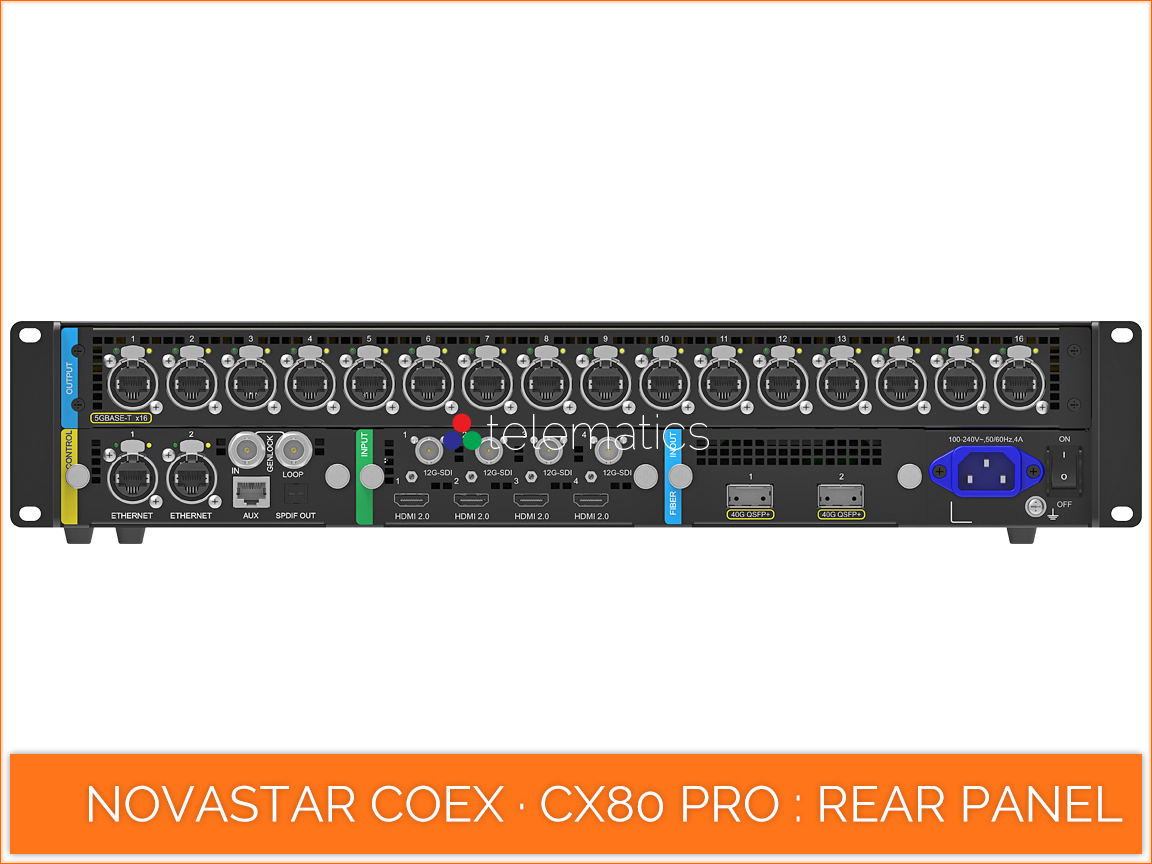

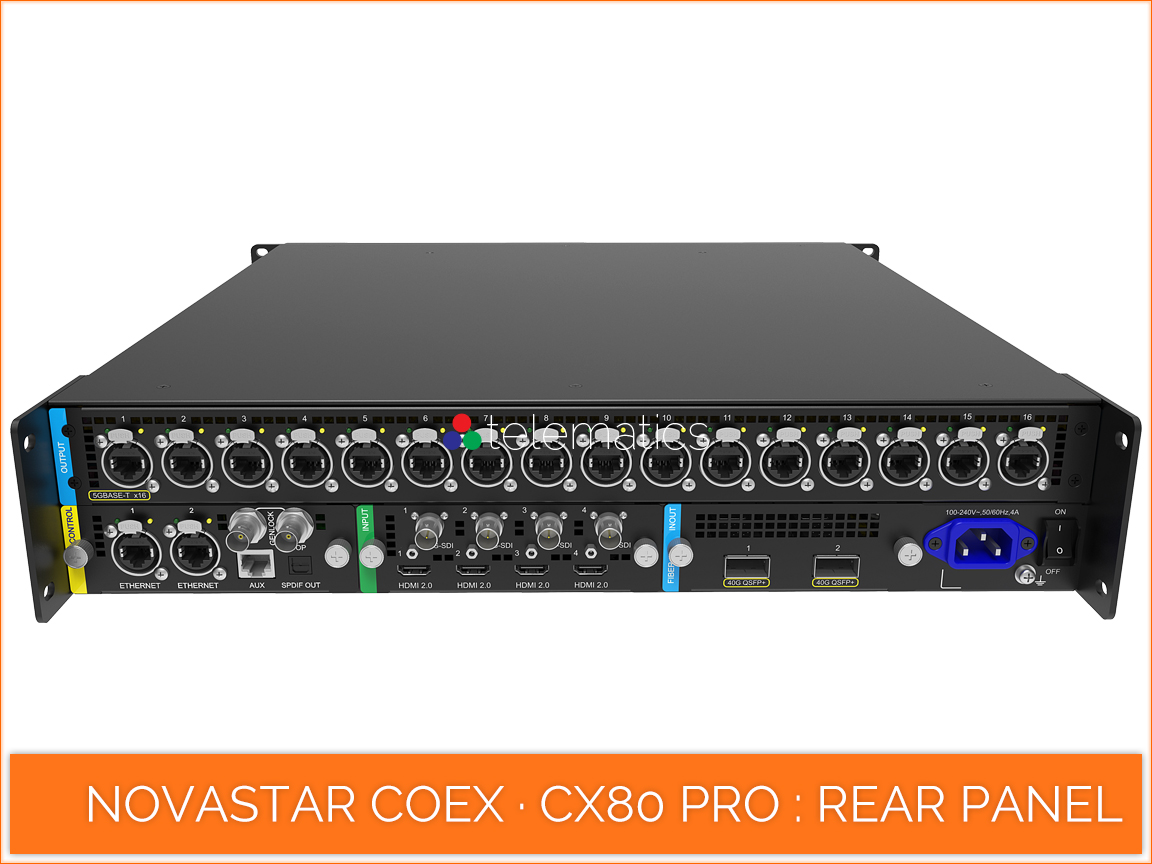

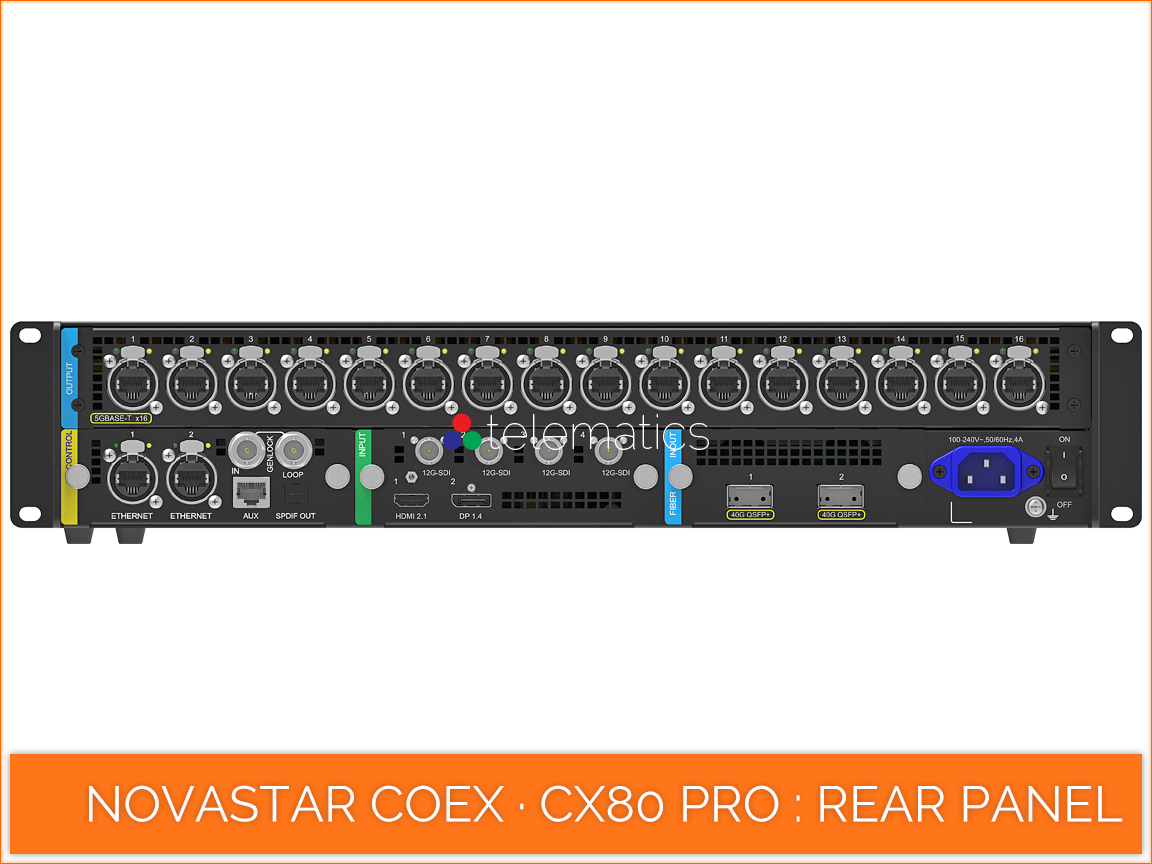

Rear Panel
  • · tcp/ip · star topology
  • · network switching function
  • · connect to cpu
  • · vision management platform
· control · ethernet
NovaStar COEX · CX80 Pro · Ethernet gigabit   (2)

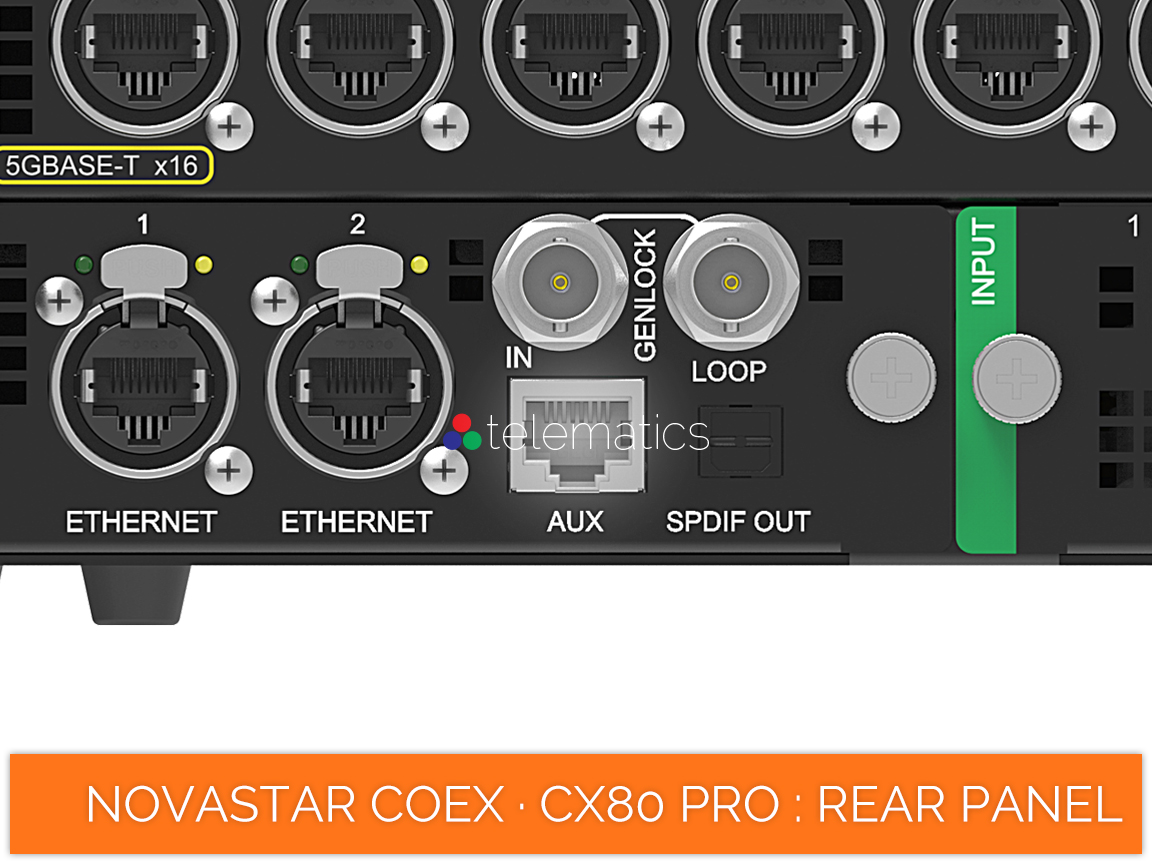

Rear Panel
  • · connect to central control
  • · reserved
· control · aux
NovaStar COEX · CX80 Pro · Aux rs232

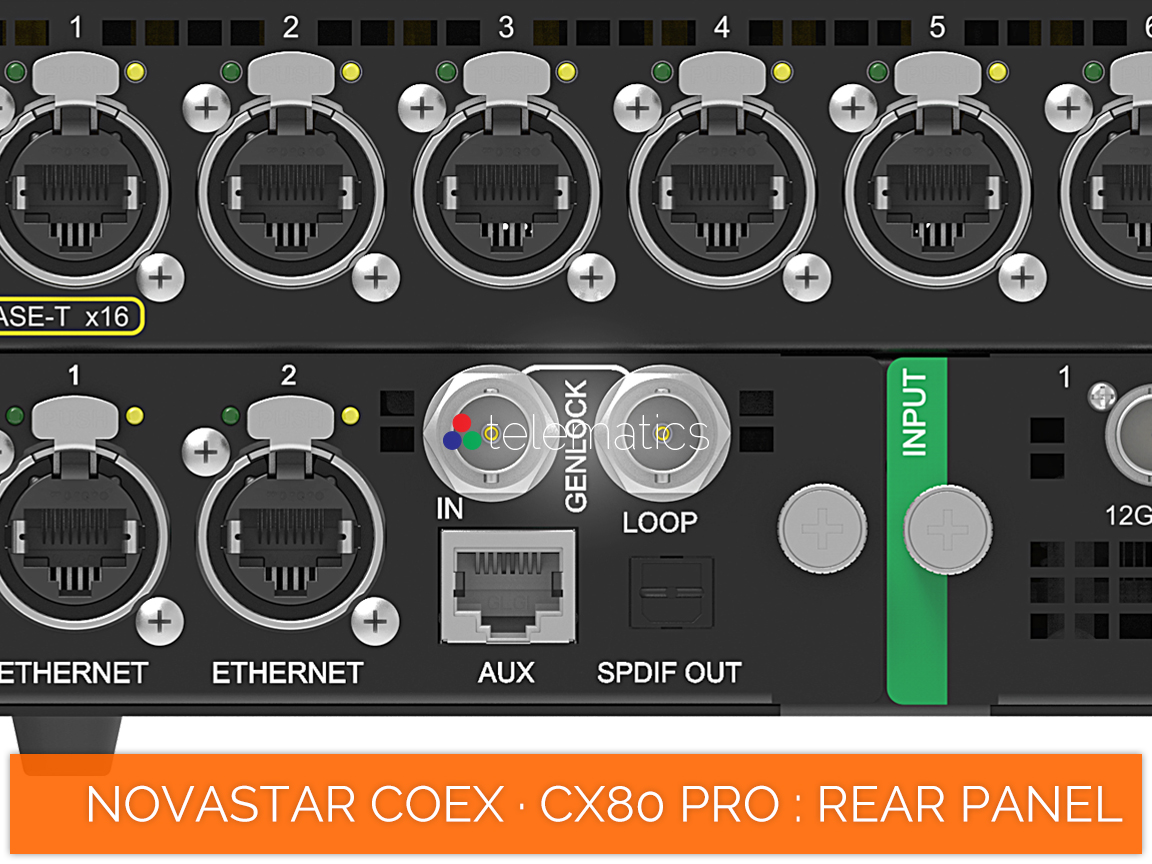

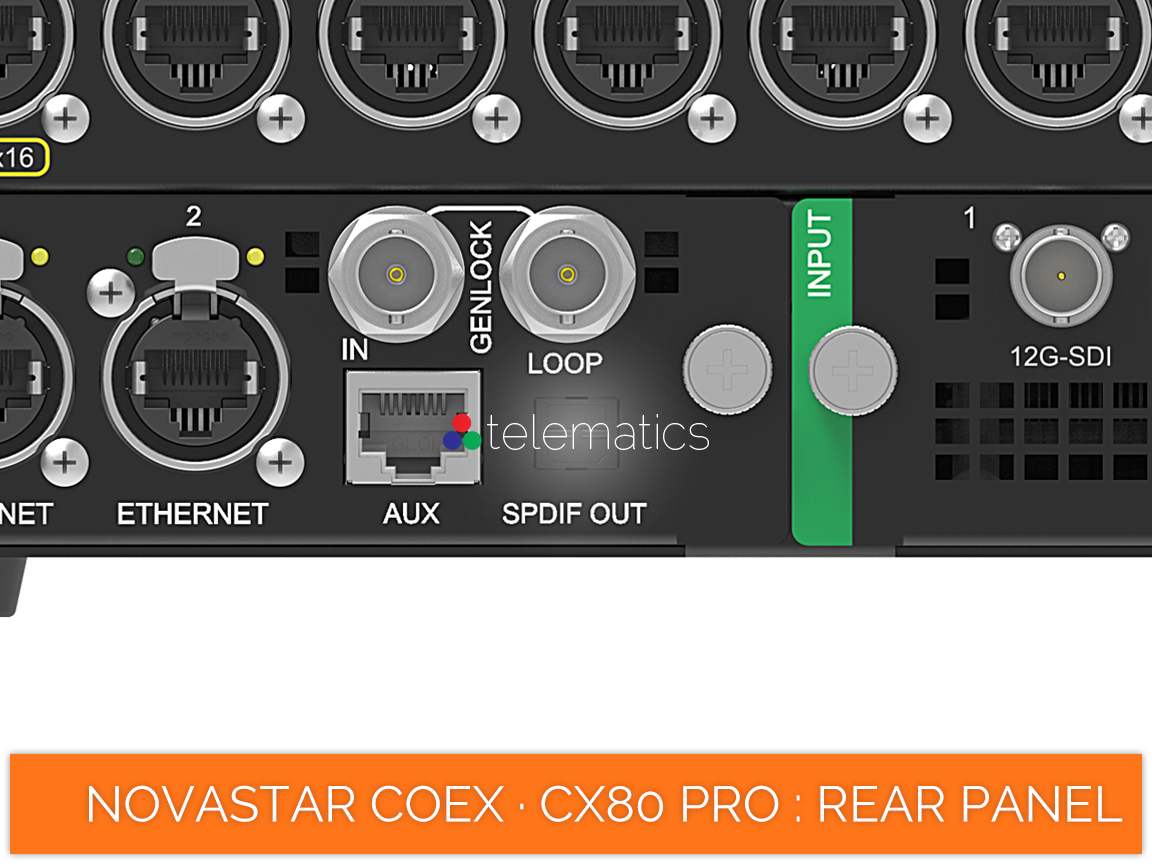

Rear Panel
  • · bi-level · tri-level
  • · in · accept sync
  • · out · loop sync
  • · cascade up to 20 devices
· control · genlock
NovaStar COEX · CX80 Pro · Genlock in · loop   (2)

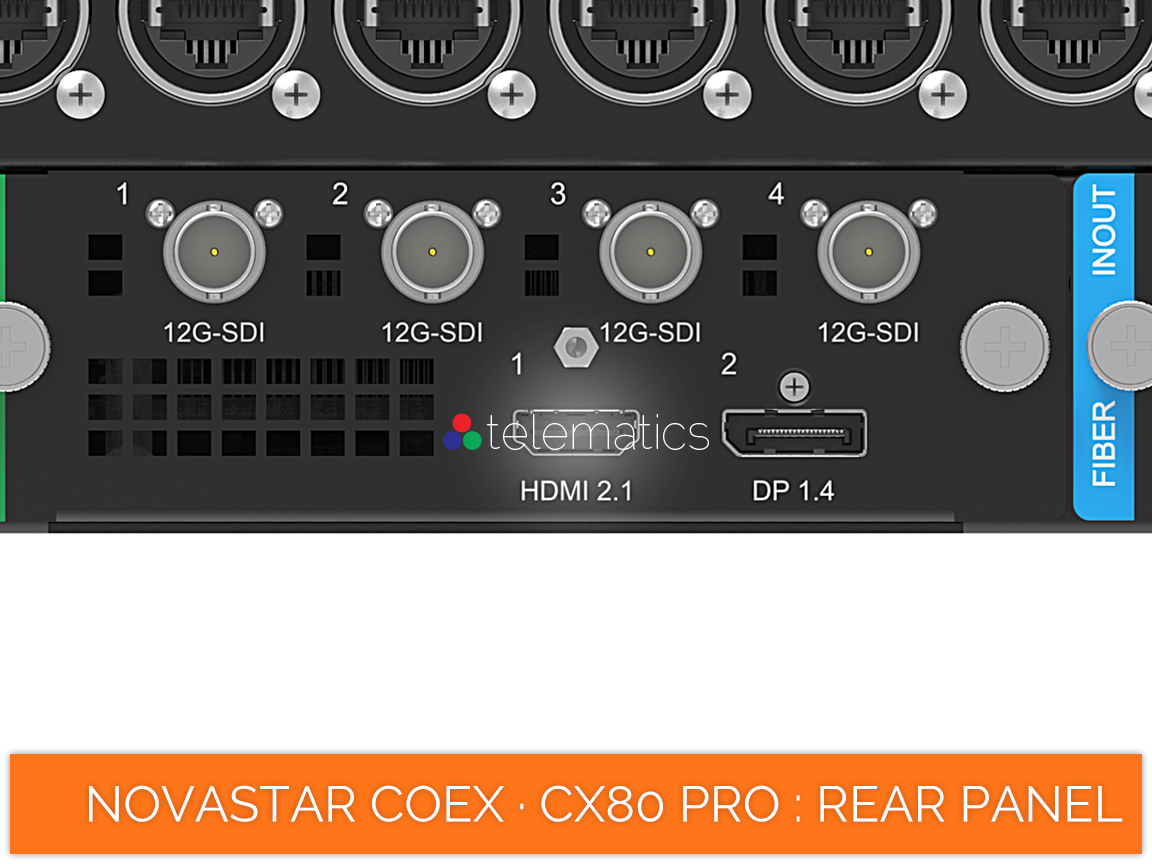

Rear Panel
  • · 7680 × 4320@60Hz
  • · frame rates · 23.98 ~ 240
  • · edid · to 7680 × 4320@60Hz
  • · hdcp 2.3 compliant
  • · hdr10 · hlg
· input · hdmi 2.1 (option 1)
NovaStar COEX · CX80 Pro · HDMI 2.1 input · loop

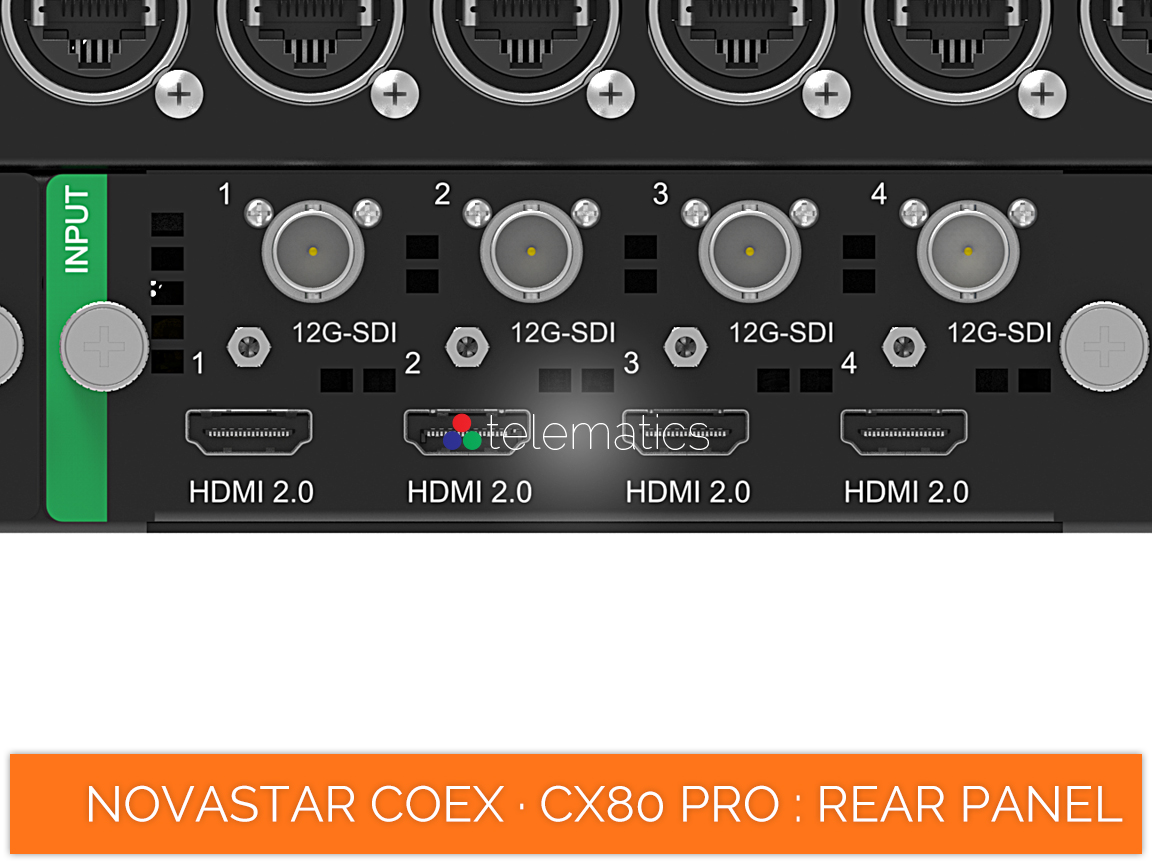

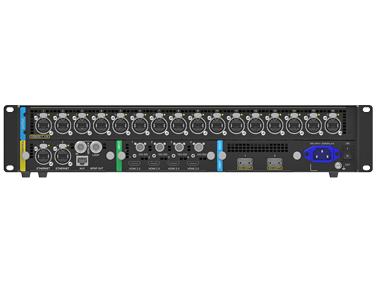

Rear Panel
  • · 8192 × 1080@60Hz
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 240
  • · edid · to 3840 × 2160@60Hz
  • · hdcp 2.2 compliant
  • · hdr10 · hlg
· input · hdmi 2.0 (option 2)
NovaStar COEX · CX80 Pro · HDMI 2.0 input · loop   (4)

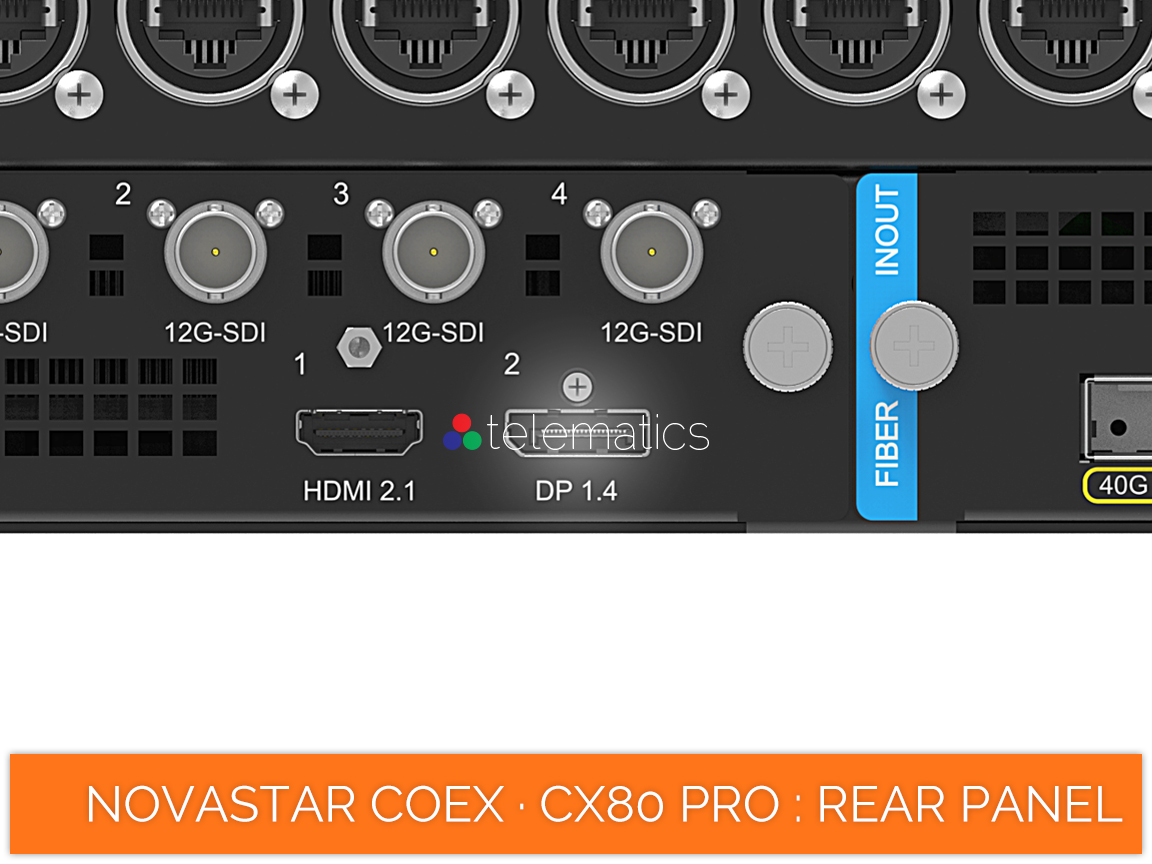

Rear Panel
  • · 7680 × 4320@30Hz
  • · edid · to 7680 × 4320@30Hz
  • · hdcp 2.2 compliant
  • · hdr10 · hlg
· input · dp 1.4 (option 1)
NovaStar COEX · CX80 Pro · DisplayPort 1.2 displayport 1.4

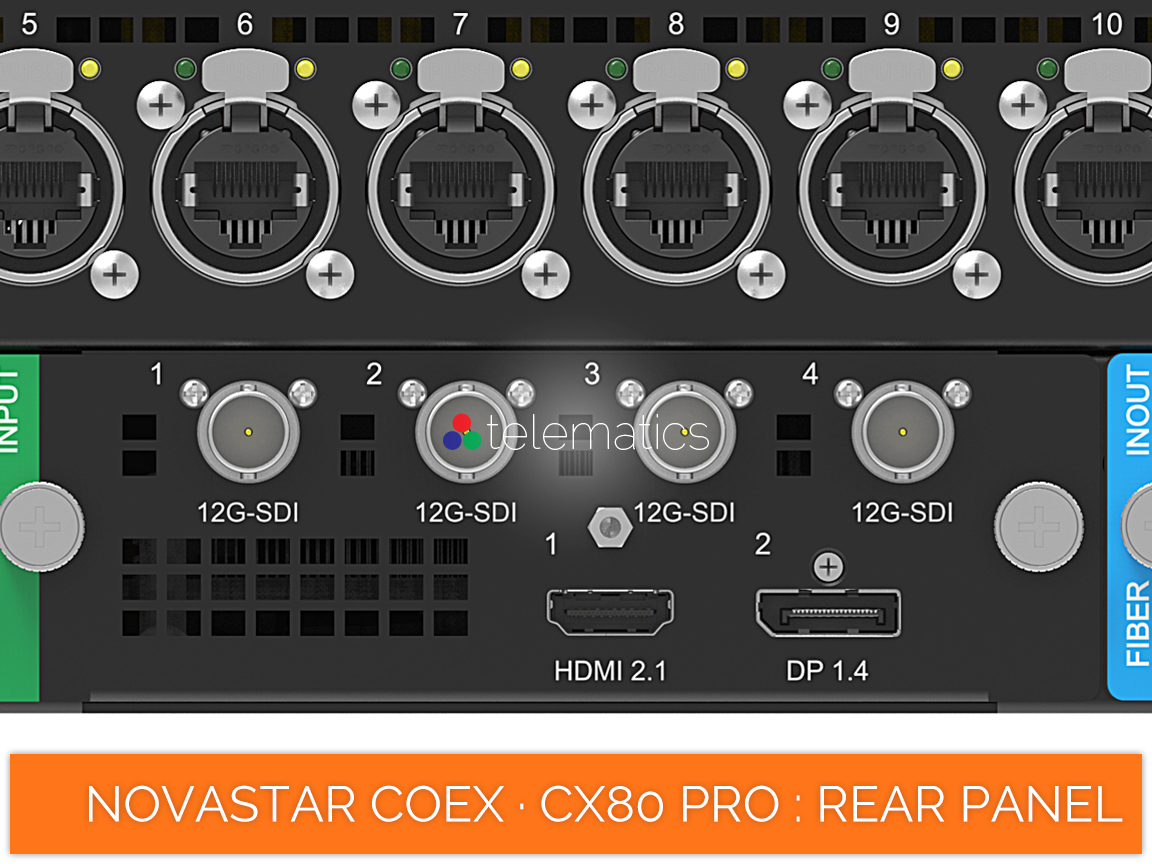

Rear Panel
  • · st-2082 (12g) · st-2081 (6g)
  • · st-424 (3g) · st-292 (hd)
  • · 3G-Level A/Level B (DS)
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 60
  • · input mosaic

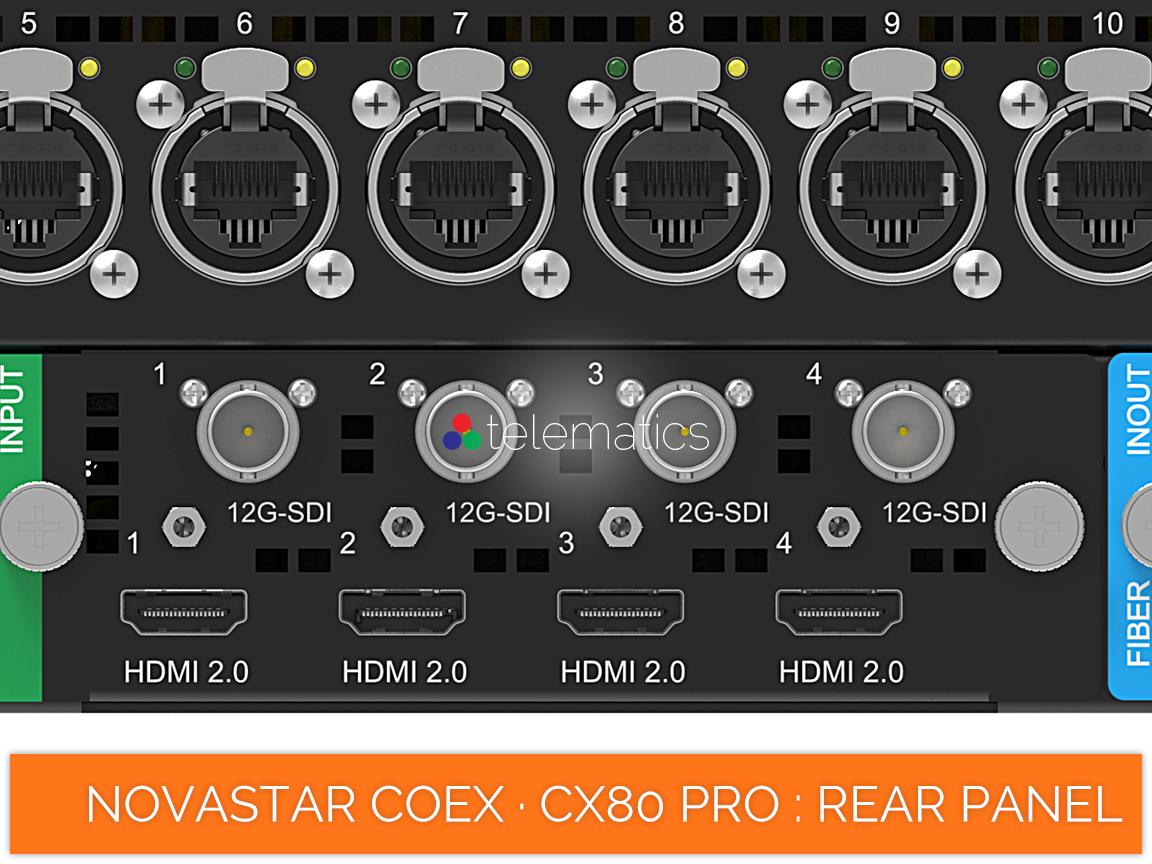

· input · 12g-sdi (option 1)
NovaStar COEX · CX80 Pro · 12G-SDI standard video input
Rear Panel
  • · st-2082 (12g) · st-2081 (6g)
  • · st-424 (3g) · st-292 (hd)
  • · 3G-Level A/Level B (DS)
  • · 4096 × 2160@60Hz
  • · frame rates · 23.98 ~ 60
  • · input mosaic
· input · 12g-sdi (option 2)
NovaStar COEX · CX80 Pro · 12G-SDI standard video input

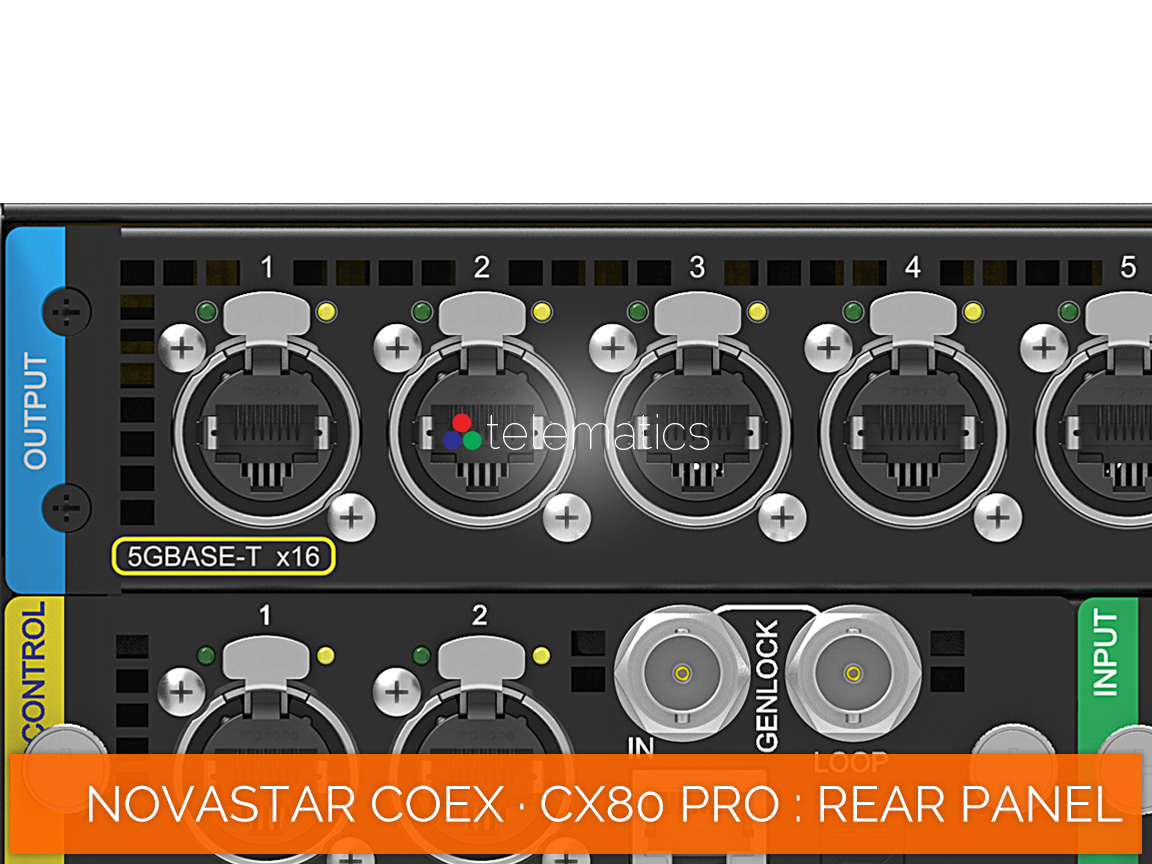

Rear Panel
  • · 5gb per second
  • · 1,728,000 · 12-bit@60Hz
  • · 2,073,000 · 10-bit@60Hz
  • · 2,592,000 · 8-bit@60Hz
· output · ethernet
NovaStar COEX · CX80 Pro · Ethernet maximum load
per port
    (16)

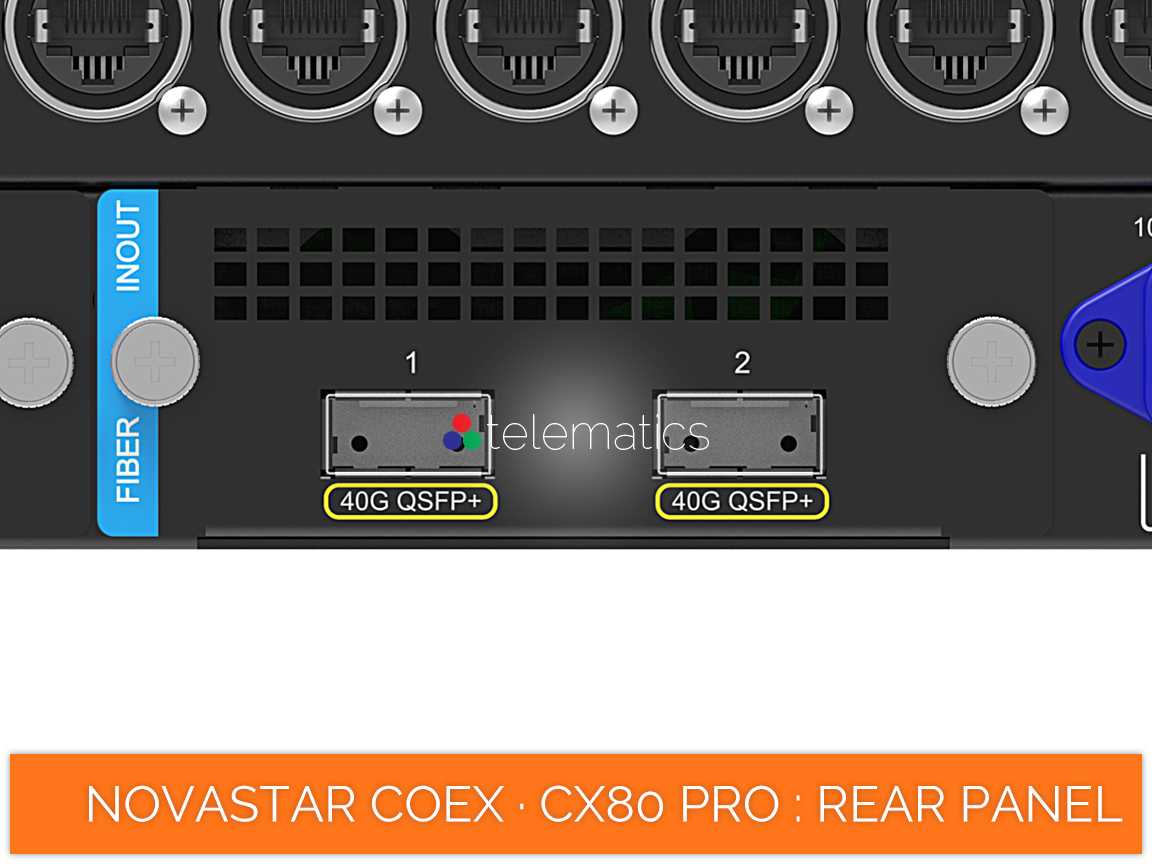

Rear Panel
  • · 40gb per second
  • 3
  • · opt (1) · ports 1 to 8
  • · opt (2) · ports 9 to 16
· output · optical fiber
NovaStar COEX · CX80 Pro · Optical Fiber 10g optical ports   (2)
Rear Panel
  • · digital audio output
  • · reserved
· output · s/pdif out
NovaStar COEX · CX80 Pro · S/PDIF digital audio

Cabinet
Dimensions
  • · physical specifications
  • · metric · imperial
· width
19.00''0.4826
Dimensions
  • · physical specifications
  • · metric · imperial
· height
3.74''0.0951
Dimensions
  • · physical specifications
  • · metric · imperial
· depth
20.78''0.5280
Dimensions
  • · one rack unit
  • · 482.60 mm · 19.00"
  • · 44.45 mm · 1.75"
· rack units
0.0951 / 0.044453.0

Dimensions
  • · physical specifications
  • · metric · imperial
· weight
23.15 lbs10.50

IP Code
  • · ingress protection
  • · first digit · solids
  • · (2) · >12.50 mm
  • · second digit · liquids
  • · (0) · no protection
· front · rear
ingress protection20 · 20

Power
  • · power consumption
· watts
maximum use draw170
Power
  • · power input
· voltage · amps
alternating current
1.5 amps
100 ⌁ 240

PDF · 3 of 3

Fine Print
Warranty · factory standard NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · ce · fcc Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch · CX80 Pro

So here's the deal...
The only journey is the one within. ~ Rainer Maria Rilke

About Telematics Canada

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels and cabinets, transparent displays and interactive video floors, and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

About NovaStar

NovaStar is the worldwide leader in control systems for direct-view LED systems, both synchronous and asynchronous, plus high-performance calibration solutions and cost-free VNNOX + CARE cloud-based media publishing, scheduling and display monitoring.

The Beijing Olympic Games, Tienanmen Celebration for the 60th Anniversary on National Day,Shanghai World Expo, Guangzhou Asian Games, Xi'an International Horticultural Expo, Games for University Students and other large-scale events all relied on control systems are provided by Nova.

Through constant innovation, NovaStar now holds more than 20 proprietary intellectual property rights in LED display control, cloud computing and other fields.

NovaStar has been awarded the Xi'an Award for Science and Technology and the Shaanxi Award for Science and Technology.

Our Clients

For more than 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Amazing Showcase · CX80 Pro

A picture is worth a thousand clicks.
Being entirely honest with oneself is a good exercise. ~ Sigmund Freud
Photo Library · COEX · CX80 Pro · 3 of 9
NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

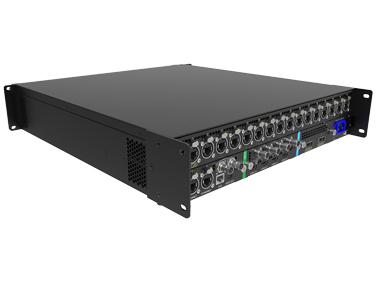

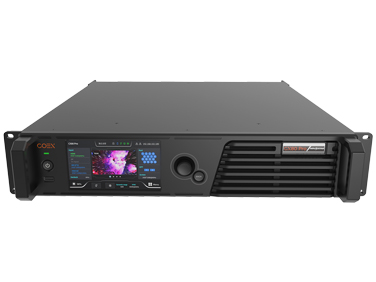

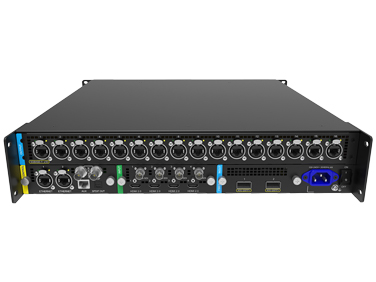

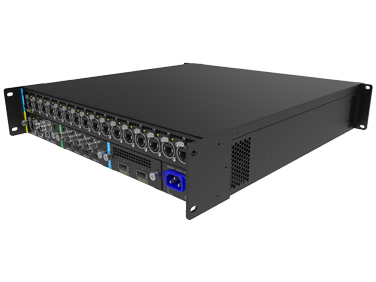

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit

NovaStar COEX · CX80 Pro · LED control system · full grayscale · image booster · low latency · vision management platform software · review · price · cost

NovaStar COEX · CX80 Pro

direct view LED display controller

16 × 5 Gbps ethernet · 12/10/8-bit

2 × image scaling · 35,389,440 pixels

vision management platform software

priced from $20,549/unit


Video Library · CX80 Pro · VMP
NovaStar MX40 · Vision Management Platform
Creativity Unleashed
NovaStar MX40 · Vision Management Platform
Creativity Unleashed · Overview

Contact Telematics Canada

Politely awaiting your call. It's a Canadian thing...
We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu

Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
