The Art Of LED · Desay Series T

iF DESIGN AWARD The winners of the iF DESIGN AWARD 2019 are in. From 22 to 24 January, 67 design experts from all over the world selected the best achievements in design from more than 50 different countries.
~ iF Design Award 2018 · Desay Series T


Pixels

Pixel to pixel spacing begins at an incredible 1.26 millimeters to create a display resolution of more than
620,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series T1.26 looks great from about 1 meter away.

Dimensions

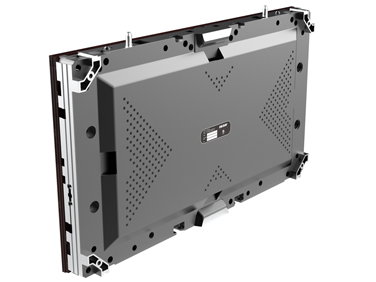

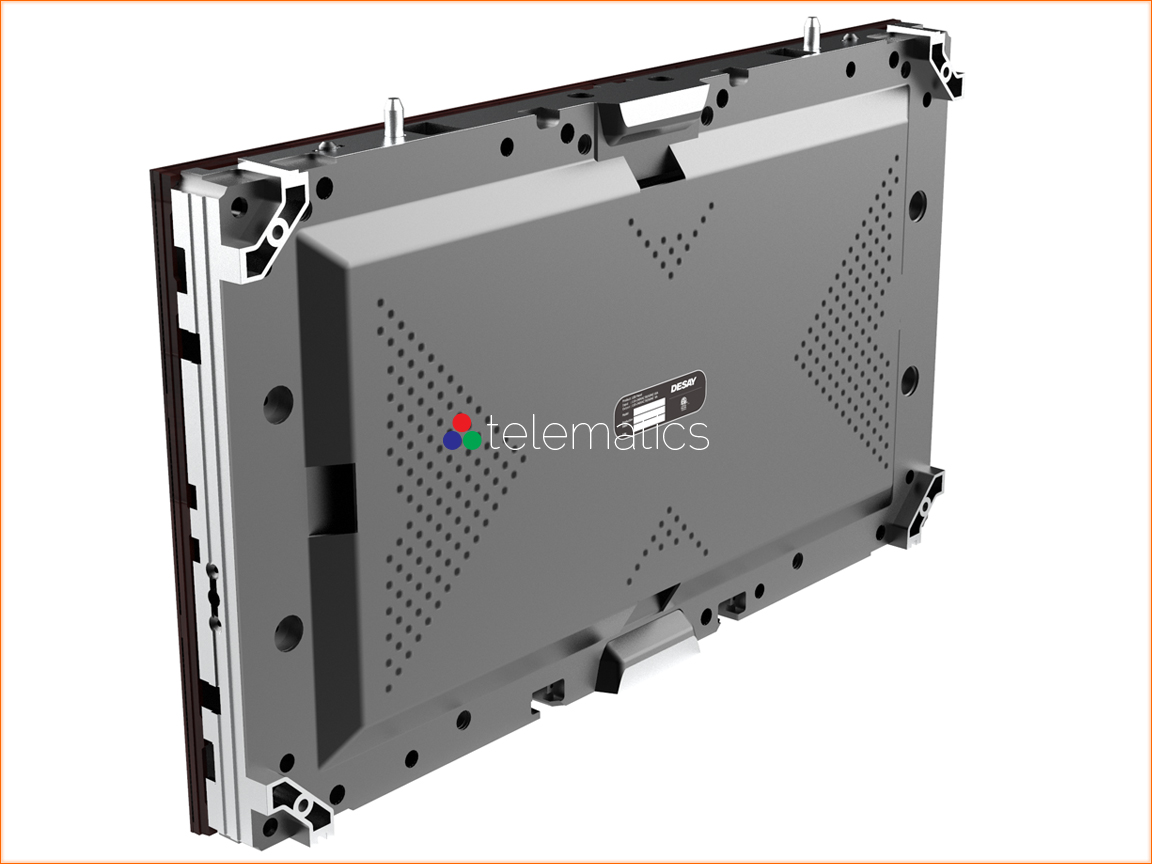

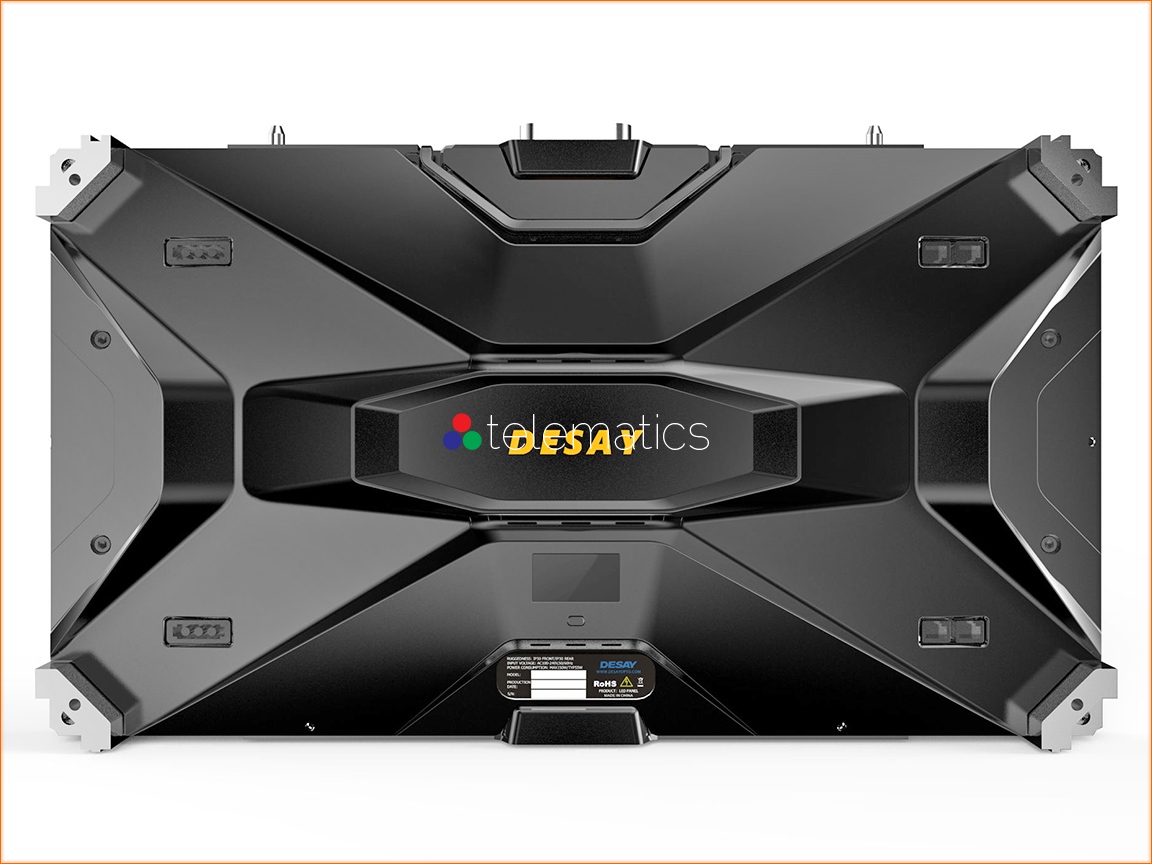

The Series T is a precision aluminum panel that weighs approximately
10 kilograms with XYZ dimensions of
609 * 342 * 75 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 24 * 13 * 3 inches
and a featherweight 22 pounds.

Viewing

Display brightness levels extend from 500 cd/m² to 1200 cd/m².
Screen refresh are exceptional at 3840 Hz for flicker-free video.
Off-axis viewing is 75° to 80° which means that pretty much everyone in the room can see the Series T whether coming or going.

Performance

Colors are amazing with levels of red13 * green13 * blue13 that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 192 ~ 238 Watts per square meter and up to 830 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

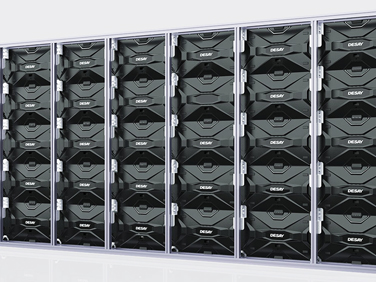

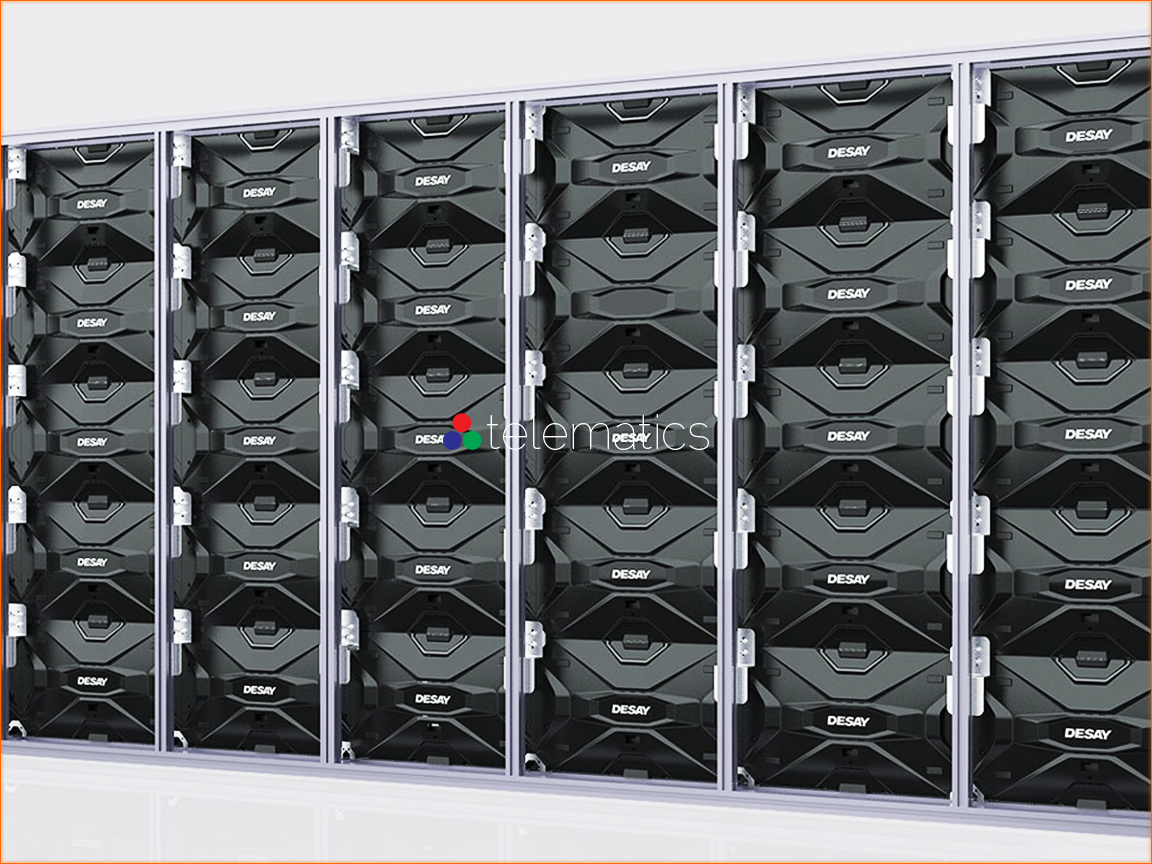

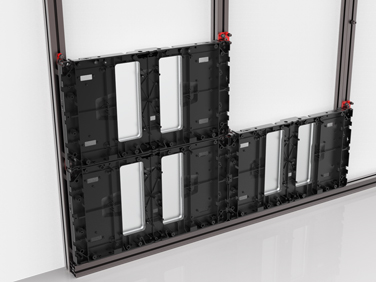

The Series T attaches to surrounding panels using locking fasteners assisted by magnetic guides that align the connection points. Attach to a frame or use hanging bars or ground supports. Power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series T

Award winner. Edge cutter. Envy creator.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series T126 T158 T190 T253
Pixels mm · meters
Resolution · ctc distance · mm 1.26 1.58 1.90 2.53
Resolution · per linear meter 788 630 525 394
Resolution · per square meter 620979 397552 276136 155245
Dimensions mm · (inch)
Width 609 (24.0) 609 (24.0) 609 (24.0) 609 (24.0)

Height 342 (13.5) 342 (13.5) 342 (13.5) 342 (13.5)

Depth · aluminum 60 (2.4) 60 (2.4) 60 (2.4) 60 (2.4)
Depth · polycarbonate 75 (2.9) 75 (2.9) 75 (2.9) 75 (2.9)
Weight kilo · (pound)
Panel 10.0 (22.0) 10.0 (22.0) 10.0 (22.0) 10.0 (22.0)
Viewing (upgrade)
Brightness · candela/m² 600 600 800 1000

Refresh · hertz 3840 3840 3840 3840

Angle · 50% brightness 80° 80° 80° 80° 80° 80° 80° 80°
Angle · 50% brightness 70° 70° 70° 70° 70° 70° 70° 70°
Performance
Colors · rgb · bit depth 213 213 213 214
Control · brightness levels 255 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4 11.4
Power square meter
Watts · (average draw) 620 (35%) 550 (35%) 830 (35%) 580 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Resolution HD · 4K
Panels · (4 x 4) · 2436 * 1370 mm 1920 * 1080
Panels · (5 x 5) · 3045 * 1712 mm 1920 * 1080
Panels · (6 x 6) · 3654 * 2055 mm 1920 * 1080
Panels · (7 x 7) · 4263 * 2398 mm
Panels · (8 x 8) · 4872 * 2740 mm 3840 * 2160 1920 * 1080
Panels · (9 x 9) · 5481 * 3083 mm
Panels · (10 x 10) · 6090 * 3425 mm 3840 * 2160
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
Installation
Wall · custom steel frame
Ceiling · fly bar
Floor · floor support

IP Code · front · rear 30 · 30 30 · 30 30 · 30 30 · 30
Operating · celsius · (fahrenheit) -10 (14) · 40 (104) -10 (14) · 40 (104) -10 (14) · 40 (104) -10 (14) · 40 (104)

Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series T

The Series T was introduced by Desay in 2016 and builds on the success of our Series E and X panels which offer ultrafine and fine-pixel resolution in stage rentals or permanent installations.

The dimensions of 609 * 342.56 millimeters create a perfect 16:9 aspect ratio in just a single panel or with four or more panels.

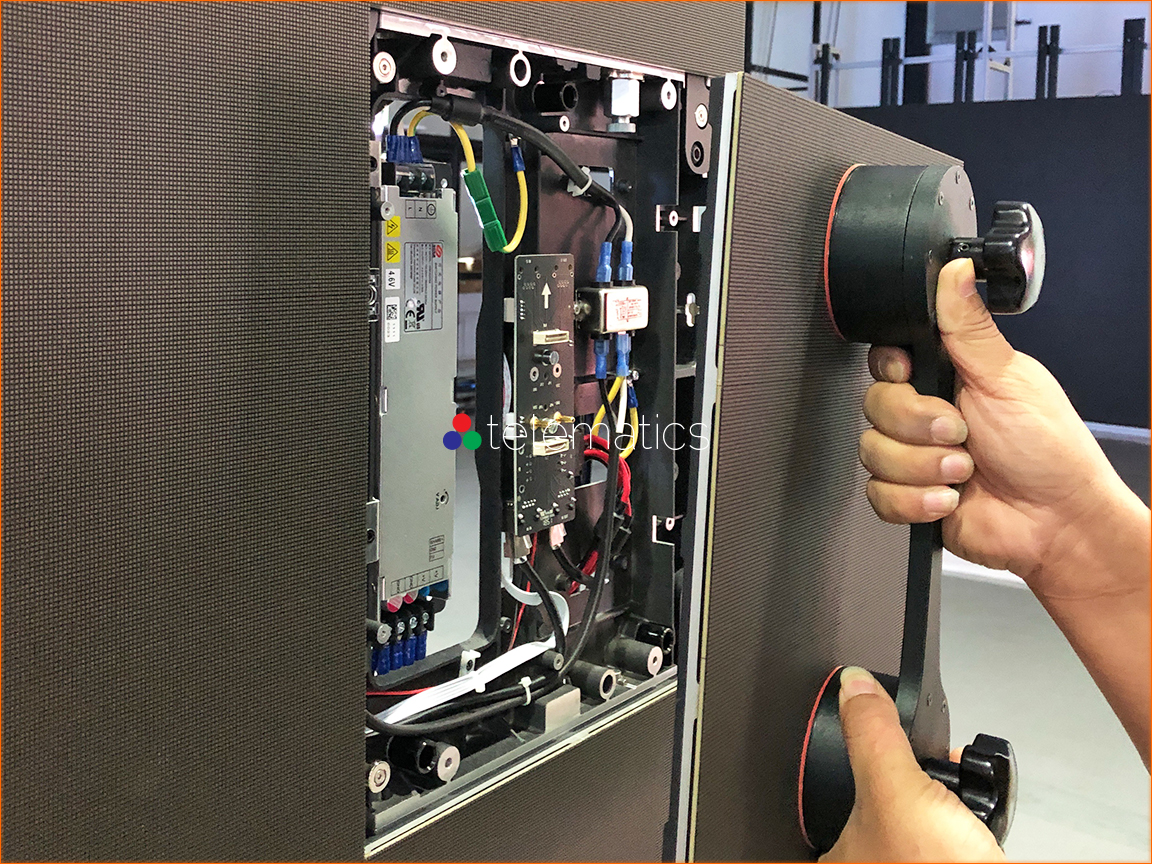

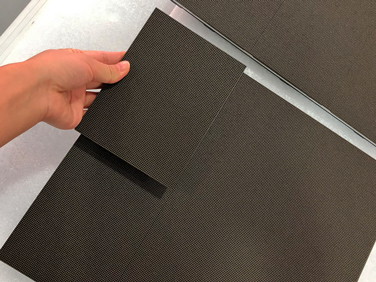

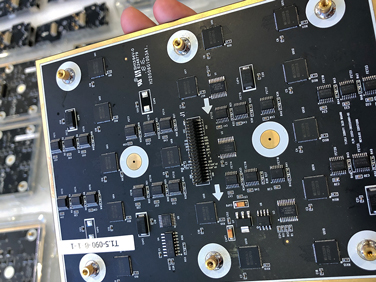

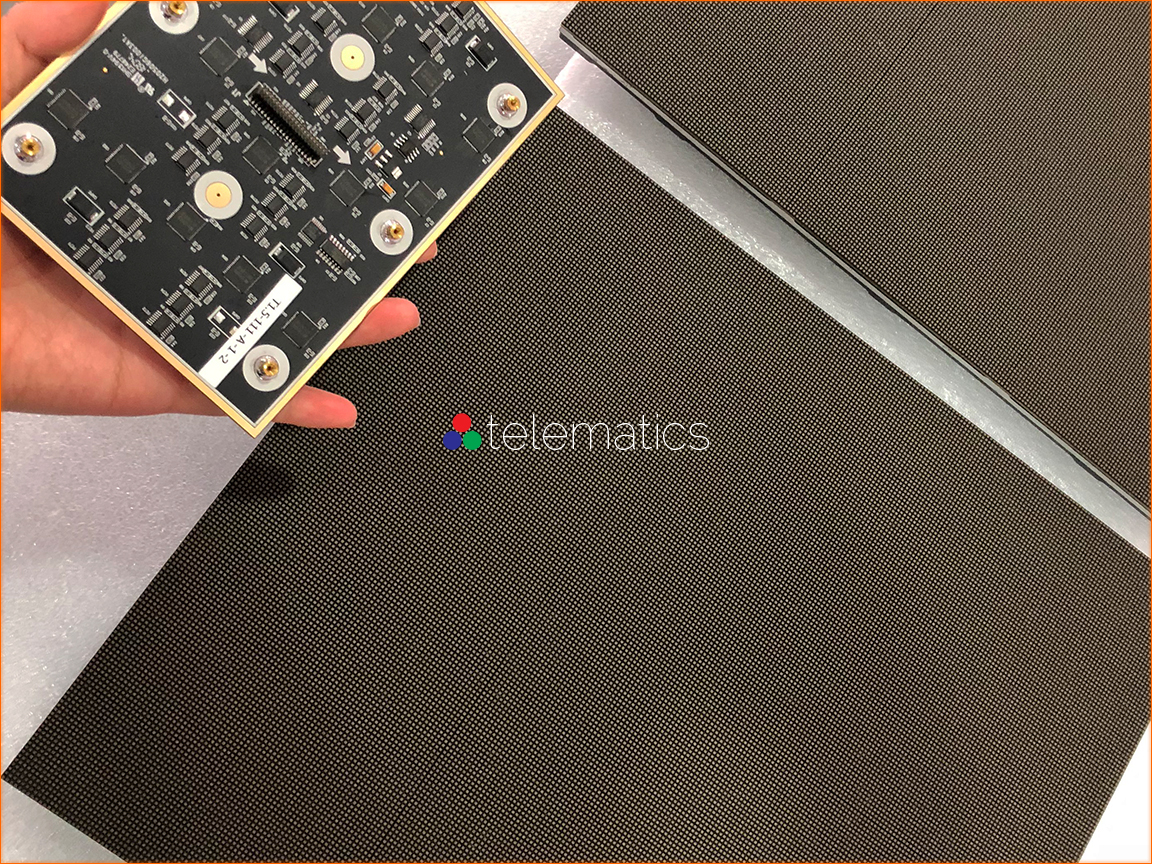

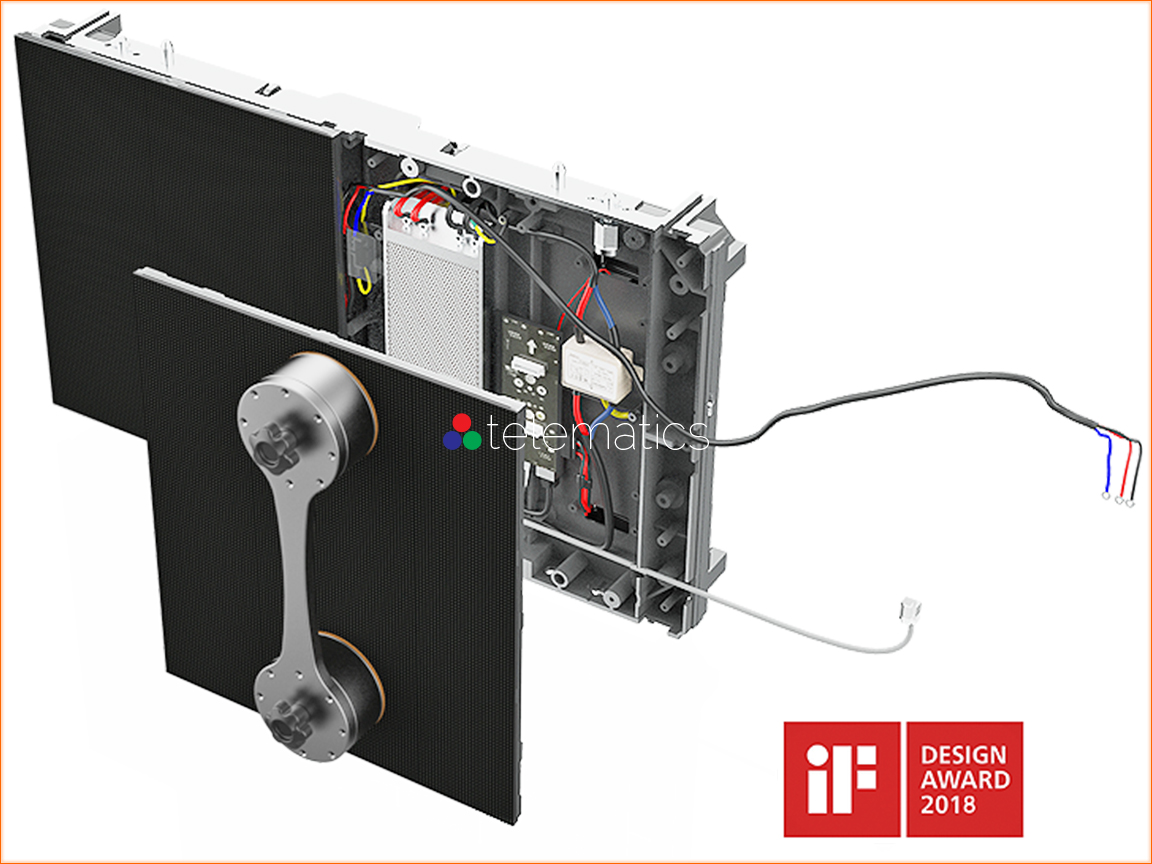

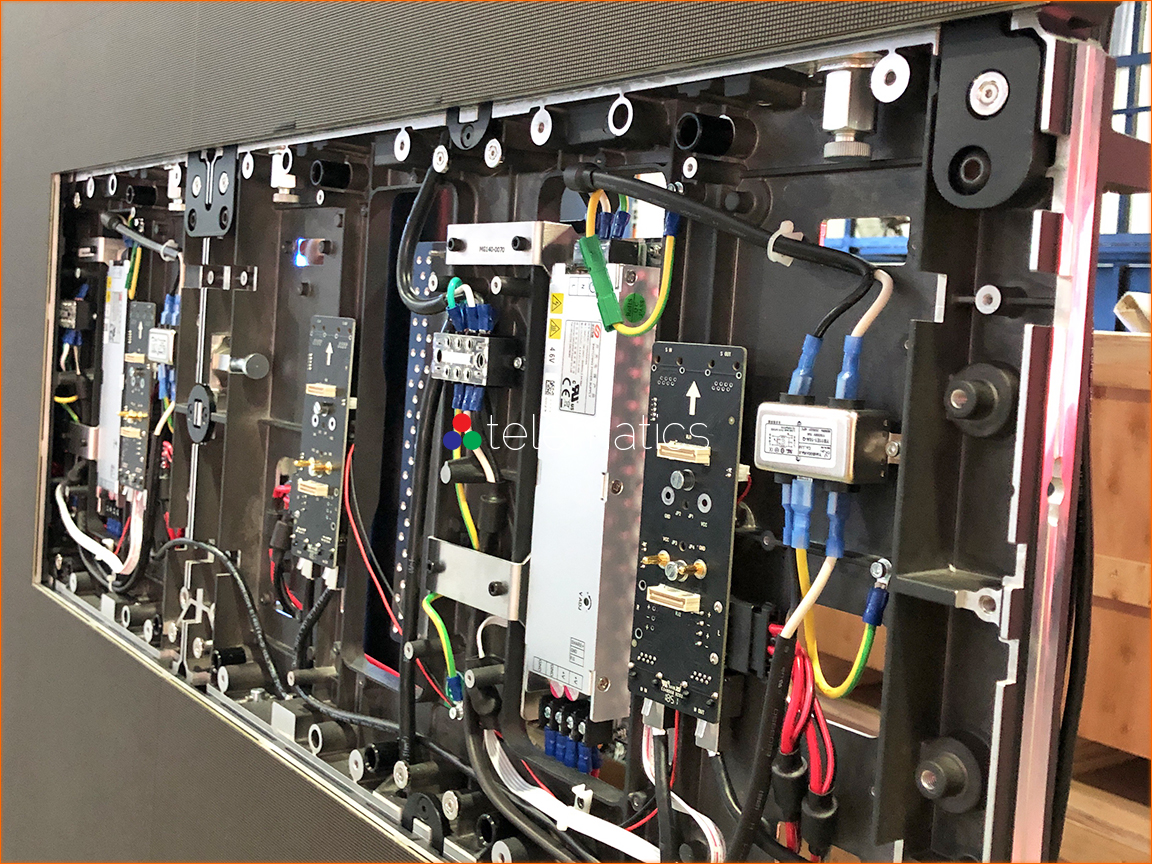

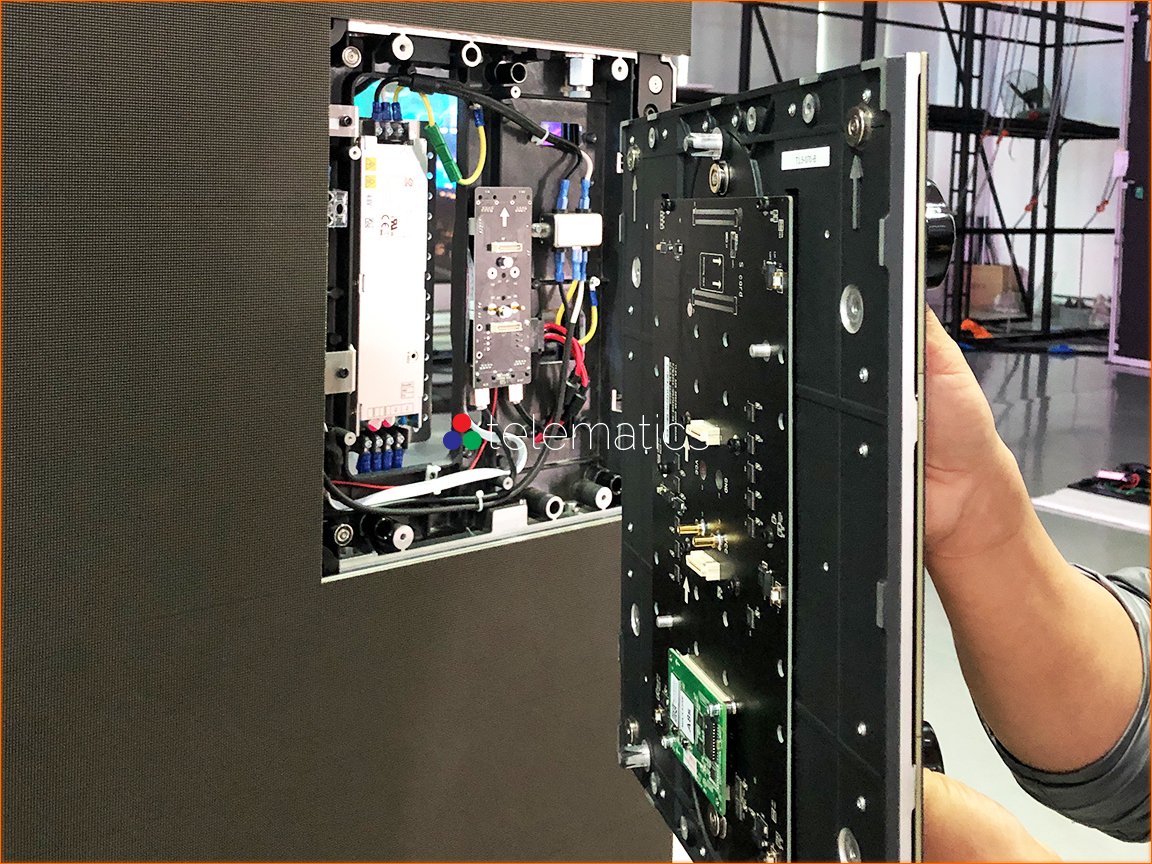

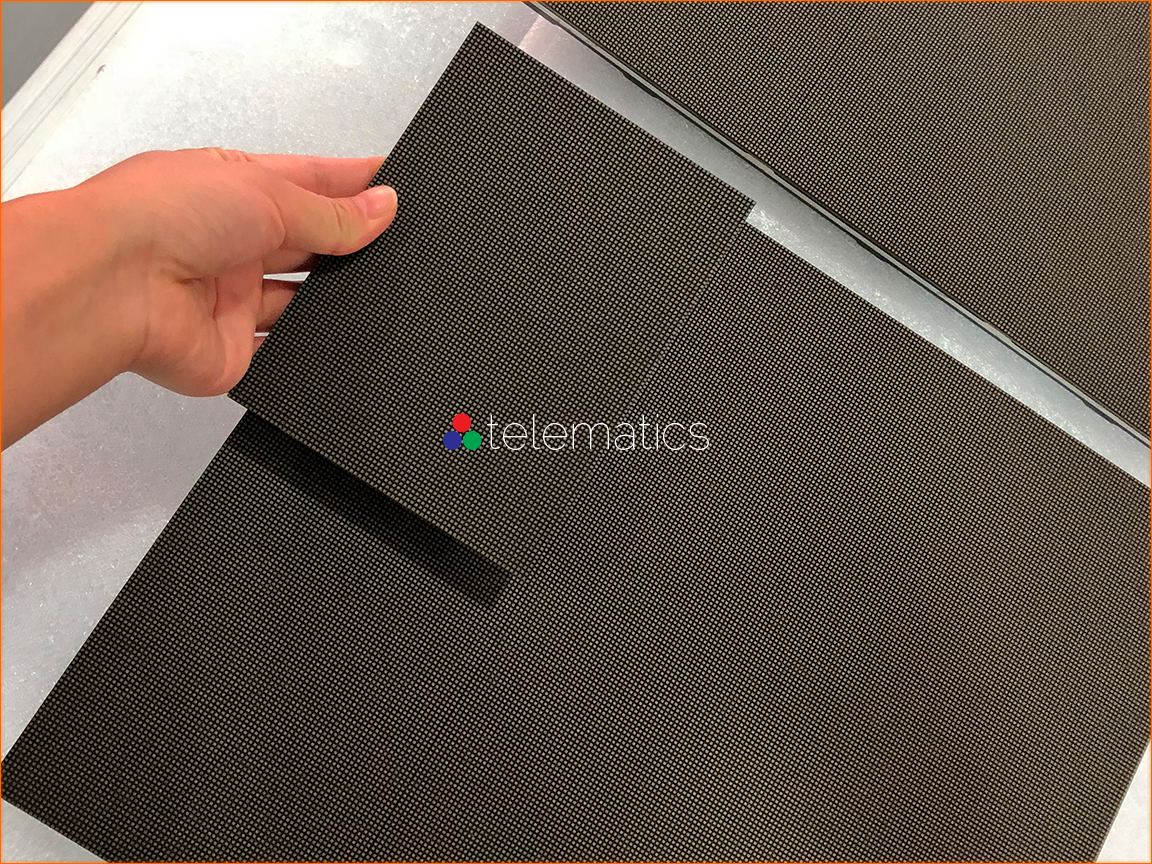

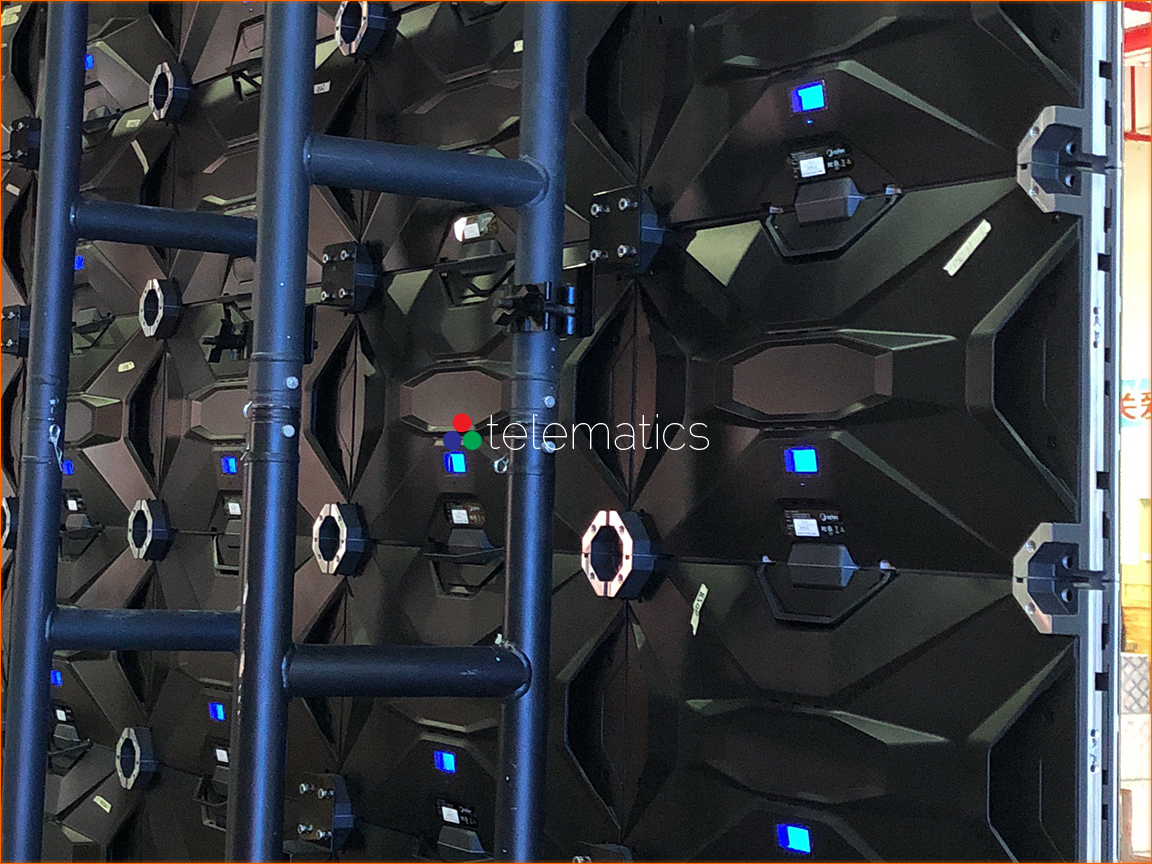

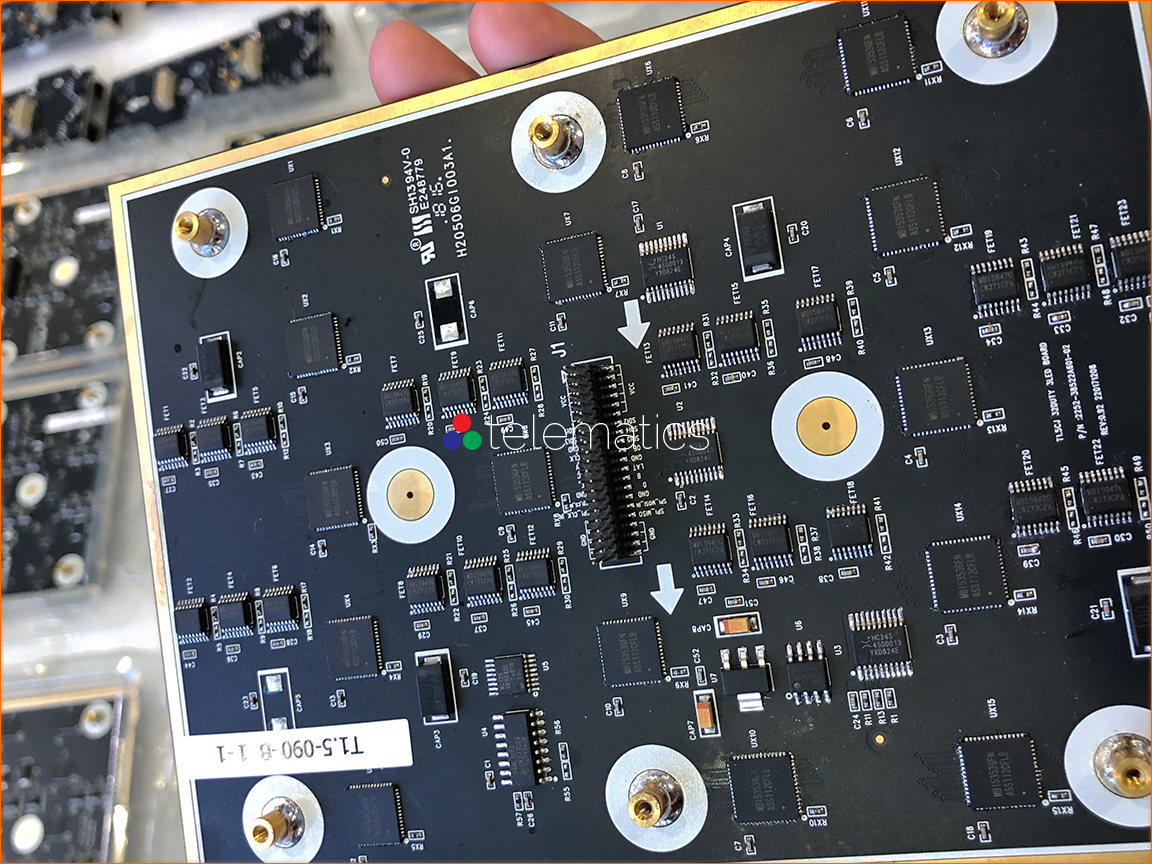

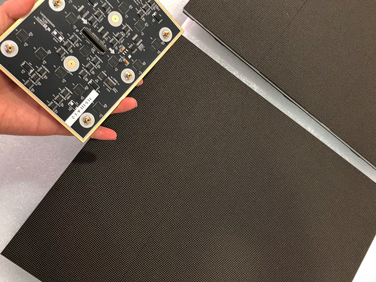

The Series T is serviced from the front of the display by removing one or both of the two modules that fill out a single panel. This feature allows for permanent installations to be mounted tightly to walls, requiring extra space only for adequate thermal ventilation instead of technicians.

Pixel density starts at 155,245 and increases incrementally to more than ten times that number at 1,590,207 pixels per square meter across 6 models. Refresh rates are 3840 Hz and Neutrik power cables and data connectors join the panels together.

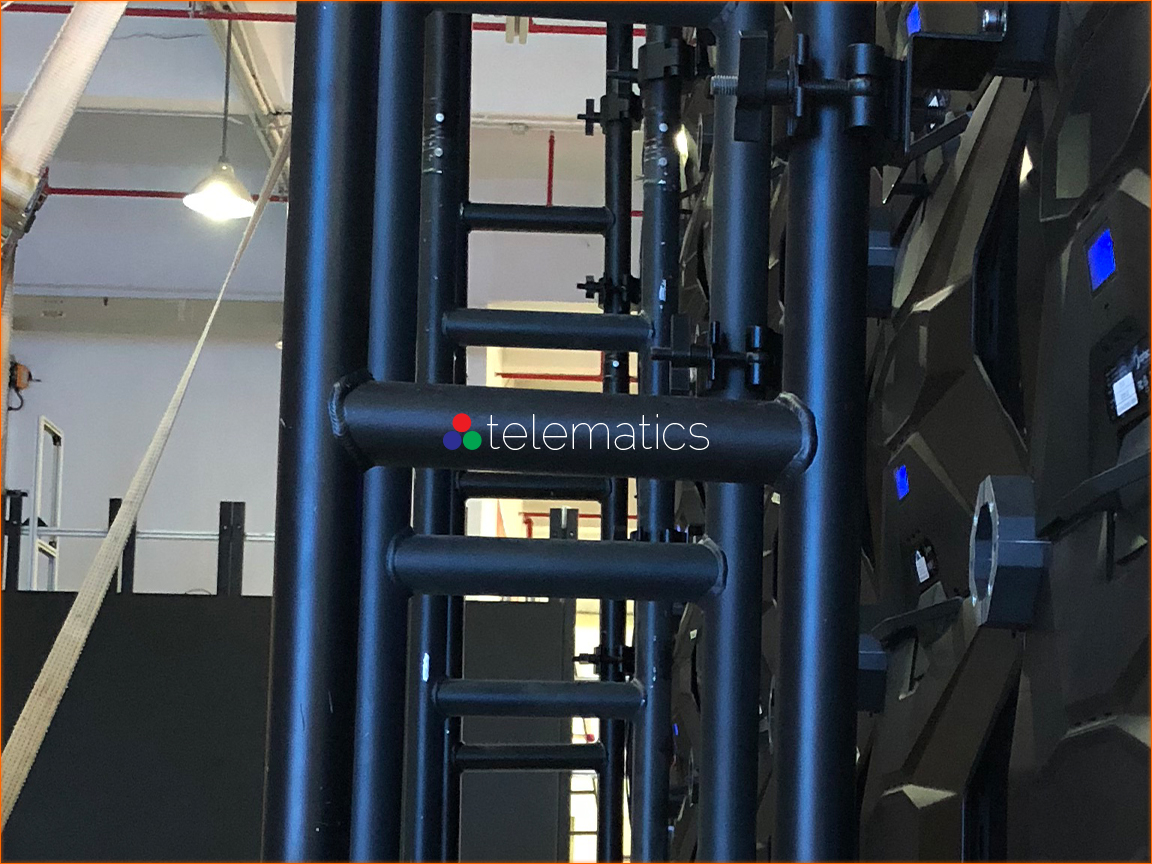

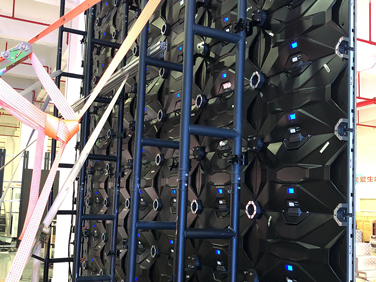

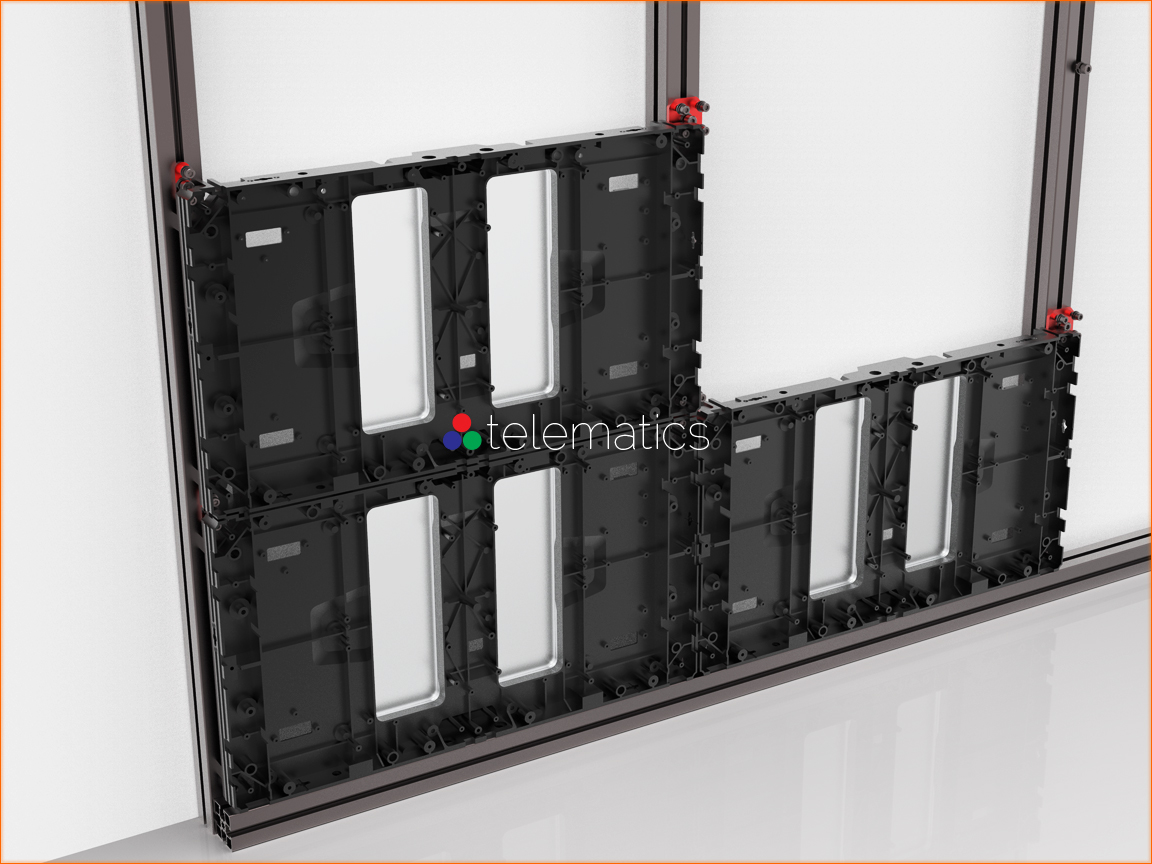

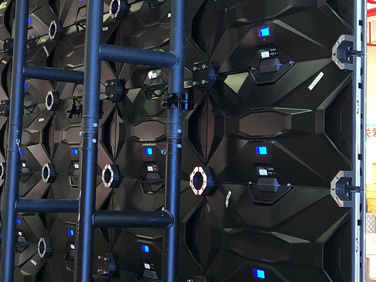

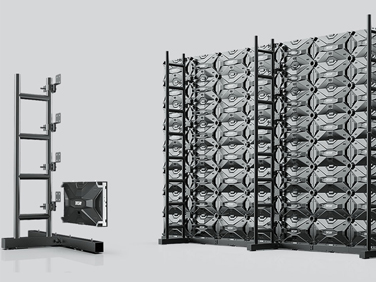

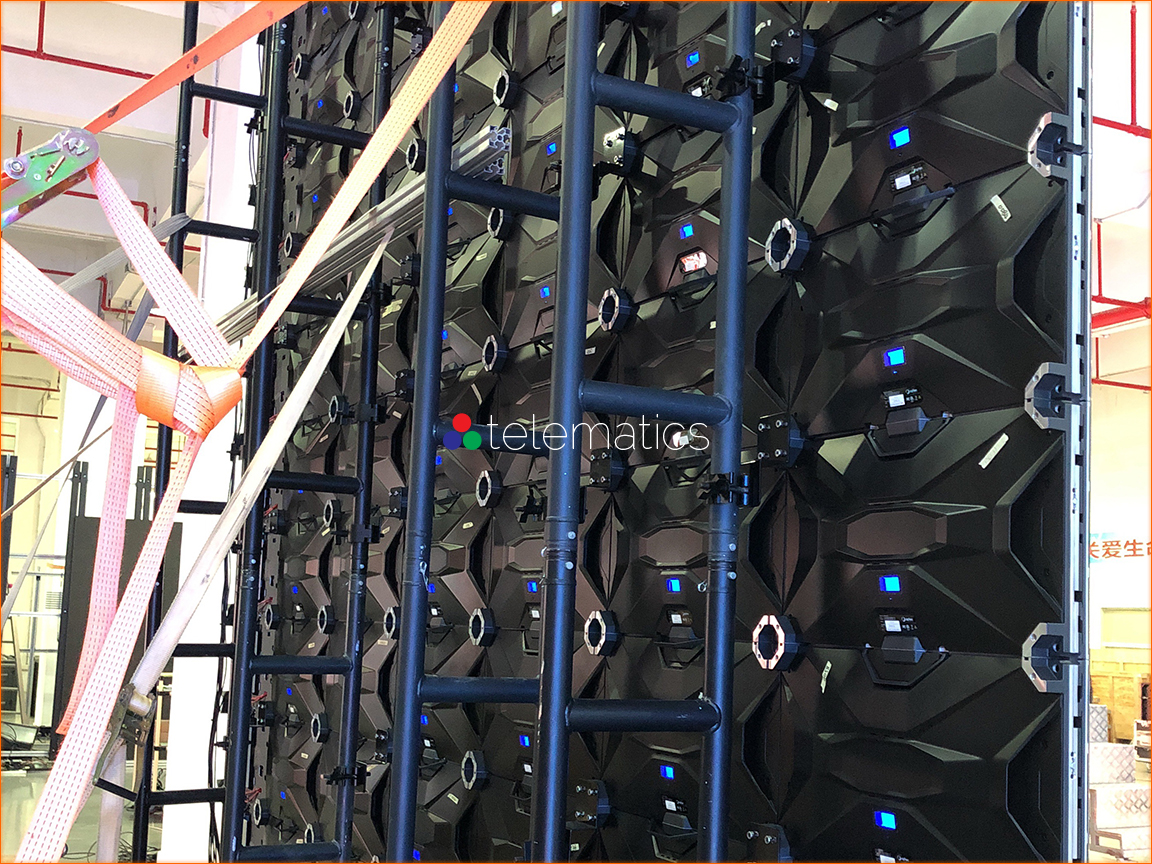

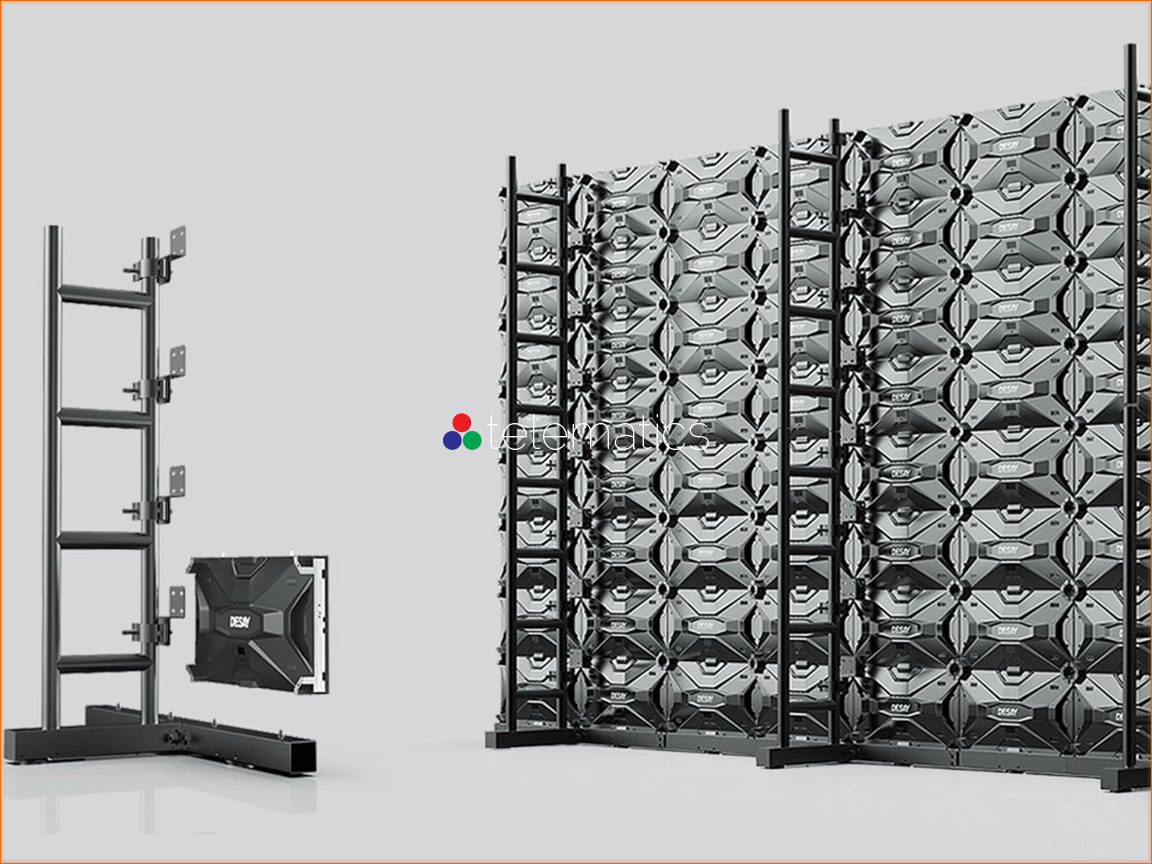

Install the Series T to a frame using the 4 corner anchors or assemble the panels using hanging bars or floor supports. Our technicians will provide mechanical drawings to create a steel frame locally or one can be built and shipped with your order.

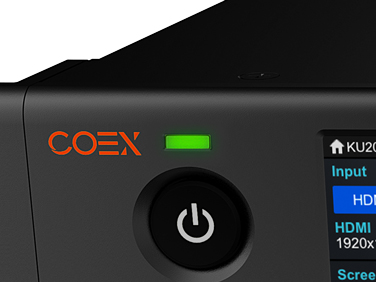

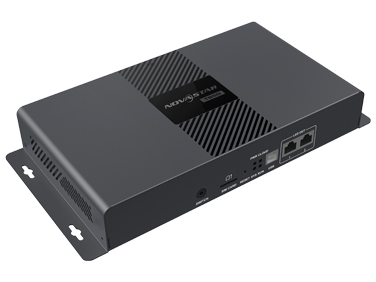

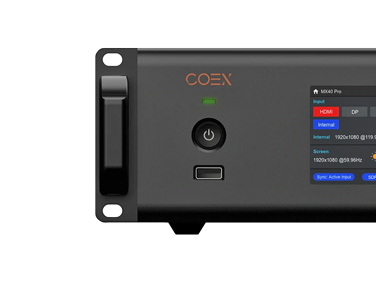

Media is handled by any of our NovaStar controllers. If a network of displays is being deployed, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

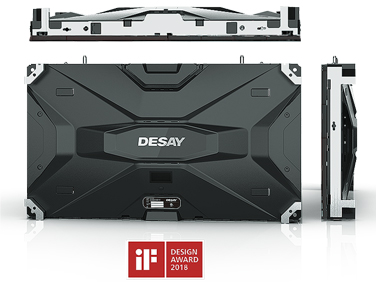

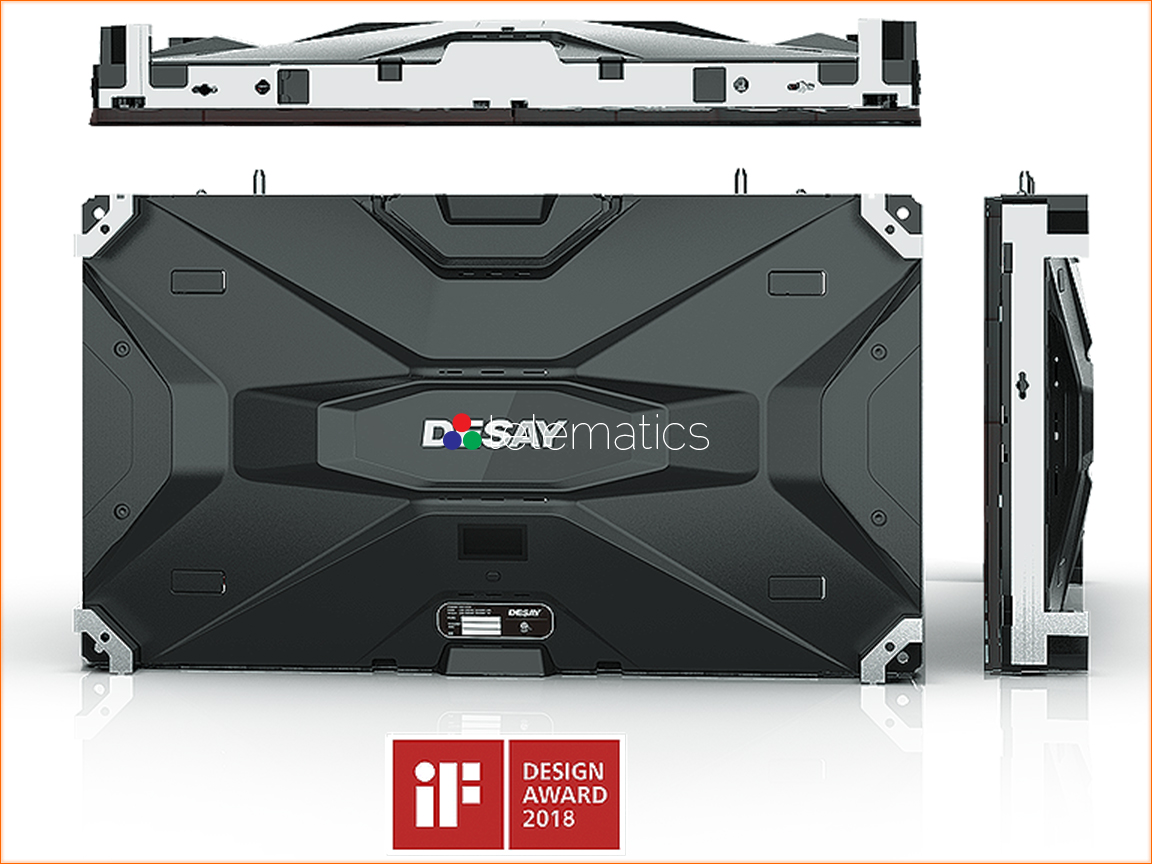

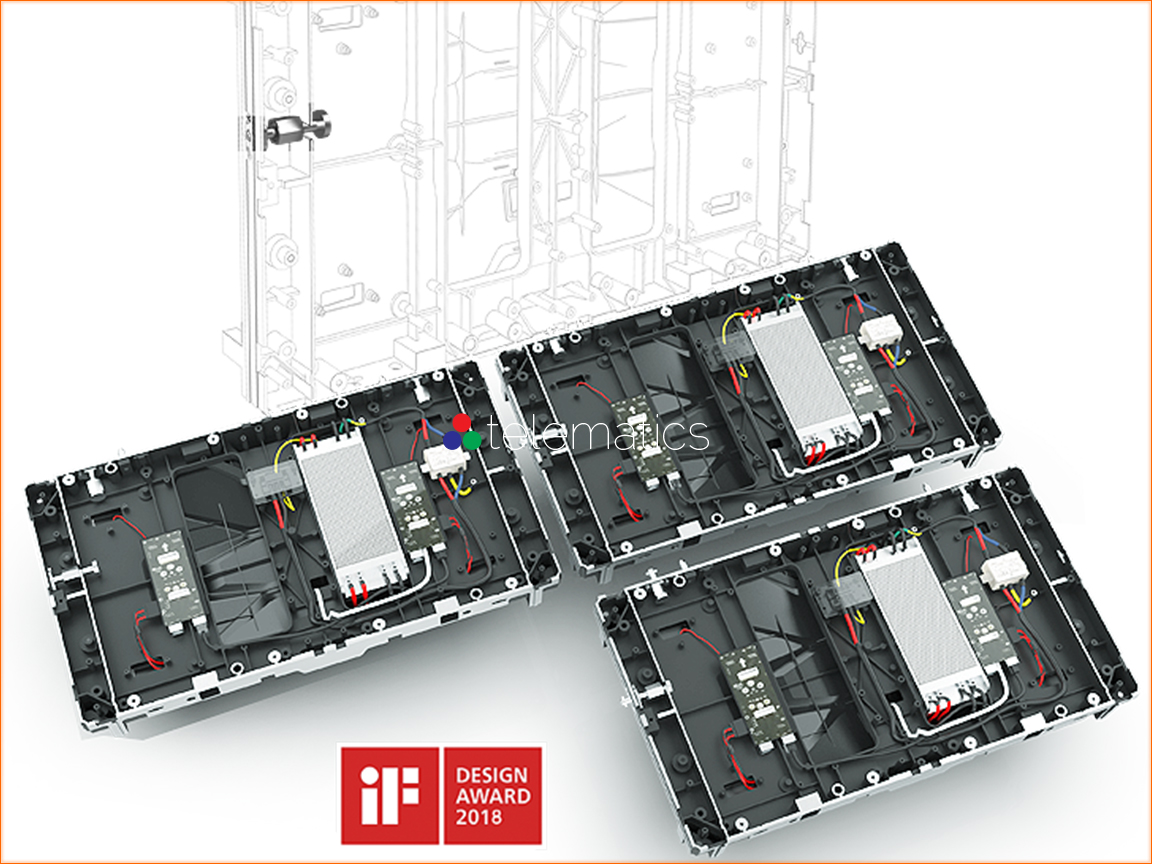

The Series T received an IF World Design Award in 2018 for product design that recognizes functional excellence. Sweet.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

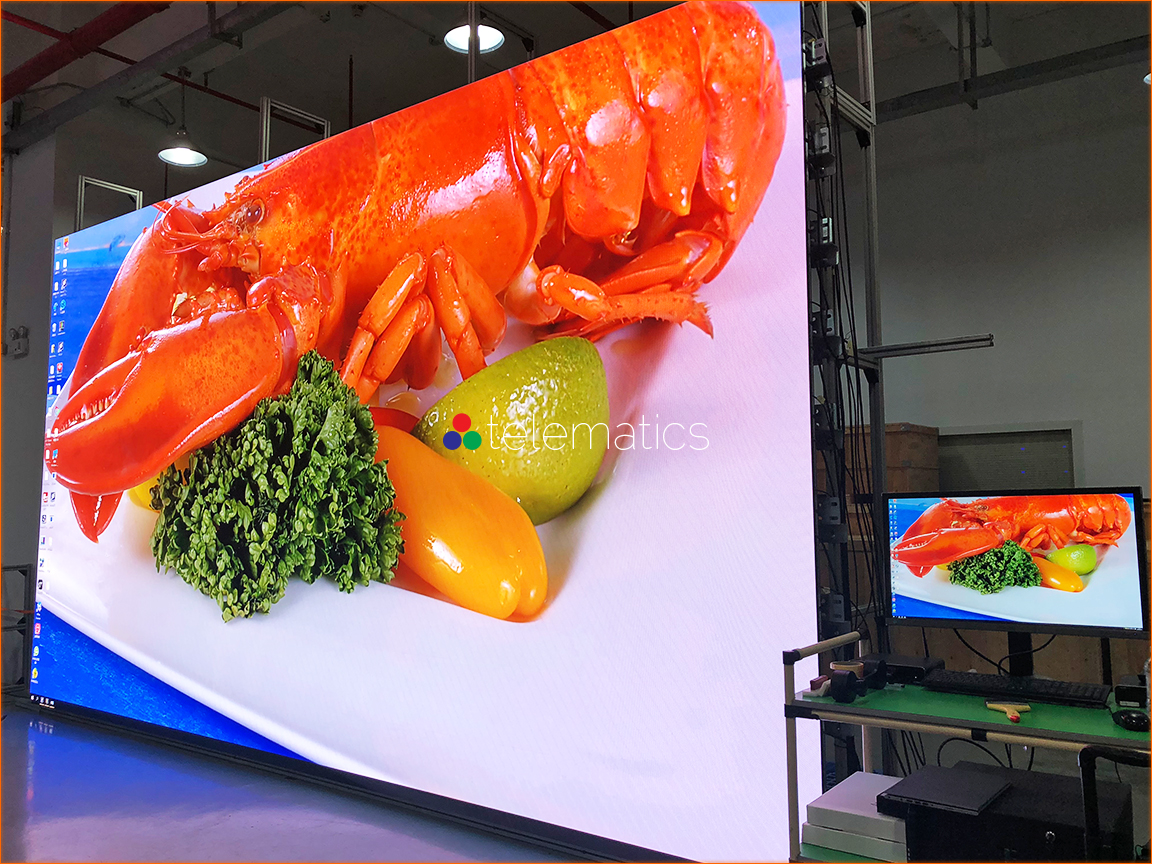

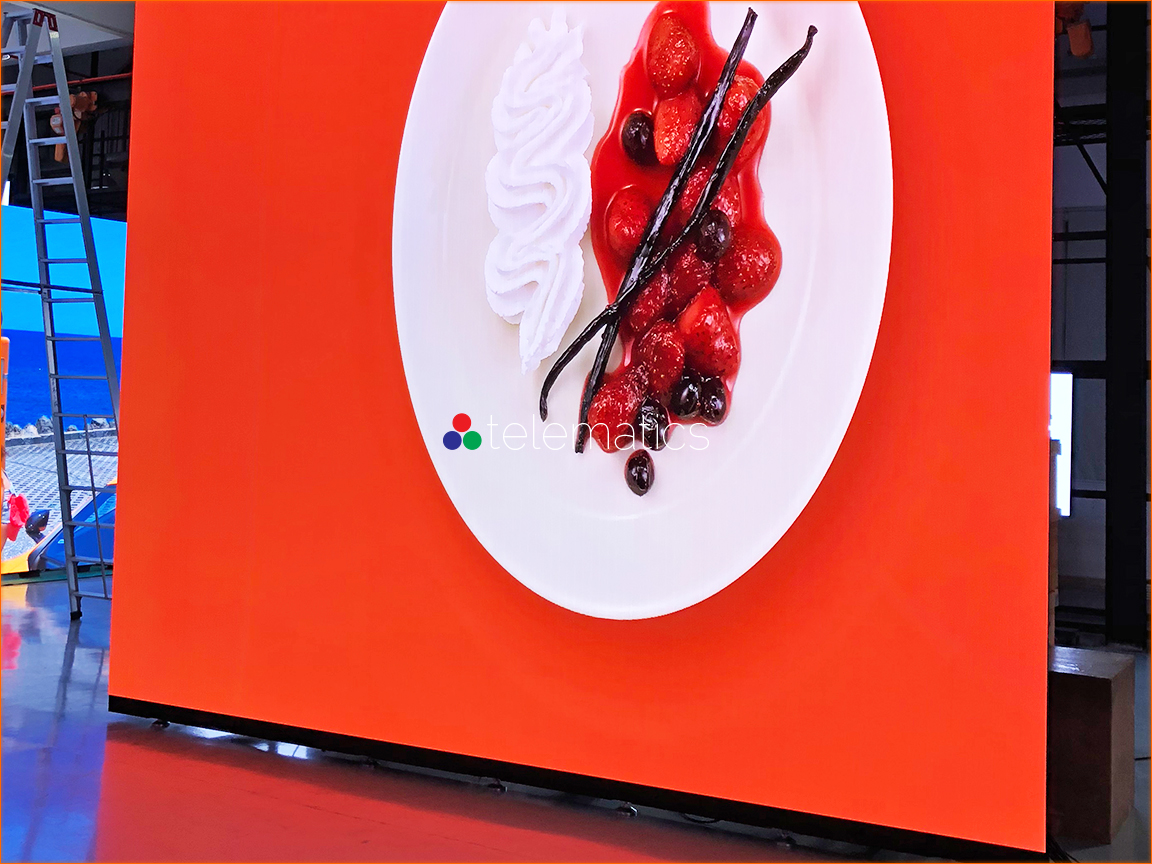

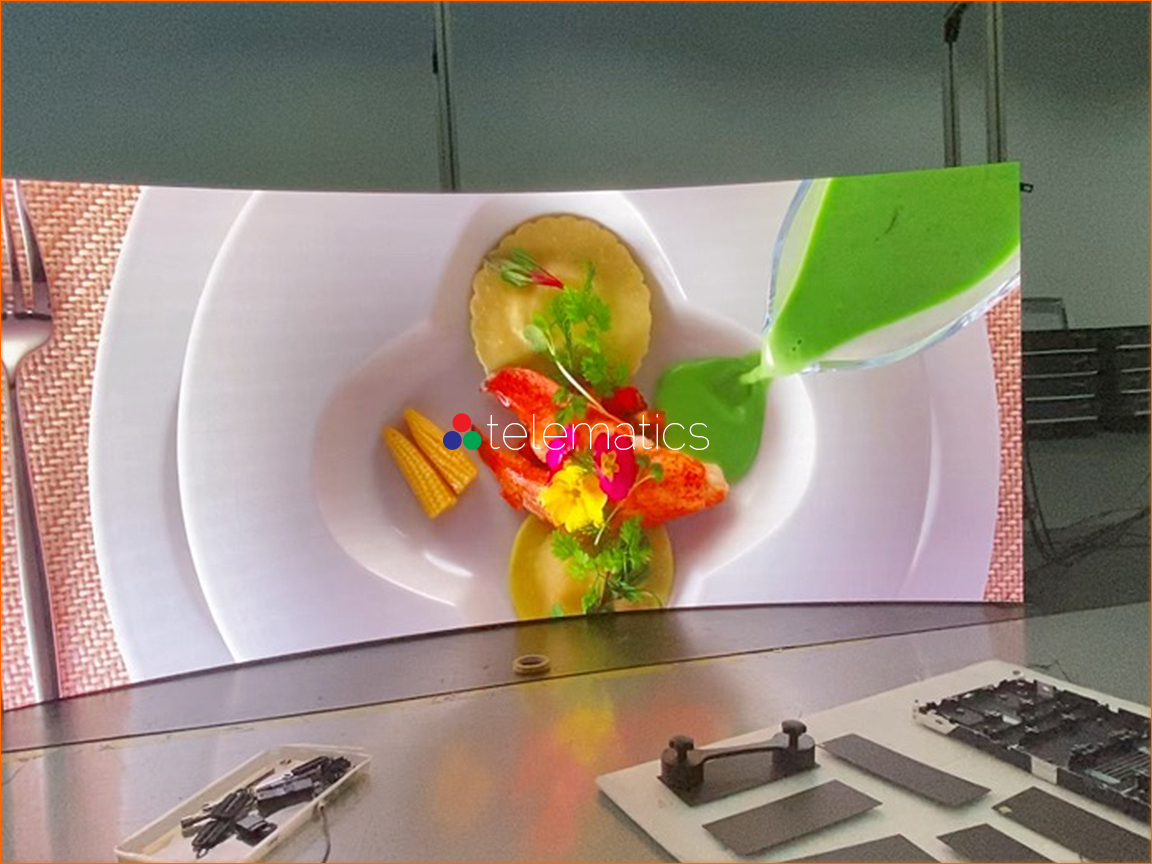

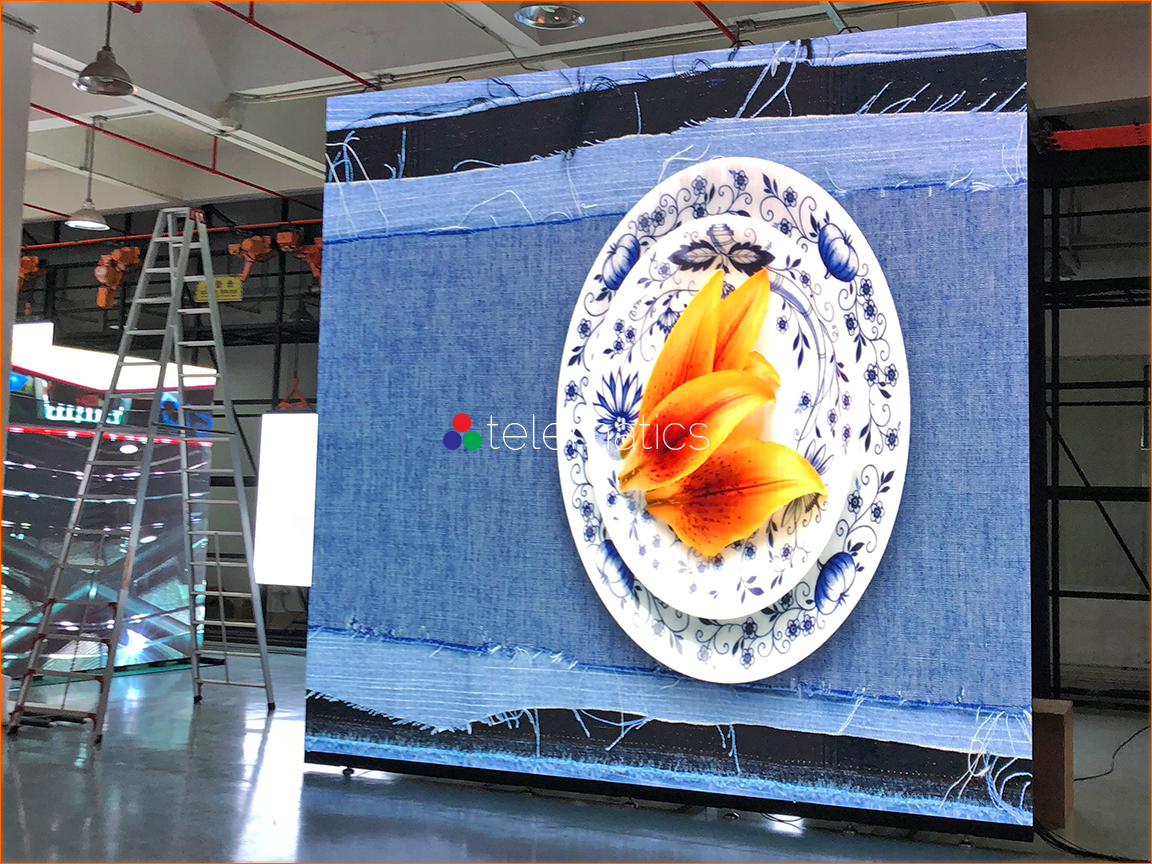

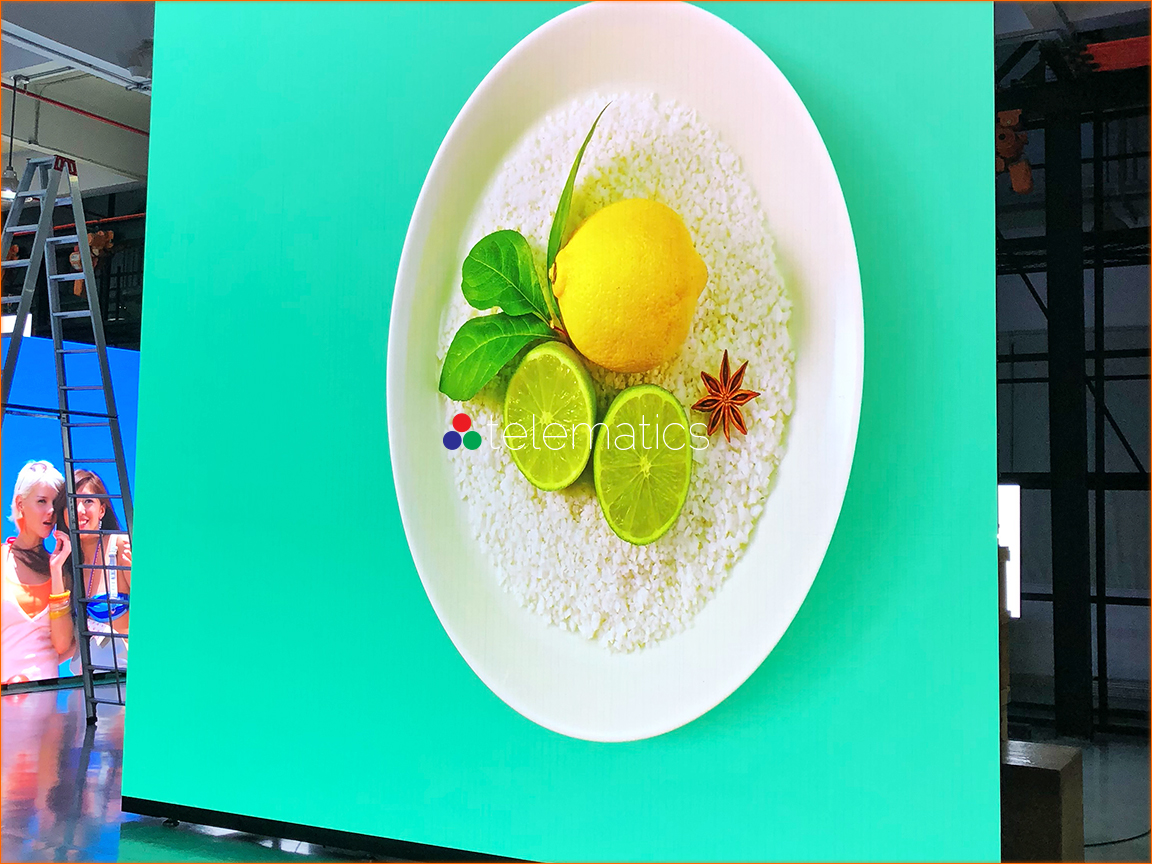

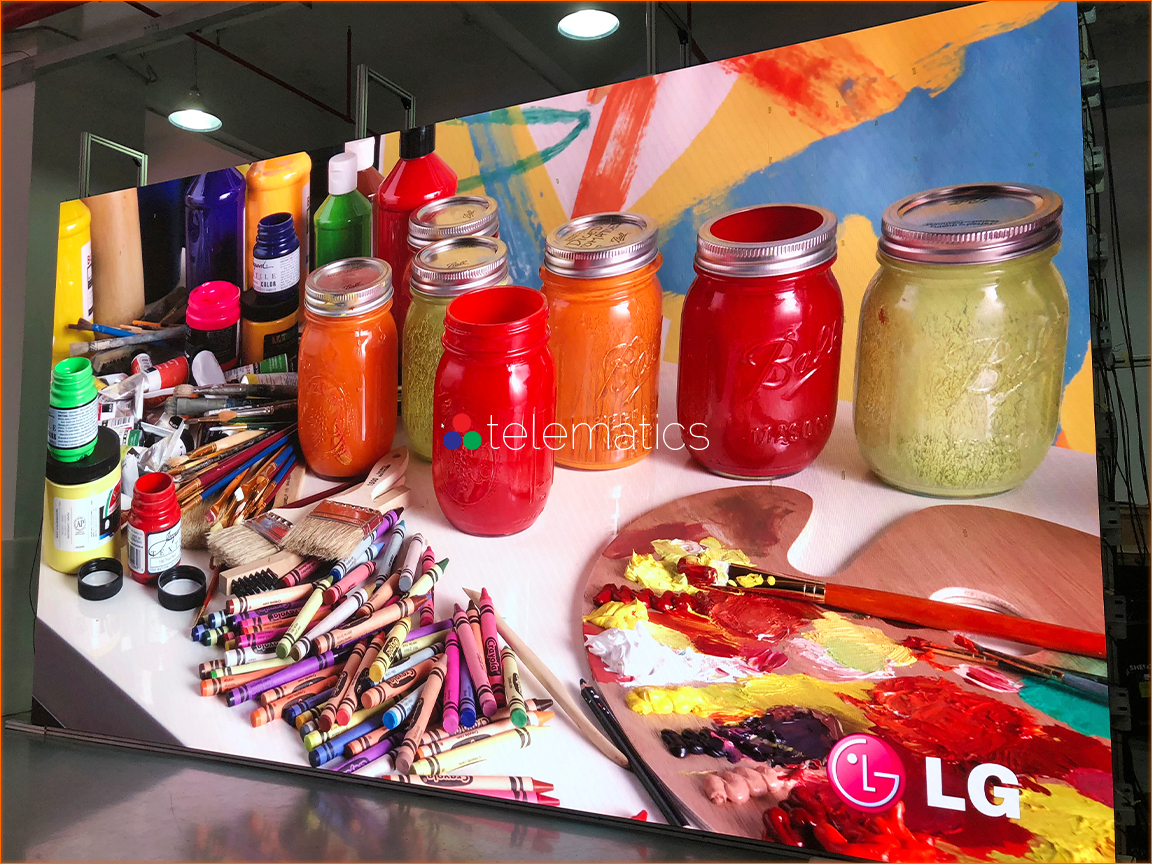

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu


Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu

·


S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· A1.99i 4675 base/per
· A2.57i 2755 base/per update: 9/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Kinglight Gold / Copper Wire LED quote

DSBJ Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series AT
· AT1.99i 12402 base/per
· AT2.57i 8880 base/per
· AT3.90i 6540 base/per
· AT2.57 10860 base/per
· AT3.90 7644 base/per update: 9/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series B
· B25·25 1146 base/sqm
· B31·31 834 base/sqm
· B42·42 588 base/sqm update: 9/2019

Cards · Controllers included

1000 Hz Refresh included

Cree / Multi-Color / Xindeco LED quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series G
· G2·5i 4592 base/sqm
· G3·7i 2334 base/sqm
· G5.20i 2712 base/sqm
· G7.81i 1896 base/sqm
· G10.41i 1980 base/sqm update: 9/2019

Cards · Controllers quote

2880 / 1920 Hz Refresh quote

Ultra / Standard Brightness LED quote

Ceiling quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series H
· H2.84i 3168 base/sqm
· H3.90i 2549 base/sqm
· H3.90 3372 base/sqm
· H6.94 2777 base/sqm update: 9/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HB
· HB2.90i 2149 base/sqm
· HB3.90i 1800 base/sqm
· HB3.90 2490 base/sqm
· HB4.81 2136 base/sqm update: 9/2019

Cards · Controllers quote

3840 Hz Refresh standard

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HL
· HL2.84i 2526 base/sqm
· HL3.90i 2136 base/sqm
· HL3.90 3012 base/sqm
· HL4.80 2308 base/sqm
· HL6.90 2105 base/sqm
· HL10.41 1848 base/sqm update: 9/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series M
· M4.76 2782 base/sqm
· M5.55 2272 base/sqm
· M6.25 2172 base/sqm
· M8.33 1848 base/sqm
· M10.00 1662 base/sqm
· M12.50 1410 base/sqm
· M16.66 1274 base/sqm update: 9/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold Wire LED standard

Install / Stage Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series PF
· PF2.97i 2004 base/sqm
· PF3.90i 1512 base/sqm
· PF4.80i 1332 base/sqm update: 9/2019

Cards · Controllers quote

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series QF
· QF3.90 0000 base/sqm
update: 7/2019

1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Ruifeng Gold Wire LED quote

4500 / 5000 / 5500 Nits quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series S
· S4.76 1982 base/sqm
· S6.25 1962 base/sqm
· S8.33 1622 base/sqm
· S10.00 1630 base/sqm
· S10.88 1693 base/sqm
· S15.24 1537 base/sqm
update: 9/2019

Cards · Controllers quote

3840 / 1920 / 1000 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

4500 / 5500 / 6000 / 8000 Nits quote

Xindeco High / Standard Brightness LED quote

6500 / 8500 / 9800 Nits quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series T
· T0.97i 23202 base/sqm
· T1.26i 10204 base/sqm
· T1.58i 7800 base/sqm
· T1.90i 5868 base/sqm
· T2.53i 3667 base/sqm
update: 9/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold Wire LED quote

NationStar Gold / Copper Wire LED quote

Hardened Surface quote

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series TR
· TR2.58i 3192 base/sqm
· TR2.95i 2892 base/sqm
update: 9/2019

Cards · Controllers quote

2880 Hz Refresh quote

NationStar Copper / Gold LED standard/upgrade

Hard Face 400/sqm

Staging Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series TVB
· TVB1.58i 10232 base/sqm
update: 9/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold LED quote

NationStar Gold / Copper LED quote

Hard Face 400/sqm

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series WB
· WB2.60i 2904  premium/sqm
· WB2.90i 2419  premium/sqm
· WB3.90i 2087  premium/sqm
update: 8/2019

Cards · Controllers quote

NationStar Gold Lamp standard

3840 Hz Refresh standard

Macroblock / Chipone standard/reduce

Hard Face 400/sqm

Direct Wall Installation standard

Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series WP
· WP2.60i 2833 base/sqm
· WP2.90i 2388 base/sqm
· WP3.90i 1788 base/sqm
· WP4.80i 1644 base/sqm update: 9/2019

Cards · Controllers quote

3840 Hz Refresh upgrade

NationStar Gold Wire Lamp standard

Macroblock upgrade

Hard Face 400/sqm

Rail Frame Installation quote

Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series X
· X1.56i 6584 base/sqm
· X1.95i 5170 base/sqm
· X2.60i 2870 base/sqm
· X2.97i 2872 base/sqm
· X3.90i 2294 base/sqm
· X3.10 5232 base/sqm
· X3.90 3714 base/sqm
· X4.46 3372 base/sqm
· X5.20 2998 base/sqm update: 9/2019

Cards · Controllers quote

3840 Hz Refresh upgrade

Jointec / Refond Black Face LED quote

NationStar Gold Wire LED upgrade

Neutrik Connectors upgrade

Hard Face 400/sqm

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Ocean · Air · Ground quote

Factory Warranty · 2 / 5 Years base / +

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
