The Art Of Control · Brompton Tessera SX40

Being entirely honest with oneself is a good exercise. ~ Sigmund Freud


Pixels

Pixel loading defaults to 4096 x 2160 for true 4K resolution, which means that a single Tessera SX40 can load up to 8,847,360 red, green and blue pixels in a single display. Our carbon fiber Desay Series HL just found a new dance partner. But which one is Ginger and which one is Fred?

Dimensions

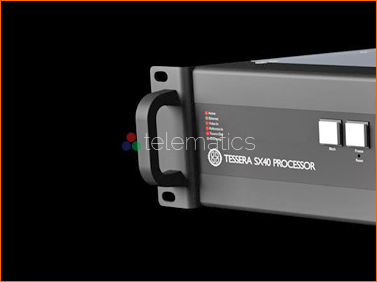

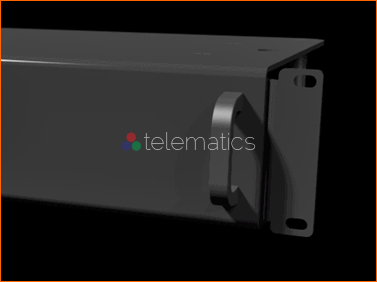

The SX40 is 2 rack units tall and ready to be put in its place. And true to its British origins, we have dimensions of 17 * 3.5 * 20 inches wide, tall and deep, with a rear width of 19 inches and just over 16.5 pounds. Or 432 * 89 * 508, and 483 millimeters for the rest of us.

Viewing

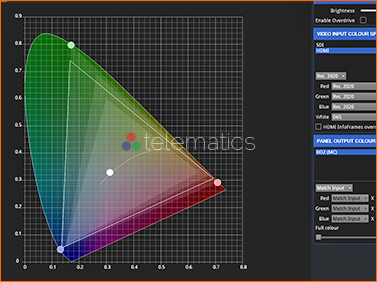

Our SX40 uses Dark Magic for dark details and ChromaTune for video colour replacement. OSCA is on screen colour adjustment to correct any mismatch. And if you prefer your video from a different perspective, the SX40 offers free placement and rotation of panels.

Performance

The SX40 supports full 4K up to 60 hertz with 8, 10 and 12 bits per channel colour depths and a full 18 gigabytes per second of HDMI 2.0 bandwidth with a maximum 600MHz pixel clock. Maybe take your tech guy out for a coffee and he can explain to you what all this means.

Power

The SX40 is rated CE and ETL/cETL for most every market, and has a switched autoranging power supply for 100V ~ 240V and an input power frequency of 50 ~ 60 hertz. Our Desay technicians will provide an electrical schematic specific to your LED project on request.

Installation

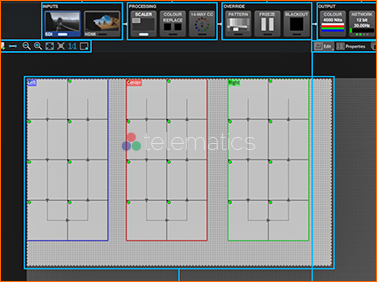

Slide your new SX40 into a 19" rack and plug it into the mains power. Connect to your displays through HDMI or SDI with DP for monitor output. Load up Tessera Management Software for local use or Tessera Remote Software. Call us if you need any assistance.

Specifications · Tessera Processors

Desay Series H · HL · TR · TRB · TVB · X ❤ Brompton
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series indoor SX40 S8 S4 T1 XD R2
Price usd per unit
Series
Dimensions mm · (inch)
Width 483 (19.0) 483 (19.0) 483 (19.0) 483 (19.0) 483 (19.0)

Height 89 (3.5) 89 (3.5) 89 (3.5) 45 (1.7) 45 (1.7)

Depth 508 (20.0) 508 (20.0) 406 (16.0) 343 (13.5) 343 (13.5)
Weight kilo · (pound)
Cabinet 9.0 (20.0) 9.0 (20.0) 7.5 (16.5) 3.1 (6.8) 3.1 (6.8)
Inputs (#)
SDI · serial digital interface 3G-SDI (2) 12G-SDI (1) 12G-SDI (1)

DVI · digital visual interface DVI-I (1) DVI-I (1) DVI-I (1)

HDMI · high definition multimedia interface HDMI 2.0 (1) HDMI 2.0 (1)

Re-clocked · re-clocked video thru ports 🗸 🗸 🗸 🗸 🗸

Sync Reference Input · bi/tri level 🗸 🗸 🗸
Outputs (#)
Output Ports 🗸 (4) 🗸 (4) 🗸 (8) 🗸 (4) 🗸 (1)

Type 1G Ethernet (1) XD (10G/1G) (1) 1G Ethernet (1) 1G Ethernet (1) 1G Ethernet (1)

Fiber Outputs 🗸 to XD (1)

Closed Loop Redundancy 🗸 🗸 🗸 🗸

Processor Redundancy 🗸
Capacity (#)
Pixel Capacity · nominal 2.1 (million) 9.0 (million) 4.5 (million) 2.1 (million) 0.5 (million)

Canvas Size · default 1920 * 1080 4096 * 2160 4096 * 2160 1920 * 1080 1920 * 1080

Canvas Size · custom support 🗸 🗸 🗸 🗸 🗸

Maximum Fixture Count 2000 2000 2000 2000 500
Front End
Processing Pipelines Dual Single Single Single

De-interlacing · sd · hd-sdi 🗸

Region Of Interest Clipping 🗸 🗸

Scaling · up · down 🗸 🗸 🗸 🗸

Cross-Fading · input · setting 🗸
Colour Processing
Input Colour Processing 🗸 🗸 🗸 🗸 🗸

Colour Processing · global · per-fixture 🗸 🗸 🗸 🗸 🗸

On-Screen Colour Adjustment · osca 🗸 🗸 🗸 🗸 🗸

ChromaTune 🗸 🗸 🗸
Panel Processing
Multiple Fixture Type Support 🗸 🗸 🗸 🗸 🗸

Automatic Pixel Pitch Interpolation 🗸 🗸

Fixture Rotation ⎋° 90 · 180 · 270° 90 · 180 · 270° 90 · 180 · 270° ⎋°

Free Fixture Placement 🗸 🗸 🗸 🗸 🗸
Genlock · Latency
Lock · video · reference source 🗸 🗸 🗸 🗸 🗸

Lock · internal timing reference 🗸 🗸 🗸 🗸

End-To-End Latency · all features Frames (3) Frames (2) Frames (2) Frames (2) Frames (3)

End-To-End Latency · low latency mode Frames (2) Frames (2)
Control
Local User Interface 🗸 🗸 🗸 🗸 🗸

Tessera Remote User Interface 🗸 🗸 🗸 🗸 🗸

Video on Canvas Preview · local only 🗸 🗸 🗸 🗸

DMX-512 · Art-Net · sACN · live control 🗸 🗸

Tessera Control Support 🗸 🗸 🗸 🗸 🗸

Management Ports 🗸 (2) 🗸 (2) 🗸 (2) 🗸 (1) 🗸 (1)

Front Panel Buttons 🗸 (2) 🗸 (2) 🗸 (2)
Installation
IP Code 20 20 20 20
Operating · celsius · (fahrenheit) -20 (-4) · 60 (140) -20 (-4) · 60 (140) -20 (-4) · 60 (140) -20 (-4) · 60 (140)
Fine Print
Specifications Brompton and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.
