The Art Of Control · NovaStar TCB300

Name: TCB300
Brand: NovaStar
SKU: novastar tcb300
Price: 95 USD
Availability: InStock

I have not failed. I've just found 10,000 ways that won't work. ~ Thomas A. Edison

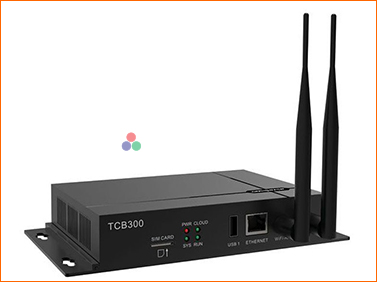

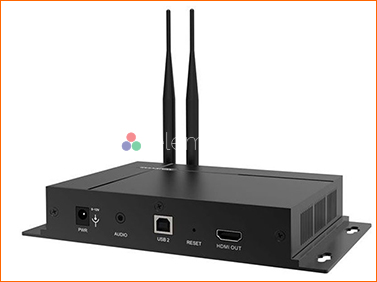

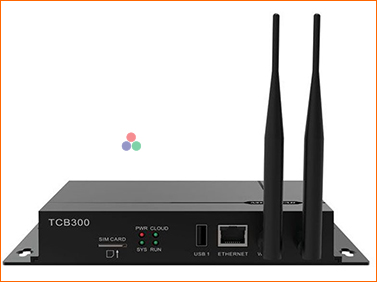

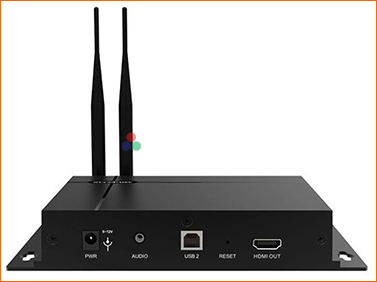

NovaStar TCB300 · 4G WiFi · digital signage LCD display multimedia player · review · price

The NovaStar TCB300 · Digital on a dime.

If only high value came with a low cost. Oh wait...

Pixels

The TCB300 is good to go with most any LCD monitor right out of the box. With a 1.2 GHz four-core processor, the TCB300 supports up to 1080P video hardware decoding and pretty much the full alphabet of image and video codecs. As with all important matters in life: read the manual.

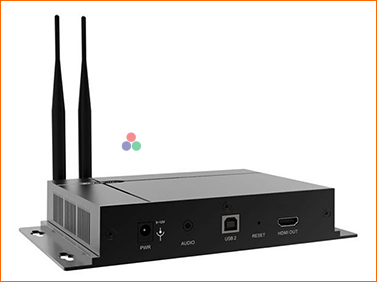

Dimensions

Small enough to squeeze in but not so small you'll lose it. Just a quarter of a kilogram with XYZ dimensions of
196 * 115 * 34 millimeters.
Boomers can convert those numbers to the Exchequer Standards of 1825 for dimensions of 8 * 4.5 * 1.5 inches
and a featherweight 9 ounces.

Viewing

Your new TCB300 will be powering up your choice of LCD display panels across a university campus or around a city. Content will reside on 32 GB of internal storage and can be updated via NovaStar VNNOX from wherever your office or your smartphone happens to be that day. Nice.

Performance

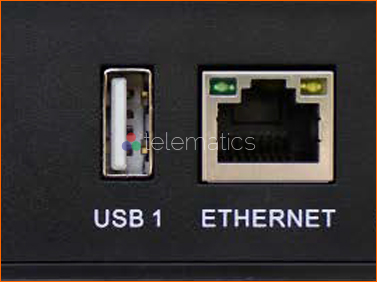

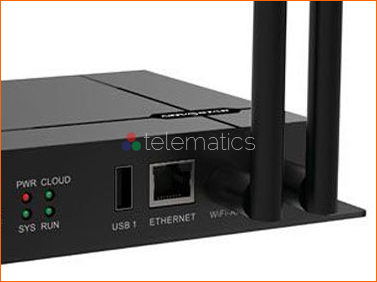

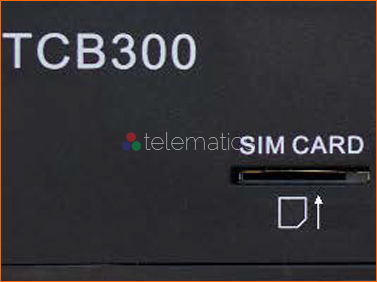

Connect to your new network via Ethernet. Or go with WiFi to cut cables. And for those hard-to-reach installations, opt for a 4G card. Clustered remote publishing and screen control will help you create a digital empire while saving precious time and energy - mostly yours.

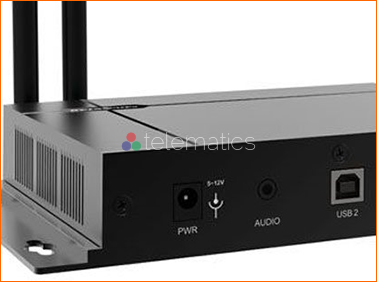

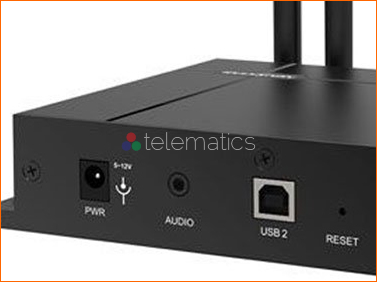

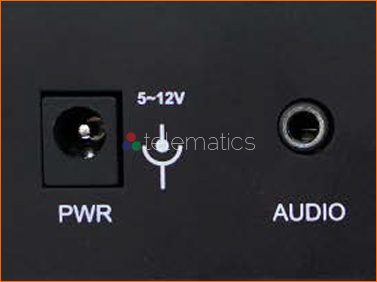

Power

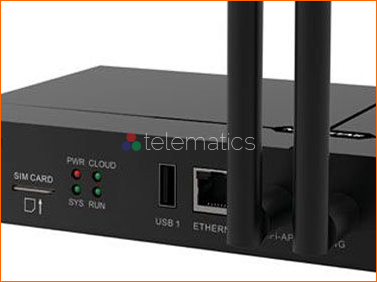

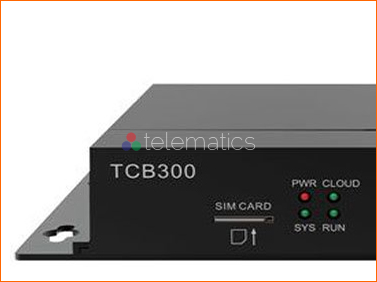

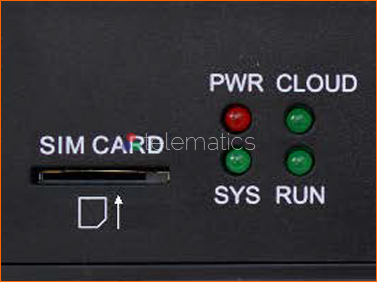

Maximum power consumption is a low 15 W. Red and green indicators flash for system status including downloads and connection to the internet. If both WiFi and 4G networks are available, the priority network is automatically selected. And it comes in matte black.

Installation

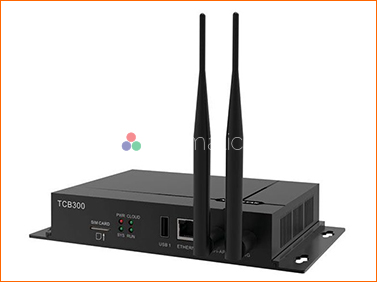

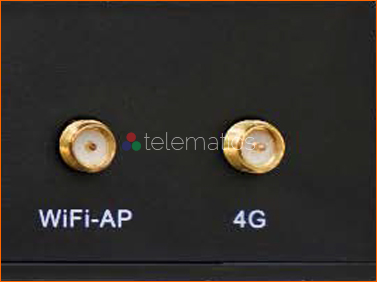

NovaStar's TCB300 is ready to roll in operating temperatures ranging from -20° to 60° Celsius and anywhere between 0% and 80% relative humidity, non-condensing. Be sure to leave 200 mm for antennas off the front panel, or specify extenders and place them in the perfect spot.

Specifications · TCB300

LCD Signage Networked VNNOX

You cannot shake hands with a clenched fist. ~ Indira Gandhi

The Sales Pitch

So here's the deal...

Change your life today. Don't gamble on the future, act now, without delay. ~ Simone de Beauvoir

About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Our Manufacturers

NovaStar is one of the leading LED display solutions providers in the world, with product lines that include LED display synchronous and asynchronous control systems, point-by-point calibration and cloud-based information publishing and management.

The Beijing Olympic Games, Tienanmen Celebration for the 60th Anniversary on National Day,Shanghai World Expo, Guangzhou Asian Games, Xi'an International Horticultural Expo, Games for University Students and other large-scale events all relied on control systems are provided by Nova.

Through constant innovation, NovaStar now holds more than 20 proprietary intellectual property rights in LED display control, cloud computing and other fields.

NovaStar has been awarded the Xi'an Award for Science and Technology and the Shaanxi Award for Science and Technology.

Our Customers

For 20 years we have developed business relationships with thousands of people from every corner of the world.

Many are audio visual professionals and consultants who need to source premium equipment for their clients. Others are architects and designers looking for solutions to create LED walls or interactive floors. And some are end-users prepared to take on the challenge of setting up their own digital displays.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget. There...I'm feeling better already.

Order

If you are like everyone else, you will leave this part to the last possible moment. Then we will share in your stress and jump through every imaginable hoop to meet your evolving schedule. We strive to have the most popular NovaStar products in stock at all times, but orders are first-come first-serve.

Ship

We can ship your order by air or ground as your budget and time allows. Shipping and Customs schedules can be estimated, but are external variables that are outside of our control. Allow plenty of time for unexpected delays. You would not believe how many National Holidays are observed in China. Seriously.

Install

Your installation will include a PC for content and a NovaStar controller to direct that content to the display. There will be power and data cables to hook everything up and a frame or support beams to mount your display. If you need assistance with this, Telematics can often suggest a local partner.

Service

NovaStar provides their full technical expertise to assist Telematics and our clients with any issues where we have requested their assistance. Most problems are diagnosed and resolved very quickly using remote access software, Skype and webcams or a simple exchange of emails and phone calls.

Warranty

NovaStar supports their products with a comprehensive 3-year factory warranty that is completely free of fine print from the Law Firm of Obfuscate, Muddle and Flummox, and is instead defined by simply keeping our customers' confidence by standing behind each and every product they make.

Our Cool Photos

A picture is worth a thousand clicks.

Very little is needed to make a happy life; it is all within yourself, in your way of thinking. ~ Marcus Aurelius

Our Cool Videos

A video is worth a thousand likes.

There is nothing on this earth more to be prized than true friendship. ~ Thomas Aquinas

Contact Telematics Canada

Politely awaiting your call. It's a Canadian thing...

We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu

Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada

365 days
8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Player ^indoor	TCB300
Price ^{usd per unit}
Player ^{· wifi · ethernet} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	$ 95
Player ^{· wifi · ethernet · 4g module} • multimedia player 🗸 vnnox 🗸 4g module 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	+ 95

VNNOX ^{· cloud platform· standard} • multimedia player 🗸 vnnox 🗸 4g module 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	$ 0
VNNOX ^{· cloud platform· icare} • multimedia player 🗸 vnnox 🗸 4g module 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	$ 0
VNNOX ^{· cloud platform· ad} • multimedia player 🗸 vnnox 🗸 4g module 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	$ 195
Pixels
Image ^{· jpeg} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	limit
Image ^{· bmp· gif · png · webp} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	no limit

Video ^{· mpeg · mpeg 1/2 · mpeg 4} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	limit
Video ^{· h.264/avc · h.265/hevc · mvc · vp8} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	limit
Video ^{· vc-1} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	limit
Cabinet
Width ^{· standard} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	0.190
Height ^{· standard} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	0.335
Depth ^{· standard} • multimedia player 🗸 vnnox 🗸 wifi 🗸 ethernet • 1.2 GHz processor 🗸 1 GB operating 🗸 32 GB storage	0.165

Weight ^{· standard} • approximate weight 🗸 refer to schematics	0.266

Environment ^{· ip code} • Ingress Protection 🗸 protection from dust 🗸 protection from liquids	20
Environment ^{· temperature} • Ingress Protection 🗸 protection from dust 🗸 protection from liquids	-20º ~ 60º
Environment ^{· humidity} • Ingress Protection 🗸 protection from dust 🗸 protection from liquids	80% relative
Power
Watts · unit	15

Voltage · vac	5V DC
Installation
Creative ^{· secure to surface} • secure 🗸 to solid structure 🗸 inside cabinet	⌜⌟


Fine Print
Factory Warranty · standard	NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Certifications · etl · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.
Specifications · price	NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.
